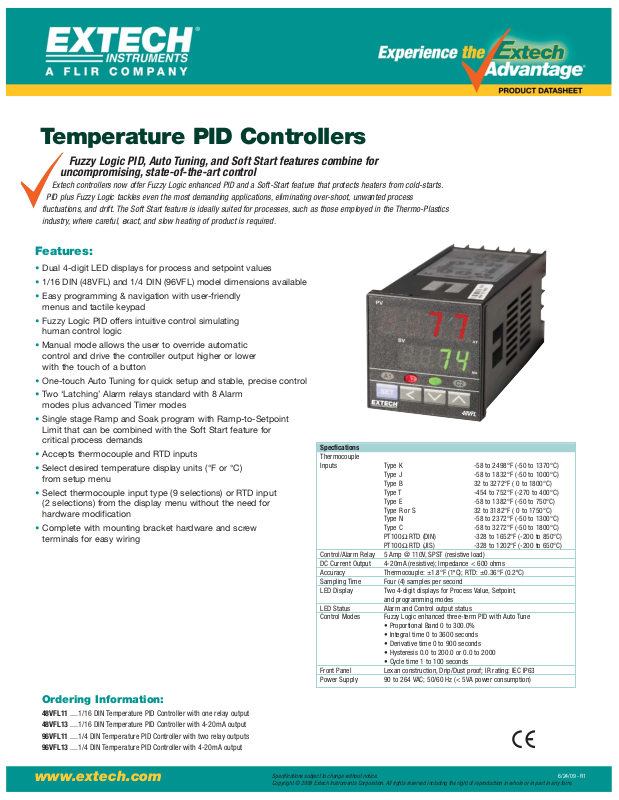

Extech VFL Data sheet

Ordering Information:
48VFL11 ....1/16 DIN Temperature PID Controller with one relay output
48VFL13 ....1/16 DIN Temperature PID Controller with 4-20mA output
96VFL11 ....1/4 DIN Temperature PID Controller with two relay outputs
96VFL13 ....1/4 DIN Temperature PID Controller with 4-20mA output
Specifications subject to change without notice. Copyright © 2009 Extech Instruments Corporation. All rights reserved including the right of reproduction in whole or in part in any form.
6/24/09 - R1
Features:
Dual 4-digit LED displays for process and setpoint values
1/16 DIN (48VFL) and 1/4 DIN (96VFL) model dimensions available
Easy programming & navigation with user-friendly
menus and tactile keypad
Fuzzy Logic PID offers intuitive control simulating
human control logic
Manual mode allows the user to override automatic
control and drive the controller output higher or lower with the touch of a button
One-touch Auto Tuning for quick setup and stable, precise control
Two ‘Latching’ Alarm relays standard with 8 Alarm
modes plus advanced Timer modes
Single stage Ramp and Soak program with Ramp-to-Setpoint
Limit that can be combined with the Soft Start feature for critical process demands
Accepts thermocouple and RTD inputs
Select desired temperature display units (°F or °C)
from setup menu
Select thermocouple input type (9 selections) or RTD input
(2 selections) from the display menu without the need for hardware modification
Complete with mounting bracket hardware and screw
terminals for easy wiring
Fuzzy Logic PID, Auto Tuning, and Soft Start features combine for
uncompromising, state-of-the-art control
Extech controllers now offer Fuzzy Logic enhanced PID and a Soft-Start feature that protects heaters from cold-starts.
PID plus Fuzzy Logic tackles even the most demanding applications, eliminating over-shoot, unwanted process fluctuations, and drift. The Soft Start feature is ideally suited for processes, such as those employed in the Thermo-Plastics industry, where careful, exact, and slow heating of product is required.
Temperature PID Controllers
Specfications
Thermocouple Inputs Type K -58 to 2498°F (-50 to 1370°C)
Type J -58 to 1832°F (-50 to 1000°C) Type B 32 to 3272°F ( 0 to 1800°C) Type T -454 to 752°F (-270 to 400°C) Type E -58 to 1382°F (-50 to 750°C) Type R or S 32 to 3182°F ( 0 to 1750°C) Type N -58 to 2372°F (-50 to 1300°C) Type C -58 to 3272°F (-50 to 1800°C) PT100Ω RTD (DIN) -328 to 1652°F (-200 to 850°C)
PT100Ω RTD (JIS) -328 to 1202°F (-200 to 650°C) Control/Alarm Relay 5 Amp @ 110V, SPST (resistive load) DC Current Output 4-20mA (resistive); Impedance < 600 ohms Accuracy Thermocouple: ±1.8°F (1ºC); RTD: ±0.36°F (0.2ºC) Sampling Time Four (4) samples per second LED Display Two 4-digit displays for Process Value, Setpoint,
and programming modes LED Status Alarm and Control output status Control Modes Fuzzy Logic enhanced three-term PID with Auto Tune
• Proportional Band 0 to 300.0%
• Integral time 0 to 3600 seconds
• Derivative time 0 to 900 seconds
• Hysteresis 0.0 to 200.0 or 0.0 to 2000
• Cycle time 1 to 100 seconds Front Panel Lexan construction, Drip/Dust proof; IR rating: IEC IP63 Power Supply 90 to 264 VAC; 50/60 Hz (< 5VA power consumption)
