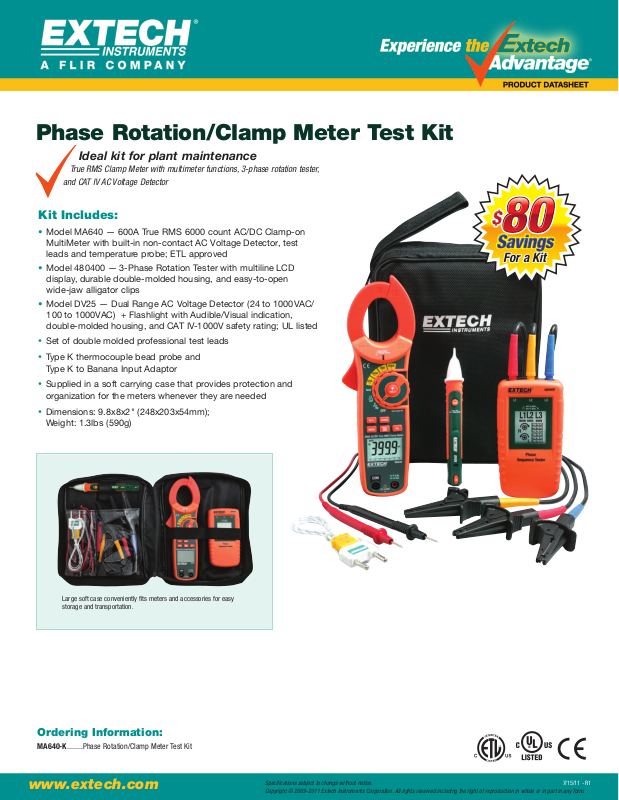

EXTECH MA640-K User Guide

Phase Rotation/Clamp Meter Test Kit

For a KitFor a Kit

For a Kit

Ideal kit for plant maintenance

True RMS Clamp Meter with multimeter functions, 3-phase rotation tester,

and CAT IV AC Voltage Detector

Kit Includes:

• Model MA640 — 600A True RMS 6000 count AC/DC Clamp-on

MultiMeter with built-in non-contact AC Voltage Detector, test
leads and temperature probe; ETL approved

• Model 480400 — 3-Phase Rotation Tester with multiline LCD

display, durable double-molded housing, and easy-to-open
wide-jaw alligator clips

• Model DV25 — Dual Range AC Voltage Detector (24 to 1000VAC/

100 to 1000VAC) + Flashlight with Audible/Visual indication,
double-molded housing, and CAT IV-1000V safety rating; UL listed

• Set of double molded professional test leads

• Type K thermocouple bead probe and

Type K to Banana Input Adaptor

• Supplied in a soft carrying case that provides protection and

organization for the meters whenever they are needed

• Dimensions: 9.8x8x2" (248x203x54mm);

Weight: 1.3lbs (590g)

Large soft case conveniently fits meters and accessories for easy
storage and transportation.

Ordering Information:

MA640-K........Phase Rotation/Clamp Meter Test Kit

www.extech.com

Specifications subject to change without notice.
Copyright © 2009-2011 Extech Instruments Corporation. All rights reserved including the right of reproduction in whole or in part in any form.

7/15/11 - R1
