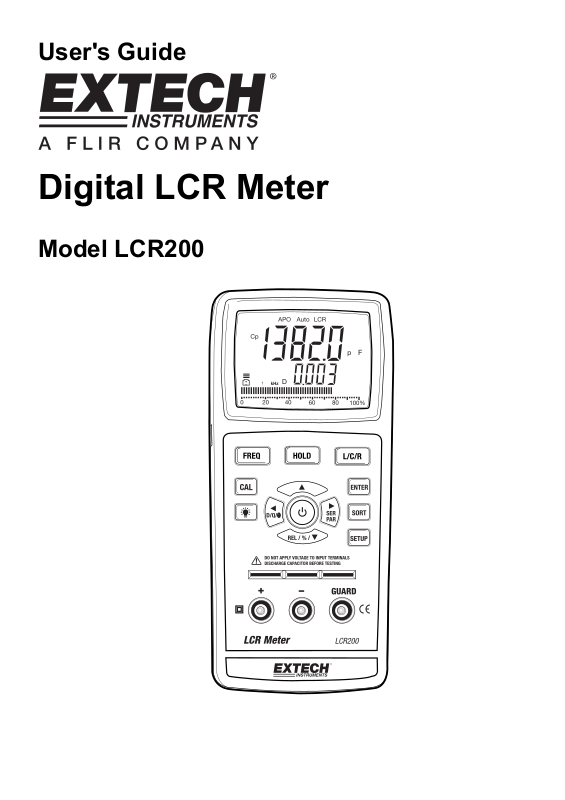

Extech LCR200 Operating Manual

User's Guide

Digital LCR Meter

Model LCR200

D

Introduction

Congratulations on your purchase of Extech's Model LCR200 LCR meter. This meter will
accurately measure capacitors, inductors and resistors using the test frequencies of 100Hz, 120Hz
1 kHz, 10kHz and 100kHz The dual display will simultaneously display the associated quality
factor, dissipation or phase angle value using a series or parallel equivalent circuit.
This meter is shipped fully tested and calibrated and, with proper use, will provide years of reliable
service.

Features

* 19,999/1,999 count dual LCD display.

* Auto LCR smart check and measurement.

* Serial/Parallel modes are selectable.

* Ls/Lp/Cs/Cp with D/Q/RP/ESR parameters.

* DC Resistance.

* Five different test frequency are available :100Hz/120Hz/1kHz/10kHz/100kHz.

* Test AC signal level : 600mV rms typically. * Test range : ( ex. F = 1 KHz )

L : 0.00uH to 2000.0H

C : 0.0pF to 2.000 mF

R : 0.000 to 200.0 M

* Multi-level battery detector.

* LCD with green backlight.

2 LCR200-EU-EN-V1.1 7/11

Meter Description

1. Display

2. Power Adapter Socket

3. Frequency Button

4.  Button, RS232 Button

5. CAL Button

6. Backlight Button

7. , D/Q/ Button

8. REL/%/  Button

9. Input terminals (pin terminals)

10. Input terminals (banana terminals)

11. Hold Button

12. Data Output Port

13. L/C/R Button

14. Enter Button

15. , SER/PAR Button

16. Sort Button

17. Setup Button

18. Power Button

19. Stand (rear)

20. Battery Compartment (rear)

10

1

D

2
3

11
12

13
4
5

6
7

8

9

14

15

16

17

18

19

20

3 LCR200-EU-EN-V1.1 7/11
