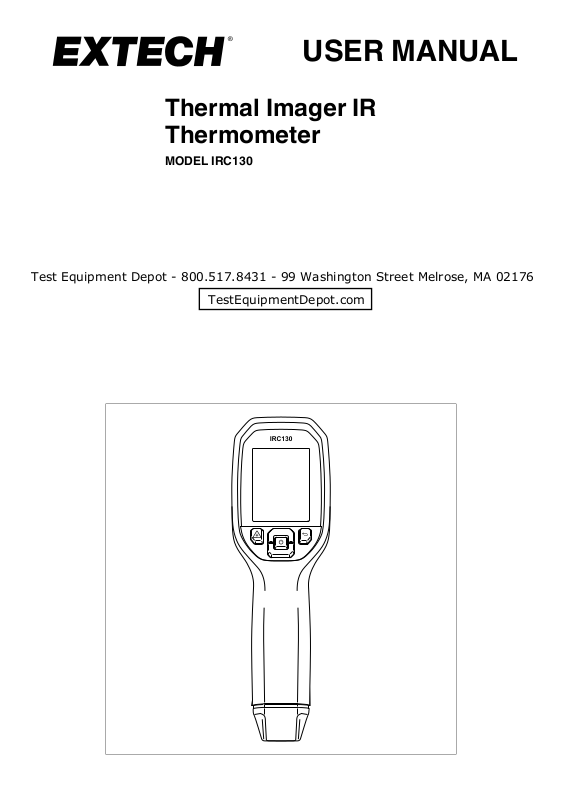

USER MANUAL
Thermal Imager IR Thermometer
MODEL IRC130
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
TestEquipmentDepot.com
Table of contents
1 Introduction........ ........ ................ ........... ........ ........... ..........1
2 Safety ... ........ ........ ........... ........ ........ ... ..... ........... ........ .......2
3 Description........ ........ ... ........ ........ ................ ........... ........ ... 3
4 Operation ...... ........ ........ ........... ........ ........ ........ ........... .......6
4.5 Capture, View, Transfer, Send, and Delete Camera
5 Programming Menu System . ........ ........ ........... ........ ........ .....9
5.3 SETTINGS Sub-Menu ......... ........ ........... ........ ........ ... 11
6 Field Firmware Updates ......... ........... ................ ........ ......... 16
6.1 System Firmware Update ........ ........ ........... ........ ........ 16
7 Maintenance..... ........ ........... ........ ........ ................... ........ .. 17
7.1 Cleaning.. ... ........ ........ ........... ........ ........ ........ ......... 17
7.2 Battery Considerations and Service ...... ........... ........ ..... 17
7.3 Disposal of Electronic Waste. ........ ........... ........ ........ ... 17
7.4 Reset the IRC130 ........ ........ ........ ... ................ ........ .. 17
8 Specifications.... ........... ........ ........ ... ................ ........ ........ . 18
8.1 Imaging and Optical Specifications ........ ........ ........... .... 18
8.2 Detector Specifications . ........... ........ ........ ........ .......... 18
8.3 Image Presentation Specifications... ........ ........ ........ ..... 18
8.4 Measurement Specifications ..... ........ ........ ........ ........ .. 19
8.5 Measurement Analysis Specifications ......... ........ ........ .. 19
8.6 Configuration Specifications.. ........... ........ ........... ........ 19
8.7 Image Storage Specifications ........ ........ ................... ... 20
8.8 Digital Camera . ........ ........... ........ ................ ........... .. 20
8.9 Flashlight Specifications..... ........... ........ ........ ........ ..... 20
8.10 Laser Pointer Specifications......... ........... ........ ........... . 20
Images ........ ........ ........... ..... ... ........ ........ ........... ....... 8
#NAS100031; r. AD/63425/63425; en-US ii
Table of contents
8.11 Data Interface Specifications. ........ ........... ........ ........ ... 21
8.12 Rechargeable Battery Specifications ....... ........ ........... .. 21
8.13 Environmental Specifications ..... ........ ........ ........ ......... 21
8.14 Physical Specifications .... ........... ........ ........ ........... .... 22
8.15 Included Equipment .... ........ ........... ........ ........ ........... 22
9 Warranty and Customer Support.... ........ ........ ........ ........... .. 23
9.1 Two-Year Warranty ....... ........ ........... ................ ........ .. 23
9.2 Repair and Calibration Services.. ........ ........ ........ ......... 23
9.3 Customer Support ... ........... ........ ........... ................ ... 23
#NAS100031; r. AD/63425/63425; en-US iii
1

Introduction

The Extech IRC130 Thermal Imager IR Thermometer combines non-contact temperature measurement and thermal imaging into one troubleshooting tool to help you quickly find the source of heat-related problems and to spot poten­tial faults when performing maintenance and repair.
Features
• 80 x 60 pixel true thermal imager (Lepton® microbolometer with integrated shutter)
• Visible spectrum 2M pixel digital camera
• Adjustable MSX® (Multi-Spectral Dynamic Imaging) adds key details from the visible spectrum to the IR image for improved diagnostics
• Easy-to-read 320 x 240 2.4” TFT color LCD display
• Wide temperature range -4 ~ 1202℉ (–20 ~ 650℃)
• High temperature switch for measurements > 752℉ (400℃)
• Intuitive programming menu system in over 21 languages
• 3 presets and 1 custom emissivity setting
• LED Flashlight
• Laser pointer and cross-hair display for easy targeting
• 4 GB internal image capture memory
• USB–C connectivity for image transfer and charging
• IP54 enclosure protects from dirt, dust, and oil
• Rechargeable battery with adjustable auto power off (APO) timer
• Accessory mounting for tripods and other accessories
#NAS100031; r. AD/63425/63425; en-US
1
2

Safety

2.1 Safety Warnings and Cautions

WARNING
⚠ This symbol, adjacent to another symbol indicates the user must refer to the manual for further information.
WARNING
The instrument’s IP54 rating is only in affect when the top flap (covering the USB-C jack) is completely sealed. Do not operate the instrument with the flap open, except for charging and PC interface.
CAUTION
Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
CAUTION
Use extreme caution when the Laser pointer is on.
CAUTION
Do not point the Laser beam toward anyone's eye or allow the beam to strike the eye from a reflective surface.
CAUTION
Do not use the Laser near explosive gases or in other potentially explosive areas.
CAUTION
Refer to the CAUTION statement label (shown below) for critical safety information.
#NAS100031; r. AD/63425/63425; en-US
2
3

Description

3.1 Product Description

Figure 3.1 Thermal Imager IR Thermometer Description
1. Display area
2. Return button (to back up in the menu system)
3. Laser pointer button
4. Up/Down Navigation buttons & Power (long press)/Menu (short press)
button
5. Lanyard post
6. Accessory mount
7. High temperature lever switch
8. 80 x 60 pixel Lepton® IR camera
9. Laser pointer with circular target-spot assist
10. USB-C jack compartment
11. Spot thermal sensor
12. Flashlight (LED)
13. 2M pixel visible spectrum camera
14. Image capture trigger (also used to exit the menu system)
#NAS100031; r. AD/63425/63425; en-US
3
3
Description

3.2 Control Button Descriptions

Long press to power ON or OFF
Short press to access the menu system
Return button. Back out to previous screen in menus
Press to scroll upward in the menus
Press to scroll downward in the menus
Press and hold to use the Laser pointer
TRIGGER
Pull trigger to capture camera image
Pull trigger to exit the menu system

3.3 Display Description

Figure 3.2 IRC130 Displays
1. Menu area
2. Date and time
3. Battery status percentage
4. Battery status indicator
5. USB connection active
6. Camera image area
#NAS100031; r. AD/63425/63425; en-US
4
3
Description
7. Center spot cross-hairs
8. Laser Pointer active
9. Center spot temperature measurement
#NAS100031; r. AD/63425/63425; en-US
5
4

Operation

4.1 Powering the IRC130

The IRC130 is powered by a rechargeable lithium battery. Long press the power button (centre) to switch the unit ON or OFF. If the unit does not power ON, charge the battery by connecting to a 5V/1A rated AC wall charger (not supplied) using the supplied USB-C cable. The USB-C jack is located in the compartment at the top of the unit. Do not use the IRC130 while it is charging. When the top flap is closed, the unit is rated IP54 for encapsulation. See Sec­tion 7.2, Battery Considerations and Service for more information.
The IRC130 has an Auto Power OFF (APO) utility that switches it OFF auto­matically if no buttons are pressed for the duration of the selected APO time. Use the menu system (under Device Settings) To set the APO timer. See Sec­tion 5, Programming Menu System, for more information.

4.2 IR Camera and Thermometer

Figure 4.1 Combined Thermal and Visible Image (MSX®)
1. Long press the power button to switch the unit ON.
2. If not already selected, choose the Thermal plus Visible Image mode in
the menu system (under Image Adjustments/Image Mode). You can adjust the MSX® (Multi-Spectral Dynamic Imaging) alignment in the Image Mode menu (press MENU at the MSX® image option and use the arrows to make the adjustments; press MENU to confirm). Note that you can also adjust the alignment directly in the normal operating mode using the arrow buttons while viewing a Thermal Plus Visible image.
3. Point the camera toward the test area and scan as desired. View the cam-
era image on the IRC130 display.
#NAS100031; r. AD/63425/63425; en-US
6
4
Operation
4. Use the Laser pointer to accurately target a spot. Press the Laser pointer
button to switch ON the Laser pointer. The Laser pointer includes a circu­lar spot indicating the area that is being monitored for temperature, utiliz­ing DOE (Diffractive Optical Elements) technology. See the Laser pointer image example below in Figure 4.2. If the Laser beam does not appear when the button is pressed, check the menu system (under Device Set- tings) to ensure that the Laser is enabled.
5. Use the cross-hair icon for reference only when targeting measurement
spots, as parallax errors affect targeting accuracy. If the cross-hairs are not shown, check the menu system (under Measurement) to ensure that the Center Spot (cross-hairs) function is enabled.
6. The temperature reading on the display represents the measurement of
the targeted spot. See Figure 4.1.
7. The distance-to-spot ratio is 30:1 and the minimum target distance is 10.2
in. (26 cm).
8. To measure higher than 752℉ (400℃) use the High Temperature Switch,
see Section 4.3 below.
9. If a measurement is out of range, the display will show ‘OL’.
10. To adjust the Emissivity, use the menu system (under Measurement).
11. To change the display color palette, use the menu system (under Image
Adjustments/colors).
Figure 4.2 Laser pointer with circular border indicating temperature measurement spot

4.3 High Temperature Switch

1. To access the high temperature mode, slide the lever to the right (to ex-
pose the red color code).
2. The lever is located directly below the lens area and above the image cap-
ture trigger.
3. When engaged, the high end of the temperature range (>752℉ [400℃ ])
is accessible.
#NAS100031; r. AD/63425/63425; en-US
7
4
Operation

4.4 Visible Spectrum Camera

Figure 4.3 Visible Spectrum Digital Camera Image
1. Long press the power button to switch the IRC130 ON.
2. Select the Visible Image mode in the menu system (under Image Adjust-
ments/Image Mode).
3. Point the camera toward the test area and scan as desired.
4. View the image on the display, see Figure 4.3.

4.5 Capture, View, Transfer, Send, and Delete Camera Images

1. To capture a camera image to the IRC130 internal memory, pull and re-
lease the trigger. Note that an image cannot be saved if a USB cable is connected to the unit.
2. After a successful image capture, a display confirmation will briefly appear
showing the image filename.
3. To view images on the IRC130 display, access the Gallery mode in the
main menu. In the Gallery, scroll through the stored images with the ar­rows and open an image with the MENU button.
4. To delete images, select the DELETE or DELETE ALL FILES command to
erase the selected image or all of the stored images. Select CANCEL to exit the menu without making changes.
5. To transfer images to a PC, connect the unit to a PC using the supplied
USB-C cable. The USB jack is located at the top of the unit under the flap. Once connected to the PC you can use the IRC130 as you would any ex­ternal storage drive. Note: Device is not 100% compatible with Mac OS,
please do not format the internal memory via Mac OS.
#NAS100031; r. AD/63425/63425; en-US
8
5

Programming Menu System

5.1 Menu System Basics

Short press the MENU button to access the menu system. Use the MENU button to switch settings ON or OFF, use the Return button to move to the pre­vious screen, and use the arrows to scroll. In addition, the MENU button is used in some cases to confirm settings. Use the trigger to exit the menu system.

5.2 Main Menu

• GALLERY: Press MENU to access the stored images. Use the arrow but- tons to scroll through the stored images and use the MENU button to open an image. Press MENU at an opened image to see the CANCEL/DELETE/ DELETE ALL FILES menu.
• LIGHT: Short press MENU to switch the Flashlight ON or OFF.
• IMAGE ADJUSTMENTS: Press MENU to access IMAGE MODES (includ­ing MSX® alignment) and colors, see below:
#NAS100031; r. AD/63425/63425; en-US
9
5
Programming Menu System

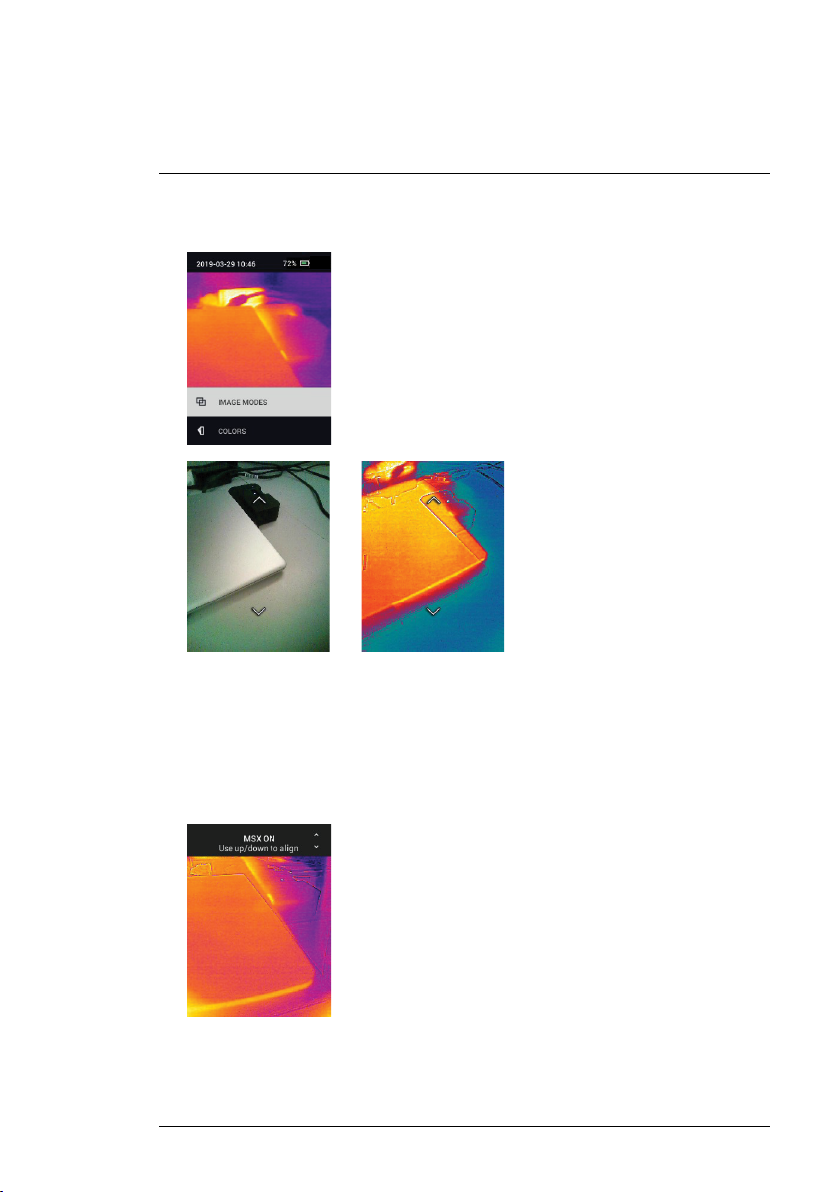

1. Image Modes: Press MENU at IMAGE MODES and use the arrow buttons
to select VISIBLE IMAGE or THERMAL PLUS VISIBLE IMAGE (MSX®).
2. MSX® Alignment: Adjust the alignment (so that the thermal image and the
visible image line up accurately) as follows: While viewing the THERMAL PLUS VISIBLE IMAGE screen in the menu, press MENU to access the MSX® adjustment screen and then use the arrow buttons to adjust the alignment. Press MENU to confirm. Note that you can also adjust the alignment directly in the normal operating mode using the arrow buttons while viewing a Thermal Plus Visible image.
#NAS100031; r. AD/63425/63425; en-US
10
5
Programming Menu System

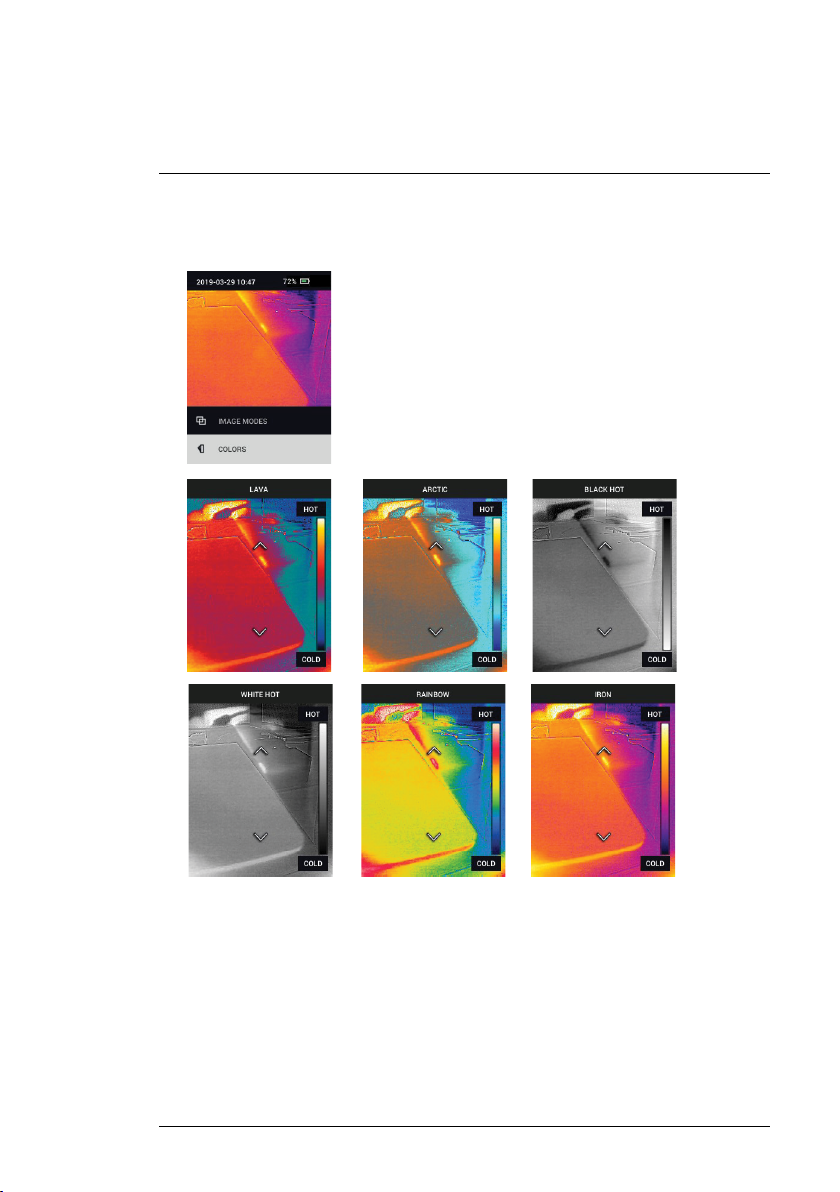

3. Colors: Press MENU at the colors menu and use the arrow buttons to se-
lect a color palette: Iron, Rainbow, White hot, Black hot, Arctic, or Lava. Press MENU to confirm selection.
• SETTINGS: Press MENU to access the Settings sub-menu (see below):

5.3 SETTINGS Sub-Menu

• MEASUREMENT
#NAS100031; r. AD/63425/63425; en-US
11
5
Programming Menu System
1. Center Spot: Press MENU to enable/disable the display cross-hairs. The
cross-hairs should be used as a reference only to identify the spot that is being measured for temperature. Use the Laser pointer for more accurate targeting.
2. Emissivity: Press MENU to open the Emissivity adjustment utility. Use the
arrows to scroll through the presets (0.95, 0.80, and 0.60) and use the MENU button to select a preset. Choose the Custom Value utility (last se­lection on the list) to select a specific emissivity value. At the Custom Val­ue setting, press MENU and then use the arrows to select the emissivity value; press MENU to confirm.
• DEVICE SETTINGS
#NAS100031; r. AD/63425/63425; en-US
12
5
Programming Menu System
1. Laser: Press MENU to enable/disable the Laser pointer. When enabled,
you can use the Laser pointer button to switch ON the Laser pointer. Use the Laser pointer for accurate targeting of measurement spots.
2. Screen brightness: Use the arrows to select the desired display intensity
(LOW, MEDIUM, or HIGH).
3. Auto Power OFF (APO): Use the arrows to scroll and MENU to select the
desired APO time (5/15/30 minutes). Set to ‘Never’ to disable APO.
• GENERAL SETTINGS
#NAS100031; r. AD/63425/63425; en-US
13
5
Programming Menu System

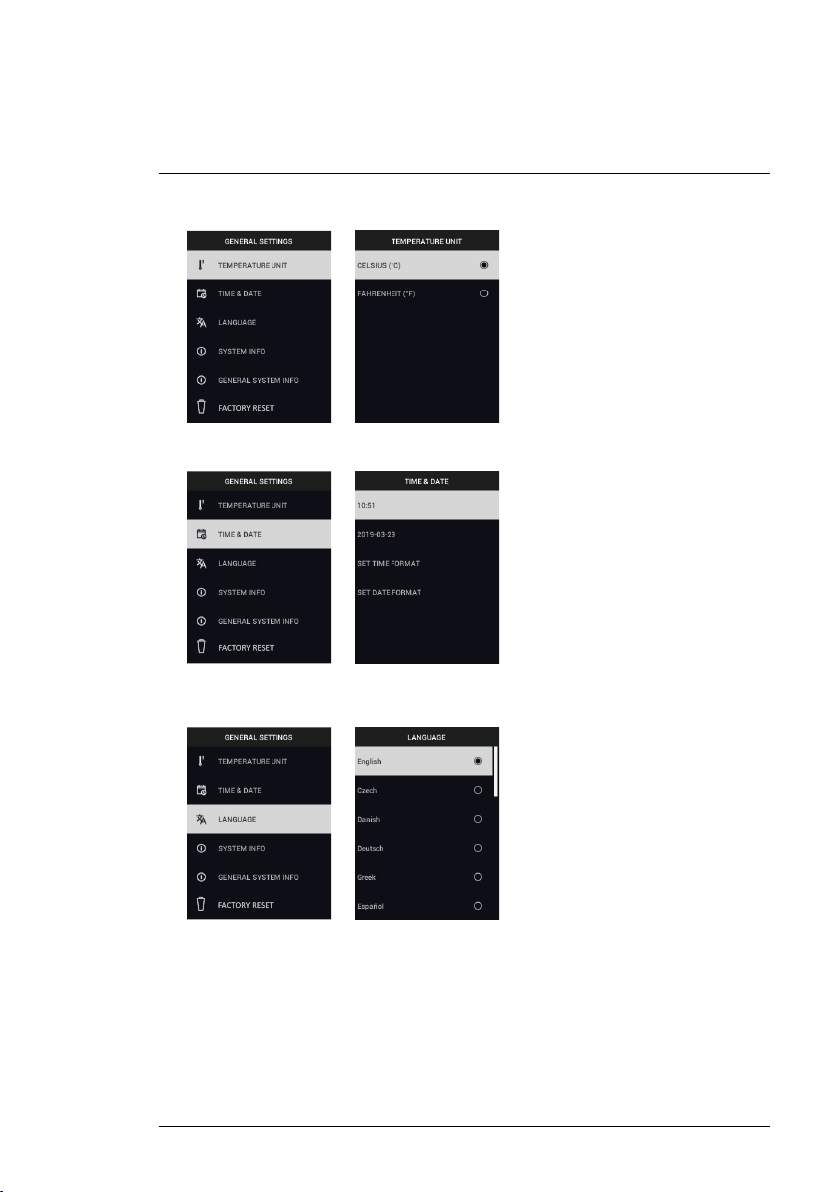

1. Temperature Unit: Use the arrows and the MENU button to select °C or °F.
2. Time & Date: Use the arrows to scroll and the MENU button to set the
Time, Date, Time Format, and Date Format.
3. Language: Use the arrows to scroll and the MENU button to select a
language.
#NAS100031; r. AD/63425/63425; en-US
14
5
Programming Menu System
4. System Info: Scroll to desired topic: Model Number, Serial Number,
Software Level, Revision, Battery status (%), and remaining Internal Storage Capacity.
• GENERAL SYSTEM INFO: Press MENU to view compliance information.
• FACTORY RESET: Follow the prompts to reset the User Settings back to Factory Default status.
#NAS100031; r. AD/63425/63425; en-US
15
6

Field Firmware Updates

The IRC130 includes a USB-C port in the top compartment. The USB port al­lows the user to update the system firmware by first downloading an update file from the FLIR website and then connecting the unit to a PC (using the sup­plied USB-C cable) to copy the file. Firmware updates are available from
https://support.flir.com.
NOTE
The IRC130 is not 100% compatible with USB-C to USB-C cables. Use only USB-C to USB­A cables. The supplied cable is USB-C to USB-A.
To update the firmware, you will need:
• Access to the website where the update file is located:
https://support.flir.com
• The IRC130 to be updated
• The update file. Refer to the steps in the next section:

6.1 System Firmware Update

1. Visit https://support.flir.com to obtain a firmware update file.
2. Select the ‘Downloads’ tab and then select ‘Software and Firmware’.
3. Search for ‘IRC130’.
4. Select and download the firmware update file to the PC.
5. With the IRC130 ON connect it to the PC via a USB-C cable (the USB-C
port is located in the top compartment).
6. Copy the firmware update file to the IRC130 root directory.
7. Eject the IRC130 drive from the PC.
8. Disconnect the USB cable from the PC USB port and from the IRC130
USB port.
9. Follow the IRC130 display prompts to complete the update.
#NAS100031; r. AD/63425/63425; en-US
16
7

Maintenance

7.1 Cleaning

Wipe the housing with a damp cloth as needed. Do not use abrasives or sol­vents. Clean the lenses with a high-quality lens cleaner.

7.2 Battery Considerations and Service

The rechargeable lithium battery is not user-serviceable. Please contact us for service instructions: https://support.flir.com.
For best results, charge the battery immediately after seeing a low battery in­dication using the supplied USB-C cable (with an AC wall charger, not sup­plied). The wall charger must be rated for at least 5V/1A. If the battery is allowed to fully drain, allow 2~3 hours before the charging display appears after connecting to an AC charger; a full charge (100%) requires 6 hours, a charge to 90% power requires 4 hours. Charging through a PC USB port is not recommended.
If the unit is not going to be used for an extended period (> 3 months), it should be charged to at least 70%, stored at room temperature, and re­charged every 6 months. Failure to do so may result in a battery that cannot be recharged and that therefore will require service.

7.3 Disposal of Electronic Waste

As with most electronic products, this equipment must be disposed of in an environmentally friendly way, and in accordance with existing regulations for electronic waste. Please contact us for additional information.

7.4 Reset the IRC130

If the display freezes or if the unit in any way stops operating normally, press and hold the up and down buttons for at least 10 seconds. Release the but­tons when the unit switches OFF. After the unit switches OFF, switch it back ON again to resume use. No data will be lost by resetting the unit. If problems persist, contact us for support.
#NAS100031; r. AD/63425/63425; en-US
17
8

Specifications

8.1 Imaging and Optical Specifications

IR resolution 80 x 60 pixels
Digital image enhancement Included
Thermal Sensitivity /NETD < 70 mK
Field of View (FOV) 51° x 66 (H x W)°
Minimum focus distance 0.89 ft. (0.3 m)
Distance-to-Spot ratio
Dual range operation Range 1: < 752℉ (400℃)
Focus Fixed
Image frequency 8.7 Hz

8.2 Detector Specifications

Focal plane array /Spectral response range Uncooled microbolometer /7.5 ~ 14 μm
Detector pitch 12 μm
30:1
Range 2: > 752℉ (400℃)
For Range 2, the high temperature lever must be engaged

8.3 Image Presentation Specifications

Display resolution 320 x 240 pixels
Screen size 2.4 in. (portrait)
Viewing angle 80°
Color depth 24 bit
Aspect ratio 4:3
Display type TFT technology
Image adjustment Automatic
Image modes Thermal MSX® (Multi-Spectral Dynamic
Imaging) and Visible Spectrum modes.
#NAS100031; r. AD/63425/63425; en-US
18
8
Specifications

8.4 Measurement Specifications

Object temperature range -13℉ ~ 1202℉ (-25℃ ~ 650℃)
Accuracy at ambient temperature: 15℃ ~ 35℃ (59℉ ~ 95℉)
IR Temperature resolution 0.2℉ (0.1℃)
Reading repeatability ± 1 % of reading or ± 2℉ (1℃), whichever
Response time 150 ms
IR thermometer measurement
Minimum measurement distance 0.85 ft. (0.26 m)
-13℉ ~ 32℉ (-25℃ ~ 0℃): ± 7.0℉ (3.0℃)
32℉ ~ 122℉ (0℃ ~ 50℃): ± 5.0℉ or ±
2.5% (±2.5℃ or ± 2.5%) whichever is greater
122℉ ~ 212℉ (50℃ ~ 100℃): ± 3.0℉ or ±
1.5% (± 1.5℃ or ± 1.5%) whichever is greater
213℉ ~ 932℉ (100℃ ~ 500℃): ± 6.0℉ or ± 2.5% (± 2.5℃ or ± 2.5%) whichever is greater
933℉ ~ 1202℉ (500℃ ~ 650℃ ): ± 7.0℉ or ± 3.0% (± 3.0℃ or ± 3.0%) whichever is greater
is greater
Continuous scanning

8.5 Measurement Analysis Specifications

Spot meter Center spot (cross-hairs); Programmable
Color display palettes
ON/OFF
Iron, Rainbow, White-hot, Black-hot, Arctic, and Lava

8.6 Configuration Specifications

Set-up commands Local adaptation of units, language, date
Emissivity adjustment 3 presets plus a custom adjustment utility
#NAS100031; r. AD/63425/63425; en-US
and time formats
(0.1 ~ 0.99)
19
8
Specifications
Languages Czech, Danish, Dutch, English, Finnish,
Firmware updates User manageable (instructions included in
French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Por­tuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish
this user manual)

8.7 Image Storage Specifications

Storage media eMMC 4G
Image storage capacity 50000 images
Image file format JPEG with spot temperature metadata tag

8.8 Digital Camera

Resolution 2M pixels
Focus Fixed
Field of View (FOV) 71° x 56° (adapts to IR lens)

8.9 Flashlight Specifications

Flashlight type Bright LED
LED CCT
LED CRI
Beam angle ± 20°
Rated power 0.5 W
Light output 100 Lumens
6500° K
70

8.10 Laser Pointer Specifications

Laser type DOE (Diffractive Optical Elements)
Laser function Indicates the size of the measurement area
Laser class
#NAS100031; r. AD/63425/63425; en-US
(circular target)
Class I
20
8
Specifications

8.11 Data Interface Specifications

Interface USB
USB type USB-C for data transfer and battery
USB standard USB 2.0 High Speed
charging
Not 100% compatible with USB-C to USB­C cables. Use only USB-C to USB-A cables.

8.12 Rechargeable Battery Specifications

Battery type Rechargeable Lithium ion
Battery voltage 3.6 V
Battery operating time 5 hours scanning (medium brightness
Battery charge life 30 days minimum
Charging system Battery is charged inside the IRC130
Charging time 4 hours to 90% and 6 hours to 100%
Power management APO adjustable 5/15/30 minutes. Can be
setting)
4.5 hours with Laser ON (medium bright­ness setting)
disabled.

8.13 Environmental Specifications

Altitude 6562 ft. (2000 m)
Pollution degree 2
Operating temperature 14℉ ~ 113℉ (-10℃ ~ 45℃)
Storage temperature -22℉ ~ 131℉ (-30℃ ~ 55℃)
Humidity (operating and storage) 0 ~ 90% Relative Humidity (RH) 32℉ ~
EMC
#NAS100031; r. AD/63425/63425; en-US
98.6℉ (0℃ ~ 37℃)
0 ~ 65% RH 98.6℉ ~ 113℉ (37℃ ~ 45℃)
0 ~ 45% RH 113℉ ~ 131℉ (45℃ ~ 55℃)
EN 61000–6–3
EN 61000–6–2
FCC 47 CFR Part 15 Class B
21
8
Specifications
Magnetic fields EN 61000–4–8 Class 3
Encapsulation
Shock 25 g (IEC 60068–2–27)
Vibration
Drop Designed for 6.56 ft. (2 m)
Safety CE/CB/EN61010/UL
Environmental safety REACH Regulation EC 1907/2006
Humidity requirements IEC 60068–2–30 for operation and storage
IP54 (IEC 60529)
2 g (IEC 60068–2–6)
RoHS 2 Directive 2011/65/EC
WEEE Directive 2012/19/EC
JIS C 6802:2011 laser directive
IEC 60825–1 class I laser directive
FDA laser directive

8.14 Physical Specifications

Weight 13.9 oz. (0.39 kg)
Size (L x W x H) 8.3 x 2.5 x 3.2 in. (210 x 64 x 81 mm)
Accessory mount
UNC ¼”-20

8.15 Included Equipment

Standard equipment IRC130, USB-C cable, printed Quick Start, Lanyard, and
Pouch
#NAS100031; r. AD/63425/63425; en-US
22
9

Warranty and Customer Support

9.1 Two-Year Warranty

FLIR Systems, Inc. warrants this Extech brand instrument to be free of defects in parts and workmanship for two years from date of shipment (a six-month limited warranty applies to sensors and cables).

9.2 Repair and Calibration Services

FLIR Systems, Inc. offers calibration and repair services for the Extech brand products we sell. We offer NIST traceable calibration for most of our products. Contact us for information on calibration and repair availability. Annual calibra­tions should be performed to verify meter performance and accuracy. Product specifications are subject to change without notice.
#NAS100031; r. AD/63425/63425; en-US
23
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
