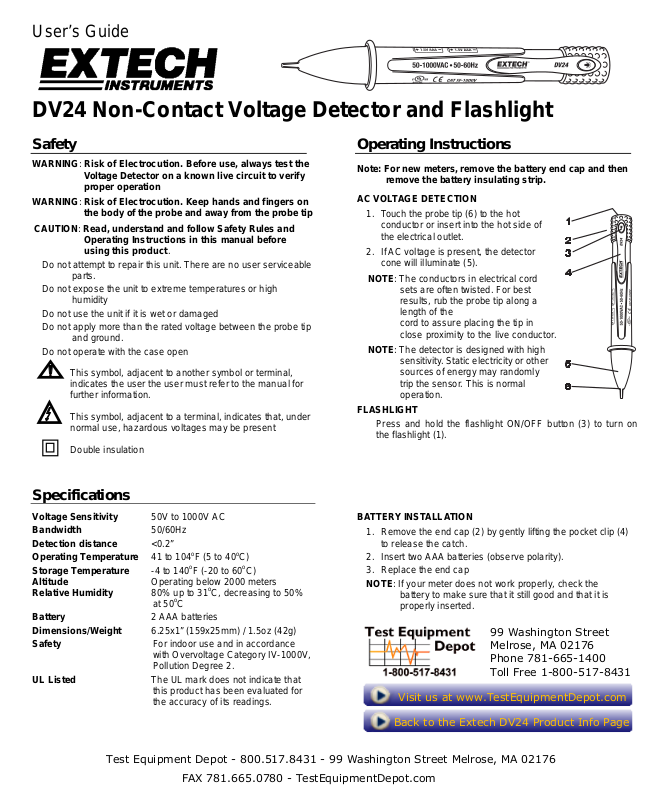

Extech Extech DV24 Manual

User’s Guide

DV24 Non-Contact Voltage Detector and Flashlight

Safety

WARNING: Risk of Electrocution. Before use, always test the

WARNING: Risk of Electrocution. Keep hands and fingers on

CAUTION: Read, understand and follow Safety Rules and

Do not attempt to repair this unit. There are no user serviceable

Do not expose the unit to extreme temperatures or high

Do not use the unit if it is wet or damaged
Do not apply more than the rated voltage between the probe tip

Do not operate with the case open

Voltage Detector on a known live circuit to verify
proper operation

the body of the probe and away from the probe tip

Operating Instructions in this manual before
using this product.

parts.

humidity

and ground.

This symbol, adjacent to another symbol or terminal,
indicates the user the user must refer to the manual for
further information.

This symbol, adjacent to a terminal, indicates that, under
normal use, hazardous voltages may be present

Double insulation

Specifications

Voltage Sensitivity 50V to 1000V AC
Bandwidth 50/60Hz
Detection distance <0.2”
Operating Temperature 41 to 104
Storage Temperature -4 to 140

Altitude Operating below 2000 meters
Relative Humidity 80% up to 31

Battery 2 AAA batteries
Dimensions/Weight 6.25x1” (159x25mm) / 1.5oz (42g)
Safety For indoor use and in accordance

UL Listed The UL mark does not indicate that

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176

at 50

with Overvoltage Category IV-1000V,
Pollution Degree 2.

this product has been evaluated for
the accuracy of its readings.

o

F (5 to 40oC)

o

F (-20 to 60oC)

o

o

C, decreasing to 50%

C

FAX [phone] - TestEquipmentDepot.com

Operating Instructions

Note: For new meters, remove the battery end cap and then

remove the battery insulating strip.

AC VOLTAGE DETECTION

1. Touch the probe tip (6) to the hot
conductor or insert into the hot side of
the electrical outlet.

2. If AC voltage is present, the detector
cone will illuminate (5).

NOTE: The conductors in electrical cord

sets are often twisted. For best
results, rub the probe tip along a
length of the
cord to assure placing the tip in
close proximity to the live conductor.

NOTE: The detector is designed with high

sensitivity. Static electricity or other
sources of energy may randomly
trip the sensor. This is normal
operation.

FLASHLIGHT

Press and hold the flashlight ON/OFF button (3) to turn on
the flashlight (1).

BATTERY INSTALLATION

1. Remove the end cap (2) by gently lifting the pocket clip (4)
to release the catch.

2. Insert two AAA batteries (observe polarity).

3. Replace the end cap

NOTE: If your meter does not work properly, check the

battery to make sure that it still good and that it is
properly inserted.

99 Washington Street
Melrose, MA 02176

Phone [phone]
Toll Free 1-800-517-8431

Visit us at www.TestEquipmentDepot.com

Back to the Extech DV24 Product Info Page
