Quick Start
CLT600 Cable
Locator and
Tracer
D
D

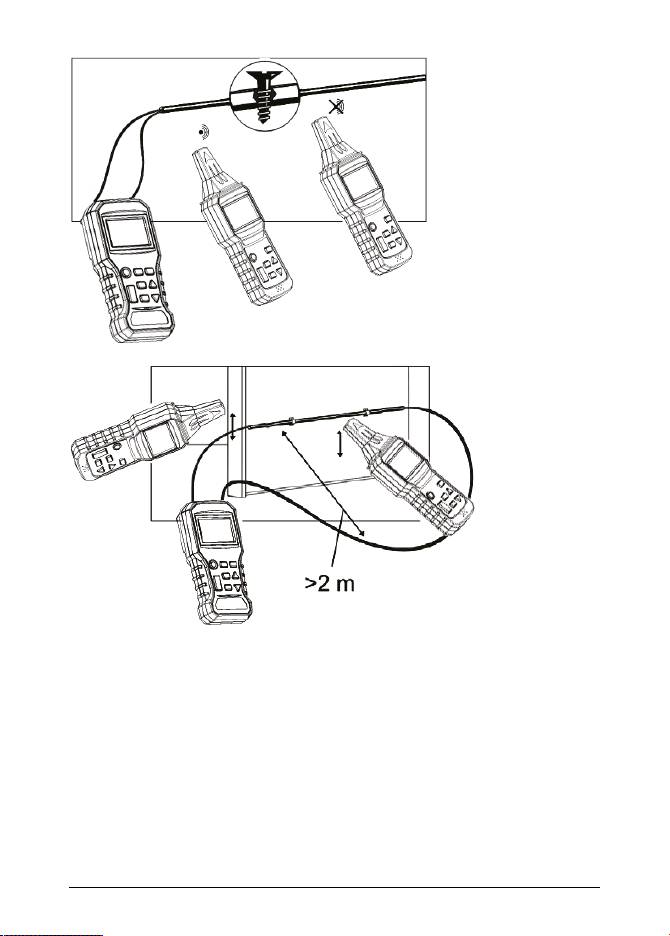

Figure 4 Two examples of broken line detection tests. Top diagram shows a
two-conductor test; bottom diagram shows a single-conductor test. Diagrams
show one Transmitter in a fixed location and one Receiver being used in two locations. On the top diagram, the Receiver position on the left is detecting a signal,
while the Receiver position on the right is not.
#NAS100049; r. AA/70188/70188; en-US
