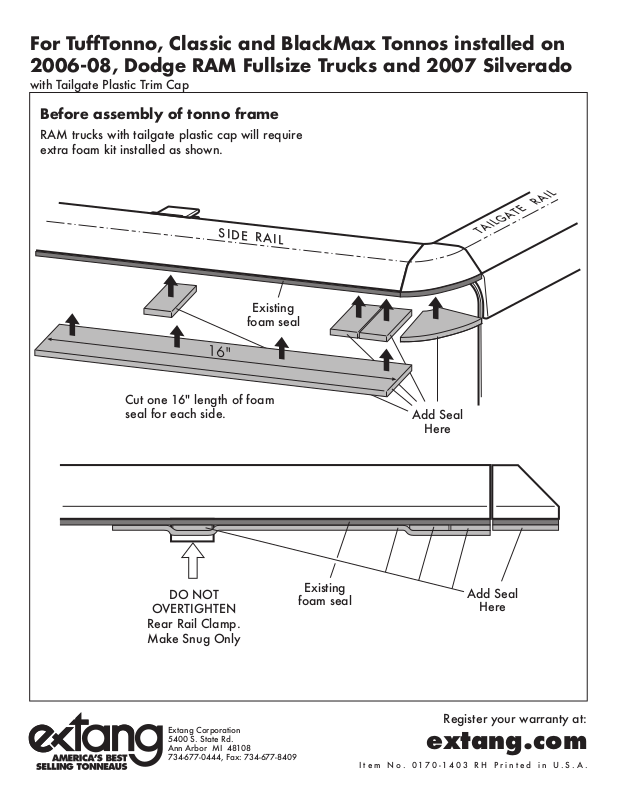

For TuffTonno, Classic and BlackMax Tonnos installed on
2006-08, Dodge RAM Fullsize Trucks and 2007 Silverado
with Tailgate Plastic Trim Cap
Before assembly of tonno frame

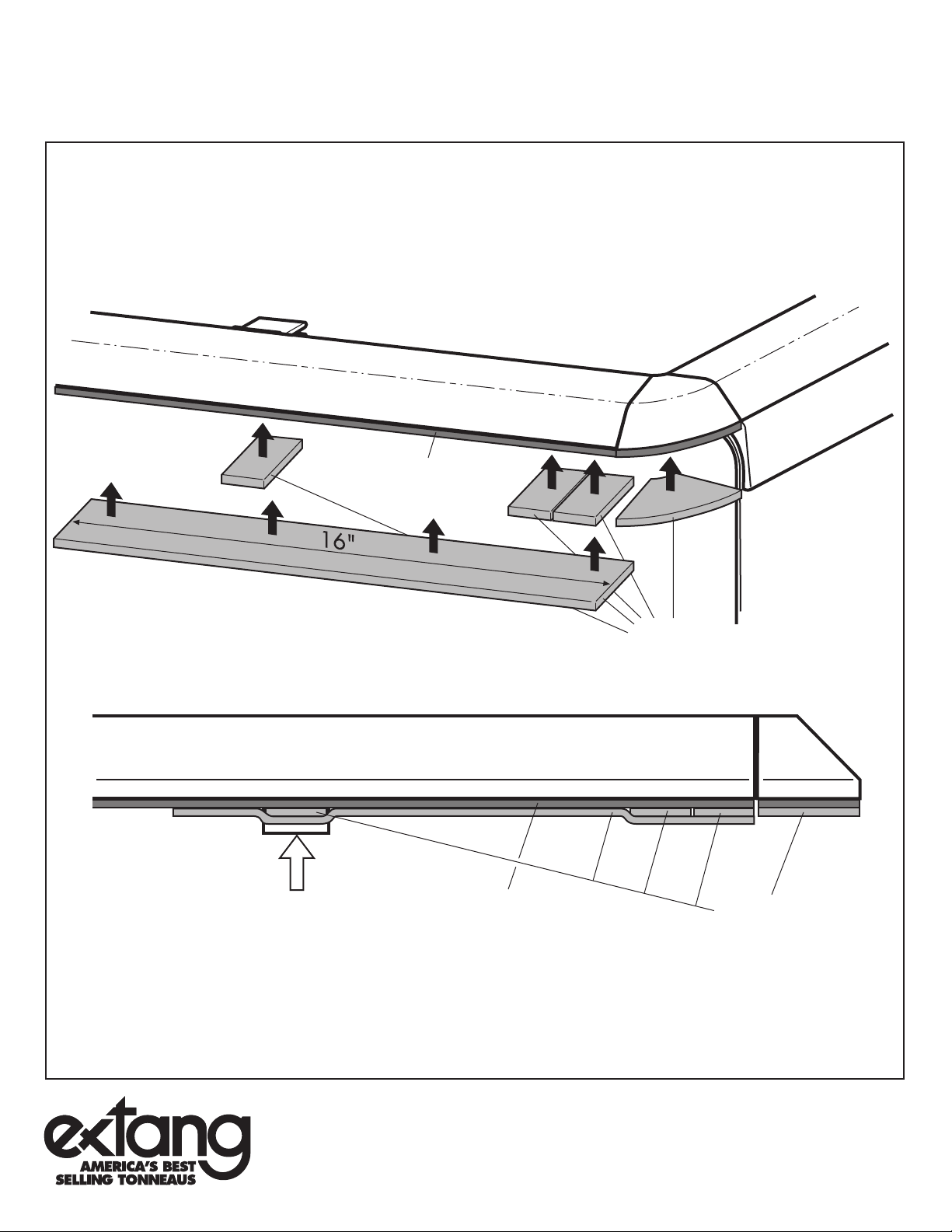

RAM trucks with tailgate plastic cap will require
extra foam kit installed as shown.
SI DE R AIL
Existing
foam seal
Cut one 16" length of foam
seal for each side.
TAI LGATE RAIL
Add Seal
Here
DO NOT
OVERTIGHTEN
Rear Rail Clamp.
Make Snug Only
Extang Corporation
5400 S. State Rd.
Ann Arbor MI 48108
734-677-0444, Fax: 734-677-8409
Existing
foam seal
Add Seal
Here
Register your warranty at:
extang.com
I t e m N o . 01 7 0 - 1 4 0 3 R H P r i n t e d i n U . S . A .
Page 2
For Trifecta Solid Fold and FullTilt Tonnos installed on
2006-08 Dodge RAM Fullsize Trucks
with Tailgate Plastic Trim Cap
For Trifecta and Solid Fold
Before securing rear tonno frame section

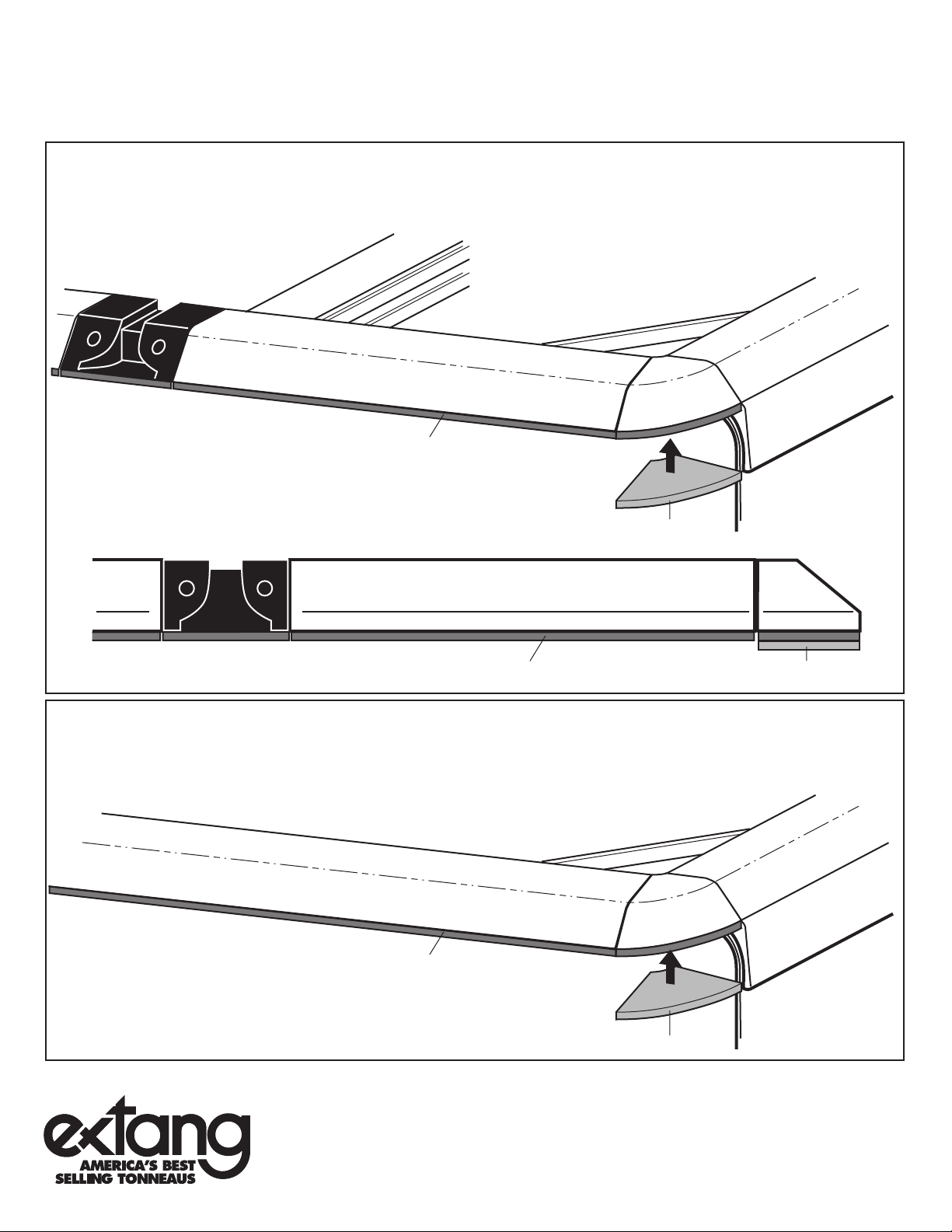

RAM trucks with tailgate plastic cap will require extra corner foam pieces
on the rear corners only.
REAR FRAME SECTION
Existing
foam seal
Existing foam seal
For FullTilt
Before securing tonno frame
RAM trucks with tailgate plastic cap will require extra
corner foam pieces on the rear corners only.
TAI LGATE RAIL
Add Seal Here
Add Seal Here
SI DE F RAME SE CT IO N
Existing
foam seal
Extang Corporation
5400 S. State Rd.
Ann Arbor MI 48108
734-677-0444, Fax: 734-677-8409
TAI LGATE RAIL
Add Seal Here
Register your warranty at:
extang.com
I t e m N o . 01 7 0 - 1 4 0 3 R H P r i n t e d i n U . S . A .
