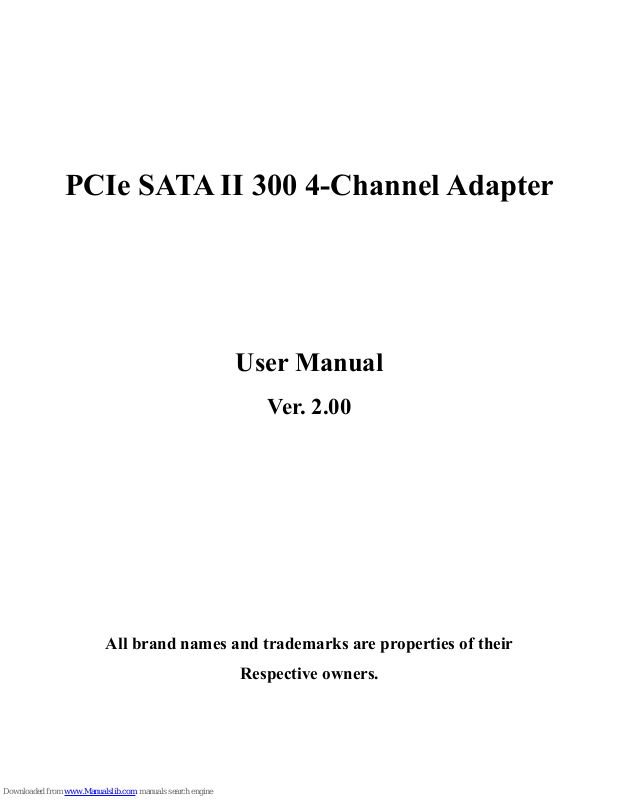

Exsys EX-3505 User Manual
PCIe SATA II 300 4-Channel Adapter
User Manual
Ver. 2.00
All brand names and trademarks are properties of their
Respective owners.
MN2000000130 Page2
Features
z Marvell 88SX7042 chipset
z Upwards compatible with PCI-Express 8x, 16x
z Compliant with PCI Express Base Specification 1.0a
z Compliant with Serial ATA 1.0 specification with support for full
complement of SATA II optional features
z Supports SATA II Native Command Queuing (NCQ)
z Provides four independent channels to support up to four Serial
ATA drives
z Supports SATA up to 300MB/Sec
z Supports Windows® 2000, XP, Server 2003, Vista
Bus Interface
z PCI-Express x 4
Connectors
z 4 x internal SATA connectors
z 2 x external eSATA connectors
MN2000000130 Page3
System Requirements
z PCI Express-enabled system with one available PCI Express slot
z Windows® 2000, XP, Server 2003, Vista
Package Contents
z 1 x PCIe SATA II 300 4-Channel Adapter
z 1 x Driver CD
z 1 x User’s Manual
Optional Accessories
z SATA Data Cable
z SATA Power Cable
Hardware Description

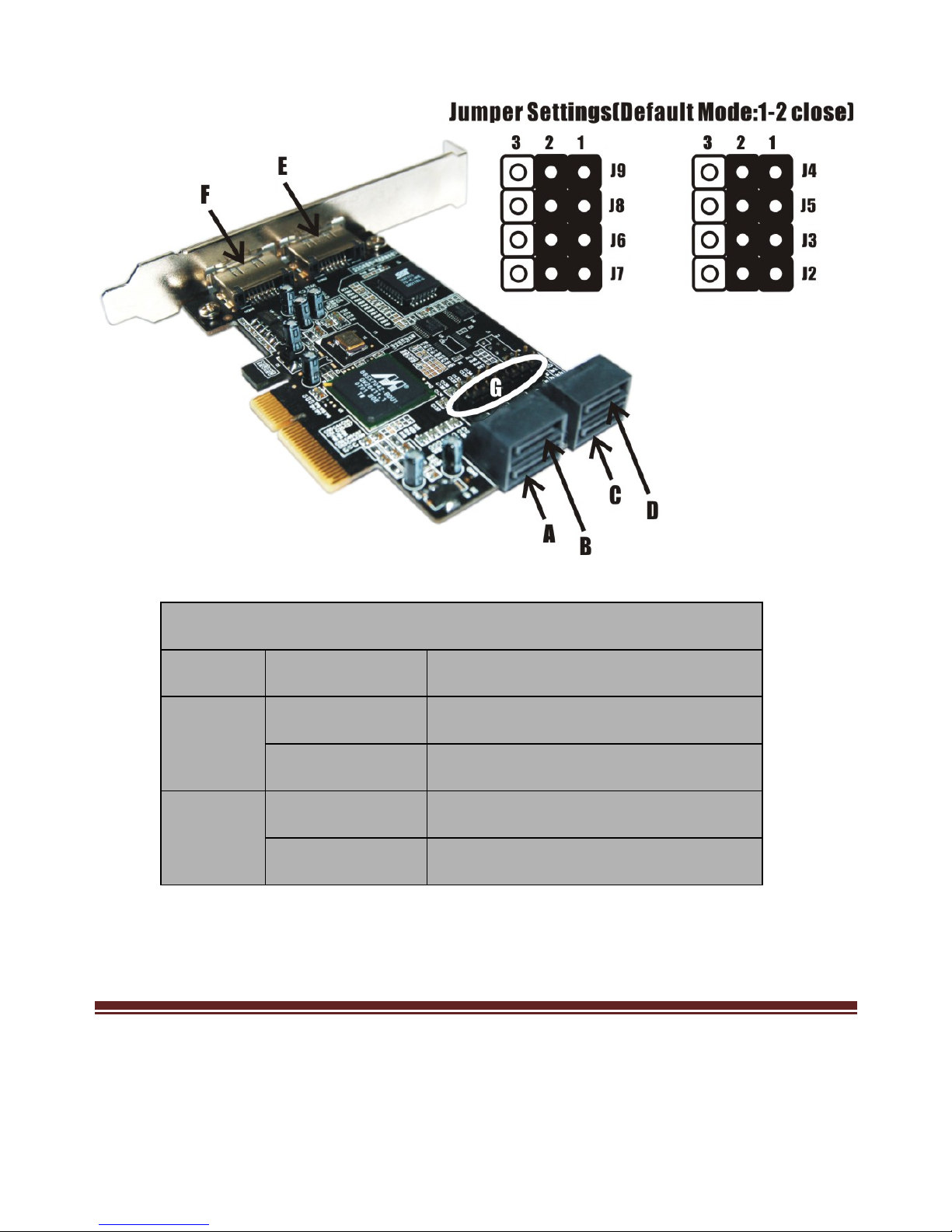

Note: There are six SATA ports in PCIe SATA II 300 4-Channel
Adapter. We name these ports A to F. Ports A to D are internal SATA
ports and E & F are external SATA ports. By changing the jumper
setting on the PCIe SATA II 300 4-Channel Adapter that allows you to
select between external and internal ports to use. By default, Port A, B,
C and D are working.
