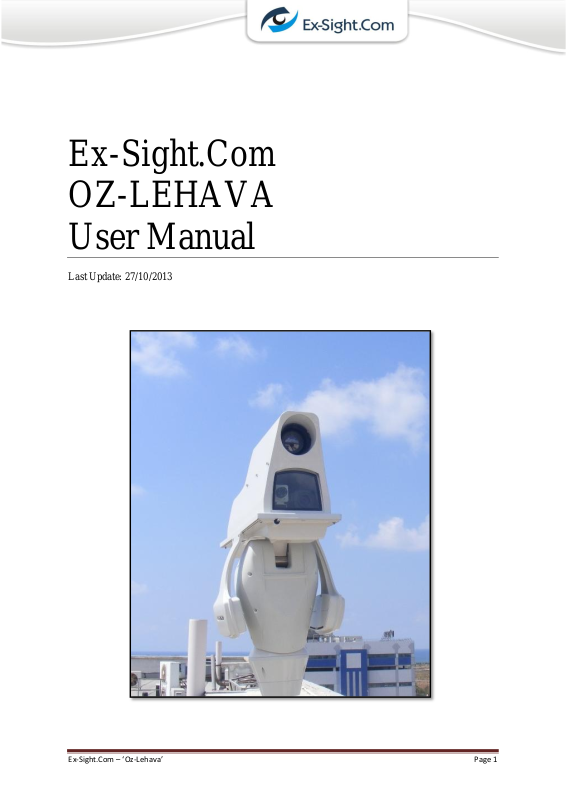

Ex-Sight.Com
OZ-LEHAVA
User Manual
Last Update: 27/10/2013
Ex-Sight.Com – ‘Oz-Lehava’ Page 1
Contents
1 OZ-LEHAVA Setup .................................................................................................. 4
2 Overview .............................................................................................................. 5
2.1 OZ-LEHAVA Architecture ................................................................................................ 6
2.2 OZ-LEHAVA outputs in case of fire alerts ....................................................................... 7
2.3 Fire Detection Preset Cycle ............................................................................................ 8
3 Technical Specifications ......................................................................................... 9
3.1 Fire Detection Range ...................................................................................................... 9
3.2 OZ-LEHAVA Motorized Camera Scheme ...................................................................... 10
3.3 Time Division Multiple Access (TDMA) Wiring ............................................................. 11
4 Hardware Configuration ...................................................................................... 12
4.1 Decoder Configuration – Receiving DO from Encoder ................................................. 12
4.2 Encoder Configuration .................................................................................................. 13
4.2.1 Set Device Heartbeat ....................................................................................... 13
4.2.2 Set output image size 640X480(VGA).............................................................. 15
4.2.3 Set UART1 ........................................................................................................ 16
4.2.4 Set UART2 ........................................................................................................ 17
4.2.5 ‘Send DO to Decoder’ Configuration: .............................................................. 18
4.3 Testing Configuration ................................................................................................... 31
5 Software Usage ................................................................................................... 33
5.1 First Time Usage (configure OZ-LEHAVA settings) ....................................................... 33
5.1.1 Logging-in ........................................................................................................ 34
5.1.2 Quick configuration: ........................................................................................ 34
5.2 Live Video ..................................................................................................................... 36
5.3 PTZ Panel ...................................................................................................................... 37
5.4 The Presets Panel ......................................................................................................... 38
5.5 Fire Detection Time Zones ............................................................................................ 42
5.6 Fire Detection Panel ..................................................................................................... 44
Ex-Sight.Com – ‘Oz-Lehava’ Page 2
5.6.1 Fire Detection Example ................................................................................... 45
5.7 Live Indicators & Messages .......................................................................................... 46
5.7.1 Status bar ......................................................................................................... 47
5.7.2 Messages Panel ............................................................................................... 48
5.8 Layout Manipulation .................................................................................................... 50
5.9 Thermal Camera Settings ............................................................................................. 51
5.9.1 Operational Tab ............................................................................................... 52
5.9.2 Maintenance Tab ............................................................................................. 53
5.10 Settings ......................................................................................................................... 54
5.10.1 Device .............................................................................................................. 54
5.10.2 Oz Lehava ........................................................................................................ 55
5.10.3 Oz -Lehava Learning Mode .............................................................................. 57
5.10.4 PTZ Control ...................................................................................................... 58
5.10.5 Security ............................................................................................................ 58
5.10.6 Video Sources .................................................................................................. 59
5.11 Oz-Lehava Garbage Collector ....................................................................................... 62
6 OZ-LEHAVA Registration/Activation..................................................................... 63
7 Trouble Shooting ................................................................................................. 64
8 Appendix A: PTZ Control ...................................................................................... 65
8.1 Main PTZ Panel ............................................................................................................. 65
8.2 Presets+ Panel .............................................................................................................. 66
8.3 Record/Play PTZ Scripts Panel ...................................................................................... 67
Ex-Sight.Com – ‘Oz-Lehava’ Page 3
1 OZ-LEHAVA Setup
1) Click Next to continue, or Cancel to exit setup 2) Select “I agree” and click Next
3) Select the installation folder and hit Next 4) Press Next to install
5)Wait for the installtion to finish 6) “OZ-LEHAVA” is installed
Ex-Sight.Com – ‘Oz-Lehava’ Page 4
2 Overview
OZ-LEHAVA is a Pan Tilt Motorized Thermal Fire Detection Network Camera for real-time
fire detection. The system scans predefined targets and automatically discovers fire by
directing the camera’s heat sensor to given locations.
The OZ-LEHAVA application provides an easy to use UI system control. Once activated, it
can be monitored on any network connected PC. Fire detection alerts can be sent in several
forms, such as visual (on screen), Digital output, and Audio alarm (only for the PC on which
the application is installed). All these features make OZ-LEHAVA a perfect cost-effective
solution for the outdoor fire detection.
Ex-Sight.Com – ‘Oz-Lehava’ Page 5
PTZ Camera
PWR 24V AC
RTSP video
IP Alert
TCP Commands
IP Alert
Visual Alert
Digital Output
2.1 OZ-LEHAVA Architecture
Ex-Sight.Com – ‘Oz-Lehava’ Page 6
2.2 OZ-LEHAVA outputs in case of fire alerts
1. Thermal Camera Video (on local and remote PCs)
The fire sources detected in the video stream are signaled by fire alerts and marked by
circles.
2. Audio Alert
Audio alerts are set on the OZ LEHAVA PC application and can be manually altered.
Fire Alerts Log (on the PCs with installed application)
The daily fire alerts record
3. Digital Output
Digital output is released at each fire detection and can be used for remote detection
alerts, such as audio or visual warnings.
Ex-Sight.Com – ‘Oz-Lehava’ Page 7
#
Step
Text Notification
Audio alarm
Digital output
1
Stop Fire Detection
preset name[P,T,Z]
2 Go to Location Pan
preset name[P,T,Z]
3
Go to Location Tilt
preset name[P,T,Z]
4
Verify Position Pan
preset name[P,T,Z]
5 Verify Position Tilts
preset name[P,T,Z]
6 Camera Stabilization
preset name[P,T,Z]
7
Start Fire Detection
Detecting[preset name]
On fire detection
True on fire detection
else False
2.3 Fire Detection Preset Cycle
For each preset, OZ-LEHAVA takes the following steps:
Ex-Sight.Com – ‘Oz-Lehava’ Page 8
3 Technical Specifications
3.1 Fire Detection Range
Ex-Sight.Com – ‘Oz-Lehava’ Page 9
3.2 OZ-LEHAVA Motorized Camera Scheme
Ex-Sight.Com – ‘Oz-Lehava’ Page 10
24V+
Buzzer
24V-
Decoder
24V Switch
B
10S
1
‘I am OK’ signal
Error/Fire Alert signal
3.3 Time Division Multiple Access (TDMA) Wiring
Ex-Sight.Com – ‘Oz-Lehava’ Page 11
4 Hardware Configuration
4.1 Decoder Configuration – Receiving DO from Encoder
Ex-Sight.Com – ‘Oz-Lehava’ Page 12
4.2 Encoder Configuration
4.2.1 Set Device Heartbeat
Ex-Sight.Com – ‘Oz-Lehava’ Page 13
Set Device Heartbeat – continue
Ex-Sight.Com – ‘Oz-Lehava’ Page 14
4.2.2 Set output image size 640X480(VGA)
Ex-Sight.Com – ‘Oz-Lehava’ Page 15
4.2.3 Set UART1
Ex-Sight.Com – ‘Oz-Lehava’ Page 16
4.2.4 Set UART2
Ex-Sight.Com – ‘Oz-Lehava’ Page 17
4.2.5 ‘Send DO to Decoder’ Configuration:
The OZ LEHAVA application sends two digital outputs via the encoder to the decoder
DO1 for saying “I’m Ok”, a pulse (signal ‘true’ followed by signal ‘false’) that is sent
every few seconds to initial the timer unit.
DO2 for ‘Fire Alert’ or an error: a signal ‘true’ is sent. “No fire detected” disables the
‘Fire Alert’ signal (set it ‘false’).
If DO1 pulse has not been received by the decoder for more than 10 seconds, or DO2 has
signaled “true”, the buzzer sends an alert.
Ex-Sight.Com – ‘Oz-Lehava’ Page 18
4.2.5.1 Setting DO 1 ‘Active’ event
To add a new event, follow these steps:
1. Event configuration->Event profile
2. Follow the screenshots below to complete the process.
Ex-Sight.Com – ‘Oz-Lehava’ Page 19
Ex-Sight.Com – ‘Oz-Lehava’ Page 20
4.2.5.2 Setting DO 1 ‘Inactive’ event
To add a new event, follow these steps:
1. Event configuration->Event profile
2. Follow the screenshots below to complete the process
Ex-Sight.Com – ‘Oz-Lehava’ Page 21
Ex-Sight.Com – ‘Oz-Lehava’ Page 22
4.2.5.3 Setting DO 2 ‘Active’ event
To add a new event, follow these steps:
1. Event configuration->Event profile
2. Follow the screenshots below to complete the process
Ex-Sight.Com – ‘Oz-Lehava’ Page 23
Ex-Sight.Com – ‘Oz-Lehava’ Page 24
4.2.5.4 Setting DO 2 ‘Inactive’ event
To add a new event, follow these steps
1. Event configuration->Event profile
2. Follow the screenshots below to complete the process
Ex-Sight.Com – ‘Oz-Lehava’ Page 25
Ex-Sight.Com – ‘Oz-Lehava’ Page 26
Decoder IP
Decoder Port
Ch. 0
Signal – ‘on’
Decoder Login
4.2.5.5 Setting DO 1 send ‘Active’ event to decoder
Message: /nvc-cgi/admin/param.cgi?action=update&group=DIDO.DO.Ch0&trig=on
Note: Decoder default port is 80
Ex-Sight.Com – ‘Oz-Lehava’ Page 27
Decoder IP
Decoder Port
Ch 0
Signal – ‘off’
Decoder Login
4.2.5.6 Encoder settings
DO 1 sends ‘Inactive’ event to the decoder
Message: /nvc-cgi/admin/param.cgi?action=update&group=DIDO.DO.Ch0&trig=off
Note: Decoder default port is 80
Ex-Sight.Com – ‘Oz-Lehava’ Page 28
Decoder IP
Decoder Port
Ch 1
Signal – ‘on’
Decoder Logon
4.2.5.7 Encoder settings
DO 2 sends ‘Active’ event to the decoder
Message: /nvc-cgi/admin/param.cgi?action=update&group=DIDO.DO.Ch1&trig=on
Note: Decoder default port is 80
Ex-Sight.Com – ‘Oz-Lehava’ Page 29
Decoder IP
Decoder Port
Ch 1
Signal – ‘off’
Decoder Logon
4.2.5.8 Encoder settings
DO 2 sends ‘Inactive’ event to the decoder
Message: /nvc-cgi/admin/param.cgi?action=update&group=DIDO.DO.Ch1&trig=off
Note: Decoder default port is 80
Ex-Sight.Com – ‘Oz-Lehava’ Page 30
Use these buttons to
send DO for the
Encoder
4.3 Testing Configuration
Set new DO in the Encoder settings window:
Ex-Sight.Com – ‘Oz-Lehava’ Page 31
Refreshing Decoder’s
settings window should
reflect DO of the Encoder
Check Decoder’s DO in the Decoder settings window:
Ex-Sight.Com – ‘Oz-Lehava’ Page 32
Expand the configurations panel by
double-clicking the panel or hitting
the Expand button
Expand
Oz-Lehava Garbage Collector
5 Software Usage
5.1 First Time Usage (configure OZ-LEHAVA settings)
To start the software for the first time, click on the Oz-Lehava desktop shortcut.
The following screen will appear:
Oz-Lehava Garbage Collector is loaded with the main application.
The corresponding icon will be added to the Windows notifications area as shown on the
right ->
For more information, see section 5.11 ‘Oz-Lehava Garbage Collector ’.
Ex-Sight.Com – ‘Oz-Lehava’ Page 33
Enter the login info (‘root: pass’ by
default) to see the contents of the
configurations panel
The configurations panel
5.1.1 Logging-in
The system’s configuration is login- password protected. In order to log-in, expand the
configurations panel (as shown above). The following panel will appear:
Enter the username composed of a password (default = root: pass) and a login to view the
configurations panel.
5.1.2 Quick configuration:
After your logging-in, the configurations panel will look like this:
Ex-Sight.Com – ‘Oz-Lehava’ Page 34
Quick configuration (Continued)
Configure the settings marked in
red and leave the rest in their
default values.
After the changes are made, the
“Apply” button will light up ( ).
Press it to apply changes.
At this point, the system is ready
to be activated
(For more information, see
section 5.10 ‘Settings’).
See section 5.2 ’Live Video’ for
information about playing the
Thermal & CCD videos.
In order to manually move the
camera, see section 5.3 ‘PTZ
Panel’.
Before activation, configure the presets which set the camera’s scanning zones (see
section 5.4 ‘The Presets Panel’).
Ex-Sight.Com – ‘Oz-Lehava’ Page 35
5.2 Live Video
After setting the IP address of the 2 cameras, view the live video by right-clicking the video
panel and hitting ‘Play Video’ as can be seen below:
Then the thermal and CCD (day) videos will be shown (as can be seen below):
Ex-Sight.Com – ‘Oz-Lehava’ Page 36
The PTZ Panel
Oz Lehava
Pan/Tilt controls
Current PTZ locations (write a number
and press Enter to go to a position)
Zoom In/Out
Focus Near/Far
Iris Close/Open
5.3 PTZ Panel
The PTZ (Pan/Tilt/Zoom) panel controls the PTZ thermal camera.
When Oz-Lehava is active/on ( ) the panel is disabled, as shown below:
To enable this panel, press the Oz-Lehava button ( ) and set it to deactivated/off ( ).
Now PTZ Panel is enabled, as shown below:
In most cases, the above described basic PTZ operation will be enough for Oz-Lehava.
For more information, see section 8 ‘Appendix A: PTZ Control’.
Ex-Sight.Com – ‘Oz-Lehava’ Page 37
Oz Lehava
The default prefix
for region names
5.4 The Presets Panel
The Presets Panel appears under the Configurations panel, as shown below:
The Presets Panel allows the user to define scanning zones, in which fire is to be detected.
In order to enable the presets panel, you will first need to turn Oz-Lehava off by using the
Oz-Lehava On/Off button (as shown above). Then the panel will be enabled (as shown
below):
Buttons:
Add a new preset either manually (by typing the coordinates), or automatically (by
directing the camera to the right position and clicking on the ‘Add’ button).
Ex-Sight.Com – ‘Oz-Lehava’ Page 38
Delete a specific highlighted preset.
Save preset changes.
Load/reload presets.
Go to the highlighted preset’s location.
Test all presets locations by pressing the ‘Simulate Presets’ button.
Remove the selected preset regions.
Remove all regions from all presets in the table.
Press on ‘Configure Detection/Non Detection Regions for Selected Preset’. The Fire
Detection Regions window will appear on top of the application:
Press to receive the image in the given preset (if it has not been received yet).
Press to receive the image the camera is currently on (regardless of the preset)
Ex-Sight.Com – ‘Oz-Lehava’ Page 39
The Time
Zone in
which the
region rule
is valid
To set the non detection region as unmarked, follow these steps:
Right click on the screen. The “Add Region” icon will appear:
Left click the icon and drag the cursor until the desired region is covered.
Ex-Sight.Com – ‘Oz-Lehava’ Page 40
After the non-detection region is marked, the time period during which detection must be
ignored, is displayed. In order to for the region rule to be valid, at least one Time Zone
should be configured (for more about Time Zones see section 5.5 ‘Fire Detection Time
Zones’).
To remove the marked region, right click on the screen. You will get the “Remove Region”
icon. Left click this icon to remove the region.
Press to save your changes and exit the regions window.
Press or to discard your changes and exit the regions window (closing the window
does the same).
Ex-Sight.Com – ‘Oz-Lehava’ Page 41
Oz Lehava
5.5 Fire Detection Time Zones
The Time Zones Panel appears under the Configurations panel, as shown below:
The Time Zones allow the user to define time zones, in which fire is to be detected/ignored.
For example, in a facility with permanent controlled fire environment, the controlled fire
can be ignored using a specific time zone.
In order to enable the time zones panel, first turn Oz-Lehava off by using the Oz-Lehava
On/Off button (as shown above). Then the panel will be enabled (as shown below).
To add a Time Zone right-click the time zone grid and click ‘Add Time Zone’ (as seen below).
Ex-Sight.Com – ‘Oz-Lehava’ Page 42
Add Day Rule
Remove Day Rule
The Date Span
Expand
/Collapse
Delete Rules List
Name the time zone and then right-click the row and click ‘Add Rule’ (as seen below).
Select the date span and the times of day by clicking on the ‘Add Day Rule’ button ( )
Add the day rule for a specific day or for all days in that date span and set the times of the
day.
You can add multiple time zones and multiple time zone rules to the same time zone as
shown below:
Buttons:
Ex-Sight.Com – ‘Oz-Lehava’ Page 43
Save time zone changes.
Load previously saved time zones.
Validate the time zones.
The current preset is highlighted in a
color according to the step
5.6 Fire Detection Panel
The Fire Detection Panel allows the user to actively control the detection process as well as simulate
fire alarms. The panel is located under the Live Controls Panel as shown below:
Oz-Lehava On/Off (activate/deactivate) button:
Pressing this button turns the fire detection process on/off. This button must be off
in order to configure Thermal Camera settings, presets & time zones, as well as to
enable the PTZ panel.
Note: If connection is lost, the application will try to reconnect every few seconds.
Go to Next Preset: Stops current thermal camera action and skips to the next preset.
Focus Near (Thermal): Performs ‘Focus Near’ operation on the thermal camera.
Focus Far (Thermal): Performs ‘Focus Far’ operation on the thermal camera..
Fire Simulation:
Pressing this button will simulate fire according
to the following parameters->
Preset: The preset in which ‘fire’ occurs.
Location: The location of the ‘fire’ (in
screen coordinates).
The time of the ‘fire’.
If the parameters of the ‘fire’ match, the application will raise a real fire alarm.
Ex-Sight.Com – ‘Oz-Lehava’ Page 44
Fire!
(Marked by the Green circle)
The Visual Fire Alert
5.6.1 Fire Detection Example
Below is a real-life fire detection as it appears in the application:
Ex-Sight.Com – ‘Oz-Lehava’ Page 45
Oz Lehava
Status bar
Messages panel
The current preset is highlighted
in a color according to the step
5.7 Live Indicators & Messages
Oz-Lehava constantly updates its live indicators & message box, as can be seen below:
Ex-Sight.Com – ‘Oz-Lehava’ Page 46
Summarized notifications
Visual Alerts
Error Notification
5.7.1 Status bar
Summarized notifications:
Displays the current step of the Fire Detection
Preset Cycle (see section 2.3 for all steps).
o When the step is ‘Detecting fire’, the bar will fill up according to the
detection time frame for the current preset.
Visual Alerts:
Shows graphic fire alerts in Red (in addition to voice alerts) and failure alerts in
Yellow as can be seen below:
Visual alerts can be dismissed by right-clicking them and pressing “Dismiss”:
Error Notification:
o Green ( ): “Oz-Lehava” works without any errors.
o Red ( ): Either an error has occurred, or “Oz-Lehava” has been disabled.
Ex-Sight.Com – ‘Oz-Lehava’ Page 47
The messages log
Minimal
Color by
Severity
Maximum number
of lines in log
Save
Log
Modules
Clear log
5.7.2 Messages Panel
Minimal Verbosity/Severity:
Minimal message classification
o Debug: All messages
o LowSeverity: Critical alerts and camera status
o Critical: Fire alerts, Oz-Lehava enabled/disabled, connection failures and
exceptions
Color by Severity:
Press this button to color/uncolor messages according to their severity.
Save Log:
Pressing this button will open the “Save Log Dialog” as shown below:
The log file can be saved as:
Ex-Sight.Com – ‘Oz-Lehava’ Page 48
Text Files – Regular text file format.
Text Files – Unicode for preserving special characters.
RTF (Rich Text Format) for preserving the line colors as well.
Note: Only the messages that currently appear in the messages panel can be
saved as described above.
Modules
Check/Uncheck this button in order to see all the modules that can send
messages (Uncheck a module if you want to stop seeing messages sent by it).
Clear Log
Clears all the current messages from the panel
Ex-Sight.Com – ‘Oz-Lehava’ Page 49
5.8 Layout Manipulation
When you right-click any panel in the application, you will get the options below:
These options enable you to manipulate the application’s layout as follows:
o Change the panels order
o Stretch the selected panel over the entire blank region in the panel
containers.
o The panel containers are the following:
The Live Controls Panel
The Main Panel
The Configurations Panel
Video 2(CCD) panel has a special dragging capability.
o You can drag this panel’s header in order to move it to any panel
container as can be seen below:
o After stretching the Video 2 (CCD) panel, you can get (for example) the layout
below in which video 1 & video 2 are seen side by side:
Ex-Sight.Com – ‘Oz-Lehava’ Page 50
Oz Lehava
Thermal Camera Settings
Open Settings
Connection tab
Thermal Camera
Messages log
Modes
5.9 Thermal Camera Settings
Note ! Thermal camera changes should be handled with care and only after getting
professional help regarding the thermal camera.
When Oz-Lehava is off the thermal camera settings will be enabled, as shown below:
Press the ‘Open Settings’ button and the following window will appear (Connection Tab):
Modes
Maintenance:
Press this button if you want to get/set values that appear in the maintenance tab.
NUC: Performs thermal sensor initialization (you can hear it happening).
Operational :
Press this button if you want to change values in the operational tab.
Note: Before exiting the thermal settings window you must press this button in
order to make sure that the camera is in the operational mode, so it could continue
to detect fire.
Connection Tab
Connect/Disconnect: After setting the correct values of IP, port & baud rate, you can
connect/disconnect to/from the thermal camera.
SaveToFlash : Saves the changes you have made in the maintenance mode to the
camera’s memory.
Ex-Sight.Com – ‘Oz-Lehava’ Page 51
Operational Tab
5.9.1 Operational Tab
Fire Detection Alerts
Enable Fire Detection:
Enables/Disables the fire detection capability of
the camera.
Enable High Risk:
When checked, the bodies above the
temperature threshold will appear in red, as can
be seen in the example on the right (the glass is
full with hot water, which appears red in the
thermal video). In order to apply these settings,
check/uncheck the relevant checkboxes and click the
Set button.
Flip Image
In this section, you can flip the thermal image right/left, up/down.
Polarity
Hot White: When checked, hot bodies in the thermal image appear white, while cold
bodies appear black, and vice versa.
Ex-Sight.Com – ‘Oz-Lehava’ Page 52
Maintenance Tab
5.9.2 Maintenance Tab
Here you can get/set various thermal parameters as shown above.
Ex-Sight.Com – ‘Oz-Lehava’ Page 53
5.10 Settings
5.10.1 Device
General note: These settings apply to both Thermal & CCD encoder devices.
Authentication: Password:
The password used to log into to the device may remain blank when the device does not
require credentials to retrieve snapshots.
Authentication: Username
The username used to log into to the device may remain blank when the device does not
require credentials to retrieve snapshots.
Device Channel #
The Device's Channel Number (0 by default) must remain 0 in most cases.
Device Type
The device is VACAM.
HTTP Authentication: Enabled
Enable/Disable HTTP authentication (by “Authentication: Username” and
“Authentication: Password”).
HTTP Port
The HTTP port is used for communicating with the device and for displaying the web
view (80 by default).
TCP Events Port
The TCP Events port is used by the device for notifying events (2555 by default).
Ex-Sight.Com – ‘Oz-Lehava’ Page 54
5.10.2 Oz Lehava
Audio Alarm File Name (wav)
Sets the fire detection alarm sound.
Auto-Hide Fire Alerts
When set to True, the Fire Alerts display is hidden automatically.
Note: ‘Auto-Hide Fire Alerts’ is relevant only when ‘Use Audio Alert’=True.
Enable Text on Video
Enables burnt text on the encoder.
EyeSec Baud Rate
The thermal camera baud rate for serial communication.
EyeSec Camera IP
Thermal camera’s IP.
EyeSec Communication port
The thermal camera’s RS232 communication port.
EyeSec Response Timeout (mSec)
The maximum time (in milliseconds) it takes the thermal camera or a motorized PTZ
to respond.
Fire Status Interval (mSec)
The time spent by the camera between two fire detection requests (in milliseconds).
Ignore 0,0 coordinate
Ignore the 0,0 coordinate on fire detection.
I’m OK Interval (ms)
The time interval needed by the system to report failure.
Minimum Fire Detections for Fire Alert
The minimum number of fire detections to occur on a single preset before raising a
fire alert.
Repeated Verification Counter
The number of times needed to verify the camera’s position before sending an error.
Stabilization interval (mSec)
The camera’s stabilizing time before fire detection.
Note: Unstabilized camera may cause unexpected results, such as false alarms.
Ex-Sight.Com – ‘Oz-Lehava’ Page 55
Stop Verification Time Interval (mSec)
The time needed to verify the camera’s position.
Time to Detect (mSec)
The time spent by the camera on ‘fire detection’ for each preset.
Use Audio Alert
Enable/Disable the Audio fire alert.
Ex-Sight.Com – ‘Oz-Lehava’ Page 56
5.10.3 Oz -Lehava Learning Mode
Learning Mode Enabled
When set to ‘True’, this functionality enables automatic generation of ignored
regions for presets. For example, when Learning Mode is enabled, every fire
detection coordinate is added as an ignored region for the preset in which it is
detected. Thus next time fire is detected on identical coordinates, it will be ignored,
and no fire alert will be raised.
Region Size
The default size of the ignored region generated for each fire detection.
Time Zone
The Learning Mode time-zone
Note: If left blank the first time-zone item of the time-zones list will be used.
Ex-Sight.Com – ‘Oz-Lehava’ Page 57
5.10.4 PTZ Control
Baud Rate
The serial communication baud rate
Note: Baud rate is relevant only when ‘PTZ Connection Type’ is DirectCOM (not in
use in most cases).
Device Address
Pelco ID number (1 by default).
IP Address of the PTZ Device (if any)
In case of Serial Over IP communication (most cased), this field contains the IP
address of the CCD (day) encoder. During direct serial communication, this field is
ignored.
Port number of the PTZ Device (if any)
The Port Number used for Serial Over IP communication.
PTZ Com Port
In case of direct serial communication (rarely used), this field contains the port
name. During serial over IP communication, this field is ignored.
PTZ Connection Type
Serial over IP (most cases) or direct serial (DirectCOM).
PTZ Protocol
PTZ Protocol used (Pelco D in most cases).
5.10.5 Security
• Login: Password
The login password for the configurations section.
• Login: Username
The login username for the configurations section.
Note: The default username & password are “root: pass”.
Ex-Sight.Com – ‘Oz-Lehava’ Page 58
5.10.6 Video Sources
*For both Video 1(Thermal) & Video 2(CCD)
Aspect Ratio: Height
The Height element in the Aspect Ratio (relevant only when 'Aspect Ratio: Stretch
to Fit'=’False’).
Enter 0 to use the default Aspect Ratio of the video.
Aspect Ratio: Width
The Width element in the Aspect Ratio (relevant only when 'Aspect Ratio: Stretch to
Fit'=’False’).
Enter 0 to use the default Aspect Ratio of the video.
Aspect Ratio:Stretch to Fit
True -> Aspect Ratio of the video will be calculated to fit the window size.
Auto Start
Automatically start playing the video when the program starts.
Caching Value (ms)
This value indicates the time period (in milliseconds) between grabbing a video
image from the video stream and displaying it on the screen.
Note: Small values will make the video arrive faster (shorter delay) but might cause
the video to be unsmooth or even cause the video to stop (!).
Device Channel #
The Device's Channel Number (0 by default) must stay 0 in most cases.
IP Address(Readonly) – shows the IP address of the video device.
Media URL - The camera’s video address.
Note: Media URL can be either automatically set (auto), or user-set (custom). To edit
the address, set ‘Media URL Generation’ to custom.
Media URL Generation
o Auto - Media URL is generated automatically based on VACAM cameras
default stream names.
o Custom - User specifies the media URL.
Ex-Sight.Com – ‘Oz-Lehava’ Page 59
OSD
Video OSD (On Screen Display) can be added to
each one of the video sources. The OSD appears
only on the video panels, as shown on the right.
In order to see the changes, you may need to play
the video again after you apply the changes (see
section 5.2 ‘Live Video’ for more).
o Apply Delay (ms)
The Video OSD Apply Delay (in
milliseconds). If the OSD is not shown try
to increase this value.
In certain cases, decreasing this value will
cause the video to appear faster.
o Apply Delay(ms) – On App. Load
The Video OSD Apply Delay (in milliseconds) to be used when the application
is loading. If the OSD is not shown, try to increase this value.
In certain cases, decreasing this value will cause the video to appear faster.
o Color
The Video OSD Color
o Enable
Enable/Disable the Video OSD text
o Font Size
The Video OSD text Font Size
o Opacity
The Video OSD text Opacity ranging from0 (completely transparent) to 255
(completely opaque)
o Position
The Position of the Video OSD text
o Text
The Video OSD text to display
Ex-Sight.Com – ‘Oz-Lehava’ Page 60
RTSP Authentication: Enabled
Enable/Disable RTSP Authentication by 'Device->Authentication: Username' and
'Device->Authentication: Password'.
RTSP Port
The RTSP port used for streaming the device video (554 by default)
Session Name
Allowed characters: Numbers, Digits and '_'
Maximum name length: 64 characters. Usually, there is no need to change the
default value.
Note: Any change to this property must correspond to the encoder’s values.
Otherwise, it is impossible to view the video on the device.
Video Stream Type
The video transmission method
o Unicast->every viewer gets the video directly from the device. In this case,
more CPU power needed from the device.
o Multicast->The video is transmitted from the device only to the router, which
multicasts the video to the viewers. In this case, less CPU power is needed
from the device.
Note: Any change to this property must correspond to the encoder’s values.
Otherwise, it is impossible to view the video on the device.
Ex-Sight.Com – ‘Oz-Lehava’ Page 61
5.11 Oz-Lehava Garbage Collector
This application keeps OZ LEHAVA working non-stop and removes old data files. The “Oz-Lehava
Garbage Collector” must run at all times. The application can be found on the taskbar/notification
area. Right click on the icon ( ) and then click on ‘Settings’.
Properties:
Always show Last Delete time notification
Determines whether to always show the ‘Last Delete notification’
Note: this info is also shown when you click on the Oz-Lehava Garbage Collector
icon.
Application ‘logs’ Path
The path in which the “Logs” directory is located
OzLehavaApp.exe file Location
The ‘OzLehavaApp.exe’ file path. This functionality is necessary for the Oz-Lehava
Garbage Collector to work as a watchdog.
Perform Delete Interval (Minutes)
The time interval between two “excess data files checks”.
Time to Hold Old Temporary Data (Days)
Indicates how many days the “data files” must be kept in hard drive from the
moment they are created to the moment they are deleted.
Watch Dog Oz-Lehava Process name
The process name to be inserted in order for the process to be viewed
After settings new values in Oz Lehava Garbage Collector, save the parameters by clicking
on the Apply button.
Ex-Sight.Com – ‘Oz-Lehava’ Page 62
6 OZ-LEHAVA Registration/Activation
To register/activate your product, press the ”OZ-LEHAVA Activation” icon located on your
desktop ( ).
The following window will appear:
To receive the license, copy the hardware ID and send it to Ex-Sight.
After you receive the license file, copy it to the installation folder.
You can do this by clicking on Activation and then selecting the received license, or simply
by copying the received license to the application folder (“C:\Program Files\ExSight.Com\Oz-Lehava” by default).
Ex-Sight.Com – ‘Oz-Lehava’ Page 63
Issue
Cause
How to fix
“Error: PTZ Request
Timeout”
can’t get motorized
PTZ response
1. Set higher value for ‘Eysec Response
Timeout’.
2. Check IP number in ‘IP Address in the
PTZ Device’
3. Check port number in ‘’PTZ Com Port’.
4. Check physical motorized PTZ network
connections.
“Error: Thermal Request
Timeout”
can’t get thermal
camera response
1. Set higher value for ‘Eysec Response
Timeout’.
2. Check IP address in ‘IP Address in the
PTZ Device’
3. Check port number in ‘’EyeSec
Communication Port’.
4. Check physical thermal camera
network connections.
“Error:Timer too fast”
‘Stop Verification
time interval’ value
is too low
1. Set higher value for ‘Stop Verification
time interval’.
False alarms
The camera isn’t
steady
1. Set higher value for ‘Stabilization
interval’.
2. Stabilize the camera physically.
PTZ new locations aren’t
showmen on PTZ Control
Panel
VideoTech switches
are configured as
‘One way’ mode
1. Switches 9 and 10 in VideoTech should
be ‘On’ (up) for ‘Two ways’ mode
Camera’s manual PTZ
control doesn’t work
Camera network
connection issue or
‘OZ-LEHAVA’ is
enabled
1. Insure ‘OZ-LEHAVA’ is disabled.
2. Check camera network connection.
7 Trouble Shooting
Ex-Sight.Com – ‘Oz-Lehava’ Page 64
A
C
H
E
K
I
D
J
G
B
L
F
8 Appendix A: PTZ Control
8.1 Main PTZ Panel
(A) P/T Wheel
Allows the user to Pan/Tilt in all directions (the
central button stops the camera).
(B) PTZ Current position
Shows the current Pan/Tilt/Zoom position
Note: You can insert values inside the P/T/Z boxes to tell the camera to go to a
specific P/T/Z position.
(C) Zoom In/Out
(D) Focus Near/Far
(E) Iris Close/Open
(F) Stop the current action.
(G) Reconnect to the PTZ server.
(H) By filling this checkbox, you can direct the camera to perform a certain action for a
given amount of time (for example, pan right for 500 ms).
(I) Pan Turbo On/Off (Pan Turbo is the maximum available pan speed of the camera).
(J) Change the current Pan/Tilt speed.
(K) Open the Presets+ Panel.
(L) Open the Record/Play PTZ Scripts Panel.
Ex-Sight.Com – ‘Oz-Lehava’ Page 65
A
B
C
D
E
F
Value input
Type
Checkbox
The Action
Go!
8.2 Presets+ Panel
A click on the Presets+ button ( ) will open the panel
shown on the right:
(A) Preset Numpad : Here you can input preset numbers.
(B) Preset Actions :
Go To Preset
Goes to a preset position/performs a preset action
provided by the camera. (For example, preset 95 in
most Pelco D cameras initiates the camera menu).
Usage: input the preset number and then press ‘Go To’.
Set Preset
Saves the current position as a preset of the camera
Usage: input the preset number and then press ‘Set’.
Clear Preset
Clears the selected preset number from the camera’s
presets
Usage: input the preset number and then press ‘Clear’.
(C) Continuously Query Position
When checked ( ), the program continuously asks the
camera for its current position, and records it in the PTZ
Current Position boxes (B on the Main PTZ Panel).
Right-click it to see the menu on the right ->
Check the ‘Estimate Responses Opcodes’ in case the
PTZ positions are not updated upon change of
position. (Some cameras do not fully follow the Pelco D protocol, and with this
property we attempt to fix it)
The query interval can be changed by selecting a value from the drop-down list
and hitting ‘Update Query Interval (ms)’
Note: PTZ devices cannot handle too many commands/queries in a short
period of time. (In this case, the interval must be increased). Vice versa, if
positions are refreshed too slowly, the interval may be decreased.
(D) Fixed Commands : Select one command from the list (for example, ‘Flip 180 degrees’)
and hit Go( )
Note: An action will be done only if it is supported by your camera.
(E) Extended Commands 1 : Select one command from the list (for example, ‘Set Zoom
Speed[0-3]’) , enter a value below and hit Go( )
Note: An action will be done only if it is supported by your camera.
(F) Extended Commands 2: Select one command from the list (for example, ‘Set Pan
Position’), enter a value below and hit Go ( )
Note (1): An action will be done only if it is supported by your
camera.
Note (2): Some actions require to also set the checkbox type (as can
be seen on the right).
Ex-Sight.Com – ‘Oz-Lehava’ Page 66
Record
Stop
Script
Pause
Script
Play
Script
Play Current
Command
Clear
Commands
Save
PTZ
Script
Load
PTZ
Script
8.3 Record/Play PTZ Scripts Panel
In some cases you may wish to use PTZ scripts in order to
perform daily tasks on your camera. For example, you
might want to change the position of the camera at specific
times of the day, or change the day/night camera mode at
specific times (in case your camera does not have this
option built-in).
In this software you have support of PTZ scripting that
enables you to record and play a script.
The following actions are available:
Record: When you hit the Record button, it will
light up ( ) to signify a PTZ recording session. In
this session, until you will press the Record button
again, you can command the camera to perform
actions while using the Main PTZ Panel or the
Presets+ Panel. Every command will be added as a
line in the PTZ script, as shown below:
Note: Every line consists of a command and a delay,
which is the time (in milliseconds) to pass until executing the next command.
Stop Script : Stops the script and moves the player cursor to the first line (as shown
below):
Pause Script : Stops the script at the current cursor position (as shown below):
Play Script :Plays the currently loaded script from the current cursor position (or
from the beginning if the cursor is not set)
Play Current Command : Plays only the command that is under the player cursor
Clear Commands : Clears all the script commands
Save PTZ Script : Saves the current script to a file
Load PTZ Script : Load a PTZ script from file
Ex-Sight.Com – ‘Oz-Lehava’ Page 67
Loading...
