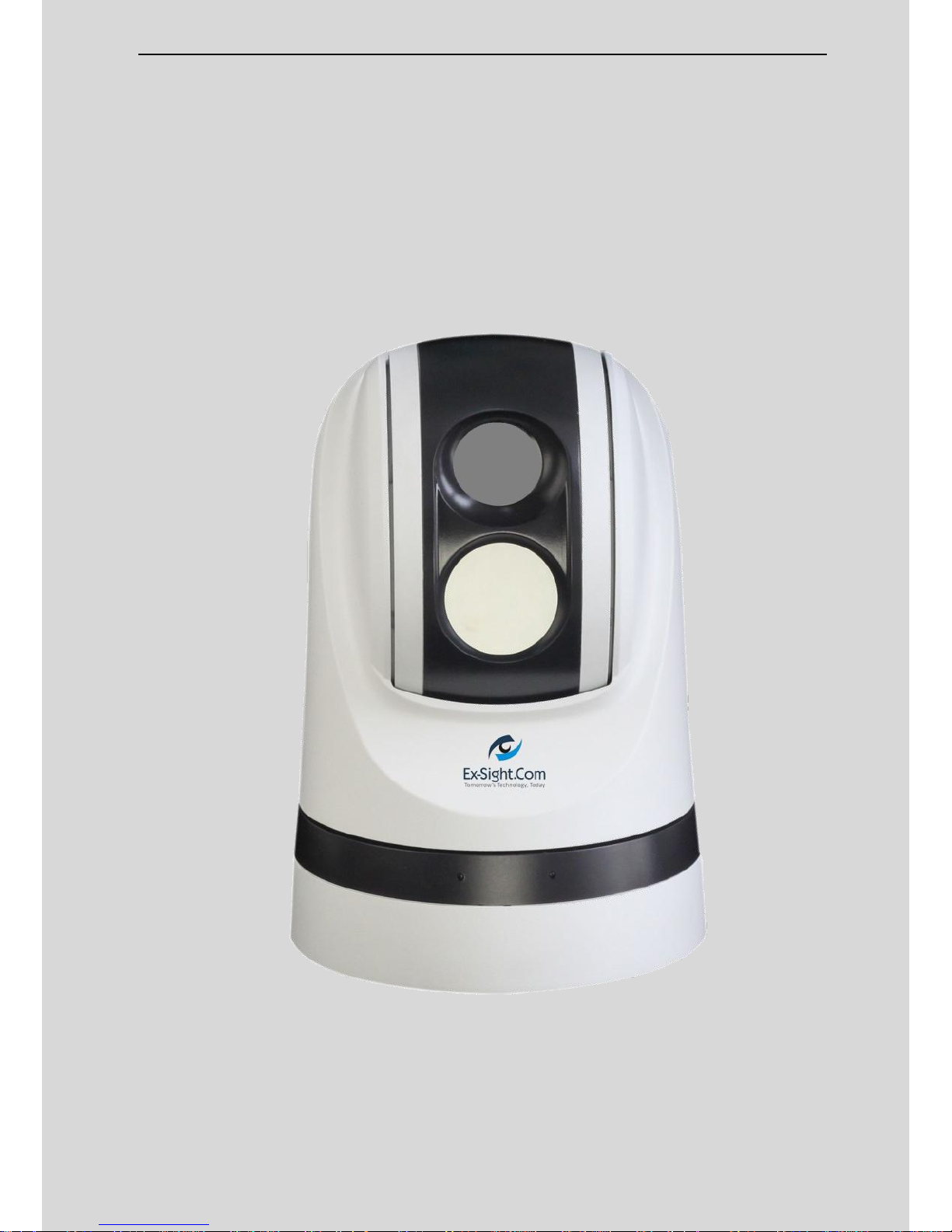

Ex-Sight.Com Ex-CT Compact Thermal Camera
EX-CT
USER MANUAL
Compact Rugged Dual-Sensor PTZ Camera
(CCD & Un-Cooled Thermal IR)
Ex-Sight.Com Ex-CT Compact Thermal Camera
Modification History
Revision
Date of Release
Modified Contents
Ver 1.0
Mar 1st 2012
Official release of first version
Ex-Sight.Com Ex-CT Compact Thermal Camera
i / ii
Thank You for Choosing Our Portable All-Condition Rugged PTZ
Camera!
When you open the box:
Check that the packing and the contents are not visibly damaged. Contact the
retailer immediately if any parts are either missing or damaged.
Make sure if the contents are all included as per the packing list.
Do not attempt to use the device with missing or damaged parts. Send the product
back in its original packing if it is damaged.
The information contained in the document is subject to change without notice.
Ex-Sight.Com Ex-CT Compact Thermal Camera
ii / ii
Contents
SAFETY NOTES 1
ABOUT THE PRODUCT 2
TECHNICAL DATA 6
PREPARATION 8
INSTALLATION 11
OPERATION 15
ANNEX: DIP SWITCH – CAMERA ADDRESS 19
Ex-CT (Compact Thermal) User Manual
1
Safety Notes
The following important notes must be followed carefully to run the camera and
respective accessories in total safety. The camera and relative accessories are called
video system in this section.
Before installing the camera, please read this manual carefully; when installing
please follow instructions of installation indicated in this manual. Please keep this
manual for future use.
The following installation should be performed by qualified service personnel or
system installers in accordance with all local rules.
Before powering on the camera, please check the power voltage carefully. Make
sure that you are using the right power source.
Please put the power cable, video cable and control cable in safe place.
Do not operate the camera beyond the specified temperature and humidity. The
camera’s working temperature range is between -45℃~+65℃. The ambient
humidity range is less than 95﹪.
When transporting, avoid violent shake or force to the camera.
To prevent electric shock, do not remove screws or covers of the camera. There are
no self-serviceable parts inside. Refer to qualified service personnel for servicing.
Video cable and RS485 cable should be far away from other cables. Shielded and
independent wiring is necessary for video and control cables.
Never aim the lens of the camera at the sun or other extremely bright objects.
Otherwise, it may cause damage.
When cleaning the camera, please use soft cloth. If the camera is very dirty, wipe it
off gently with a soft cloth moistened with a weak solution of water and a neutral
kitchen detergent. Wring all liquid from the cloth before wiping the camera, then
wipe off all remaining dirt with a soft, dry cloth. Use lens cleaning paper to clean the
lens.
Do not move the camera module manually. In doing so would result in malfunction
of the camera. Do not hold the camera module when carrying the video camera.
Make sure the camera is far away from area where radiation, X-rays, strong electric
waves, or magnetism is generated
Ex-CT (Compact Thermal) User Manual
2
About The Product
EX-CT series Thermal imaging system camera is designed for important video
surveillance application such as Police, Rescue, Border Patrol, Marine, etc. (fixed and
mobile video surveillance application.) It consists of: thermal imaging sensor, high
resolution zoom module, precise PTZ system, optional damping systems. It ensures
clear view of details under total dark or foggy environment.
Thermal Imaging Sensor
Built-in Un-Cooled αSi thermal imaging sensor, 384×288, provide clear view in total
darkness.
ExView HAD CCD Modules
The 18X/28X/36X SONY ExView HAD CCD modules provide high resolution quality
video effect.
Full Aluminum PTZ Case
The case with high strength is full weather proof, suitable for various tough applications
such as rugged roads, sea, storm weather etc.
New Drive Mechanism
The PTZ camera employs new drive system with high precision and higher holding
torque. It does not generate offset during positioning of Pan and Tilt.
Easy Installation Mounts
The new vacuum and magnetic vacuum can easily fix the PTZ camera firmly onto a
metal surface. Meanwhile user can easily carry the PTZ camera with the handle at the
back side.
1.1. FEATURES
Built-in 382*288 full time high sensitive thermal imager, provider clear view under
total darkness;
Integrated HAD 28X zoom module, 550 TVL, 0.0015 LUX
Aluminum PTZ case with high strength, special Fabrication Processing, full
weather proof;
Fully sealed design, IP index up to IP67, built-in surge and lighting strike protection
device;
Built-in integrated heating and defogging device, working temperature rang -45oC ~
Ex-CT (Compact Thermal) User Manual
3
75oC
3 video outputs: thermal video, zoom module video and complex video;
Precise PTZ system with high precision and higher holding torque, PTZ positioning
precision up to +/-0.050
Detect protocol & Baud rate automatically, soft address supported, convenient for
use;
Optional damping system, for tough applications;
Hidden seamless window wiper with adjustable speed;
Digital image stabilization;
Image flip for stand / ceiling mount;

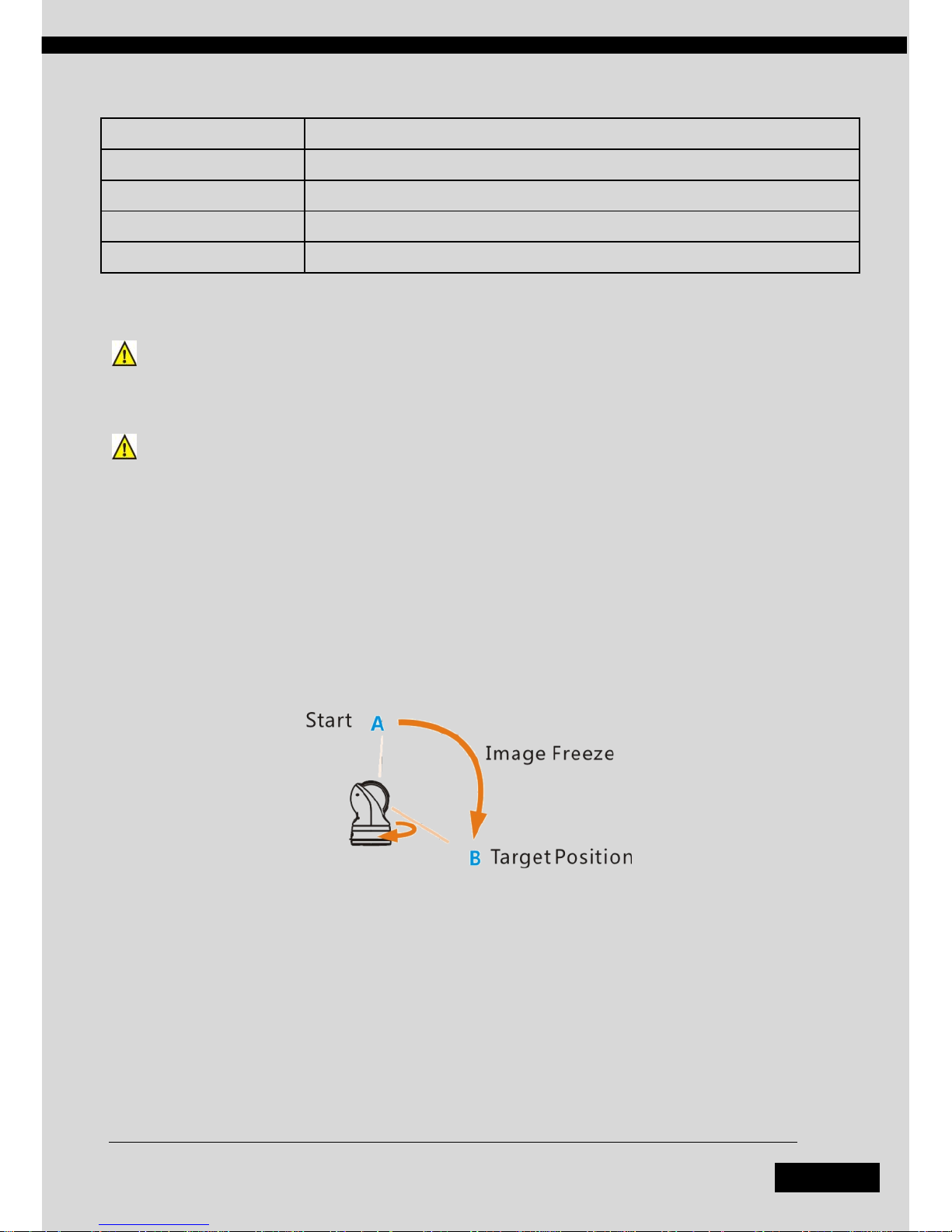

Video freeze;
Wide Dynamic Range (WDR);
Day/night (ICR);
10.8~28V voltage input;
Auto power-off with low power supply.
1.2. FUNCTIONS
Day/Night Function
The IR cut filter of camera module inside the camera can be removed by sending
special command, so that the camera can change from color to mono. The picture is
clear even if the illumination is as low as 0.01Lux.
Save/Call Preset
Preset function is that dome saves current horizontal angle and title angle of pan/tilt,
zoom and position parameters into memory. When necessary dome calls these
parameters and adjusts Pan/Tilt and camera to that position. User can save and call
presets easily and promptly by using keyboard controller or infrared controller. The
camera supports up to 256 presets.
Zoom control
User can adjust zoom wide or tele by controller and get desired image.
Focus control
System defaults Auto Focus mode, that is, the lens and camera will automatically
adjust the focus to get the best image.
Focus can also be controlled manually from the controller if required. Press Focus Near
or Focus Far key to manually focus. Focus can be manual via keyboard or other
Ex-CT (Compact Thermal) User Manual
4
controller, please refer to control keyboard or other controller operation manual for
detailed operation.
The camera will NOT auto focus in the following status.
Target is not in the center of image.
Targets are in near and far at the same time.
Target is of strong light object. Such as spotlight etc.
Target is behind the glass with water drop or dust.
Target moves too fast.
Large area target such as wall.
Target is too dark or vague.
IRIS control
System defaults Auto IRIS. Camera can adjust immediately according to the alteration
of back ground illumination so that a lightness steady image can be achieved.
You may adjust IRIS by controller to get required image brightness, and call back Auto
IRIS by controlling the joystick.
Auto White Balance
Camera can automatically adjust white balance (WB) according to the alteration of
background lightness to give a true color image.
Back Light Compensation (BLC)
If a bright backlight presents, the subjects in the picture may appear dark or as a
silhouette. Backlight compensation enhances objects in the center of the picture. The
camera uses the center of the picture to adjust the IRIS. If there is a bright light source
outside this area, it will wash out to white. The camera will adjust the IRIS so that the
object in the sensitive area is properly exposed.
Auto Cruise
The preset position is programmed to be recalled in sequence. This feature is called
auto cruise.
Auto, Random and Frame Scan
Auto Scan: Make the camera scan 360° ranging from the current position.
Random Scan: Make the camera scan 360º ranging from the current position, pause at
every 108 º.
Frame Scan: Make the camera scan between two set positions.
For Frame Scan: The zoom at two limits shall be programed the same.
Ex-CT (Compact Thermal) User Manual
5
Image Flip
Enable you to view image easily when PTZ is either installed on roof of a car or is
mounted on the ceiling.
Ex-CT (Compact Thermal) User Manual
6
Technical Data
Digital Zoom
1X, 2X, 4X
Video Display
White / Black
Display Mode
Image Enhanced, Image Flip
Alarm Display
Cursor Display on Over-radiation of IR
Daylight Imaging Camera
Video Sensor
1/4" SONY EXView HAD CCD
Effective Pixel
PAL:752(H)×582(V);NTSC:768(H)×494(V)
Resolution
550 TVL
Video System
PAL/NTSC
Min
Illumination
Color:
0.25 lux (F1.35, 50IRE);
0.16 lux (1/4 sec (NTSC);
1/3 sec (PAL)，F1.35, 50IRE);
Mono:
0.0015 lux(1/4 sec (NTSC);
WB
Auto / Manual / ATW / Indoor / Outdoor
Focus
Auto / Manual
IRIS
Auto / Manual / IRIS Priority / Shutter Priority / Brightness
S/N Ratio
Not less than 50 dB
BLC
On / Off
Stabilization
On / Off
DNR
1-5 Steps / Off
Day / Night
Auto / Manual
Optical Zoom
28X
Digital Zoom
12X
Lens
f=3.5 mm (wide) to 98 mm(tele)
F1.35 to F3.7
View Angle
55.8º (wide) to 2.1º (tele)
PTZ
Pan Range
360° Continuous
Ex-CT (Compact Thermal) User Manual
7
Pan Speed
Control speed: 0.04° -100°/s;
Preset speed: 100°/s
Tilt Range
-15°~90°(Auto Mirror)
Video System
PAL / NTSC
Tilt Speed
Control speed:0.3° ~60°/s, adjustable;
Preset speed:60°/s
Preset
256
Preset
Precision
±0.05°
PTZ stability
Two Degrees of Freedom gyroscope PTZ stability control system
(Optional)
General
Video Output
1Channel Thermal Imaging Video;
1Channel Zoom Module Video;
1Channel Complex Video;
Power
35W/50W (Heater On)
Working Tem.
-45℃~75℃
IP Index
IP67
Anti-Vibration
Pan 9g, Tilt 15g
Wind
Resistance
180 km/h
Dimension
Φ190(mm)×300(mm) with vacuum pad mount
Φ190(mm)×275(mm) w/o vacuum pad mount
Weight
7 KGS
Table 1: Technical Data
The specifications are subject to change without notice.
Ex-CT (Compact Thermal) User Manual
8
Preparation
This section contains detailed instructions for installing the camera. These instructions
assume that the installer has a good knowledge of installation techniques and is
capable of adopting safe installation methods.
1.3. DIP SWITCH
The factory default is:
Camera Address
Protocol
Baud Rate
1
Pelco D
9600bps
The camera can detect and auto program its protocol (Pelco D, Pelco P) as well as
baud rate (2400bps, 4800bps, 9600bps, 19200bps) as per the whole video system.
Only the camera address setting is necessary. There are two ways to program camera
address:
Soft address: via special preset functions (see Section 1.9 Special Control Panel
Commands)
DIP Switch: The switches to configure these settings are located on the main board
inside the camera. See Fig. 1: DIP Switch.
Fig. 1: DIP Switch
The setting list of the camera address is enclosed in Section 0.
The camera shall be rebooted after the switches are programmed.
Ex-CT (Compact Thermal) User Manual
9
1.4. INITIAL POWER ON TEST
To ensure the camera works well after installation, please power on it for an initial test
with the following steps:
1) Connect the camera with correct power supply;
2) Connect control cable, video cable;
3) Power on the camera;
When the camera is powered on, the LED indicators at the front will be on.
1
Data (Flashing)
2
Power (Constantly On)
Fig. 2: LED Indicators
The camera will run a calibration procedure on power up and show the following
messages on screen in three times sequentially.
Fig. 3: On Screen Messages at Power Up

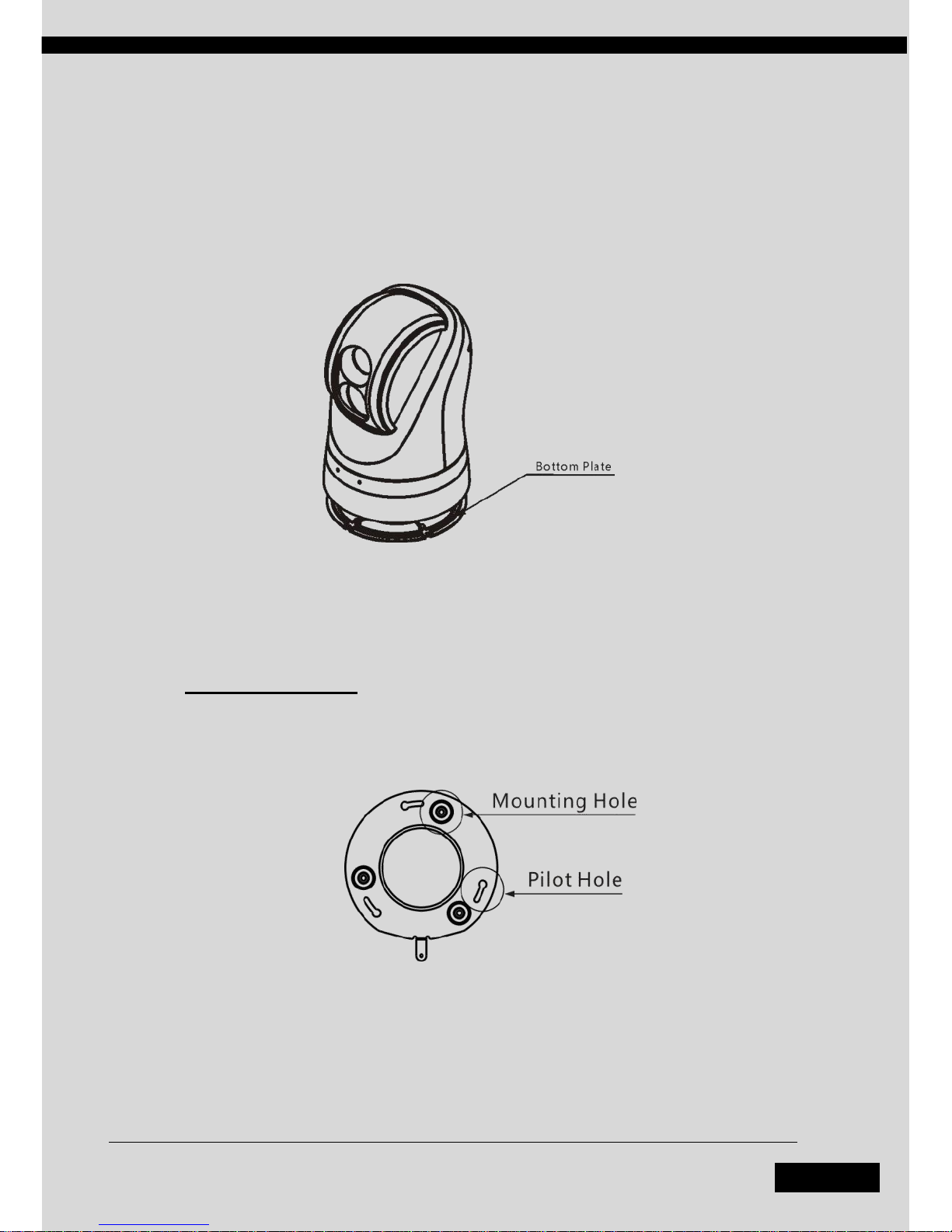

1.5. INSTALLATION PLACE
Make sure the installation place has enough space, support strength to install the
whole PTZ camera and its accessories
PROTOCOL: PELCO-D/P
DOME ID: 001
Ex-CT (Compact Thermal) User Manual
10
Ex-CT (Compact Thermal) User Manual
11
Installation
1.6. MOUNTS
The PTZ camera provides fixed mounts as standard, and damping system as optional.
Fig. 4: Fixed Mounts (with and w/o damping system)
With Damping System
Ex-CT (Compact Thermal) User Manual
12
1.7. INSTALLATION
To set the baud rate, protocol and camera hard address:
1) Remove the PTZ bottom plate;
2) Set DIP Switch for baud rate, protocol and camera address;
3) Fix the bottom plate. Make sure the sealing is well installed.
Fig. 5: Bottom Plate
1.7.1. FIXED MOUNTS
1) Take the installation plate out of packing and fix it to the target place as per the
plate dimensions with correct screws.
Fig. 6: Installation Plate
2) Put the camera onto the installation plate. Make sure three installation bolts are in
position with the fixing holes on the plate. Rotate the camera clockwise.
Ex-CT (Compact Thermal) User Manual
13
Fig. 7: Mount the Installation Plate
3) Fix the camera to the installation plate with a screw.
Fig. 8: Fix the Installation Plate

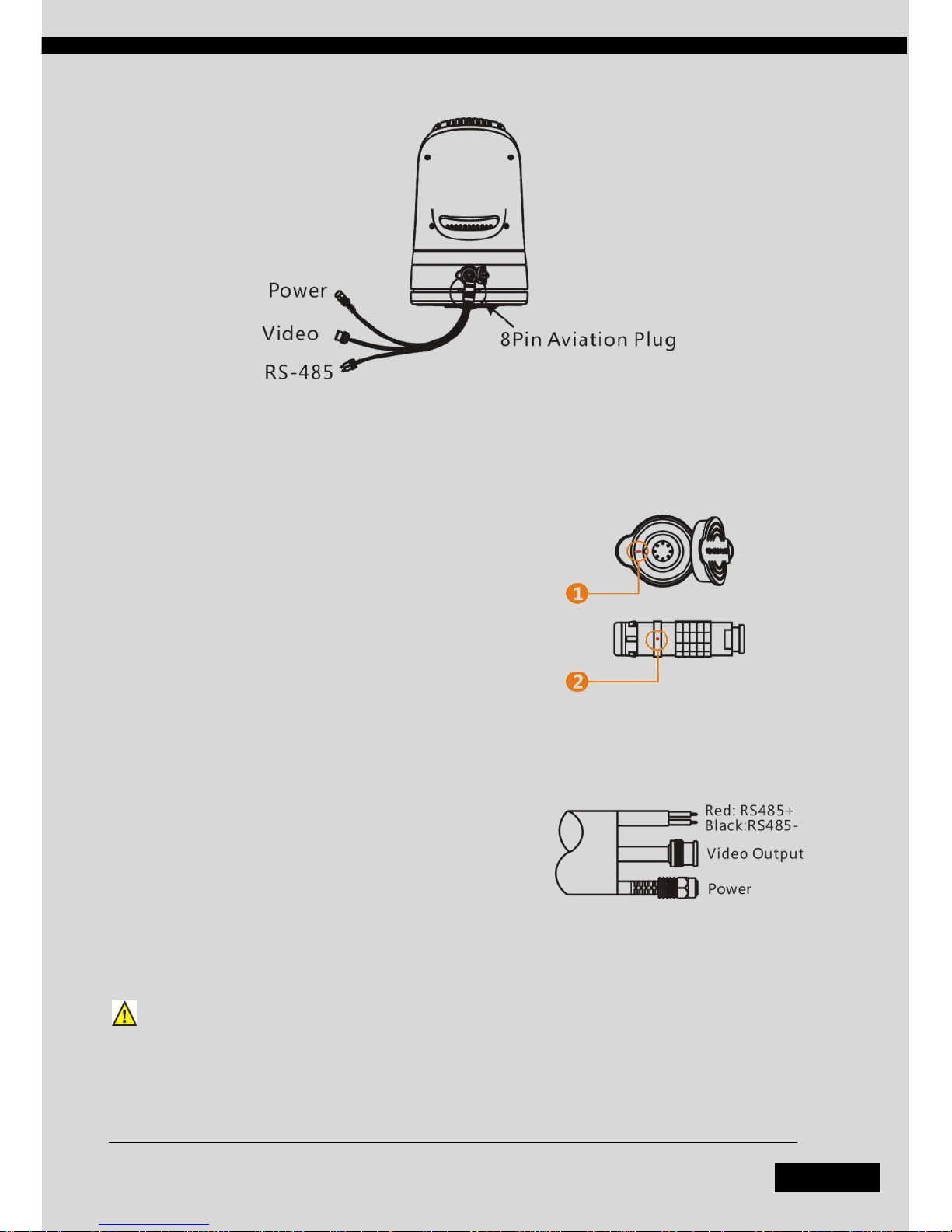

1.8. CAMERA CABLE PACKAGE
Connect the cable with the right pins as per following pictures.
Ex-CT (Compact Thermal) User Manual
14
Fig. 9: Cable Package
There are two red marks each on the plug
and socket. Please match them during
plugging.
Connect correct cables to relative outputs
(RS485 +/-, Video Output and Power).
Please make sure the camera is working with a right power supply. Wrong cable
connection may cause damage to the device.
Fig. 10: Cable Connection 1
Fig. 11: Cable Connection 2
Ex-CT (Compact Thermal) User Manual
15
Operation
1.9. SPECIAL CONTROL PANEL COMMANDS
The camera can be programmed and operated using various quick control panel
commands.
Preset Number
Function
≤20 ~ ≥80
General preset positions
GO TO 21
Manual switch between daylight video and thermal video.
GO TO 22
Auto switch between daylight video and thermal video.
GO TO 23
Turn on/off Wide Dynamic Range (WDR).
GO TO 24
Auto WDR.
GO TO 25
Turn on/off Back Light Compensation (BLC).
GO TO 26
Turn on/off Image Flip;
GO TO 27
Turn on/off Digital Noise Reduction (DNR).
GO TO 28
Turn on/off video freeze.
GO TO 29
Turn on/off Digital Image Stabilization (DIS).
GO TO 37
Turn On Heating/Defogging
GO TO 38
Turn Off Heating/Defogging
GO TO 39
Turn On/Off Digital Zoom
GO TO 42
Set Left Boundary Of Frame Scan
GO TO 43
Set Right Boundary Of Frame Scan
GO TO 48
Turn On Random Scan (360° Scan, pause at every 108°)
GO TO 49
Turn On Frame Scan between two set presets.
GO TO 50
Turn On Cruise
GO TO 51
Turn On Auto Scan(360° Scan)
GO TO 52
Clear All Presets
GO TO 57
Turn On Screen Tips / Page Down Of Screen Tips
GO TO 58
Turn Off Screen Tips
Ex-CT (Compact Thermal) User Manual
16
GO TO 59
PTZ Speed - Fast
GO TO 60
PTZ Speed - Normal
GO TO 61
PTZ Speed - Slow
GO TO 62
Decrease The Camera Address By -1
GO TO 63
Increase The Camera Address By +1
Table 2 Special Commands
The camera can auto detect and set protocol and baud rate as per the whole
system. There may be no response to the first several operations after the power
on as it is detecting the setting.
When Preset 0 is programmed, the PTZ will go to preset 0 on power up. If Preset
is not programmed, the PTZ will go to Home position, i.e. the degrees of Pan/Tilt
are 0.
1.10. OPERATION
Image Freeze
Call Preset 28 to turn on/off the function. When it is on, during a regular preset call (see
following picture), the video will be frozen at point A till Point B. At Point B, the video will
be displayed normally.
Fig. 12: Image Freeze
Defogging
Call Preset 37 to turn on the function. There will be “DEFOGGING” flashing at top of
the screen. When the fog is cleared, turn off the function in time in case the camera
temperature is getting too high.
Call Preset 38 to turn off the function. The “DEFOGGING” at top of the screen will
disappear from the screen.
Ex-CT (Compact Thermal) User Manual
17
Video Switch (Daylight Video and Thermal Video
Auto Mode:
The default mode is auto. The PTZ will switch between daylight video and thermal
video as per the lighting conditions. Auto mode can also be activated via preset 22. At
this mode, the commands of preset 23~29, 39, 40, 57, 58 are disabled.
Manual Mode:
Call Preset 21 to turn on the manual mode. The PTZ will switch between daylight video
and thermal video manually.
Soft Address
The camera address can be changed via presets 62 and 63. The new address will take
effect after the camera is rebooted.
Digital Noise Reduction
The function is off as default.
When the camera is in color mode, it is recommended to turn off the function, or there
will be video trails.
When the camera is in mono mode, call preset 27 to turn on/off the function. There are
1~5 steps from low to high. The higher the level is, the more video trails there are.
Ex-CT (Compact Thermal) User Manual
18
Trouble Shooting
Problems
Possible Causes
Solutions
No action when
powered on
Power supply failure
Replace power supply
Wrong connection of the
power
Check & reconnect the
cables
Abnormal self-test
with motor noise
Mechanical failure
Repair
Camera inclined
Reinstall the camera
Inadequate power supply
Replace the power
supply
Normal self-test but
no images
Video signal failure
Reinstall camera
Wrong connection of the
video
Check & reconnect the
cables
Camera damaged
Replace the camera
Normal self-test but
out of control
Wrong connection of
RS485 cable
Check and reconnect
the cable
Wrong camera address
set
Check and reset the
Switches
Vague image
Bad connection of the
video
Check and reconnect
the cables
Inadequate power supply
Replace the power
supply
PTZ camera out of
control
Self test error
Restart the camera
Wrong connection of
RS485 cable
Check and reconnect
the cables
Table 3 Trouble Shooting
Ex-CT (Compact Thermal) User Manual
19
Annex:
DIP Switch – Camera Address
ADDRESS
1 2 3 4 5 6 7
8
0
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
1
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
2
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
3
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
4
OFF
OFF
ON
OFF
OFF
OFF
OFF
OFF
5
ON
OFF
ON
OFF
OFF
OFF
OFF
OFF
6
OFF
ON
ON
OFF
OFF
OFF
OFF
OFF
7
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
8
OFF
OFF
OFF
ON
OFF
OFF
OFF
OFF
9
ON
OFF
OFF
ON
OFF
OFF
OFF
OFF
10
OFF
ON
OFF
ON
OFF
OFF
OFF
OFF
11
ON
ON
OFF
ON
OFF
OFF
OFF
OFF
12
OFF
OFF
ON
ON
OFF
OFF
OFF
OFF
13
ON
OFF
ON
ON
OFF
OFF
OFF
OFF
14
OFF
ON
ON
ON
OFF
OFF
OFF
OFF
15
ON
ON
ON
ON
OFF
OFF
OFF
OFF
16
OFF
OFF
OFF
OFF
ON
OFF
OFF
OFF
17
ON
OFF
OFF
OFF
ON
OFF
OFF
OFF
18
OFF
ON
OFF
OFF
ON
OFF
OFF
OFF
19
ON
ON
OFF
OFF
ON
OFF
OFF
OFF
20
OFF
OFF
ON
OFF
ON
OFF
OFF
OFF
21
ON
OFF
ON
OFF
ON
OFF
OFF
OFF
22
OFF
ON
ON
OFF
ON
OFF
OFF
OFF
Ex-CT (Compact Thermal) User Manual
20
23
ON
ON
ON
OFF
ON
OFF
OFF
OFF
24
OFF
OFF
OFF
ON
ON
OFF
OFF
OFF
25
ON
OFF
OFF
ON
ON
OFF
OFF
OFF
26
OFF
ON
OFF
ON
ON
OFF
OFF
OFF
27
ON
ON
OFF
ON
ON
OFF
OFF
OFF
28
OFF
OFF
ON
ON
ON
OFF
OFF
OFF
29
ON
OFF
ON
ON
ON
OFF
OFF
OFF
30
OFF
ON
ON
ON
ON
OFF
OFF
OFF
31
ON
ON
ON
ON
ON
OFF
OFF
OFF
32
OFF
OFF
OFF
OFF
OFF
ON
OFF
OFF
33
ON
OFF
OFF
OFF
OFF
ON
OFF
OFF
34
OFF
ON
OFF
OFF
OFF
ON
OFF
OFF
35
ON
ON
OFF
OFF
OFF
ON
OFF
OFF
36
OFF
OFF
ON
OFF
OFF
ON
OFF
OFF
37
ON
OFF
ON
OFF
OFF
ON
OFF
OFF
38
OFF
ON
ON
OFF
OFF
ON
OFF
OFF
39
ON
ON
ON
OFF
OFF
ON
OFF
OFF
40
OFF
OFF
OFF
ON
OFF
ON
OFF
OFF
41
ON
OFF
OFF
ON
OFF
ON
OFF
OFF
42
OFF
ON
OFF
ON
OFF
ON
OFF
OFF
43
ON
ON
OFF
ON
OFF
ON
OFF
OFF
44
OFF
OFF
ON
ON
OFF
ON
OFF
OFF
45
ON
OFF
ON
ON
OFF
ON
OFF
OFF
46
OFF
ON
ON
ON
OFF
ON
OFF
OFF
47
ON
ON
ON
ON
OFF
ON
OFF
OFF
48
OFF
OFF
OFF
OFF
ON
ON
OFF
OFF
49
ON
OFF
OFF
OFF
ON
ON
OFF
OFF
50
OFF
ON
OFF
OFF
ON
ON
OFF
OFF
51
ON
ON
OFF
OFF
ON
ON
OFF
OFF
52
OFF
OFF
ON
OFF
ON
ON
OFF
OFF
53
ON
OFF
ON
OFF
ON
ON
OFF
OFF
54
OFF
ON
ON
OFF
ON
ON
OFF
OFF
55
ON
ON
ON
OFF
ON
ON
OFF
OFF
56
OFF
OFF
OFF
ON
ON
ON
OFF
OFF
Ex-CT (Compact Thermal) User Manual
21
57
ON
OFF
OFF
ON
ON
ON
OFF
OFF
58
OFF
ON
OFF
ON
ON
ON
OFF
OFF
59
ON
ON
OFF
ON
ON
ON
OFF
OFF
60
OFF
OFF
ON
ON
ON
ON
OFF
OFF
61
ON
OFF
ON
ON
ON
ON
OFF
OFF
62
OFF
ON
ON
ON
ON
ON
OFF
OFF
63
ON
ON
ON
ON
ON
ON
OFF
OFF
64
OFF
OFF
OFF
OFF
OFF
OFF
ON
OFF
65
ON
OFF
OFF
OFF
OFF
OFF
ON
OFF
66
OFF
ON
OFF
OFF
OFF
OFF
ON
OFF
67
ON
ON
OFF
OFF
OFF
OFF
ON
OFF
68
OFF
OFF
ON
OFF
OFF
OFF
ON
OFF
69
ON
OFF
ON
OFF
OFF
OFF
ON
OFF
70
OFF
ON
ON
OFF
OFF
OFF
ON
OFF
71
ON
ON
ON
OFF
OFF
OFF
ON
OFF
72
OFF
OFF
OFF
ON
OFF
OFF
ON
OFF
73
ON
OFF
OFF
ON
OFF
OFF
ON
OFF
74
OFF
ON
OFF
ON
OFF
OFF
ON
OFF
75
ON
ON
OFF
ON
OFF
OFF
ON
OFF
76
OFF
OFF
ON
ON
OFF
OFF
ON
OFF
77
ON
OFF
ON
ON
OFF
OFF
ON
OFF
78
OFF
ON
ON
ON
OFF
OFF
ON
OFF
79
ON
ON
ON
ON
OFF
OFF
ON
OFF
80
OFF
OFF
OFF
OFF
ON
OFF
ON
OFF
81
ON
OFF
OFF
OFF
ON
OFF
ON
OFF
82
OFF
ON
OFF
OFF
ON
OFF
ON
OFF
83
ON
ON
OFF
OFF
ON
OFF
ON
OFF
84
OFF
OFF
ON
OFF
ON
OFF
ON
OFF
85
ON
OFF
ON
OFF
ON
OFF
ON
OFF
86
OFF
ON
ON
OFF
ON
OFF
ON
OFF
87
ON
ON
ON
OFF
ON
OFF
ON
OFF
88
OFF
OFF
OFF
ON
ON
OFF
ON
OFF
89
ON
OFF
OFF
ON
ON
OFF
ON
OFF
90
OFF
ON
OFF
ON
ON
OFF
ON
OFF
Ex-CT (Compact Thermal) User Manual
22
91
ON
ON
OFF
ON
ON
OFF
ON
OFF
92
OFF
OFF
ON
ON
ON
OFF
ON
OFF
93
ON
OFF
ON
ON
ON
OFF
ON
OFF
94
OFF
ON
ON
ON
ON
OFF
ON
OFF
95
ON
ON
ON
ON
ON
OFF
ON
OFF
96
OFF
OFF
OFF
OFF
OFF
ON
ON
OFF
97
ON
OFF
OFF
OFF
OFF
ON
ON
OFF
98
OFF
ON
OFF
OFF
OFF
ON
ON
OFF
99
ON
ON
OFF
OFF
OFF
ON
ON
OFF
100
OFF
OFF
ON
OFF
OFF
ON
ON
OFF
101
ON
OFF
ON
OFF
OFF
ON
ON
OFF
102
OFF
ON
ON
OFF
OFF
ON
ON
OFF
103
ON
ON
ON
OFF
OFF
ON
ON
OFF
104
OFF
OFF
OFF
ON
OFF
ON
ON
OFF
105
ON
OFF
OFF
ON
OFF
ON
ON
OFF
106
OFF
ON
OFF
ON
OFF
ON
ON
OFF
107
ON
ON
OFF
ON
OFF
ON
ON
OFF
108
OFF
OFF
ON
ON
OFF
ON
ON
OFF
109
ON
OFF
ON
ON
OFF
ON
ON
OFF
110
OFF
ON
ON
ON
OFF
ON
ON
OFF
111
ON
ON
ON
ON
OFF
ON
ON
OFF
112
OFF
OFF
OFF
OFF
ON
ON
ON
OFF
113
ON
OFF
OFF
OFF
ON
ON
ON
OFF
114
OFF
ON
OFF
OFF
ON
ON
ON
OFF
115
ON
ON
OFF
OFF
ON
ON
ON
OFF
116
OFF
OFF
ON
OFF
ON
ON
ON
OFF
117
ON
OFF
ON
OFF
ON
ON
ON
OFF
118
OFF
ON
ON
OFF
ON
ON
ON
OFF
119
ON
ON
ON
OFF
ON
ON
ON
OFF
120
OFF
OFF
OFF
ON
ON
ON
ON
OFF
121
ON
OFF
OFF
ON
ON
ON
ON
OFF
122
OFF
ON
OFF
ON
ON
ON
ON
OFF
123
ON
ON
OFF
ON
ON
ON
ON
OFF
124
OFF
OFF
ON
ON
ON
ON
ON
OFF
Ex-CT (Compact Thermal) User Manual
23
125
ON
OFF
ON
ON
ON
ON
ON
OFF
126
OFF
ON
ON
ON
ON
ON
ON
OFF
127
ON
ON
ON
ON
ON
ON
ON
OFF
128
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
129
ON
OFF
OFF
OFF
OFF
OFF
OFF
ON
130
OFF
ON
OFF
OFF
OFF
OFF
OFF
ON
131
ON
ON
OFF
OFF
OFF
OFF
OFF
ON
132
OFF
OFF
ON
OFF
OFF
OFF
OFF
ON
133
ON
OFF
ON
OFF
OFF
OFF
OFF
ON
134
OFF
ON
ON
OFF
OFF
OFF
OFF
ON
135
ON
ON
ON
OFF
OFF
OFF
OFF
ON
136
OFF
OFF
OFF
ON
OFF
OFF
OFF
ON
137
ON
OFF
OFF
ON
OFF
OFF
OFF
ON
138
OFF
ON
OFF
ON
OFF
OFF
OFF
ON
139
ON
ON
OFF
ON
OFF
OFF
OFF
ON
140
OFF
OFF
ON
ON
OFF
OFF
OFF
ON
141
ON
OFF
ON
ON
OFF
OFF
OFF
ON
142
OFF
ON
ON
ON
OFF
OFF
OFF
ON
143
ON
ON
ON
ON
OFF
OFF
OFF
ON
144
OFF
OFF
OFF
OFF
ON
OFF
OFF
ON
145
ON
OFF
OFF
OFF
ON
OFF
OFF
ON
146
OFF
ON
OFF
OFF
ON
OFF
OFF
ON
147
ON
ON
OFF
OFF
ON
OFF
OFF
ON
148
OFF
OFF
ON
OFF
ON
OFF
OFF
ON
149
ON
OFF
ON
OFF
ON
OFF
OFF
ON
150
OFF
ON
ON
OFF
ON
OFF
OFF
ON
151
ON
ON
ON
OFF
ON
OFF
OFF
ON
152
OFF
OFF
OFF
ON
ON
OFF
OFF
ON
153
ON
OFF
OFF
ON
ON
OFF
OFF
ON
154
OFF
ON
OFF
ON
ON
OFF
OFF
ON
155
ON
ON
OFF
ON
ON
OFF
OFF
ON
156
OFF
OFF
ON
ON
ON
OFF
OFF
ON
157
ON
OFF
ON
ON
ON
OFF
OFF
ON
158
OFF
ON
ON
ON
ON
OFF
OFF
ON
Ex-CT (Compact Thermal) User Manual
24
159
ON
ON
ON
ON
ON
OFF
OFF
ON
160
OFF
OFF
OFF
OFF
OFF
ON
OFF
ON
161
ON
OFF
OFF
OFF
OFF
ON
OFF
ON
162
OFF
ON
OFF
OFF
OFF
ON
OFF
ON
163
ON
ON
OFF
OFF
OFF
ON
OFF
ON
164
OFF
OFF
ON
OFF
OFF
ON
OFF
ON
165
ON
OFF
ON
OFF
OFF
ON
OFF
ON
166
OFF
ON
ON
OFF
OFF
ON
OFF
ON
167
ON
ON
ON
OFF
OFF
ON
OFF
ON
168
OFF
OFF
OFF
ON
OFF
ON
OFF
ON
169
ON
OFF
OFF
ON
OFF
ON
OFF
ON
170
OFF
ON
OFF
ON
OFF
ON
OFF
ON
171
ON
ON
OFF
ON
OFF
ON
OFF
ON
172
OFF
OFF
ON
ON
OFF
ON
OFF
ON
173
ON
OFF
ON
ON
OFF
ON
OFF
ON
174
OFF
ON
ON
ON
OFF
ON
OFF
ON
175
ON
ON
ON
ON
OFF
ON
OFF
ON
176
OFF
OFF
OFF
OFF
ON
ON
OFF
ON
177
ON
OFF
OFF
OFF
ON
ON
OFF
ON
178
OFF
ON
OFF
OFF
ON
ON
OFF
ON
179
ON
ON
OFF
OFF
ON
ON
OFF
ON
180
OFF
OFF
ON
OFF
ON
ON
OFF
ON
181
ON
OFF
ON
OFF
ON
ON
OFF
ON
182
OFF
ON
ON
OFF
ON
ON
OFF
ON
183
ON
ON
ON
OFF
ON
ON
OFF
ON
184
OFF
OFF
OFF
ON
ON
ON
OFF
ON
185
ON
OFF
OFF
ON
ON
ON
OFF
ON
186
OFF
ON
OFF
ON
ON
ON
OFF
ON
187
ON
ON
OFF
ON
ON
ON
OFF
ON
188
OFF
OFF
ON
ON
ON
ON
OFF
ON
189
ON
OFF
ON
ON
ON
ON
OFF
ON
190
OFF
ON
ON
ON
ON
ON
OFF
ON
191
ON
ON
ON
ON
ON
ON
OFF
ON
192
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
Ex-CT (Compact Thermal) User Manual
25
193
ON
OFF
OFF
OFF
OFF
OFF
ON
ON
194
OFF
ON
OFF
OFF
OFF
OFF
ON
ON
195
ON
ON
OFF
OFF
OFF
OFF
ON
ON
196
OFF
OFF
ON
OFF
OFF
OFF
ON
ON
197
ON
OFF
ON
OFF
OFF
OFF
ON
ON
198
OFF
ON
ON
OFF
OFF
OFF
ON
ON
199
ON
ON
ON
OFF
OFF
OFF
ON
ON
200
OFF
OFF
OFF
ON
OFF
OFF
ON
ON
201
ON
OFF
OFF
ON
OFF
OFF
ON
ON
202
OFF
ON
OFF
ON
OFF
OFF
ON
ON
203
ON
ON
OFF
ON
OFF
OFF
ON
ON
204
OFF
OFF
ON
ON
OFF
OFF
ON
ON
205
ON
OFF
ON
ON
OFF
OFF
ON
ON
206
OFF
ON
ON
ON
OFF
OFF
ON
ON
207
ON
ON
ON
ON
OFF
OFF
ON
ON
208
OFF
OFF
OFF
OFF
ON
OFF
ON
ON
209
ON
OFF
OFF
OFF
ON
OFF
ON
ON
210
OFF
ON
OFF
OFF
ON
OFF
ON
ON
211
ON
ON
OFF
OFF
ON
OFF
ON
ON
212
OFF
OFF
ON
OFF
ON
OFF
ON
ON
213
ON
OFF
ON
OFF
ON
OFF
ON
ON
214
OFF
ON
ON
OFF
ON
OFF
ON
ON
215
ON
ON
ON
OFF
ON
OFF
ON
ON
216
OFF
OFF
OFF
ON
ON
OFF
ON
ON
217
ON
OFF
OFF
ON
ON
OFF
ON
ON
218
OFF
ON
OFF
ON
ON
OFF
ON
ON
219
ON
ON
OFF
ON
ON
OFF
ON
ON
220
OFF
OFF
ON
ON
ON
OFF
ON
ON
221
ON
OFF
ON
ON
ON
OFF
ON
ON
222
OFF
ON
ON
ON
ON
OFF
ON
ON
223
ON
ON
ON
ON
ON
OFF
ON
ON
224
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
225
ON
OFF
OFF
OFF
OFF
ON
ON
ON
226
OFF
ON
OFF
OFF
OFF
ON
ON
ON
Ex-CT (Compact Thermal) User Manual
26
227
ON
ON
OFF
OFF
OFF
ON
ON
ON
228
OFF
OFF
ON
OFF
OFF
ON
ON
ON
229
ON
OFF
ON
OFF
OFF
ON
ON
ON
230
OFF
ON
ON
OFF
OFF
ON
ON
ON
231
ON
ON
ON
OFF
OFF
ON
ON
ON
232
OFF
OFF
OFF
ON
OFF
ON
ON
ON
233
ON
OFF
OFF
ON
OFF
ON
ON
ON
234
OFF
ON
OFF
ON
OFF
ON
ON
ON
235
ON
ON
OFF
ON
OFF
ON
ON
ON
236
OFF
OFF
ON
ON
OFF
ON
ON
ON
237
ON
OFF
ON
ON
OFF
ON
ON
ON
238
OFF
ON
ON
ON
OFF
ON
ON
ON
239
ON
ON
ON
ON
OFF
ON
ON
ON
240
OFF
OFF
OFF
OFF
ON
ON
ON
ON
241
ON
OFF
OFF
OFF
ON
ON
ON
ON
242
OFF
ON
OFF
OFF
ON
ON
ON
ON
243
ON
ON
OFF
OFF
ON
ON
ON
ON
244
OFF
OFF
ON
OFF
ON
ON
ON
ON
245
ON
OFF
ON
OFF
ON
ON
ON
ON
246
OFF
ON
ON
OFF
ON
ON
ON
ON
247
ON
ON
ON
OFF
ON
ON
ON
ON
248
OFF
OFF
OFF
ON
ON
ON
ON
ON
249
ON
OFF
OFF
ON
ON
ON
ON
ON
250
OFF
ON
OFF
ON
ON
ON
ON
ON
251
ON
ON
OFF
ON
ON
ON
ON
ON
252
OFF
OFF
ON
ON
ON
ON
ON
ON
253
ON
OFF
ON
ON
ON
ON
ON
ON
254
OFF
ON
ON
ON
ON
ON
ON
ON
255
ON
ON
ON
ON
ON
ON
ON
ON
Table 4: DIP Switch – Camera Address
Loading...
