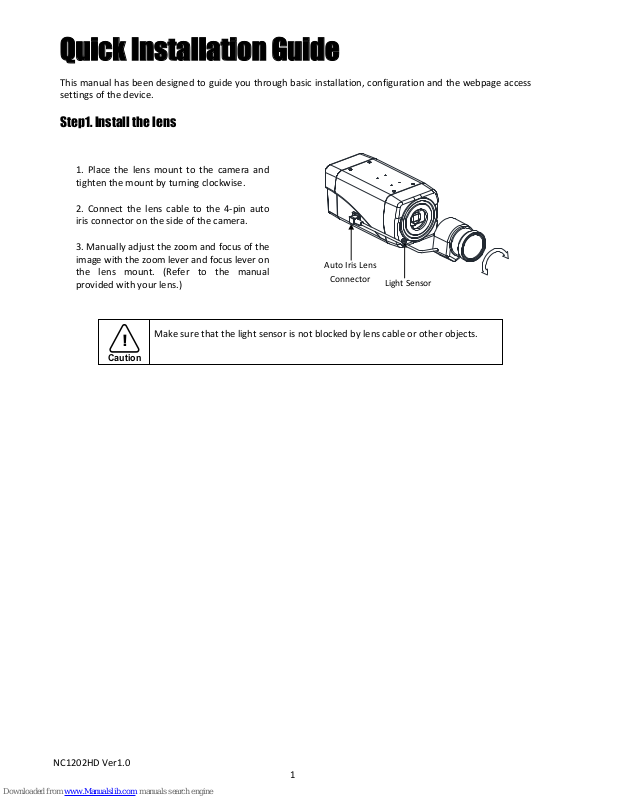

Quick Installation Guide
This manual has been designed to guide you through basic installation, configuration and the webpage access
settings of the device.
Step1. Install the lens

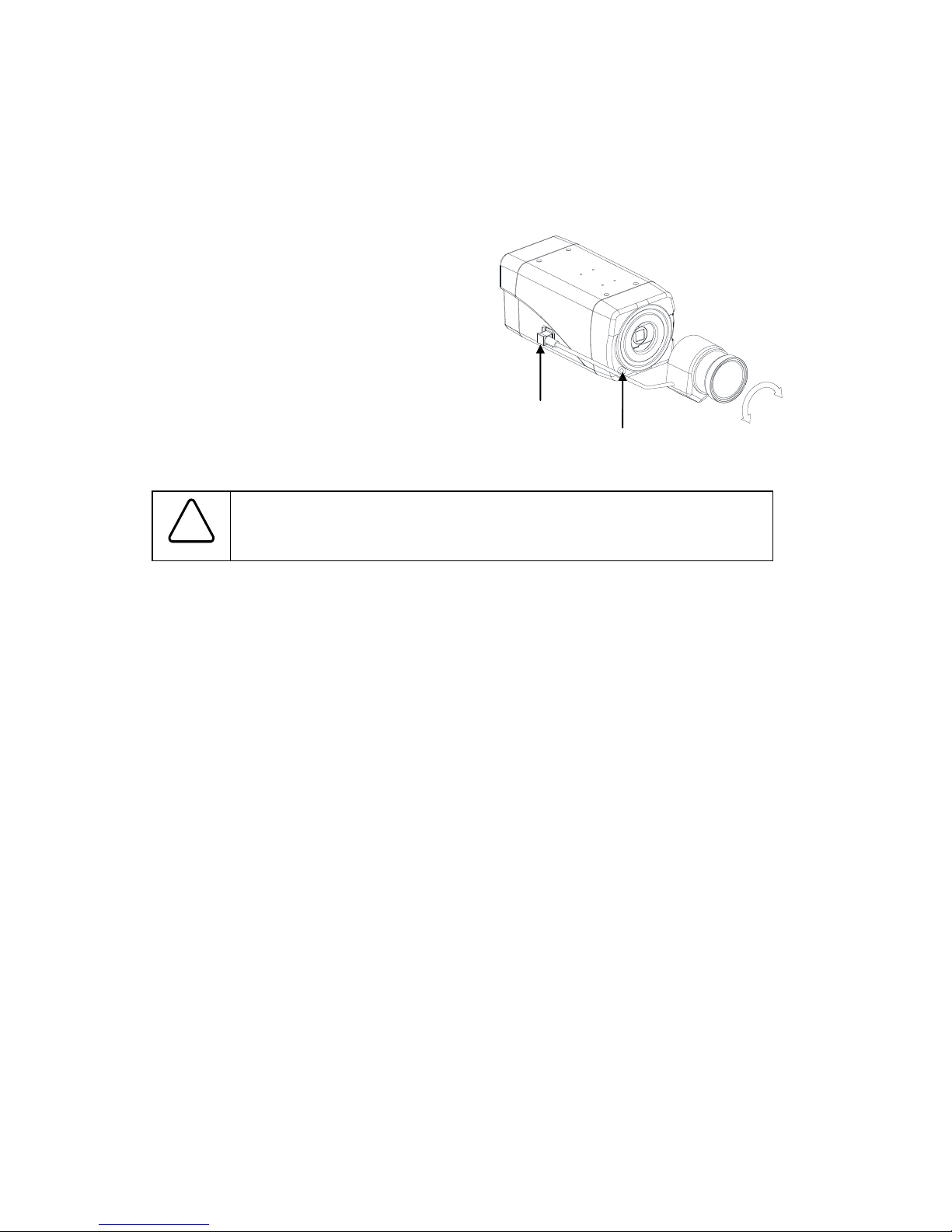

1. Place the lens mount to the camera and
tighten the mount by turning clockwise.
2. Connect the lens cable to the 4-pin auto
iris connector on the side of the camera.
3. Manually adjust the zoom and focus of the
image with the zoom lever and focus lever on
the lens mount. (Refer to the manual
provided with your lens.)
Auto Iris Lens
Connector
Light Sensor
Make sure that the light sensor is not blocked by lens cable or other objects.
Caution
!
Page 2
NC1202HD Ver1.0
2
Step2. Connect cables

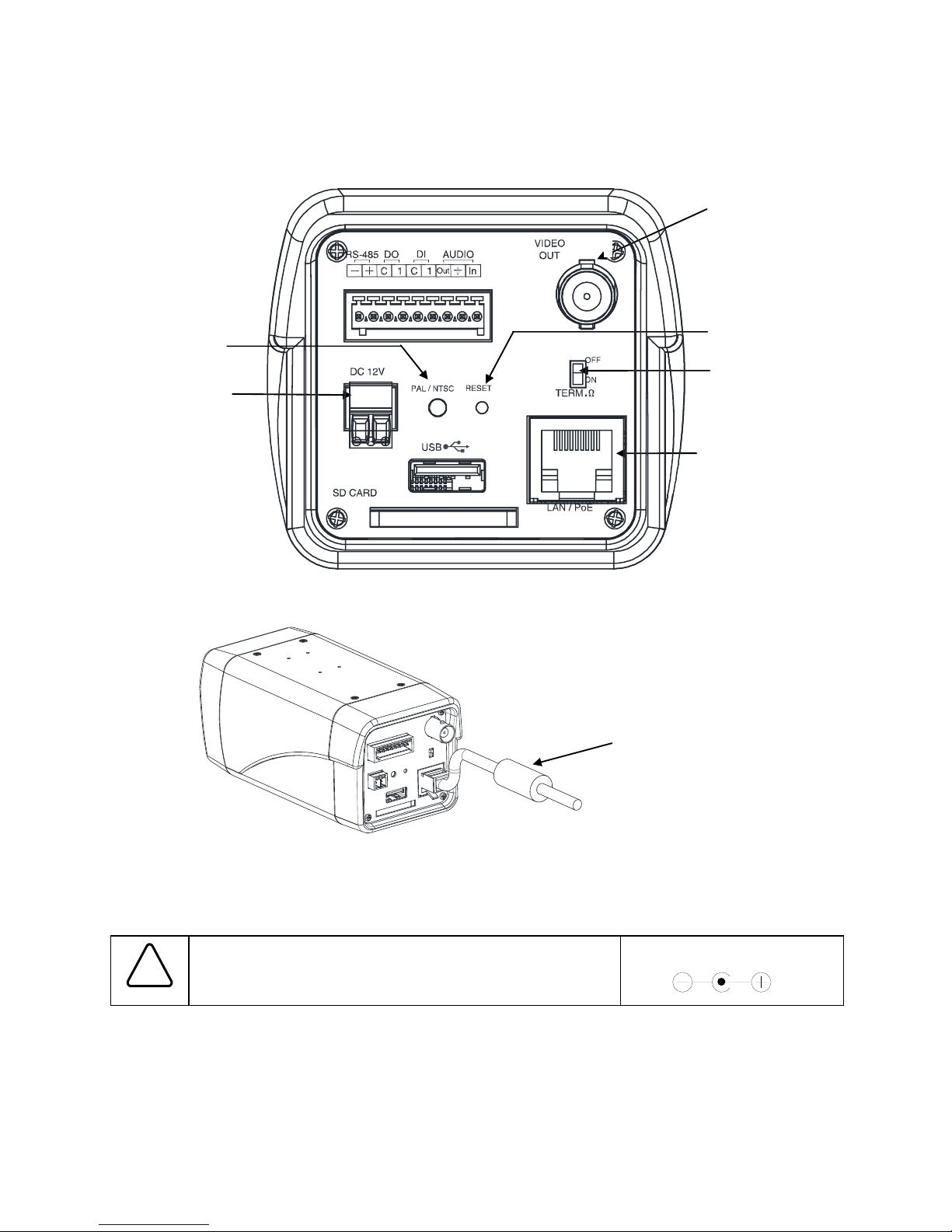

Connect proper cables to the device. To see the correct positions of all connectors, refer to the following
image below.
Power Adaptor Connector (DC 12V)
The device is polarity sensitive. Incorrect power connection
may cause malfunction or damage to the IP device.
Caution
!
* Model design and appearance are subject to change without any prior notice.
NOTE. When you want to check the video output on an analog monitor at the installation site, make sure to
set the output configuration switch to NTSC or PAL according to the video standard.
Power DC 12V
BNC Video Out
Reset Button
Network/POE Port
PAL/NTSC Button
Clamping Core
*Use to prevent
electromagnetic
interference
* Use only for installation
tests. The video-out works
for 3 minutes when
PAL/NTSC button is pushed.
RS-485 Termination
Switch (120ohm)
Page 3
NC1202HD Ver1.0
3
Step3. Set up network environment
The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from
converting the MAC address’s hexadecimal numbers, which is attached to the device. Be sure that the device
and PC are on a same area network before running the installation.
Generic IP Environment
In case of generic private network environment where IP address 192.168.XXX.XXX are used, users may view
the live streaming images on a web page using the device’s default IP address:
1. Convert the device’s MAC address to the IP address. Refer to the Hexadecimal-Decimal Conversion Chart
at the end of the manual.
(The MAC address of the device is attached on the side or bottom of the device.)
2. Start the Microsoft® Internet Explorer web browser and enter the IP address of the device.
3. Web streaming and device configurations are supported through ActiveX program. When the ActiveX
installation pop-up window appears, authorize and install the ActiveX setup.exe.
Custom IP Environment

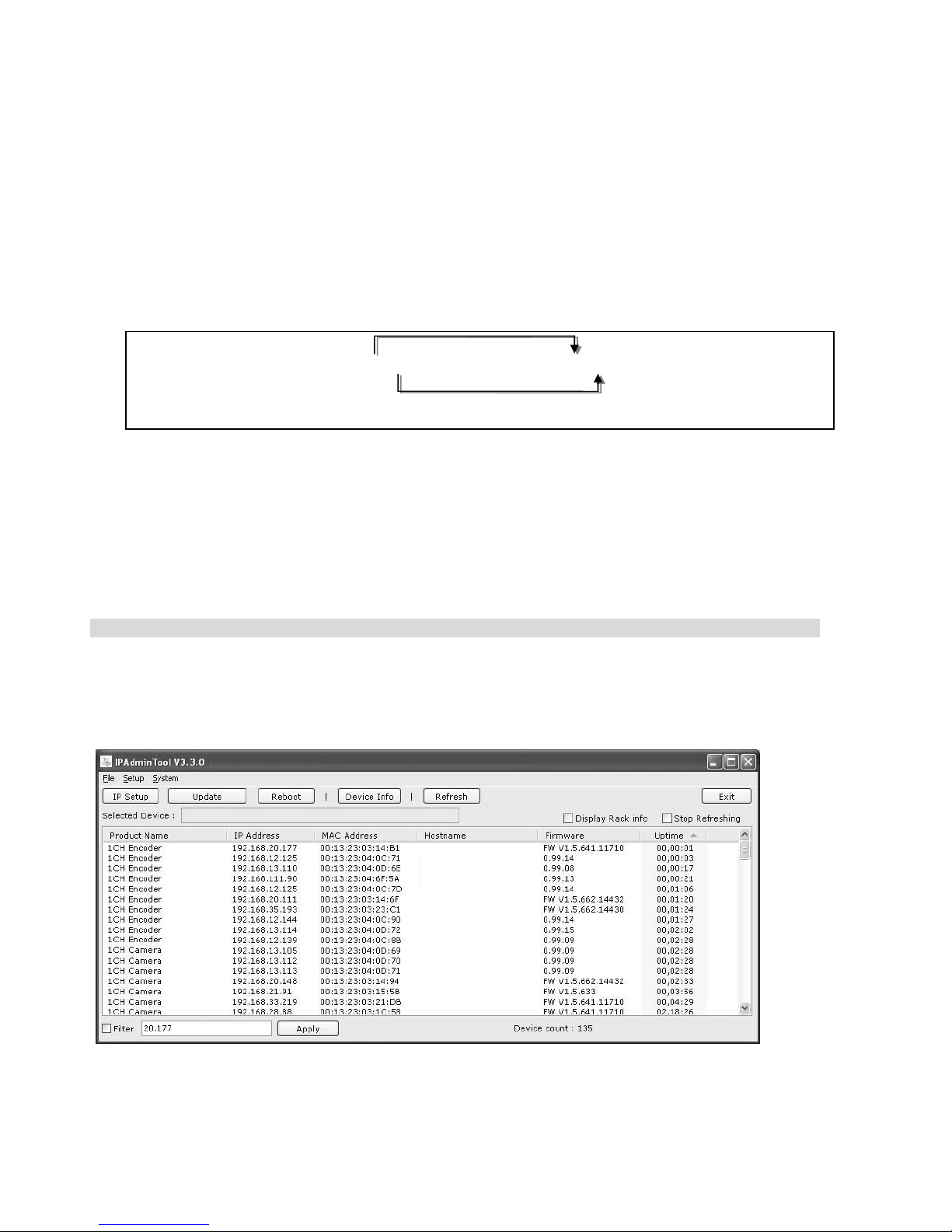

IPAdminTool is provided with SDK at the following SDK path.
{SDK root}\BIN\TOOLS\AdminTool\
IPAdminTool is a management tool, which automatically scans all of the network products for users to perform
administrative tasks, which includes network configurations, firmware update, device reboot, and device
organizations.
To modify the device’s default IP address for customized network area;
1. Find the device from the IPAdminTool’s list and highlight the device’s name.
Convert the last two set of hexadecimal numbers to decimal numbers.
Page 4
NC1202HD Ver1.0
4
2. Right-click the mouse and select “IP Address”; IP Setup window appears.
3. In the IP Setup’s window, information under ‘Local Network information’ displays the user/PC’s network
area information. Those information need to be incorporated to the IP Address, Subnet Mask, Gateway,
and DNS boxes, except the last 2 sets of IP Address, which are to be the unique numbers for the device.
Refer to the image above for the setting
4. Click ‘Setup’ to complete the modification.
PC environment Info
Give new unique IP address in
last two sets and mirror other
information in other boxes
Page 5
NC1202HD Ver1.0
5
Caution
!
Step4. View video on web page
Once the device has the proper IP address, users can view the live streaming images through a web browser.
1. Type the correct IP address in the Microsoft® Internet Explorer
If popup window appears and ask for user name and password, type root / pass.

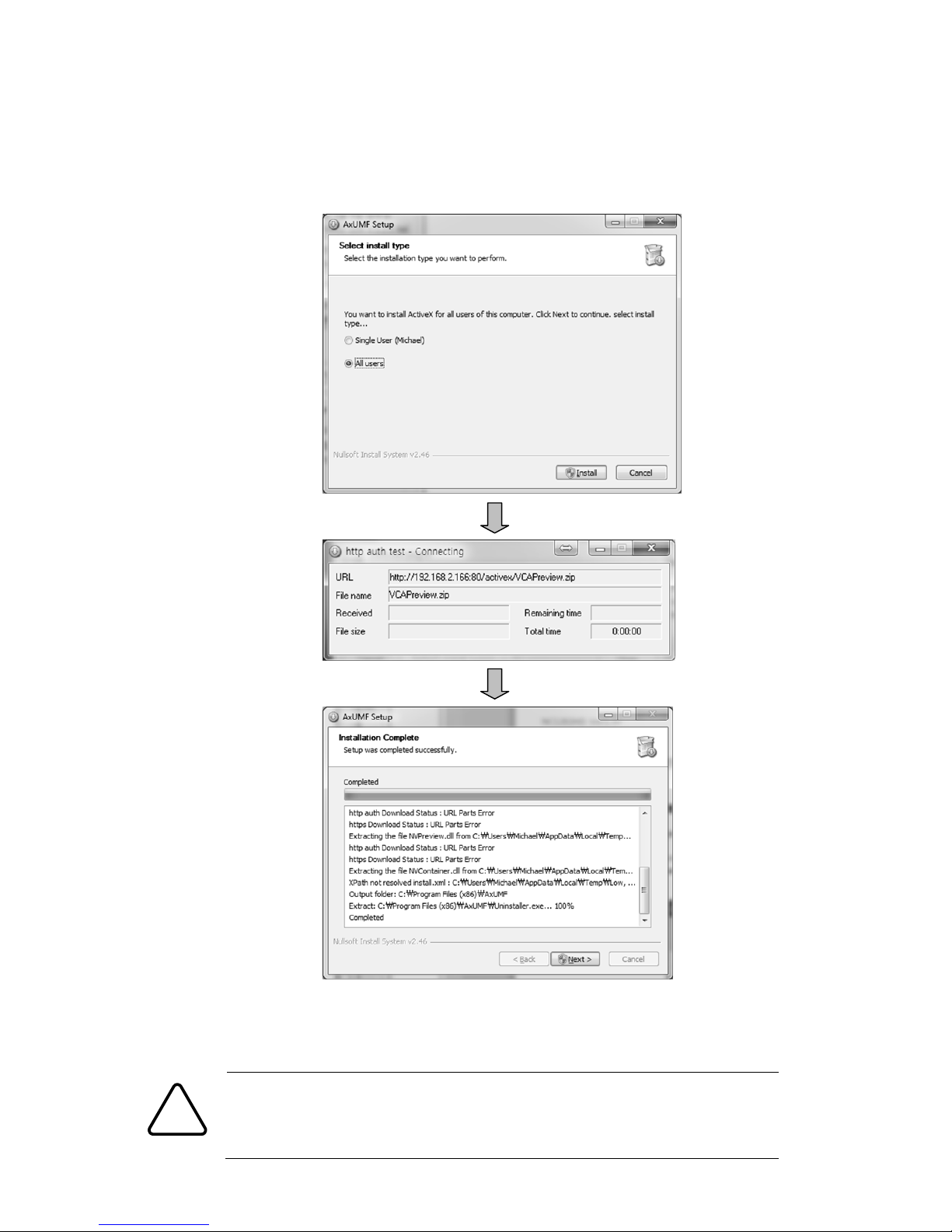

2. Grant the AxUMF.cab setup and proceed with installations.
3. Follow the instructions of the dialog boxes and complete the installation. Once the installation is complete,
the video stream is displayed in the main view frame.
If user doesn’t install ActiveX, the jpeg image is shown in a main view frame instead.
If “This software requires the Microsoft XML Parser V6 or higher. Please download
MSXML6 from the Microsoft website to continue. Error code: Cannot create
XMLDOMDocument.” message appears, download and install the Microsoft Core
XML Services (MSXML) 6.0.
Page 6
NC1202HD Ver1.0
6
Step5. Setting IP Address
To set up the Network configuration:

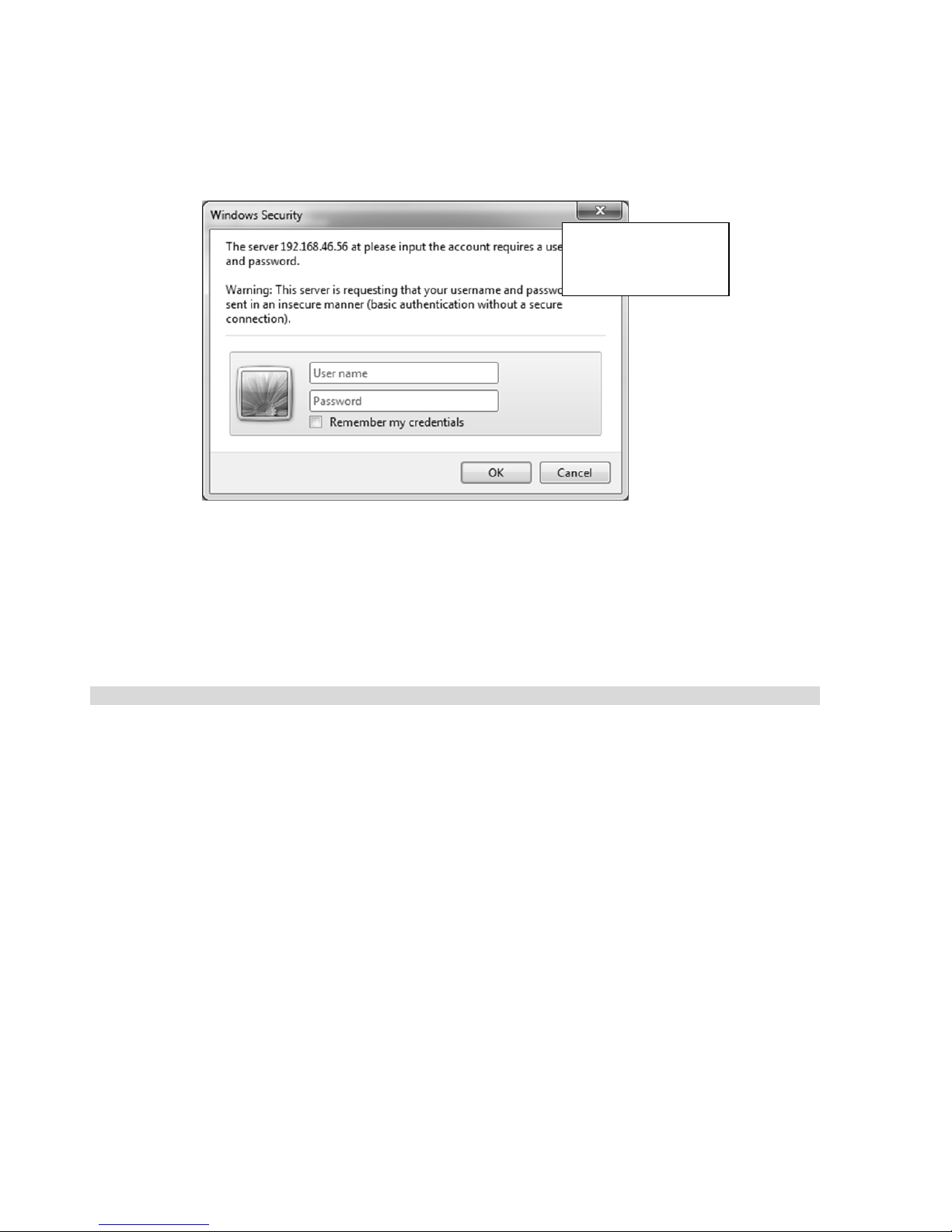

1. Click Setup on the upper right of the web page. The login page is displayed as below.
2. Enter the default user name (root) and the default password (pass), and then select OK.
3. Click Network Configuration on the left of the Setup page, and then select TCP/IP menu.
4. Input the data for the IP address configuration, and click the Apply button on the bottom of the page.
When modifying the IP address, be advised to have the correct Subnet mask and Gateway ready. To use DHCP,
select Obtain an IP address via DHCP.
To learn how to set up the web page for advanced configuration, refer to the Web Page User's Manual, which
is available on the SDK at the following path.
{SDK root}\DOC\
The default username
and password are:
root and pass.
Page 7
NC1202HD Ver1.0
7
Rebooting
Reset can be carried out as follows:
1. Use a pointed object to push the reset button for 1~2 seconds.
2. Wait for the system to reboot.
Resetting to the Factory Default Settings
Resetting the device to the factory default will reset all configured parameters to the initial factory settings.
To perform the Factory Default settings:
1. Use a pointed object to push the reset button and hold for 5 seconds.
2. Release the Reset button.
3. Wait for the system to reboot.
More Information
To learn more about using other features of your devices, refer to the manual, which is available on the SDK at
the following path.
{SDK root}\DOC\
Page 8
NC1202HD Ver1.0
8
Hexadecimal-Decimal Conversion Table
Refer to the following table when you convert the MAC address of your device to IP address.
Hex
Dec
00 0 01 1 02 2 03 3 04 4 05 5 06 6 07 7 08 8 09 9 0A
10
0B
11
0C
12
0D
13
0E
14
0F
15
10
16
11
17
12
18
13
19
14
20
15
21
16
22
17
23
18
24
19
25
1A
26
1B
27
1C
28
1D
29
1E
30
1F
31
20
32
21
33
22
34
23
35
24
36
Hex
Dec
25
37
26
38
27
39
28
40
29
41
2A
42
2B
43
2C
44
2D
45
2E
46
2F
47
30
48
31
49
32
50
33
51
34
52
35
53
36
54
37
55
38
56
39
57
3A
58
3B
59
3C
60
3D
61
3E
62
3F
63
40
64
41
65
42
66
43
67
44
68
45
69
46
70
47
71
48
72
49
73
Hex
Dec
4A
74
4B
75
4C
76
4D
77
4E
78
4F
79
50
80
51
81
52
82
53
83
54
84
55
85
56
86
57
87
58
88
59
89
5A
90
5B
91
5C
92
5D
93
5E
94
5F
95
60
96
61
97
62
98
63
99
64
100
65
101
66
102
67
103
68
104
69
105
6A
106
6B
107
6C
108
6D
109
6E
110
Hex
Dec
6F
111
70
112
71
113
72
114
73
115
74
116
75
117
76
118
77
119
78
120
79
121
7A
122
7B
123
7C
124
7D
125
7E
126
7F
127
80
128
81
129
82
130
83
131
84
132
85
133
86
134
87
135
88
136
89
137
8A
138
8B
139
8C
140
8D
141
8E
142
8F
143
90
144
91
145
92
146
93
147
Hex
Dec
94
148
95
149
96
150
97
151
98
152
99
153
9A
154
9B
155
9C
156
9D
157
9E
158
9F
159
A0
160
A1
161
A2
162
A3
163
A4
164
A5
165
A6
166
A7
167
A8
168
A9
169
AA
170
AB
171
AC
172
AD
173
AE
174
AF
175
B0
176
B1
177
B2
178
B3
179
B4
180
B5
181
B6
182
B7
183
B8
184
Hex
Dec
DE
222
DF
223
E0
224
E1
225
E2
226
E3
227
E4
228
E5
229
E6
230
E7
231
E8
232
E9
233
EA
234
EB
235
EC
236
ED
237
EE
238
EF
239
F0
240
F1
241
F2
242
F3
243
F4
244
F5
245
F6
246
F7
247
F8
248
F9
249
FA
250
FB
251
FC
252
FD
253
FE
254
FF
255
Hex
Dec
B9
185
BA
186
BB
187
BC
188
BD
189
BE
190
BF
191
C0
192
C1
193
C2
194
C3
195
C4
196
C5
197
C6
198
C7
199
C8
200
C9
201
CA
202
CB
203
CC
204
CD
205
CE
206
CF
207
D0
208
D1
209
D2
210
D3
211
D4
212
D5
213
D6
214
D7
215
D8
216
D9
217
DA
218
DB
219
DC
220
DD
221
