FUEL GAUGE FUNCTION
3 seconds after pressing the Function button it becomes
the fuel gauge. The colour of the button now indicates the
approximate percentage of battery power left.
When the battery only has 5% charge remaining the light
will automatically switch to the low/ash setting and the
function button will ash red.

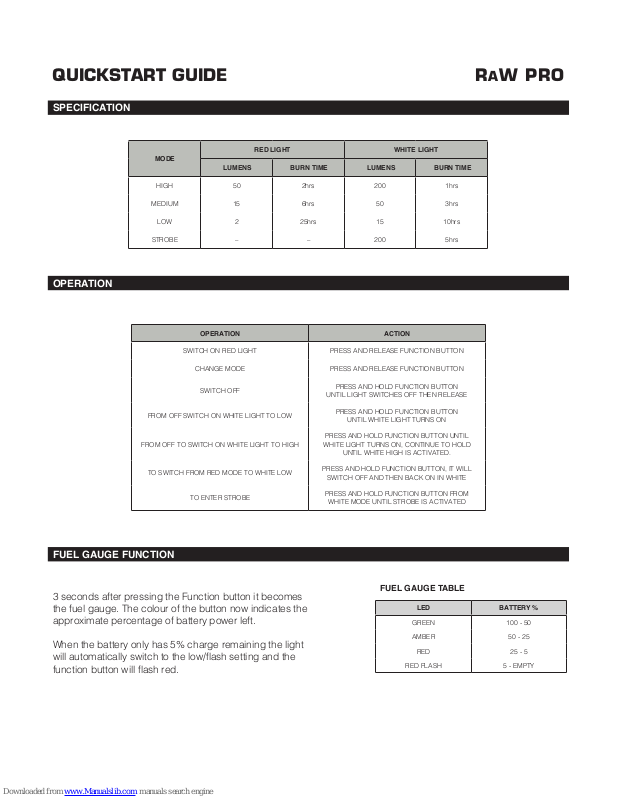

QUICKSTART GUIDE RAW PRO
SPECIFICATION
OPERATION
MODE
RED LIGHT WHITE LIGHT
LUMENS BURN TIME LUMENS BURN TIME
HIGH 50 2hrs 200 1hrs
MEDIUM 15 6hrs 50 3hrs
LOW 2 25hrs 15 10hrs
STROBE – – 200 5hrs
OPERATION ACTION
SWITCH ON RED LIGHT PRESS AND RELEASE FUNCTION BUTTON
CHANGE MODE PRESS AND RELEASE FUNCTION BUTTON
SWITCH OFF
PRESS AND HOLD FUNCTION BUTTON
UNTIL LIGHT SWITCHES OFF THEN RELEASE
FROM OFF SWITCH ON WHITE LIGHT TO LOW
PRESS AND HOLD FUNCTION BUTTON
UNTIL WHITE LIGHT TURNS ON
FROM OFF TO SWITCH ON WHITE LIGHT TO HIGH
PRESS AND HOLD FUNCTION BUTTON UNTIL
WHITE LIGHT TURNS ON, CONTINUE TO HOLD
UNTIL WHITE HIGH IS ACTIVATED.
TO SWITCH FROM RED MODE TO WHITE LOW
PRESS AND HOLD FUNCTION BUTTON, IT WILL
SWITCH OFF AND THEN BACK ON IN WHITE
TO ENTER STROBE
PRESS AND HOLD FUNCTION BUTTON FROM
WHITE MODE UNTIL STROBE IS ACTIVATED
FUEL GAUGE TABLE
LED BATTERY %
GREEN 100 - 50
AMBER 50 - 25
RED 25 - 5
RED FLASH 5 - EMPTY
Page 2
The RAW head lamp is built to function in the harshest marine and outdoor environments. To guarantee a
watertight seal ensure the button cap is screwed down nger tight and the silicone band is covering the charge
port hole.
If the unit is being stored for long periods please ensure the battery is periodically charged fully.
USB CHARGING
ATTENTION
WARNING
Warning: Ensure your light is totally dry and salt free before unscrewing the button cap
Pull back tab back towards the button - do not remove

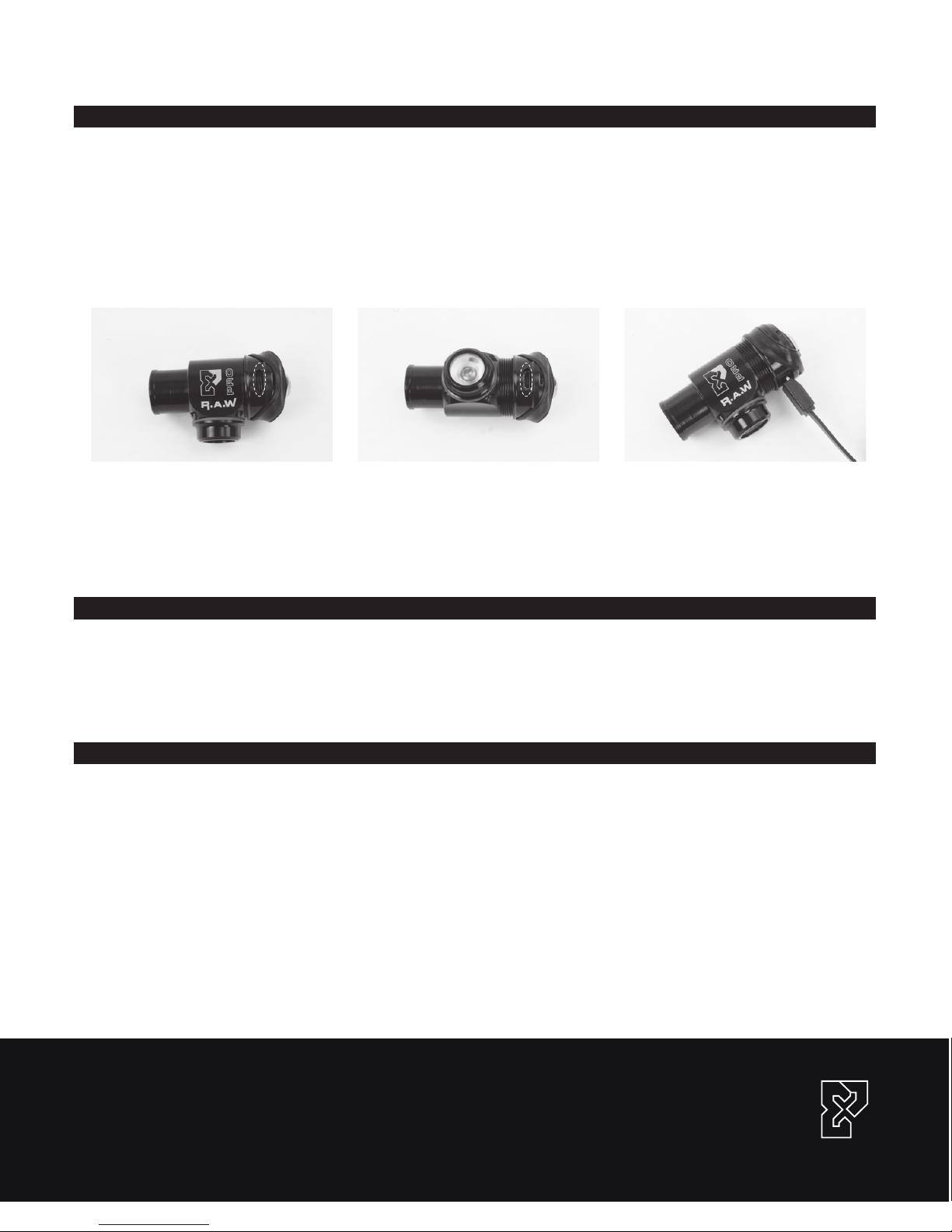

1. Unscrew Button cap until USB charge port is visible - around 5 rotations
2. Insert Exposure lights charger cable
NOTE: Do not remove the cap completely
The function button will ash whilst charging
When the battery is fully charged the function button will turn solid green
Charge time 1.5 hours
Exposure Lights are very powerful lighting systems. Always take care when operating. Do not look directly into the
light. This may cause serious injury. Do not shine directly at others.
Exposure Lights / Ultimate Sports Engineering Ltd. accept no liability for any injuries or other damages arising
from the use of their product in any circumstances.
We design them. We make them. We are here to help.
If you are experiencing any problems with your Exposure Light or accessories please contact us directly at:
Service: +44 (0)1798 839300 | [email protected]
Alternatively contact your Exposure Dealer or Distributor. Check web for details www.exposurelights.com
To register your product for the 10 year waterproof warranty please visit:
www.ultimatesportsengineering.com/raw-pro-product-registration
For more information please visit: exposurelights.com
