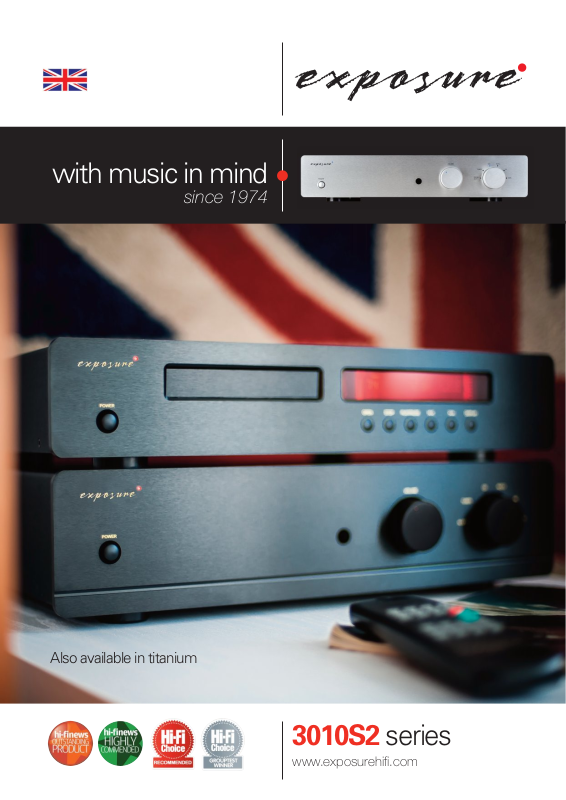

Page 1
with music in mind
since 1974
Also available in titanium
3010S2 series
www.exposurehifi.com
Page 2
3010S2 Compact Disc Player
3010S2 series
Output Level : 2V RMS
•
Frequency Response : 20Hz - 20KHz ± 0.25dB
•
Total Harmonic Distortion : <0.008%, 20Hz - 20KHz, 0dBFs
•
Signal to Noise Ratio : >100dB, A weighted
•
Digital Outputs : SP/DIF, Coaxial and "Toslink" Optical
•
Mains Supply : 110/120V or 220/240V, 50/60Hz (factory set)
•
Power Consumption : <25 VA
•
Dimensions - H x W x D : 90mm x 440mm x 300mm
•
Nett Weight (unpacked) : 5kg
•
Technical Specification
Gross Weight (packed) : 7kg
•
3010S2D Integrated Amplifier
Power Output (Stereo) : 110 Watts per channel at 1KHz
•
into 8 Ohms
Input Impedance : 17K Ohms minimum (line input)
•
Input Sensitivity : 250mV
•
Pre-amplifier Output : 1V for rated input (gain + 18dB
•
full volume)
Frequency Response : 20Hz - 20KHz ± 0.5dB
•
Total Harmonic Distortion : <0.03% at rated output, ref. 1KHz
•
Signal to Noise Ratio : >100dB, ref. rated output
•
Channel Separation : >60dB, 20Hz - 20KHz
•
Technical Specification
Mains Supply : 110/120V or 220/240V, 50/60Hz (factory set)
•
Power Consumption : <400VA, 8 Ohms load, both
•
channels driven
Dimensions - H x W x D : 115mm x 440mm x 300mm
•
Nett Weight (unpacked) : 12kg
•
Gross Weight (packed) : 14kg
•
1. Dual mono PCM1704 24 bit DAC fitted to provide very high
resolution and separation
2. CD display can be turned off for improved sound quality
3. Highly optimised audio circuitry with discrete output stage
Features
and multiple stages of regulation
4. Large toroidal power transformer with separate windings for
CD transport mechanism and audio stages
5. Employment of a high-stability crystal clock reference and
dedicated, power supply regulator for the transport and audio
stages to ensure low jitter performance
6. High quality double-sided PCBs for optimum layout
and screening
7. All-aluminium casework and extruded front panel to control
resonance and stray electro-magnetic fields
8. Full-function remote control
9. Three year guarantee
10. Available in
1. 110 watts RMS per channel into 8 Ohms
2. Six line inputs
3. Option to fit a MC or MM phono module OR plug in DAC option
4. Bi-wiring compatible
Features
5. Separate pre-amp output
6. High quality capacitors used in the signal path
7. Uniquely tuned short signal and power supply path PCB
8. Cascode circuitry utilised for improved power supply immunity
9. Fast bipolar transistor output stage for dynamic and vivid
performance
10. All aluminium casework and extruded front panel to control
resonance and stray electro-magnetic fields
11. Remote Control
12. Three year guarantee
13. Available in
black or titanium
black or titanium
www.exposurehifi.com
Page 3
3010S2D Pre Amplifier
3010S2 series
Gain (at 1 KHz) : + 18dB
•
Sensitivity : 250mV
•
Maximum output : > 10V RMS
•
Frequency response : -3dB at 1 Hz and 56KHz, ref 1 KHz, max volume
•
Total Harmonic Distortion : < 0.01 % @ 1.6V RMS output, 1 KHz
•
Signal to Noise ratio : >96dB, A weighted, ref 1.6V RMS output, 1 KHz
•
Channel Separation : >60dB 20Hz to 20KHz (Typically> 85dB@ 1 KHz)
•
Outputs : 2 pairs RCA, pre amp output, 1 pair for tape output
•
Mains Supply : 110/120V or 220/240V, 50/60Hz (Factory set)
•
Technical Specification
Power Consumption : <25W
•
Dimensions (H x W x D) : 90mm x 440mm x 300mm
•
Nett Weight (Unpacked) : 7Kg
•
Gross Weight (Packed) : 9Kg
•
3010S2 Stereo Power Amplifier
Power Output (Stereo) : 110 Watts per channel at 1KHz into 8 Ohms
•
Input Impedance : 18K Ohms
•
Frequency Response : 20Hz - 20Khz ± 0.5dB
•
Total Harmonic Distortion : <0.015% at rated output, ref. 1KHz
•
Signal to Noise Ratio : >100dB, ref. rated output
•
Channel Separation : >60dB, 20Hz - 20KHz
•
Mains Supply : 110/120V or 220/240V, 50/60Hz (factory set)
•
Power Consumption : <400VA, 8 Ohm load both channels driven
•
Dimensions - H x W x D : 115mm x 440mm x 300mm
•
Technical Specification
Nett Weight (unpacked) : 12kg
•
Gross Weight (packed) : 14kg
•
1. Large custom made toroidal power transformer and smoothing
capacitors for power supply
2. Option to fit a MC or MM phono module OR plug in DAC option
3. 6 line inputs or 5 plus optional phono card, 2 main out (RCA)
Features
nd one tape output
a
4. High quality relays used for input source selection
5. Full remote control of input selector, volume and mute
6. Audio output stages utilising discrete transistor class A
output buffer
7. High quality all aluminium case work
8. Remote control
9. Three year guarantee
10. Available in black or titanium
1. 110 watts RMS per channel into 8 Ohms
2. Ideal for driving difficult speaker loads in bi-amping mode
with 3010S2D Integrated Amplifier
3. High capacity custom-made toroidal power transformer
Features
and power supply capacitors
4. High-quality capacitors used in the signal path
5. Clean and extended low frequency performance
6. Full-aluminium casework and extruded front panel to control
resonance and stray electro-magnetic fields
7. Three year guarantee
8. Available in black or titanium
www.exposurehifi.com
Page 4
3010S2 Mono Power Amplifier
ower Output : 100 Watts per channel, 8 Ohms
P
•
Input Impedance : 50K Ohms at 1KHz
•
Frequency Response : -3dB at 60KHz, ref. 1KHz
•
Total Harmonic Distortion : <0.01% at rated power, 1KHz
•
Signal to Noise ratio : >110dB, A weighted, ref. rated output
•
Power Consumption : <400VA, 8 Ohm load
•
Mains Supply : 110/120V or 220/240V, 50/60Hz (factory set)
•
Dimensions - H x W x D : 115mm x 440mm x 300mm
•
Nett Weight (unpacked) : 12kg
•
Technical Specification
Gross Weight (packed) : 14kg
•
3010S2 series
1. Large custom made toroidal transformer and smoothing
capacitors for power supply
2. All bipolar transistor design using carefully selected parts
3. DC coupled throughout
Features
4. Electronic, non-invasive overload protection circuit
and thermal trip
5. Bi-wire speaker outputs using high quality shrouded sockets
6. High quality all aluminium case work
7. Three year guarantee
8. Available in black or titanium
3010S2 Phono Amplifier
Input Impedance : MC adjustable from 100 Ohms to 1,500 Ohms
•
by jumper link. MM 47K Ohms
Sensitivity : MC 250uV in for 250mV out at 1KHz (adjustable by
•
jumper link). MM 2.5mV in for 250mV out at 1KHz
Frequency Response : +/-0.25dB from 30Hz to 20KHz, ref. 1KHz,
•
with low frequency roll off below 30Hz
Total Harmonic Distortion : <0.01% at 1KHz
•
Power Consumption : <25VA
•
Mains Supply : 110/120V or 220/240V, 50/60Hz (factory set)
•
Dimensions - H x W x D : 90mm x 440mm x 300mm
•
Technical Specification
Nett Weight (unpacked) : 7kg
•
Gross Weight (packed) : 9kg
•
Exposure has been perfecting the art of creating real
Hi-fi for real music lovers since 1974.
What do we mean by ‘real’? Remember the days when things
were designed by skilled engineers, perfected over time and
built to last? When products were expected to concentrate on
doing what they did exceptionally well without fail, rather than
getting bogged down with the latest gadgets and gizmos?
That’s what we mean by real Hi-fi.
1. Large custom made torodial power transformer and
smoothing capacitors for power supply
2. Option to fit a MC or MM phono module
3. All discrete transistor audio stages
Features
4. Multiple stages of power supply regulation
5. High quality all aluminium case work
6. Three year guarantee
7. Available in black or titanium
Exposure is available worldwide from a network of specialist
shops run by people who know a thing or two about the
complex relationship between people, Hi-fi and music. From our
entry-level ‘ten’ series to the ‘twenty’ and ‘thirty’ systems, we
hope that you will be as delighted with the price as the sound.
Exposure Electronics Limited
Unit 18, Winston Business Centre, 43 Chartwell Road
Lancing, West Sussex BN15 8TU, United Kindom.
www.exposurehifi.com
