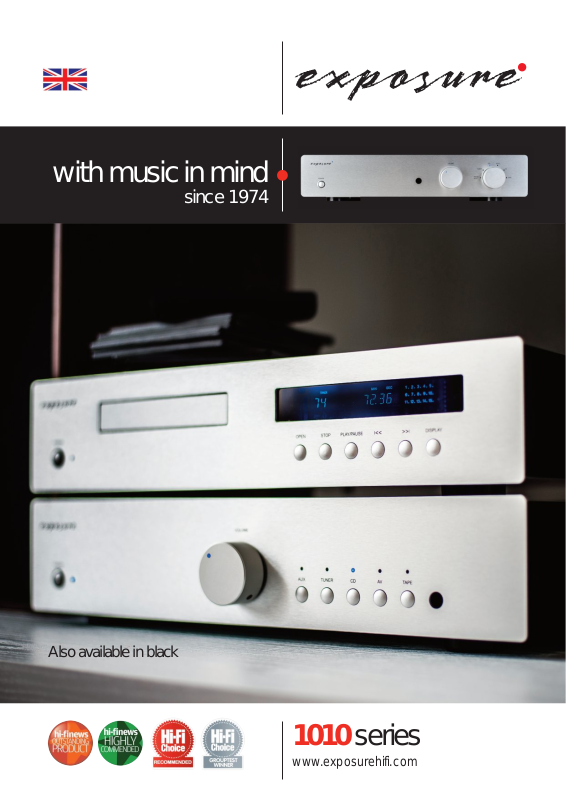

Page 1
with music in mind
since 1974
Also available in black
1010 series
www.exposurehifi.com
Page 2
1010 Compact Disc Player
1010 series
Output Level : 2V RMS
•
Frequency Response : 20Hz - 20KHz ± 0.25dB
•
Total Harmonic Distortion : <0.008%, at 1KHz, 0dBFs
•
Signal to Noise Ratio : >95dB, A weighted
•
Digital Outputs : "Toslink" Optical
•
Mains Supply : 110/120V or 220/240V, 50/60Hz (factory set)
•
Power Consumption : <15W
•
Dimensions - H x W x D : 90mm x 440mm x 300mm
•
Nett Weight (unpacked) : 5kg
•
Technical Specification
Gross Weight (packed) : 7kg
•
1010 Integrated Amplifier
Power Output (1KHz): 50W per channel RMS 8ohms
•
Input Sensitivity: 250mV
•
Input Impedance: >14K Ohms
•
Frequency Response: 20Hz - 20KHz ± 0.7dB
•
Total Harmonic Distortion: <0.05% at rated power
•
Signal to Noise Ration: >95dB, A Weighted, ref rated power
•
Channel Separation: >60dB
•
Mains Supply: 110/120V or 220/240V, 50/60Hz (factory set)
•
Power Consumption: <120W
•
Technical Specification
Dimensions - H x W x D: 90mm x 420mm x 300mm
•
Nett Weight (unpacked) : 5Kg
•
Gross Weight (packed) : 7Kg
•
1. High capacity 30VA custom made toroidal transformer
2. Anodised aluminium faceplate
3. High quality capacitors used in signal path
D display can be turned off for improved sound quality
4.C
Features
5. Optical output to connect to external Digital to Analogue
Converter or recording device
6. High quality double sided PCB for optimum layout
and screening
7. High quality remote control
8. Three year guarantee
9. Available in black or titanium
1. High capacity 120VA custom made toroidal transformer
2. Anodised aluminium faceplate
3. High quality capacitors used in signal path
4. Short signal path PCB
Features
5. Relay switching of input signals
6. Dedicated fixed gain AV input
7. Cascode circuitry used for improved power supply immunity
8. High quality remote control
9. Three year guarantee
10. Available in black or titanium
Exposure has been perfecting the art of creating real
hi-fi for real music lovers since 1974.
What do we mean by ‘real’? Remember the days when things
were designed by skilled engineers, perfected over time and
built to last? When products were expected to concentrate on
doing what they did exceptionally well without fail, rather than
getting bogged down with the latest gadgets and gizmos?
That’s what we mean by real hi-fi.
Exposure is available worldwide from a network of specialist
shops run by people who know a thing or two about the
complex relationship between people, hi-fi and music. From our
entry-level ‘ten’ series to the ‘twenty’ and ‘thirty’ systems, we
hope that you will be as delighted with the price as the sound.
Exposure Electronics Limited
Unit 18, Winston Business Centre, 43 Chartwell Road
Lancing, West Sussex BN15 8TU, United Kindom.
www.exposurehifi.com
