ROSETTA
CAPSULE GROUP
USER MANUAL
R
Original instruction
Page 2
2
Rosetta
Capsule Group
CONTENT
CONTENT ..................................................................................................................................................................... 2
SYMBOL DESCRIPTION ....................................................................................................................................... 4
Hazard intensity levels ......................................................................................................................................................... 4
GENERAL ........................................................................................................................................................................ 5
Introduction ...........................................................................................................................................................................5
General instructions ............................................................................................................................................................. 5
Warnings ................................................................................................................................................................................. 5
Precautions ............................................................................................................................................................................. 6
Intended use ........................................................................................................................................................................... 6
TECHNICAL SPECIFICATIONS ........................................................................................................................ 7
Data sheet...............................................................................................................................................................................7
Accesories ..............................................................................................................................................................................7
OVERVIEW OF COMPONENTS .................................................................................................................... 8
Rosetta mini control 2GR capsule .................................................................................................................................... 8
Rosetta display control 2GR capsule .............................................................................................................................. 9
DIMENSION SKETCH ...........................................................................................................................................10
Rosetta mini control 2GR capsule ..................................................................................................................................10
Rosetta display control 2GR capsule .............................................................................................................................11
TRANSPORT ..............................................................................................................................................................12
Packaging ...............................................................................................................................................................................12
Delivery inspection .............................................................................................................................................................12
INSTALLATION ........................................................................................................................................................12
Positioning ............................................................................................................................................................................12
Electrical installation ...........................................................................................................................................................13
Connection types ................................................................................................................................................................13
Water connection ..............................................................................................................................................................14
Pressure and temperature ................................................................................................................................................14
Starting the machine ...........................................................................................................................................................14
OPERATION ...............................................................................................................................................................15
Espresso brewing ................................................................................................................................................................15
Steaming and frothing milk with the manual steam wand ........................................................................................16
Steaming and frothing milk with turbo steamer ..........................................................................................................17
Dispensing hot water .........................................................................................................................................................18
CLEANING AND MAINTENANCE ............................................................................................................19
Coffee machine cleaning ....................................................................................................................................................19
Daily cleaning .......................................................................................................................................................................19
Weekly cleaning ..................................................................................................................................................................19
Page 3
3
Rosetta
Capsule Group
CONTENT
Rinsing the capsule group .................................................................................................................................................20
Cleaning the capsule group ...............................................................................................................................................21
Disassemble the group gasket..........................................................................................................................................22
Cleaning the Group Gasket and Capsule Holder .......................................................................................................22
Reassembling the Group Gasket .....................................................................................................................................22
Removing the adjustable spout ........................................................................................................................................23
Cleaning the adjustable spout ..........................................................................................................................................23
Additional handling of the machine.................................................................................................................................24
STORAGE AND DISPOSAL OF MACHINE ..........................................................................................24
How to store the machine ...............................................................................................................................................24
Disposal of machine ...........................................................................................................................................................24
PROGRAMMING .....................................................................................................................................................25
Buttons functions ................................................................................................................................................................25
Additonal button functions ...............................................................................................................................................25
Programming the coffee dosage ......................................................................................................................................26
Programming the hot water dosage ...............................................................................................................................26
Programming the turbo steamer .....................................................................................................................................27
PROGRAMMING USING THE DISPLAY ..................................................................................................28
Machine status .....................................................................................................................................................................28
Accessing the second menu level ....................................................................................................................................29
Setting the clock: hours, minutes and day .....................................................................................................................29
Auto on/off ...........................................................................................................................................................................30
Counters ...............................................................................................................................................................................30
MESSAGES AND ALARMS ................................................................................................................................31
TROUBLESHOOTING .........................................................................................................................................32
Page 4
4
Rosetta
Capsule Group
SYMBOL DESCRIPTION
Hazard intensity levels
There are three different levels of hazard intensity, identified by signal words DANGER, WARNING
and IMPORTANT. The level of hazard is determined by the following definitions.
Observe the statements to ensure safety, performance, prevent injury and machine damage.
Important:
Alerts against unsafe practices. Observe to ensure drink quality, machine performance,
food safety, to prevent minor personal injury or damage to the machine.
WARNING!
Indicates a potentially hazardous situation which, if not avoided, could result in scalding,
serious injury and even death.
DANGER!
INDICATES A IMMINENTLY HAZARDOUS SITUATION WHICH, IF NOT
AVOIDED, WILL RESULT IN SERIOUS INJURY AND EVEN DEATH.
Note:
Gives additional information which may be helpful during the cleaning procedure or
operation of the machine.
i
Page 5
5
Rosetta
Capsule Group
GENERAL
Thank you for choosing a Rosetta capsule machine.
We hope you enjoy it !
Read the user manual before using the machine.
This manual contains important instructions on
intended and safe use of the coffee machine.
Keep this manual close to hand for future
reference. If damaged or lost, request a copy
from the manufacturer.
Introduction
Machine installation and certain maintenance
operations should only be performed by
qualified service personnel.
All safety instructions and warnings contained
in this manual should be observed to ensure
safe installation, use and maintenance.
Do not attempt to open or repair the machine
or access the interior. Repair should be
performed by an authorised workshop, by a
service centre, or by qualified service staff.
Do not remove operational or protective parts
requiring use of tools for removal.
Purchasers are liable for ensuring that users
have been trained to operate the machine
and have been informed of the potential risks
involved.
The installer will be held liable for all non-
authorised modification of the machine.
Non-authorised alteration or modification of
the machine will exempt the manufacturer of
all liability for damages and will invalidate the
warranty.
This manual refers to the machine as at the
time of sale. The commercial availability of
subsequent versions featuring modifications,
upgrades or adaptations does not oblige
the manufacturer to apply the same to this
machine, nor does it oblige it to update the
documentation supplied.
The manufacturer reserves the right to
withdraw currently available manuals whenever
it considers appropriate and reasonable.
Place the machine in a location accessible only
to personnel trained to operate it.
Keep all hazardous packaging materials, such as
plastic bags, expanded polystyrene and staples,
out of reach of children.
Plug the machine into a properly installed,
earthed safety socket, whose line voltage
matches the technical data for the machine.
Make sure that the power supply voltage does
not fluctuate by more than 6%.
Position the power cable so that users cannot
trip over it. Keep the power cable away from
sharp edges and heat sources.
Children should be supervised to ensure they
do not play with the appliance.
Install this appliance in a horizontal position in
a water-resistant location. Install the machine
away from heat sources and flammable objects.
This appliance is not suitable for installation in
an area where a pressure washer may be used.
Do not use the machine outdoors, where it
would be exposed to adverse weather (rain,
snow, frost). This will cause material damage to
the machine.
If the mains cable is damaged, it must be
replaced by the manufacturer, its service agent
or a similarly qualified person in order to avoid
a hazard.
Do not remove or disable any of the
mechanical, electrical or thermal protection
mechanisms.
General instructions
Warnings
The manufacturer will not be held liable for damage to persons or property attributable to failure to
follow the instructions and warnings listed below when installing and using the coffee machine.
Page 6
6
Rosetta
Capsule Group
GENERAL
In case of emergency, (e.g. the machine catches
fire or becomes unusually hot or noisy),
disconnect the power immediately and close
the water inlet tap.
If the machine is not going to be used for
a prolonged period of time, disconnect the
power. When disconnecting the power, pull the
plug rather than the cable.
When packed for storage, keep the machine in
a dry place with an ambient temperature of
over 5ºC. Boxes may be stacked in piles of up
to three units of the same model. Do not place
other heavier packages on top of the box.
The machine is likely to be exposed to
temperatures below 0 ºC during handling and
transport, make sure that service personnel
empty the boiler and water system. The
machine’s boiler and water system is empty
when delivered from the factory.
To ensure fault-free machine operation,
only use replacement parts and accessories
authorised by the manufacturer.
Before performing maintenance and/or moving
the machine, disconnect the machine from the
power supply and wait for it to cool.

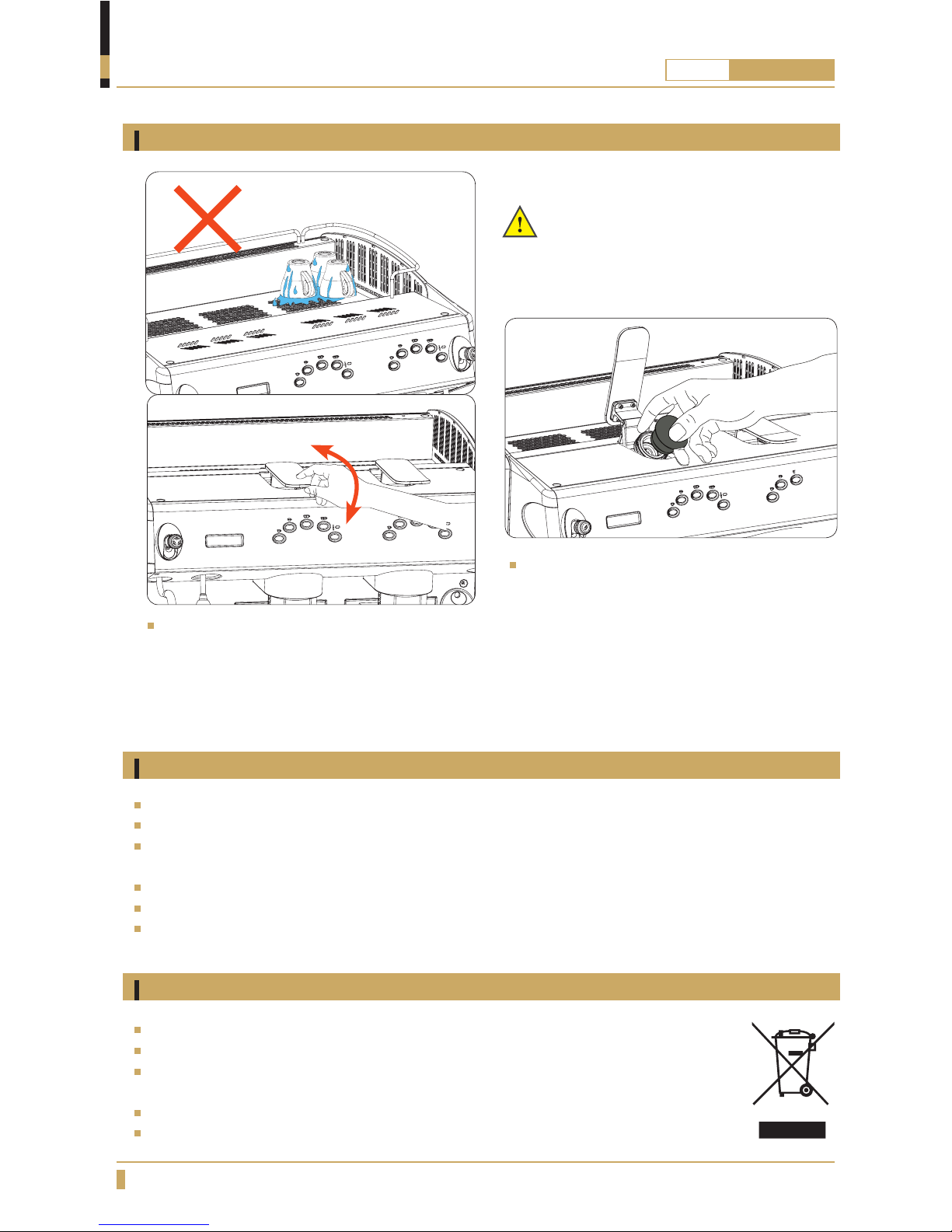

Do not place vessels containing liquid on the
machine.
This appliance must not be cleaned with a
pressure washer.
Never immerse the machine, plug or mains
cable in water, as there is a danger of electric
shock.
Do not touch the machine’s hot surfaces or
dispensing equipment.
Do not touch the machine if your hands or feet are
wet.
Do not operate the machine if any part except
the dispensing equipment is wet.
Place the machine out of reach of children.
This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the appliance in a safe way
and understand the hazards involved.
Cleaning and user maintenance shall not be
made by children.
Do not use the machine if the machine, its
mains cable or the plug is damaged or the
machine has been dropped.
Do not obstruct the vents with cloths or other
objects. Do not insert foreign objects into the
vents.
Check the drain regularly to make sure that
water is emptied properly.
This coffee machine has been designed and
manufactured to make espresso coffee and
other hot drinks, e.g. steaming and frothing milk.
Do not use it for any other purpose.
The machine is intended to be used by trained
personnel for preparing foodstuffs.
This machine is not intended for use in
industrial kitchens, domestic kitchens or similar
locations.
The manufacturer will not be held liable
for damage to persons or property due to
incorrect, improper or negligent use by nonprofessional personnel.
To ensure optimal performance, install the
machine in a location where these parameters
will not be exceeded:
- Maximum permissible inlet water pressure:
600 KPa (6 Bar)
- minimum permissible inlet water pressure:
200 KPa (2 Bar)
- Maximum inlet water temperature: 40ºC
- Ambient temperature is between +10 ºC (min
and +40 ºC (max.).
Precautions
Intended use
Page 7
7
Rosetta
Capsule Group
Accesories
TECHNICAL SPECIFICATIONS
Data sheet
SPECIFICATIONS
Rosetta 2GR capsule
Mini control Display control
Machine model, Standard
EBAD-C32D-12AF
220-230V 1N~ 2600W 50-60Hz
-
Machine model, Take Away
- -
Steam wand
1 unit 2 units
Hot water lever
1 unit 1 unit
Turbo steamer
No Optional
Temperature control
Regulated by pressure switch Regulated by PID
Programmed via display
No Yes
Height adjustable brewing system
Yes Yes
Energy saving mode
No Yes
Height, width, depth (mm)
680, 460, 590 680, 680, 590
Boiler volume (l)
6 11.5
Power supply
220-230V 1N~ 2600W 50-60Hz 230V 1N~ 3740W 50/60 Hz
Connecting to the water supply
Female 3/8" thread Female 3/8" thread
Weight (kg)
39.75 53.50
Steam boiler operating pressure
Between 0.8 and 1.2 bar Between 0.8 and 1.2 bar
Ambient noise
< 70 db < 70 db
MODEL
55cm inlet hose 150cm drainage tube
MINI 2GR
1 unit 1 unit
2GR
1 unit 1 unit
Page 8
8
Rosetta
Capsule Group
OVERVIEW OF COMPONENTS
Rosetta mini control 2GR capsule
Front view of the machine
Capsule group lever
Hot water lever
Drink Buttons
Hot water outlet
Heater element lamp
Adjustable coffee
spout
Pump pressure
gauge
Steam wand
ON/OFF switch
Boiler pressure gauge
Capsule
drawer
Steam lever
Page 9
9
Rosetta
Capsule Group
OVERVIEW OF COMPONENTS
Rosetta display control 2GR capsule
Front view of the machine
Hot water outlet
Hot water lever
Display
Capsule group
lever
Drink Buttons
Steam lever
Steam wand
Pump pressure gauge
Turbo-Steamer wand
Adjustable coffee
spout
Capsule drawers
Heater element
lamp
ON/OFF switch
Page 10
10
Rosetta
Capsule Group
DIMENSION SKETCH
Rosetta mini control 2GR capsule
Model
A B C
D (
Min.~ Max.)
E
Rosetta mini 2Gr
530 mm 460 mm 590 mm 58 mm ~ 115 mm 680 mm
A
B
C
D
E
Page 11
11
Rosetta
Capsule Group
DIMENSION SKETCH
Rosetta display control 2GR capsule
Model
A B C
D (
Min.~ Max.)
E
Rosetta 2Gr
530 mm 680 mm 590 mm 58 mm ~ 115 mm 680 mm
A
C
E
D
B
Page 12
12
Rosetta
Capsule Group
INSTALLATION
TRANSPORT
Positioning
Packaging
Delivery inspection
Install the machine on a level surface. Adjust the feet to
ensure that it dispenses coffee evenly in all of the cups.
Select a level, dry, strong and stable installation surface at
least 110 cm off the floor.
Leave enough space above and behind the machine to
ensure easy cleaning and maintenance.
Do not install the machine whilst wet or damp. If wet or
damp, leave the machine until completely dry then ask
service personnel to check that none of the electrical
components are affected.
Note:
Leave an air gap of approximately 30 cm above
the machine and 10 cm behind it to ensure
ventilation.
i
The machine is shipped in a unique carton box which uses expanded polystyrene paddings.
The machine box is provided with conventional symbols that can be perfectly visible during the
handling and storage tasks.
The machine box must stay in a vertical position during the transport. Do not tip or try to place
the box tilted sideways in any way.
During transportation the box must be protected from hits, impacts, shocks and exposure of bad
weather elements.
After the delivery, check that the machine is in the exact condition described in the documentation
of the transport, accessories included.
Check that the machine does not have any damage caused by transportation. If this happens, inform
to the shipper and the distributor of the machine.
The packaging materials are potentially dangerous and should be kept away from children.
Make sure to leave the materials of the box and packaging at a suitable recycling center.
MIN. 10cm
MIN. 30cm
Page 13
13
Rosetta
Capsule Group
INSTALLATION
Electrical installation
The coffee machine should only be connected to the power supply by qualified
personnel. The following safety instructions should be followed at all times:
Check that the electrical specifications on the ratings plate match the
specifications of the power supply at the point of installation.
The coffee machine must be connected to an earthed socket that complies
with the regulations in force in the country of installation.
You should protect the electric line of the installation with a circuit breaker
switch appropriated for the power consumption of the machine, specified
on its ratings plate.
A residual current circuit breaker must be installed in accordance with the
characteristics of the area of the installation.
Check the characteristics, power rating of the system and that the diameter
of the cables are suitable for the power used by the machine.
Do not connect the coffee machine to the power supply via extension
boards, adapters or shared sockets.
The manufacturer will not be held liable for damage to persons, animals or
property resulting from incorrect installation of the coffee machine.
DANGER!
If the mains cable or plug is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid SERIOUS INJURY OR DEATH!
Connection types
Connect the machine as per the instructions on the ratings plate.
Machine: Supply
220-240Vac Ph+N
NEUTRAL
PHASE
Supply hose
Blue
Brown
Yellow/Green
220-240Vac Ph+N
Machine: Supply
2Ph 220-240Vac
PHASE
PHASE
Supply hose
Blue
Brown
Yellow/Green
220-240Vac Ph+N
Machine: Supply
3Ph 220-240Vac
PHASE
Supply hose
Blue
Brown
Yellow/Green
220-240Vac 3Ph
Machine: Supply
220-240Vac Ph+N
NEUTRAL
PHASE
Supply hose
Blue
Brown
Yellow/Green
2Ph+N
Black
Machine: Supply
2Ph 380Vac+N
NEUTRAL
PHASE
Supply hose
Blue
Brown
Yellow/Green
2Ph+N
PHASE
Black
Machine: Supply
2Ph 220-240Vac
NEUTRAL
PHASE
Supply hose
Blue
Brown
Yellow/Green
2Ph+N
Black
Machine: Supply
3Ph 220-240Vac
PHASE
Supply hose
Blue
Brown
Yellow/Green
2Ph+N
Black
PHASE
PHASE
Machine: Supply
125Vac Ph+N
NEUTRAL
PHASE
Supply hose
Blue
Brown
Yellow/Green
125Vac Ph+N
Machine: Supply
3Ph 380Vac+N
NEUTRAL
PHASE
Supply hose
Blue
Brown
Yellow/Green
380Vac 3Ph
Grey
Black
PHASE
PHASE
Black
PHASE
PHASE
Page 14
14
Rosetta
Capsule Group
INSTALLATION

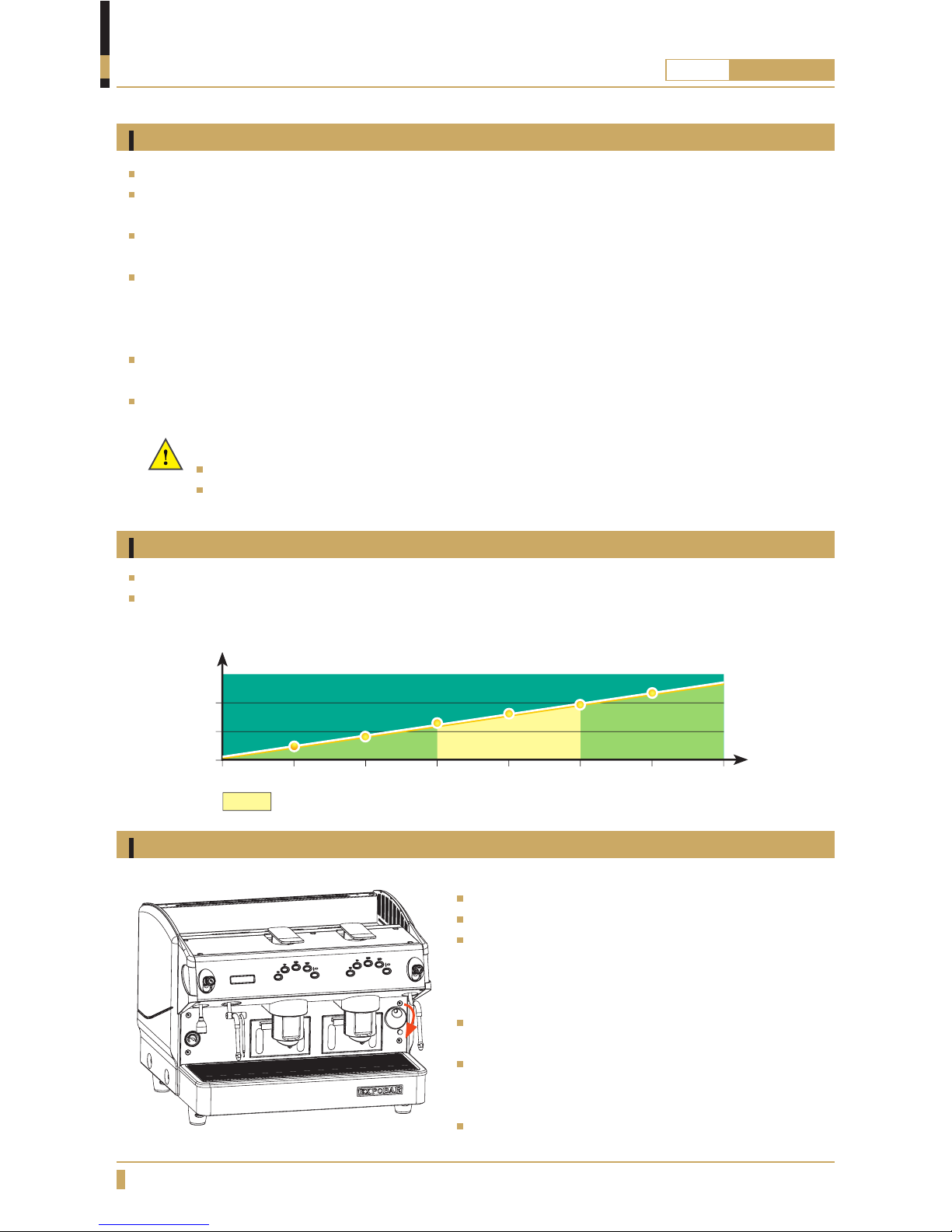

Water connection
Pressure and temperature
Starting the machine
The Installation of the machine to a water mains connection must be done by a qualified person.
Rinse around 20 liters of water from the main water supply before connecting the machine to the water
connection.
Connect the inlet hose that is assembled in the machine to the main water supply, which should have
a 3/8” male connection fitted with a shut-off valve, tighten it with a wrench.
Use safe drinking water with hardness between 5ºfH and 8ºfH (French hardness degrees). If the value
is below this limit, the presence of corrosion of hydraulic components is a possibility. If the value is
higher than this limit, the presence of lime in the boiler will increase. In both cases the operation of
the machine and coffee quality will be affected negatively.
If necessary, connect the machine to a water softener or remineraliser to reduce water hardness.
Use the flexible hose that is included in the accessory box of the machine.
Connect one end of the corrugated tube to the drain cup in the machine, connect the other to the
main drainage tube at the installation area.
Boiler temperature and pressure are directly related (see Fig. 01).
Machine is fitted with a pressure gauge that will display the boiler pressure, if the machine is fitted
with a display it will also indicate boiler temperature.
Relationship between boiler pressure and temperature
Standard pressure and temperature
Open the external supply of water to the machine.
Turn on the main power switch.
Press a drink button at the control panel on each
group, wait until water comes out continuously from
each of them. This way the heat exchangers in the
machine will be correctly filled.
Open the steam tap to release the air trapped in the
boiler.
The red lamp indicates that the boiler is heating.
The lamp switches off when the machine reaches
operating temperature.
The machine is now ready to use.
0.7
110
115
120
125
0.8 0.9 1 1.1 1.2
o
C
BAR
Important:
Only use the hoses supplied with the machine. Never reuse hoses.
Make sure that the drainage tube is not twisted and ensure that the entire tube is below the
level of the drain cup.
Fig. 01
Page 15
15
Rosetta
Capsule Group
OPERATION
Espresso brewing
01
03 04
02
Lift up the lever for the group. (the last used
capsule will be ejected into the capsule drawer)
Adjust the height of the coffee spout if necessary.
Insert the capsule in the correct position as
shown in the picture and push down the lever
into locked position.
Place a cup under the coffee outlet (A).
Select the desired drink by pressing any of the
buttons (B).
WARNING!
Never open the capsule group whilst the machine is dispensing a drink, as the pressurized
hot water could cause scalding or serious injury. Once dispensing has finished, wait about 3
seconds before opening the capsule group.
B
Page 16
16
Rosetta
Capsule Group
OPERATION

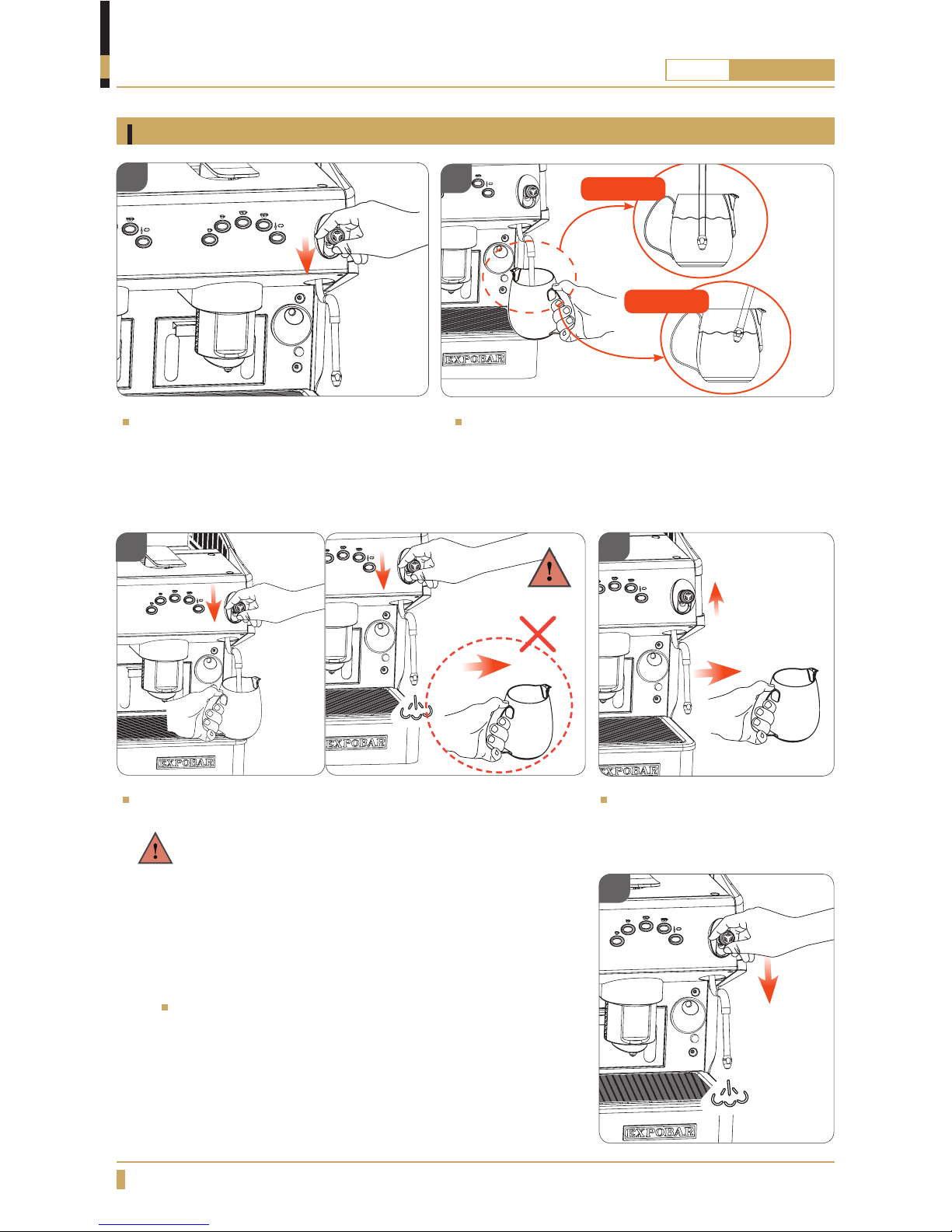

Steaming and frothing milk with the manual steam wand
01
04
05
Place the steam wand over the drip tray and
open the steam tap for a few seconds, this will
allow condensed water to be ejected. Close
the steam tap when only steam comes out.
Open the tap again to start heating or frothing the milk. Once the milk reaches the
desired temperature, close the
tap and remove the jug.
Immerse the steam wand into the jug containing the
milk, make sure the wand tip is submerged.
After the process is finished, position the steam wand
over the drip tray and open the steam tap for a few
seconds to clean leftovers of milk in the wand.
Close the tap and clean the outside of the steam wand
with a damp cloth to prevent nozzle blockage.
WARNING!
Do not remove the steam wand from the jug
whilst the steam lever is open. Doing so may
result in scalding and serious injury.
Frothing
Steaming
02
03
Page 17
17
Rosetta
Capsule Group
01
05
02
OPERATION

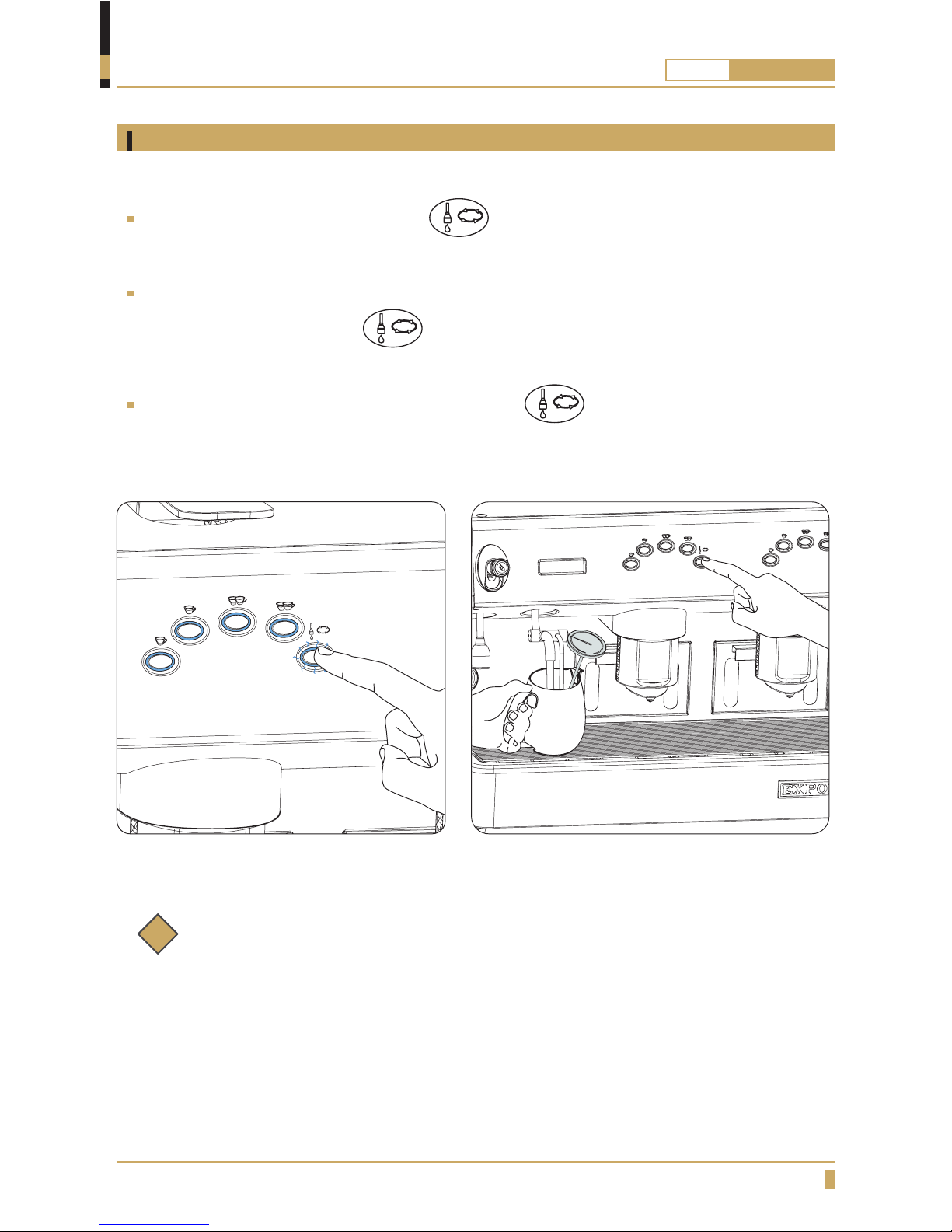

Steaming and frothing milk with turbo steamer
STO
P
Place the steam wand over the drip tray and
press the steam button, this will allow condensed
water to be ejected. Turn it off again when only
steam comes out by pressing the button again.
Immerse the steam wand (with temperature
sensor) into the jug containing the milk, make
sure the wand tip is submerged.
Press the button again to start heating or frothing the milk. Once the milk reaches the
programmed temperature, the
steaming will stop automatically
and you may remove the jug.
WARNING!
Do not remove the steam wand from the jug whilst
the steam lever is open. Doing so may result in
scalding and serious injury.
After the process is finished, position the steam wand over
the drip tray and press the steam button to clean leftovers of
milk in the wand. Turn off the steam after a few seconds by
pressing the button again, clean the outside of the steam wand
with a damp cloth to prevent nozzle blockage.
04
03
Page 18
18
Rosetta
Capsule Group
OPERATION

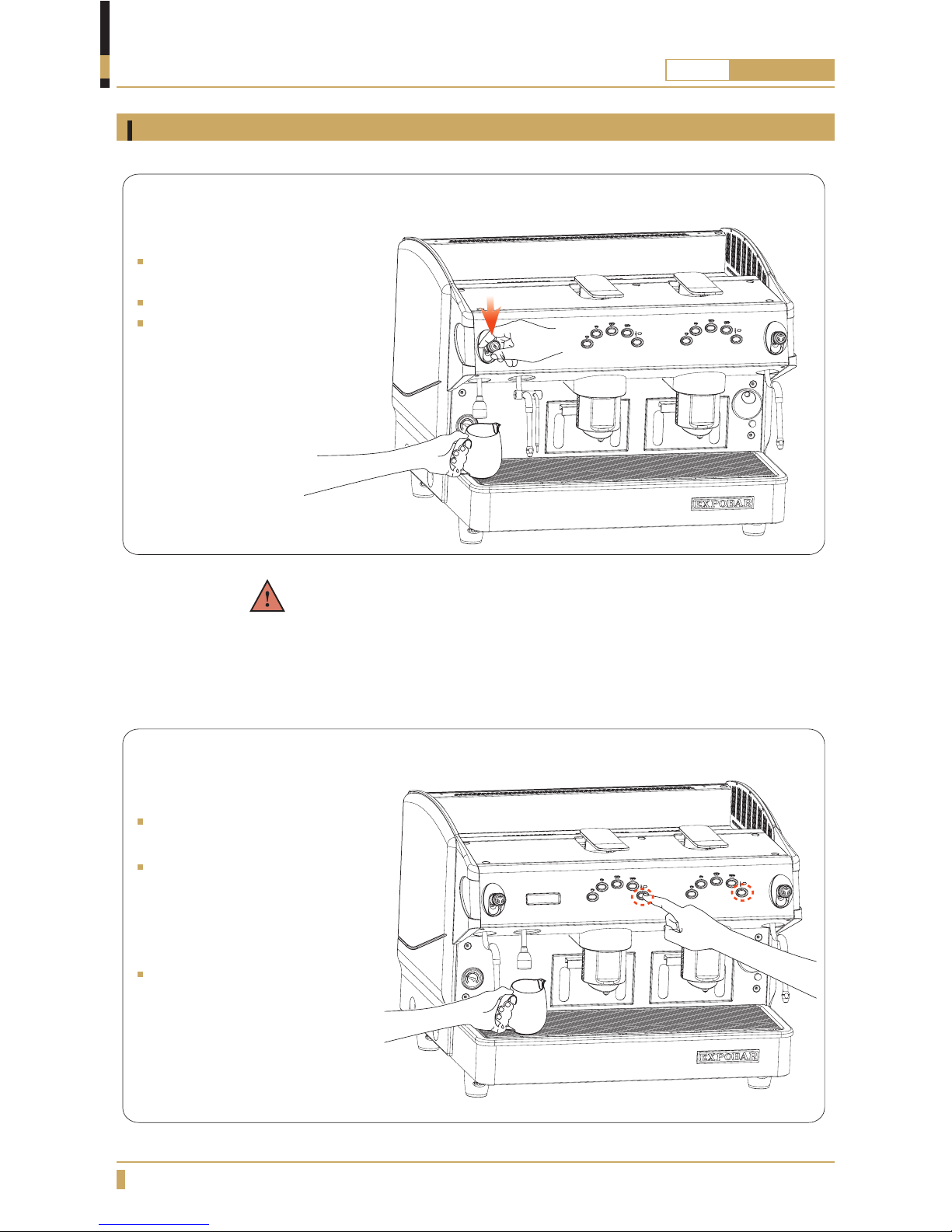

Dispensing hot water
Machine equipped with manual water lever
Machine equipped with automatic water tap
Place a jug (or similar) under
the hot water outlet
Open the hot water lever.
Close the lever as soon as the
machine has dispensed the
desired amount of water.
Place a jug (or similar) under the
hot water outlet.
Press the hot water button for
less than 1 seconds for automatic
dose dispensing. Press for longer
than 1 second for continous
dispensing.
Wait until the machine
stops dispensing hot water
automatically, or press the
button again to stop hot water
dispensing.
WARNING!
Never expose hands and fingers directly under the water outlet during
operation to avoid scalding or serious burns.
Page 19
19
Rosetta
Capsule Group
Coffee machine cleaning
Daily cleaning
Weekly cleaning
Important:
To obtain the best efficiency, quality and performance of the machine, you should always
follow the cleaning and care instructions provided in this manual.
Turn off the power switch when cleaning the exterior of the machine.
All external surfaces should be cleaned with a wet cloth that will not get out fibers, threads or
scratch the machine.
Do not use aggressive cleaning detergents, solvents or degreasers. They can damage the
machine.
Important:
Once a day or after 8 hours from the last dispensing of coffee, the following cleaning tasks
must be performed for maintaining the quality and performance of the water system in the
machine:
Capsule group: Brew a continuous coffee without capsule for around one minute.
Steam wand: Position the wand outside the drip tray and open the steam lever for around
one minute.
Manual hot water outlet: Place a container under the water outlet and open the tap for 20
seconds.
Automatic hot water outlet: Place a container under the water outlet and press the hot
water button for 3 seconds to start, dispense water for 20 seconds.
Rinse the capsule group with hot water.
Clean the external surfaces of the machine, pay special attention to the stainless steel parts.
Clean the steam wand and the water lever. Be sure that the nozzles are not blocked or half
blocked with for example milk residue. If it’s necessary to clean, be careful not to deform or
damage any of the components.
Clean the dip tray and the stainless steel insert grid under running water with a brush. You can
slowly pour 1L of hot water into the drain cup to dissolve and remove coffee residue that have
accumulated inside the cup and tubes.
Clean the capsule group with professional cleaning powder or cleaning capsule (page 21).
Clean the group gasket (see page 22).
Clean the coffee spout (page 23).
CLEANING AND MAINTENANCE
Page 20
20
Rosetta
Capsule Group
CLEANING AND MAINTENANCE
Rinsing the capsule group
i
Note:
You can take a used coffee capsule and open it up and remove the coffee powder inside
to use in step 3.
Open the lever so the last used capsule
falls into the capsule drawer and the group
becomes empty.
Reopen the lever and put an empty capsule
without any cleaning agent in the group.
Push down the lever into locked position.
Start the continuous brewing and stop after
30 seconds. Repeat this process 3 times.
Push down the lever into locked position.
Start the continuous brew for 30 seconds.
Repeat this process 3 times.
0403
01 02
Page 21
21
Rosetta
Capsule Group
Cleaning the capsule group
CLEANING AND MAINTENANCE
i
Open the lever so the last used capsule
falls into the capsule drawer and the group
becomes empty. Fill half of the capsule
group with special cleaning powder for
espresso machines.
Push down the lever into locked position.
Start the continuous brewing and stop
after 20 seconds. Repeat this process 5
times.
Cleaning with powder
Note:
Only use professional
cleaning powder for espresso
machines.
It’s avalible from your
distributor.
Open the lever so the last used capsule
falls into the capsule drawer and the group
becomes empty.
Insert the special cleaning capsule, start the
continuous brewing and stop after 20 seconds.
Repeat this process 5 times
Important:
Always rinse the group after a cleaning
procedure.
Important:
We recommend to clean and rinse the
machine at least once a week.
Cleaning with capsule
Part no: 1104162
01
02
03
Page 22
22
Rosetta
Capsule Group
CLEANING AND MAINTENANCE
Disassemble the group gasket
Cleaning the Group Gasket and Capsule Holder
Reassembling the Group Gasket
Push the metal tension ring
(pictured in blue) back using
thumbnails or a plastic tool
until it slides off of the gasket.
After the tension ring releases,
pull the gasket forward from
one edge until it releases from
the capsule holder.
Turn the machine off at the
main power supply switch
and then open up the capsule
group.
Important:
The wider face of the
gasket must be facing out
when reassembling the
gasket onto the capsule
holder.
1. Hold the capsule group lever with one hand to keep the capsule holder stable. With the other hand
place the gasket on the capsule holder with the lip seated at the bottom first. Then press the gasket
onto the holder, working around until it is completely seated.
2. Pull the metal tension ring up onto the gasket to hold it in place. Ensure the ring is aligned evenly.
i
Note: To remove the group gasket, the
machine must cool to room temperature.
WARNING! Be aware of the sharps
inside the capsule holder to avoid injury.
Clean the capsule holder with warm
water and a brush.
Clean the gasket with water and a brush,
then rinse with clean water before
reinstalling.
01
01
02
02
03
I
O
Page 23
23
Rosetta
Capsule Group
Removing the adjustable spout
Cleaning the adjustable spout
CLEANING AND MAINTENANCE
Pull down the spout to its lowest position. Once in its lowest position, squeeze the hooks
on each side that hold the spout in place and
pull downwards.
01 02
Remove the funnel inside the spout by pulling
it straight up.
Clean the two parts with a brush under
running water, reassembly the parts in reverse
order.
03 04
Page 24
24
Rosetta
Capsule Group
Additional handling of the machine
How to store the machine
Disposal of machine
CLEANING AND MAINTENANCE
Remove and insert the porta-filter gently.
Never use excessive force to try to close the
porta-filter.
Important:
Avoid placing wet cups directly on the
cup shelf, it may drip into the machine
and cause machine damage.
STORAGE AND DISPOSAL OF MACHINE
Make all the cleaning procedures described in this manual.
Disconnect and roll up the power cord. (this should be performed by a qualified person).
Disconnect the inlet hose from the machine to the water mains and empty the boiler. (this should be
performed by a qualified person).
Clean the drip tray and exterior of the machine.
Cover / pack the machine and store it in a dry place where it isn’t exposed to bad weather conditions.
If the machine should be used after a long period of storage, make sure to run all cleaning procedures
before using the machine again.
Make all the cleaning procedures described in this manual.
Disconnect and roll up the power cord. (this should be performed by a qualified person).
Disconnect the inlet hose from the machine to the water mains and empty the boiler. (this
should be performed by a qualified person).
Clean the drip tray and exterior of the machine.
Pack and send the machine to a certified recycling center.
When raising and lowering the lever to insert
a capsule, do so slowly. Never force the lever.
Page 25
25
Rosetta
Capsule Group

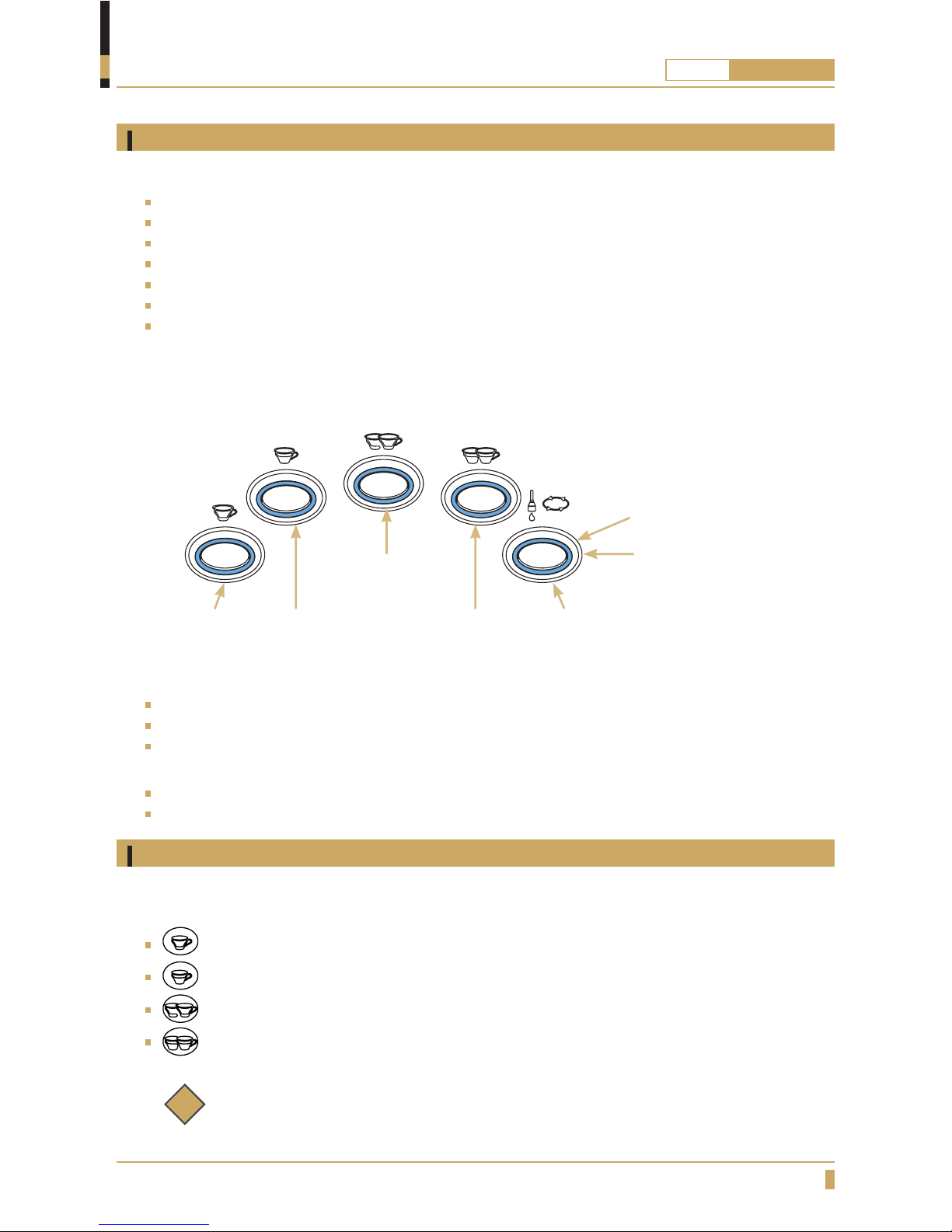

Buttons functions
Here is some of the additional functions that the electronics offers:
Volume control of four different espresso drinks per brewing group.
Time-controlled hot water dispensing. (if available)
Automatic filling and level control of the boiler.
Automatic switch off of the heating element if not enough water.
System supervision through alarms.
RS-232 serial interface with reader for connecting control panel and computer.
Automatic cleaning of the brew groups.
The control panel is by default programmed with 4 standard drinks (these can be reprogrammed as
you wish) and a continuous selection. The first four keys (1 short espresso, 1 Long Espresso, 2 short
espresso, 2 Long Espresso) brew the programmed volume and then stop automatically, the fifth key
brews continuously until user stops it by pressing button again.
PROGRAMMING
The Continuous Dispensing button performs 3 different functions (depending on length of time pressed):
Machines equipped with display
Under 1 second: Enables automatic water- or steam-dosing (only on machines without manual taps).
Between 1 and 8 seconds: Enables Continuous Dispensing (press again to disable).
Over 8 seconds: Access coffee-dose programming menu (see below).
Machines not equipped with display
Under 4 seconds: Enables Continuous Dispensing (press again to disable).
Over 4 seconds: Access coffee-dose programming menu (see below).
Additonal button functions
Note:
In machines equipped with a display, electronic pre-infusion may have to be enabled/
disabled from the service programming menu.
i
To activate these functions, turn off the machine at the power switch then, while holding
down the required button on the left-hand Drink buttons, turn the machine back on.
1 Short Espresso. Enable electronic pre-infusion.
1 Long Espresso. Disable electronic pre-infusion.
2 Short Espressos. Perform auto-cleaning.
2 Long Espressos. Turn on/off flashing of button lights (only available on
MINI machines).
1 Short Espresso 1 Long Espresso 2 Long Espressos Programming
Continuous Dispensing
Hot water / Automatic steam
(if enabled)
2 Short Espressos/
Auto-cleaning
Page 26
26
Rosetta
Capsule Group

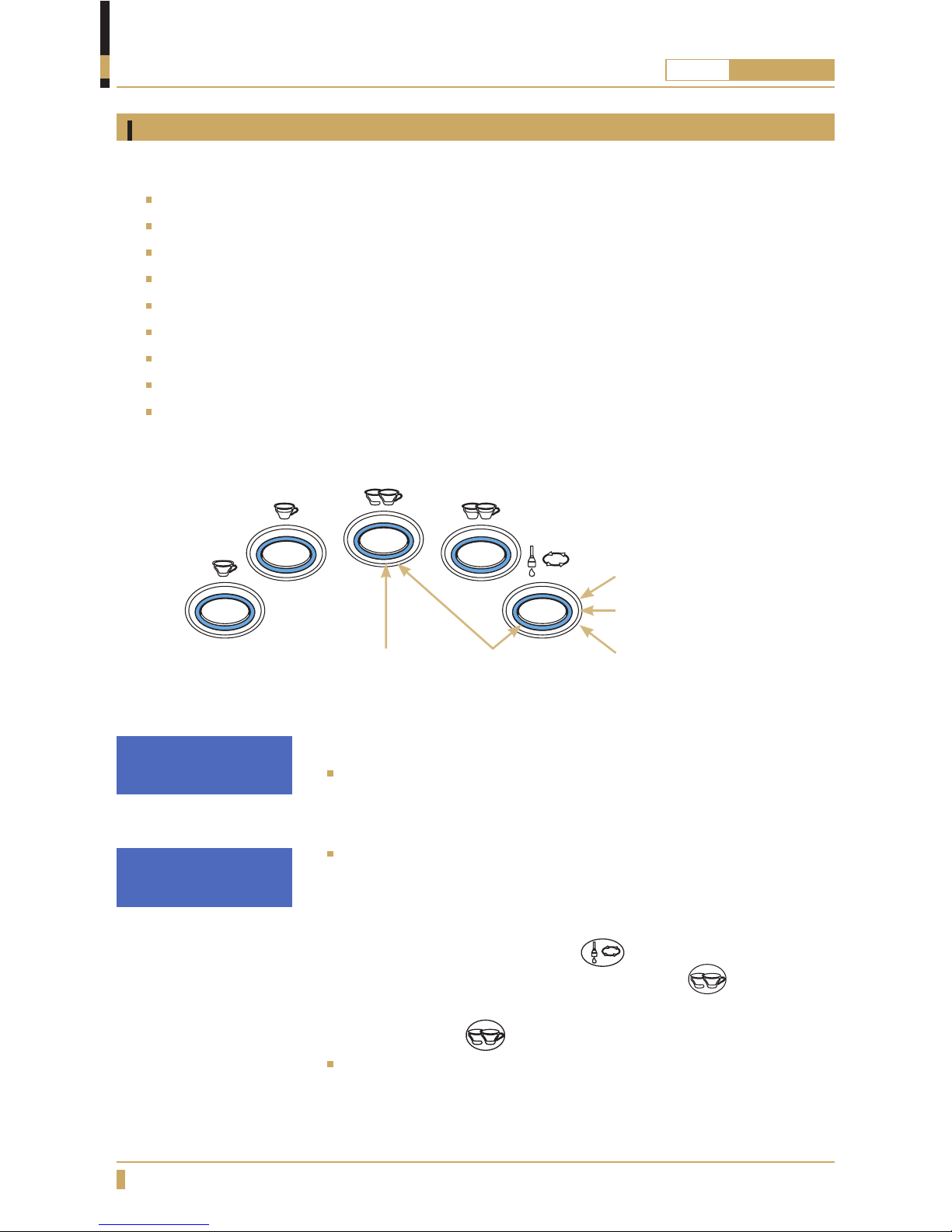

Programming the coffee dosage
Programming the hot water dosage
PROGRAMMING
i
This section explains how to program the doses dispensed automatically by the drink buttons.
Note:
Programming any of the options on the left-hand Drink buttons (when viewing the
machine from the front) automatically sets the dispensing volumes on all of the other
Drink buttonss. This only applies to the left-hand Drink buttons. Programming other
Drink buttonss only modifies the option selected.
Important:
Use a porta-filter filled with fresh coffee for every new dose you program.
On machines not equipped with a display, hold down the Continuous Dispensing button for
4 seconds. On machines equipped with a display, hold down the Continuous Dispensing button for 8
seconds. The Continuous Dispensing button light will flash. On machines equipped with a display, all
of the Drink buttons lights will be turned on.
Press the dispensing option that you wish to program: 1 Short Espresso, 1 Long Espresso, 2 Short
Espressos or 2 Long Espressos. The lights on the button pressed and on the Continuous Dispensing
button will remain on.
The group will start dispensing coffee. When the desired volume is reached in the cup, press the
selected button again to stop dispensing. This volume setting will be saved. On machines equipped with
a display, the lights on the reprogrammed dosage buttons will remain off.
Repeat this process for all of the dispensing options that you wish to reprogram.
If you only need to reprogram one of the dispensing options, follow the steps above and program just
that option. All of the other dispensing options will remain unchanged (default settings).
This function is only available in models equipped with an automatic water lever.
Press the Continuous Dispensing button and hold it down for 8 seconds. The Continuous
Dispensing button light will flash and all of the lights on the button panel will be turned on.
Briefly press the Continuous Dispensing button . The water lever will start dispensing hot
water.
Press the button again to stop dispensing hot water. The new dose setting will be saved.
Each button panel can be programmed with different doses (note that the left-hand button panel will
always override the others).
Page 27
27
Rosetta
Capsule Group
i
Programming the turbo steamer
PROGRAMMING
To program the temperature at which the turbo steamer will stop automatically:
Press the Continuous Dispensing button and hold it down for 8 seconds. The continuous
dispensing button light will flash and all of the button panel lights will be turned on (see fig. 02).
Insert the steam wand (with built-in temperature gauge) in the jug containing the milk and press the
Continuous Dispensing button on the left-hand button panel. The automatic steam wand
will start dispensing steam and will heat the milk in the jug (see fig. 03).
When the milk reaches the desired temperature, press again to stop dispensing.
The new heating temperature will be saved.
Fig. 02 Fig. 03
Note:
Use a thermometer to measure milk temperature when programming the turbo steamer.
To adjust the amount of air injected into the steam, and therefore the creaminess of the
steamed milk, contact service personnel.
Page 28
28
Rosetta
Capsule Group
Machine status
Machines equipped with a display include the following additional functions:
Automatic daily on/off timer (stand-by function).
Clock settings (current time and date).
Promotional display.
Number of coffees/infusions dispensed.
Digital boiler-temperature display and control.
PID-technology boiler-temperature control.
Programming and settings help system.
Visual water-softener regeneration alarm.
Display language selector.
PROGRAMMING USING THE DISPLAY
ON
OK
_
+
STAND-BY (OFF)
The coffee machine has 3 possible statuses:
On:
The machine is operational and ready to make coffee. This is the usual
machine status after turning on the power switch (see fig.04).
Stand-by:
The power switch is on, but the display shows “Off” (see fig. 05).
This means that the machine is in energy-saving mode. This mode
is only entered whilst the machine is on. To enter this mode, press
the Continuous Dispensing button , and, without releasing it,
simultaneously press the 2 Short Espressos button .
To exit this mode and turn the machine back on, press the 2 Short
Espressos Button
again.
Off:
The coffee machine is turned off at the power switch.
g. 04
g. 05
XXXºC hh:mm
SELECT DOSES
OFF hh:mm
Programming menu
Continuous brewing
Tea (if it is activated)
Page 29
29
Rosetta
Capsule Group
Setting the clock: hours, minutes and day
PROGRAMMING USING THE DISPLAY
Accessing the second menu level
With the machine on, press the Continuous Dispensing button on
the Left-hand drink buttons and hold it down (for over 8 seconds) until
the dose-programming menu is displayed. All the drink buttons lights
will be turned on and the Continuous Dispensing button light will flash. The
display will be as shown in fig. 06.
Hold down the Continuous Dispensing button until the menu
displays the “set clock” option (see fig. 07).
This provides access to the second menu level.
g. 06
Doses setting
Select within 30s
g. 07
Set clock
To set the clock, press the 2 Short Espressos button whilst the “Set
clock” message is displayed.
The hours values will start flashing. Increase/decrease the values by
pressing the 1 Short Espresso and 1 Long Espresso buttons
(see fig. 08).
With the desired value is reached, accept it the pressing the 2 Short
Espressos button .
The minutes digits will now start flashing. Increase/decrease the values by
pressing the 1 Short Espresso and 1 Long Espresso buttons.
With the desired value is reached, accept it the pressing the 2 Short
Espressos button .
Set the day of the week in the same way ( , and ).
After setting the values, pressing the 2 Short Espressos button
accesses the auto On/Off menu.
g. 08
Clock adjust
hh:mm Day
Page 30
30
Rosetta
Capsule Group
Auto on/off
Counters
PROGRAMMING USING THE DISPLAY
Note:
By default, this setting is set as: On: - - : - - (indicating that the function is disabled).
Changing the value to anything other than - - : - - enables the function. To leave this function
disabled, press the 2 Short Espressos button whilst the value selected is - - : - -.
Note:
By default, this setting is set as: On: --------- (indicating that the function is disabled).
Changing the value to anything other than --------- enables the function. To leave this function
disabled, press the 2 Short Espressos button whilst the value selected is ---------.
g. 12
Counters
After accepting the changes made in the “set clock” menu, pressing the 2
Short Espressos button accesses the coffee machine’s auto on/off
programming menu (see fig. 09).
To change the auto on/off time, increase/decrease the values (hours) using
the 1 short espresso and 1 Long Espresso buttons whilst the
values are flashing. When the desired value is reached, press the 2 Short
Espressos button to accept it. Set the values for the minutes in the
same way( , and ).
g. 9
Auto On/Off
On: hh.mm
g. 10
g. 11
Closed On
Day
Auto On/Off
Off: hh.mm
To access the counters menu, go to the start of the second menu level
(see fig. 07).
Briefly press the Continuous Dispensing button to display the
“counters” option (see fig. 12).
The machine has the following 4 counters:
Litres: volume of water dispensed by the machine (indicator used for
descaler maintenance cycles).
Service: number of coffees dispensed (indicator used for servicing).
Number of coffees/infusions dispensed.
Number of coffees dispensed per button.
Whilst the auto off time is flashing, increase/decrease the values by
pressing the 1 short espresso and 1 Long Espresso buttons.
When the desired value is
Reached, press the 2 Short Espressos button to accept it.
The minutes values will start flashing. Set these values in the same way as
described above ( , , and ). After accepting the time, the
next menu will be displayed.
If auto on/off is enabled, it will also be possible to set a day on which
the machine will not be turned on automatically. This option will not be
displayed if auto on/off is disabled.
To set the day off (see fig. 11), Increase/decrease the values by pressing
the 1 short espresso and 1 Long Espresso buttons. When
the desired value is reached, press the 2 Short Espressos button to
accept it.
i
i
Page 31
31
Rosetta
Capsule Group
MESSAGES AND ALARMS
Fault in flow meter X
Flow fault detected in counter X
Flow meter
Gr. X
Check that the machine is receiving water.
Time-out alarm
Boiler filling up
Temperature sensor fault
Probe unconnect
Service the machine.
To disable the alarm and reset the counter:
Turn off the machine. Simultaneously press and hold down
the 1 Short Espresso and 1 Long Espresso
buttons. Turn on the machine.
Service
999999999
Regenerate the filter.
To disable the alarm and reset the counter:
Turn off the machine. Simultaneously press and hold down the 2
Short Espressos and 2 Long Espressos buttons. Turn
on the machine.
Change filter
999999999
If boiler filling time exceeds the programmed time (2 minutes), all of the Drink buttons lights will
flash and the machine will be disabled. To re-enable it, turn the machine off and on again at the power
switch.
If the electronic control panel does not receive a pulse from the flow meter (coffee too fine or flow
meter fault) within 5 seconds of pressing one of the espresso buttons, the light for the dose selected
will start to flash. To disable it, press the dose button again.
As an additional safety, all dose settings have a maximum dispensing time of 5 minutes.
Page 32
32
Rosetta
Capsule Group
TROUBLESHOOTING
The following checks can be carried out by users once the machine has been turned off and disconnected
from the power supply. For all other non-specified machine faults, disconnect the machine from the power
supply and immediately contact authorised and qualified service personnel.
Faults produced by limescale
Coffee not dispensed at right temperature:
Heat-exchanger outlet pipes clogged by
limescale.
Brewing groups do not dispense water:
Water system is clogged by limescale.
90% of faults are due to limescaling inside the coffee machine (due to not softening the water).
To avoid these faults, maintain the water softener regularly.
Problem Possible cause Solution
The machine does not start up
The plug is not correctly
inserted into the power
socket
Check that the plug is
correctly inserted and
that the power socket
is operational.
The circuit breaker
and/or differential are
disconnected.
Check that they are
connected.
The cable and/or plug
are damaged.
Call service personnel
to replace them.
Below-standard coffee froth quality
The coffee spout is
clogged or dirty
Clean the coffee outlet
nozzle
The steam wand does not dispense
steam
The steam wand is
clogged by milk
Clean the wand and, if
necessary, remove the
nozzle and unclog it
using a pin or needle.
Water is found underneath the
machine
The drainage tube is
blocked.
Clean the drainage tube.
Page 33
Your dealer
TECHNICAL SUPPORT
Contact your supplier
For the warranty to be valid the conditions for maintenance must have been
followed according to our instructions, proper precaution has been made and
warranty claim been issued without delay.
The affected equipment may not be used during awaiting service if there is any risk
that the damage or defect would worsen.
The warranty will not cover consumption supplies such as glassware, normal
maintenance such as cleaning of lters, contaminations in water, lime, incorrect
voltages, pressure or adjustment of water amounts.
The warranty will not cover damages of defects caused by incorrect handling and
operation of the appliance.
www.creminternational.com
Address of CREM international Shanghai:
Building 5, No 521-551 KangYi Road, Pudong New Area, Shanghai, China
Address of CREM international Spain:
C/ Comerç nº 4 – Pol. Ind. Alcodar – Gandía ( Valencia – Spain )
MADE IN SPAIN
Loading...
