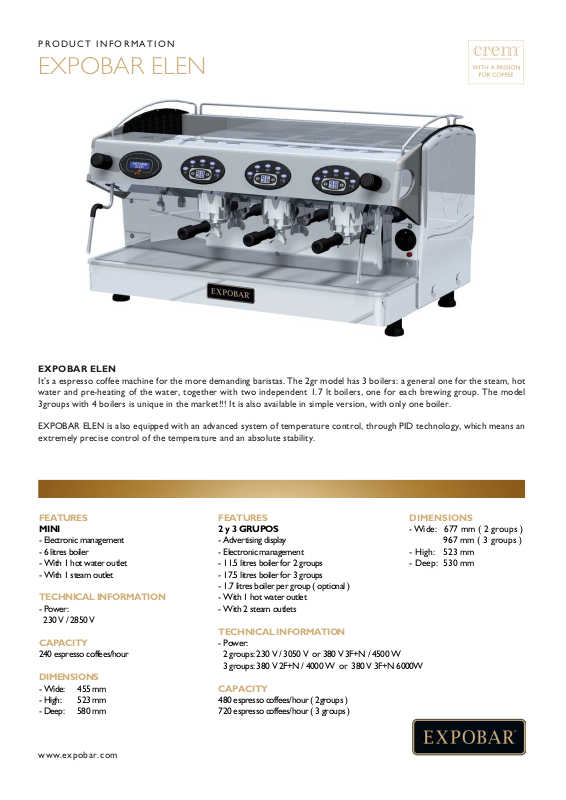

PRODUCT INFORMATION
EXPOBAR ELEN
EXPOBAR ELEN
It’s a espresso coffee machine for the more demanding baristas. The 2gr model has 3 boilers: a general one for the steam, hot
water and pre-heating of the water, together with two independent 1.7 lt boilers, one for each brewing group. The model
3groups with 4 boilers is unique in the market!!! It is also available in simple version, with only one boiler.
EXPOBAR ELEN is also equipped with an advanced system of temperature control, through PID technology, which means an
extremely precise control of the temperature and an absolute stability.
FEATURES
MINI
- Electronic management
- 6 litres boiler
- With 1 hot water outlet
- With 1 steam outlet
TECHNICAL INFORMATION
- Power:
230 V / 2850 V
CAPACITY
240 espresso coffees/hour
DIMENSIONS
- Wide: 455 mm
- High: 523 mm
- Deep: 580 mm
FEATURES
2 y 3 GRUPOS
- Advertising display
- Electronic management
- 11.5 litres boiler for 2 groups
- 17.5 litres boiler for 3 groups
- 1.7 litres boiler per group ( optional )
- With 1 hot water outlet
- With 2 steam outlets
TECHNICAL INFORMATION
- Power:
2 groups: 230 V / 3050 V or 380 V 3F+N / 4500 W
3 groups: 380 V 2F+N / 4000 W or 380 V 3F+N 6000W
CAPACITY
480 espresso coffees/hour ( 2groups )
720 espresso coffees/hour ( 3 groups )
DIMENSIONS
- Wide: 677 mm ( 2 groups )
967 mm ( 3 groups )
- High: 523 mm
- Deep: 530 mm
www.expobar.com
