CDG-821

USER’S MANUAL

EXP COMPUTER, INC.

EXP COMPUTER, INC.

EXP MEMORY PRODUCTS.

NON-TRANSFERABLE LIMITED WARRANTY

EXP COMPUTER INC., AND EXP MEMORY PRODUCTS("EXP")
warrants that the Quadruple Speed Portable CD-ROM (“products”)
manufactured or distributed by EXP to be free from failures due to
defects in materials or workmanship for full one year from the date of
purchase of the products.

This warranty is void if the product is damaged by abnormal or improper
use or by accident, abuse or if any attempt to repair or modify the
product without authorization from EXP. Your sales receipt or invoice,
showing the date of purchase and the name of the authorized reseller, is
your proof of the date of purchase. During the warranty period, EXP will
at its option, replace or repair, at no charge, the product which in its
opinion is defective.

Before you return the failed products, contact EXP. You must obtain a
Return Merchandise Authorization (RMA) number by calling EXP
Computer Inc. At [phone]. The RMA number should be displayed
on the outside of the returned package and on the accompanying
packing list. EXP cannot be held responsible for any package returned
without the RMA number. You are responsible for packaging, providing
proof of the date of purchase and the shipping cost of the failed product
to EXP Computer, Inc. You are responsible for mailing the warranty
registration card. The warranty claims may not be honored if there is no
corresponding registration card on file at EXP.

IN NO EVENT WILL EXP BE LIABLE FOR ANY DIRECT, INDIRECT,
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGE, INCLUDING
LOSS OF PROFIT, LOSS OF SAVINGS; OR ANY OTHER DAMAGES
CAUSED BY PRODUCT OR FAILURE OF THE PRODUCT TO
PERFORM.

THIS LIMITATION OF LIABILITY APPLIES EVEN IF EXP HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SOME
SATES DO NOT ALLOW THE EXCLUSION OR LIMITATION IN
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU.

FCC COMPLIANCE STATEMENTS

This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:

Reorient or relocate the receiving antenna.
Increase the Distance between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

CAUTION

CHANGE OR MODIFICATIONS NOT EXPRESSLY APPROVED BY
PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE
USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

TRADEMARKS

SystemSoft is a registered trademark of SystemSoft Corporation.
CardSoft is a trademark of SystemSoft Corporation.
Phoenix is a registered trademark of Phoenix Technologies, Ltd.
Databook is a registered trademark of Databook Inc.
Cardtalk is a trademark of Databook Inc.
PCMCIA is a trademark of Personal Computer Memory Card

International Association.
MS-DOS, Windows, Windows 95, and MSCDEX are trademarks of

Microsoft Corporation.
Photo CD is a trademark of Kodak.

CONTENTS

INTRODUCTION............................................................................... 1

SYSTEM REQUIREMENTS........................................................ 1

FEATURES ............................................................................... 1

PART NAMES AND FUNCTIONS ..................................................... 2

FRONT PANEL OF THE CD-ROM DRIVE.................................. 2

REAR PANEL OF THE CD-ROM DRIVE..................................... 3

GAME ADAPTER........................................................................ 4

POWER SOURCE ............................................................................ 5

CONNECT THE AC ADAPTER................................................... 5

INSTALLING THE BATTERIES................................................... 6

REMOVING THE BATTERIES.................................................... 7

NOTICE ............................................................................... 7

HARDWARE INSTALLATION ........................................................... 8

INSTALL THE CD-ROM WITHOUT THE GAME ADAPTER........ 8

INSTALL THE CD-ROM WITH THE GAME ADAPTER............... 9

SOFTWARE INSTALLATION ........................................................... 10

SOFTWARE INSTALLATION FOR DOS/WINDOWS ................. 10

SOFTWARE INSTALLATION FOR WINDOWS 95..................... 11

USING CD TRAVELER UNDER WINDOWS 95 ................ 11

JOYSTICK CALIBRATION................................................. 12

USING CD TRAVELER TO INSTALL WINDOWS 95......... 14

ENABLING 32-BIT CARD SUPPORT OF WINDOWS 95 .. 15

USING THE PCMCIA CD-ROM WITH A COMPUTER ...................... 17

HOW TO PLAY THE AUDIO CD....................................................... 20

TROUBLE SHOOTING...................................................................... 21

PCMCIA(PC CARD) SOFTWARE INFORMATION............................ 25

POWER SAVING.............................................................................. 27

INTRODUCTION

The CD TRAVELER brings the latest in mobile computing technology to
notebook computer users with portability and convenience. The CD
TRAVELER is a CD-ROM drive compliant with the PCMCIA 2.1(PC
Card) standard. Featuring flexible power options, the CD TRAVELER
may operate on either AC power or batteries. The CD TRAVELER is
designed for both business and entertainment solutions.

SYSTEM REQUIREMENTS

1. Notebook or desktop computer with a PCMCIA 2.1 Type I, II or III

slot.

2. MS-DOS Version 6.0 or higher with MSCDEX.EXE (for

DOS/Windows users only) or Windows 95.

3. I/O Port 200-207 must be available for the Game Port I/O.

FEATURES

§ Complies with PCMCIA 2.1

Standard

§ MSCDEX compatible

§ Easy-to-install device driver

software

§ Ultra slim PCMCIA Card

85.6 x 54.0 x 3.3 mm (Type I)

§ CD-ROM Drive

Size: 164 x 250 x 50mm
Weight ≤ 1.35 Kg

§ PCMCIA power consumption:

+5V/300 mA (Standby),
+5V/500 mA (max.)

§ Power source: AC adapter or

batteries (1.5V AA size x 8)

§ Battery life ≥ 3 hours. (CD-ROM

continuous video play)

§ Windows 95 Ready

§ Data capacity: 553MB (Mode 1)

635 MB (Mode 2)

§ Motorized front tray loading

§ Supports CD-Audio, CD-XA,

CD-ROM mode 1 and 2,
Multi-session Photo CD

§ Audio function: Headphone
output jack with volume control,
Audio line-in jack

§ Game Adapter

Size: 2.5:x 2.5”x 0.8”
Weight : 2 oz

Detachable design

- -

1

PART NAMES AND FUNCTIONS

FRONT PANEL OF THE CD-ROM DRIVE

•• Disc Tray:

This disc tray is used to insert the compact disc.

‚‚ Load/Stop button:

• Press this button to load the disc tray.

• When playing an Audio CD, pressing this button will put it into the

stop state.

ƒƒ Power Indicator:

• This indicator will light with a green LED when the power is on.

• This LED will blink when battery power is low.

„„ Play/Skip: (for CD Audio operation only)

• If the drive is in the stop state, pressing this button will activate the
drive to start playing.

• If the drive is in play state, pressing this button will skip to the next
track.

…… Headphone Volume Control Knob:

This rotary knob is used to adjust the volume of the headphone jack.

†† Power On/Busy LED:

This LED will light with a green LED when power is on.
This LED will blink when the drive is accessing the disc.

‡‡ Headphone Jack:

3.5mm audio headphone jack.

- -

2

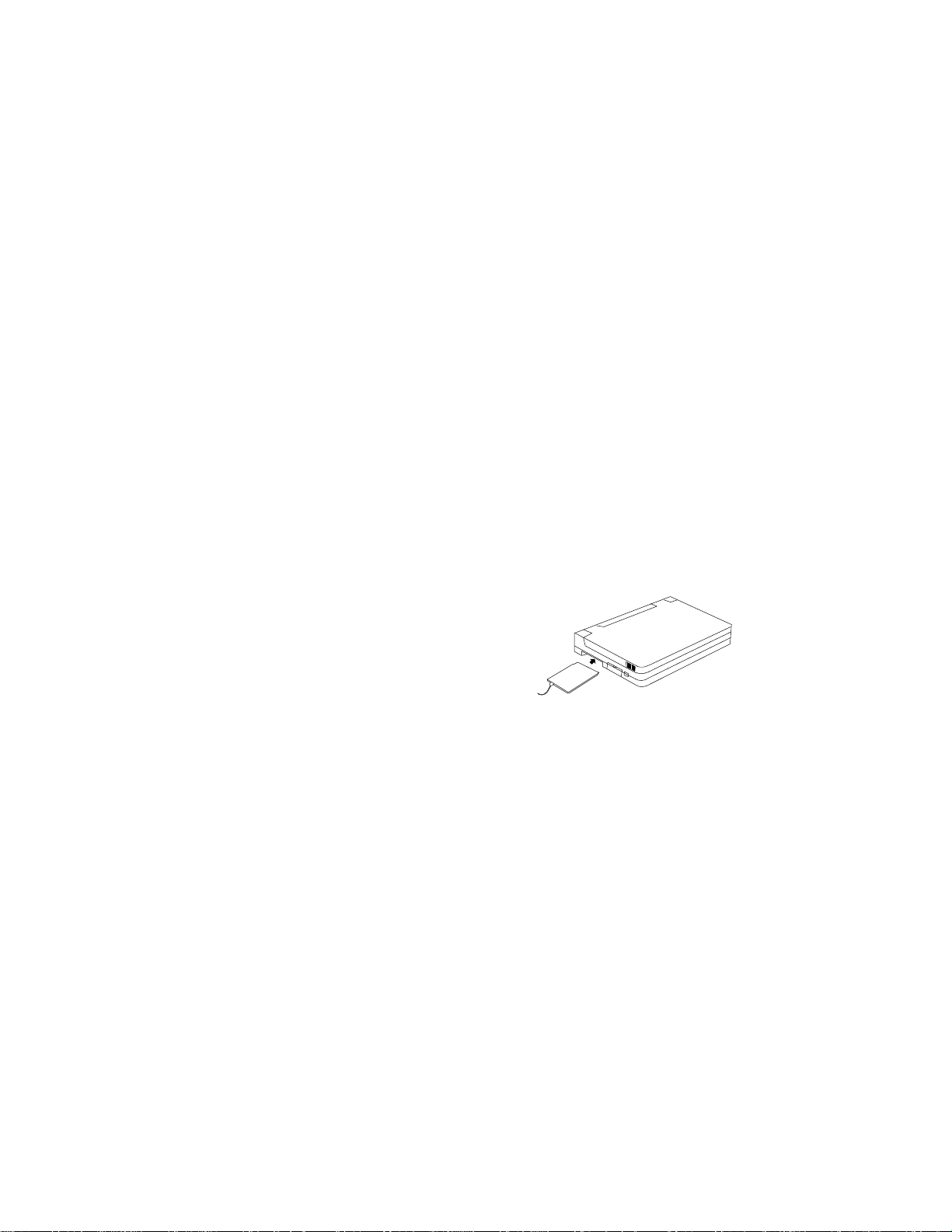

REAR PANEL OF THE CD-ROM DRIVE

•• Interface Connector:

This interface connector connects to the PCMCIA interface card.

‚‚ DC in Jack:

This jack connects to the AC adapter.

ƒƒ Line out Jack:

This jack outputs audio signal to an amplifier.

„„ DC Source Switch

This switch select DC power source for the CD-ROM drive.
There are two sources to choose from battery or AC adapter.

- -

3

GAME ADAPTER

•• CD-ROM Connector:

This connector connects to the CD-ROM drive.

‚‚ Game Port:

This port connects to joystick or game-pad.

ƒƒ PC Card Connector:

Connector to PCMCIA(PC Card) interface card

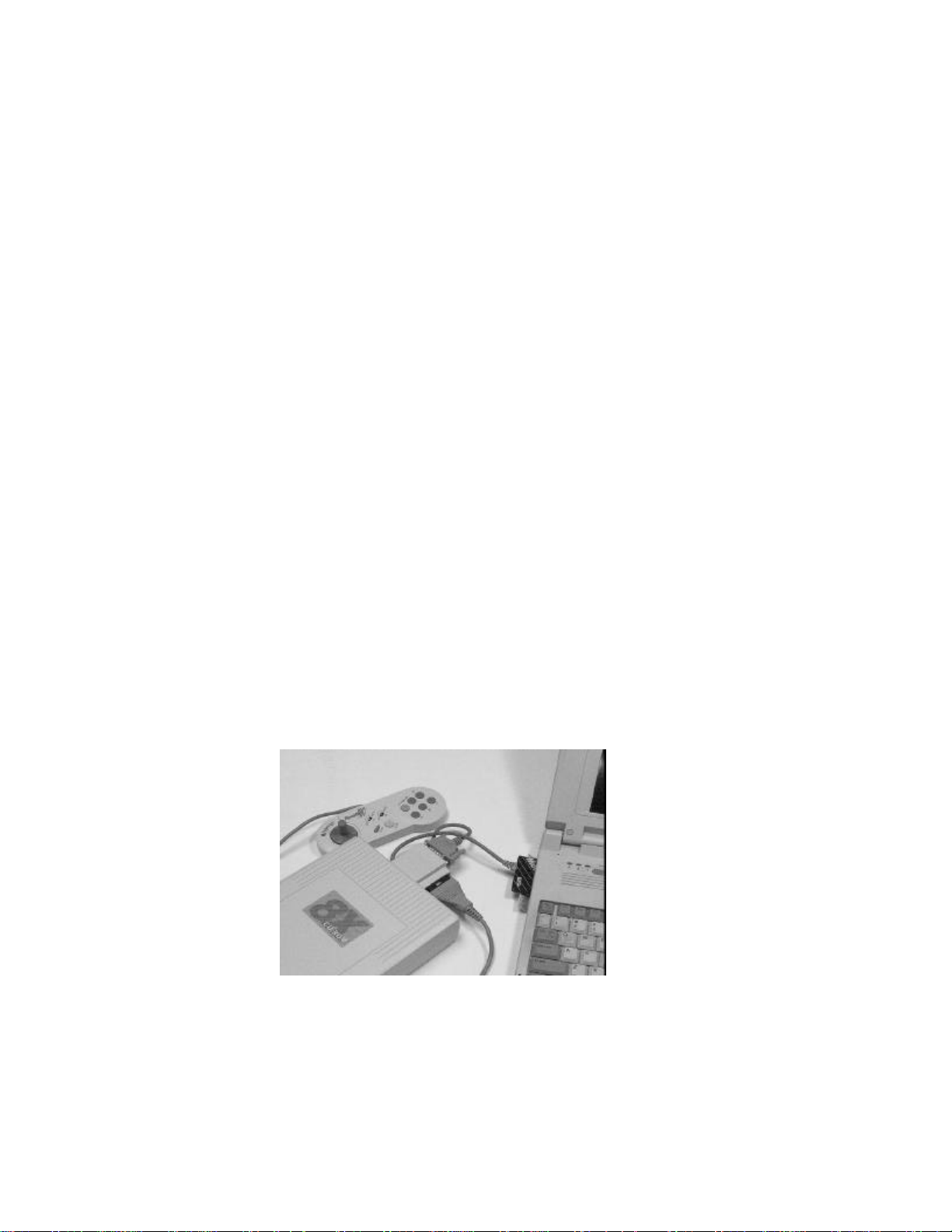

CD TRAVELER WITH GAME-PAD AND PCMCIA CARD

- -

4

POWER SOURCE

The CD TRAVELER can be either powered by the AC adapter or by the
batteries as a flexible option. However, the AC adapter has a priority
over the battery in powering the CD-ROM. That means if you connect
the AC adapter, the CD TRAVELER will operate on it regardless if the
batteries are installed.

The CD TRAVELER will be turned on automatically when your computer
is powered on and the PCMCIA interface card is connected to the
computer and initialized. On the other hand, when you turn off your
computer or disconnect the PCMCIA interface card from your computer,
the CD TRAVELER will be powered off automatically. Such convenient
design ensures that users will not waste the battery power if the CD­ROM is not in use.

The POWER LED indicates the power state, it will always light up when
the power supply is in the normal condition. The LED will flash if the
power is insufficient caused by a malfunctioning AC adapter or if the
batteries are reaching the end their service life. In this case, remove
the old batteries and replace with new batteries, or check your AC
adapter to see if it is defective or improperly connected.

CONNECT THE AC ADAPTER

1. Connect the AC adapter plug to the DC IN jack at the rear panel of
the CD-ROM.

2. Attach the AC adapter to the AC power outlet.

CAUTION

Use only the AC adapter provided with this unit. Using the
incorrect AC adapter will result in permanent and unpredictable
damage to the CD TRAVELER.

- -

5
