Exor UniOP eTOP 500 Series Operating Instructions Manual

Exor International S.p.A.
MANUGENETOP5xx UniOP
Ver. 1.07

UniOP eTOP Series 500

Operating Instructions

Basic User’s Manual for eTOP Series 500

Touchscreen Products

2

MANUGENETOP5xx UniOP
Operating Instructions
VER 1.07

Copyright © 2011-2013 Exor International S.p.A. – Verona, Italy
Subject to change without notice
The information contained in this document is provided for informational purposes only. While efforts were made
to verify the accuracy of the information contained in this documentation, it is provided “as is” without warranty
of any kind.
Third-party brands and names are the property of their respective owners.
www.uniop.com

3

MANUGENETOP5xx UniOP
Operating Instructions
VER 1.07

Table of Contents

Introduction .............................................................................................................................................4

Safety Guide ...........................................................................................................................................5

1 Product Overview ................................................................................................................................6

2 Standards and Approvals ....................................................................................................................7

3 Technical Specifi cations ......................................................................................................................8

4 Technical Data ................................................................................................................................... 10

4.1 Dimensions .....................................................................................................................................14

4.2 Installation Environment .................................................................................................................16

4.3 Installation Procedure .....................................................................................................................17

5 Connections.......................................................................................................................................18

5.1 Serial Port .......................................................................................................................................20

5.2 Ethernet Port ..................................................................................................................................21

5.3 Optional plugin module ...................................................................................................................22

6 Power Supply, Grounding and Shielding ...........................................................................................24

7 Battery ...............................................................................................................................................25

8 Cleaning Faceplates ..........................................................................................................................26

9 Getting Started ..................................................................................................................................26

10 System Settings...............................................................................................................................27

11 LED Indicator on Front Panel ..........................................................................................................29

12 Unpacking and Packing Instructions ...............................................................................................30

Table of Contents

4

MANUGENETOP5xx UniOP
Operating Instructions
VER 1.07

Introduction

The operational guidelines described below is information which relates to the device, installation, tran­sportation, storage, assembly, use and maintenance.

This Operating Instruction describes the main features of the UniOP operator panels. The Manual refers
to the following models:

eTOP504 Operator interface with TFT color 4.3” display touchscreen
eTOP506 Operator interface with TFT color 5.7” display touchscreen
eTOP507 Operator interface with TFT color 7” widescreen display touchscreen
eTOP510 Operator interface with TFT color 10.4” display touchscreen
eTOP512 Operator interface with TFT color 12.1” display touchscreen
eTOP513 Operator interface with TFT color 13.3” widescreen display touchscreen
eTOP515 Operator interface with TFT color 15” display touchscreen

Introduction

5

MANUGENETOP5xx UniOP
Operating Instructions
VER 1.07

Safety Guide

The manual contains safety standards that must be respected for the personal safety and to avoid damage.
Indications of attention are divided into three levels of severity:

DANGER: indicates a failure to observe safety rules and such failure may cause death or serious injuries.

ATTENTION: indicates a failure to observe safety rules and that defi ciency may cause damage.

CAUTION: indicates a failure to observe safety rules and that defi ciency may cause defects to the

equipment or inconsistencies.

CAUTION

ATTENTION

DANGER

E

!

!

Safety Guide

6

MANUGENETOP5xx UniOP
Operating Instructions
VER 1.07

1 Product Overview

The UniOP eTOP Series 500 HMI products combine state-of-the-art features and top performance
with an oustanding design. They are the ideal choice for all demanding HMI applications including
factory and building automation.

The eTOP Series 500 HMI panels have been designed to run the JMobile software.

• JMobile runtime included. Full compatibility with JMobile Studio.

• Full vector graphic support. Native support of SVG graphic objects. Trasparency and alpha

blending.

• Full object dynamics: control visibility and transparency, move, resize, rotate any object on screen.
Change properties of basic and complex objects.

• TrueType fonts.

• Multilanguage applications. Easily create and manage your applications in multiple languages to

meet global requirements. Far East languages are supported. Tools available in JMobile Studio
support easy third-party translations and help reducing development and maintenance costs of the
application.

• Data display in numerical, text, bargraph, analog gauges and graphic image formats.

• Rich set of state-of-the-art HMI features: data acquisition, alarm handling, scheduler and timed

actions (daily and weekly schedulers, exception dates), recipes, users and passwords, RSS feeds,
rotating menus.

• Includes support for a wide range of communication drivers for Factory systems.

• Multiple drivers communication capability.

• Remote monitoring and control. Client-Server functionality.

• Off-line simulation with JMobile Studio.

• Powerful scripting language for automating HMI applications. Script debugging improves effi ciency

in application development.

• Rich gallery of vector symbols and objects.

• Project templates.

• Optional plug-in modules for fi eldbus systems, I/O and controllers.

Product Overview

7

MANUGENETOP5xx UniOP
Operating Instructions
VER 1.07

2 Standards and Approvals

The products have been designed for use in an industrial environment in compliance with the 2004/108/
EC EMC Directive.
The products have been designed in compliance with:
EN 61000-6-4 EN 55011 Class A

EN 61000-6-2 EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6

The installation of these devices into the residential, commercial and light-industrial environments is allo­wed only in the case that special in measures are taken in order to ensure conformity to EN 61000-6-3.

The products are in compliance with the Restrictions on Certain Hazardous Substances (RoHS) Directive
2002/95/EC

In compliance with the above regulations the products are CE marked.

Product Identifi cation

The product may be identifi ed through a plate attached to the rear cover. You will have to know the type
of unit you are using for correct usage of the information contained in the guide.
An example of this plate is shown in the fi gure below:

eTOP504 product model name
ETOP504U101 product part number
05/11 month/year of production
09994847559 serial number
040100A01000000 version id of the product

Standards and Approvals

8

MANUGENETOP5xx UniOP
Operating Instructions
VER 1.07

3 Technical Specifi cations

Touch screen technology Resistive

Back-up battery

3V 50mAh Lithium, rechargeable, not user-replaceable,

model VL2330.

Fuse Automatic

Serial Port

RS-232, RS-485, RS-422 software confi gurable

User memory Flash 128Mb for eTOP504, 506, 507
Flash 256Mb for eTOP510, 512, 513, 515

Recipe memory Flash
Hardware clock Clock/Calendar with back-up battery
Accuracy RTC (at 25°C) <100ppm

Environmental conditions

Operating temperature (surrounding 0 ÷ +50°C EN 60068-2-14
air temperature)
Storage temperature -20 ÷ +70°C EN 60068-2-14
Operating and storage humidity 5 ÷ 85 % RH not-condensing EN 60068-2-30
Vibrations 5 ÷ 9 Hz, 7 mm

p-p

EN 60068-2-6

9 ÷ 150 Hz, 1 g

Shock ± 50 g, 11 ms, 3 pulses per axis EN 60068-2-27
Protection class IP66 front panel * EN 60529

* The front face of the UniOP unit, installed in a solid panel, has been tested using conditions equivalent
to the standards shown in the “Environmental conditions”. Even though the level of resistance UniOP
unit is equivalent to these standards, oils that should have no effect on the UniOP can possibly harm
the unit. This can occur in areas where either vaporized oils are present, or where low viscosity cutting
oil are allowed to adhere to the unit for long periods of time. If the front face protection sheet on the
UniOP becomes peeled off, these conditions can lead to the ingress of oil into the UniOP and separate
protection measures are suggested.
If the installation gasket is used for a long period of time, or if the unit and its gasket are removed from
the panel, the original level of the protection cannot be guaranteed.

Standards and Approvals

9

MANUGENETOP5xx UniOP
Operating Instructions
VER 1.07

Immunity to conducted disturbances
inducted by radiofrequency fi eld 0.15 ÷ 80 MHz, 10V EN 61000-4-6

Voltage dips, short interruptions and
voltage variations immunity test Port: AC mains; Level:

100% duration: 1 cycle and 250 cycles (50Hz);
40% duration: 10 cycles (50Hz);
70% duration: 25 cycles (50Hz);
Phase: 0°-180°
Test executed on the 230Vac side of the Exor International S.p.A. Power Supply EN 61000-4-11

Standards and Approvals

Durability information

Backlight service life 40000 Hrs. or more
(LED type) (Time of continuos operation until the brightness of the

backlight reaches 50% of the rated value when the
sorrounding air temperature is 25°C) - see Note 1

Front foil 10 years if the surrounding air temperature is 25°C
(without directly exposure to
sunlight or UV ray)

UV Resistance Indoor applications: After 300 hours cycled humidity in

QUV accelerated weathering, some yellowing and
brittleness may be present. - see Note 2.

Touch screen reliability > 1 milion operations

Note 1: Extended use in environments where the surrounding air temperature is 40°C or higher may
degrade backlight quality/reliability/durability.
Note 2: Solvent resistance:
Contact for 1/2 hour at 21°C, No visible effect: Acetone, Butyl Cellosolve, Cyclohexanone, Ethyl Acetate,
Hexane, Isopropyl Alcohol, MEK, Methylene Chloride, Toluene, Xylene
Contact for 24 hours at 49°C, No visible effect: Coffee, Ketchup, Lemon Juice, Mustard (slight yellow
stain), Tea, Tomato juice.

Electromagnetic Compatibility (EMC)

Radiated disturbance test Class A EN 55011
Electrostatic discharge immunity test 8 kV (air electrostatic discharge) EN 61000-4-2

4 kV (contact electrostatic discharge)

Radiated, radio-frequency, 80 MHz ÷ 1 GHz, 10V/m EN 61000-4-3
electromagnetic fi eld immunity test 1,4 GHz ÷ 2 GHz, 3 V/m

2 GHz ÷ 2.7 GHz, 1 V/m
Burst immunity test ± 2 KV dc power port EN 61000-4-4
± 1 KV signal line
Surge immunity test ± 0,5 KV dc power port (line to earth) EN 61000-4-5
± 0,5 KV dc power port (line to line)
± 1 KV signal line (line to earth)

10

MANUGENETOP5xx UniOP
Operating Instructions
VER 1.07

Model eTOP504 eTOP506

Display / Backlight TFT Color /

LED TFT Color / LED

Colors 64K 64K

Resolution 480X272 320x240

Diagonal (inches) 4.3” 5.7”

Dimming yes yes

User memory fl ash 128MB 128MB

SD card slot yes yes

Recipe memory Yes. Flash memory storage Yes. Flash memory storage

limited only by available limited only by available

memory memory

Serial Port RS-232,RS-485 RS-232,RS-485

RS-422 DB9 female RS-422 DB9 female

software confi gurable software confi gurable

Ethernet port 2 10/100 Mbit with integrated 2 10/100 Mbit with integrated

switch switch

USB port 1 Host interface

2 Host interface, 1 version 2.0,

version 2.0 and 1.1 1 version 2.0 and 1.1

Expansion slot 1 Optional Plugin 2 Optional Plugin

Battery rechargeable rechargeable

Real Time Clock yes yes

Voltage 10-32Vdc (*) 10-32Vdc (*)

Current rating (at 24VDC) 0.4A 0.65A

Weight 1 Kg 1 Kg

4 Technical Data

Technical Data

(*) For applications requiring compliance with EN 61131-2 and specifi cally in reference to 10 ms voltage dips, the
minimum power supply voltage is 18Vdc,

11

MANUGENETOP5xx UniOP
Operating Instructions
VER 1.07

Model eTOP507 eTOP510

Display / Backlight TFT Color / LED

TFT Color / LED

Colors 64K 64K

Resolution 800X480 800x600

Diagonal (inches) 7” widescreen 10.4”

Dimming yes yes

User memory fl ash 128MB 256MB

SD card slot yes yes

Recipe memory Yes. Flash memory storage Yes. Flash memory storage

limited only by available limited only by available

memory memory

Serial Port RS-232,RS-485 RS-232,RS-485

RS-422 DB9 female RS-422 DB9 female

software confi gurable software confi gurable

Ethernet port 2 10/100 Mbit with integrated 2 10/100 Mbit with integrated

switch switch

USB port 2 Host interface, 1 version 2.0,

2 Host interface, 1 version 2.0,

1 version 2.0 and 1.1 1 version 2.0 and 1.1

Expansion slot 2 Optional Plugin 2 Optional Plugin

Battery rechargeable rechargeable

Real Time Clock yes yes

Voltage 10-32Vdc (*) 10-32Vdc (*)

Current rating (at 24VDC) 0.7A 1 A

Weight 1 Kg 2.1 Kg

Technical Data

(*) For applications requiring compliance with EN 61131-2 and specifi cally in reference to 10 ms voltage dips, the
minimum power supply voltage is 18Vdc

12

MANUGENETOP5xx UniOP
Operating Instructions
VER 1.07

Model eTOP512 eTOP513

Display / Backlight TFT Color / LED TFT Color / LED

Colors 64K 64K

Resolution 800X600 1280x800

Diagonal (inches) 12.1” 13.3” widescreen

Dimming yes yes

User memory fl ash 256MB 256MB

SD card slot yes yes

Recipe memory Yes. Flash memory storage Yes. Flash memory storage

limited only by available limited only by available

memory memory

Serial Port RS-232,RS-485 RS-232,RS-485

RS-422 DB9 female RS-422 DB9 female

software confi gurable software confi gurable

Ethernet port 2 10/100 Mbit with integrated 2 10/100 Mbit with integrated

switch switch

USB port 2 Host interface, 1 version 2.0,

2 Host interface, 1 version 2.0,

1 version 2.0 and 1.1 1 version 2.0 and 1.1

Expansion slot 2 Optional Plugin 2 Optional Plugin

Battery rechargeable rechargeable

Real Time Clock yes yes

Voltage 10-32Vdc (*) 10-32Vdc (*)

Current rating (at 24VDC) 1.2A 1.2A

Weight 2.8 Kg 2.8 Kg

Technical Data

(*) For applications requiring compliance with EN 61131-2 and specifi cally in reference to 10 ms voltage dips, the
minimum power supply voltage is 18Vdc.

13

MANUGENETOP5xx UniOP
Operating Instructions
VER 1.07

Technical Data

Model eTOP515

Display / Backlight TFT Color / LED

Colors 64K

Resolution 1024X768

Diagonal (inches) 15”

Dimming yes

User memory fl ash 256MB

SD card slot yes

Recipe memory Yes. Flash memory storage

limited only by available

memory

Serial Port RS-232,RS-485

RS-422
software confi gurable

Ethernet port 2 10/100 Mbit with integrated
switch

USB port 2 Host interface, 1 version 2.0,
1 version 2.0 and 1.1

Expansion slot 2 Optional Plugin

Battery rechargeable

Real Time Clock yes

Voltage 10-32Vdc (*)

Current rating (at 24VDC) 1.40A

Weight

3.5 Kg

(*) For applications requiring compliance with EN 61131-2 and specifi cally in reference to 10 ms voltage dips, the
minimum power supply voltage is 18Vdc,

14

MANUGENETOP5xx UniOP
Operating Instructions
VER 1.07

4.1 Dimensions

Technical Data

eTOP504

MODEL A B C D E

F

149mm/5.86” 109mm/4.29” 136mm/5.35” 96mm/3.78” 56mm/2.40”

4mm/0.16”

Cut out

15

MANUGENETOP5xx UniOP
Operating Instructions
VER 1.07

Technical Data

Cut out

eTOP506

eTOP507

eTOP510

eTOP512

eTOP513

eTOP515

MODEL A B C D E

F

187mm/7.36”

187mm/7.36”

287mm/11.3”

336mm/13.22”

336mm/13.22”

392mm/15.43”

147mm/5.79”

147mm/5.79”

232mm/9.13”

267mm/10.51”

267mm/10.51”

307mm/12.08”

176mm/6.90”

176mm/6.90”

276mm/10.86”

326mm/12.83”

326mm/12.83”

381mm/15”

136mm/5.35”

136mm/5.35”

221mm/8.70”

256mm/10.07”

256mm/10.07”

296mm/11.65”

47mm/1.85”

47mm/1.85”

56mm/2.20”

56mm/2.20”

56mm/2.20”

60mm/2.36”

4mm/0.16”

4mm/0.16”

4mm/0.16”

4mm/0.16”

4mm/0.16”

4mm/0.16”

16

MANUGENETOP5xx UniOP
Operating Instructions
VER 1.07

4.2 Installation Environment

The equipment is not intended for continuous exposure to direct sunlight.
This might accelerate the aging process of the front panel fi lm.

The equipment is not intended for installation in contact with corrosive chemical compounds. Check the
resistance of the front panel fi lm to a specifi c compound before installation.

Do not use tools of any kind (screwdrivers, etc.) to operate the touch screen of the panel.

In order to meet the front panel protection classifi cations, proper installation procedure must be followed:

• the borders of the cutout must be fl at

• screw up each fi xing screw until the plastic bezel corner get in contact with the panel.

• the cutout for the panel must be of the dimensions indicated in this manual.

The IP66 is guaranteed only if:

• max deviation from the plane surface to the cut-out: O0.5mm

• thickness of the case where is mounted the equipment: from 1,5mm to 6mm

• max surface roughness where the gasket is applied: O120 um

Applying the gasket

The gasket should be applied on the rear of the frame.

Fig. 4.1: eTOP504, eTOP506,
eTOP507

A. Gasket
B. Installation cut-out

Technical Data

Fig. 4.2: eTOP510, eTOP512,
eTOP513, eTOP515

17

MANUGENETOP5xx UniOP
Operating Instructions
VER 1.07

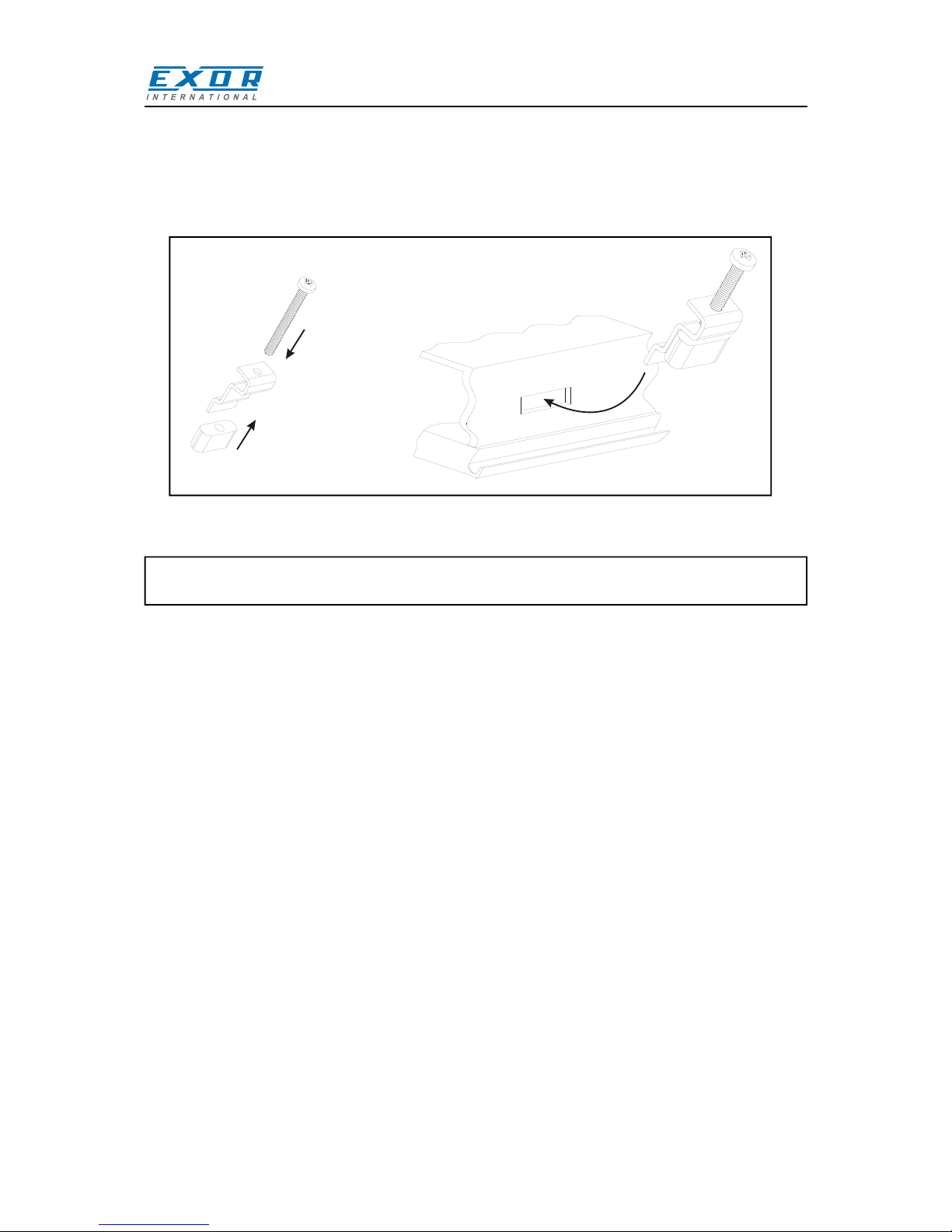

4.3 Installation Procedure

Place the fi xing brackets as shown in fi gure (Fig. 4.3).

Fig. 4.3

CAUTION

Screw each fi xing screw until the bezel corner gets in contact with the panel.

E

Technical Data

18

MANUGENETOP5xx UniOP
Operating Instructions
VER 1.07

5 Connections

1. Serial Port

2. 2x Ethernet Port

3. USB Port

4. Power Supply

5. Expansion slot for Plugin module

6. SD Card Slot

Fig. 5.1

Connections

eTOP504

19

MANUGENETOP5xx UniOP
Operating Instructions
VER 1.07

1. Serial Port

2. 2x Ethernet Port

3. 2x USB Port

4. Power Supply

5. 2x Expansion slot for Plugin module

6. SD Card Slot

Fig. 5.2

Connections

eTOP5xx

20

MANUGENETOP5xx UniOP
Operating Instructions
VER 1.07

5.1 Serial Port

The serial port is used to communicate with the PLC or with another type of controller.
Different electrical standards are available for the signals in the PLC port connector: RS-232, RS-422,
RS-485.

Pin Description

1 GND
2
3 CHA­ 4 CHB­ 5
6 +5V output
7 CHB+
8 CHA+
9

The serial port is software programmable. Make sure you select the appropriate
interface in the programming software.

The communication cable must be chosen for the type of device being connected.

Connections

SERIAL PORT

Pin Description

1 GND
2
3 TX
4 RX
5
6 +5V output
7 CTS
8 RTS
9

RS-232

RS-422, RS-485

To operate in RS485 pins 4-3 and
8-7 must be connected externally.

21

MANUGENETOP5xx UniOP
Operating Instructions
VER 1.07

5.2 Ethernet Port

1 8

OFF: Valid link has NOT been detected
ON: Valid link has been detected

Connections

ON: No activity
BLINKING: Activity

The Ethernet port have two status indicators. Please see description in fi gure.

22

MANUGENETOP5xx UniOP
Operating Instructions
VER 1.07

5.3 Optional plugin module

eTOP500 serie panels have several optional plugin module, multiple modules confi gurations are possible.

Slot#2 and Slot#4 are available only if plugin module has the “bus extension connector”.

Each slot carries three communication channels:

• 1 serial interface

• 1 CAN interface

• 1 SPI interface

Note: It is not possible to stack two modules that are using the same type of interface.

23

MANUGENETOP5xx UniOP
Operating Instructions
VER 1.07

Below you can fi nd relation between modules and max number of modules that can be used into eTOP500
serie panels, based on their Interface Type:

Module Application Max Modules Interface Type Bus Extension

connector

PLCM01 CAN 1 for eTOP50x

2 for eTOP51x

CAN Y

PLCM01-NE CAN 1 for eTOP50x

2 for eTOP51x

CAN N

PLCM02 KNX 1 Serial N

PLCM03 Serial RS232 2 Serial Y

PLCM04 Serial RS485 2 Serial Y

PLCM05 CODESYS V2

License

1 Y

PLCM06 Profi bus DP 1 SPI N

PLIO03 Multifunction I/O 1 SPI N

PLIO06 Compact I/O 2 SPI N

Max modules refers to max number of modules can be plugged into the HMI (all slots),

If you are planning to use PLCM03 and PLCM04 (additional serial ports) you will obtain following “COM

- Slot#” association:

• a module plugged in Slot#1 or into Slot#2 will be COM2,

• a module plugged in Slot#3 or into Slot#4 will be COM3.

If you are planning to use two PLCM01 (CAN interface) you will obtain following Slot# association:

• a module plugged in Slot#1 or into Slot#2 will be the CanPort 0,

• a module plugged in Slot#3 or into Slot#4 will be the CanPort 1.

24

MANUGENETOP5xx UniOP
Operating Instructions
VER 1.07

6 Power Supply, Grounding and Shielding

The power supply terminal block is shown in the fi gure below.

Note: Ensure that the power supply has enough power capacity for the operation of the equipment.

The unit must always be grounded to earth. Grounding helps limit the effects of noise due to electro­magnetic interference on the control system.

Earth connection will have to be done using either the screw or the faston terminal located near the power
supply terminal block. A label helps identify the ground connection. Also connect to ground the terminal
3 on the power supply terminal block.

The power supply circuit may be fl oating or grounded. In the latter case, connect to ground the power
source common as shown in fi gure (see below) with a dashed line.
When using the fl oating power scheme, note that the panes internally connects the power common to
ground with a 1MΩ resistor in parallel with a 4,7nF capacitor.
The power supply must have double or reinforced insulation.
The suggested wiring for the power supply is shown below.

Power Supply, Grounding and Shielding

Fig. 6.2

All the electronic devices in the control system must be properly grounded. Grounding must be performed
according to applicable regulations.

Fig. 6.1

25

MANUGENETOP5xx UniOP
Operating Instructions
VER 1.07

7 Battery

These devices are equipped with rechargeable Lithium battery, not user-replaceable.
The following information is maintained by the battery:

• hardware real-time clock (date and time)

Charge:
At fi rst installation must be charged for 48 hours.
When the battery is fully charged, it ensures a period of 3 months of data back-up at 25°C.

Battery

ATTENTION

Dispose of batteries according to local regulations.

!

Battery

Battery

Fig. 7.1: eTOP504

Fig. 7.2: eTOP506, eTOP507
eTOP510, eTOP512,
eTOP513, eTOP515

26

MANUGENETOP5xx UniOP
Operating Instructions
VER 1.07

8 Cleaning Faceplates

The equipment must be cleaned only with a soft cloth and neutral soap product. Do not use solvents.

Cleaning Faceplates / Getting Started

9 Getting Started

UniOP 500 series panels must be programmed with the programming software JMobile Studio.
To program a panel you will have to connect the panel to a personal computer running JMobile Studio
software package; the panel must be in Confi guration mode to be programmed. UniOP 500 series units
are programmed via the Ethernet interface.

The software package JMobile is a WindowsTM application and must be properly installed.

JMobile uses the personal computer Ethernet interface to communicate with the target device. Make
sure that the proper fi rewall policy is confi gured in order to allow JMobile Studio to access the network.

The version of the JMobile Studio used must be compatible with the JMobile runtime version installed
on the panel to be programmed.

27

MANUGENETOP5xx UniOP
Operating Instructions
VER 1.07

10 System Settings

The UniOP panels have a system settings tool to allow basic and preliminary settings to the unit.

System Settings

The System settings tool comes in the shape of a rotating menu with navigation buttons at top and
bottom to scroll between the available options. The tool is shown in the picture below.

On the left side the several components and functions are highlighted and, per each of them, the right
side (“Info” pane) shows the information about the current version, when applicable. In the picture
below it is showed the version of the Main OS component.

System Settings has two operating modes:
User Mode and System Mode.
The difference between them is only in the number of available options.

System settings in User Mode is activated from the context menu. The context menu can be recalled
by clicking and holding any unused area of the touchscreen for a few seconds. Default holding time is
2 sec. Holding time is a runtime parameter that can be changed.

System settings in System Mode can be activated with the so-called Emergency system access
procedure. This procedure consist in tapping in the middle of the touchscreen with a fi nger at a high
frequency while the systemis powering up. The Emergency procedure can only be accessed at power­up.

28

MANUGENETOP5xx UniOP
Operating Instructions
VER 1.07

“User mode” is the simplest possible interface where a generic user can get access to the basic
settings of the panel:

Calibrate Touch: allows to calibrate the touch screen interface
Network: allows to change the options of the panel on-board

network card
Time: allows to change the panel RTC options, including
time zone and DST

Display settings: automatic backlight turnoff and brightness adjustment
BSP settings: allows to check the BSP (Board Support Package)

version (example 2.37), check the operating hours

timers for the unit and separately for the backlight,

enable/disable the buzzer, enable/disable the use of

the “low battery” front LED indicator
Plugin list: allows to check the presence of optional plugin
modules installed.

“System Mode” is the complete interface of the System Settings tool where all the available options
are available; in addition to the options available in the “User Mode” we have the following important
options:

Format Flash: allows to format the internal panel fl ash disk

Resize Image Area: allows to resize the fl ash portion reserved to store the

splash screen image displayed by the unit at power

up; default settings are normally ok for all the units

Download Confi guration OS: allows to check current version and upgrade the

back-up operating system, see below in the next

chapter for additional details

Download Main OS: allows to check current version and upgrade the main

operating system, see below in the next chapter for

additional details

Download Splash Image: allows changing the splash screen image displayed

by the unit at power up; the image should be provide

in a specifi c format. We suggest to update Splash

Screen Image directly from Studio software which

supports this feature starting from V 1. 50

Download Bootloader: allows to check actual version of the system boot

loader and to upgrade it, see below for additional

details

Only for eTOP510, eTOP512, eTOP513 and eTOP515

Download Main FPGA: allows to check current version and upgrade the main

FPGA fi rmware, see below for additional details

Download Safe FPGA: allows to check current version and upgrade the

back-up (safe) copy of the FPGA Firmware, see

below for additional details

Download System Supervisor: allows to check current version and upgrade the

system supervisor fi rmware responsible for RTC

and power supply handling, see below for additional

details

Note: the System Settings tool includes also other options, not described and not documented at this
moment

System Settings

29

MANUGENETOP5xx UniOP
Operating Instructions
VER 1.07

11 LED Indicator on Front Panel

The table below shows the symbol of the LED indicator dedicated to special functions.

LED Indicator on Front Panel

30

MANUGENETOP5xx UniOP
Operating Instructions
VER 1.07

12 Unpacking and Packing Instructions

Unpacking and Packing Instructions

to repack the unit, please follow the instructions backwards.
