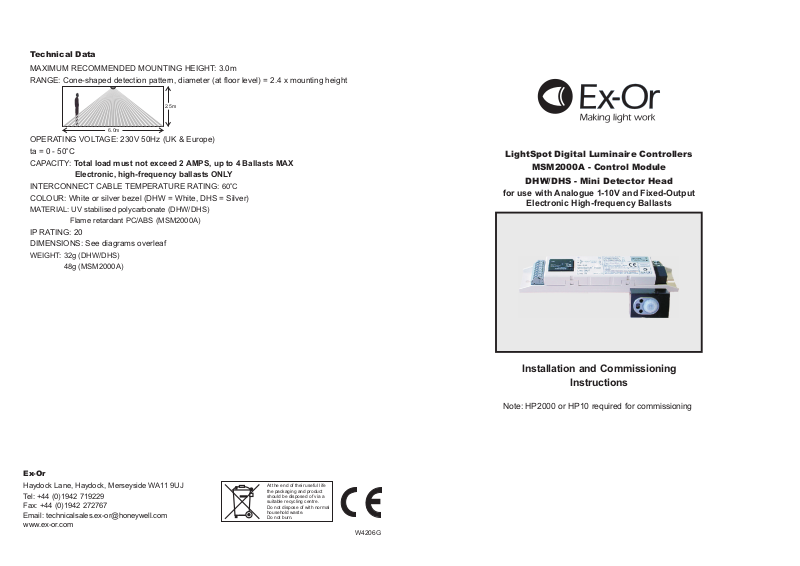

Ex-Or MSM2000A Installation Instructions

Technical Data

MAXIMUM RECOMMENDED MOUNTING HEIGHT: 3.0m
RANGE: Cone-shaped detection pattern, diameter (at floor level) = 2.4 x mounting height

2.5m

6.0m

OPERATING VOLTAGE: 230V 50Hz (UK & Europe)

ta = 0 - 50 C

o

CAPACITY: Total load must not exceed 2 AMPS, up to 4 Ballasts MAX
Electronic, high-frequency ballasts ONLY
INTERCONNECT CABLE TEMPERATURE RATING: 60 C

o

COLOUR: White or silver bezel (DHW = White, DHS = Silver)

MATERIAL: UV stabilised polycarbonate (DHW/DHS)
Flame retardant PC/ABS (MSM2000A)

IP RATING: 20
DIMENSIONS: See diagrams overleaf

WEIGHT: 32g (DHW/DHS)
48g (MSM2000A)

LightSpot Digital Luminaire Controllers

MSM2000A - Control Module

DHW/DHS - Mini Detector Head

for use with Analogue 1-10V and Fixed-Output

Electronic High-frequency Ballasts

Ex-Or

Haydock Lane, Haydock, Merseyside WA11 9UJ
Tel: [phone]

Fax: [phone]
Email: [e-mail]
www.ex-or.com

At the end of their useful life
the packaging and product
should be disposed of via a
suitable recycling centre.
Do not dispose of with normal
household waste.
Do not burn.

Installation and Commissioning

Instructions

Note: HP2000 or HP10 required for commissioning

W4206G

Electrical Connections

SIDE VIEW

Analogue 1-10V
Control Module

(Height = 22mm)

30mm

TOP VIEW

21.5mm18.8mm 17.5mm 21.3mm

14.9mm

32mm

21.5mm

_

Analogue

1-10V

Control

}

+

Neutral

TM

OneSwitch Input
Live OUT
Live IN

Made in EC

Mini Detector
Head

0.5 - 1.5

Control Module Part No

MSM2000A

Operating voltage 230V 50Hz 10%
Power consumption: <2W
tc 70 C
Max Load (Live OUT): 2 Amps
Max Number of Ballasts: 4
For use only with electronic, high-frequency
ballasts
Please read instructions prior to installation
Ex-Or Limited, Haydock Lane, Haydock
Merseyside, WA11 9UJ Tel. [phone]

Flying Lead

+

_

800mm

Detector

Connection

RJ12

Plug

135mm

147.5mm

MSM2000A

Mains Supply

OneSwitch Input
for manual control

_

Analogue

1-10V

Control

}

+

Neutral

TM

OneSwitch Input
Live OUT
Live IN

Analogue 1-10V Ballast(s)

_

Analogue

1-10V

Control

}

+

Neutral
Live IN

Mounting Details

The MSM2000A Control Module is designed to be mounted within the luminaire on fixing centres of 135mm.
Connections to the control module as shown above should be made using single-core wire (0.5-1.5mm ).

2

The interconnect cable between the detector head and control module should be routed away from the other
luminaire internal wiring and away from the lamp end-caps.

The recommended position for the detector is in the middle of the luminaire. Where this is not possible and the
sensor is fitted near one end of the lamps, please ensure that the sensor is at the ”cold” end of the lamps.

The DHW/S Mini Head should be mounted such that only the raised front section of the bezel protrudes through the
cut out in the louvre or infill panel. This should be constructed in accordance with the dimensions above.

Installation Guidelines

1. The Mini Detector Head must be mounted within the luminaire. Do not mount remotely.

2. The connecting cable must not be extended.

3. Artificial light illuminating the Mini Head must only be reflected from the room - i.e. there must be no direct
illumination.

4. In order to receive satisfactory light-level regulating operation, a detector must observe a substantially greater
proportion of artificial light from the luminaire(s) under its control than from neighbouring luminaires not under its
control. This is particularly important when planning the installed layout of linear luminaires that have an integral
detector positioned at one end.

5. Please read Application Note AN4015 for general advice on how to optimise the installation of presence detectors
intended for light-level regulation.

Advanced Features

Photocell

The MSM2000A incorporates a photocell which can be configured to operate in three different modes, selectable from
within the product’s menus on the HP2000 MLS Programmer. These modes are ‘regulating’, passive’ and ‘none’ (only
‘regulating’ or ‘passive’ can be selected using the HP10). Note that in any mode of operation, the photocell affects the light
output only when the Entry Scene is set to Scene 1.

Setting the regulating photocell

This product is intended for use with high frequency regulating ballasts with analogue 1-10V control inputs. An infrared
programming tool HP2000 or HP10 is required for programming the regulating light level set point. The setting is
preserved in the event of a power failure and can be re-programmed any number of times.

The MSM2000A is set by default to operate in ‘regulating’ mode. Using the HP2000 MLS Programmer, enter the Utilities
menu and select ‘Set Light Level’. Use the ‘up’ and ‘down’ buttons to manually adjust the light output from the luminaire(s)
and when at the required level press and hold ‘OK’ to store. The luminaire(s) will blink to acknowledge a successful store
operation.

Setting the passive photocell

It is recommended that this be set using the HP2000 as this provides feedback as to the perceived lighting level.

Use Passive mode in applications where light level regulation is not required (eg, when controlling non-dimmable
ballasts) but it is desirable to hold off the controlled lighting when natural light is sufficient.

The parameter ‘Threshold’ on the HP2000 menu is used to programme the MSM2000A’s passive photocell set point,
which determines whether the lights will be allowed to turn on as an unoccupied area is entered. The threshold is
programmed as a number between 1 (darkest) and 254 (brightest). This number is not scaled to correlate with ‘lux’
measurements made using a light meter, but nevertheless is a true representation of the light level perceived by the
MSM2000A.

In order to assist with selection of the appropriate threshold setting, the light level currently perceived by the detector
(in terms of a number between 1 and 254) can be viewed on the HP2000 screen briefly following a download operation.
The number represents the light light level immediately before the download operation took place. Tip: turn the lights off

first using the User Remote menu found in Utilities if you want to measure the perceived ambient light level with no
contribution from the controlled lighting.

Note: When setting the regulating light level as described in the previous section, the Threshold is also set to the current
measured level.

OneSwitch Dimming

TM

OneSwitch dimming affords local control to the end-user whereby a simple, momentary, push-to-make wallswitch can be
used to raise or lower the lighting level or to toggle the output ON/OFF. A press of less than 1 second will toggle the output
status while a longer press will raise or lower the output. Each time the switch is pressed, the direction of dimming
reverses. If the switch has not been pressed for 5 seconds, the direction will be up (brighter) - unless the output is already
above 90% (dc 8V) in which case the direction is down.

Important Additional Notes

1. A means for disconnection must be incorporated in the fixed wiring in accordance with the current wiring regulations.

2. The dimming control output should be connected only to the control input of the ballasts - never to other detectors.

3. This equipment should be used to control only those ballasts powered from the same phase as the detector.

4. Due to the fact that the photocell is on the ceiling looking down, it is not possible for measurements made with a lux meter on
the working plane to remain constant when daylight illuminates the ceiling and the working plane to a differing extent.
Therefore, products of this type should be regarded as capable of maintaining an APPROXIMATE light level only.

5. This equipment switches lights no more frequently than would a responsible human occupant. However, manufacturers of
some particular lighting types (e.g. ‘2D’ luminaires) may specify a maximum number of switching cycles in order to achieve a
predicted lamp life. Please check with the manufacturer of the luminaires to ensure that they are compatible with automatic
controls in this respect.

6. Some devices in this product range feature a silvered surface finish; this is intended for decorative purposes only. Care
should be taken to avoid accidental separation of the silvered coating from the product. If the unit is built into a luminaire
that is subsequently wrapped in film having adhesive properties, it is recommended that a layer of suitable packaging
material be used to protect the silvered area.

W4206G
