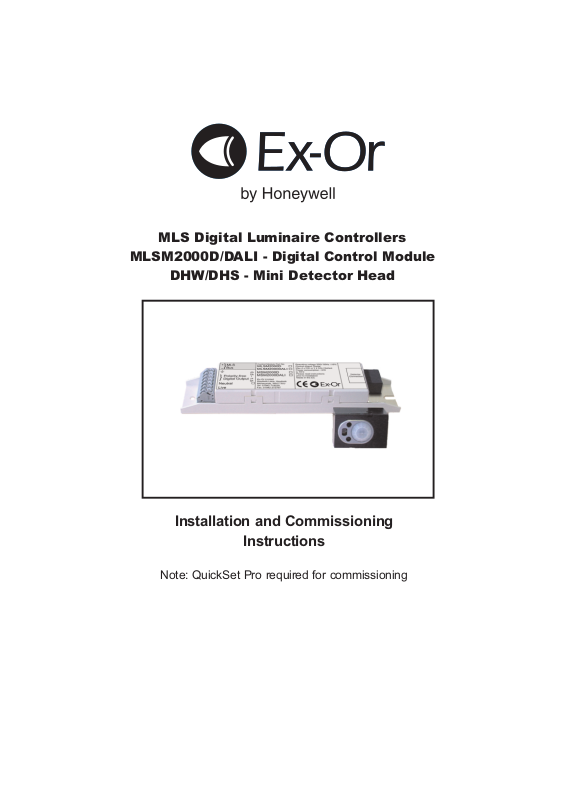

MLS Digital Luminaire Controllers
MLSM2000D/DALI - Digital Control Module
DHW/DHS - Mini Detector Head
Installation and Commissioning
Instructions
Note: QuickSet Pro required for commissioning
Electrical Connections
SIDE VIEW
18.8mm 17.5mm 21.3mm
TOP VIEW
21.5mm
14.9mm
32mm
21.5mm
Mini Detector
Head
800mm
Flying Lead
RJ12
Plug
Digital Control
Module
(Height = 21mm)
Mains Supply
E
N
L
30mm
Polarity-free
}
Digital Output
Polarity-free
Neutral
}
Digital Output
OneSwitch Input
Neutral
N/C
Live
Live IN
0.5 - 1.5
0.5 - 1.5
Control Module Part No
MLSM2000D
MLSM2000DALI
Digital Control Module
Operating voltage 230V 50Hz 10%
MSM2000D
Control output: Digital
MSM2000DALI
Max 4 x DSI Ballast
TM
Ex-Or
Power consumption: <2W
Haydock Lane, Haydock
tc 70 C
Merseyside, WA11 9UJ
Read instructions prior to installation
Tel. 01942 719229
Made in the EC
Fax. 01942 272767
147.5mm
Polarity-free
}
Digital Output
Neutral
OneSwitch Input
N/C
Live IN
Operating voltage 230V 50Hz 10%
Control output: Digital
Max 4 x DSI or DALI Ballast
Power consumption: <2W
tc 70 C
Please read instructions
prior to installation
Made in the EC
135mm
Polarity-free
TM
+
-
MLS Bus
MSM2000D
+
-
MLS Bus
Polarity Free
DHW/DHS
Detector
Connection
Connection
To next MLS device
(Please refer to
Application Note
AN4001 for MLS
cable specification)
Digital Regulating Ballast(s)
D1
DSI/DALI Ballast
}
D2
OneSwitch Input
for manual control
Polarity-free Digital Input
Neutral
Live IN
Mounting Details
The MLSM2000 Control Module is designed to be mounted within a luminaire on fixing centres of 135mm.
Connections to the control module as shown above should be made using solid strand wire (0.5-1.5mm ).
2
The interconnect cable between the detector head and the control module should be routed away from other
luminaire internal wiring and away from the lamp end-caps.
The recommended position for the detector is in the middle of the luminaire. Where this is not possible and the
detector is fitted near one end of the lamps, please ensure that the detector is at the ‘cold’ end of the lamps.
The DHW/S Mini Detector Head should be mounted such that only the raised front section of the bezel protrudes
through the cut out in the louvre or infill panel, constructed in accordance with the dimensions above.
Installation Guidelines
1. The Mini Detector Head must be mounted within the luminaire. Do not mount remotely.
2. The connecting cable must not be extended.
3. Artificial light illuminating the Mini Detector Head must only be reflected from the room, i.e. there must be no
direct illumination.
4. In order to achieve satisfactory light-level regulating operation, a detector must observe a substantially
greater proportion of artificial light from the luminaire(s) under its control than from neighbouring luminaires
not under its control. This is particularly important when planning the installed layout of linear luminaires that
have an integral detector positioned at one end.
Commissioning
Detectors are supplied factory pre-set which ensures the lighting will switch on automatically as soon as power is
applied. Final commissioning of the detectors requires the use of the QuickSet Pro Programmer.
Commissioning Detectors using the QuickSet Pro Programmer
It is important that the Programmer be held perpendicular and a distance of between 0.5m and 2m from the sensor.
1. Switch on by pressing any button (and unlock with top left rectangular button).
2. Point the programmer at detector and press the DOWNLOAD button. The programmer will confirm the
product’s identity and call up the correct menu of parameters and their current settings.
3. Use a combination of UP, DOWN, FORWARD and BACK buttons to navigate the parameter menu, selecting
options for each shown.
4. When options for all parameters have been selected, point the programmer at the detector and press the
UPLOAD button. The luminaire(s) will switch off briefly during the programming process.
5. After a short period of inactivity (default 5 minutes), the programmer hibernates retaining the most recent
settings.
OneSwitch Dimming
OneSwitch dimming affords local control to the end-user whereby a simple, momentary, push-to-make wallswitch
can be used to raise or lower the lighting level or to toggle the output ON/OFF. A press of less than 1 second will
toggle the output status while a longer press will raise or lower the output. Each time the switch is pressed, the
direction of dimming reverses. If the switch has not been pressed for 5 seconds, the direction will be up (brighter) unless the output is already above 90% in which case the direction is down. A wiring diagram is shown left.
To Test with HC5A Hand-held Controller
Once the MLS Luminaire Controllers have been installed within the luminaires, the HC5A may be used to dim and
brighten luminaires and to switch them ON and OFF. One of 6 different lighting scenes can also be recalled.
Important Additional Notes
1. A means for disconnection must be incorporated in the fixed wiring in accordance with the current wiring regulations.
2. Although nominally 12V, the dimming output is not SELV and therefore should be treated with the same respect as
mains with regard to wiring practice. The 0V line of the dimming output is almost at Neutral potential.
3. The dimming control output should be connected only to the control input of the ballasts - never to other detectors.
4. This equipment should be used to control only those ballasts powered from the same phase as the detector.
5. Do not connect mains to the MLS bus.
6. It is imperative that the MLS bus is wired with the correct type of cable; normally it should be 1.5mm unscreened
twisted pair. Please read Application Note AN4001 for more details.
7. Due to the fact that the photocell is on the ceiling looking down, it is not possible for measurements made with a lux
meter on the working plane to remain constant when daylight illuminates the ceiling and the working plane to a
differing extent. Therefore, products of this type should be regarded as capable of maintaining an APPROXIMATE
light level only.
8. This equipment switches lights no more frequently than would a responsible human occupant. However,
manufacturers of some particular lighting types (e.g. ‘2D’ luminaires) may specify a maximum number of switching
cycles in order to achieve a predicted lamp life. Please check with the manufacturer of the luminaires to ensure that
they are compatible with automatic controls in this respect.
9. Some devices in this product range feature a silvered surface finish; this is intended for decorative purposes only.
Care should be taken to avoid accidental separation of the silvered coating from the product. If the unit is built into a
luminaire that is subsequently wrapped in film having adhesive properties, it is recommended that a layer of suitable
packaging material be used to protect the silvered area.
2
Technical Data
MLS CABLE: 1.5mm unscreened twisted-pair : see Application Note AN4001
2
MAXIMUM RECOMMENDED MOUNTING HEIGHT: 3.0m
RANGE: Cone-shaped detection pattern, diameter (at floor level) = 2.4 x mounting height
2.5m
6.0m
OPERATING VOLTAGE: 230V 50Hz (UK & Europe)
ta = 0 - 50 C
CAPACITY: Max 4 x DSI or DALI ballasts
INTERCONNECT CABLE TEMPERATURE RATING: 60 C
o
o
COLOUR: White RAL9010 or silver bezel (DHW = White, DHS = Silver)
MATERIAL: UV stabilised polycarbonate (DHW/DHS)
Flame retardant PC/ABS (MLSM2000D/DALI)
IP RATING: 20
OVERALL DIMENSIONS: 32 (l) x 21.5 (w) x 21.3 (h) mm (DHW/DHS)
147.5 (l) x 30 (w) x 21 (h) mm (MLSM2000D/DALI)
WEIGHT: 32g (DHW/DHS)
48g (MLSM2000D/DALI)
Honeywell Ex-Or
Albery House, Springfield Road,
Horsham, West Sussex RH12 2PQ
Tel: +44 (0)1942 719229
Fax: +44 (0)1942 508753
Email: technicalsales.ex-or@honeywell.com
www.ex-or.com
At the end of their useful life
the packaging and product
should be disposed of via a
suitable recycling centre.
Do not dispose of with normal
household waste.
Do not burn.
