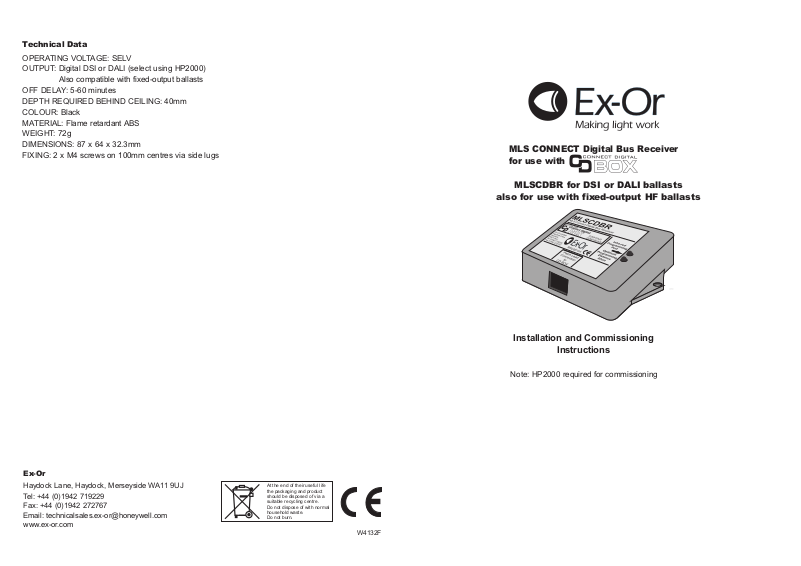

Ex-Or MLSCDBR Installation Instructions

Technical Data

OPERATING VOLTAGE: SELV
OUTPUT: Digital DSI or DALI (select using HP2000)

Also compatible with fixed-output ballasts
OFF DELAY: 5-60 minutes
DEPTH REQUIRED BEHIND CEILING: 40mm
COLOUR: Black
MATERIAL: Flame retardant ABS
WEIGHT: 72g
DIMENSIONS: 87 x 64 x 32.3mm
FIXING: 2 x M4 screws on 100mm centres via side lugs

MLS CONNECT Digital Bus Receiver
for use with

MLSCDBR for DSI or DALI ballasts

also for use with fixed-output HF ballasts

Ex-Or

Haydock Lane, Haydock, Merseyside WA11 9UJ
Tel: [phone]

Fax: [phone]
Email: [e-mail]
www.ex-or.com

At the end of their useful life
the packaging and product
should be disposed of via a
suitable recycling centre.
Do not dispose of with normal
household waste.
Do not burn.

Installation and Commissioning

Instructions

Note: HP2000 required for commissioning

W4132F

MLSCDBR - MLS CONNECT Digital Bus Receiver

Note: Connections to this equipment should be made by a suitably qualified person and in
accordance with the current wiring regulations.

These instructions should be read in conjunction with the CDW10U5 CONNECT Digital CD Box
Connection Centre installation instructions.

MLS CONNECT Digital Bus Receivers are for use only with Ex-Or CONNECT Digital CDW10U5/CDW10U52L
CD Box Connection Centres. The units are principally for use where lighting control is required as part of a
building-wide lighting management system without the need for presence detection or photocell control.
When connected to the CD Box the MLSCDBR behaves as a conventional detector, controlling lights connected
to it via the CD Box and communicating with detectors or other equipment programmed to the same zone as
itself throughout the installation.

Fixing

The unit is suitable for surface mounting onto a wall or ceiling. Mounting holes are provided which are suitable for
screws up to M4 in size.

Connection

The MLSCDBR has a socket on the side of the housing to accept the (supplied) 500mm patch lead to connect it
to the CD Box. No further connection is necessary. Units should be plugged only into one of the five RJ45 style
sockets on the front of the CD Box and must not be linked together.

When connecting to the CD Box, observe the hierarchy detailed in the CDW10U5 installation instructions.

Luminaires containing digital, dimmable ballasts (with the appropriate DSI or DALI input) can be controlled
providing that ballast types are not mixed. When a fixed output HF ballast is being used, the MLSCDBR will
provide on/off switching through the mains outlet on the CD Box.

All connections to the luminaires will be through the 6-pin outlet on the CD Box.

Tips

i) Where there are only two options such as ON/OFF, a double click of the OK button toggles between them.

ii) Where there are multiple options, a double click of the OK button recalls a list of all options for that parameter.

Use the UP, DOWN and OK buttons to select.

iii) Use the OK button to go forward (through the menus) without displaying help pages.

iv) Press UPLOAD at any time to transfer all current settings from the handset to the product.

Commissioning

The MLSCDBR is supplied factory pre-set which ensures the lighting will switch on automatically as soon as
power is applied. Final commissioning of the unit, including assigning to zones, requires the use of the HP2000
Programmer. Please refer to HP2000 instructions for comprehensive commissioning instructions.

Commissioning Detectors using the HP2000

It is important that the HP2000 is pointed from directly beneath the Infrared Programming Port on the MLSCDBR
when programming or downloading, at a distance no greater than 20cm from the unit. Care should be taken to
keep the HP2000 steady during these commands.

1. Switch on HP2000 by pressing the red power button.

2. Point HP2000 at the unit and press the DOWNLOAD button. The HP2000 will confirm the product’s identity
and call up the correct menu of parameters and their current settings.

3. Use a combination of UP, DOWN, FORWARD and BACK buttons to navigate the parameter menu, selecting
options for each shown. (See Tips below.)

4. When options for all parameters have been selected, point the HP2000 at the unit and press the UPLOAD
button. The luminaire(s) will switch off briefly during the programming process and the HP2000 shows
DATA OK to confirm operation.

5. After a short period of inactivity (default 5 minutes), the HP2000 hibernates retaining the most recent settings.
