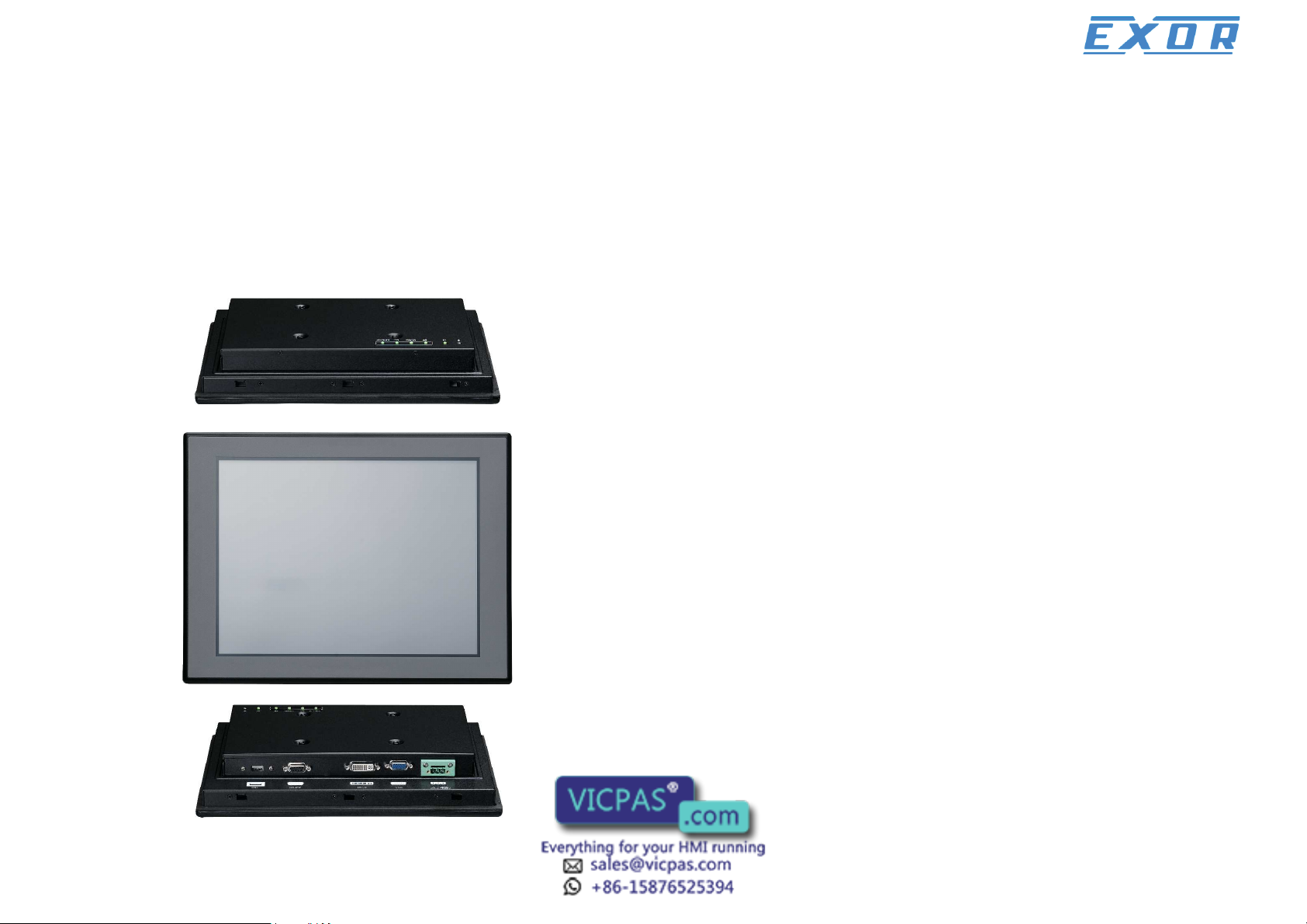

Exor eTOP-MON Series, eTOP-MON 1205T, eTOP-MON 1500T, eTOP-MON 1700T, eTOP-MON 1900T User Manual

EXOR International

www.exorint.net

Industrial Computing Solutions

eTOP-MON eTOP-MON 1200T/1205T/1500T/1700T/1900T

User Manual

ii

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

Content

CONTENTS

Preface

Copyright ............................................................................................. iv

Disclaimer .............................................................................................. iv

Acknowledgements ............................................................................... iv

Regulatory Compliance Statements ........................................................ iv

Declaration of Conformity ...................................................................... iv

RoHS Compliance ................................................................................... v

Warranty and RMA ................................................................................ vi

Safety Information ................................................................................ viii

Installation Recommendations ...............................................................viii

Safety Precautions .................................................................................. ix

Technical Support and Assistance ............................................................ x

Conventions Used in this Manual ............................................................ x

Global Service Contact Information ........................................................ xi

Package Contents .................................................................................xiii

Ordering Information .............................................................................xv

Chapter 1: Product Introduction

Overview - eTOP-MON 1200T/1205T ...................................................... 1

Key Features ........................................................................................... 1

Overview - eTOP-MON 1500T .................................................................2

Key Features ........................................................................................... 2

Overview - eTOP-MON 1700T .................................................................3

Key Features ........................................................................................... 3

Overview - eTOP-MON 1900T .................................................................4

Key Features ........................................................................................... 4

Specifications .......................................................................................... 5

eTOP-MON 1200T ...............................................................................5

Specifications .......................................................................................... 6

eTOP-MON 1205T ...............................................................................6

Specifications .......................................................................................... 7

eTOP-MON 1500T ...............................................................................7

Specifications .......................................................................................... 8

eTOP-MON 1700T ...............................................................................8

Specifications .......................................................................................... 9

eTOP-MON 1900T ...............................................................................9

Knowing Your APPD Series ...................................................................10

Front Top View of eTOP-MON 1200T/1205T ...................................... 10

Front Top View of eTOP-MON 1500T .................................................10

Front Top View of eTOP-MON 1700T .................................................10

Front Top View of eTOP-MON 1900T .................................................10

Front Top View in Detail ..................................................................... 11

Rear Bottom View of eTOP-MON 1200T/1205T ................................. 12

Rear Bottom View of eTOP-MON 1500T ............................................12

Rear Bottom View of eTOP-MON 1700T ............................................12

Rear Bottom View of eTOP-MON 1900T ............................................12

Rear Bottom View in Detail ................................................................ 13

Rear View of eTOP-MON 1200T/1205T ..............................................14

Rear View of eTOP-MON 1500T ........................................................15

Rear View of eTOP-MON 1700T ........................................................16

Rear View of eTOP-MON 1900T ........................................................17

Mechanical Dimensions .........................................................................18

eTOP-MON 1200T/1205T .................................................................. 18

iii

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

Content

eTOP-MON 1500T .............................................................................19

eTOP-MON 1700T .............................................................................20

eTOP-MON 1900T .............................................................................21

Chapter 2: Connector Pin Definitions

External I/O Interfaces ........................................................................... 22

USB Port ............................................................................................ 22

COM Port .......................................................................................... 22

DVI Port (DVI-D) .................................................................................23

VGA Port ........................................................................................... 23

12 – 24V DC Input ............................................................................24

Chapter 3: System Setup

Panel Mounting .................................................................................... 25

Installing the Power Adapter Bracket .....................................................28

Chapter 4: Adjusting the Display

OSD Menu Functions ............................................................................ 33

Chapter 5: Touch Driver Settings...........................49

Appendix A: Power Consumption.........................50

Appendix B: Extended Display Identification

Data Timing Support..............................................51

iv

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

Preface

PREFACE

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from EXOR International S.p.A.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from EXOR International S.p.A. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.exorint.it. EXOR shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

eTOP-MON 1200T/1205T/1500T/1700T/1900T is a trademark of EXOR International S.p.A. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section describes how to keep the system CE compliant.

Declaration of Conformity

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

v

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

Preface

RoHS Compliance

EXOR RoHS Environmental Policy and Status Update

This publication, including all photographs, illustrations and software, is protected under international copyright

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) < 0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, EXOR has established an engineering and manufacturing task force to implement the introduction of green products. The task force will ensure that we follow the standard EXOR development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which EXOR are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

All new product models launched after January 2006 will be RoHS compliant. They will use the usual EXOR naming convention.

vi

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

Preface

Warranty and RMA

EXOR Warranty Period

EXOR manufactures products that are new or equivalent to new in accordance with industry standard. EXOR warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by EXOR. HCP series products (Blade Server) which are manufactured by EXOR are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

▪ Customers shall enclose the “EXOR RMA Service Form” with the returned

packages.

▪ Customers must collect all the information about the problems

encountered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “EXOR RMA Service Form” for the RMA number apply process.

▪ Customers can send back the faulty products with or without accessories

(manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, EXOR is not responsible for the devices/parts.

▪ Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

▪ Any products returned by EXOR to other locations besides the customers’

site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

EXOR will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

Repair Service Charges for Out-of-Warranty Products

EXOR will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

▪ Component fee: EXOR will only charge for main components such as

SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

▪ Items will be replaced with EXOR products if the original one cannot be

repaired. Ex: motherboard, power supply, etc.

▪ Replace with 3rd party products if needed.

▪ If RMA goods can not be repaired, EXOR will return it to the customer

without any charge.

Board Level

▪ Component fee: EXOR will only charge for main components, such as

SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

▪ If RMA goods can not be repaired, EXOR will return it to the customer

without any charge.

vii

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

viii

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

Preface

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

▪ A Philips screwdriver

▪ A flat-tipped screwdriver

▪ A grounding strap

▪ An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-nose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully.

▪ Do not place the unit on an unstable surface, cart, or stand.

▪ Follow all warnings and cautions in this manual.

▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

ix

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near the

equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping it or

letting it fall may cause damage.

7. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting

the equipment to the power outlet.

9. Place the power cord in a way so that people will not step on it. Do not

place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

12. Never pour any liquid into an opening. This may cause fire or electrical shock.

13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

14. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work

according to the user’s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage.

15. Do not place heavy objects on the equipment.

16. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

17. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

x

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

Preface

Technical Support and Assistance

1. For the most updated information of EXOR products, visit EXOR’s website at www.exorint.it.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling: – Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

ION!UT

CAUTION!CAUTION!

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

xi

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

Preface

Package Contents

Before continuing, verify that the package you received is complete. The eTOP-MON series package, eTOP-MON 1200T/1205T/1500T/1700T/1900T, should have all the items listed in the table.

eTOP-MON 1200T/1205T/1500T/1700T

Item Description Qty

1 Panel Mount Kit 12 2 Touch Pen 1 3 VGA Cable (1.8m) 1 4 USB Cable (1.8m) 1 5 Serial Cable (1.8m) 1 6 Terminal blocks 3-pin Phoenix Contact Plug 1 7 Panel Mount Hole Block 12

Panel Mount Kit Touch Pen

Terminal blocks

3-pin Phoenix

Contact Plug

VGA Cable USB Cable

Serial Cable

Panel Mount Hole Block

Note: Package contents may vary depending on your country region, some items may be optional. Please contact your local distributor for more information.

xii

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

Preface

Item Description Qty

1 Panel Mount Kit 14 2 Touch Pen 1 3 VGA Cable (1.8m) 1 4 USB Cable (1.8m) 1 5 Serial Cable (1.8m) 1 6 Terminal blocks 3-pin Phoenix Contact Plug 1 7 Panel Mount Hole Block 14

eTOP-MON 1900T

Panel Mount Kit Touch Pen

Terminal blocks

3-pin Phoenix

Contact Plug

VGA Cable USB Cable

Serial Cable

Panel Mount Hole Block

Note: Package contents may vary depending on your country region, some items may be optional. Please contact your local distributor for more information.

xiii

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

Preface

Ordering Information

The following provides ordering information for the Applied Panel Display series.

• Barebone

eTOP-MON 1200T

12.1” SVGA industrial 4:3 LED Backlight flush touch monitor with VGA, and DVI-D input, 12~24VDC input, RS-232 and USB touch screen interfaces

eTOP-MON 1205T

12.1” XGA industrial 4:3 LED Backlight flush touch monitor with VGA, and DVI-D input, 12~24VDC input, RS-232 and USB touch screen interfaces

eTOP-MON 1500T

15” XGA industrial 4:3 LED Backlight flush touch monitor with VGA, and DVI-D input, 12~24VDC input, RS-232 and USB touch screen interfaces

eTOP-MON 1700T

17” SXGA industrial 4:3 LCD flush touch monitor with VGA and DVI-D input, 12~24VDC input, RS-232 and USB touch screen interfaces

eTOP-MON 1900T

19” SXGA industrial 4:3 LED Backlight flush touch monitor with VGA, and DVI-D input, 12~24V DC input, RS-232 and USB touch screen interfaces

• Optional

12V, 60W AC/DC power adapter w/o power cord

US Power Cord UK Power Cord EU Power Cord 1.8m DVI-D Cable

1

Chapter 1: Product Introduction

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

CHAPTER 1: PRODUCT INTRODUCTION

Key Features

▪ IP65 compliant plastic front bezel with flush panel by 5-wire touch screen

▪ Dual display input interface: analog VGA and DVI-D

▪ Shares identical appearance with APPC series

▪ Dual touch screen interface: RS232 and USB

▪ Ultra slim in depth

▪ OSD Multilanguage function

Overview - eTOP-MON 1200T/1205T

2

Chapter 1: Product Introduction

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

Key Features

▪ IP65 compliant plastic front bezel with flush panel by 5-wire touch screen

▪ Dual display input interface: analog VGA and DVI-D

▪ Shares identical appearance with APPC series

▪ Dual touch screen interface: RS232 and USB

▪ Ultra slim in depth

▪ OSD Multilanguage function

Overview - eTOP-MON 1500T

3

Chapter 1: Product Introduction

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

Key Features

▪ IP65 compliant plastic front bezel with flush panel by 5-wire touch screen

▪ Dual display input interface: analog VGA and DVI-D

▪ Shares identical appearance with APPC series

▪ Dual touch screen interface: RS232 and USB

▪ Ultra slim in depth

▪ OSD Multilanguage function

Overview - eTOP-MON 1700T

4

Chapter 1: Product Introduction

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

Key Features

▪ IP65 compliant plastic front bezel with flush panel by 5-wire touch screen

▪ Dual display input interface: analog VGA and DVI-D

▪ Shares identical appearance with APPC series

▪ Dual touch screen interface: RS232 and USB

▪ Ultra slim in depth

▪ OSD Multilanguage function

Overview - eTOP-MON 1900T

5

Chapter 1: Product Introduction

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

Specifications

eTOP-MON 1200T

Panel

▪ LED Size: 12.1”, 4:3 ▪ Resolution: SVGA 800x600 ▪ Luminance: 450cd/m

2

▪ Contrast ratio: 700 ▪ LCD color: 16.2M ▪ Viewing Angle: 65(U), 75(D), 80(L), 80(R) ▪ Backlight: LED

Touch Screen

▪ 5-wire resistive (flush panel type) ▪ Light transmission: 80% ▪ Interface: USB and RS232

Rear I/O

▪ Touch screen interface port: RS-232 (1x DB9) / USB Type A ▪ Video port: VGA (1x DB15) / DVI-D (1x DVI-I connector) ▪ DC power input connector: 3-Pin Phoenix terminal Blocks

OSD Function

▪ OSD keypad ▪ Multilanguage OSD

Mechanical & Environment

▪ Color: pantone black ▪ IP protection: IP65 front ▪ Mounting: panel/ wall/ stand/ VESA 100mm x 100mm

▪ Power input: 12V~24VDC ▪ Power adapter: optional AC to DC power adapter (+12V, 60W) ▪ Vibration:

IEC 68 2-64 2Grms @ sine, 5~500Hz, 1hr/axis (Operating)

2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (Non-operating)

▪ Shock:

IEC 68 2-27 20G@wall mount, half sine, 11ms Operating temperature: -5°C to 60°C

Storage temperature: -20°C to 75°C ▪ Operating humidity: 10%~90% relative humidity, non-condensing ▪ Dimension: 317 x 243 x 53.5mm ▪ Weight: 2.9Kg

Certifications

▪ CE approval

6

Chapter 1: Product Introduction

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

Specifications

eTOP-MON 1205T

Panel

▪ LED Size: 12.1”, 4:3 ▪ Resolution: XGA 1024x768 ▪ Luminance: 500cd/m

2

▪ Contrast ratio: 700 ▪ LCD color: 16.2M ▪ Viewing Angle: 80(U), 80(D), 80(L), 80(R) ▪ Backlight: LED

Touch Screen

▪ 5-wire resistive (flush panel type) ▪ Light transmission: 80% ▪ Interface: USB and RS232

Rear I/O

▪ Touch screen interface port: RS-232 (1x DB9) / USB Type A ▪ Video port: VGA (1x DB15) / DVI-D (1x DVI-I connector) ▪ DC power input connector: 3-Pin Phoenix terminal Blocks

OSD Function

▪ OSD keypad ▪ Multilanguage OSD

Mechanical & Environment

▪ Color: pantone black ▪ IP protection: IP65 front ▪ Mounting: panel/ wall/ stand/ VESA 100mm x 100mm

▪ Power input: 12V~24VDC ▪ Power adapter: optional AC to DC power adapter (+12V, 60W) ▪ Vibration:

IEC 68 2-64

2Grms @ sine, 5~500Hz, 1hr/axis (Operating)

2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (Non-operating)

▪ Shock:

IEC 68 2-27

20G@wall mount, half sine, 11ms

Operating temperature: -5°C to 60°C

Storage temperature: -20°C to 75°C ▪ Operating humidity: 10%~90% relative humidity, non-condensing ▪ Dimension: 317 x 243 x 53.5mm ▪ Weight: 2.9Kg

Certifications

▪ CE approval

7

Chapter 1: Product Introduction

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

Specifications

eTOP-MON 1500T

Panel

▪ LED Size: 15”, 4:3 ▪ Resolution: XGA 1024x768 ▪ Luminance: 400cd/m

2

▪ Contrast ratio: 700 ▪ LCD color: 16.2M ▪ Viewing Angle: 60(U), 80(D), 80(L), 80(R) ▪ Backlight: LED

Touch Screen

▪ 5-wire resistive (flush panel type) ▪ Light transmission: 80% ▪ Interface: USB and RS232

Rear I/O

▪ Touch screen interface port: RS-232 (1x DB9) / USB Type A ▪ Video port: VGA (1x DB15) / DVI-D (1x DVI-I connector) ▪ DC power input connector: 3-Pin Phoenix terminal Blocks

OSD Function

▪ OSD keypad ▪ Multilanguage OSD

Mechanical & Environment

▪ Color: pantone black ▪ IP protection: IP65 front ▪ Mounting: panel/ wall/ stand/ VESA 100mm x 100mm

▪ Power input: 12V~24VDC ▪ Power adapter: optional AC to DC power adapter (+12V, 60W) ▪ Vibration:

IEC 68 2-64 2Grms @ sine, 5~500Hz, 1hr/axis (Operating)

2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (Non-operating)

▪ Shock:

IEC 68 2-27 20G@wall mount, half sine, 11ms Operating temperature: -5°C to 60°C

Storage temperature: -20°C to 75°C ▪ Operating humidity: 10%~90% relative humidity, non-condensing ▪ Dimension: 384.37 x 310 x 51.2 mm ▪ Weight: 3.98Kg

Certifications

▪ CE approval

8

Chapter 1: Product Introduction

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

Specifications

eTOP-MON 1700T

Panel

▪ LED Size: 17”, 4:3 ▪ Resolution: SXGA 1280x1024 ▪ Luminance: 380cd/m

2

▪ Contrast ratio: 1000 ▪ LCD color: 16.7M ▪ Viewing Angle: 80(U), 80(D), 85(L), 85(R) ▪ Backlight: CCFL

Touch Screen

▪ 5-wire resistive (flush panel type) ▪ Light transmission: 81% ▪ Interface: USB

Rear I/O

▪ Touch screen interface port: RS-232 (1x DB9) / USB Type A ▪ Video port: VGA (1x DB15) / DVI-D (1x DVI-I connector) ▪ DC power input connector: 3-Pin Phoenix terminal Blocks

OSD Function

▪ OSD keypad ▪ Multilanguage OSD

Mechanical & Environment

▪ Color: pantone black ▪ IP protection: IP65 front ▪ Mounting: panel/ wall/ stand/ VESA 100mm x 100mm

▪ Power input: 12V~24VDC ▪ Power adapter: optional AC to DC power adapter (+12V, 60W) ▪ Vibration:

IEC 68 2-64 2Grms @ sine, 5~500Hz, 1hr/axis (Operating)

2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (Non-operating)

▪ Shock:

IEC 68 2-27 20G@wall mount, half sine, 11ms Operating temperature: -5°C to 50°C

Storage temperature: -20°C to 75°C ▪ Operating humidity: 10%~90% relative humidity, non-condensing ▪ Dimension: 410.4 x 340.4 x 43.7 mm ▪ Weight: 5.3 Kg

Certifications

▪ CE approval

9

Chapter 1: Product Introduction

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

Specifications

eTOP-MON 1900T

Panel

▪ LED Size: 19”, 4:3 ▪ Resolution: SXGA 1280x1024 ▪ Luminance: 350cd/m

2

▪ Contrast ratio: 1000 ▪ LCD color: 16.7M ▪ Viewing Angle: 80(U), 80(D), 85(L), 85(R) ▪ Backlight: LED

Touch Screen

▪ 5-wire resistive (flush panel type) ▪ Light transmission: 81% ▪ Interface: USB

Rear I/O

▪ Touch screen interface port: RS-232 (1x DB9) / USB Type A ▪ Video port: VGA (1x DB15) / DVI-D (1x DVI-I connector) ▪ DC power input connector: 3-Pin Phoenix terminal Blocks

OSD Function

▪ OSD keypad ▪ Multilanguage OSD

Mechanical & Environment

▪ Color: pantone black ▪ IP protection: IP65 front ▪ Mounting: panel/ wall/ stand/ VESA 100mm x 100mm

▪ Power input: 12V~24VDC ▪ Power adapter: optional AC to DC power adapter (+12V, 60W) ▪ Vibration:

IEC 68 2-64

2Grms @ sine, 5~500Hz, 1hr/axis (Operating)

2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (Non-operating)

▪ Shock:

IEC 68 2-27

20G@wall mount, half sine, 11ms

Operating temperature: -5°C to 50°C

Storage temperature: -20°C to 75°C ▪ Operating humidity: 10%~90% relative humidity, non-condensing ▪ Dimension: 457.64 x 379.24 x 49.25 mm ▪ Weight: 5.4 Kg

Certifications

▪ CE approval

10

Chapter 1: Product Introduction

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

Knowing Your eTOP-MON Series

Front Top View of eTOP-MON 1700T

Front Top View of eTOP-MON 1900T

Front Top View of eTOP-MON 1200T/1205T

Front Top View of eTOP-MON 1500T

Power & OSD

Menu Buttons

Power & OSD

Menu Buttons

Power & OSD

Menu Buttons

Power & OSD

Menu Buttons

11

Chapter 1: Product Introduction

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

Front Top View in Detail

LED

Power Switch

Increase Brightness/

move down/

increase value

Menu

Decrease Brightness/

move up/

decrease value

AUTO|EXIT

LED

Displays the power status of the display. Green LED indicates the display is switched on, if the display is not connected to a computer, the LED will flash red.

Power Switch

Press to power-on or power-off the display.

◀|▼

No OSD menu: Press to increase the brightness of the screen. Inside OSD menu: Press to move the selection down in OSD menu. Configuring options: Press to increase the value.

▶|▲

No OSD menu: Press to decrease the brightness of the screen. Inside OSD menu: Press to move the selection up in OSD menu. Configuring options: Press to decrease the value

OSD Menu

No OSD Menu: Press to load the OSD menu. Inside OSD Menu: Press to select the highlighted option in OSD menu.

AUTO|EXIT

Press to exit the OSD menu, or return to main menu.

The OSD will exit automatically if there is no activity in 5 seconds. This timer can be adjusted in OSD menu (Default: On, 5 seconds).

12

Chapter 1: Product Introduction

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

Rear Bottom View of eTOP-MON 1200T/1205T

Rear Bottom View of eTOP-MON 1500T

Rear Bottom View of eTOP-MON 1700T

Rear Bottom View of eTOP-MON 1900T

13

Chapter 1: Product Introduction

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

Touchscreen Connector (USB) (Optional)

This USB connector must be attached to the USB port of the PC. The touchscreen cable is included in accessory box.

Touchscreen Connector (DB-9) (Optional)

This RS-232 connector must be connected to the RS-232 port of the PC.

RS-232 & USB touchscreen interface does not allow connection into the system at the same time.

DVI Port (DVI-D)

Connected with a standard DVI connector through I/O port of this unit. Only supports digital signals.

VGA Port (DB-15)

This DB-15 connector can be connected to the system.

12 – 24V DC Input

Terminal block socket used to plug a DC power cord.

Rear Bottom View in Detail

USB COM DVI-D VGA DC Input

14

Chapter 1: Product Introduction

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

Rear View of eTOP-MON 1200T/1205T

VESA Mounting Hole

VESA Mounting Holes

These are mounting holes for VESA mount (100x100mm)

15

Chapter 1: Product Introduction

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

Rear View of eTOP-MON 1500T

VESA Mounting Hole

VESA Mounting Holes

These are mounting holes for VESA mount (100x100mm)

16

Chapter 1: Product Introduction

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

Rear View of eTOP-MON 1700T

VESA Mounting Hole

VESA Mounting Holes

These are mounting holes for VESA mount (100x100mm)

17

Chapter 1: Product Introduction

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

Rear View of eTOP-MON 1900T

VESA Mounting Hole

VESA Mounting Holes

These are mounting holes for VESA mount (100x100mm)

18

Chapter 1: Product Introduction

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

Mechanical Dimensions

eTOP-MON 1200T/1205T

19

Chapter 1: Product Introduction

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

eTOP-MON 1500T

20

Chapter 1: Product Introduction

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

410.31

22.02

43.70

33.39

100.00

17.80

340.20

eTOP-MON 1700T

21

Chapter 1: Product Introduction

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

eTOP-MON 1900T

22

Chapter 2: Connector Pin Definitions

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

CHAPTER 2: CONNECTOR PIN DEFINITIONS

External I/O Interfaces

USB Port

Connector type: USB port

Pin Definition

1 VCC5 2 DATA_N 3 DATA_P 4 GND

COM Port

Connector type: DB-9 port

1 5

6 9

Pin Definition Pin Definition

1 NC 2 RXD#: Receive Data 3 TXD: Transmit Data 4 NC 5 GND 6 NC 7 NC 8 NC 9 NC

23

Chapter 2: Connector Pin Definitions

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

DVI Port (DVI-D)

Connector type: 24-pin D-Sub, 2.0mm-M-180 (DVI)

VGA Port

Connector type: DB-9 port, 9-pin D-Sub (COM1)

5 1

15 11

Pin Definition Pin Definition

1 RED 2 GREEN 3 BLUE 4 ID2 5 GND 6 RGND 7 GGND 8 BGND

9 KEY 10 SGND 11 ID0 12 SDA 13 HSYNC or CSYNC 14 VSYNC 15 SCL

Pin Definition Pin Definition

1 TMDS Data 2- 2 TMDS Data 2+ 3 Shield 4 NC 5 NC 6 DDC clock 7 DDC data 8 Reserved

9 TMDS Data 1- 10 TMDS Data 1+ 11 Shield 12 NC 13 NC 14 +5V 15 GND 16 Hot plug detect 17 TMDS data 0- 18 TMDS data 0+ 19 Shield 20 NC 21 NC 22 Shield 23 TMDS clock+ 24 TMDS clock-

C1 NC C2 NC C3 NC C4 NC C5 NC

24

Chapter 2: Connector Pin Definitions

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

12 – 24V DC Input

Connector type: 3-pin Terminal Block

1 3

Pin Definition

1 +

2 -

3 GND

25

Chapter 3: System Setup

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

CHAPTER 3: SYSTEM SETUP

Panel Mounting

1. Select a place on the panel where you will mount the Industrial Touch Monitor.

2. Cut out a shape on the panel that corresponds to the Industrial Touch Monitor’s rear dimensions.

The thickness of the panel (e.g. steel board, plank, acrylic board, wall,

etc.) where you will mount the Industrial Touch Monitor must not exceed 3mm for eTOP-MON 1500T/1900T and 4mm for eTOP-MON 1200T/1205T/1700T. If the distance between the front bezel and panel mount hole is too wide, it will not fit the panel mount kit.

304.50 4.00mm

230.00

371.00 3.00mm

297.00

eTOP-MON 1200T/1205T

eTOP-MON 1500T

26

Chapter 3: System Setup

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

ION!UT

CAUTION!CAUTION!

Do not overtighten the screws to prevent damaging the Panel PC.

3. Slide the Industrial Touch Monitor through the hole until it is properly fitted against the panel.

4. Position the mounting clamps along the rear edges of the Industrial Touch Monitor. The first and second clamps must be positioned and secured diagonally prior to mounting the rest of the clamps. Tighten the clamp’s screw until it touches the panel.

Clamp

Panel

798.00 4.00mm

658.00

436.00

366.00

3.00mm

eTOP-MON 1700T

eTOP-MON 1900T

27

Chapter 3: System Setup

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

5. The illustration below shows all clamps properly mounted.

28

Chapter 3: System Setup

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

Installing the Power Adapter Bracket

(Optional accessory for eTOP-MON 1900T only)

1. Locate the mounting screws for the bracket on the back side of the chassis.

2. Remove the mounting screws and store them in a safe place for later use.

29

Chapter 3: System Setup

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

3. Wire the power adapter cabling into the cable opening on the bracket, then place the adapter inside the bracket.

Cable opening Power adapter cable

30

Chapter 3: System Setup

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

4. Turn the bracket over to the back side, and place the cable tie into the two tie mounts.

5. Wrap the power adapter cable, then secure the cable firmly by tying the cable tie.

Tie mount Cable tie

31

Chapter 3: System Setup

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

6. With the bracket still facing backwards, align the mounting holes on the bracket to the mounting holes on the back of the chassis, then tighten screws to secure it.

7. Plug the 3-pin terminal block connector into the DC input.

32

Chapter 3: System Setup

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

8. Plug the positive, negative and GND wires of the DC power cable into the corresponding pins on the DC input, then tighten the screws on the terminal blocks to secure the wires.

9. Plug the AC power cord into the power adapter.

ION!UT

CAUTION!CAUTION!

Before plugging the DC power cable wires into the DC input, use a multimeter or voltmeter to measure which wire is positive “+”, negative “-” and GND, and ensure that they are connected to the correct pins.

AC power cord

33

Chapter 4: Adjusting the Display

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

CHAPTER 4: ADJUSTING THE DISPLAY

OSD Menu Functions

The On Screen Display (OSD) menu provides options to adjust the display. Press the MENU button on the back of the display panel to open the OSD menu. Refer to the images below for each OSD menu options.

1. Colour

1024x7 68 59 . 9 H z

OSD

EXIT

ther

Contrast

Brightness

Colour Temp 9300K 6500K User

Colour Adjust

Exit

Colour

Pic ture

Function

OSD Menu

Misc

Exit

50 -

100 -

+

1024x7 68 59 . 9 H z

OSD

EXIT

ther

Contrast

Brightness

Colour Temp 9300K 6500K User

Colour Adjust

Exit

Colour

Pic ture

Function

OSD Menu

Misc

Exit

58 -

100 -

+

Contrast

ġġġġġġġġġɦġcolour ɦġġġġġġġġġɦġcontrast ɦġġġġġġġġġɦġġġġġġġġġto increase the contrast.

ġġġġġġġġġɦġcolour ɦġġġġġġġġɦġcontrast ɦġġġġġġġġġɦġġġġġġġġġto decrease the

34

Chapter 4: Adjusting the Display

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

Brightness

ġġġġġġġġġɦġcolour ɦġġġġġġġġġɦġBrightness ɦġġġġġġġġġɦġġġġġġġġġġto increase the brightness.

ġġġġġġġġġɦġcolour ɦġġġġġġġġġɦġBrightness ɦġġġġġġġġġɦġġġġġġġġġġto decrease the brightness.

1024x7 68 59 . 9 H z

OSD

EXIT

ther

Contrast

Brightness

Colour Temp 9300K 6500K User

Colour Adjust

Exit

Colour

Pic ture

Function

OSD Menu

Misc

Exit

50 -

100 -

+

1024x7 68 59 . 9 H z

OSD

EXIT

ther

Contrast

Brightness

Colour Temp 9300K 6500K User

Colour Adjust

Exit

Colour

Pic ture

Function

OSD Menu

Misc

Exit

0 -

100 -

+

Colour Temp

ġġġġġġġġġɦġcolour ɦġġġġġġġġġɦġcontrast ɦġġġġġġġġġɦcolour temp ɦġġġġġġġġġɦġġġġġġġġġġto

move it towards left.

ġġġġġġġġġɦġcolour ɦġġġġġġġġġɦġcontrast ɦġġġġġġġġġɦcolour temp ɦġġġġġġġġġɦġġġġġġġġġġto

move it towards right.

35

Chapter 4: Adjusting the Display

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

Colour Adjust

ġġġġġġġġġɦġcolour ɦġġġġġġġġġɦġred ɦġġġġġġġġġɦġġġġġġġġġġincrease the value.

ġġġġġġġġġɦġcolour ɦġġġġġġġġġɦġred ɦġġġġġġġġġɦġġġġġġġġġġdecrease the value.

1024x7 68 75 . 4 H z

OSD

EXIT

ther

Red

Green

Blue

Exit

Colou r

Pic ture

Function

OSD Men u

Mi sc

Exit

100 -

+

1024x7 68 75 . 4 H z

OSD

EXIT

ther

Red

Green

Blue

Exit

Colou r

Pic ture

Function

OSD Men u

Mi sc

Exit

100 -

+

Exit

Exits the Colour Adjust sub-menu or press the button to exit.

36

Chapter 4: Adjusting the Display

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

1024x7 68 59 . 9 H z

OSD

EXIT

ther

Contrast

Brightness

Colour Temp 9300K 6500K User

Colour Adjust

Exit

Colour

Pic ture

Function

OSD Menu

Misc

Exit

50 -

100 -

+

Exit

Exits the Colour sub-menu and return to main menu, or press the

button continuously till exit.

37

Chapter 4: Adjusting the Display

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

2. Picture

1024x7 68 59 . 9 H z

OSD

EXIT

ther

H . Position

V . Position

Clock

Sharpness

Exit

Colour

Pic ture

Function

OSD Menu

Misc

Exit

50 -

+

1 2 3 4 5

1024x7 68 59 . 9 H z

OSD

EXIT

ther

H . Position

V . Position

Clock

Sharpness

Exit

Colour

Pic ture

Function

OSD Menu

Misc

Exit

50 -

+

1 2 3 4 5

H. Position

ġġġġġġġġġɦġcolour ɦġġġġġġġġġɦġpicture ɦġġġġġġġġġɦH.position ɦġġġġġġġġġɦġġġġġġġġġġto move

the screen towards right.

ġġġġġġġġġɦġcolour ɦġġġġġġġġġɦġpicture ɦġġġġġġġġġɦH.position ɦġġġġġġġġġɦġġġġġġġġġġto move

the screen towards left.

38

Chapter 4: Adjusting the Display

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

1024x7 68 59 . 9 H z

OSD

EXIT

ther

H . Position

V . Position

Clock

Sharpness

Exit

Colour

Pic ture

Function

OSD Menu

Misc

Exit

50 -

+

1 2 3 4 5

V. Position

ġġġġġġġġġɦġcolour ɦġġġġġġġġġɦġpicture ɦġġġġġġġġġɦV.position ɦġġġġġġġġġɦġġġġġġġġġġto move

the screen down.

ġġġġġġġġġɦġcolour ɦġġġġġġġġġɦġpicture ɦġġġġġġġġġɦV.position ɦġġġġġġġġġɦġġġġġġġġġġto move

the screen up.

1024x7 68 59 . 9 H z

OSD

EXIT

ther

H . Position

V . Position

Clock

Sharpness

Exit

Colour

Pic ture

Function

OSD Menu

Misc

Exit

50 -

+

1 2 3 4 5

Clock

ġġġġġġġġġɦġcolour ɦġġġġġġġġġɦġpicture ɦġġġġġġġġġɦClock ɦġġġġġġġġġɦġġġġġġġġġġstretch the

screen towards right.

ġġġġġġġġġɦġcolour ɦġġġġġġġġġɦġpicture ɦġġġġġġġġġɦClock ɦġġġġġġġġġɦġġġġġġġġġġstretch the

screen towards right.

39

Chapter 4: Adjusting the Display

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

1024x7 68 59 . 9 H z

OSD

EXIT

ther

H . Position

V . Position

Clock

Sharpness

Exit

Colour

Pic ture

Function

OSD Menu

Misc

Exit

50 -

+

1 2 3 4 5

Sharpness

ġġġġġġġġġɦġcolour ɦġġġġġġġġġɦġpicture ɦġġġġġġġġġɦġġġġġġġġġɦsharpness ɦġġġġġġġġġɦġġġġġġġġġġ

to decrease it.

ġġġġġġġġġɦġcolour ɦġġġġġġġġġɦġpicture ɦġġġġġġġġġɦġġġġġġġġġɦsharpness ɦġġġġġġġġġɦġġġġġġġġġġ

to decrease it.

40

Chapter 4: Adjusting the Display

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

3. Function

1024x7 68 59 . 9 H z

OSD

EXIT

ther

Auto Adjust YES NO

Exit

Colour

Pic ture

Function

OSD Menu

Misc

Exit

1024x7 68 59 . 9 H z

OSD

EXIT

ther

Auto Adjust YES NO

Exit

Colour

Pic ture

Function

OSD Menu

Misc

Exit

Auto Adjust

ġġġġġġġġġɦġcolour ɦġġġġġġġġġɦġfunction ɦġġġġġġġġġġɦauto adjust ɦġġġġġġġġġɦġġYES to

automatically adjust the screen size, or NO to abort it.

41

Chapter 4: Adjusting the Display

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

1024x7 68 59 . 9 H z

OSD

EXIT

ther

Auto Adjust YES NO

Auto Colour YES NO

Exit

Colour

Pic ture

Function

OSD Menu

Misc

Exit

Exits the Function Adjust sub-menu or press the button to exit.

ɦcolourɦġġġġġġġġġ ɦfunctionɦġġġġġġġġġ ɦexit.

42

Chapter 4: Adjusting the Display

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

4. OSD Menu

1024x7 68 59 . 9 H z

OSD

EXIT

ther

Language

OSD H.Pos

OSD V.Pos

OSD Timer ON OFF

Exit

Colour

Pic ture

Function

OSD Menu

Misc

Exit

0 -

50 -

+

1024x7 68 59 . 9 H z

OSD

EXIT

ther

Language

OSD H.Pos

OSD V.Pos

OSD Timer ON OFF

Exit

Colour

Pic ture

Function

OSD Menu

Misc

Exit

50 -

+

Language

Press the button to enter the Language sub-menu.

43

Chapter 4: Adjusting the Display

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

Select the desired language for the OSD menu and press the button to

apply the language.

1024x7 68 59 . 9 H z

OSD

EXIT

ther

English

Deutsch

ଛ˯ࡿ

繁體中文

௅ఴឥ

Francais

Español

Italiano

ኤͳ˖஠

1PSUVHVkT

Colour

Pic ture

Function

OSD Menu

Misc

Exit

1024x7 68 59 . 9 H z

OSD

EXIT

ther

Language

OSD H.Pos

OSD V.Pos

OSD Timer ON OFF

Exit

Colour

Pic ture

Function

OSD Menu

Misc

Exit

50 -

+

OSD H. Pos

ġġġġġġġġġɦġcolour ɦġġġġġġġġġɦġosd menu ɦġġġġġġġġġ ɦġġġġġġġġġġɦosd H.pos ɦġġġġġġġġġġɦġġġġġġġġġ

ġġġġġġġġġɦmove it towards left.

ġġġġġġġġġɦġcolour ɦġġġġġġġġġɦġosd menu ɦġġġġġġġġġ ɦġġġġġġġġġġɦosd H.pos ɦġġġġġġġġġġɦġġġġġġġġġ

ġġġġġġġġġɦmove it towards right.

44

Chapter 4: Adjusting the Display

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

1024x7 68 59 . 9 H z

OSD

EXIT

ther

Language

OSD H.Pos

OSD V.Pos

OSD Timer ON OFF

Exit

Colour

Pic ture

Function

OSD Menu

Misc

Exit

50 -

+

OSD V. Pos

Press ◀|▼ on the back of the display panel to move the OSD menu up, or ▶|▲ to move it down.

ġġġġġġġġġɦġcolour ɦġġġġġġġġġɦġosd menu ɦġġġġġġġġġ ɦġġġġġġġġġġɦosd V.pos ɦġġġġġġġġġġɦġġġġġġġġġ

ġġġġġġġġġɦmove it down.

ġġġġġġġġġɦġcolour ɦġġġġġġġġġɦġosd menu ɦġġġġġġġġġ ɦġġġġġġġġġġɦosd V.pos ɦġġġġġġġġġġɦġġġġġġġġġ

ġġġġġġġġġɦmove it up.

1024x7 68 59 . 9 H z

OSD

EXIT

ther

Language

OSD H.Pos

OSD V.Pos

OSD Timer ON OFF

Exit

Colour

Pic ture

Function

OSD Menu

Misc

Exit

50 -

+

OSD Timer

Select ON to specify the timeout period of the OSD menu, or OFF to

disable it. Press on the back of the display panel to increment the

timer by 1 second, or to decrement the timer by 1 second.

45

Chapter 4: Adjusting the Display

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

1024x7 68 59 . 9 H z

OSD

EXIT

ther

Language

OSD H.Pos

OSD V.Pos

OSD Timer ON OFF

Exit

Colour

Pic ture

Function

OSD Menu

Misc

Exit

50 -

+

Exit

Exits the OSD Menu sub-menu or press the button to exit.

46

Chapter 4: Adjusting the Display

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

5. Misc

1024x7 68 59 . 9 H z

OSD

EXIT

ther

Reset YES NO

Volume

Input VGA DVI

Exit

Colour

Pic ture

Function

OSD Menu

Misc

Exit

1024x7 68 59 . 9 H z

OSD

EXIT

ther

Reset YES NO

Volume

Input VGA DVI

Exit

Colour

Pic ture

Function

OSD Menu

Misc

Exit

Reset

ġġġġġġġġġɦġcolour ɦġġġġġġġġġɦġMisc ɦġġġġġġġġġɦreset ɦġġġġġġġġġɦġYES to restore

factory default settings, or NOT to abort it.

47

Chapter 4: Adjusting the Display

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

1024x7 68 59 . 9 H z

OSD

EXIT

ther

Reset YES NO

Volume

Input VGA DVI

Exit

Colour

Pic ture

Function

OSD Menu

Misc

Exit

Input

ġġġġġġġġġɦġcolour ɦġġġġġġġġġɦġMisc ɦġġġġġġġġġɦġġġġġġġġġɦInput ɦġġġġġġġġġɦġSelect

VGA or DVI as the video input.

1024x7 68 59 . 9 H z

OSD

EXIT

ther

Reset YES NO

Volume

Input VGA DVI

Exit

Colour

Pic ture

Function

OSD Menu

Misc

Exit

Exits the Misc sub-menu or press the button to exit.

48

Chapter 4: Adjusting the Display

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

1024x7 68 59 . 9 H z

OSD

EXIT

ther

Reset YES NO

Volume

Input VGA DVI

Exit

Colour

Pic ture

Function

OSD Menu

Misc

Exit

6. Exit

Exits the OSD main menu or press the button to exit.

49

Chapter 5: Touch Driver Settings

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

CHAPTER 5: TOUCH DRIVER SETTINGS

Before installing the touch drivers, please adjust the Install.ini file. The Install. ini file is located under the following folder:

\PenMount Windows Universal Driver V2.2.0.283( Win7_32_64bit_WHQL)\ Driver

1. Open the Install.ini file.

2. Confirm if the Install.ini file has the following settings, if not, please

change it.

[Install] USB = 1

Must set this to “1”

COM = 1 Must set this to “1” MMonitor = 1 ENUM = 1

[Option]

TouchReport = 2 USB/COM

EdgeOffset = 5 Smoothing = 1

[ENUM] Total = 4

COM1 = 1 Set “1” to the COM port you intend to use

COM2 = 0

COM3 = 0 COM4 = 0

[COM1] AlwaysExist

3. Install the touch drivers.

50

Appendix A: Power Consumption

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

APPENDIX A: POWER CONSUMPTION

Purpose

The purpose of the power consumption test is verified the power

dissipation of the system and the load of the power supply.

Test Equipment

PROVA CM-07 AC/DC CLAMP METER Desktop PC

Device Under Test

DUT: Sys #1

Test Procedure

1. Power up the DUT and then switch on the desktop PC connecting to it.

2. Measure the power consumption and record it.

3. Enter the standby mode (Turn off display).

4. Measure the power consumption and record it.

eTOP-MON 1200T

+12V +24V

Full-Loading Mode 0.73A 0.39A

Total 8.76W 9.36W

Standby Mode 0.05A 0.06A

Total 0.6W 1.44W

eTOP-MON 1205T

+12V +24V

Full-Loading Mode 0.75A 0.39A

Total 9W 9.36W

Standby Mode 0.05A 0.05A

Total 0.6W 1.2W

eTOP-MON 1500T

+12V +24V

Full-Loading Mode 0.97A 0.5A

Total 11.64W 12W

Standby Mode 0.04A 0.05A

Total 0.48W 1.2W

eTOP-MON 1700T

+12V +24V

Full-Loading Mode 2.6A 1.21A

Total 31.2W 29.04W

Standby Mode 0.05A 0.05A

Total 0.6W 1.2W

eTOP-MON 1900T

+12V +24V

Full-Loading Mode 1.54A 0.77A

Total 18.48W 18.48W

Standby Mode 0.05A 0.05A

Total 0.6W 1.2W

51

Appendix B: Extended Display Identification Data Timing Support

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

APPENDIX B: EXTENDED DISPLAY IDENTIFICATION DATA TIMING SUPPORT

eTOP-MON 1200T

Resolution

Vertical Frequencies

60Hz 70Hz 72Hz 75Hz

640x480

ü ü ü

720x400

ü

800x600

ü ü ü

eTOP-MON 1205T

Resolution

Vertical Frequencies

60Hz 70Hz 72Hz 75Hz

640x480

ü ü ü

720x400

ü

800x600

ü ü ü

1024x768

ü ü ü

eTOP-MON 1500T

Resolution

Vertical Frequencies

60Hz 70Hz 72Hz 75Hz

640x480

ü ü ü

720x400

ü

800x600

ü ü ü

1024x768

ü ü ü

52

Appendix B: Extended Display Identification Data Timing Support

eTOP-MON 1200T/1205T/1500T/1700T/1900T User Manual

eTOP-MON 1700T

Resolution

Vertical Frequencies

60Hz 70Hz 72Hz 75Hz

640x480

ü ü ü

720x400

ü

800x600

ü ü ü

1024x768

ü ü ü

1280x1024

ü ü

eTOP-MON 1900T

Resolution

Vertical Frequencies

60Hz 70Hz 72Hz 75Hz

640x480

ü ü ü

720x400

ü

800x600

ü ü ü

1024x768

ü ü ü

1280x1024

ü ü

Exor eTOP-MON Series, eTOP-MON 1205T, eTOP-MON 1500T, eTOP-MON 1700T, eTOP-MON 1900T User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
