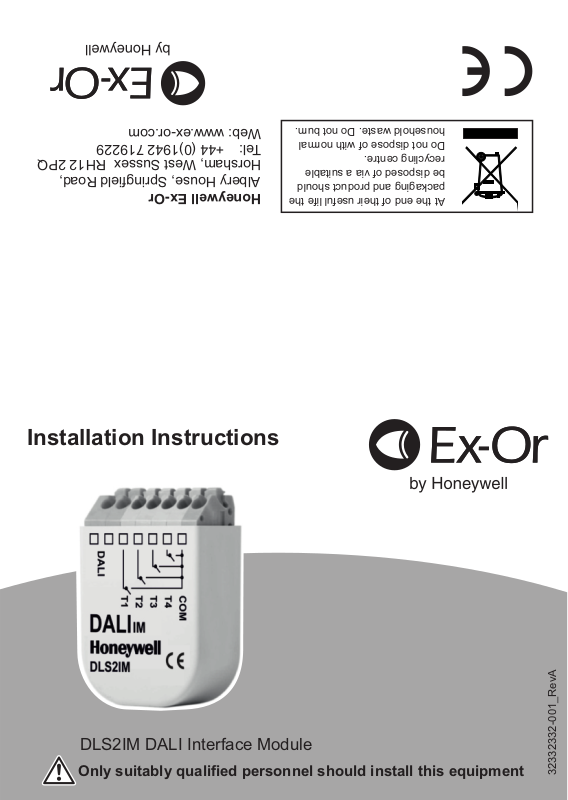

DLS2IM DALI Interface Module
Only suitably qualified personnel should install this equipment
32332332-001_RevA
Description
The DALI IM is a compact DALI device with 4 general purpose inputs.
Multiple DALI IM modules can be connected to the same DALI bus,
although a maximum of 2 modules is supported by a DALI in a room system.
The module can be installed in a conduit box, backbox or pattress behind a
momentary switch. The minimum required depth for a pattress box is
35 mm, however, 40 mm boxes are recommended for ease of wiring.
Specification
Supply via DALI bus
Current consumption 4.1 mA typical
Ambient temperature 0°C – 50°C
Protection IP20
Wire size 0.5 – 1.5 mm²
Wire length to switches 50 cm (max.)
Output DALI
Input 4 x push-to-make momentary switch
Input current <4 mA
Dimensions (H x W x D) 40 x 28 x 15 mm

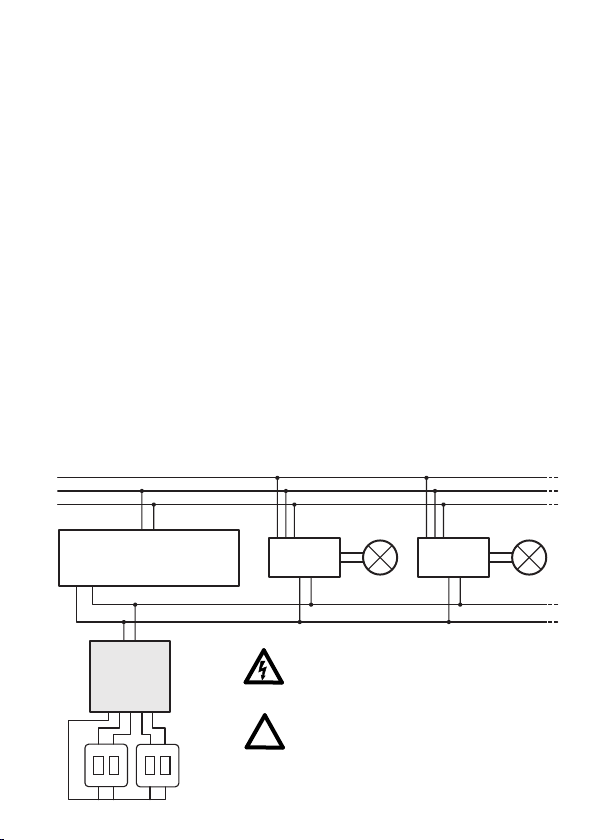

Wiring Example
PE
L
N
DALI Application Controller
and Power Supply
(e.g. DLS4043DALIF)
DALI BUS
Ballast
Ballast
DALI
DALI IM
COMT4T3T2T1
!
push-to-make
momentary switches
Warning: The DALI bus is not classified as SELV.
The same procedures and safeguards must be
applied as when working with mains voltage.
Isolate mains supply before installing or servicing.
The installation must comply with all applicable
electrical codes and regulations.
