Mobile Entertainment

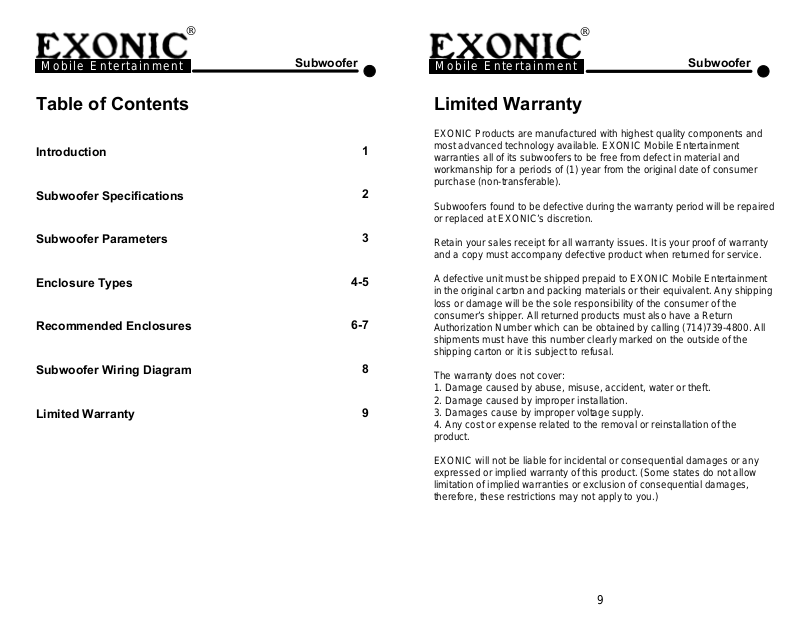

Table of Contents
Introduction
Subwoofer Specifications
Subwoofer Parameters
Enclosure Types
Recommended Enclosures
Subwoofer Subwoofer
Mobile Entertainment
Limited Warranty
EXONIC Products are manufactured with highest quality components and
1
2
3
4-5
6-7
most advanced technology available. EXONIC Mobile Entertainment
warranties all of its subwoofers to be free from defect in material and
workmanship for a periods of (1) year from the original date of consumer
purchase (non-transferable).
Subwoofers found to be defective during the warranty period will be repaired
or replaced at EXONIC’s discretion.
Retain your sales receipt for all warranty issues. It is your proof of warranty
and a copy must accompany defective product when returned for service.
A defective unit must be shipped prepaid to EXONIC Mobile Entertainment
in the original carton and packing materials or their equivalent. Any shipping
loss or damage will be the sole responsibility of the consumer of the
consumer’s shipper. All returned products must also have a Return
Authorization Number which can be obtained by calling (714)739-4800. All
shipments must have this number clearly marked on the outside of the
shipping carton or it is subject to refusal.
Subwoofer Wiring Diagram
Limited Warranty
8
9
The warranty does not cover:
1. Damage caused by abuse, misuse, accident, water or theft.
2. Damage caused by improper installation.
3. Damages cause by improper voltage supply.
4. Any cost or expense related to the removal or reinstallation of the
product.
EXONIC will not be liable for incidental or consequential damages or any
expressed or implied warranty of this product. (Some states do not allow
limitation of implied warranties or exclusion of consequential damages,
therefore, these restrictions may not apply to you.)
9
®
®
Mobile Entertainment
Subwoofer Subwoofer
Subwoofer Wiring Diagram
EXONIC subwoofers use a single or dual 4 ohm voice coil. Single 4 ohm coils
allow you to use one or multiple speakers to collectively maximize output of
your amplifier. The use of the dual four ohm coils make the subwoofers more
versatile, but a little trickier to wire. Please play close attentions to the following
guidelines.
There are three different types of wiring configurations used in car audio. They
are described as: Series, Parallel, and Series-Parallel. You can change the
impedance or “load” depending on the quantity of woofers and how they are
wired. Please use the wiring diagrams below to help choose the proper
wiring configuration for your system.
Single Coil Subwoofers
1 woofer = 4
ohm load
-
+
-
+
4Ω
Dual Coil Subwoofers
2 woofers wired in
parallel = 2 ohm load
-
+
4Ω
-
+
-
+
2Ω
2 woofers wired in
series = 8 ohm load
-
+
4Ω
-
+
4Ω
-
+
8Ω
4 woofers wired in
parallel = 1 ohm load
-
+
4Ω
-
+
4Ω
-
+
1Ω
-
+
4Ω
-
+
4Ω
Mobile Entertainment
Introduction
Thank you for choosing an EXONIC subwoofer. All
EXONIC products are designed and manufactured to
meet the highest possible standards in order to give
you many years of musical enjoyment.
This manual is intended to provide the necessary
information needed to properly incorporate your new
EXONIC subwoofer into any mobile audio system.
This series consists of four different models in the
manual. It is necessary to pay close attention to your
specific woofer when deciding on a particular
enclosure. Failure to use the specified enclosure will
result in lower power handling and poor sound quality.
Please take time to carefully read the Owners manual;
it is the key to musical success.
8 1
®
®
Mobile Entertainment
Subwoofer Subwoofer
Subwoofer Specifications
Specifications EXW 100 EXW 120
Diameter (in.)
Cone Material
Basket
Surround
Voice Coil Dia.
Magnet Weight (oz.)
Mounting Diameter (in.)
Mounting Depth (in.)
Diameter (in.)
Cone Material
Basket
Surround
Voice Coil Dia.
Magnet Weight (oz.)
Mounting Diameter (in.)
Mounting Depth (in.)
10"
Non-pressed Kraft Pulp
Stamped Steel
NBR
2" Dual Voice Coil
40
9.14
4.95
12"
Non-pressed Kraft Pulp
Stamped Steel
NBR
2" Dual Voice Coil
55
10.90
5.35
EXW 101 EXW 121
10"
Non-pressed Kraft Pulp
Stamped Steel
NBR
2" Single Voice Coil
40
9.14
4.95
12"
Non-pressed Kraft Pulp
Stamped Steel
NBR
2" Single Voice Coil
55
10.90
5.35
Mobile Entertainment
**All of the specified enclosures can be categorized as Optimum or
Recommended sizes. However, the performance of these enclosures may
vary due to vehicle type and amplifier power. In addition, property designed
and built enclosures are necessary for exceptional speaker performance. Your
local authorized dealer or EXONIC technical support person can assist you
with any questions you may have.
2 7
®
®
Mobile Entertainment
Subwoofer Subwoofer
Recommended Enclosures
Please note that all enclosure volumes include displacement for
speaker and port. Do not add to these measurements. Sealed
and ported enclosures, as well as the sealed chamber (Vb1) on
all bandpass enclosures should be lined on 3 walls with 1.75" to
2.5" thick Dacron or Polyfill material. The ported (Vb2) chamber
on all bandpass enclosures can be line on 1 or 2 walls. Do not
restrict any port area with filler.
EXONIC EXW Series Subwoofers
Sealed Vented Bandpass
EXW 100
EXW 120
EXW 101
EXW 121
cu. ft Vb1
cu. ft Vb2
Port (qty) D x L
Fb=Tuning Freq.
cu. ft Vb1
cu. ft Vb2
Port (qty) D x L
Fb=Tuning Freq.
cu. ft Vb1
cu. ft Vb2
Port (qty) D x L
Fb=Tuning Freq.
cu. ft Vb1
cu. ft Vb2
Port (qty) D x L
Fb=Tuning Freq.
0.75
1.25
Sealed Vented Bandpass
0.71
0.95
1.65
(1) 3" x 10"
32Hz
2.25
(1) 4" x 12"
35Hz
1.85
(1) 3" x 14"
33Hz
2.25
(1) 4" x 14"
33Hz
Sealed 0.9
Ported 1.20
(1) 4" x 8.5"
57Hz
Sealed 1.25
Ported 1.5
(2) 4" x 6"
55Hz
Sealed 0.45
Ported 0.75
(1) 4" x 12"
55Hz
Sealed 1.25
Ported 1.5
(2) 4" x 10"
54Hz
Mobile Entertainment
Subwoofer Parameters
Specifications EXW 100 EXW 120
Fs (Hz)
BW (Hz)
Qms
Qes
Qts
Zmax (ohms)
Vas (Cu.ft)
Xmax (mm)
Pwr (RMS)
Pwr (Max)
Sens. dB 1w/1m
Displacement (ft
Impedance
Fs (Hz)
BW (Hz)
Qms
Qes
Qts
Zmax (ohms)
Vas (Cu.ft)
Xmax (mm)
Pwr (RMS)
Pwr (Max)
Sens. dB 1w/1m
Displacement (ft
Impedance
30.303
14.01
6.979
0.678
0.618
69.927
1.38
7
200
400
3
)
84.259
.06
Dual 4 ohm
EXW 101 EXW 121
32.2
10.696
9.647
0.645
0.604
34.642
1.24
7
200
400
3
)
83.906
.06
Single 4 ohm
27.332
13.07
5.338
0.646
0.576
83.539
3.1
7
250
500
86.634
.09
Dual 4 ohm
25.4
13.176
8.54
0.426
0.406
44.444
4.49
7
250
500
87.474
.09
Single 4 ohm
6 3
®
®
Mobile Entertainment
Subwoofer Subwoofer
Enclosure Types
The three most common enclosures used in the mobile audio environments
are: sealed, vented(ported), or banpass. Each one of these enclosures have
certain characteristics that may or may not suit your needs. In order to choose
the correct enclosure for your system, it will be necessary to answer a few
questions.
One of the most important questions is space. How much area do you have to
work with? Second, you need to know how much power your amplifier can
produce continuously. Next, Decide what kind of bass do you wan: tight,
boomy, punchy, high sound quality, or extreme sound pressure (SPL). Finally,
decide who is going to build your box and should you decide to do the work
yourself, choose a box that is not too difficult for your skill level.
When building your enclosure or if you have a professional build it, make sure
the correct materials are used. EXONIC recommends the use of MDF, also
known as Medium Density Fiberboard as the primary construction material, a
high grade wood glue, premium pure silicone for sealing seams, solid wood
braces for large or high pressure enclosures, high quality fasteners for
assembly (pre-drilled and screwed for high pressure application or heavy
gauge nailer brads for less demanding enclosures, high quality speaker
terminals, box filler when applicable, and always make sure that the mounting
area is flat and the woofer hole is the proper diameter.
The easiest type of box to build is a “Sealed Enclosure”. Sealed enclosures
offer a smaller air space, good power handling at all frequencies, linear
response, and they tend to have exceptional good sound quality.
Mobile Entertainment
When building a sealed enclosure, make sure that all of the seams are air tight
by using a high-grade silicon. Sealed enclosures are generally categorized for
tight or high sound quality applications. If the box volume is increased, the
bass will become deeper and will have a flatter response. If you want to
generate more SPL, simply make the box smaller then recommended but keep
in mind the overall response will be inferior.
Vented (ported) enclosures are a little trickier to design and build then sealed
enclosures, but they can offer several advantages as well. The use of vented
enclosures require 50-150% more space; therefore you have to first determine
whether or not you are willing to give up the room in your vehicle or if you have
enough room at all. The reasons why vented enclosures are harder to deigns
is because they are dependant upon a tuning port. If the port side is too small
or too large, the output will be very limited and there is a strong possibility that
you will damage your woofer in the long run. If the port is properly done, there
can be significant increase in output versus other types of enclosures. Other
benefits include excellent deep bass response, lower power requirements
(more efficient), and extreme SPL. Use vented enclosure for extended deep
bass or strong punch.
The most difficult enclosure to design and build is known as a bandpass box.
Described by its name, a bandpass box controls both low and high
frequencies. These enclosures are very unique because they allow the
designer to control efficiency. Usually, however, bandpass boxes require the
most amount of space and cost the most to build. There are many variation to
the bandpass enclosures, therefore, it is usualy a good idea to consult your
Authorized Dealer or call EXONIC for design ideas. However, we have
included a dual chamber, single woofer design for those who would like to
attempt a bandpass box design.
4 5
