Page 1

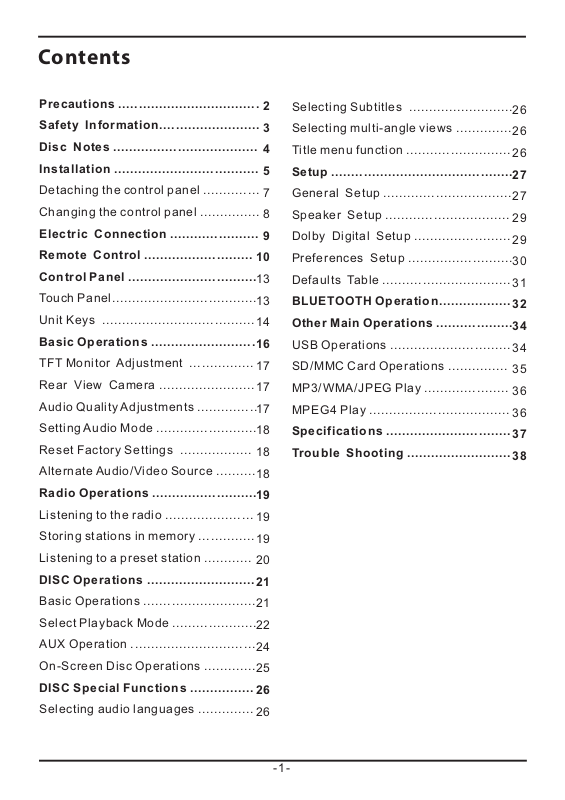

Contents

Precautions ...................................

Safety Information.........................

Disc Notes ....................................

Installation ....................................

Detaching the control panel ..............

Changing the control panel ...............

Electric Connection ......................

Remote Control ...........................

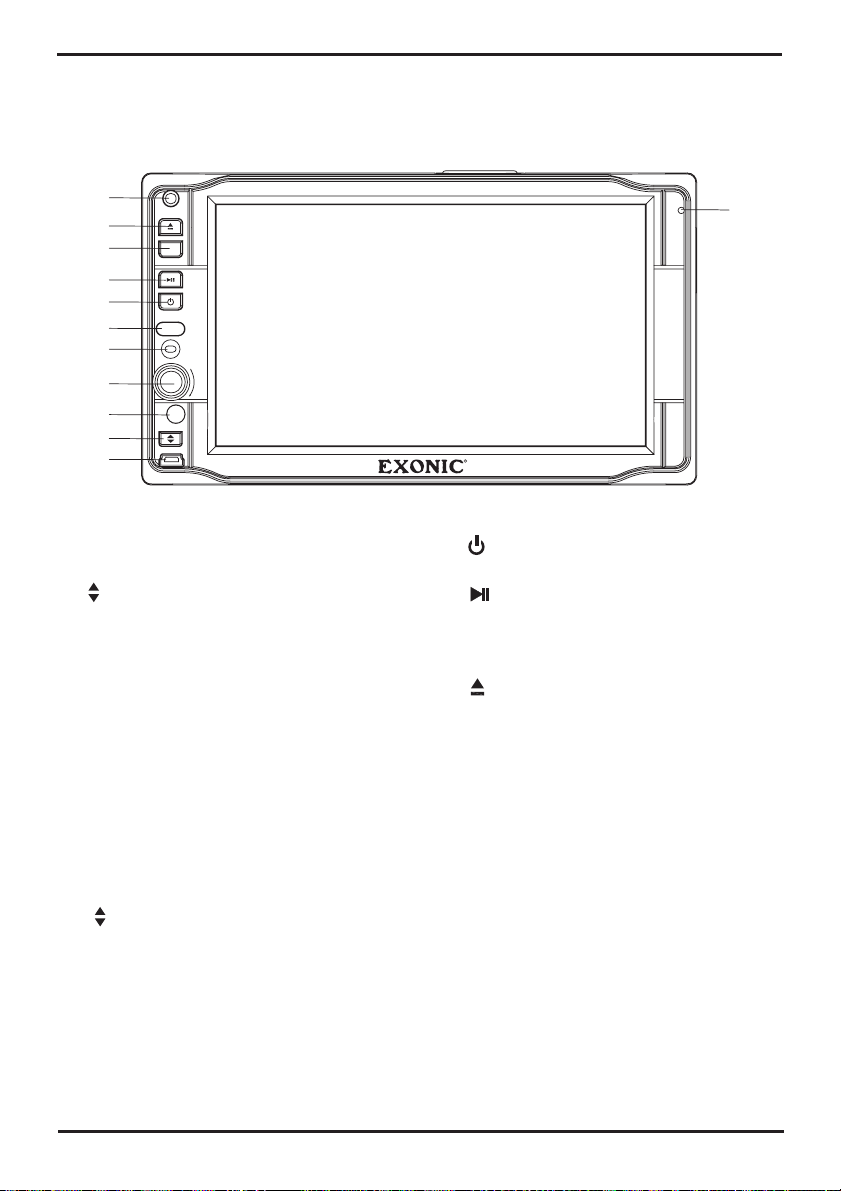

Control Panel ................................

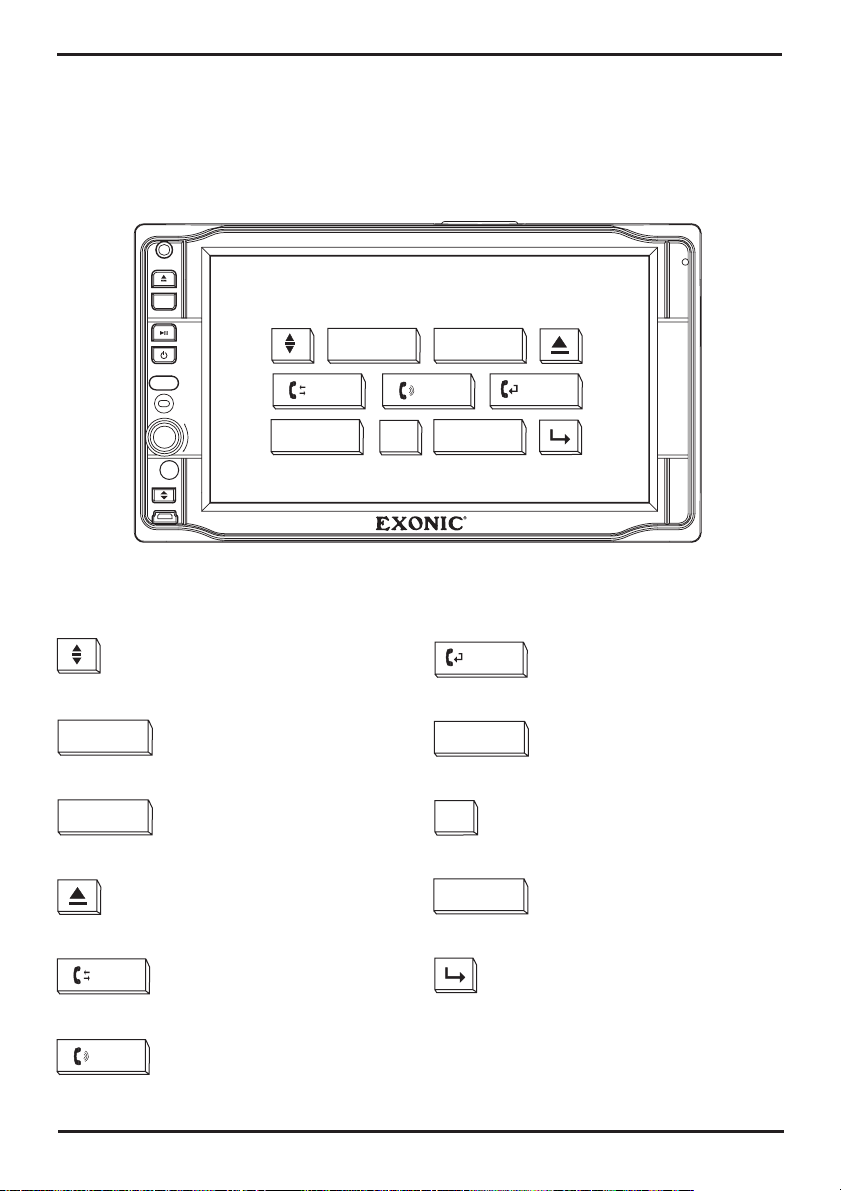

Touch Panel

Unit Keys ......................................

Basic Operations

TFT Monitor

Rear View Camera

Audio Quality Adjustments

Setting Audio Mode .........................

Reset Factory Settings

Alternate Audio/Video Source ..........

Radio Operations ..........................

Listening to the radio ......................

Storing stations in memory ..............

Listening to a preset station ............

DISC Operations ...........................

Basic Operations ............................

Select Playback Mode .....................

AUX Operation ...............................

On-Screen Disc Operations .............

DISC Special Functions ................

Selecting audio languages ..............

....................................

..........................

Adjustment ................

........................

...............

..................

Selecting Subtitles ..........................

Selecting multi-angle views ..............

Title menu function ..........................

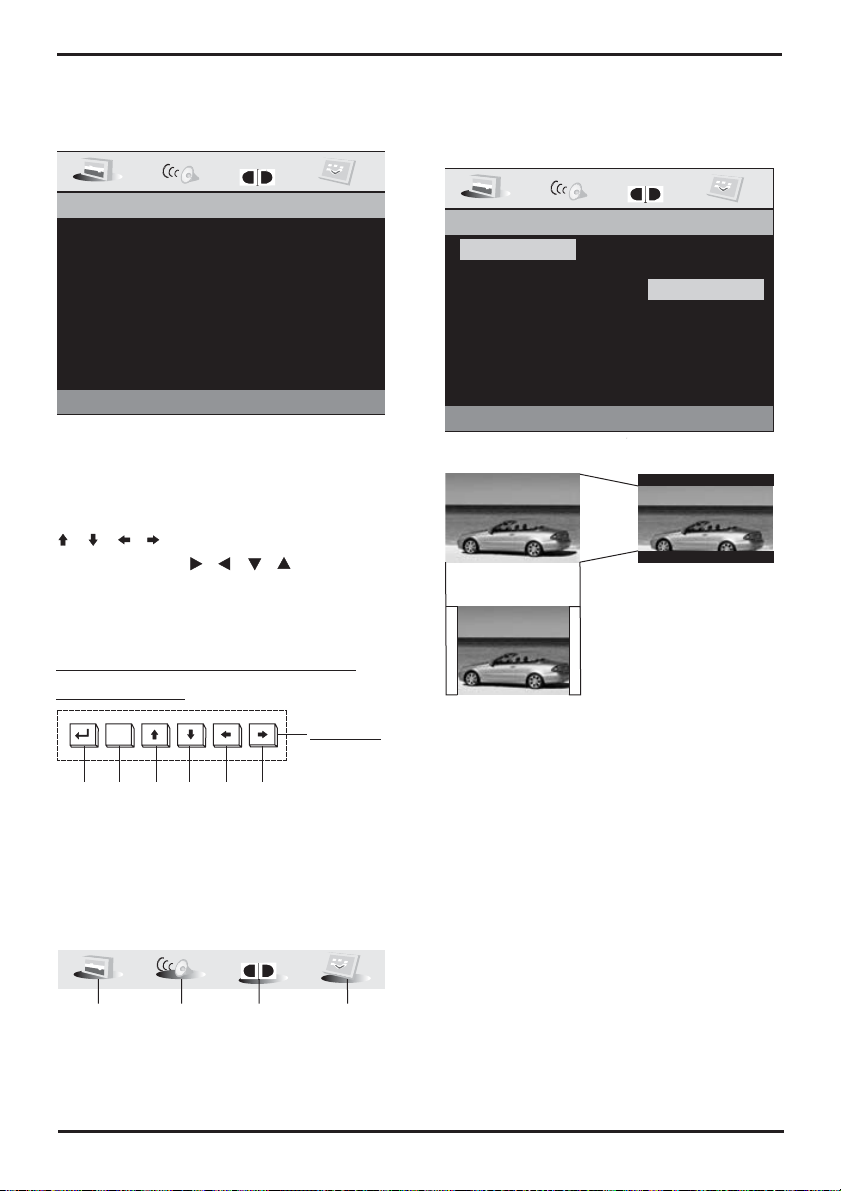

Setup .............................................

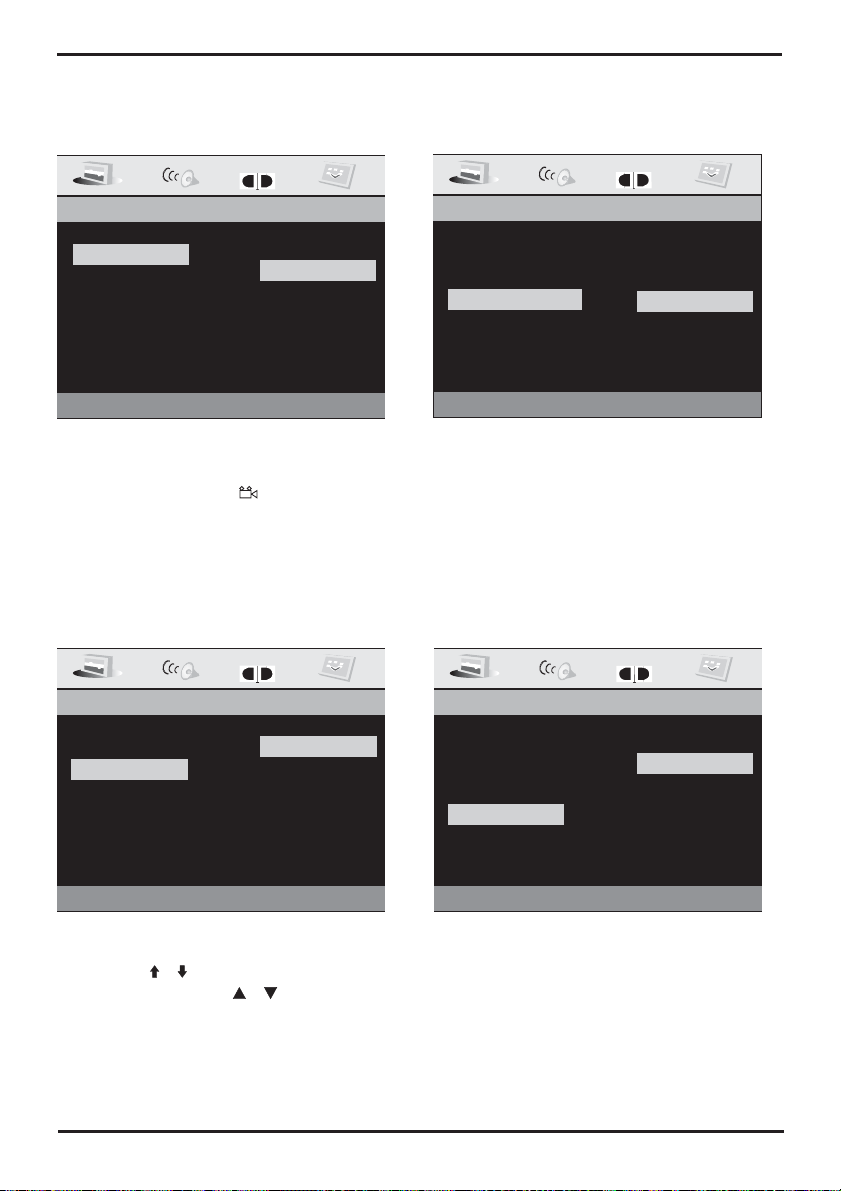

General Setup ................................

Speaker Setup ...............................

Dolby Digital Setup ........................

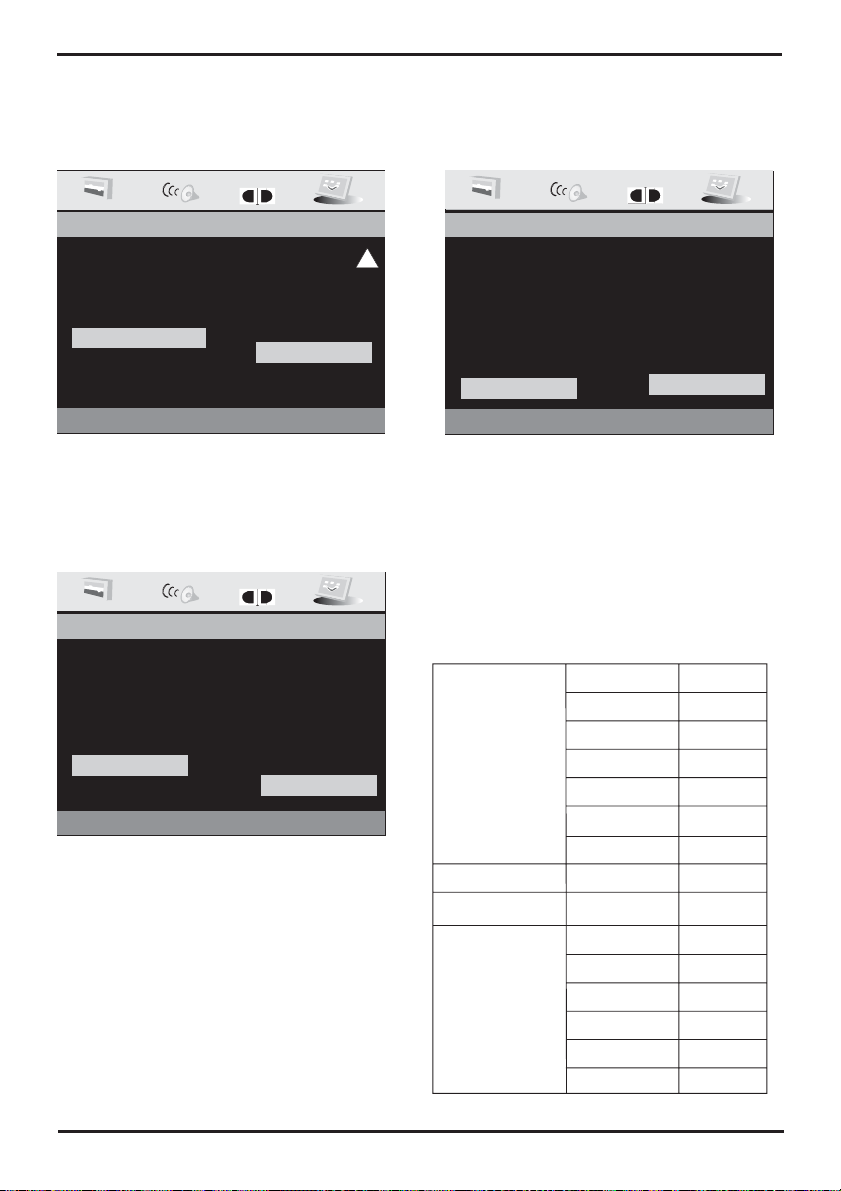

Preferences Setup ..........................

Defaults Table ................................

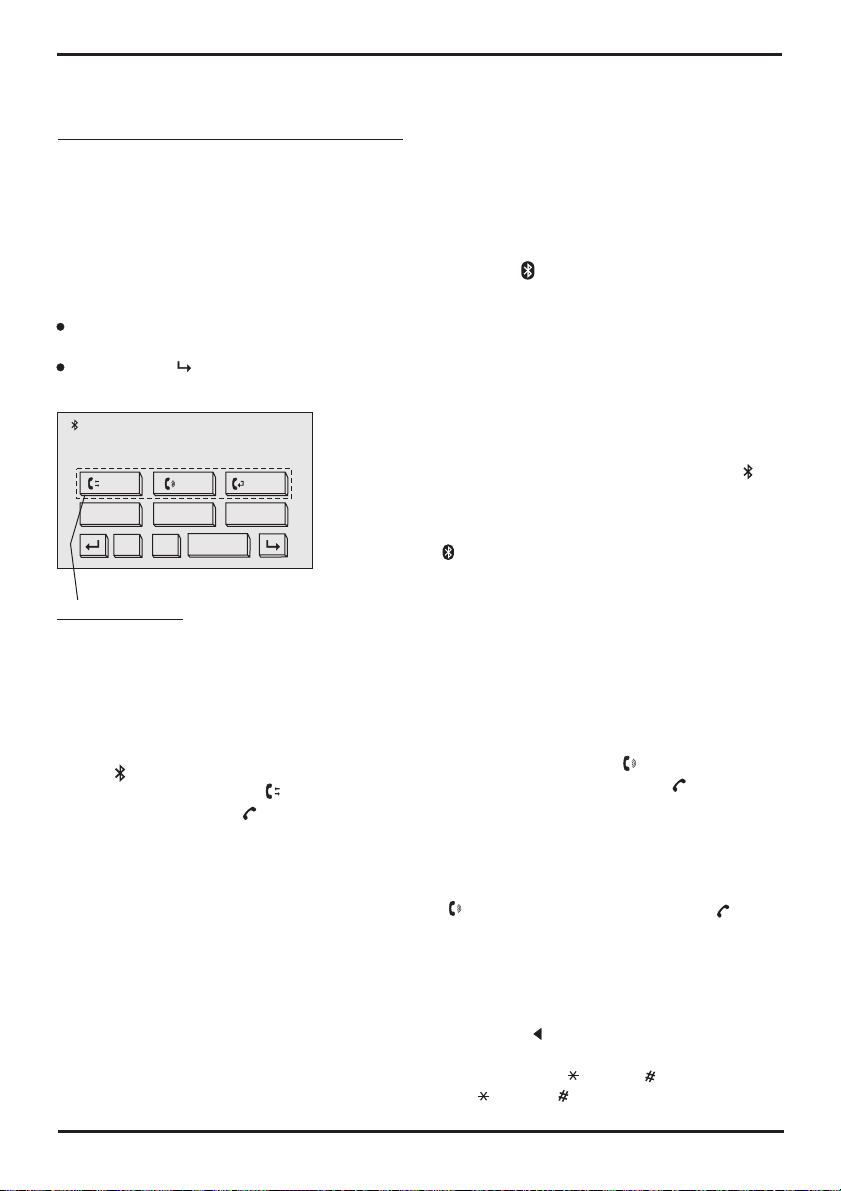

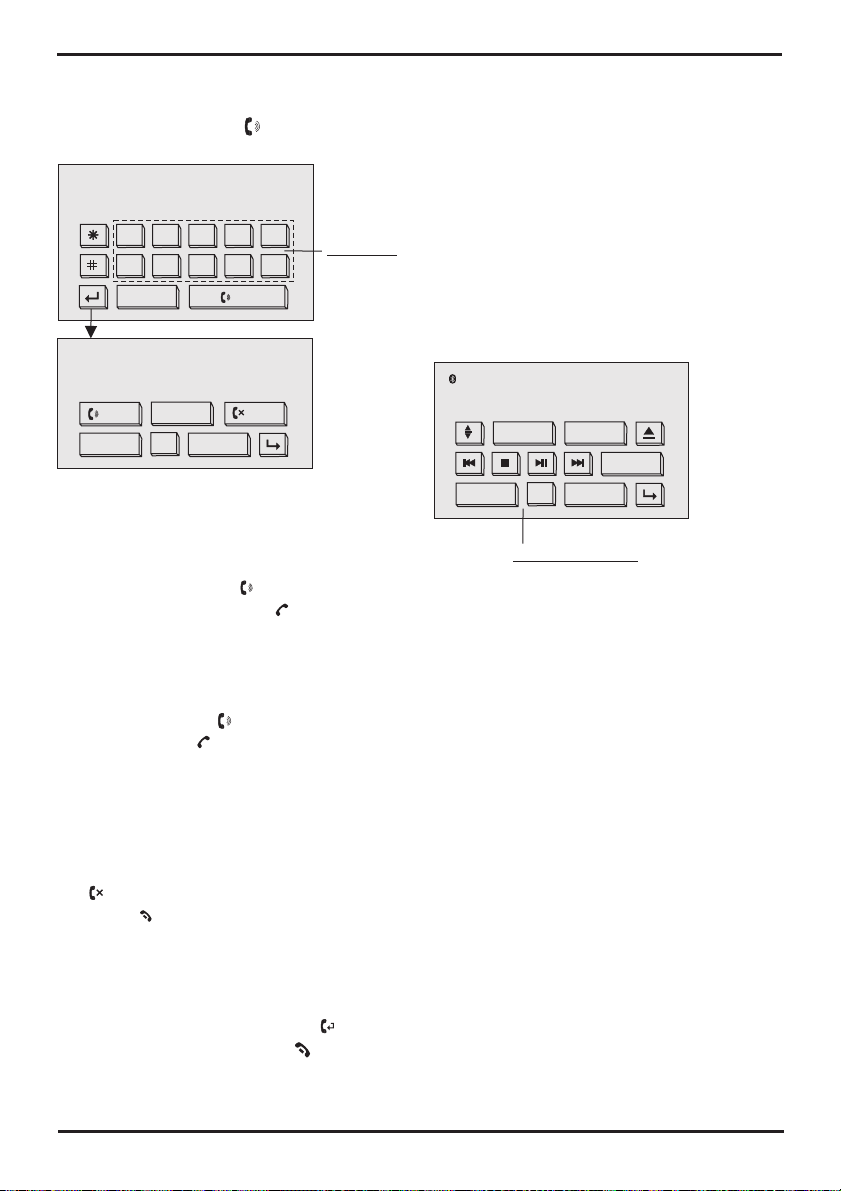

BLUETOOTH Operation..................

Other Main Operations ...................

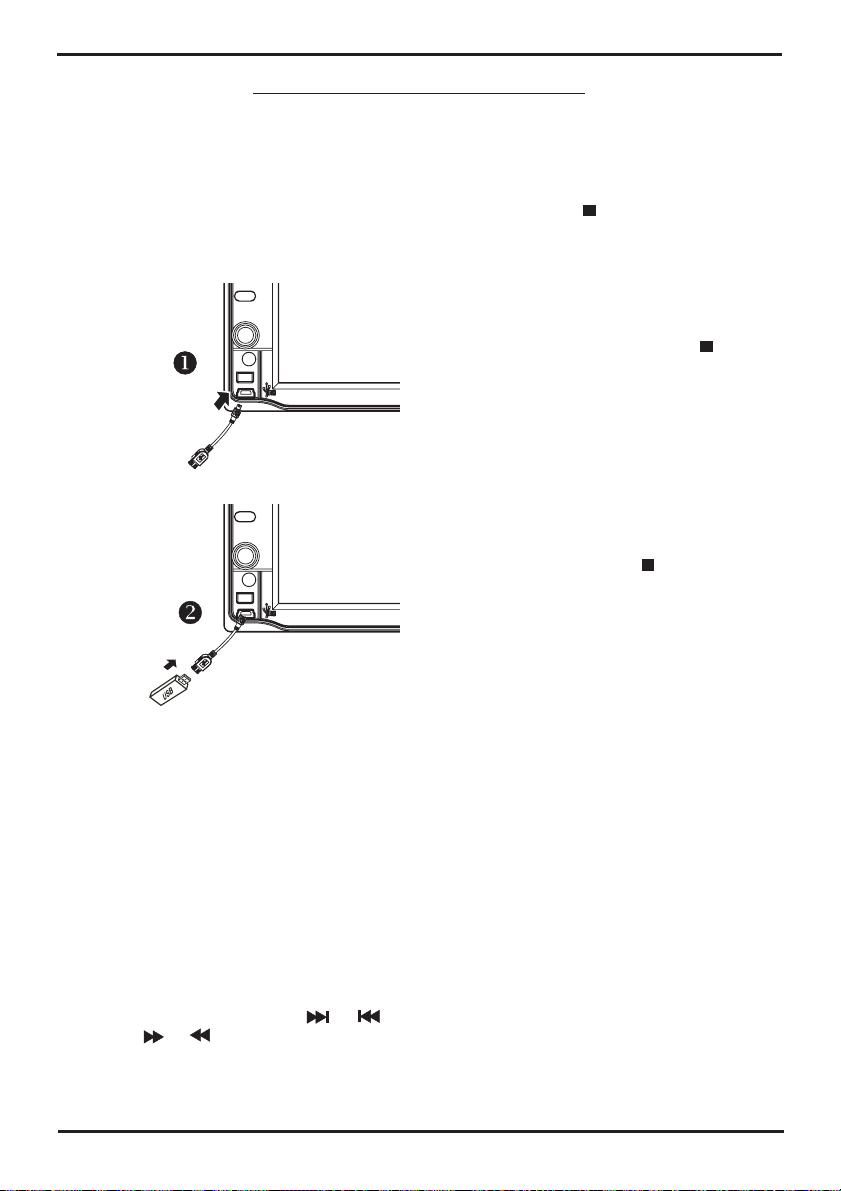

USB Operations ..............................

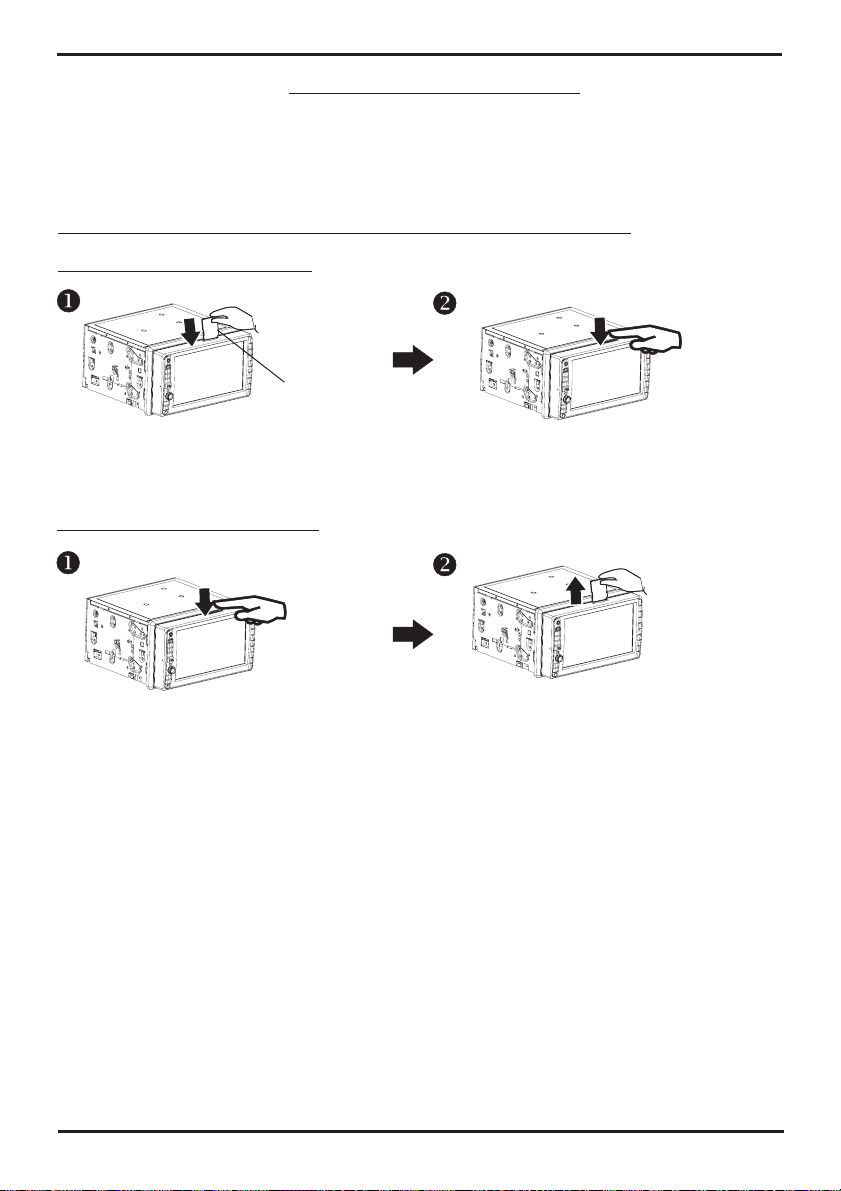

SD/MMC Card Operations ...............

MP3/WMA/JPEG Play .....................

MPEG4 Play ...................................

Specifications ...............................

Trouble Shooting ..........................

-1-

Page 2

Precautions

THANK YOU FOR PURCHASING THIS CAR DVD PLAYER .

Before operating the unit, read this manual thoroughly and keep it handy for future reference . To avoid injury or accident , read the following precautions before installing and operating the unit .

ON INSTALLATION

DO NOT install any receiver in locations where;

- it may obstruct the steering wheel and gearshift lever operations, as this may result in a traffic accident.

- it may obstruct the operation of safety devices such as air bags, as this may result in a fatal accident.

- it may obstruct visibility.

DO NOT operate any receiver while manipulating the steering wheel, as

this may result in a traffic accident.

The driver must not watch the monitor while driving. IF THE DRIVER watches the monitor while driving, it may lead to

carelessness and cause an accident.

IF YOU NEED to operate the receive while driving, be sure to look ahead

carefully or you may be involved in a traffic accident.

IF THE PARKING BRAKE is not engaged.“ ParkingBrake” flashes on the

monitor, and no playback picture will be shown.

- This warning appears only when the parking brake wire is connected to

the parking brake system built in the car ( refer to the electric connection)

ABOUT THE LIQUID CRYSTAL DISPLAY (LCD) PANEL

Do not press on the LCD panel on the unit as doing so can distort the picture or cause a malfunction . The picture may become unclear , or the LCD panel may be damaged .

NOTES ON CLEANING

-Clean the LCD panel with a slightly damp soft cloth.

-Do not use solvents such as benzine, thinner, commercially available

cleaners or antistatic spray .

-Do not use alcohol to clean the screen . If your car was parked in a cold or hot place, the picture may not be clear . The monitor is not damaged . The picture will become clear the temperature in your car becomes normal .

-2-

Page 3

Safety Information

CAUTION:

THIS DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS DVD PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE . HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE DVD PLAYER CORRECTLYAS INSTRUCTED.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.

THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.

This product incorporates copyright protection technology that is protected

by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.Use of this copyright protection technology must be authorized by Macro vision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

REGION MANAGEMENT INFORMATION:

This DVD Player is designed and manufactured to respond to the Region Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this DVD Player, this DVD Player cannot play this disc.

-3-

Page 4

Disc Notes

Disc formats supported by this player

DVD

VCD

MP3

Audio and Video Discsize12cm

Audio Discsize12cm

Discs which cannot be played with this player

DVD-RAM CDV CDG

Handling and Cleaning

Dirt, dust, scratches and warping disc

will cause misoperation. Do not place stickers or make scratches on discs. Do not warp discs.

A disc should always be kept in its case when not in use to prevent from damaging. Do not place discs in the following places:

1.Direct sunlight

2.Dirty, dusty and damp areas

3.Near car heaters

4.On the seats or dashboard

Disc Cleaning

Use a dry soft cloth to wipe the surface. If the disc is quite dirty, use a soft cloth slightly moistured with isopropyl (rubbing) alcohol. Never use solvents such as benzine, thinner or conventional record cleaners as they may mar the surface of the disc.

Note:

A disc may become somewhat scratched (although not enough to make it

unusable) depending on your handle it and conditions in the usage environment. Note these scratches are not an indication of any problem with the player.

Label side up

Do nottouch the underside of thedisc

Do not bend

Wipe the disc from center toward theoutside edge

Preparing New Discs with

Rough

Spots

A new disc may have rough edges on its inside and outside edges. If a disc with rough edges is used, the proper setting will not be performed and the player will not play the disc. Therefore, remove the rough edges in advance by using a ball point pen or pencil as shown on the right. To remove the rough edges, press the s ide of the pen or pencil against the inside and outside edges of the disc.

Rough spots on outside edge

Ball pointpen or pencil

Rough spots on inside edge

-4-

Page 5

Installation

NOTES:

1. Choose the mounting location where the unit will not interfere with the normal driving function of the driver.

2. Before finally installing the unit, connect the wiring temporarily and make sure it is

all connected up properly and the unit and the system work properly.

3. Use only the parts included with the unit to ensure proper installation. The use of

unauthorized parts can cause malfunctions.

4. Consult with your nearest dealer if installation requires the drilling of holes or other

modifications of the vehicle.

5. Install the unit where it does not get in the driver s way and cannot injure the passenger if there is a sudden stop, like an emergency stop.

. Avoid installing the unit where it would be subject to high temperature, such

6 as from direct sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration. 7

. If installation angle exceeds 30 from horizontal, the unit might not give its

optimum

performance.

DIN FRONT/REAR-MOUNT

This unit can be properly installed either from "Front"(conventional DIN Front-mount) or "Rear"(DIN Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details, refer to the following illustrated installation methods.

-5-

Page 6

Installation the unit

DASH BOARD

HEX NUT

SPRING WASHER

PLAIN WASHER

TAPPING SCREW

MOUNTING BOLTS

METAL MOUNTING STRAP

CONSOLE

MOUNTING BRACKET

HEX BOLT

MOUNTING BRACKET

NOTE:

Don`t attempt install the set by yourself, it should be installed by professional installer .

-6-

Page 7

Installation

How To Remove And Install The Front Panel

When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder.

Detaching The Front Panel

Before detaching the control panel, be sure to turn off the power.

1). Press the release button and the left hand side of front panel will release.“REL”

RELEASE BUTTON

2). Pull-off the front panel and keep the front panel into the case .

PROTECTIVE CASE

Attaching The Front Panel

1). First insert the right hand side of the front panel into the hollow of the unit . (NOTE : the “bulge” point on the panel must be attached into the hollow of the unit .)

2). Gently push the left hand side of the front panel until you feel a “ Click” .

Hollow

Bulge

-7-

Page 8

Panel Angle Adjustment

CHANGING THE CONTROL PANEL ANGLE

When you want to change the viewing angle of the operating unit to play, you can touch the section on touch screen (or press the button on the front panel) repeatedly to select the desired angle as follows:

ANGLE1-ANGLE2-ANGLE3-ANGEL4-ANGLE 1 .

ANGLE 1 ANGLE 2

ANGLE 3ANGLE 4

Caution:

Do not insert your finger behind the control panel.

-8-

Page 9

Electric Connection

AUDIO OUTPUT(L-CH/WHITE)

AUDIO OUTPUT(R-CH/RED)

SUBWOOFER OUTPUT(GREY)

VIDEO OUTPUT2 (YELLOW)

COAXIAL OUTPUT ( BROWN)

RADIO ANTENNAJACK

IGNITION SWITCH(B+)

MEMORY BACK-UP(B+)

GROUND(B-)

AUTO ANTENNA

RED

YELLOW

BLACK

BLUE

REAR AUX OUTPUT

AUX OUTPUT

CHOKE BOX

FUSE

AUX INPUT

FRONT AUX OUTPUT

BROWN

ORANGE

AUDIO INPUT (R-CH/RED)

VIDEO INPUT (YELLOW)

AUDIO INPUT (L-CH/WHITE)

AUDIO OUTPUT (R-CH/RED)

VIDEO OUTPUT 1 (YELLOW)

AUDIO OUTPUT (L-CH/WHITE)

REARVIEW CAMERA TRIGGER WIRE(B+)

EMERGENCY BRAKE SAFTY WIRE (B-)

REARVIEW CAMERA INPUT

FRONT

Lch SPK.

REAR

Lch SPK.

WHITE

WHITE/BLACK

GREEN

GREEN/BLACK

GREY

GREY/BLACK

VIOLET

VIOLET/BLACK

FRONT

Rch SPK.

REAR

Rch SPK.

Note:

In order to use the DVD player function, the “ EMERGENCY BRAKE SAFTY WIRE (B-) ” must be connected properly . If not properly connected the unit will display “PARKING BRAKE ” .

-9-

Page 10

Remote Control

Ref #

Button

CLK

PAIR/

STOP

SETUP

MO/ST (AUDIO)

SUBTITLE LOCAL/ DISTANT

Redial/

DVD/RECEIVER CONTROLDVD/RECEIVER CONTROL

MUTE

MODE

REDIAL

PAI R

LO/DX

OSD

BAND

TITLE/PBC

A/PS

VOL

TOP

VOL

RDM

SEL

SETUP

GOTO

PLAY/PAUSE

ANGLE

LOUD

ENTER

RPT

5 6

+10

STOP

MO/ST

CLK

INT

Function

Press it briefly to view the clock time , Press again to return to normal display mode . Press longer to set the time .

Press it to use the Bluetooth function , refer to the page 32 . Press once to pause playback. Press PLAY/PAUSE to resume

playback. Please note: if you press STOP twice, playback will start at the beginning of the disc.

Press this button to open the SETUP menu.

In Radio mode, press this button to change between Mono and Stereo reception modes (when a station is weak, sometimes switching to Mono will improve sound quality). In Disc Playback mode, pressing this button opens the AUDIO setup menu for making changes to the way the soundtrack is reproduced.

In DVD Disc Playback mode, pressing this button will allow you to change the subtitle language on discs which have this as an option. In Radio mode, press this button to change the radio reception sensitivity in stations are near or far.

Press this button to use the Bluetooth function, refer to page 32.

-10-

Page 11

Remote Control

Ref #

Button

GOTO

SEL

VOL+/-

///

Menu SubWoofer

()

BAND (OSD)

/MOD

PLAY/ PAUSE

Function

Press it button to begin playback at a moment in the program you designate. Use number buttons to enter the data that is needed. In Bluetooth menu, it serves as the asterisk button on your mobile handset.

Press these buttons to skip ahead or back one track. (Note: In DVD mode, press continually the twice to skip back one)

Press this button repeatedly to cycle through the various audio and video adjustments you can make: Volume, Bass, Treble, Balance, Fader, Color, Brightness, Contrast and Tint.

Use these controls to adjust the volume level.

Press to navigate the various menus present in the product.

Press this button briefly to display the root level directory of a DVD disc. Press and hold this button to turn on or off the SUBWOOFER output.

In Radio mode, press this button repeatedly to switch between the five radio bands: FM1 > FM2 > FM3 > AM1 >AM2. In Disc Playback modes, Press this button to see information about the disc currently in play.

Press this button to turn the unit ON , press and hold to turn the unit OFF. Press it briefly to select the Disc, Radio ,AUX In , BT Music, mode.

In Disc Playback mode, press to pause playback. Press again to start where playback stopped.

MUTE

TITLE/ PBC(A/P)

ANGLE

EQ/LOUD

Press this button to turn off the audio. Press again to restore the sound to its prior volume level.

When playing a DVD, pressing this button will open the TITLE menu which is recorded on the DVD. When playing a VCD disc, press this button to create a PBC (Playback Control) menu for the disc to assist in making playback selections. In Radio mode, press and hold this button to start the Auto-Program mode, during which the tuner will scan for all strong stations and assign them to the radio preset buttons.

Press this button to adjust the screen viewing angle (see page 8).

For DVD discs which have alternate viewing angles encoded, when you see the "angle mark" symbol advising you that these angles are available, press this button to see them.

Press repeatedly to cycle through the different equalizer curve presets you may wish to use for enhanced listening.

In Disc Playback mode, press for fast forward/reverse playback.

-11-

Page 12

Remote Control

Ref #

Button

ENTER

0-9

+10/

1-6

This button is used to confirm selections and settings within many of the menus in the OSD system.

In DISC mode, press it to reverse rapidly

These buttons are used for numeric entry in many different menus.

This button is used with the other number buttons for use with two-digit number entries. In Bluetooth menu, it serves as the hash button on your mobile handset.

Six numbered preset buttons store and recall stations for each band

Function

Preparing the Remote Control

Inserting the Battery

1.First push to inside as the direction indicated by the arrow (See )And then

Remove the battery holder as the direction indicated by the arrow (See ).

2.Replace the battery Set a new battery property with (+)side up as illustrated

(See ).

3.Insert the battery holder. Push in the holder to the original position(See ).

Using the Remote Control

Face the remote control towards the player front face IR mark (remote control signal

receiver).

Operation angle: About 30 degree in each the direction of the front of the IR mark.

Note :

The lithium cell in the battery compartment of remote control has been secured for

transport with a foil . Before initial use please remove this foil so that the remote

control is ready for operation .

-12-

Page 13

Control Panel

Touch Panel

AUX IN

SEL

CH1-6

MOD

REL

MIC

VOL-

VOL+

Touch Screen Key :

Changing the viewing angle of the operating unit

MODE

MUTE ON

Operating mode selection

To switch of the sound

MODE MUTE ON

PAIR

SEL

DIAL

VOLUME+VOLUME-

REDIAL

VOLUME-

SEL

RET

REDIAL

Redialling

Decrease the volume level

Select the menu of the Picture/Sound

PAIR

DIAL

Loading and ejecting the DVD/CD

Registering devices with one another

Calling up the Bluetooth menu

-13-

VOLUME+

Increase the volume level

Next menu

Page 14

Control Panel

Unit Keys :

AUX IN

8 7 6 5

SEL

CH1-6

MOD

REL

MIC

VOL-

VOL+

1 USB CONNECTION

2 (ANGLE)

3IR

4 VOL+/VOL-

5 MIC (MICROPHONE)

7 (POWER)/MODE

8 /CH 1-6

9SEL

10 (EJECT)

11 AUX JACK

RET

6REL

12 RESET

1 USB CONNECTION

For information about connecting a USB device, please see page 34.

2 ANGLE (Screen position)

Press this button repeatedly to cycle through the different positions.

3 IR sensor

4 VOL+/VOL- KNOB

In normal mode, this knob is used to increase or decrease the volume. It is also used as an UP/DOWN knob when audio or video settings are being adjusted when accessed using the SELECT button.

-14-

Page 15

Control Panel

5 MIC (MICROPHONE)

6 REL BUTTON

Press this button to release the front panel for removal . Refer to see page 7.

7 (POWER On/Off )/MODEBUTTON

Press this button to switch the device on. WELCOME appears in the display. Press it again to switch the device off. SEE YOU appears in the display. In playback mode, you can use the button to select the input mode by pressing repeatedly until the proper one is found :

DISC > AUX IN >RADIO > BLUETOOTH MP3 .

8 /CH 1-6 BUTTON(RADIO PRESET)

In Disc Playback Mode

Press this button to pause playback, press it again to resume playback.

In Radio Mode

you can store 30 stations in memory: 18 FM stations and 12 AM(MW) stations, each band stores up to six preset stations .

-Store in Memory

Select the frequency band > Press repeatedly this button to select the desired memory key . > Select the station > Press longer the button until the station is heard again after a brief interruption .

-Retrieve a preset station

press this button repeatedly to retrieve a station which had been stored in the memory in advance the chose number is shown on display .

9 SELECT BUTTON

To access the available adjustment settings for audio and video, press this

button repeatedly to cycle through and select them:

Buzzer Volume Bass Treble Balance Fader

Tint Contrast Bright Color Bluetooth

10 (EJECT)BUTTON

Press it button to eject the DISC or insert the DISC to start play .

11 AUX JACK

For information about connecting a AUX device, please see page 24.

12 RESET BUTTON

Press this button to return to factory settings .

-15-

Page 16

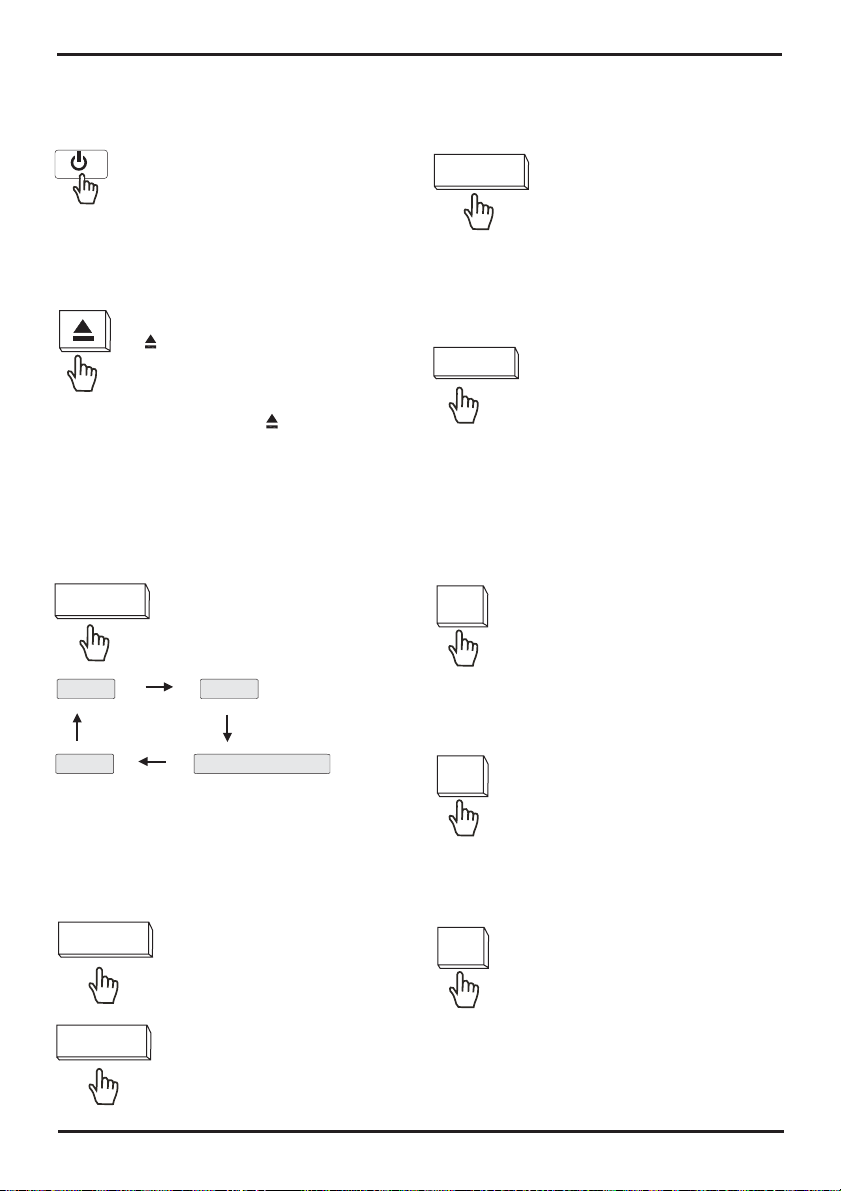

Basic Operation

POWER On/Off

Press it to switch the device ON, press and hold about 2 seconds to switch the device OFF.

Ejecting The Disc

Use your finger to touch the

range on touch screen ,

the control panel of the unit

you can insert the disc or eject the disc . (You can also press the button on the front panel to eject the disc or insert the disctostartplay.)

will swing downwards . Then

Select Sources

Touch the MOD

MODE

DISC

repeatedly section on the screen, the signals will display in the screen as follow :

AUX IN

Mute Function

MUTE ON

Touch “MUTE ON” range, it will mute the sound but the disc continues playing . Touch it again to resume .

Setting The Clock

CLOCK

VOL+/- to adjust .Touch it again, the minute will flash, then use the VOL+/to adjust .

Touch briefly the range to show/hide the clock . Touch hold for more than 2’s the hour will flash , the

“CLOCK”

use

Setting The Buzzer ON/OFF

SEL

Repeatedly touch range to select the item, and theusetheVOL+/-toswitchthe

BUZZER ON/OFF

“SEL”

BUZZER

RADIO

BLUETOOTH MP3

Volume Adjusting

Touch screen

VOLUME-

VOLUME+

Touch the screen the VOLUME- to decrease the volume level .

Touch the screen the VOLUME+ to increase the volume level .

Setting Blue-tooth ON/OFF

SEL

Repeatedly touch range to select the item, and theusetheVOL+/-toswitchthe

Bluetooth ON/OFF

“SEL”

Bluetooth

Setting the Background Color

SEL

ground color among of the

AUTO, wallpaper: 01...... wallpaper: 11”,

in the mode, the monitor of unit will change the background color automatically .

-16-

In radio mode, repeatedly touch

“ SEL ”

the range to select the

“wallpaper”

the VOL+/- to select the back-

“AU TO”

item, and then use

“wallpaper

Page 17

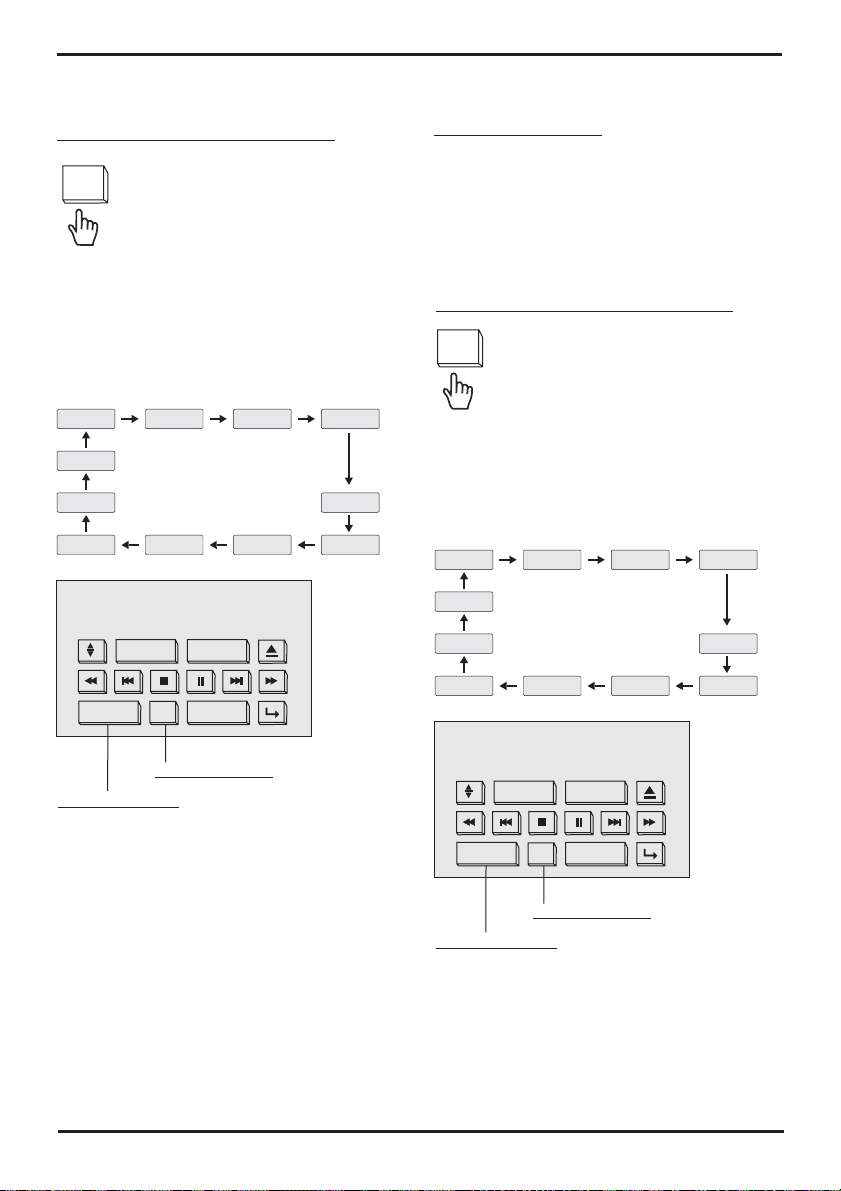

Basic Operation

TFT Monitor Adjustment

During DISC playback, use your

SEL

finger to touch briefly the SEL section on the screen (or press SEL button on front panel to access the Picture

selection menu, by repeatedly touch the SEL section, and then touch the VOL+/(or rotate the VOL+/-) to adjust the selected mode . (The corresponding value will show on the monitor )

Volume Bass Treble Balance

Bluetooth

Contrast Bright ColorTint

BRIGHT 16

MODE

SEL

MUTE ON

VOLUME+VOLUME-

)

mode

FadeBuzzer

Rear View Camera

When connecting the rear view camera. the mirror image of the rear view through the rear view camera is automatically displayed on the monitor when you change the gear to the back position. (The monitor on the unit only.)

Audio Quality Adjustment

During DISC playback, use your

SEL

finger to touch briefly the SEL section on the screen (or press SEL button on the front panel )

to access the Sound mode selection menu, by repeatedly touch the SEL section, and then touch the vol+/(or rotate the vol+/-) to adjust the selected mode . (The corresponding value will show on the monitor )

Volume Bass Treble Balance

Bluetooth

FadeBuzzer

Contrast Bright ColorTint

touch to select

touch to adjust

ADJUSTABLE ITEMS:

COLOR: 0 to 32 Adjust the color for the picture-lighter or darker. BRIGHT:0to32 Adjust if the picture is too bright or too dark. CONTRAST: 0 to 32 Adjust the contrast of the bright and dark portion. TINT:0to32 Adjust the tint if the human skin color is unnatural.

-Adjustable when NTSC is selected for ““

NTSC/PAL .

““

BASS +02

MODE

SEL

MUTE ON

VOLUME+VOLUME-

touch to select

touch to adjust

ADJUSTABLE ITEMS: Volume:

0to32

Adjust volume level by using VOL +/-.

-14to+14

Bass:

Adjust bass level by using VOL +/-.

Treble:

-14to+14

Adjust treble level by using VOL +/-.

-17-

Page 18

Basic Operation

Balance:

R0-10toL0-10. Adjust sound balance between left and right speakers by using VOL + / -

Fader:

F0 10toR0-10.

Adjust sound balance between front and rear speakers by using VOL + / VOL - .

Setting Audio Modes

Touch the screen the DSP range

DSP

(or press the EQ/LOUD button on the remote ) to select one of the preset sound modes .

(Rock/Pop/Jazz/Classic/Flat).

The information will display in the monitor as follow :

POP

FLAT

PAIR

AUDIO ZOOMSUBTITLE

OSD

ROCK

12: 16

POP

DIAL

DSP

JAZZ

CLASSIC

DISC-IN

REDIAL

TITLE

TheRESETbutton istobeactivatedfor the following reasons: A. Initial installation of the unit when all wiring is completed. B. All the function buttons do not operate. C. Error symbol on the display.

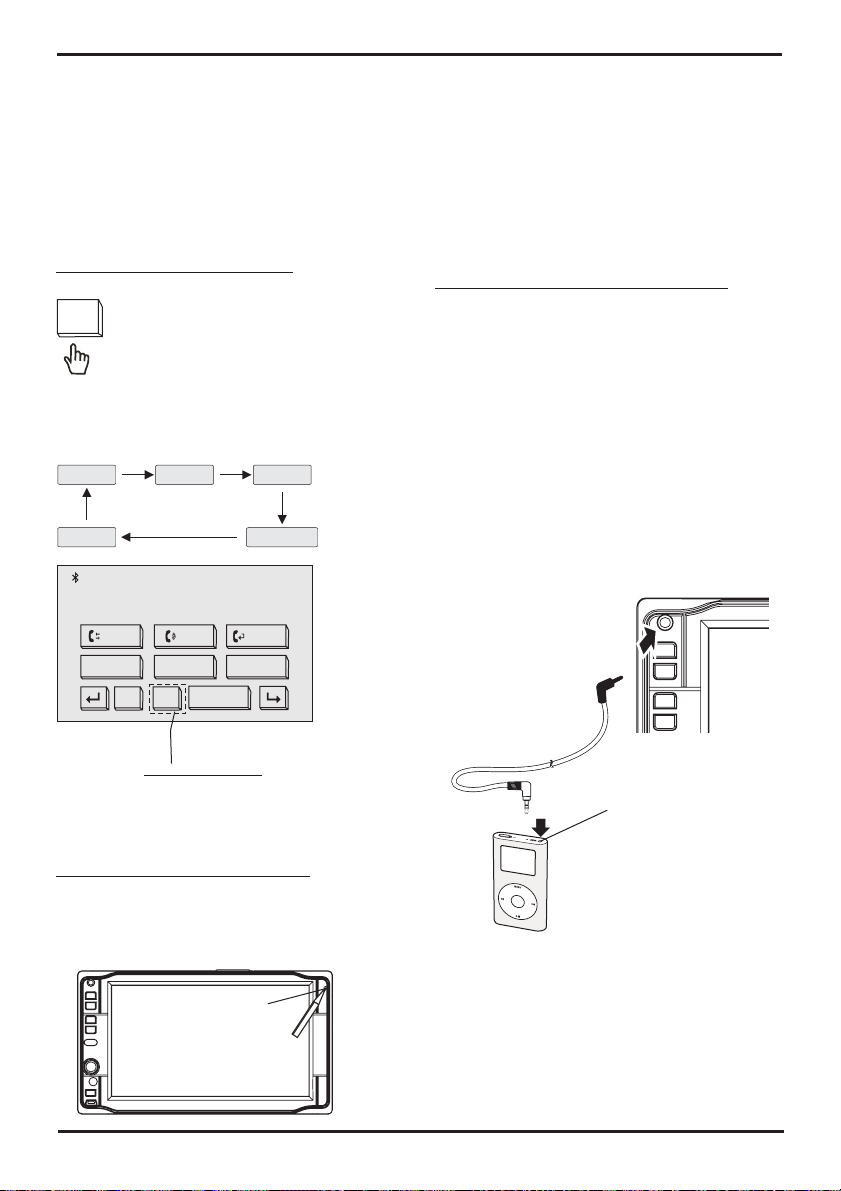

ALTERNATE AUDIO/VIDEO SOURCE

On the front panel of the unit , there is an AUX IN jack, to connect analogue replay devices. Use this jack to replay sound of other replay equipment such as DVD players, computers, etc. Via the loudspeakers.

1). Please f

ollowing the diagram below, connect the external device with stereo jack plug the AUX IN socket .

2). Press the MOD button to select the AUX IN connection.

3). Use the buttons on the external device itself to operate it .

AUXIN

AUX IN

touch to select

It`s depend on your habit to select the Audio mode .

Reset Factory Settings

RESET button is placed on the housing and must be activated with either a ballpoint pen or thin metal object.

RET

RESET

Headphones port

-18-

Page 19

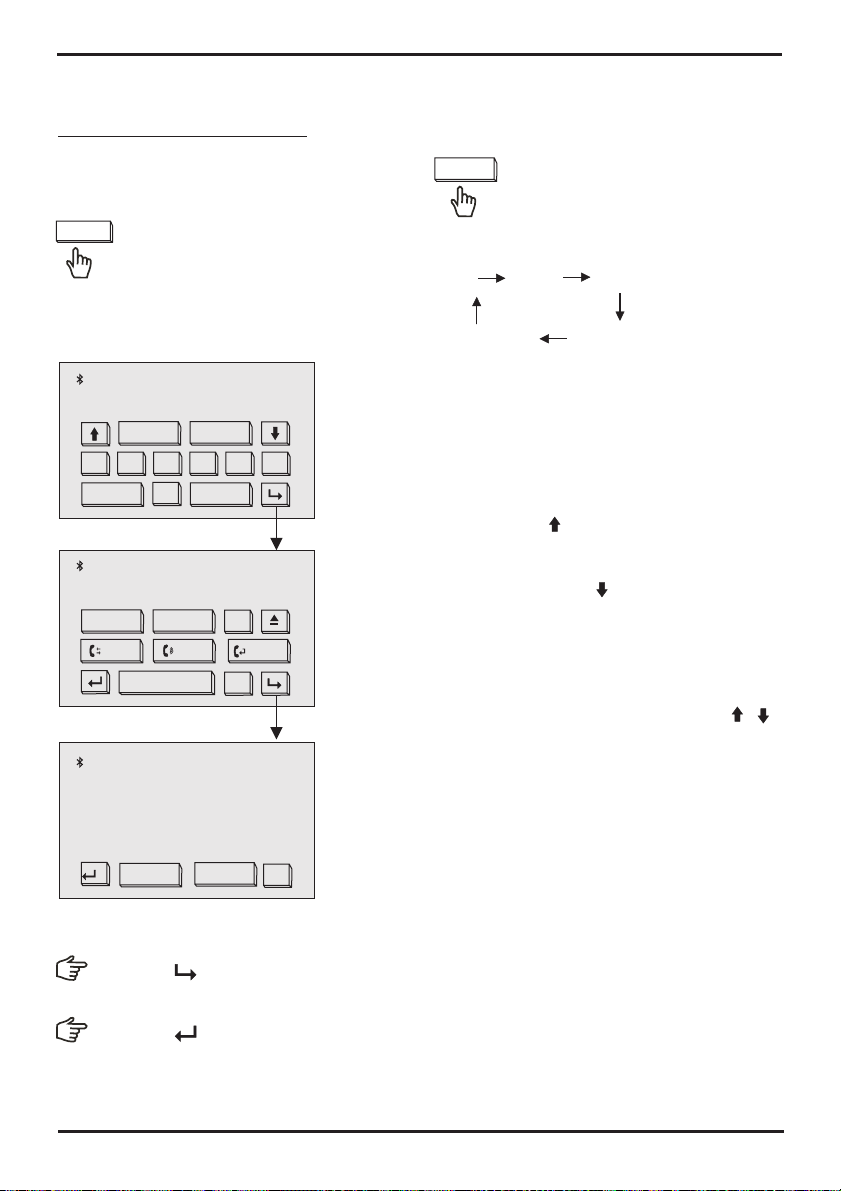

Radio Operation

Listening to the Radio

SwitchingTo Radio Mode

Touch the screen of

MODE

range (or press the MOD button on the front panel ) repeatedly to

select the RADIO mode. the following information will appears as below:

FLAT

FM1 87.60

123456

FLAT

FM1 87.60

BND

PAIR

FLAT

FM1 87.60

MODE

SEL VOLUME+VOLUME-

S-WOOFER

STEREO/MONO

12:04

DIAL

12:04

NO-DISC

MHZ

MUTE ON

NO-DISC

MHZ

APS

DSP

NO-DISC

MHZ

“MODE”

REDIAL

Selecting The Frequency Band

BND

Touch the screen of

“ BND ”

section repeatedly to

select the band , the message will show in turn :

FM1 FM2 FM3

AM2(MW2)

AM1(MW1)

Start Searching For a Station

Manual Search

During Radio mode, briefly touch the screen of “ ” section to increase frequency by one step of channel spacing .

Briefly touch the “ ” section to decrease frequency by one step of channel spacing .

Automatic Search

During Radio mode, touch and hold (for more than 2’s ) the screen of “ / ” section to start search for a radio station automatically .

CLOCK

LOUDNESS LOC

Touch “ ” to next .

Touch “ ” to previous .

When an FM stereo broadcast is hard to receive

Touch the section on touch screen (or press button on the remote control ) to select the MONO

or STEREO mode . (When Stereo mode is activated, the ST symbol will appear . )

-19-

“STEREO/MONO”

ST/MO

Page 20

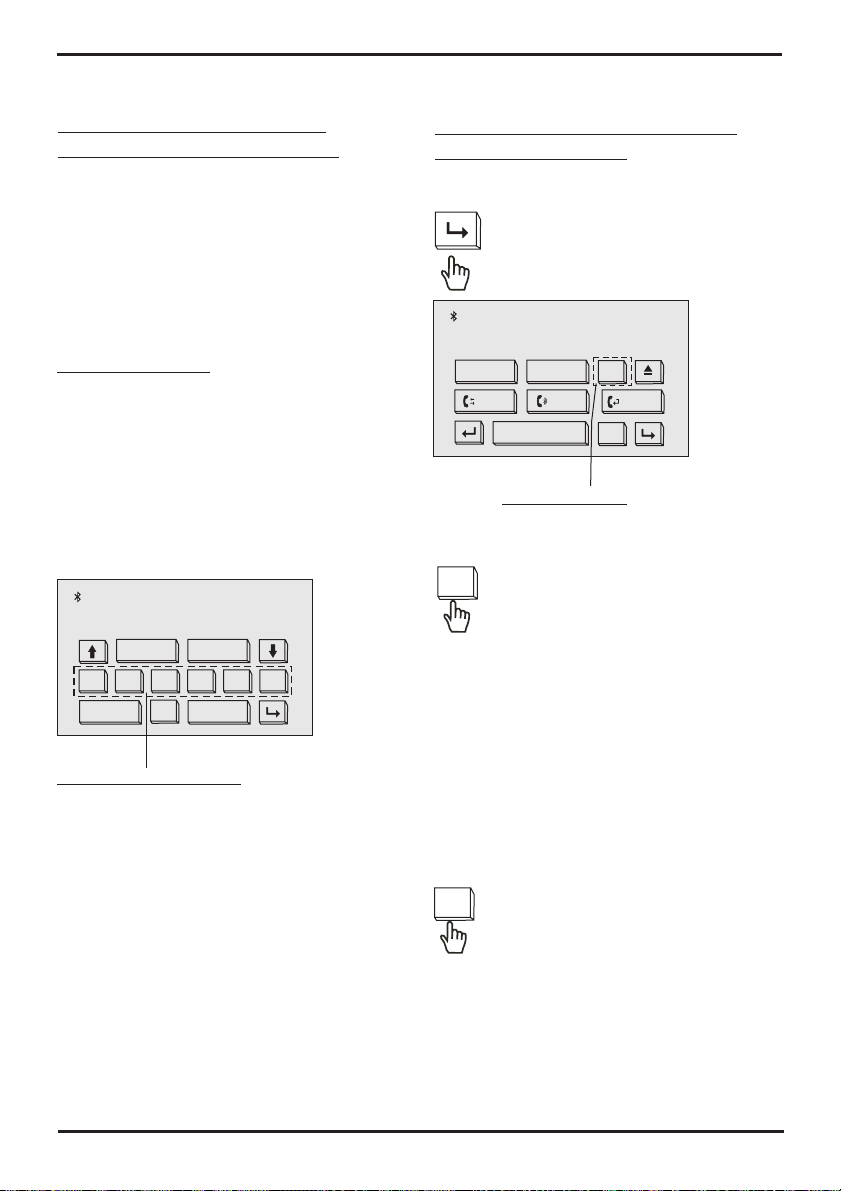

Radio Operation

To tunein strong-singnal FM

Station only (LO/DX function)

Touch the section on the touch screen (or press LO/DX button on the remote control ) to select the LOCAL or DX mode . ( You can choose between the LOCAL and DX(DISTANCE) mode for local or long-distance traffic news . )

“LOC ”

Setting Memory

With this system, a total of 30 stations can be stored in the memory of six buttons. Each band stores up to six preset stations. The stations might be FM1, FM2, FM3, AM1(MW1), and AM2(MW2) band. The operation is as below :

Touch the screen of the sections“ 1-6 ”

FLAT

FM1 87.60

123456

Touchtopreset station

12:04

NO-DISC

MODE

MUTE ON

SEL VOLUME+VOLUME-

MHZ

Automatic Memory Storing & Program Scanning

Automatic Preset Setup

Touch it to select the other item, it will display the following as below :

FLAT

FM1 87.60

BND

PAIR

In Radio Mode, Touch and keep

APS

for more than 2’s the section on the touch screen to active

automatic station storage. The radio searches within the current frequency band, e.g. FM1, for the stronger signal level until the search cycle has finished . The six strongest stations are then allocated to the corresponding storage locations . Then the station of the first storage location is set .

12:04

STEREO/MONO

NO-DISC

S-WOOFER

DIAL

Touchto select

MHZ

APS

REDIAL

DSP

APS

-Store in Memory > Select the frequency band

> Select the station > Keep the desired memory key pressed in until the station is heard again after a brief interruption .

-Retrieve a preset station

1-6 sectionsTouch the briefly to retrieve

a station which had been stored in the memory in advance the chose number is shown on display .

Scan Function

APS

In Radio mode, briefly touch the

section on the touch screen ,

APS

the radio briefly plays all the

preset stations of the frequency band .

-20-

Page 21

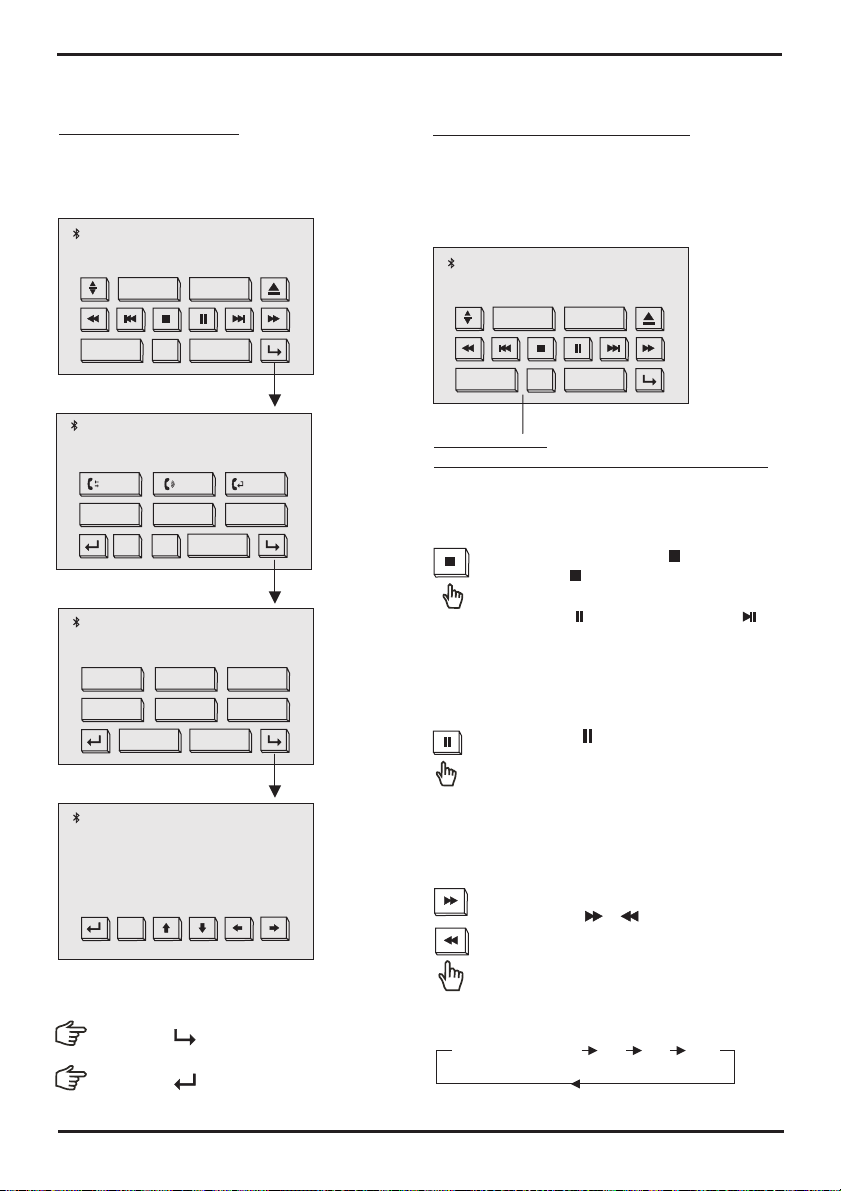

DISC Operation

Basic Operation

During DISC playback, you can touch the screen to display the following:

FLAT

DVD 1-0:00:16

FLAT

DVD 1-0:00:16

PAIR

AUDIO ZOOMSUBTITLE

OSD

FLAT

DVD 1-0:00:16

RANDOM

S-WOOFER CLOCKLOUDNESS

FLAT

DVD 1-0:00:16

MODE

SETUP

SEL

DSP

12: 16

DIAL

12: 16

REPEAT

12: 16

DISC-IN

MUTE ON

VOLUME+VOLUME-

DISC-IN

REDIAL

TITLE

DISC-IN

INTRO

GOTO

DISC-IN

Switching the DVD mode

Touch the screen of range (or press MOD button on the front panel ) to select the DISC mode, it display like following :

FLAT

DVD 1-0:00:16

MODE

SEL

Function setup (different the sourcethedisplayisdifferent)

Stopping Play

Touch the screen the range (or press the button on remote control .) To stop the unit playback. Touch the section or press button on front panel to start play.

Pause (still picture)

Touch the “ ” section on touch screen during playback will stop play temporary, touch it again to return the normal playback .

Rapid Forward/Rapid Reverse

During DISC playback, touch the screen of “ / ” range the speed of rapid forward/reverse changes according to the disc as follow:

12: 16

“MODE”

DISC-IN

MUTE ON

VOLUME+VOLUME-

Touch “ ” to next .

Touch “ ” to previous .

DVD/VCD/CD/MP3:

Normal Playback2x 4x 8x 16x

-21-

Page 22

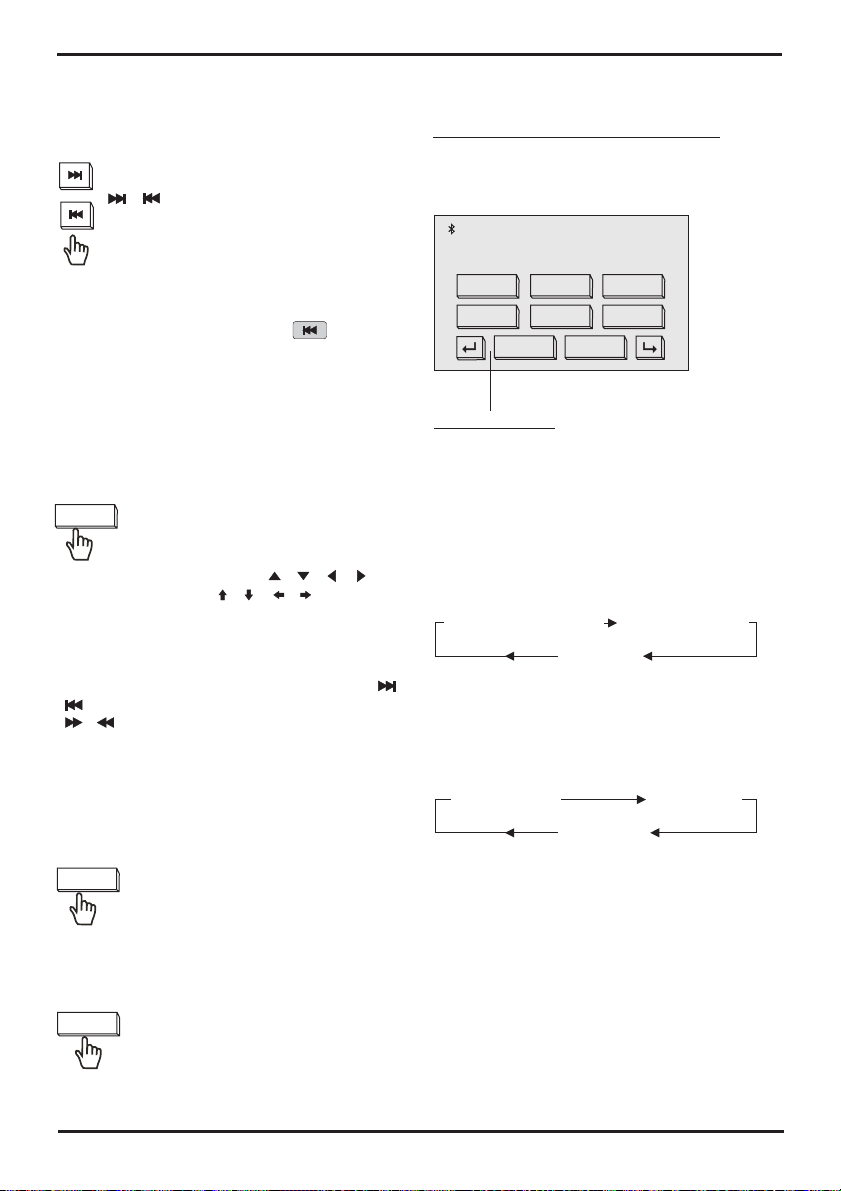

DISC Operation

Skipping Track

During DISC playback, Touch the

/ section on the touch screen

to skip to next/back one track.

Note :

1. In DVD mode, touch the section continually twice to back one track .

2. For some VCD2.0 disc (PBC-playback control), above these buttons may be unavailable .

Zoom Function

Repeatedly touch the section of

ZOOM

the ZOOM, the displaying rate can be 2x, 3x, 4x, 1/2, 1/3, 1/4 .

Use the direction keys ( / / / on remotecontrolor///ontouch screen) to move the enlarged picture . Note: During the JPEG disc playback , touch the screen of “ZOOM” range , the “zoom 100%” word will display, then you can touch longer (more than 2’s) the /

section on touch screen (or press the

/ buttons on remote control ) to zoom in/zoom out the picture. In zoomed mode, use the direction keys to move the enlarged picture .

Loud Function

LOUDNESS

Touch the section on touch screen to switch the Loudness function ON or OFF.

“ LOUDNESS ”

Subwoofer Function

S-WOOFER

Use your finger touch the “ section on the

S-WOOFER“

screen to turn on the Subwoofer function, touch it again to cancel function .

Selecting The Play Modes

During the Disc playback, touch the touch screen, it will display the following as below :

FLAT

DVD 1-0:00:16

RANDOM

S-WOOFER CLOCKLOUDNESS

Touchtoselect

1). Repeat Function

FOR DVD :

Touch the screen the of (or press longer button on the remote control) to select REPEAT mode

as follow :

CHAPTER REPEAT ON TITLEREPEAT ON

FOR VCD/CD/MP3 :

Touch the screen the of (or press longer button on the remote control) to select REPEAT mode

as follow :

REPEATONE REPEAT ALL

1. Continuously repeat at the current chapter/track, when selected REP-ONE mode .

2. Select REP-ALL mode to continuously repeat all chapter/track on the current disc .

2). RDM(RANDOM) Function

During DISC playback, touch screen of

“RANDOM” 4/RDM

button longer on the remote control to play in random.

-22-

12: 16

DISC-IN

REPEAT

SETUP

INTRO

GOTO

2/RPT

REPEATALL

2/RPT

REPEATOFF

section ( press the

“REPEAT”

range

Page 23

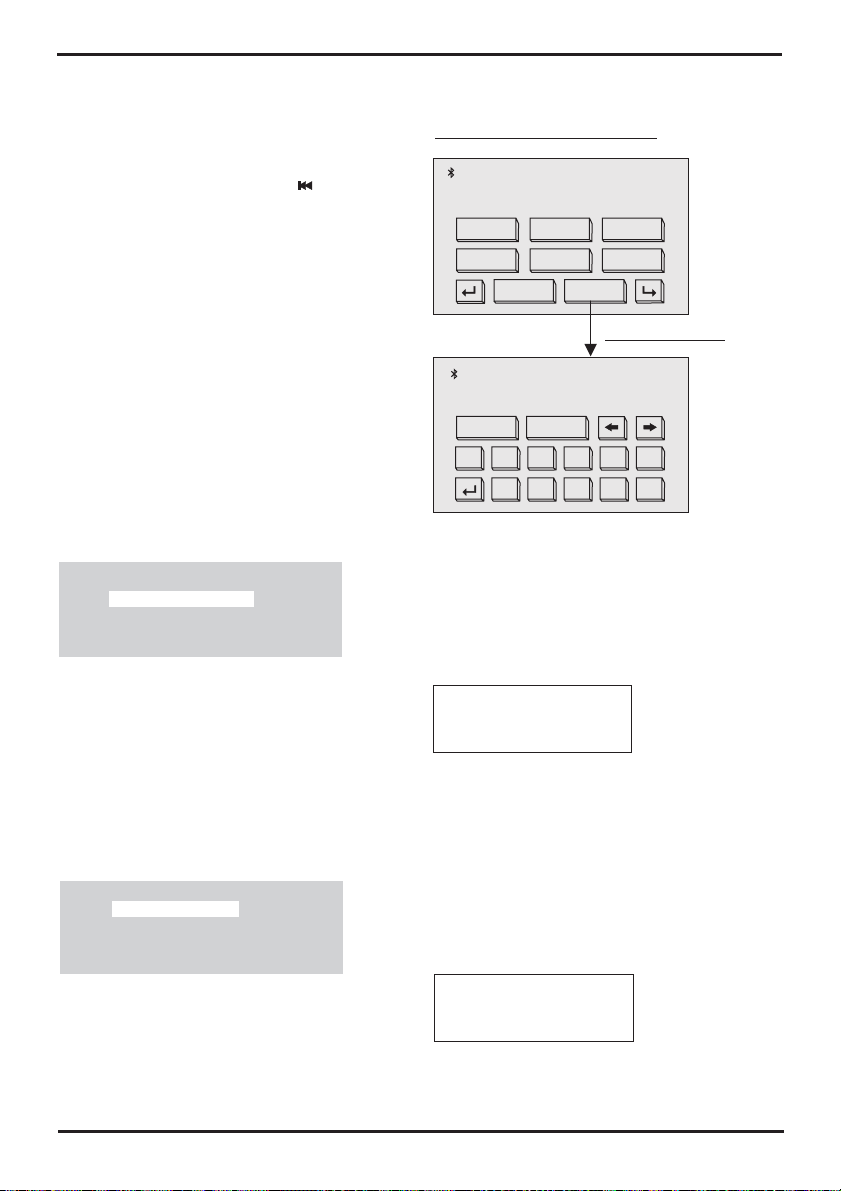

DISC Operation

Each playing, the order is different . (Depend on the disc used for VCD). Touch it again to cancel this function . Note : in random mode, the button is not available .

3). INT Function

FOR CD :

Touch the screen of the section (or longer press the button on the remote control ) to play the previous 6

seconds part of each track/chapter on disc. (Touch it again to cancel this mode)

FOR VCD :

Touch the screen of the section (or long press the button on the the remote control ). It display will

following menu as below : (touch it again to cancel this mode .)

SELECT DIGESTTYPE: TRACK DIGEST DISC INTERVAL TRACK INTERVAL

Use the UP, DOWN, LEFT and RIGHT arrows on the remote to select the item, and then press ENTER to confirm .

FOR DVD :

Touch the screen of the section (or long press the button on the the remote control ). It display will

following menu as below : (touch it again to cancel this mode .)

SELECT DIGESTTYPE: TITLE DIGEST CHAPTER DIGEST TITLE INTERVAL CHAPTER INTERVAL

Use the UP, DOWN, LEFT and RIGHT arrows on the remote to select the item, and then press ENTER to confirm .

NOTE : For MP3, the 3/INT button is not available.

“INTRO”

3/INT

“INTRO”

3/INTer

“INTRO”

3/INTer

DISC Search (GOTO)

FLAT

DVD 1-0:00:16

RANDOM

S-WOOFER CLOCKLOUDNESS

FLAT

DVD 1-0:00:16

GOTO ENTER

012345

FOR DVD :

Touch the screen the of range (or press on the remote

control

the following message :

Title 01/01 Time -:--:--

0:10:36

You can select the item you want to watch through TIME setting by using numberic buttons . (E.x. 0:10:36)

FOR VCD (With PBC OFF):

Touch the screen the of range (or press GOTO on the remote control )Once, the screen will display the following message :

Disc Go To --:--

00:36

Use the numberic buttons to input the time directly (E.x. : 00:36)

-23-

12: 16

DISC-IN

REPEAT

SETUP

INTRO

GOTO

Touchtoselect

12:16

DISC-IN

6 7 8 9 +10

“GOTO”

GOTOthe button

) Twice, the screen will display

“GOTO”

the button

Page 24

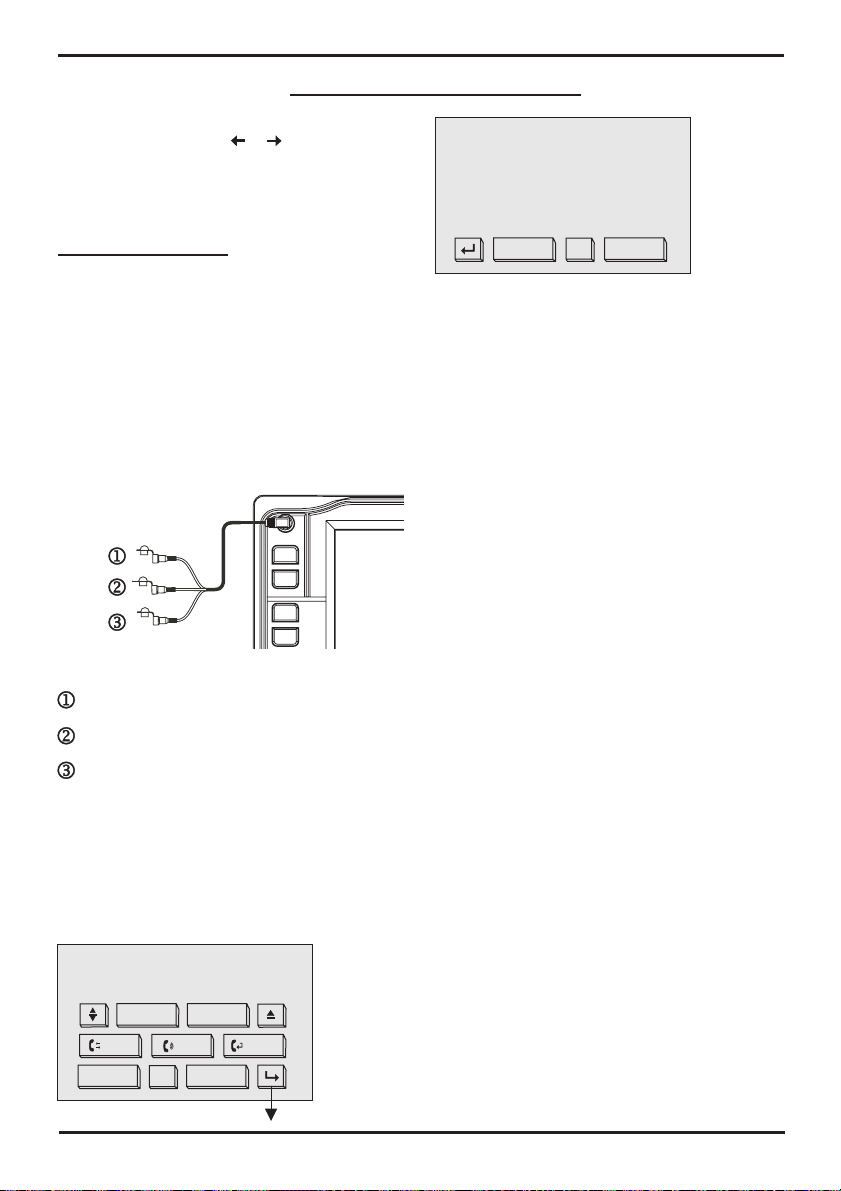

Other Main Operation

Note:

Touch and hold the / section on the touch screen , you can select the title or chapter of DVD . (Only for the DVD with title /chapter.)

AUX Operation

This unit features AUX IN line input jacks on both the front (headphone type) and rear (RCA type ) panel . follow the diagram below t replay devices. Use this jack to replay sound of other replay equipment such as DVD players, computers, etc. Via the loudspeakers.

AUX IN JACK FRONT PANEL

o connect analogue

MOD

AUX IN

FLAT

12: 16

DISC-IN

AUX1 IN

DSP

LOUDNESS

S-WOOFER

3). You now hear the sound from the external device played back through the loudspeakers .

4). Touch the volume+/- sections on touch screen or use the VOL+/- on the remote to adjust the volume level.

VIDEO IN (yellow)

RCHIN(red)

LCH IN (white)

1). Please connect the external device with stereo jack plug the Aux in socket .

2). Touch the MOD section on screen or press the MOD button to select the AUX IN connection. It will display the following as below :

FLAT

PAIR

VOLUME-

AUX1IN

MODE

SEL

12: 16

DIAL

DISC-IN

MUTE ON

REDIAL

VOLUME+

-24-

Page 25

DISC Operation

ON-SCREEN DISPLAYFUNCTION

During playback, touch the screen

OSD

the OSD section (or press the OSD on the remote), it will display the following as below :

1. DVD: A.Touch or Press for first time:OSD

TITLE ELAPSED

T 01/01 C 01/38 0:02:06

Title Number, Total Title Number, Chapter Number, Total Chapter Number of this Title of the disc currently being played will be shown on the screen, along with the elapsed time.

B.Touch or Press for second time:OSD

TITLE REMAIN

T 01/01 C 01/38 3:24:36

2.Example for VCD/SVCD/CD: A.Touch or Press for first time:OSD

SINGLE ELAPSED

TRACK 01/16 0:00:56

B.Touch or Press for second time:OSD

SINGLE REMAIN

TRACK 01/16 0:05:10

C.Touch or Press for hird time:OSD

TOTALELAPSED

TRACK 01/16 0:31:36

D.Touch or Press for fourth time:OSD

TOTALREMAIN

TRACK 01/16 0:36:26

C.Touch or Press for hird time:OSD

CHAPTER ELAPSED

T 01/01 C 01/38 0:02:56

D.Touch or Press for fourth time:OSD

CHAPTER REMAIN

T 01/01 C 01/38 0:04:32

E. Touch or Press for fifth time:

OSD

The message on the screen will be cleared.

E.Touch or Press for the fifth time:

OSD

The message on the screen will be cleared for SVCD and VCD.

NOTE:

For CD and MP3,the message will always display on the screen.

3.Example for MP3: Each time is pressed or touch , the

OSD

message displayed on screen changes as follows:

SINGLE ELAPSED SINGLE REMAIN

-25-

Page 26

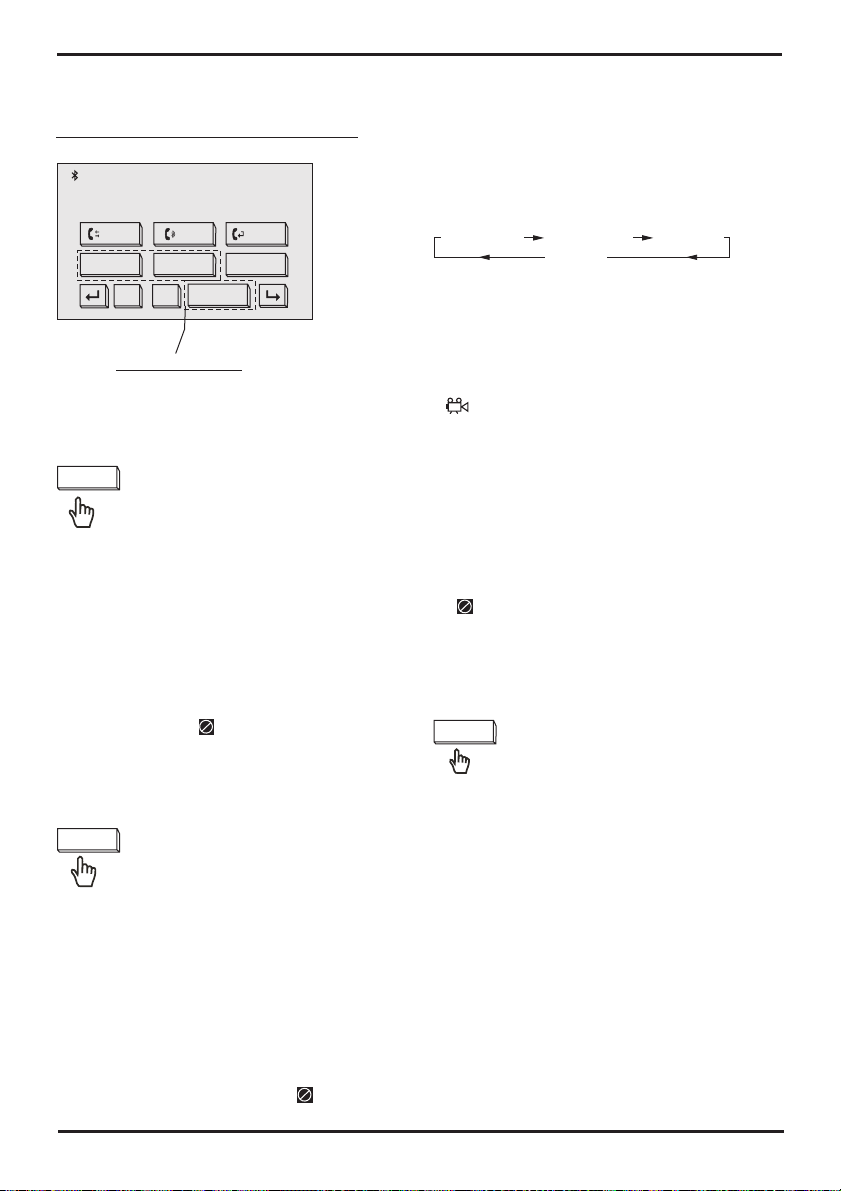

DISC Special Functions

DVD/VCD Special Function

FLAT

PAIR

AUDIO ZOOMSUBTITLE

OSD

Touch toselect

1. Multi-subtitle Language Function (for DVD Only)

SUBTITLE

Each time the button is pressed or touch, number of the subtitle language changes in sequential order.

Notes:

- The language number is different according to the disc.

- Some discs only contain one subtitle language.

- When no different subtitle language are recorded, will be displayed at screen left top corner.

2. Multi-Audio Language Function

AUDIO

on the remote .) Each time the button is pressed or touch , number of the audio soundtrack language changes on sequential order.

Notes:

- The language number is different

according to the disc.

- Some disc only contain one language

soundtrack

- When no different language

soundtrack are recorded will be display at screen left top corner.

12: 16

DIAL

DISC-IN

REDIAL

TITLE

POP

DSP

During DVD playback. Touch

SUBTITLE

the section on touch screen(or press the SUBTITLE on the remote) .

For DVD:

During DVD playback , touch the section on touch

AUDIO

screen (or press the AUDIO

For VCD/CD:

during playback, touch the

AUDIO

section of the touch screen or Press

AUDIO

on the remote . It is possible to switch the sound between monaural and stereo sound.

MONO LEFT MONO RIGHT

STEREO

MIX-MONO

3. Multi-Angle Function (for DVD Only)

During DVD playback, press the ANGLE ( ) button on the remote control . Each time the button is pressed , the number of the angle changes in sequential order.

Notes:

- The angle number is different

according to the disc.

- The function only work for disc having

scenes recorded at different angles.

- When no different angle are recorded,

will be displayed at screen left top

corner.

4. Title Menu Function

TITLE

title menu to start playback.

- During DVD playback, touch the

- Touch the cursor button shown in TV

For VCD:

Press button on the remote control while the disc is playing, you can switch between "PBC on"and "PBC off" mode.

-26-

For DVD:

If the DVD has multiple titles recorded on the disc. It can select preferred title from the

section or press TITLE button on the remote .The title menu is display.

screen, select preferred title by the cursor button and confirmed by touch ENT button .

TITLE/PBC

TITLE

Page 27

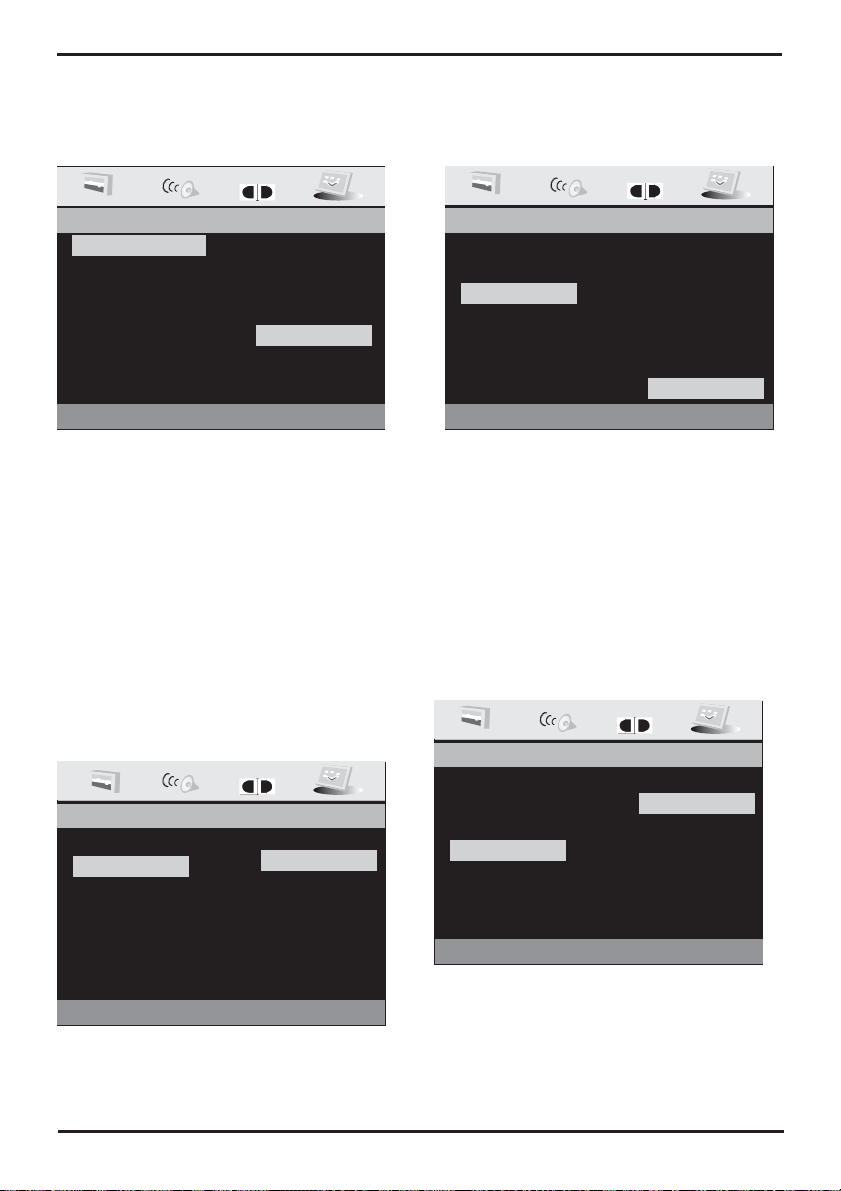

Setup

USING THE MENU

DOLBY

....GENERAL SETUP PAGE....

TV Display Angle Mark OSD Lang Spdif Output Captions Screen Saver Last Memory

Go To General Setup Page

1. Touch the screen of range or press the button on remote .

SETUP

2.The SETUP menu is displayed.

3.Select the preferred item by touch the ///range on the screen

or by using the / / / buttons .

4.Touch screen of the range or

Press on the remote to confirm .

ENTER

The Following Buttons For Entering

The Selection .

LB ON ENG SPDIF/RAW ON ON ON

“ SETUP ”

“OK”

GENERAL SETUP

TV Setting

DOLBY

....GENERAL SETUP PAGE....

TV Display

TV Display Angle Mark

OSD Lang Spdif Output Captions Screen Saver Last Memory

Set TV Display Mode

16:9

4:3 Pan Scan

4:3LetterBox

Normal/PS Normal/LB

Normal/LB Wide

Touchto select

Right

Enter

Down Left

The buttons of the left and right are for selection of setting type . The buttons of the up and down are for selection of the setting program .

Overview Of The MainMenu

DOLBY

()1 ()2 ()3 ()4

(1).GeneralSettings (2).SpeakerSettings (3).DOLBY Digital Settings (4).Preference Settings

1.TV DISPLAY SETUP

This is to select the appropriate TV aspect (4:3 or 16:9) according to the connected TV set.

Normal/PS (For 4:3 TV)

Played back in the PAN & SCAN style. (If connected to wide-screen TV, the left and right edges are cut off.)

Normal/LB (For 4:3 TV)

Played back in LETTER BOX style. (If connected to wide-screen TV, black bands appear at top and bottom of the screen.)

Wide (For 16:9 TV)

Select when a wide-screen TV set is connected.

-27-

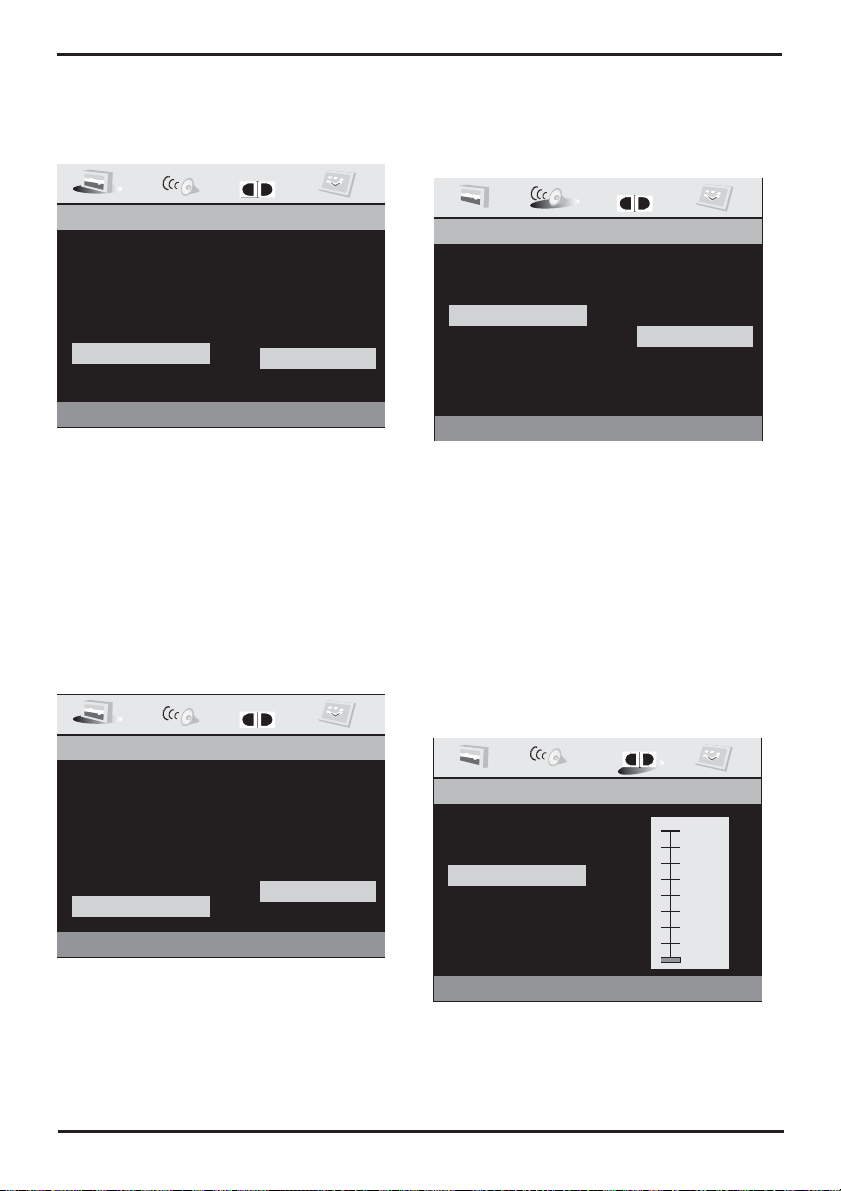

Page 28

Setup

GENERAL SETUP

DOLBY

....GENERAL SETUP PAGE....

TV Display Angle Mark

Angle Mark OSD Lang Spdif Output Captions Screen Saver Last Memory

Set Angle Mark

ON OFF

2.ANGLE MARK DISPLAY SETUP

If it is set to ON, when the multi-angle DVD disc is playing, (the angle mark) will appears on the screen; if is set to OFF, the mark will not appear.

LANGUAGE DISPLAYING

DOLBY

....GENERAL SETUP PAGE....

TV Display

English

Angle Mark OSD Lang

OSD Lang

OSD Lang Spdif Output Captions Screen Saver Last Memory

English French German Spanish Italian Portuguese

DOLBY

....GENERAL SETUP PAGE....

TV Display Angle Mark

OSD Lang

Spdif Output

Spdif Output Captions Screen Saver Last Memory

Setup SPDIF

SPDIF/OFF SPDIF/RAW

SPDIF/RAW SPDIF/PCM

4.SPDIF OUTPUT

This is to activate the audio output

from SPDIF OFF mode to SPDIF/RAW mode to SPDIF/PCM mode.

DOLBY

....GENERAL SETUP PAGE....

TV Display Angle Mark OSD Lang Spdif Output

Captions

Captions Screen Saver Last Memory

ON OFF

Set OSD language

3.OSD LANG TYPE SETUP

Touch the / section on the touch screen or press the / button on the remote to select the preferred OSD language , then touch the section to confirm .

Closed Caption

5.CAPTIONS SETUP

Activate the CAPTIONS feature by selecting ON. And release this feature by selecting OFF.

-28-

Page 29

Setup

GENERAL SETUP

DOLBY

....GENERAL SETUP PAGE....

TV Display Angle Mark OSD Lang Spdif Output Captions Screen Saver

Screen Saver Last Memory

Screen Saver

6.SCREENSAVER SETUP

If the screen displays a static image for too long, some "burn-in" may occur, leaving a permanent trace of the image behind. To avoid this, turn ON the SCREENSAVER item. After a short period of inactivity on the monitor, the unit will substitute a moving image to avoid burn-in.

....GENERAL SETUP PAGE....

TV Display Angle Mark OSD Lang Spdif Output Captions Screen Saver Last Memory

Last Memory

Set Last Memory State

7.LAST MEMORY SETUP

Select the LAST MEMORY output ON/OFF.

DOLBY

ON OFF

SPEAKER SETUP

.....Speaker Setup Page.....

DOLBY

....Speaker Setup Page....

DOWNMIX

Set Downmix Mode

LT/RT STEREO

STEREO

DOLBY DOWNMIX

Many DVD discs are recorded using a surround sound recording technology called Dolby AC3 5.1. When such a disc is played in a normal 2- or 4-channel playback unit like this one, the surround sound must be "downmixed" to stereo. In this case, choose "stereo," unless the output from this unit is connected to a mobile Dolby surround sound system. In that case, choose LT/RT.

DOLBY DIGITAL SETUP

DOLBY

....DOLBY Digital Setup....

FULL

DOWNMIXDYNAMIC

Set DRC OFF

DYNAMIC RANGE CONTROL

Select DRC and adjust the dynamic range of a Dolby Digital encoded program. There are 8 steps between full compression and off compression.

-29-

6/8

4/8

2/8

OFF

Page 30

Setup

--- PREFERENCES PAGE ---

DOLBY

....Preference Page....

TV Type

TV Type Audio

OSD Lang

Subtitle Disc Menu Parental Password Default

Set TV Standard

PAL AUTO

NTSC

1. TV TYPE SETUP

This player is capable of playing discs recorded in either PAL or NTSC formats. Make the selection based on whether you are connecting the unit to a PAL TV or an NTSC TV. You can also set the unit to AUTO (autoselect). The disadvantage to autoselect is that each time you turn the unit on it checks to see what kind of monitor is connected, which causes a small delay and some flickering of the display image which you may find unpleasant.

DOLBY

....Preference Page....

TV Type Audio

Audio

OSD Lang

Subtitle Disc Menu Parental Password Default

Preferred Audio Language

English

English French German Spanish Italian Portuguese

2.AUDIO LANGUAGE SETUP

Select the preferred AUDIO soundtrack language using the cursor buttons.

DOLBY

....Preference Page....

TV Type Audio

OSD Lang

Subtitle

Subtitle Disc Menu Parental Password Default

Preferred Subtitle Language

English French German Spanish Italian Portuguese Off

Off

3.SUBTITLE LANGUAGE SETUP

Select the preferred SUBTITLE language by using the cursor buttons.

DOLBY

....Preference Page....

TV Type

English

Audio

OSD Lang

Subtitle Disc Menu

Disc Menu Parental Password Default

Preferred Menu Language

English French German Spanish Italian Portuguese

4.DISC MENU LANGUAGE SETUP

Select the preferred DISC MENU language by using the cursor buttons.

-30-

Page 31

Setup

--- PREFERENCES PAGE ---

Age control

DOLBY

....Preference Page....

TV Type Audio

OSD Lang

Subtitle Disc Menu Parental

Parental Password Default

4PG13 5PGR 6R 7NC 17 8ADULT

8ADULT OFF

Set Parental Control

5.PARENTAL

Select suitable parental guidance with the cursor buttons and confirm it by pressing the ENTER button.

DOLBY

....Preference Page....

TV Type Audio

OSD Lang

Subtitle Disc Menu Parental Password

Password Default

Changed Password

6.PASSWORD SELECTION

Thepasswordmustbeusedtomake changes to the Parental Control menu above. The factory default password is

. To change this password, press

1379

change. You will be asked for the current password. Once you have entered it, you have the opportunity to change it. Then, when you enter the Parental Control menu, you will be required to use this new password in order to make any changes.

CHANGE

....Preference Page....

TV Type Audio

OSD Lang

Subtitle Disc Menu Parental Password

RESET

Default

RESET

Load Factory Setting

7.DEFAULTS

Selecting the DEFAULT item and confirming RESET will returnALL personal settings you have made, including radio and TV presets, to the factory default settings.

DEFAULTS TABLE

GENERAL SETUP

SPEAKER SETUP

DOLBY DIGITAL

PREFERENCES

TV DISPLAY

ANGLE MARK

OSD LANGUAGE

SPDIF OUPUT

CAPTIONS

SCR SAVER

LAST MEMORY

DOWNMIX

DYNAMIC

TV TYPE

AUDIO

SUBTITLE

DISC MENU

PARENTAL

PASSWORD

NORMAL/LB

ENGLISH

SPDIF/RAM

STEREO

OFF

AUTO

ENGLISH

OFF

ENGLISH

8 ADULT

1379

-31-

Page 32

Bluetooth Operation

Bluetooth Car Kit User Manual

1.“Pair”To Your Bluetooth Phone

Prior to using the Car Kit for the fist time, you must pair it with a Bluetooth-enabled mobile handset. The following steps describes pairing the instruction for a typical Bluetoothenabled mobile handset.

Touch the touch screen , the touch operation menu will display. Touch the “ ” section to select , it will display following as below :

FLAT

DVD 1-0:00:16

PAIR

AUDIO ZOOMSUBTITLE

OSD

DSP

12: 16

DIAL

DISC-IN

REDIAL

TITLE

5). “8888”

Enter passkey , then press

“ ” to pair the Car Kit and the handset,

the word , will display in the

“PAIROK”

TFT .

6). “CONNECT”Select the from the list on the phone, if you connect successfully , the ICON remains solid on the screen , then you can operate the function of blue-tooth about the unite .

Important:

1). If the pairing can not be completed within approximately 2 minutes , whiles the pairing mode is activated, and you will need to reattempt pairing (See steps 2-5 above) .

2). After pairing is completed, if the ICON is stilling flash on the TFT , please follow the steps to reattempt pairing through your handset until the

ICON remains solid on the screen.

Touch toselect

1). Place the CarKitandmobile handset

in 3 metersapart.

2). Put the CarKitinpairing mode.

a Pressthe buttontoturnON,

POWER

the ICON will flash on the TFT .

b. Touch the screen of “ ” range

or press the on the remote

“PAIR/ ”

control until the word

PAIRING”

display, it’s now ready

PAIR

“BLUETOOTH

for pairing.

3). Set yourbluetoothphone to

“discover” the Car Kit .

Following your phone’s instruction guide for details, active your mobile handset’s Bluetooth function, the handset will search for accessible Bluetooth devices.

4). Your phone will find this Car Kit.

Select this Car Kit from the list.

2. Using The Bluetooth Car Kit.

Once connecting is complete, you may access the following function. Some of the below mentioned functions only accessible for handset supported with hands-free profile.

Makeacall

Touch the screen of “ ” range, (or press briefly the button on the remote control ) the word

“DIAL NUMBERS”

then you can touch the number section on screen (or dial the number buttons on the remote control ), and then touch the

DIAL

“ ” section or press button to confirm .

When you dial the wrong number,

Note:

you can touch the screen to delete the wrong number . (You can also press the “ ” button on the remote controltodoso.)

Please note :

“ ” and “ ” serves as the “ ” and “ ” button on your mobile handset .

-32-

DIAL

“ PAIR/ ”

will display on the TFT .

“ PAIR/ ”

“ CLEAR ”

Page 33

Bluetooth Operation

Touch the screen of “ ” section , the message will display as below :

DIAL NUMBERS

DIAL

Adjust the Volume

During conversation in progress, tune the Volume switch until you reach the desired volume level.

123 45

678 90

CLEAR

CALL CONNECTED

PICKUP MUTE ON

SEL VOLUME+VOLUME-

DIAL

REJECT

touch todial

Answer a call

After you hear the ring tone,

the incoming telephone number will display on the TFT LCD . Touch the screen of “ ” range to listen or press the button on

PICKUP

“PAIR/ ”

the remote control .

CallTransfer

During talking mode , user can touch the screen of the “ ” range (or press the button on the remote

“PAIR/ ”

control ) to transfer the audio from the unit back to the mobile phone for privacy reason .

PICKUP

End/Reject acall

In Bluetooth menu, touch the screen

REJECT

of “ ” range (or press briefly

“REDIAL/ ”

button on remote control ) ,

the message display the

“CALL HOOKED/CALL EJECTED”

Redial last number

In Bluetooth menu, touch the “ ” (or press longer button

“ REDIAL/ ”

on the remote control the

“DIAL LAST CALL/DIALOUT NOW ”

display on the TFT LCD.

REDIAL

will

Play BT music

In Bluetooth menu, touch the screen of

“MODE” “BT MUSIC”

range to select the , you can play the BT MUSIC from your mobile handset.

FLAT

BLUETOOTH MP3

MODE

08: 16

SEL VOLUME+VOLUME-

DISC-IN

MUTE ON

S-WOOFER

touch to select

Note:

please make sure it support the Bluetooth profile.A2DP & AVRCP

Note:

1). Before using the function of the Bluetooth about the unit , please check your phone’s instruction guide or contact

phone manufacture if you are not sure if your phone supports the hands-free Bluetooth function .

2). When operating the function of bluetooth about the unit , you need make your call-phone and the unit successfully for one time. Afterwards, you only need to take on the power and the function of blue-tooth will work in three minutes automatically if you want to operate the function of blue-tooth .

3). If you want not to use the function of the Blue-tooth about the unit , you can select the Bluetooth OFF . (The method to see the page 16.)

-33-

Page 34

Other Main Operation

USB Operation

Following the diagram below, connect your USB device to the front panel USB port . If it is properly connected, the device will be mounted and start playing automatically.

Changing From DISC to USB Playback Modes

If the disc present in the player is an MP3 disc, touch section on screen or press the STOP on remote once then touchorpresstheGOTOtoUSB playback.

If the disc present in the player is an DVD or VCD or CD disc, touch on the screen or press STOP twice on the remote then touch GOTO section on the screen or press the GOTO button on the remote to USB playback.

Changing From USB to DISC Playback

Modes

If you are in USB Playback mode and wish to begin playback of a disc already in the player, touch the range on the touch screen or press the STOP on the remote once. Then touch GOTO range on the screen or press the GOTO on the remote and the player will switch to DVD/VCD/CD/MP3 Playback mode.

you can also select the desired item of the USB device The buttons on the remote control, on the device, have the same functions as the touch buttons of this touch screen have .

In USB Playback mode

Use the UP, DOWN, RIGHT or LEFT buttons to navigate to and select files to play, and press ENTER to begin playback (or viewing, in the case of JPEG files). To skip to the next or last track, touch or press the or . Press the or buttons for Fast Forward or Fast Reverse playback.

REPEAT

by repeatedly pushing until the desired mode is found.

play modes are also available

REPEAT

Important Note:

To prevent damage to the USB device, do not remove or disconnect it during playback. it is also a good practice to remove the USB drive during disc playback.

-34-

Page 35

Other Main Operation

SD/MMC card OPERATION

The unit can support playback MP3/WMA/JPEG/MP4 and Divx format which are stored into SD and MMC memory card . Please read below before you start the operation of memory card .

Inserting andremovingaSD or MMC card on thefrontpanelofunit .

Inserting theSDor MMC card .

Label sidefacing backward

Insert the memory card into slot with label side facing backward .

Removing the SD orMMCcard .

Press in till heard a .“CLICK”

Remove the memory card .

Mode change toSD/MMC card

After a SD or MMC card was inserted into the main unit card slot . the unit will starts playing the files contained on the memory card . Once the unit read the memory card successfully, the first file on the memory card will automatically start playback. Press the mode button repeatedly is allowing changing to other modes .

Change DISC to SD/MMC card

The operations are same as USB mode, refer to see USB operation .

Change SD/MMC cardto DISC

The operations are same as USB mode, refer to see USB operation .

File Playback Operation

All the SD or MMC memory car playback operation function is same as the operation on .

CD/MP3/WMA

Please to operation for more details .

“ MP3/WMA”

-35-

Page 36

Other Main Operation

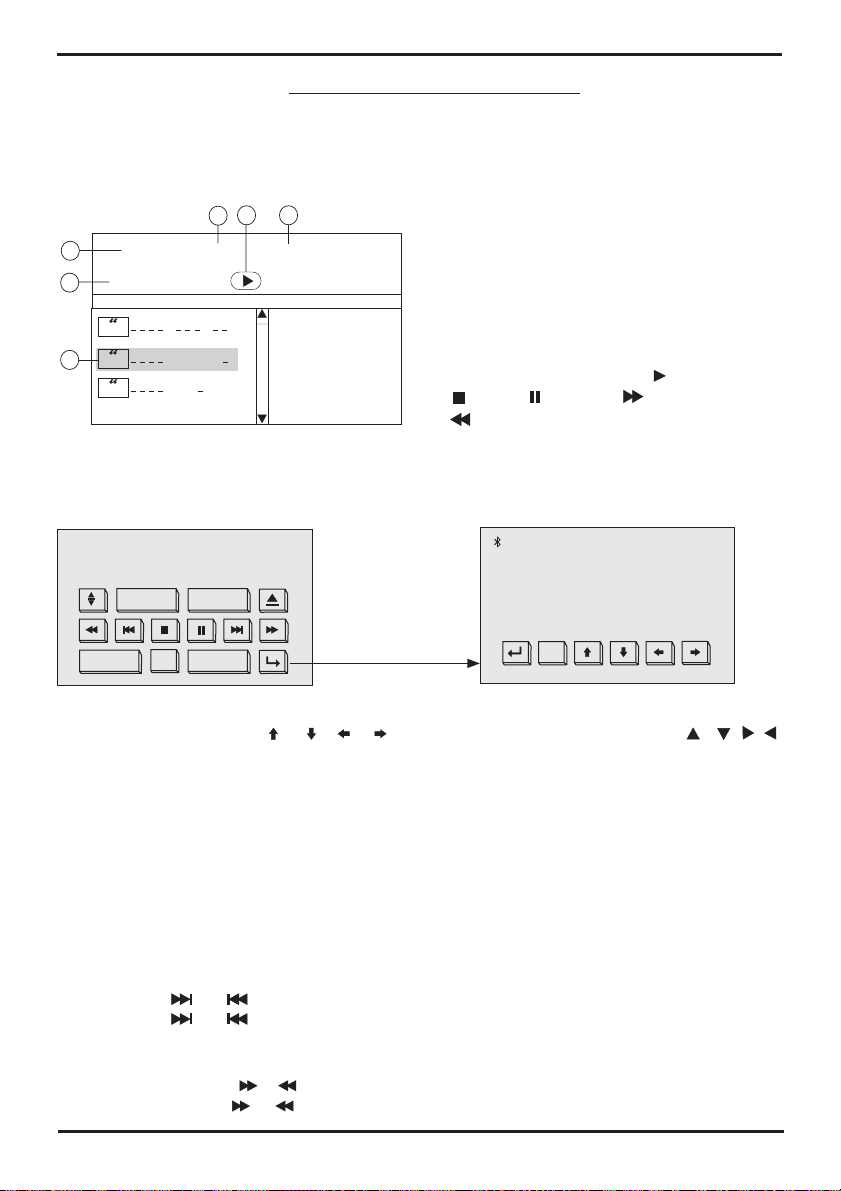

MP3/WMA/JPEG/MPEG4 DISC PLAY

When you insert a disc which contains MP3, WMAor JPEG files, the different file types are detected, and a list of the files are produced, as shown in the diagram below.

003/112

Mp3

..............

00:56 04:07

woman

new

ton

Repeat one

Touch the screen, it will display the following as below : (when the parking brake is applied .)

1 Current track(file)(highlighted bar) 2

Current track (file) number/total

number of tracks(files) in the current folder. Elapsed playing time of the current

track(

not available for JPEG disc)

4 total playing time.

( not available for

JPEG disc)

5 Operation mode icon. (Play),

(stop), (pause), (forward)

(reverse).

Selected playback mode

FLAT

MP3 02-0:36:20

MODE

08: 16

DISC-IN

MUTE ON

SEL VOLUME+VOLUME-

FLAT

MP3 02-0:36:20

Touchrepeatedly

12: 16

DISC-IN

In stop mode, touch the / / / sections on touch screen (or Use / / / on the remote control ) to select the item or folder, then touch the range (or press button on the remote control ) to confirm.

Touch the screen of range or press longer on the remote control

ENTER

“REPEAT ” “2/RPT”

“OK”

repeatedly can select two kinds of repeat play mode.

REP-ONE:

Play the same song over and over again.

REP ALL:

Play all songs on the disc, then repeats the entire disc over and over again .

Moving To Another Track :

1. Touch the or range on the touch screen to skip a track ahead or back.

2. Press the or button on the remote control to skip a track ahead or back.

Fast Forward/Fast Backward

1. Touch briefly the “ / ” range on touch screen for fast forward / fast backward .

2. Press shortly the or button on the remote control for forward or backward .

-36-

Page 37

Specification

Supply Voltage: 12V DC (11V-15V) Current Consumption: Less than10 A Signal System: Compositive video 1.0Vp-p 75 Discs Played: (1)DVD-VIDEO Disc

5"(12 cm) single-sided, single-layer 5"(12 cm) single-sided, double-layer (2)Compact Disc (CD-DA, VIDEO CD) 5"(12cm) disc

Audio Signal Output: 2ch&4ch line out Characteristics: (1)Frequency Response 20 Hz - 20 KHz

(2)S/N Ratio 90 dB (JIS) (3)Wow and Flutter Below measurable limits

RADIO Section:

For 3 Bands For 2 Bands For 2 Bands

(Europe) (Europe) (U.S.A.)

FM FM FM Frequency Coverage: 87.5 to108 MHz 87.5 to108 MHz 87.5 to107.9 MHz IF: 10.7 MHz 10.7 MHz 10.7 MHz Sensitivity (S/N = 30 dB): 15 dBu 15 dBu 15dBu

MW MW AM Frequency Coverage: 522 to1620 KHz 522 to1620 KHz 530 to1710 KHz IF: 450 KHz 450 KHz 450 KHz Sensitivity (S/N = 20 dB): 40 dBu 40 dBu 40 dBu

TFT Monitor:

Monitor Screen Size: 6.5 Inch Wide Number of Pixels: 480 X RGB X 234 pixels Color System: NTSC/PAL

BLUETOOTH:

Bluetooth specification: V1.2 Class 2 Bluetooth profile supported: Headset, Handsfree and A2DP &AVRCP profiles Range of frequency: 2.4GHz Spectrum

NOTE:

Specifications and design are subject to modification, without notice, due to improvements in technology.

-37-

Page 38

Trouble Shooting

Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer.

SYMPTOM CAUSE SOLUTION

If the power supply is properly connected to the car accessory terminal,switch the ignition key

"ACC"

Replace the fuse

Remove the disc in the player, then put a new one

Insert the compact disc with the label facing upward

Clean the disc or try to play a new one

Cool off or until the ambient temperature return to normal

Please switch to correct color system from menu

Make proper connection according to wire connection

For safety reasons no television /video images are displayed while the vehicle is moving. Engaging the parking brake will cause images to be displayed.

Please the television mode of the choice accommodation

Change the disc

Change the disc Record JPEG files using a compliant application

Press the RESET button. Front panel is not properly fixed into its place

Insert the antenna cable firmly

Select a station manually

“”

No power

Disc can not be loaded or ejected

Television/video imageappears black-white

No television/video image appears

No color in picture

JPEG disc can not be played back

The operation keys do not work

The radio does not work

The car ignition switch is not on

The fuse is blown

Presence of disc inside the player.

Inserting the disc in reverse direction

The disc is extremely dirty or defective

Temperature inside the car is too high

The color system is set incorrectly

The unit is not connected to the parking brake detection switch

The parking brake is not engaged

Thediscformatisnot accordingto the TV-set used (PAL/NTSC)

No JPEG files are recorded on the disc.

JPEG files are not recorded in a compliant formant

The built-in microcomputer is not operating properly due to noise The antenna cable is not connected

The signals are too weak

-38-

888-J6203-01S
