EXONIC EXD 7082 User Manual

Download

Page 1

Page 2

Content

Precaution......................................

Safety Information.........................

Disc Note.......................................

Installation ....................................

anel angle adjustment .................

Electric Connection ......................

Remote Control .............................

Basic Operation.. ..........................

TFT Monitor Adjustment ................

Rear View Camera ........................

Audio Quality Adjustment.. ..............

Setting Audio Mode .........................

Setting Time.......... .........................

Reset Factory Settings ...................

Alternate Audio Source....................

Control Panel ................................

Unit keys ............................ ............

Radio Operation. ..........................

Listening to radio ............................

Storing and Listening to a memory

station ........................................

Automatic Memory Storing &

Program Scanning........................

Media Operation............................

Basic Operation. ............................

Selecting Play Mode .......................

On-Screen Display Function............

Digital Video Special Function.......

Multi-subtitle language function........

Multi-audio language function...........

Multi-angle function.........................

Title menu function ..........................

Media Setup Menu..........................

System Setup..................................

Language Setup..............................

Video Setup ....................................

Digital Setup ...................................

Front AUX Input Operation.............

USB Operation. .............................

SD/MMC Card Operation ................

MP3/WMA/JPEG/MPEG4 Play .........

Specification.. ...............................

Troubleshooting.............................

-1-

Page 3

Precaution

THANK YOU FOR PURCHASING THIS CAR DIGITAL VIDEO PLAYER .

Before operating the unit, read this manual thoroughly and keep it handy for future reference . To avoid injury or accident , read the following precautions before installing and operating the unit .

ON INSTALLATION

DO NOT install any receiver in locations where;

- it may obstruct the steering wheel and gearshift lever operations, as this may result in a traffic accident.

- it may obstruct the operation of safety devices such as air bags, as this may result in a fatal accident.

- it may obstruct visibility.

DO NOT operate any receiver while manipulating the steering wheel, as

this may result in a traffic accident.

The driver must not watch the monitor while driving. IF THE DRIVER watches the monitor while driving, it may lead to

carelessness and cause an accident.

IF YOU NEED to operate the receive while driving, be sure to look ahead

carefully or you may be involved in a traffic accident.

IF THE PARKING BRAKE is not engaged.“ ParkingBrake” flashes on the

monitor, and no playback picture will be shown.

- This warning appears only when the parking brake wire is connected to the parking brake system built in the car ( refer to the electric connection)

ABOUT THE LIQUID CRYSTAL DISPLAY (LCD) PANEL

Do not press on the LCD panel on the unit as doing so can distort the picture or cause a malfunction . The picture may become unclear , or the LCD panel may be damaged .

NOTES ON CLEANING

-Clean the LCD panel with a slightly damp soft cloth.

-Do not use solvents such as benzine, thinner, commercially available

cleaners or antistatic spray .

Do not use alcohol to clean the screen . If your car was parked in a cold or hot place, the picture may not be clear . The monitor is not damaged . The picture will become clear the temperature in your car becomes normal .

-2-

Page 4

Safety Information

CAUTION:

THIS DIGITAL VIDEO PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS DIGITAL VIDEO PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE .

HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE DIGITAL VIDEO PLAYER CORRECTLYAS INSTRUCTED.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.

THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.Use of this copyright protection technology must be authorized by Macro vision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

REGION MANAGEMENT INFORMATION:

This Digital Video Player is designed and manufactured to respond to the Region Management Information that is recorded on a Digital Video disc. If the Region number described on the Digital Video disc does not correspond to the Region number of this Digital Video Player, this Digital Video Player cannot play this disc.

-3-

Page 5

Disc Note

Disc formats supported by this player

Digital Video

VCD

MP3

Digital Video

VCD

MP3

Audio and Video Discsize12cm

Audio Discsize12cm

Discs which cannot be played with this player

Digital Video-RAM CDV CDG

Handling and Cleaning

Dirt, dust, scratches and warping disc

will cause misoperation. Do not place stickers or make scratches on discs. Do not warp discs.

A disc should always be kept in its case when not in use to prevent from damaging. Do not place discs in the following places:

1.Direct sunlight

2.Dirty, dusty and damp areas

3.Near car heaters

4.On the seats or dashboard

Disc Cleaning

Use a dry soft cloth to wipe the surface. If the disc is quite dirty, use a soft cloth slightly moistured with isopropyl (rubbing) alcohol. Never use solvents such as benzine, thinner or conventional record cleaners as they may mar the surface of the disc.

Note:

A disc may become somewhat scratched (although not enough to make it

unusable) depending on your handle it and conditions in the usage environment. Note these scratches are not an indication of any problem with the player.

Label side up

Do nottouch the underside of thedisc

Do not bend

Wipe the disc from center toward theoutside edge

Preparing New Discs with

Rough

Spots

A new disc may have rough edges on its inside and outside edges. If a disc with rough edges is used, the proper setting will not be performed and the player will not play the disc. Therefore, remove the rough edges in advance by using a ball point pen or pencil as shown on the right. To remove the rough edges, press the side of the pen or pencil against the inside and outside edges of the disc.

Rough spots on outside edge

Ball pointpen or pencil

Rough spots on inside edge

-4-

Page 6

Installation

NOTES:

1. Choose the mounting location where the unit will not interfere with the normal driving function of the driver.

2. Before finally installing the unit, connect the wiring temporarily and make sure it is

all connected up properly and the unit and the system work properly.

3. Use only the parts included with the unit to ensure proper installation. The use of

unauthorized parts can cause malfunctions.

4. Consult with your nearest dealer if installation requires the drilling of holes or other

modifications of the vehicle.

5. Install the unit where it does not get in the driver s way and cannot injure the passenger if there is a sudden stop, like an emergency stop.

. Avoid installing the unit where it would be subject to high temperature, such

6 as from direct sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration. 7

. If installation angle exceeds 30 from horizontal, the unit might not give its

optimum

performance.

DIN FRONT/REAR-MOUNT

This unit can be properly installed either from "Front"(conventional DIN Front-mount) or "Rear"(DIN Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details, refer to the following illustrated installation methods.

-5-

Page 7

Installation

DASH BOARD

SPRING WASHER

PLAIN WASHER

TAPPING SCREW

HEX NUT

METAL MOUNTING STRAP

MOUNTING BOLTS

CONSOLE

HEX BOLT

MOUNTING BRACKET

NOTE:

Don`t attempt install the set by yourself, it should be installed by professional installer .

-6-

Page 8

Panel Angle Adjustment

CHANGING THE CONTROL PANEL ANGLE

When you want to change the viewing angle of the operating unit to play, you can touch the section on touch screen (or press the button on the front panel) repeatedly to select the desired angle as follows:

ANGLE1-ANGLE2-ANGLE3-ANGLE4-ANGLE 1 .

Angle 1

Angle 3

Angle 2

Caution:

Do not insert your finger behind the control panel.

Angle 4

-7-

Page 9

Electric Connection

WIRING CONNECTION

REAR RCAOUTPUT

RCH RED

LCH WHITE

CABLE

SUBWOOFER GREY

RCH IN RED

VIDEO IN YELLOW

LCH IN WHITE

IGNITION SWITCH(B+)

MEMORY BACK-UP(B+)

GROUND(B-)

AUTO ANTENNA

RED

YELLOW

BLACK

BLUE

FUSE BOX

FUSE

AUX INPUT

FRONT RCAOUTPUT

CABLE

BROWN

ORANGE

YELLOW

FRONT RCA RED R

VIDEO OUT YELLOW

FRONT RCA WHITE L

RADIO ANTENNA JACK

REAR CAMERAVIEW TRIGGER WIRE(B+)

(B-)PARKING BRAKE

REAR CAMERA INPUTVIEW

FRONT

Lch SPK.

REAR

Lch SPK.

WHITE

WHITE/BLACK

GREEN

GREEN/BLACK

GREY

GREY/BLACK

VIOLET

VIOLET/BLACK

FRONT

Rch SPK.

REAR

Rch SPK.

Note: the earth connection cable (parking brake B-) must be connected in order for pictures to be played back to the monitor. If the cable has not been correctly connected, the message “PARKING BRAKE” appears on the monitor.

-8-

Page 10

Remote Control

Ref #

Button

CLOCK

MODE

STOP

SETUP

MO/ST (AUDIO)

SUBTITLE LOCAL/ DISTANT

REPEAT

POWER

REPEAT

MODE

LO/DX

OSD

BAND

TITLE/PBC

A/PS

VOL

SEL

SETUP

TOP

RDM

GOTO

ANGLE

ZOOM

ENTER

5 6

+10

STOP

MO/ST

CLK

INT

PLAY/PAUSE

MUTE

Function

Press it briefly to view the clock time .

Press repeatedly to cycle through the various modes:

RADIO > DISC > AUX .> >USB>CARD 1IN>AUX2IN>

Press once to pause playback. Press PLAY/PAUSE to resume playback. Please note: if you press STOP twice, playback will start at the beginning of the disc.

Press this button to open the SETUP menu.

In Radio mode, press this button to change between Mono and Stereo reception modes (when a station is weak, sometimes switching to Mono will improve sound quality). In Disc Playback mode, pressing this button opens the AUDIO setup menu for making changes to the way the soundtrack is reproduced.

In Digital Video Disc Playback mode, pressing this button will allow you to change the subtitle language on discs which have this as an option. In Radio mode, press this button to change the radio reception sensitivity in stations are near or far.

Pressing this button will open a menu presenting you with the playback repeat options available for that kind of disc.

-9-

Page 11

Remote Control

Ref #

Button

GOTO

SEL

VOL+/-

///

Menu SubWoofer

()

BAND (OSD)

(POWER)

PLAY/ PAUSE

MUTE

Function

Press it button to begin playback at a moment in the program you designate. Use number buttons to enter the data that is needed.

Press these buttons to skip ahead or back one track.

Briefly p switch between BASS,TRE,BAL, FADER,COLOR,BRIGHT,CONTR, TINT and VOL; Long press this button to switch LOUD, then briefly press this button repeatedly to switch between SWF,EQ,DX/LOCAL(in radio mode),STEREO/MONO(in radio mode),TIME 24H/12H, CLOCK, BUZZ, EUR/USA FREQ,ANIMA and BG;After switching a desired item above, press VOL+ or VOL- button to set.

ress this button repeatedly to

Use these controls to adjust the volume level.

Press to navigate the various menus present in the product.

Press this button briefly to display the root level directory of a digital video

disc. Press and hold this button to turn on or off the

SUBWOOFER output.

In Radio mode, press this button repeatedly to switch between the five radio bands:

FM1 > FM2 >FM3 > AM1 >AM2.

In Disc Playback modes, Press this button to see information about the disc currently in play.

Press this button to turn the unit ON , press and hold to turn the unit OFF.

In Disc Playback mode, press to pause playback. Press again to start where playback stopped.

Press this button to turn off the audio. Press again to restore the sound to its prior volume level.

TITLE/ PBC(A/P)

ZOOM/ ANGLE

When playing a Digital Video, pressing this button will open the TITLE menu which is recorded on the media. When playing a VCD disc, press this button to create a PBC (Playback Control) menu for the disc to assist in making playback selections. In Radio mode, press and hold this button to start the Auto-Program mode, during which the tuner will scan for all strong stations and assign them to the radio preset buttons.

Press this button to adjust the screen viewing angle .

For Digital Video discs which have alternate viewing angles encoded, when you see the "angle mark" symbol advising you that these angles are available, longer press this button to see them. Shortly press to increase the picture in size .

Press repeatedly to cycle through the different equalizer curve presets you may wish to use for enhanced listening.

In Disc Playback mode, press to start forward rapidly .

-10-

Page 12

Remote Control

Ref #

Button

ENTER

0-9

+10

1-6

This button is used to confirm selections and settings within many of the menus in the OSD system.

In DISC mode, press it to reverse rapidly

Use to input numerical values during programming, with the GOTO button, or to directly select a track to play .

This button is used with the other number buttons for use with two-digit number entries.

Six numbered preset buttons store and recall stations for each band

Function

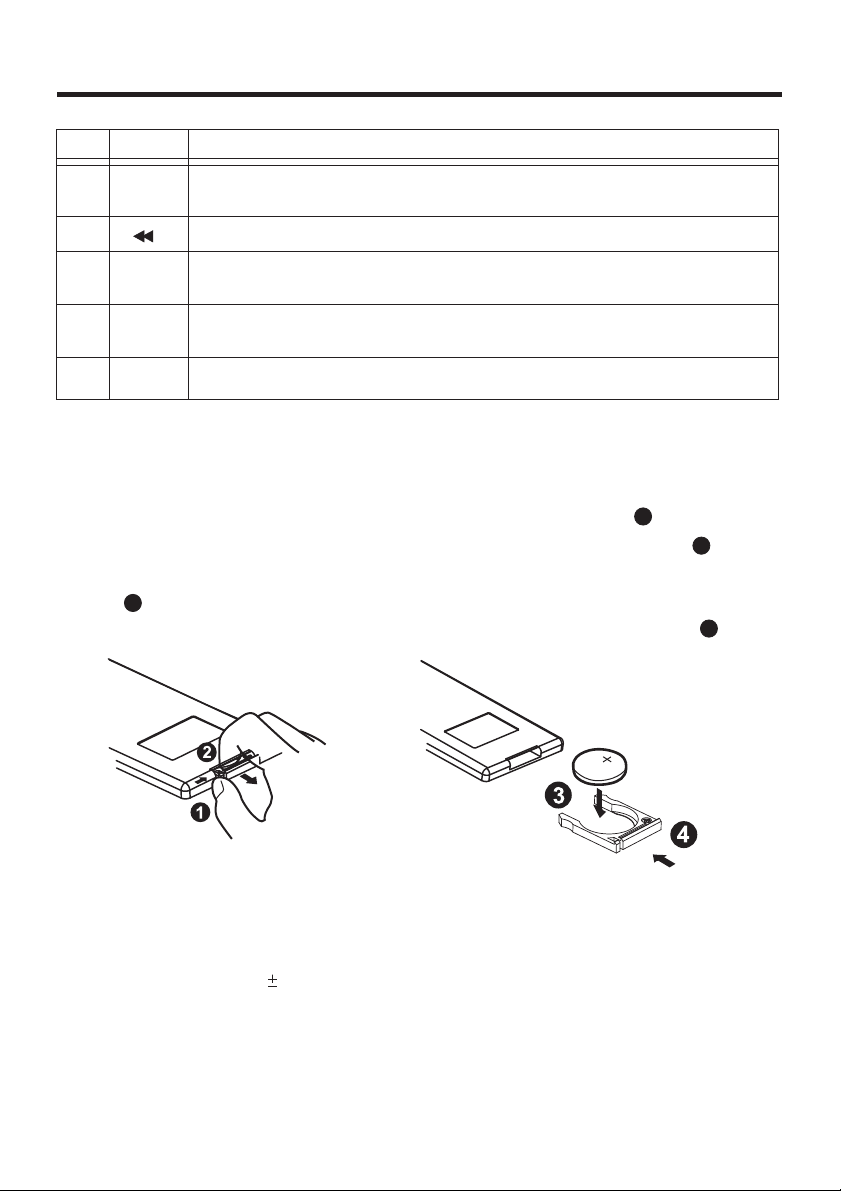

Preparing the Remote Control

Inserting the Battery

1. First push to inside as the direction indicated by the arrow (See )And then

Remove the battery holder as the direction indicated by the arrow (See ).

2. Replace the battery Set a new battery property with (+)side up as illustrated

(See ).

3. Insert the battery holder. Push in the holder to the original position(See ).

Using the Remote Control

Face the remote control towards the player front face IR mark (remote control signal

receiver).

Operation angle: About 30 degree in each the direction of the front of the IR mark.

Note :

The lithium cell in the battery compartment of remote control has been secured for

transport with a foil . Before initial use please remove this foil so that the remote

control is ready for operation .

-11-

Page 13

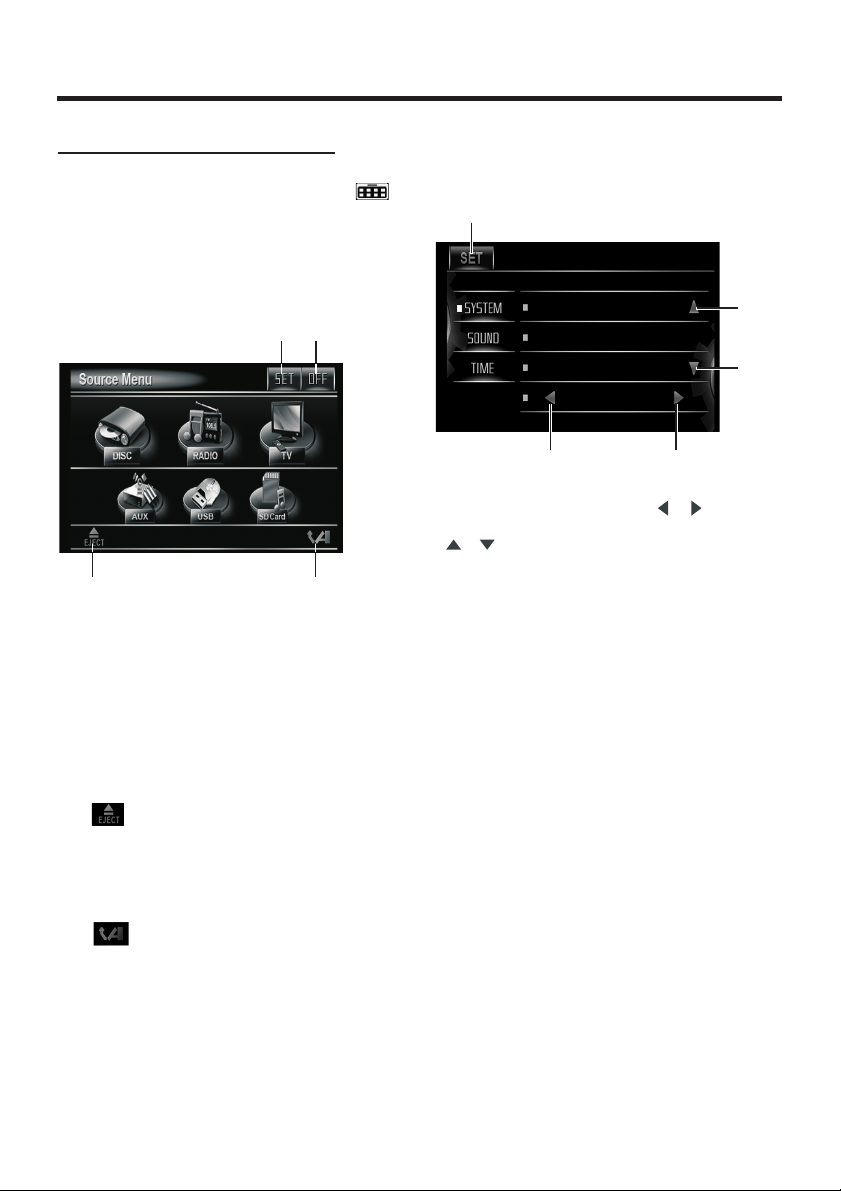

Basic Operation

TFT Monitor Adjustment

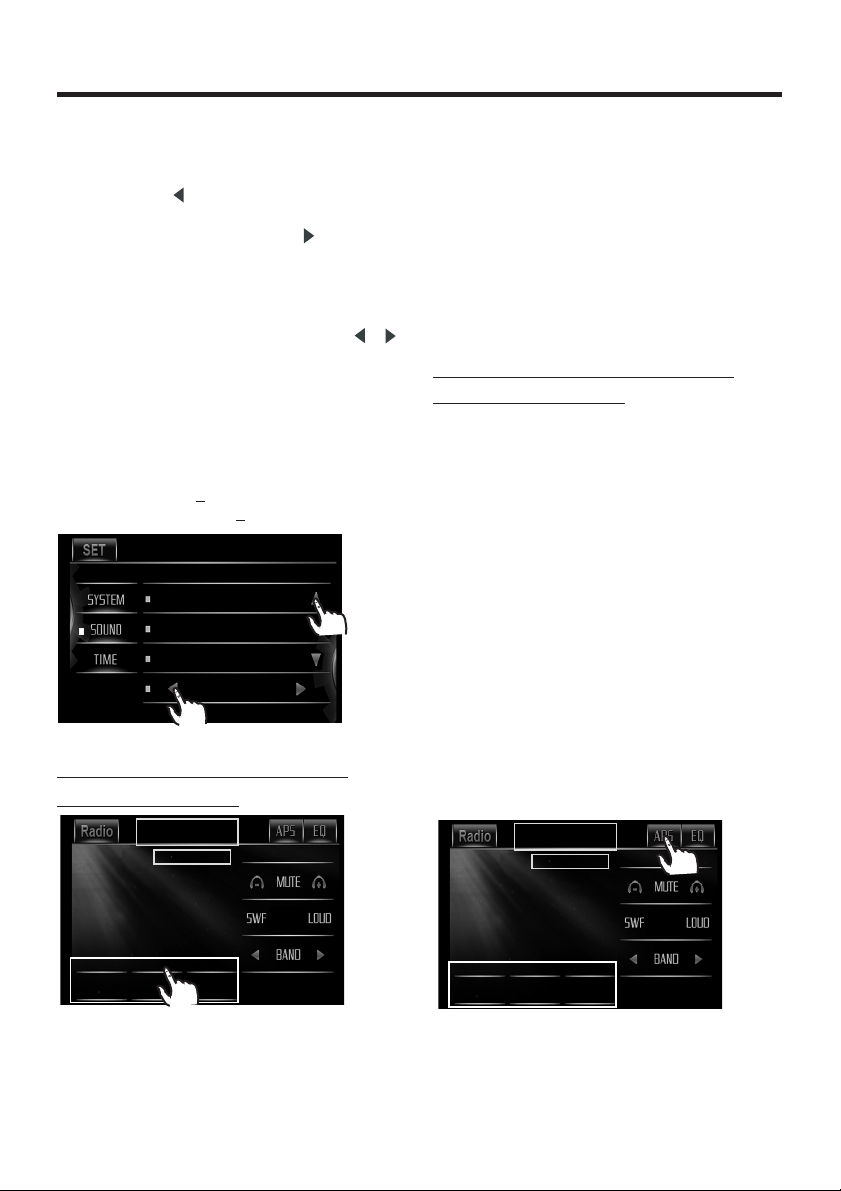

In media mode , touch screen of “ ” range to enter the main menu . Touch “ ” ICON to enter the setting menu,

SET

the message display in the screen:

(1) (2)

(3) (4)

(1) SET. button

touch to enter the SETTING mode .

(2) OFF

. (Power) button

in any modes, touch the ICON to switch the unit off .

(3). Button

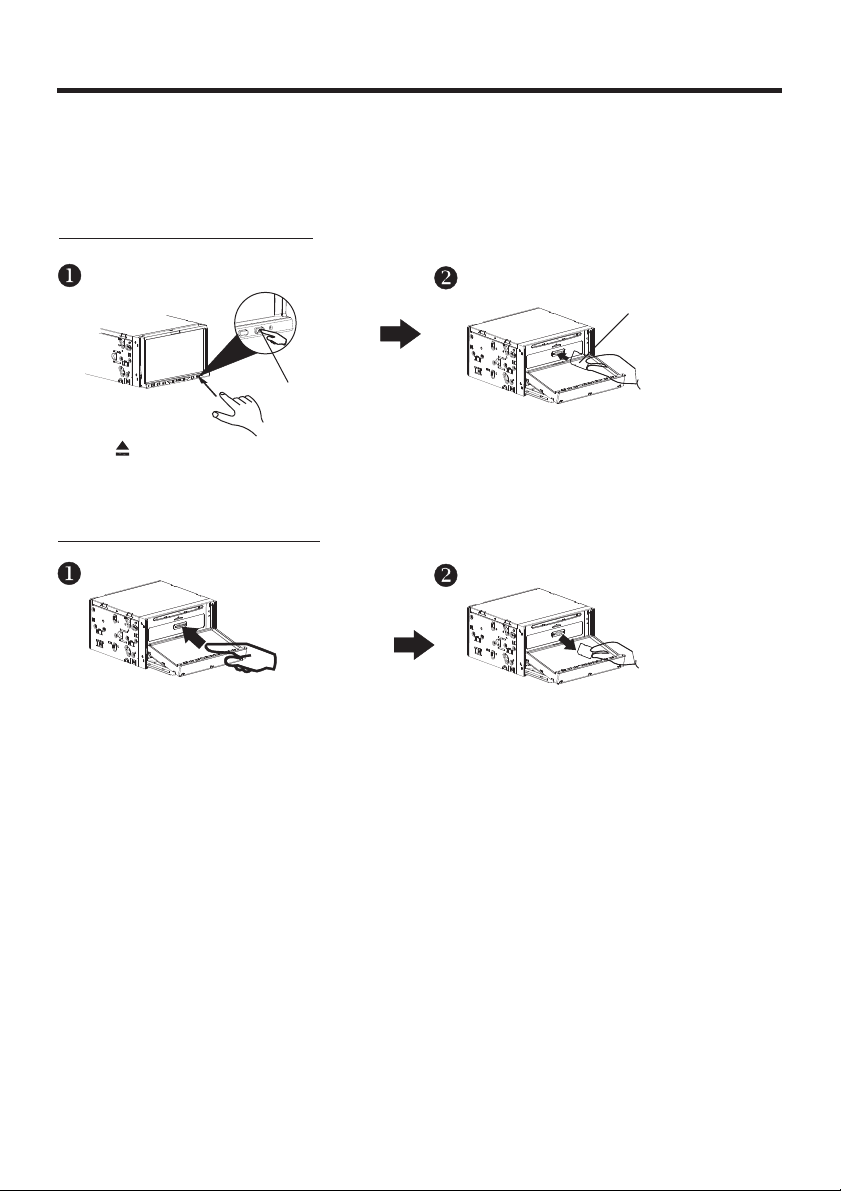

touch this icon, the panel will to slid down, you can insert the disc or eject the disk .

(4). Button

touch this range to adjust the angle of monitor until your desired angle .

“ OFF ”

Touch the range on touch screen to enter the setting mode, the message will display like following :

to return to theprevious playback

SET

Touch the section on the setting menu, touch the “ / ” ranges to select the adjustment item, touch the “ / ” ranges to adjust the selectment item , It`s depend on your habit to setup the data . Touch the icon to return to the previous playback .

“SET”

BRIGHTNESS

CONTRAST

COLOR

Left

“ SYSTEM ”

Right

“SET”

ADJUSTABLE ITEMS:

BRIGHT: 0 to 32

Adjust if the picture is too bright or too dark.

CONTRAST:0 to 32

Adjust the contrast of the bright and dark portion.

COLOR:0to32

Adjust the color for the picture-lighter or darker.

TINT: 0 to 32

Adjust the tint if the human skin color is

unnatural.

-Adjustable when NTSC is selected for ““

NTSC/PAL .

ANIMATION

RADIO

In mode, you can change the playing time of animation among of

“ 10S, 30S, , ,2M, 3M 4M ”.OFF, 1M 1.5M and

Note:

Please set the playing time of the ani

mation to for the first, when you

turn the unit on .

-12-

“ 10S ”

““

Down

Page 14

Basic Operation

SETTING WALLPAPER

in wallpaper mode, you can select the among of

LIGHT LUE LUE INK

When you select the item, the player will change the background automatically .

AUTO, GREEN, ELLOW ED

“Y,R,

B,B,P”.

“AU TO”

Rear View Camera

When connecting the rear view camera. the mirror image of the rear view through the rear view camera is automatically displayed on the monitor when you change the gear to the back position. ()Note: additional monitor can not display the image .

AUDIO QUALITY ADJUSTMENT

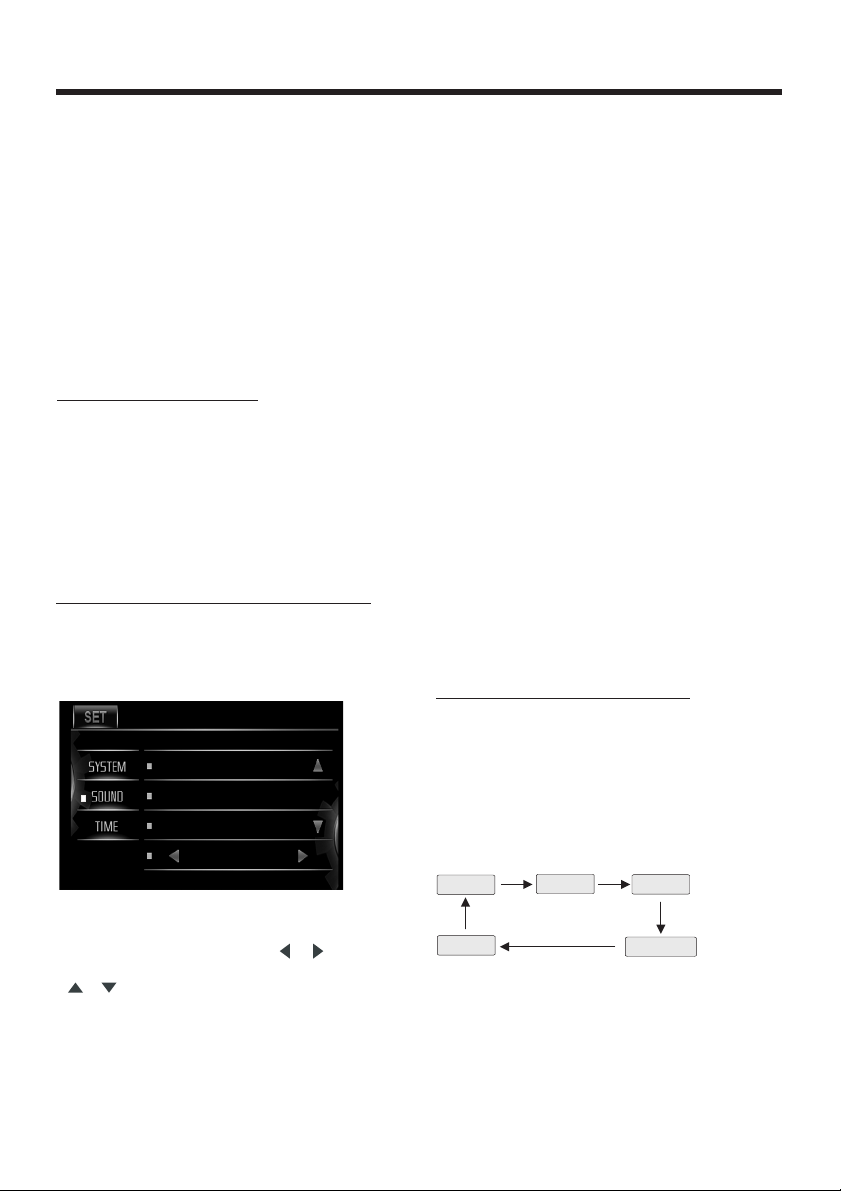

In main menu mode , touch the ICON to enter the Setting mode, the message will display in the screen :

SET

TREBLE

BASS

+06

“SET”

ADJUSTABLE ITEMS:

TREBLE: - to +77

Adjust treble level .

BASS: - to +77

Adjust bass level .

BALANCE: R0-10 to L 0-10

Adjust sound balance between left and right speakers .

FADE:F 0-10 to R0-10

Adjust sound balance between front and rear speakers .

SUBWOOFER

Touch to switch the SUBWOOFER function ON and OFF .

BUZZER SET

Touch to switch the BUZZER BEEP function ON and OFF .

SETTING AUDIO MODE

In any modes, touch the range on the touch screen ( on remote control to select one of the preset sound modes: ROCK/POP/ JAZZ/CLASSIC/ . The information will display in the monitor as follow :

ROCK

USER

“EQ”

or press the EQ button

)

JAZZ

Touch the section on the setting menu, touch the “ / ” ranges to select the adjustment item, touch the “ / ” ranges to adjust the selectment item , It`s depend on your habit to select the Audio mode . Then touch the icon to return to the previous playback .

“ SOUND ”

“SET”

POP

It`s depend on your habit to select the Audio mode .

-13-

CLASSIC

Page 15

Basic Operation

SETTING TIME

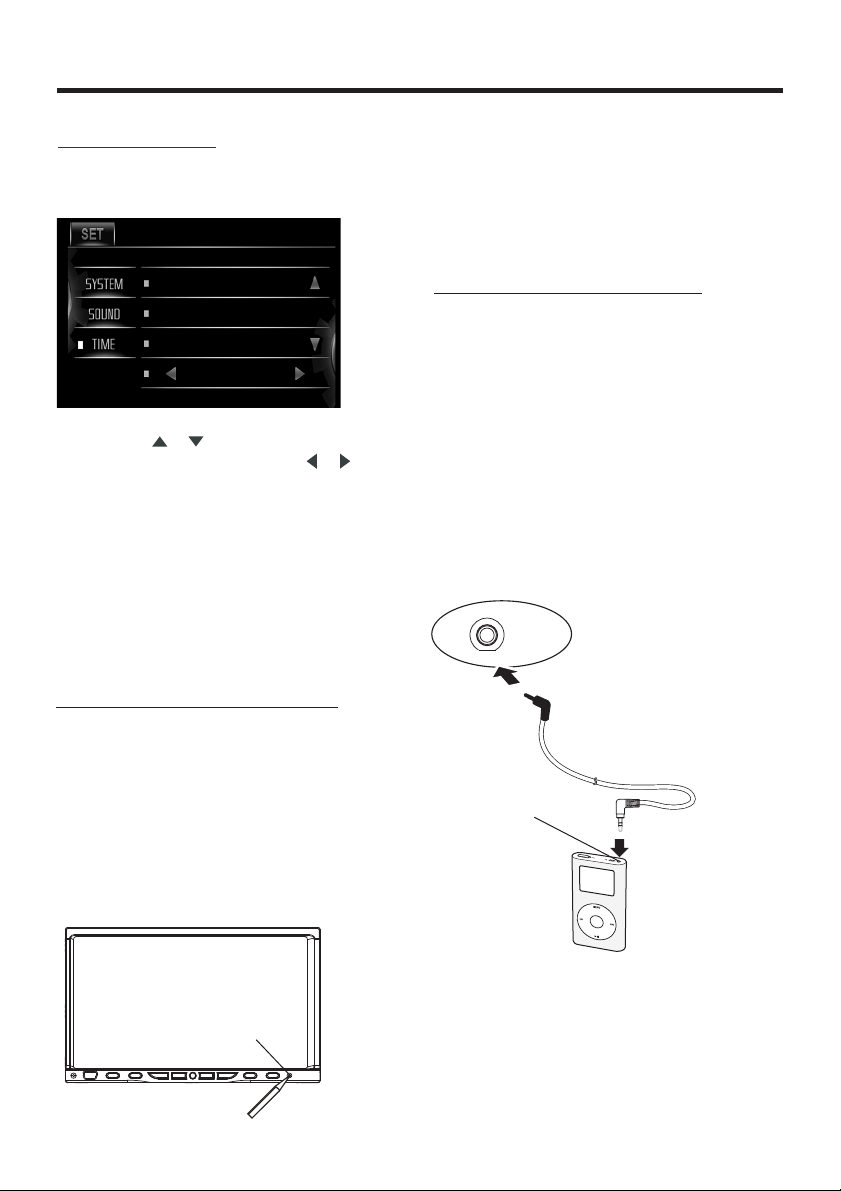

In SETTING mode, touch the range to select the time mode .

SET

HOUR

MINUTE

2H/2H41

11: AM36

touch the “ / ” ranges to select the adjustment item, touch the “ / ” ranges to adjust the selectment item , then touch icon to confirm .

“SET”

It`s depend on your need to setup the data .

ADJUSTABLE ITEMS:

Hour adjustment: 0-23 Minutes adjustment: 0-59 Time format selectment : 2 H/ 2H41

“TIME”

Reset Factory Settings

NOTE:

If RESET is selected, all memory data will deleted, please re-adjust .

ALTERNATE AUDIO SOURCE

On the front panel of the unit , there is an AUX IN jack, to connect analogue replay devices. Use this jack to replay sound of other replay equipment such as

players, computers, etc.

media Via the loudspeakers.

1). Please f

ollowing the diagram below, connect the external device with stereo jack plug the AUX IN socket .

2). Press the MOD button to select the AUX IN connection.

3). Use the buttons on the external device itself to operate it .

AUX IN

RESET button is placed on the housing and must be activated with either a ballpoint pen or thin metal object. TheRESETbutton istobeactivatedfor the following reasons:

A. Initial installation of the unit when all wiring is completed. B. All the function buttons do not operate. C. Error symbol on the display.

RESET

RET

Headphones port

-14-

Page 16

Control Panel

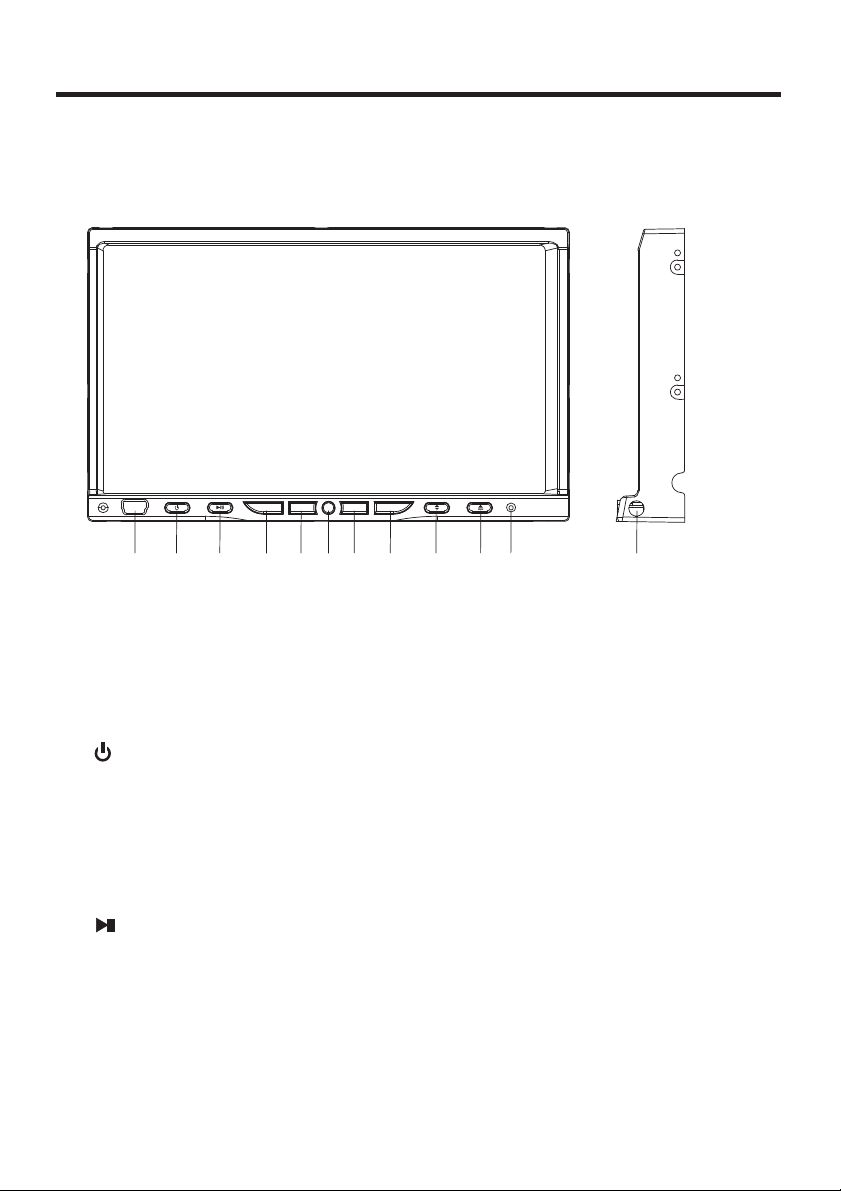

Unit Keys:

Front View

SEL

USBIN

MOD

CH1-6

VOL- VOL+

MU RET

Right side View

AUX IN

1 2 3 4 5 6 7 8 9 10 11 12

1 USB PORT

For information about connecting a USB device, please see page 33.

2 (POWER On/Off )/MODE BUTTON

Press this button to switch the device on. WELCOME appears in the display. Press it again to switch the device off. SEE YOU appears in the display. In playback mode, you can use the button to select the input mode by pressing repeatedly until the proper one is found :

RADIO>> >USB>SD> 1 > AUX2 IN >DISC AUX IN

3 /CH 1-6 BUTTON(RADIO PRESET)

In Disc Playback Mode

Press this button to pause playback, press it again to resume playback.

In Radio Mode

Press this button repeatedly to preset station. With this system a total of 30

stations can be stored in the memory . Each band store up to six preset stations. The stations might be FM1, FM2, FM3, AM1 (MW1) and AM2 (MW2) band.

-15-

Page 17

Control Panel

-Store in Memory >

Select the frequency band

> Press repeatedly the button to select the desired memory key .

> Select the station > Keep the desired memory key pressed in until the station is heard again

after a brief interruption .

The operation as below:

-Retrieve a preset station

press the button repeatedly to retrieve a station which had been stored in the memory in advance the chose number is shown on display .

4 SEL BUTTON

Briefly p switch between BASS,TRE,BAL, FADE, COLOR,BRIGHT,CONTR, TINT and VOL; Long press this button to switch LOUD, then briefly press this button repeatedly to switch between SWF,EQ,DX/LOCAL (in radio mode),STEREO/MONO(in radio mode),TIME 24H/12H,SET CLOCK, BUZZ,EUR/USA FREQ,ANIMA and BG; After switching a desired item above, pressVOL+orVOL-buttontoset.

5/7 VOL-/VOL+ BUTTON

In normal mode, this button is used to increase or decrease the volume. It is also used as an UP/DOWN button when audio or video settings are being adjusted when accessed using the SELECT button.

ress this button repeatedly to

6 IR SENSOR

8 MU (MUTE)

In any mode, press it button to mute the sound .

9 ANGLE (Screen position)

Press this button repeatedly to cycle through the different positions.

10 (EJECT) BUTTON

Press it button to eject the DISC or insert the DISC to start play .

11 RESET BUTTON

Press this button to return to factory settings .

12 AUX InputJACK

For information about connecting a AUX device, please see page 29 .

-16-

Page 18

Touch Screen Operation

RADIO Operation

Listening to radio

Press repeatedly the MOD button on the front panel to select the RADIO mode . (You can enter the main menu to select the RADIO mode )

Touch ScreenConfiguration

(1) (2) (3) (4)

Radio

1 2

87.50

87.50 90.00 98.00

(11)

FM1

MHZ

(13)

(12)

86.50107.00106.00

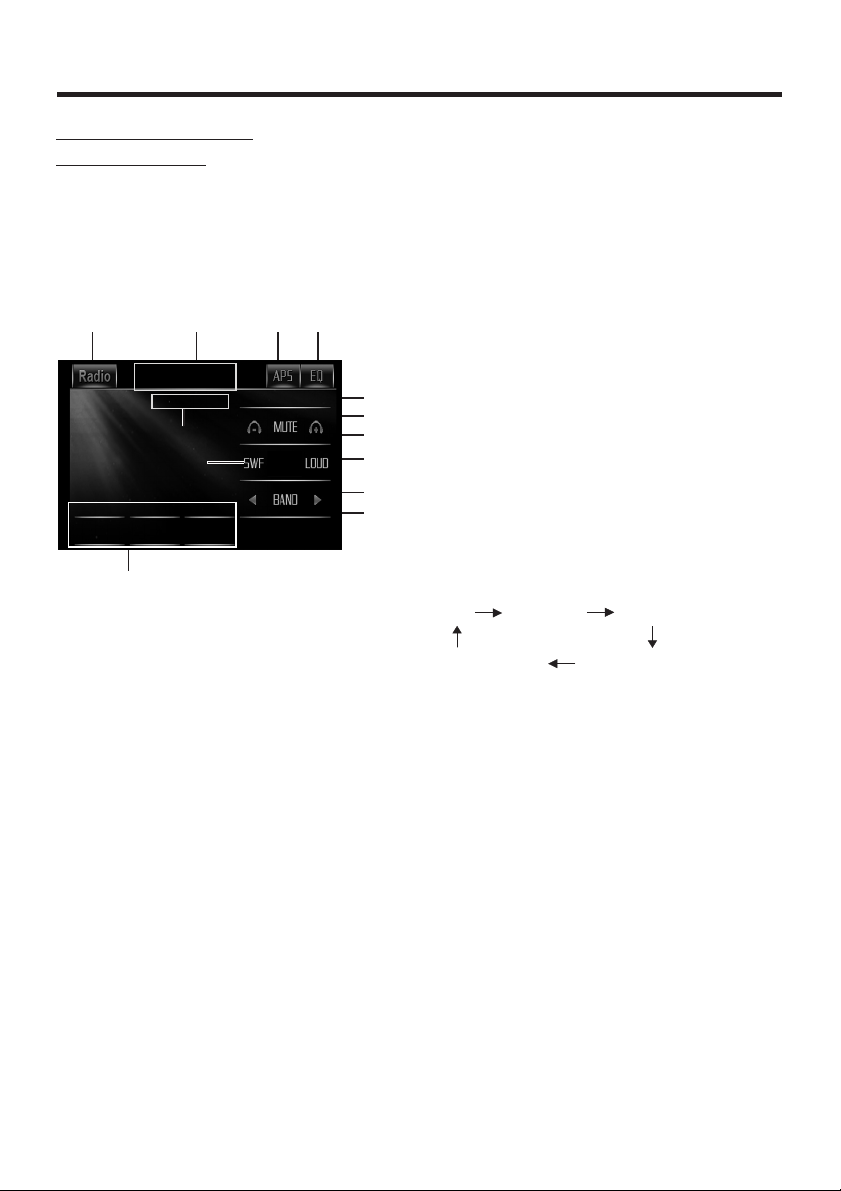

(1) Source icon

Show which source has been selected . Touch to return to enter the main menu .

APS

(5) (6) (7)

(8)

(9)

(10)

(9) Touch tochange the frequency band.

(10) Touch tostart manual search the

radio station. Touch longerto start search the radiostationautomatically .

(11) Touch :recallingthe preset station.

Touchand hold: storing broadcaststation .

(12) Touch toswitch the Subwoofer

function onor off .

(13) Local/Stereo/EQ/Subwoofer indicator .

Selecting The Frequency Band

Touch the screen of section repeatedly to select the band , the message will show in turn :

FM1 FM2 FM3

AM2(MW2)

“ BAND ”

AM1(MW1)

(2) Information display zone

(3) Shortly touch to perform manual tuning, touch andhold to perform seek tuning . (Refertosee page 19)

(4) Touch toselect preset sound mode.

(5) Time indicator

(6) Touch toadjust theVolumelevel.

(7) Touch toswitch the Mute function on or off.

(8) Touch toswitch the Loudness function on or off.

When an FMstereo broadcast is hard to receive

Press button on the remote

ST/MO

control to select the MONO or STEREO mode . (When Stereo mode is activated, the ST symbol will appear . )

-17-

Page 19

Touch Screen Operation

Start SearchingFor a Station

Manual Search

During Radio mode, briefly touch the screen of “ ” section to increase frequency by one step of channel spacing . Briefly touch the “ ” section to decrease frequency by one step of channel spacing .

Automatic Search

During Radio mode, touch and hold (for more than 2’s ) the screen of “ / ” section to start search for a radio station automatically .

To tune in strong-singnal FM

Station only (LO/DX function)

In home menu, then touch the icon to enter the setting menu, the message will display as below :

SET

LOUDNESS

RADIO LOC/DX

RADIO STEREO

“SET”

Storing and Listening to a Memory Station

Radio

87.50

FM1

MHZ

APS

- Store in Memory

>Select the frequency band . >Select the station . >Keep the desired memory key pressed

in until the station is heard again after

a brief interruption .

- Retrieve a preset station

Touch the ranges briefly to retrieve

1-6

a station which had been stored in the

memory in advance the chose number

is shown on display .

Automatic Memory Storing & Program Scanning

Automatic Preset Setup

In Radio Mode, touch and keep (for more than 2 ’ S) the screen of range to active automatic station storage. The radio searches within the current frequency band, e.g. FM1, for the stronger signal level until the search cycle has finished . The six strongest stations are then allocated to the corresponding storage locations . Then the station of the first storage location is set .

Scan Function

In Radio mode, briefly touch the section on the touch screen , the radio briefly plays all the preset stations of the frequency band .

Radio

87.50

FM1

MHZ

“APS”

APS

“APS”

87.50 90.00 98.00

1 2

86.50107.00106.00

With this system, a total of 30 stations can be stored in the memory of six buttons. Each band stores up to six preset stations. The operation is as below :

-18-

87.50 90.00 98.00

1 2

86.50107.00106.00

Page 20

Touch Screen Operation

MEDIA OPERATION

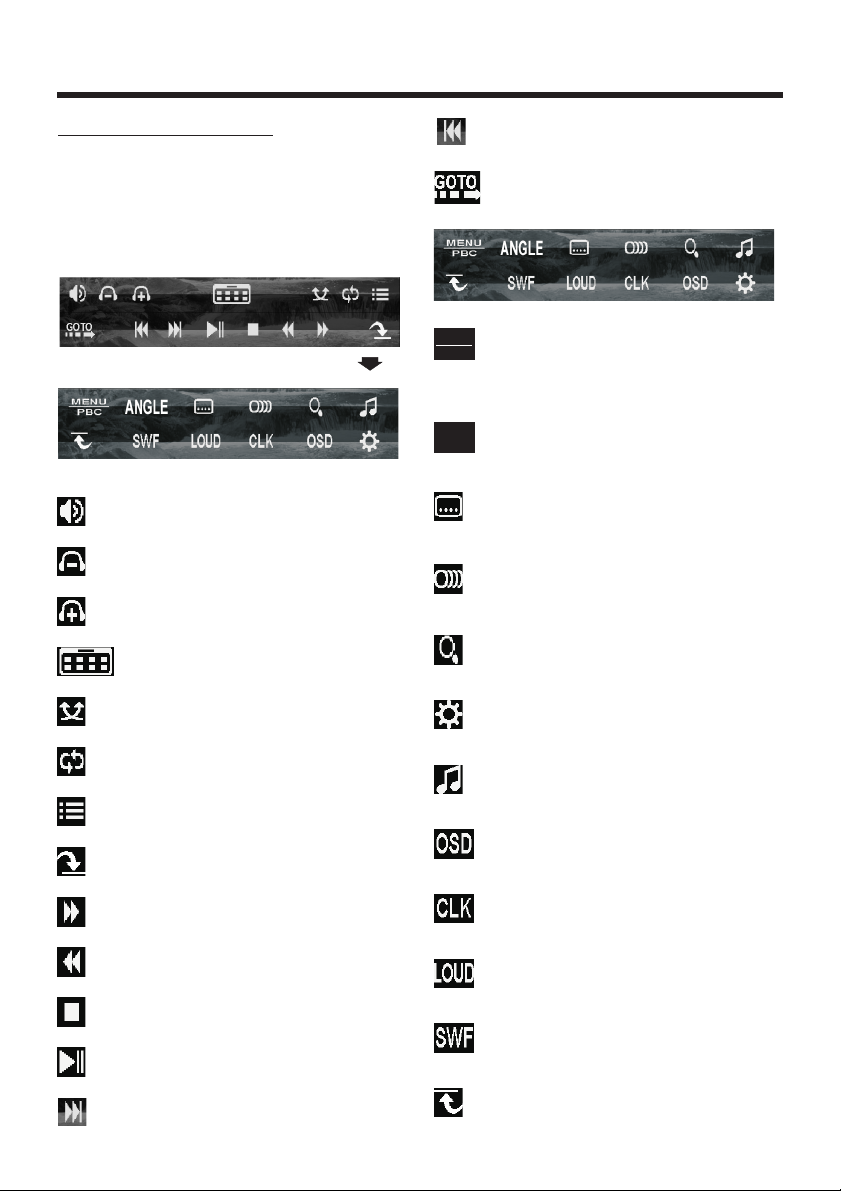

In any modes, press the MODE button on the front panel to enter the media play mode . The message will display as below : (When Parking Brake supplied .)

Mute function

To decrease the volume level

To increase the volume level

To enter the main menu

To skip the previous track

To search the disc with numbers

In Digital Video mode, touch to

display the root menu. In VCD

PBC

mode, touch to switch the PBC ON and PBC OFF.

To select the viewing angle

ANGLE

To show/hide the Subtitle (depending on the media)

To change the AUDIO setting (depending on the media)

ZOOM IN and OUT

Random Function

Repeat Function

Intro Function

Next menu

To search fast forward

To search fast backward

Stop

Play/Pause the disc

To skip the next track

To display the SETUP menu

To select the Equalizer mode

On screen- display

To show / hide the clock

Loudness Function

Subwoofer Function

Previous menu

-19-

Page 21

Touch Screen Operation

BASIC OPERATION

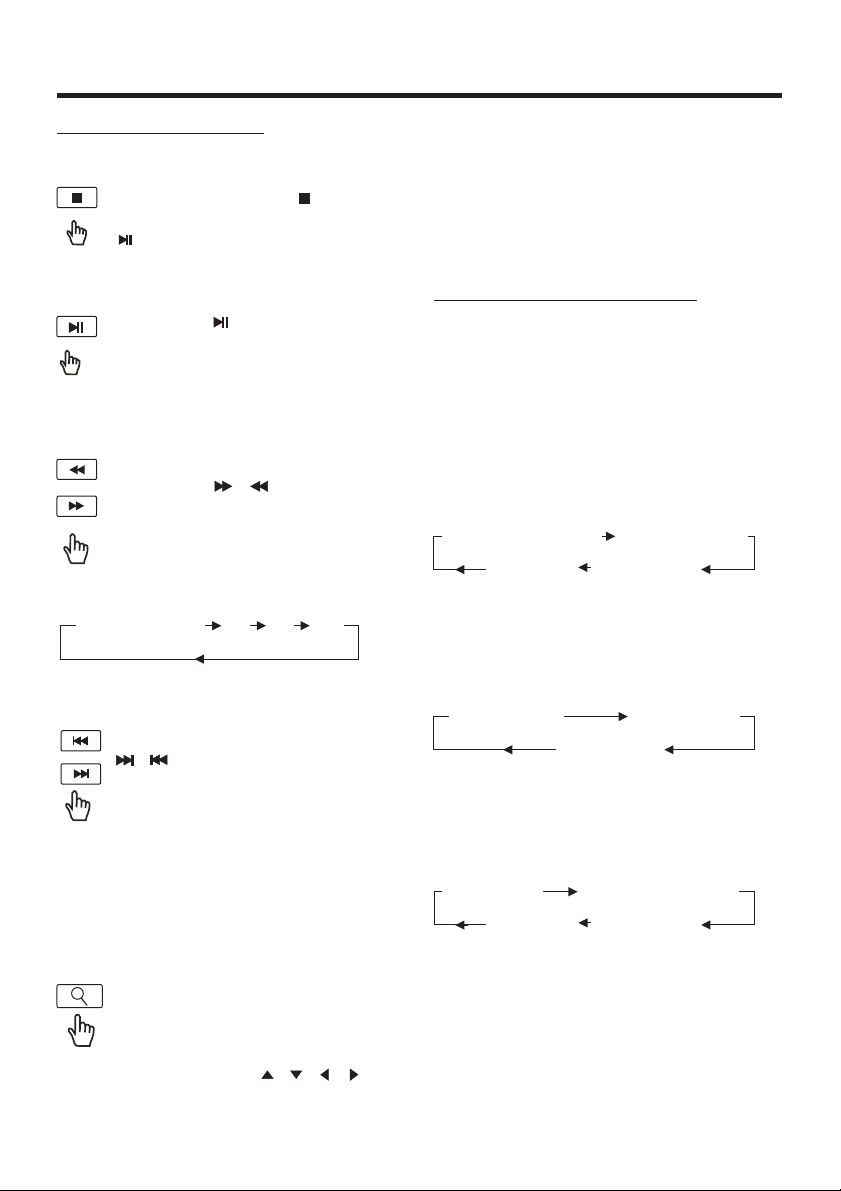

Stopping Play

Touch the screen the range to stop the unit playback. touch the

range to start play.

Pause (still picture)

Touch the “ ” section on touch screen during playback will stop play temporary, touch it again to return the normal playback .

Rapid Forward/Rapid Reverse

During DISC playback, touch the screen of “ / ” range the speed of rapid forward/reverse changes according to the disc as follow:

Digital Video/VCD/CD/MP3:

Normal Playback 2x 4x 8x 20x

Skipping Track

During DISC playback, Touch the

/ section on the touch screen

to skip to next/back one track.

Note :

For some VCD2.0 disc (PBC-playback control), above these buttons may be unavailable .

Note:

when the JPEG disc playback, in normal mode, you can use the cursor buttons to rotate the picture . Press UP to invert an image . Press DOWN to mirror an image . Press LEFT to rotate an image to left . Press RIGHT to rotate an image to right .

SELECTING PLAY MODE

During the Disc playback, touch the “RPT, RDM, INT ” range to select the different playing mode .

1). REPEAT FUNCTION

FOR Digital Video :

Touch the screen of range (or press button on the

RP T

EEA

the remote control) to select REPEAT mode as follow :

CHAPTER REPEAT ON TITLE REPEAT ON

REPEAT OFF

FOR VCD/CD :

Touch the screen of range (or press button on the

the

REPEAT

remote control) to select REPEAT mode as follow :

FOR :

REPEAT ONE REPEATALL

REPEAT OFF

MP3

Touch the screen of range (or press button on the

the

REPEAT

remote control) to select REPEAT mode as follow :

REPEAT ON REPEATE DIR(or FOLDER)

REPEAT OFF

“RPT”

the

REPEATALL

“RPT”

the

“RPT”

the

REPEATALL

Zoom Function

Repeatedly touch it button, the displaying rate can be “zoom 2,

zoom3,zoom4,zoom½, zoom 1/3, zoom1/4 , zoom off. ”

Use the direction keys ( / / / on remote control to move the enlarged picture .

2). INTRO FUNCTION

FOR CD :

Touch the screen of the section (or longer press the button on the remote control ) to play the previous 10 seconds part of each track/chapter on disc. (Touch it again to cancel this mode)

-20-

“INT”

3/INT

Page 22

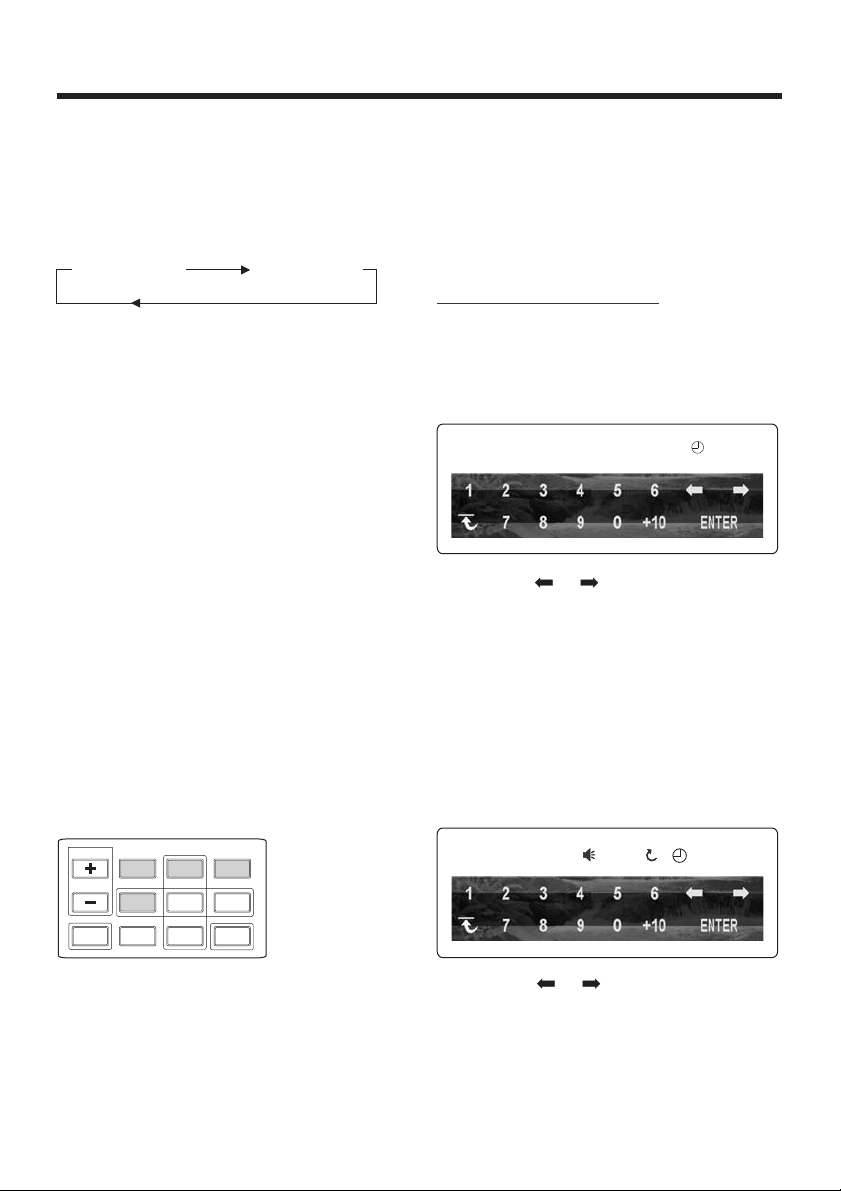

Touch Screen Operation

FOR VCD :

Touch the screen of the section (or longer press the button on the

“INT”

3/INT

the remote control ). It display will following menu as below :

SEQ PLAY INRO 1

Note: when select the Mode, this

INRO

player to start to play the previous 10 seconds part of each track/chapter on disc. (Touch it again to cancel this mode .)

FOR Digital Video/MP3 :

For Digital Video/MP3 , press the INT button is not available .

3). RDM(RANDOM) FUNCTION

During DISC playback, touch screen of

“RANDOM” 4/RDM

section ( press the button longer on the remote control to play in random. Each playing, the order is different . (Depend on the disc used for VCD). Touch it again to cancel this function .

TOP/RPT/INT/RDM FUNCTION (Only for theRC.)

INTRO function

RANDOM function

DISC Search (GOTO)

FOR Digital Video :

“GOTO”Touch the screen the of range

the screen will display the following message :

Digital Video TT 01/01 CH 03/31 0:01:44

Touch the / to select the your adjustment item, then select the item you want to watch through CHAPTER/ TIME setting by touching the numberic buttons , then touch the ENTER button to confirm .

FOR VCD (With PBC OFF):

Touch the screen the of range , the screen will display the following message :

“GOTO”

VOL

SEL

TOP

RDM

5 6

INT

TOP function

ForDigitalVideo/VCD/CD/MP3:

In the state of Digital Video/VCD/CD/ MP3 disc playing, press the button to select the first track/chapter to play. (depend on the disc used for VCD)

VCD TRK 01/19 PBC 0:01:44

Touch the / to select the your adjustment item, then select the item you want to watch through TRACK/TIME setting by touching the numberic buttons , then touch the ENTER button to confirm .

-21-

Page 23

Touch Screen Operation

ON-SCREEN DISPLAY FUNCTION

OSD

1. Digital Video: A.Touch or Press for first time:OSD

Digital Video TT 01/01CH 04/31 C 0:02:06

Title Number, Total Title Number, Chapter Number, Total Chapter Number of this Title of the disc currently being played will be shown on the screen, along with the elapsed time.

B.Touch or Press for second time:OSD

The underlined part is different from the used discs.

C.Touch or Press for third time:OSD

Digital Video TT 01/01CH 04/31 C -0:01:32

During playback, touch the screen of the OSD section, it will display the following as below :

½ ENG 2CH OFF OFFAN

2.Example for VCD/SVCD/CD:

A.Touch or Press for first time:OSD

VCD TRK 1/19 PBC C 0:01:36

B.Touch or Press for second time:OSD

VCD TRK 1/19 PBC C -0:06:06

C.Touch or Press for third time:OSD

VCD TRK 1/19 PBC T 0:02:12

D.Touch or Press for fourth time:OSD

VCD TRK 1/19 PBC T -1:23:06

E.Touch or Press for the fifth time:

OSD

The message on the screen will be cleared for SVCD and VCD.

NOTE:

For CD(audio) Disc, touch OSD button is not available .

D.Touch or Press for fourth time:OSD

Digital Video TT 01/01CH 04/31 T 0:16:00

E.Touch or Press for fifth time:OSD

Digital Video TT 01/01CH 04/31 T -1:36:55

F.TouchorPress forsixthtime:

OSD

The message on the screen will be cleared.

3. Example for MP3

A.Touch or Press for first time:OSD

CD TRK 2/76 C 0:00:36rom

B.Touch or Press for second time:OSD

CD TRK 2/76 C 0:03:38rom -

C. Touch or Press for third time:

OSD

The message on the screen will be cleared.

-22-

Page 24

Touch Screen Operation

D Special Functionigital Video

1. Multi-subtitle Language Function (for DigitalVideo Only)

During Digital Video playback. Touch the section on touch screen(or press the SUBTITLE on the remote) .

Each time the button is pressed or touch, number of the subtitle language changes in sequential order.

Notes:

- The language number is different

according to the disc.

- Some discs only contain one subtitle

language.

- When no different subtitle language

are recorded, will be displayed at screen left top corner.

SUBTITLE

“ INVALID KEY ”

2. Multi-Audio LanguageFunction

For Digital Video:

During Digital Video playback , touch the section on touch screen (or press the AUDIO

on the remote .) Each time the button is pressed or touch , number of the audio soundtrack language changes on sequential order.

Notes:

- The language number is different according to the disc.

- Some disc only contain one language soundtrack

- When no different language soundtrack are recorded will be display at screen left top corner.

AUDIO

“ INVALID KEY ”

3. Multi-Angle Function (for Digital Video Only)

During Digital Video playback, touch the ANGLE button on the touch screen. Each time the button is pressed , the number of the angle changes in sequential order.

Notes:

- The angle number is different according to the disc.

- The function only work for disc having scenes recorded at different angles.

- When no different angle are recorded,

“ INVALID KEY ”

screen left top corner.

will be displayed at

4. Title Menu Function

For Digital Video:

If the Digital Video has multiple titles recorded on the disc. It can select preferred title from the title menu to start playback.

- During Digital Video playback, press TITLE button on the remote .The title menu is display.

- Select preferred title by the cursor button and confirmed by press the ENTER button .

For VCD:

TITLE/PBCPress button on the remote

control while the disc is playing, you can switch between "PBC ON"and "PBC off" mode.

For VCD/CD:

during playback, touch the section of the touch screen or Press

AUDIO

switch the sound between monaural and stereo sound.

on the remote . It is possible to

MONO LEFT MONO RIGHT

STEREO

AUDIO

MIX-MONO

-23-

Page 25

Touch Screen Operation

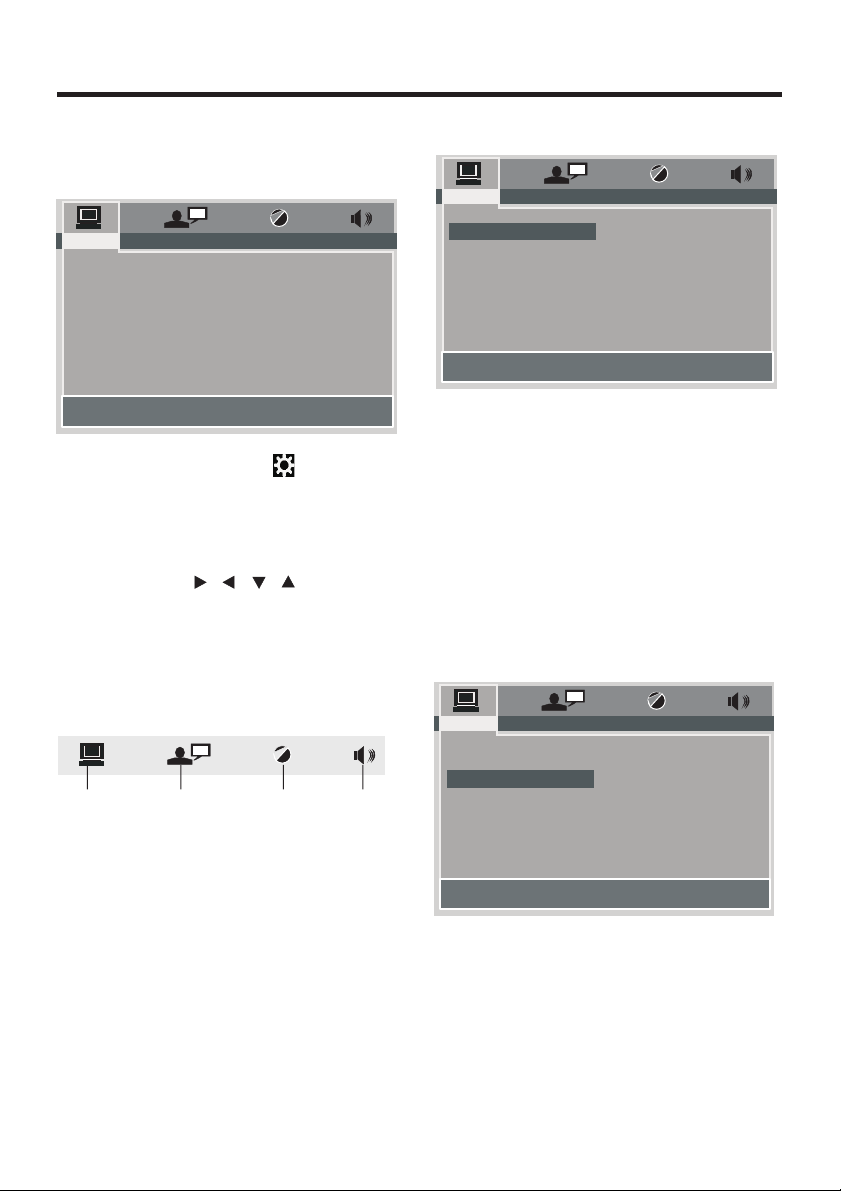

MEDIA SETUP MENU

USING THE MENU

SYSTEM SETUP

TV SYSTEM SCREEN SAVER TV TYPE PASSWORD RATING DEFAULT

EXIT

1. Touch the screen of range or press the button on remote .

SETUP

2.The SETUP menu is displayed.

3.Touch directly the desired item to select the preferred item . Or by using the / / / buttons .

4. Touch the section to clear the

EXIT

setup menu or press the on the remote control .

“”

SETUP

SYSTEM SETUP

TV SYSTEM SCREEN SAVER TV TYPE PASSWORD RATING DEFAULT

EXIT

TV TYPE SETUP

This player is capable of playing medias recorded in either PAL or NTSC formats. Make the selection based on whether you are connecting the unit to a PAL TV or an NTSC TV. You can also set the unit to AUTO (autoselect). The disadvantage to autoselect is that each time you turn the unit on it checks to see what kind of monitor is connected, which causes a small delay and some flickering of the display image which you may find unpleasant.

NTSC

PAL AUTO

Overview Of The MainMenu

()1 ()2 ()3 ()4

(1). System Settings (2). Language Settings (3). Video Settings (4). Digital Settings

SYSTEM SETUP

TV SYSTEM SCREEN SAVER TV TYPE PASSWORD RATING DEFAULT

EXIT

OFF

SCREEN SAVER SETUP

If the screen displays a static image for too long, some "burn-in" may occur, leaving a permanent trace of the image behind. To avoid this, turn ON the SCREENSAVER item. After a short period of inactivity on the monitor, the unit will substitute a moving image to avoid burn-in.

-24-

Page 26

Touch Screen Operation

SYSTEM SETUP

TV SYSTEM SCREEN SAVER TV TYPE PASSWORD RATING DEFAULT

EXIT

16:9

4:3PS

4:3LB

16:9

4:3 Letter Box

4:3 Pan Scan

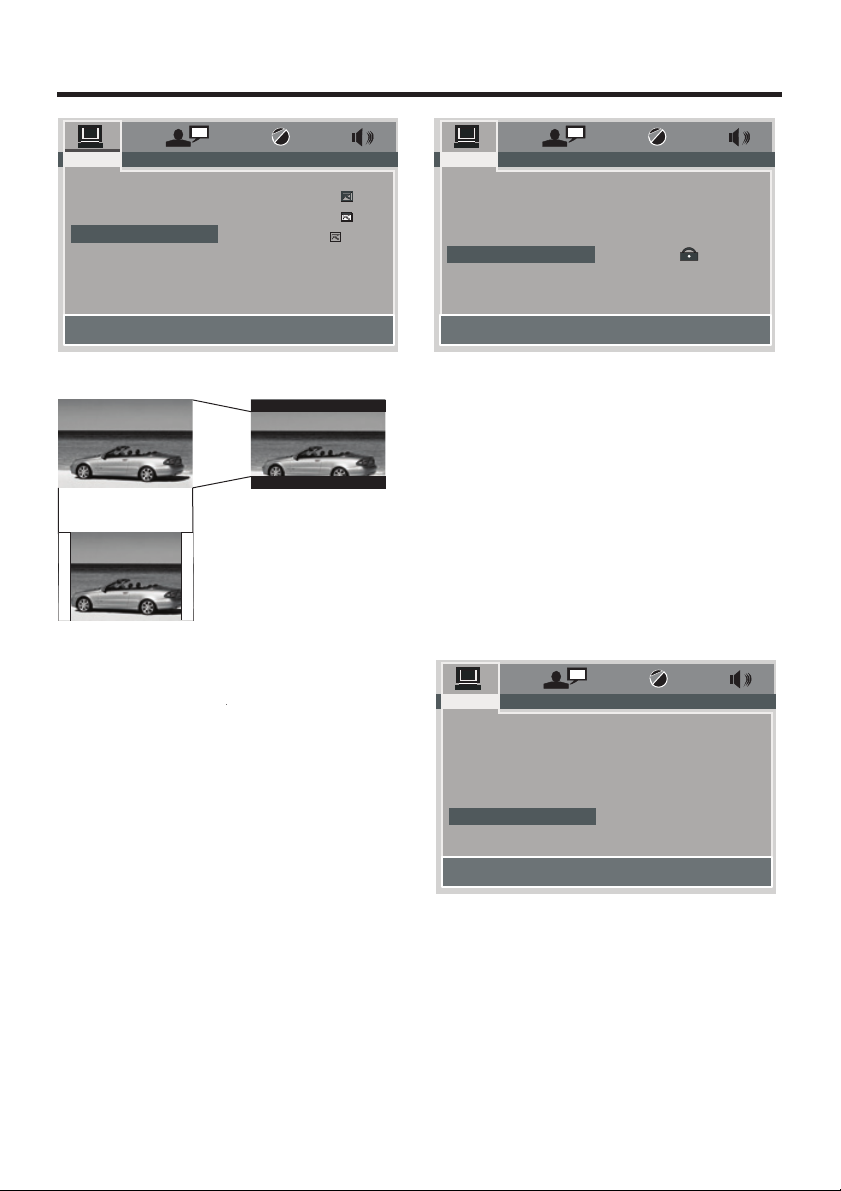

TV DISPLAY SETUP

This is to select the appropriate TV aspect (4:3 or 16:9) according to the connected TV set.

Normal/PS (For 4:3 TV)

Played back in the PAN & SCAN style. (If connected to wide-screen TV, the left and right edges are cut off.)

Normal/LB (For 4:3 TV)

Played back in LETTER BOX style. (If connected to wide-screen TV, black bands appear at top and bottom of the screen.)

Wide (For 16:9 TV)

Select when a wide-screen TV set is connected.

SYSTEM SETUP

TV SYSTEM SCREEN SAVER TV TYPE PASSWORD RATING DEFAULT

-----

EXIT

PASSWORD SELECTION

Thepasswordmustbeusedtomake changes to the Parental Control menu below . The factory default password is

. You will be asked for the current

0000

password. Key in and then press

“0000”

“ENTER” on remote control to confirm . you have the opportunity to change it and enter your new password . Then when you enter the Parental Control menu, you can make any changes.

SYSTEM SETUP

TV SYSTEM SCREEN SAVER TV TYPE PASSWORD RATING DEFAULT

EXIT

1KIDSAFE 2G 3PG 4 PG13 5 PG-R 6R 7 NC-17

8ADULT

RATING

Select suitable parental guidance with the cursor buttons and confirm it by pressing the ENTER button.

-25-

Page 27

Touch Screen Operation

SYSTEM SETUP

TV SYSTEM SCREEN SAVER TV TYPE PASSWORD RATING DEFAULT

RESTORE

EXIT

DEFAULTS

Selecting the DEFAULT item and confirming RESTORE will return ALL personal settings you have made, including radio and TV presets, to the factory default settings.

LANGUAGE SETUP

OSD LANGUAGE AUDIO LANG SUBTITLE LANG MENU LANG

EXIT

ENGLISH

GERMAN SPANISH FRENCH PORTUGUESE ITALIAN RUSSIAN

LANGUAGE SETUP

OSD LANGUAGE AUDIO LANG SUBTITLE LANG MENU LANG

ENGLISH

GERMAN SPANISH FRENCH PORTUGUESE ITALIAN RUSSIAN

EXIT

AUDIO LANGUAGE SETUP

Select the preferred AUDIO soundtrack language by touching directly the desired language .

LANGUAGE SETUP

OSD LANGUAGE AUDIO LANG SUBTITLE LANG MENU LANG

EXIT

ENGLISH

GERMAN SPANISH FRENCH PORTUGUESE ITALIAN RUSSIAN OFF

OSD LANGUAGE SETUP

Select the preferred OSD language by touching directly the desired language .

SUBTITLE LANGUAGE SETUP

Select the preferred Subtitle language by touching directly the desired language .

-26-

Page 28

Touch Screen Operation

LANGUAGE SETUP

OSD LANGUAGE AUDIO LANG SUBTITLE LANG MENU LANG

ENGLISH

GERMAN SPANISH FRENCH PORTUGUESE ITALIAN RUSSIAN

EXIT

MENU LANGUAGE SETUPMEDIA

Select the preferred MEDIA MENU language by touching directly the desired language .

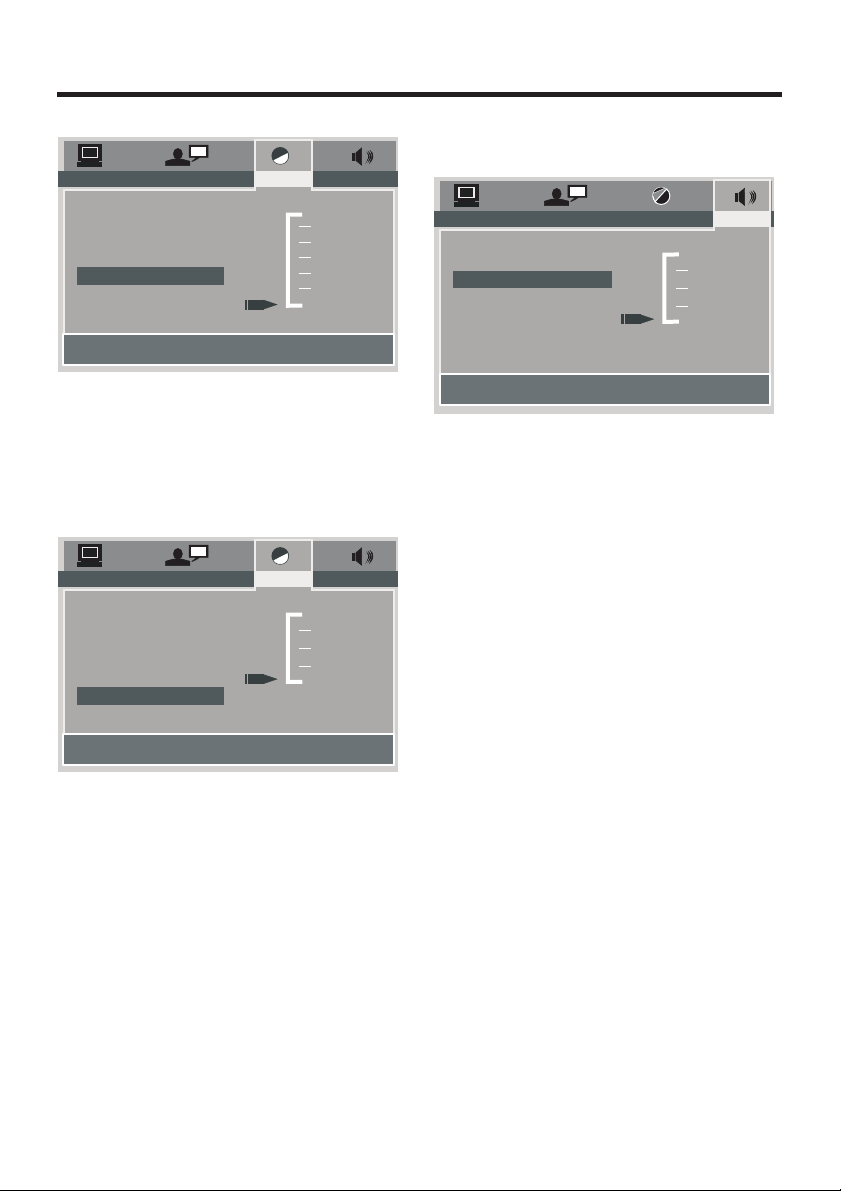

VIDEO SETUP

these settings allow you to set the video signal brightness, contrast, hue, and saturation .

VIDEO SETUP

BRIGHTNESS CONTRAST HUE SATURATION SHARPNESS

12 10

8 6 4 2 0

VIDEO SETUP

BRIGHTNESS CONTRAST HUE SATURATION SHARPNESS

12 10

8 6 4 2 0

EXIT

CONTRAST- the contrast of the video signal (the dark portions of pictures).

VIDEO SETUP

BRIGHTNESS CONTRAST HUE SATURATION SHARPNESS

+6 +4 +2

-2

-4

-6

EXIT

HUE- the hue of the video signal (the color of the pictures) .

EXIT

BRIGHTNESS

- the brightness of the

video signal (how light the picture is) .

-27-

Page 29

Touch Screen Operation

DIGITAL SETUP

VIDEO SETUP

BRIGHTNESS CONTRAST HUE SATURATION SHARPNESS

12 10

8 6 4 2 0

EXIT

SATURATION- the saturation of the video signal (the vividness of the color) all above can be adjusted to your tasters .

VIDEO SETUP

BRIGHTNESS CONTRAST HUE SATURATION SHARPNESS

EXIT

8 6 4 2 0

DIGITAL SETUP

FULL

DYNAMIC RANGE

6/8 4/8 2/8

OFF

EXIT

DYNAMIC RANGE CONTROL

Select DRC and adjust the dynamic range of a Dolby Digital encoded program. There are 8 steps between full compression and off compression.

SHARPNESS- the sharpness of the video signal (the image setting acumination) .

-28-

Page 30

Touch Screen Operation

Front InputAUX Operation

On the front panel of this unit, there is an AUX IN jack, follow the diagram below to connect analogue replay devices(only for the Audio connect, if you want to connect the Video, please plug the RCA <Video input > on the back of the unit .) . Use this jack to replay sound of other replay equipment such as Digital Video players, computers, etc. Via the loud speakers.

1). Please connect the external device with stereo jack plug the Aux in socket .

AUX IN JACK FRONTPANEL

AUX IN

MOD

Toreturnto the main menu

AUX IN

Function zone

3). You now hear the sound from the external device played back through the loudspeakers .

4). Touch the volume+/- sections on touch screen or use the VOL+/- on the panel to adjust the volume level.

VIDEO IN (yellow)

RCHIN(red)

LCH IN (white)

2). In any mode, press the “MOD” button on the front panel to select AUX mode .

-29-

Page 31

Touch Screen Operation

USB Operation

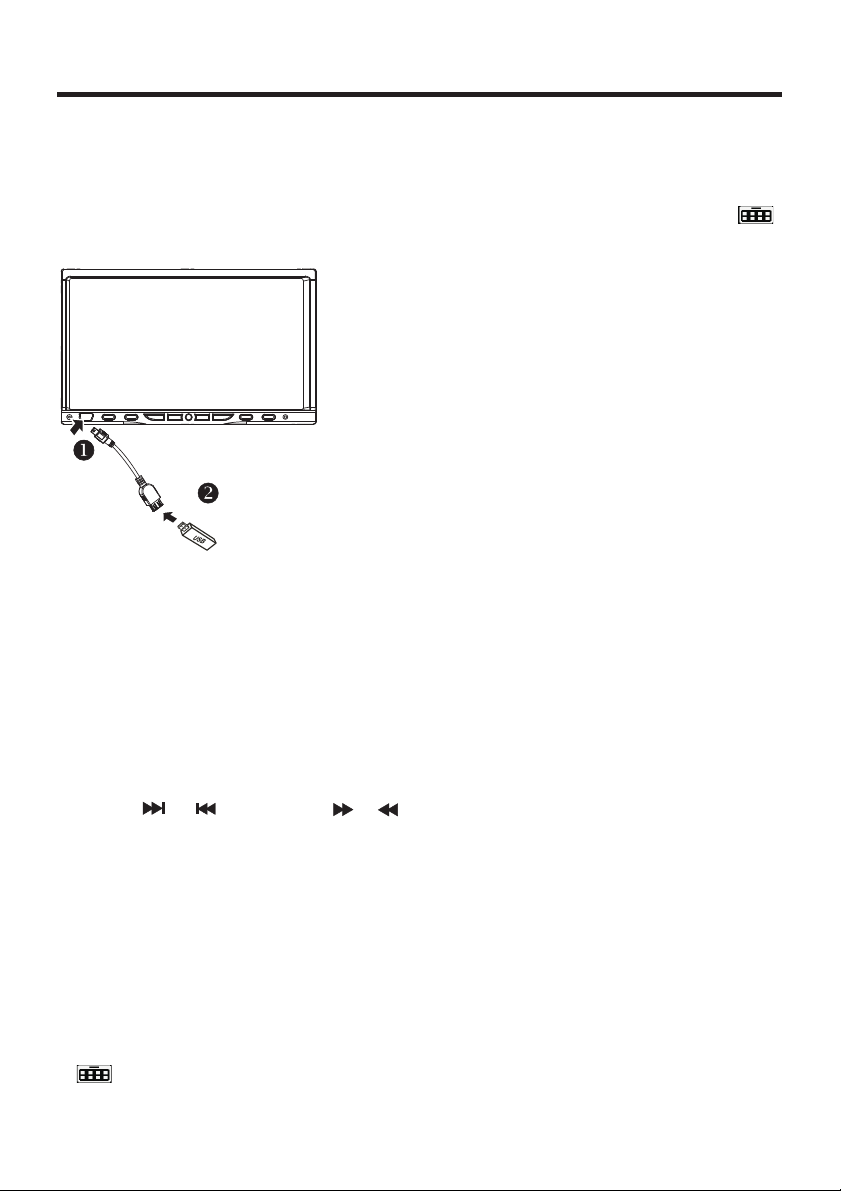

Following the diagram below, connect your USB device to the front panel USB port . If it is properly connected, the device will be mounted and start playing automatically.

USBIN

In USB Playback mode

User can use your finger directly to touch the desired track to start play .

You can use the UP, DOWN, RIGHT or

LEFT buttons to navigate and to select files to play, and press ENTER to begin playback (or viewing, in the case of JPEG files).

Toskiptothenextorlasttrack,touchor press the or . Press the or buttons for Fast Forward or Fast Reverse playback.

REPEAT

by repeatedly pushing until the desired mode is found.

play modes are also available

REPEAT

Changing From DISC to USB Playback Modes

If the disc present in the player is an Digital Video or VCD or MP3/WMAor MP4 disc, touch the screen of the “ ” range to enter the home menu, then touch the ICON to enter the USB mode .

“USB”

Important Note:

To prevent damage to the USB device, do not remove or disconnect it during playback. it is also a good practice to remove the USB drive during disc playback.

Changing From USB to DISC Playback modes

If you are in USB Playback mode and wish to begin playback of a disc already in the player, touch the screen of the

“ ” range to enter the home menu, then touch the ICON to enter the DISC mode .

“ DISC ”

-3 -0

Page 32

Touch Screen Operation

SD/MMC CARDOPERATION

The unit can support playback MP3/WMA/JPEG/MP4 and Divx format which are stored into SD and MMC memory card . Please read below before you start the operation of memory card .

Inserting theSD or MMC card.

Label sidefacing downward

Eject

Press (Eject) button to slide down

the front panel

Removing the SDor MMC card .

Press in till heard a .“CLICK”

Insert the memory card into slot with label side facing downward . Press in till heard a .“CLICK”

Remove the memory card .

Mode change to SD/MMC card

After a SD or MMC card was inserted into the main unit card slot . the unit will starts playing the files contained on the memory card . Once the unit read the memory card successfully, the first file on the memory card will automatically start playback. Press the mode button repeatedly is allowing changing to other modes .

Change DISC to SD/MMC card

The operations are same as USB mode, refer to see USB operation .

Change SD/MMC card to DISC

The operations are same as USB mode, refer to see USB operation .

File Playback Operation

All the SD or MMC memory car playback operation function is same as the operation

CD/MP3/WMA

on . Please to operation for more details .

“ MP3/WMA”

-3 -1

Page 33

Touch Screen Operation

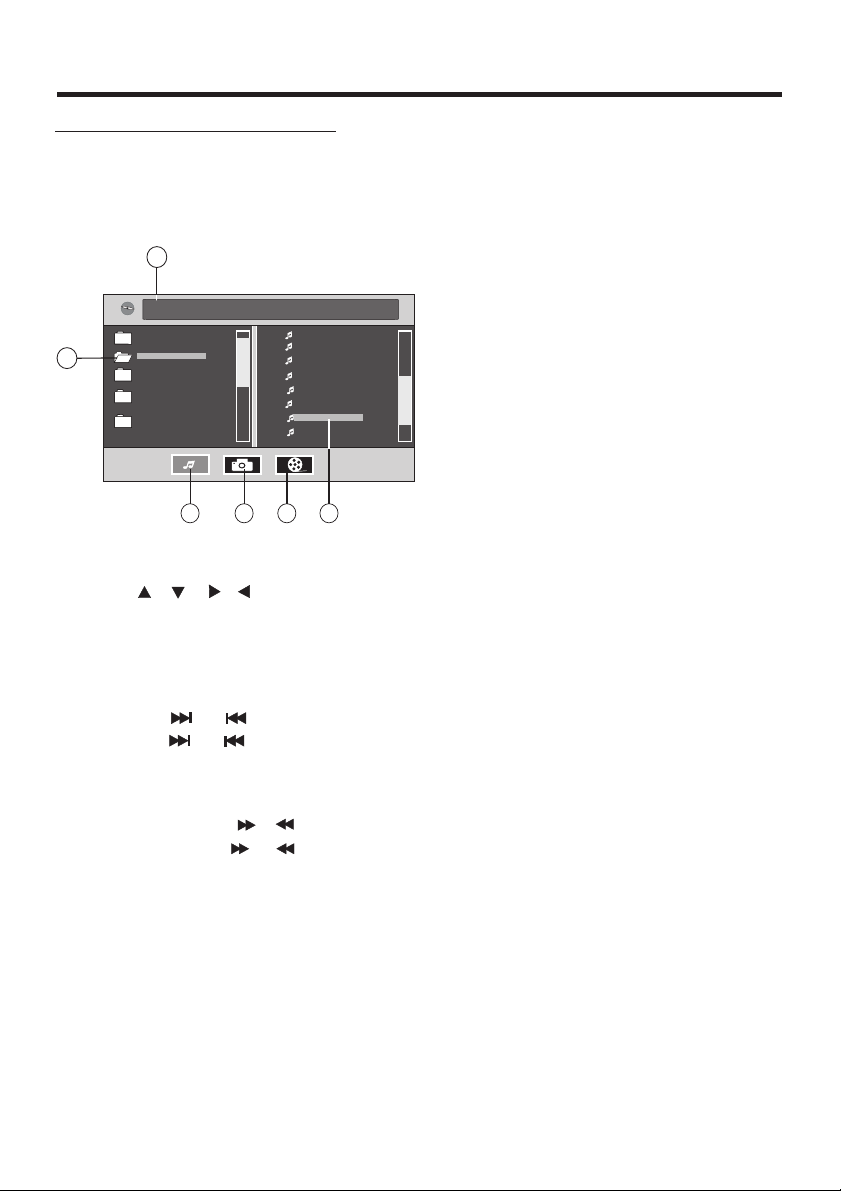

MP3/WMA/JPEG/MPEG4 PLAY

The unit is support MP3/WMA/JPEG/MPEG4 . When a disc is inserted into player, the following picture will appear on the monitor . The unit will play the first track automatically . You can touch to directly others mode (MP3/JPEG /MPEG4) to play . EX. : when the MP3 mode is selected .

[MP3]

ITLE / SONG: TRACK 03 /

WMA

Mp3

001

002

003

001

002

003

004

005

006

007

008

1 Current (highlighted bar) .

Current track ( )ID3 TAG display

The current play mode(MP3).

Select the play mode(JPEG).

Select the play mode(MPEG4).

6 Current song in MP3 folder .

3 4 5 6

Touch directly to select the play mode and then touch the desired track to play .

OrUse ///ontheremotecontroltoselect the play mode or item, then press button on the remote control to confirm.ENTER

type

MOVINGTOANOTHERTRACK:

1. Touch directly the desired song to start play .

2. Touch the or range on the touch screen to skip a track ahead or back.

3. Press the or button on the remote control to skip a track ahead or back.

FASTFORWARD/FASTBACKWARD

1. Touch briefly the “ / ” range on touch screen for fast forward / fast backward.

2. Press shortly the or button on the remote control for forward or backward .

REPEAT FUNCTION

Touch the screen of range or press longer on the remote

“REPEAT ” “RPT”

control repeatedly can select two kinds of repeat play mode.

REP-ONE:

Play the same song over and over again.

REP ALL:

Play all songs on the disc, then repeats the entire disc over and over again .

NOTE:

in JPEG/MPEG4 mode, the details operations as same as MP3/WMA operation .

-3 -2

Page 34

Specification

Generall :

Supply Voltage: 12V DC (11V-15V) Current Consumption: Less than10 A Signal System: Compositive video 1.0Vp-p 75 Discs Played: (1)DIGITAL-VIDEO Disc

5"(12 cm) single-sided, single-layer 5"(12 cm) single-sided, double-layer (2)Compact Disc (CD-DA, VIDEO CD) 5"(12cm) disc

Audio Signal Output: 2ch&4ch line out Characteristics: (1)Frequency Response 20 Hz - 20 KHz

(2)S/N Ratio 90 dB (JIS) (3)Wow and Flutter Below measurable limits

RADIO Section:

For 3 Bands For 2 Bands For 2 Bands

(Europe) (Europe) (U.S.A.)

FM FM FM Frequency Coverage: 87.5 to108 MHz 87.5 to108 MHz 87.5 to107.9 MHz IF: 10.7 MHz 10.7 MHz 10.7 MHz Sensitivity (S/N = 30 dB): 15 dBu 15 dBu 15dBu

MW MW AM Frequency Coverage: 522 to1620 KHz 522 to1620 KHz 530 to1710 KHz IF: 450 KHz 450 KHz 450 KHz Sensitivity (S/N = 20 dB): 40 dBu 40 dBu 40 dBu

TFT Monitor:

Monitor Screen Size: 7 Inch Wide Number of Pixels: 1440 X 234 pixels Color System: NTSC/PAL

NOTE:

Specification and design are subject to modification, without notice, due to improvements in technology.

-3 -3

Page 35

Trouble hootings

Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer.

SYMPTOM CAUSE SOLUTION

If the power supply is properly connected to the car accessory terminal,switch the ignition key

"ACC"

Replace the fuse

Remove the disc in the player, then put a new one

Insert the compact disc with the label facing upward

Clean the disc or try to play a new one

Cool off or until the ambient temperature return to normal

Please switch to correct color system from menu

Make proper connection according to wire connection

For safety reasons no video

images are displayed

/ while the vehicle is moving. Engaging the parking brake will cause images to be displayed.

Please choose a corrent color system.

Change the disc

Change the disc Record JPEG files using a compliant application

Press the RESET button. Front panel is not properly fixed into its place

Insert the antenna cable firmly

Select a station manually

“”

No power

Disc can not be loaded or ejected

Video image

/ appears black-white

No video image appears

No color in picture

JPEG disc can not be played back

The operation keys do not work

The radio does not work

The car ignition switch is not on

The fuse is blown

Presence of disc inside the player.

Inserting the disc in reverse direction

The disc is extremely dirty or defective

Temperature inside the car is too high

The color system is set incorrectly

The unit is not connected to the parking brake detection switch

The parking brake is not engaged

Thediscformatisnot according to the TV-set used (PAL/NTSC)

No JPEG files are recorded on the disc.

JPEG files are not recorded in a compliant formant

The built-in microcomputer is not operating properly due to noise

The antenna cable is not connected

The signals are too weak

-3 -4

88-J7200-07B
