EXONIC EXD 6505 User Manual

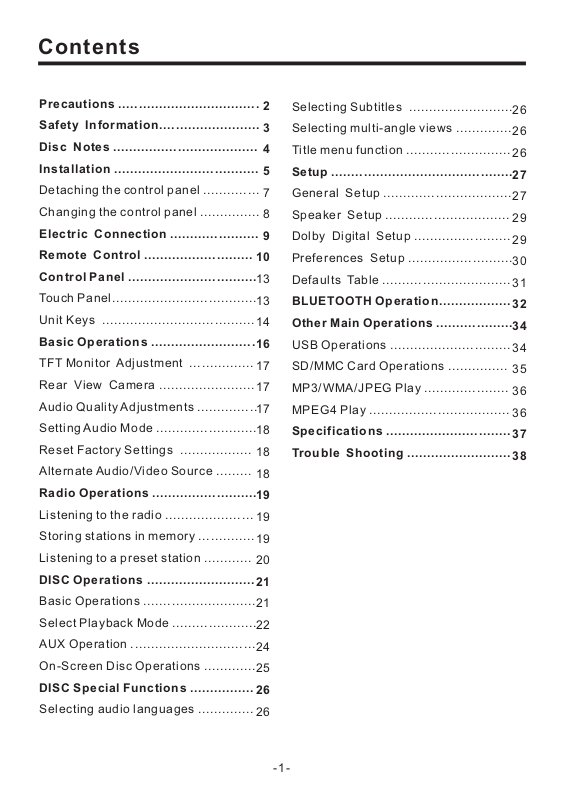

Contents

Precautions ...................................

Safety Information.........................

Disc Notes ....................................

Installation ....................................

Detaching the control panel ..............

Changing the control panel ...............

Electric Connection ......................

Remote Control ...........................

Control Panel ................................

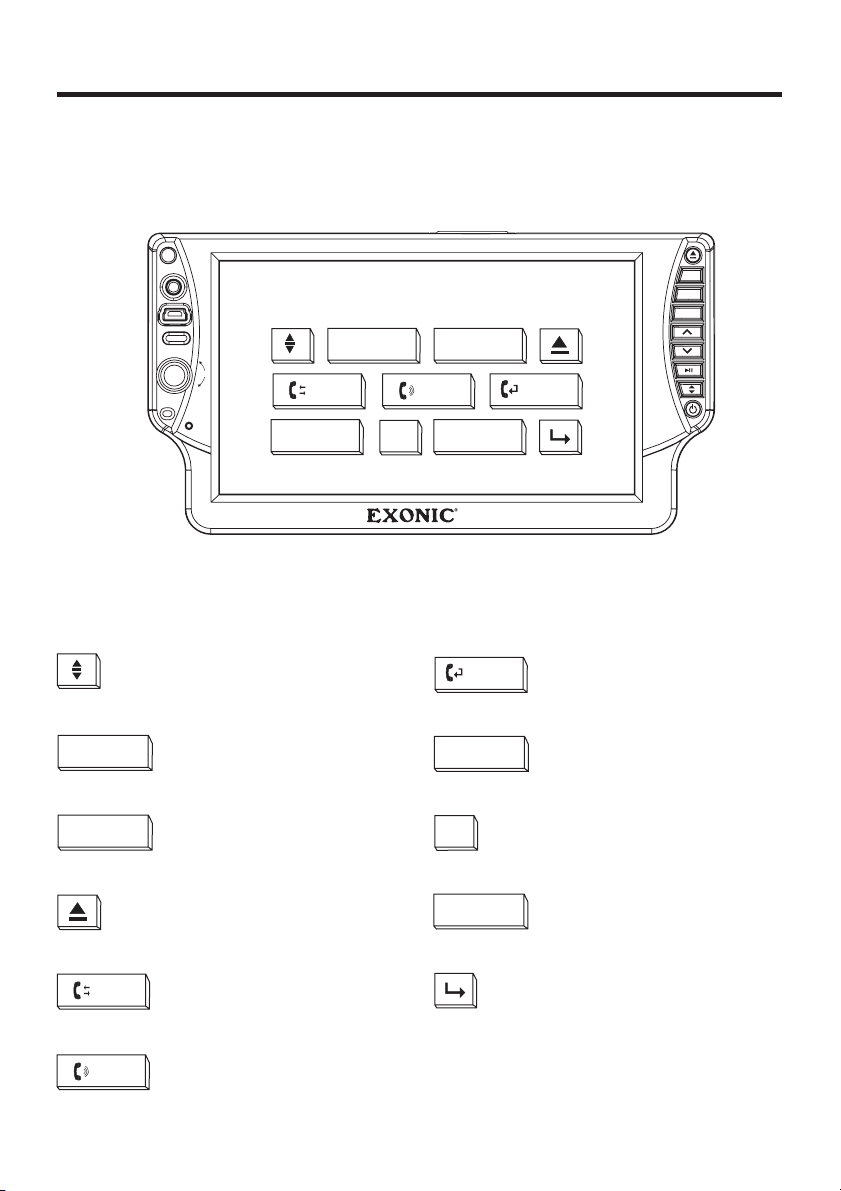

Touch Panel

Unit Keys ......................................

Basic Operations

TFT Monitor

Rear View Camera

Audio Quality Adjustments

Setting Audio Mode .........................

Reset Factory Settings

Alternate Audio/Video Source .........

Radio Operations ..........................

Listening to the radio ......................

Storing stations in memory ..............

Listening to a preset station ............

DISC Operations ...........................

Basic Operations ............................

Select Playback Mode .....................

AUX Operation ...............................

On-Screen Disc Operations .............

DISC Special Functions ................

Selecting audio languages ..............

....................................

..........................

Adjustment ................

........................

...............

..................

Selecting Subtitles ..........................

Selecting multi-angle views ..............

Title menu function ..........................

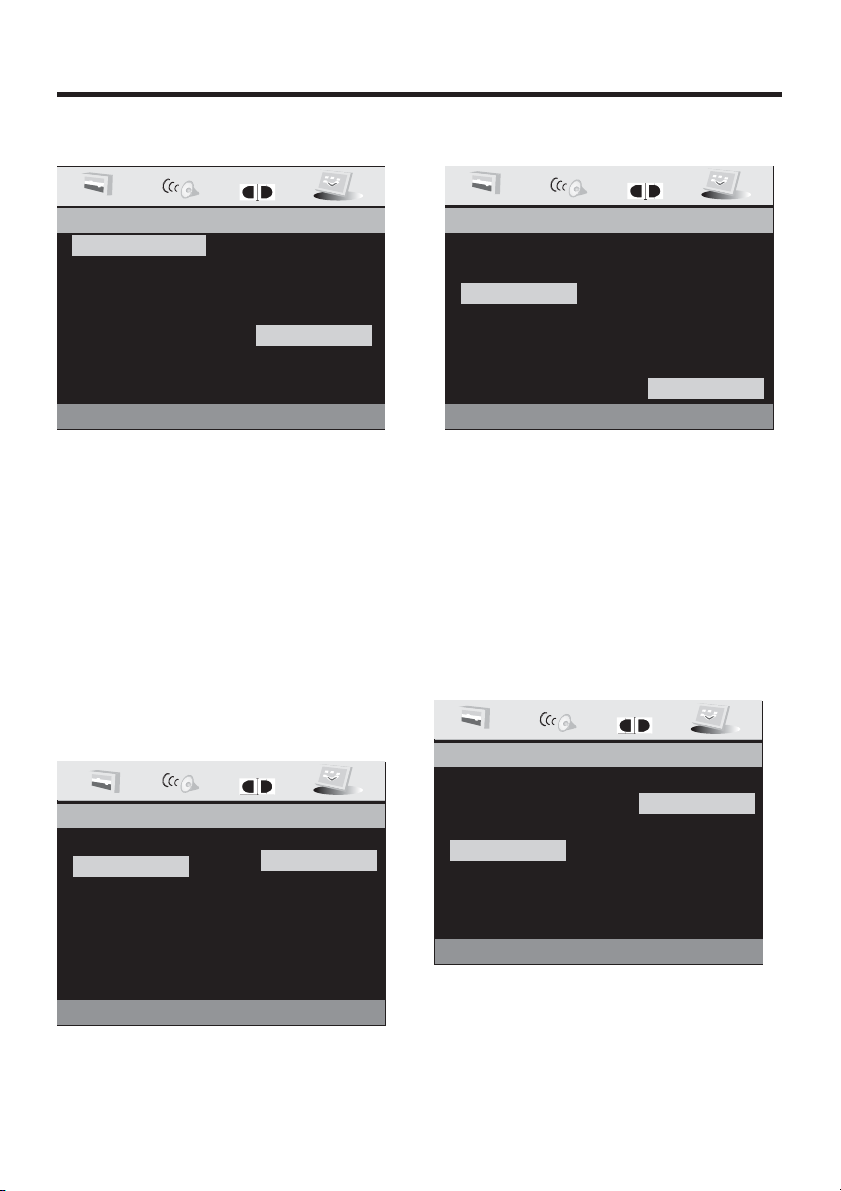

Setup .............................................

General Setup ................................

Speaker Setup ...............................

Dolby Digital Setup ........................

Preferences Setup ..........................

Defaults Table ................................

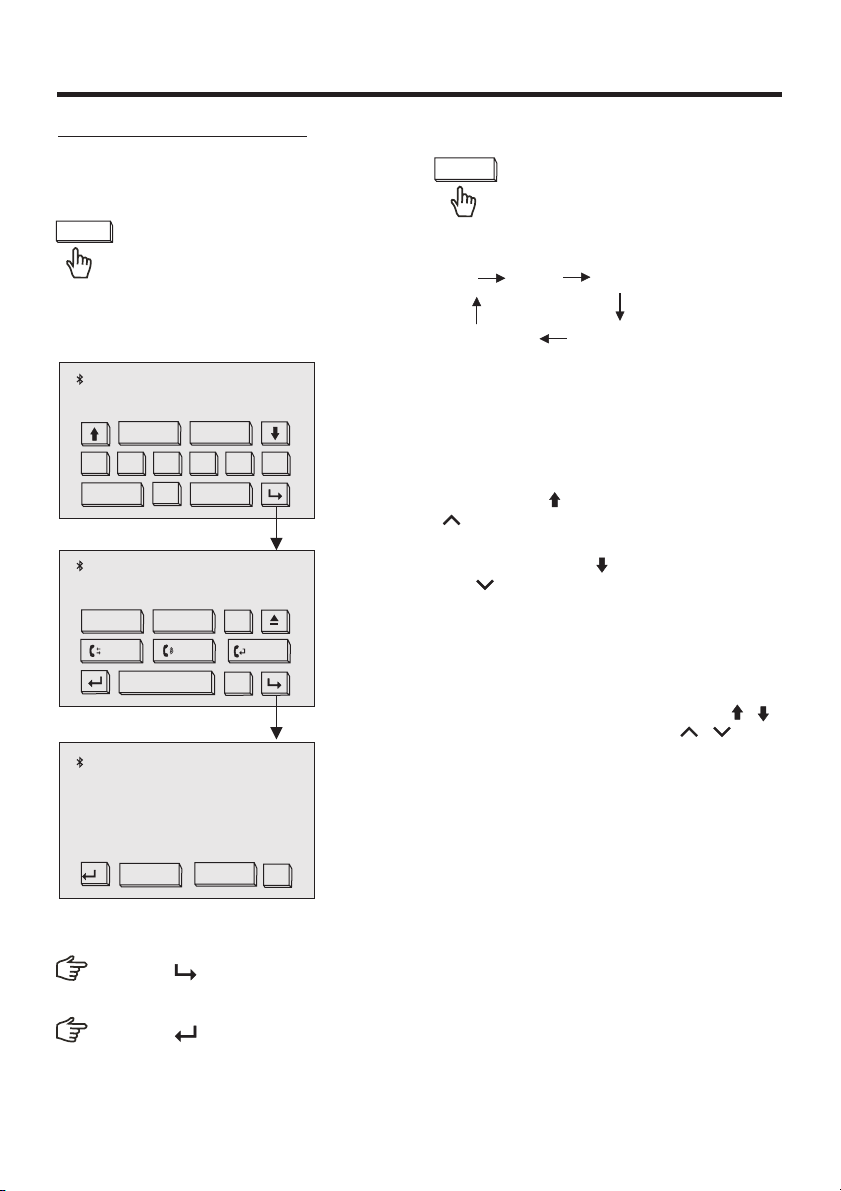

BLUETOOTH Operation..................

Other Main Operations ...................

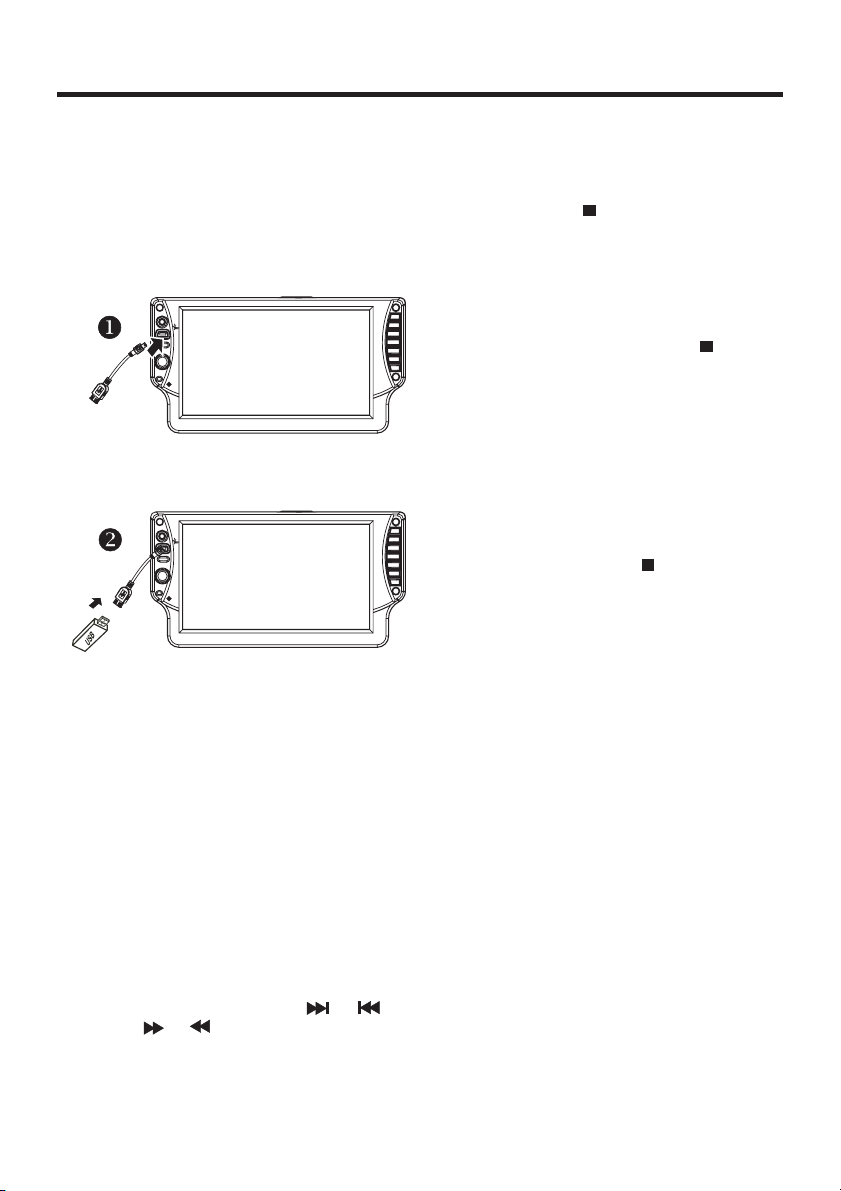

USB Operations ..............................

SD/MMC Card Operations ...............

MP3/WMA/JPEG Play .....................

MPEG4 Play ...................................

Specifications ...............................

Trouble Shooting ..........................

-1-

Precautions

THANK YOU FOR PURCHASING THIS CAR DVD PLAYER .

Before operating the unit, read this manual thoroughly and keep it handy for future reference . To avoid injury or accident , read the following precautions before installing and operating the unit .

ON INSTALLATION

DO NOT install any receiver in locations where;

- it may obstruct the steering wheel and gearshift lever operations, as this may result in a traffic accident.

- it may obstruct the operation of safety devices such as air bags, as this may result in a fatal accident.

- it may obstruct visibility.

DO NOT operate any receiver while manipulating the steering wheel, as

this may result in a traffic accident.

The driver must not watch the monitor while driving. IF THE DRIVER watches the monitor while driving, it may lead to

carelessness and cause an accident.

IF YOU NEED to operate the receive while driving, be sure to look ahead

carefully or you may be involved in a traffic accident.

IF THE PARKING BRAKE is not engaged.“ ParkingBrake” flashes on the

monitor, and no playback picture will be shown.

- This warning appears only when the parking brake wire is connected to

the parking brake system built in the car ( refer to the electric connection)

ABOUT THE LIQUID CRYSTAL DISPLAY (LCD) PANEL

Do not press on the LCD panel on the unit as doing so can distort the picture or cause a malfunction . The picture may become unclear , or the LCD panel may be damaged .

NOTES ON CLEANING

-Clean the LCD panel with a slightly damp soft cloth.

-Do not use solvents such as benzine, thinner, commercially available

cleaners or antistatic spray .

-Do not use alcohol to clean the screen . If your car was parked in a cold or hot place, the picture may not be clear . The monitor is not damaged . The picture will become clear the temperature in your car becomes normal .

-2-

Safety Information

CAUTION:

THIS DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS DVD PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE . HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE DVD PLAYER CORRECTLYAS INSTRUCTED.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.

THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.

This product incorporates copyright protection technology that is protected

by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.Use of this copyright protection technology must be authorized by Macro vision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

REGION MANAGEMENT INFORMATION:

This DVD Player is designed and manufactured to respond to the Region Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this DVD Player, this DVD Player cannot play this disc.

-3-

Disc Notes

Disc formats supported by this player

DVD

VCD

MP3

Audio and Video Discsize12cm

Audio Discsize12cm

Discs which cannot be played with this player

DVD-RAM CDV CDG

Handling and Cleaning

Dirt, dust, scratches and warping disc

will cause misoperation. Do not place stickers or make scratches on discs. Do not warp discs.

A disc should always be kept in its case when not in use to prevent from damaging. Do not place discs in the following places:

1.Direct sunlight

2.Dirty, dusty and damp areas

3.Near car heaters

4.On the seats or dashboard

Disc Cleaning

Use a dry soft cloth to wipe the surface. If the disc is quite dirty, use a soft cloth slightly moistured with isopropyl (rubbing) alcohol. Never use solvents such as benzine, thinner or conventional record cleaners as they may mar the surface of the disc.

Note:

A disc may become somewhat scratched (although not enough to make it

unusable) depending on your handle it and conditions in the usage environment. Note these scratches are not an indication of any problem with the player.

Label side up

Do nottouch the underside of thedisc

Do not bend

Wipe the disc from center toward theoutside edge

Preparing New Discs with

Rough

Spots

A new disc may have rough edges on its inside and outside edges. If a disc with rough edges is used, the proper setting will not be performed and the player will not play the disc. Therefore, remove the rough edges in advance by using a ball point pen or pencil as shown on the right. To remove the rough edges, press the s ide of the pen or pencil against the inside and outside edges of the disc.

Rough spots on outside edge

Ball pointpen or pencil

Rough spots on inside edge

-4-

Installation

NOTES:

1. Choose the mounting location where the unit will not interfere with the normal driving function of the driver.

2. Before finally installing the unit, connect the wiring temporarily and make sure it is

all connected up properly and the unit and the system work properly.

3. Use only the parts included with the unit to ensure proper installation. The use of

unauthorized parts can cause malfunctions.

4. Consult with your nearest dealer if installation requires the drilling of holes or other

modifications of the vehicle.

5. Install the unit where it does not get in the driver s way and cannot injure the passenger if there is a sudden stop, like an emergency stop.

. Avoid installing the unit where it would be subject to high temperature, such

6 as from direct sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration. 7

. If installation angle exceeds 30 from horizontal, the unit might not give its

optimum

performance.

DIN FRONT/REAR-MOUNT

This unit can be properly installed either from "Front"(conventional DIN Front-mount) or "Rear"(DIN Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details, refer to the following illustrated installation methods.

Revoving the unit

1. Press the button to release the front panel .REL

2. Remove the control panel .

-5-

Installation

Installation the unit

3. Remove the PLASTIC COVER of the both sides away

PLASTIC COVER

4. Insert the two KEY PLAT into the grooves at both sides of the unit as shown in figure until they click .

KEY PLATE

5. Pulling the levers makes it possible to remove the unit from the dashboard .

SPRING WASHER

PLAIN WASHER

TAPPING SCREW

DASH BOARD

HEX NUT

METAL MOUNTING STRAP

CONSOLE

SLIDE BRACKET HOUSING

HEX BOLT

-6-

Installation

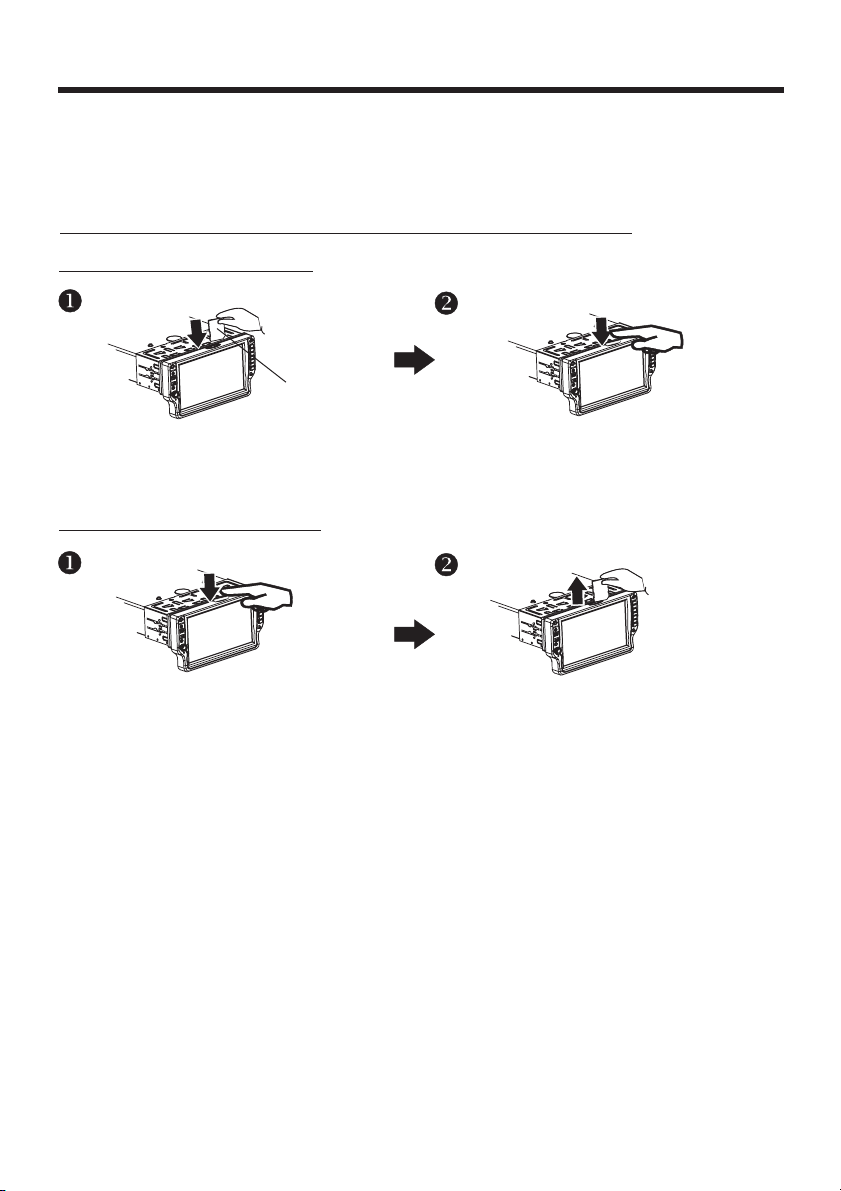

How To Remove And Install The Front Panel

When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder.

Detaching The Front Panel

Before detaching the control panel, be sure to turn off the power.

1). Press the release button and the left hand side of front panel will release.“REL”

RELEASE BUTTON

2). Pull-off the front panel and keep the front panel into the case .

PROTECTIVE CASE

Attaching The Front Panel

1). First insert the right hand side of the front panel into the hollow of the unit . (NOTE : the “bulge” point on the panel must be attached into the hollow of the unit .)

2). Gently push the left hand side of the front panel until you feel a “ Click” .

Hollow

Bulge

-7-

Panel Angle Adjustment

CHANGING THE CONTROL PANEL ANGLE

When you want to change the viewing angle of the operating unit to play, you can touch the section on touch screen (or press the button on the front panel) repeatedly to select the desired angle as follows:

ANGLE1-ANGLE2-ANGLE3-ANGEL4-ANGLE 1 .

ANGLE 1 ANGLE 2

ANGLE 3ANGLE 4

Caution:

Do not insert your finger behind the control panel.

-8-

Electric Connection

WIRING CONNECTION

AUDIO OUTPUT(L-CH/WHITE)

AUDIO OUTPUT(R-CH/RED)

SUBWOOFER OUTPUT(GREY)

VIDEO OUTPUT2 (YELLOW)

COAXIAL OUTPUT ( BROWN)

RADIO ANTENNAJACK

IGNITION SWITCH(B+)

MEMORY BACK-UP(B+)

GROUND(B-)

AUTO ANTENNA

REAR AUX OUTPUT

AUX OUTPUT

RED

YELLOW

CHOKE BOX

BLACK

FUSE

BLUE

AUX INPUT

FRONT AUX OUTPUT

BROWN

ORANGE

AUDIO INPUT (R-CH/RED)

VIDEO INPUT (YELLOW)

AUDIO INPUT (L-CH/WHITE)

AUDIO OUTPUT (R-CH/RED)

VIDEO OUTPUT 1 (YELLOW)

AUDIO OUTPUT (L-CH/WHITE)

REARVIEW CAMERA TRIGGER WIRE(B+)

EMERGENCY BRAKE SAFTY WIRE (B-)

REARVIEW CAMERA INPUT

FRONT

Lch SPK.

REAR

Lch SPK.

WHITE

WHITE/BLACK

GREEN

GREEN/BLACK

GREY

GREY/BLACK

VIOLET

VIOLET/BLACK

FRONT

Rch SPK.

REAR

Rch SPK.

Note:

In order to use the DVD player function, the “ EMERGENCY BRAKE SAFTY WIRE (B-) ” must be connected properly . If not properly connected the unit will display “PARKING BRAKE ” .

-9-

Remote Control

Ref #

Button

CLK

PAIR/

STOP

SETUP

MO/ST (AUDIO)

SUBTITLE LOCAL/ DISTANT

Redial/

DVD/RECEIVER CONTROLDVD/RECEIVER CONTROL

MUTE

MODE

REDIAL

PAI R

LO/DX

OSD

BAND

TITLE/PBC

A/PS

VOL

TOP

VOL

RDM

SEL

SETUP

GOTO

PLAY/PAUSE

ANGLE

LOUD

ENTER

RPT

5 6

+10

STOP

MO/ST

CLK

INT

Function

Press it briefly to view the clock time , Press again to return to normal display mode . Press longer to set the time .

Press it to use the Bluetooth function , refer to the page 32 . Press once to pause playback. Press PLAY/PAUSE to resume

playback. Please note: if you press STOP twice, playback will start at the beginning of the disc.

Press this button to open the SETUP menu.

In Radio mode, press this button to change between Mono and Stereo reception modes (when a station is weak, sometimes switching to Mono will improve sound quality). In Disc Playback mode, pressing this button opens the AUDIO setup menu for making changes to the way the soundtrack is reproduced.

In DVD Disc Playback mode, pressing this button will allow you to change the subtitle language on discs which have this as an option. In Radio mode, press this button to change the radio reception sensitivity in stations are near or far.

Press this button to use the Bluetooth function, refer to page 32.

-10-

Remote Control

Ref #

Button

GOTO

SEL

VOL+/-

///

Menu SubWoofer

()

BAND (OSD)

/MOD

PLAY/ PAUSE

Function

Press it button to begin playback at a moment in the program you designate. Use number buttons to enter the data that is needed. In Bluetooth menu, it serves as the button on your mobile handset.

Press these buttons to skip ahead or back one track. (Note: In DVD mode, press continually the twice to skip back one)

Press this button repeatedly to cycle through the various audio and video adjustments you can make: Volume, Bass, Treble, Balance, Fader, Color, Brightness, Contrast and Tint.

Use these controls to adjust the volume level.

Press to navigate the various menus present in the product.

Press this button briefly to display the root level directory of a DVD disc. Press and hold this button to turn on or off the SUBWOOFER output.

In Radio mode, press this button repeatedly to switch between the five radio bands: FM1 > FM2 > FM3 > AM1 >AM2. In Disc Playback modes, Press this button to see information about the disc currently in play.

Press this button to turn the unit ON , press and hold to turn the unit OFF. Press it briefly to select the Disc, Radio , AUX In , BT Music, mode.

In Disc Playback mode, press to pause playback. Press again to start where playback stopped.

MUTE

TITLE/ PBC(A/P)

ANGLE

EQ/LOUD

Press this button to turn off the audio. Press again to restore the sound to its prior volume level.

When playing a DVD, pressing this button will open the TITLE menu which is recorded on the DVD. When playing a VCD disc, press this button to create a PBC (Playback Control) menu for the disc to assist in making playback selections. In Radio mode, press and hold this button to start the Auto-Program mode, during which the tuner will scan for all strong stations and assign them to the radio preset buttons.

Press this button to adjust the screen viewing angle (see page 8).

For DVD discs which have alternate viewing angles encoded, when you see the "angle mark" symbol advising you that these angles are available, press this button to see them.

Press repeatedly to cycle through the different equalizer curve presets you may wish to use for enhanced listening.

In Disc Playback mode, press for fast forward/reverse playback.

-11-

Remote Control

Ref #

Button

ENTER

0-9

+10/

1-6

This button is used to confirm selections and settings within many of the menus in the OSD system.

In DISC mode, press it to reverse rapidly

These buttons are used for numeric entry in many different menus.

This button is used with the other number buttons for use with two-digit number entries. In Bluetooth menu, it serves as the button on your mobile handset.

Six numbered preset buttons store and recall stations for each band

Function

Preparing the Remote Control

Inserting the Battery

1.First push to inside as the direction indicated by the arrow (See )And then

Remove the battery holder as the direction indicated by the arrow (See ).

2.Replace the battery Set a new battery property with (+)side up as illustrated

(See ).

3.Insert the battery holder. Push in the holder to the original position(See ).

Using the Remote Control

Face the remote control towards the player front face IR mark (remote control signal

receiver).

Operation angle: About 30 degree in each the direction of the front of the IR mark.

Note :

The lithium cell in the battery compartment of remote control has been secured for

transport with a foil . Before initial use please remove this foil so that the remote

control is ready for operation .

-12-

+ 26 hidden pages
