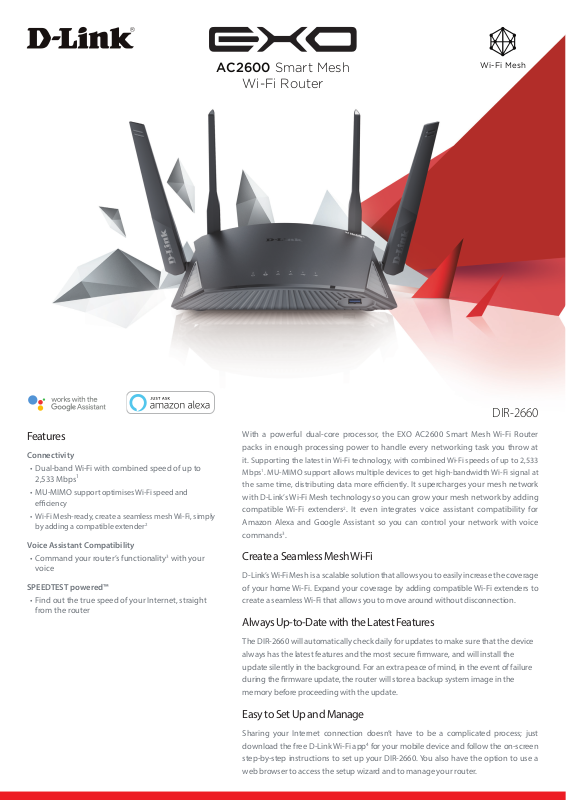

EXO DIR-2660 User guide

AC2600 Smart Mesh

Wi-Fi Router

Wi-Fi Mesh

Features

Connectivity

• Dual-band Wi-Fi with combined speed of up to
2,533 Mbps

• MU-MIMO support optimises Wi-Fi speed and

eciency

• Wi-Fi Mesh-ready, create a seamless mesh Wi-Fi, simply
by adding a compatible extender

Voice Assistant Compatibility

• Command your router’s functionality
voice

SPEEDTEST powered™

• Find out the true speed of your Internet, straight
from the router

1

2

3

with your

DIR-2660

With a powerful dual-core processor, the EXO AC2600 Smart Mesh Wi-Fi Router

packs in enough processing power to handle every networking task you throw at

Supporting the latest in Wi-Fi technology, with combined Wi-Fi speeds of up to 2,533

it.

1

. MU-MIMO support allows multiple devices to get high-bandwidth Wi-Fi signal at

Mbps

the same time, distributing data more eciently

with D-Link’s Wi-Fi Mesh technology so you can grow your mesh network by adding

2

compatible Wi-Fi extenders

. It even integrates voice assistant compatibility for

Amazon Alexa and Google Assistant so you can control your network with voice

3

commands

.

Create a Seamless Mesh Wi-Fi

D-Link’s Wi-Fi Mesh is a scalable solution that allows you to easily increase the coverage

of your home Wi-Fi. Expand your coverage by adding compatible Wi-Fi extenders to

create a seamless Wi-Fi that allows you to move around without disconnection.

Always Up-to-Date with the Latest Features

The DIR-2660 will automatically check daily for updates to make sure that the device

always has the latest features and the most secure rmware, and will install the

update silently in the background. For an extra peace of mind, in the event of failure

during the rmware update, the router will store a backup system image in the

memory before proceeding with the update.

. It supercharges your mesh network

Easy to Set Up and Manage

Sharing your Internet connection doesn’t have to be a complicated process; just

4

download the free D-Link Wi-Fi app

step-by-step instructions to set up your DIR-2660. You also have the option to use a

web browser to access the setup wizard and to manage your router.

for your mobile device and follow the on-screen

Technical Specications

General

Hardware Revision • A1

DIR-2660

AC2600 Smart Mesh Wi-Fi Router

Device Interfaces • IEEE 802.11 ac/n/g/b/a wireless LAN

• One 10/100/1000 Mbps Gigabit Ethernet WAN port

• One SuperSpeed USB 3.0 port

• One USB 2.0 port

• Four 10/100/1000 Mbps Gigabit Ethernet LAN ports

LEDs • Power

• Internet

• USB 3.0

• 5 GHz WLAN

• 2.4 GHz WLAN

• USB 2.0

Antenna Type • Four external antennas

Wi-Fi Data Rate

Standards • IEEE 802.11ac

1

• 2.4 GHz

• Up to 800 Mbps

• 5 GHz

• Up to 1,733 Mbps

• IEEE 802.11b

• IEEE 802.11n

• IEEE 802.11g

• IEEE 802.3ab

• IEEE 802.11a

• IEEE 802.3u

• IEEE 802.1p

• IEEE 802.1q

Minimum Requirements • Internet Explorer 10, Firefox 28.0, Chrome 28.0, Safari

6.0, or other Javascript-enabled browser

• Cable/DSL modem or other Internet service provider
equipment with Ethernet port

Functionality

Security • WPA / WPA2 (Wi-Fi Protected Access) - Personal • WPS (Wi-Fi Protected Setup)

Advanced Features

• D-Link Wi-Fi Mesh

2

• Amazon Alexa/Google Assistant voice control

• Web setup wizard

• QoS (Quality of Service)

• Multicast support

3

• DMZ (De-militarised Zone)

• Firewall - Network Address Translation (NAT)

• Guest Zone

• IPv6-Ready

• D-Link Wi-Fi App

4

Physical

Dimensions • 222.92 x 176.58 x 65.00 mm (8.78 x 6.95 x 2.56 in)

Weight

• 610 g (1.34 lbs)

Power Adaptor • Input: 100 to 240 V AC, 50 / 60 Hz • Output: 12 V, 2.5 A

Temperature • Operating: 0 to 40 °C (32 to 104 °F) • Storage: -20 to 65 °C (-4 to 149 °F)

Humidity • Operating: 10% to 90% non-condensing • Storage: 5% to 95% non-condensing

Certifications • FCC

• CE

• IC

1

Maximum wireless signal rate derived from IEEE Standard 802.11ac and 802.11n specications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network trac,

building materials and construction, and network overhead, may lower actual data throughput rate. Environmental factors may adversely aect wireless signal range.

2

Refer to your local D-Link website for more information about devices that support D-Link Wi-Fi Mesh function.

3

Not all functionality is supported for voice control

4

Check device app store for OS requirements.
