QUEST®
For Serial Nos.
720,000 & Higher
Part No. 4500-339 Rev. A
-1-
READ OPERATOR’S MANUAL BEFORE
OPERATING OR SERVICING EXMARK EQUIPMENT
TABLE OF CONTENTS
Description Page
Cutter Housing Assembly ................................................7
48” Deck Group............................................................3-4
52” Deck Group............................................................5-6
Decal Group ..................................................................17
Electrical Diagram.....................................................19-20
Electrical Group.............................................................18
Electrical Logic Schematic........................................21-22
Engine Group ...........................................................13-14
Frame Group................................................................8-9
Fuel Group.....................................................................12
Motion Control Group ....................................................10
Seat Group....................................................................11
Transaxle Assembly ......................................................16
Transaxle Group............................................................15
-2-
48” DECK GROUP
Item Part No. Description Qty.
1 109-6253 Asm, Deck W/Decals .............................1
2 52-2860 Washer ..................................................2
3 109-9158 Asm, Idler Arm W/Bearings....................1
3:1 302-40 Zerk, 90° 1/4-28.....................................1
3:2 1-513034 Bearing ..................................................2
4 103-3330 Spring, Extension...................................1
5 1-603384 Bushing..................................................1
6 3231-11 Bolt, Carriage 3/8-16 x 3 1/2 ........ ..........1
7 104-8301 Nut, Nyloc 3/8-16 Flg...... .......... .............8
8 1-413113 Bushing..................................................1
9 109-8891 Asm, Pulley and Bearing. .......................2
10 3231-31 Bolt, Carriage 3/8-16 x 2 1/2 ........ ..........1
11 109-6572 Bushing..................................................2
12 1-603843 Pulley, Idler............................................1
13 109-6868 Bolt, Carriage 3/8-16 x 3........................2
14 109-3723-01 Strut, Deck.............................................1
15 109-8788 Bushing, Flanged...................................4
Exmark black touch up spray paint – gloss black.
Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140).
V Includes all item shown on pages 3, 4 & 7. Does not include struts or strut hardware.
Item Part No. Description Qty.
16 3231-25 Bolt, Carriage 3/8-16 x 1 1/4..................4
17 109-3449 Shield, Belt............................................2
18 3230-23 Bolt, Carriage 5/16-18 x 3/4 Short Neck.6
19 109-5667 Ring, Bolt Retaining............................... 4
20 104-8300 Nut, Nyloc 5/16-18 Flg........................... 10
21 109-5498-03 Baffle, Discharge...................................1
22 110-6691 Decal, Danger........................................2
23 109-6459 Decal, Belt Shield Warning.................... 2
24 109-6034 Decal, Deck 48 ...................................... 1
25 109-6035 Decal, Belt Routing................................ 1
26 109-6036 Decal, Anti-Scalp Roller......................... 1
27 93-7009 Decal, Danger........................................ 1
28 322-2 Screw, HH 5/16-18 x 5/8........................4
29 109-9159 Decal, Hole Cover..................................3
30 1-303520 Decal, Trivantage...................................1
109-8745 Asm, 48 Deck Complete
V
-3-
48” DECK GROUP (Continued)
Item Part No. Description Qty.
1 109-6388 Kit, Anti-Scalp Roller ..............................3
1:1 112-3977 Bolt, Shoulder ........................................1
1:2 1-603299 Roller, Anti-Scalp ...................................1
1:3 104-8301 Nut, Nyloc 3/8-16 Flg...... .......... .............1
2 109-8744 Asm, Cutter Housing Complete........ ......3
3 103-6401 Blade, Notched ......................................3
109-6389 Blade. Mulch..........................................3
Q
109-6391 Blade, High Lift.......................................3
4 109-3747 Sheave, Blade Drive ..............................3
5 109-3410 Hanger, Deck.........................................4
6 109-8788 Bushing, Flanged...................................8
Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140).
Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-gr ade anti- se iz e) betw ee n the spindl es & sheav es.
DO NOT use a copper or nickel based anti-seize.
Q Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N 109-5980.
Item Part No. Description Qty.
7 3231-25 Bolt, Carriage 3/8-16 x 1 1/4..................8
8 104-8301 Nut, Nyloc 3/8-16 Flg............................. 8
9 109-5364 Belt........................................................1
10 109-6393 Kit, Washout Port...................................1
10:1 95-2747 Fitting, Washout Port .............................1
10:2 46-6290 O-Ring...................................................1
10:3 93-6083 Screw, HWH 1/2-20 x 1/2 Taptite...........2
10:4 95-3270 Connector, Hose.................................... 1
13 109-8854 Pin, Chute..............................................1
14 109-6886 Spring....................................................1
15 109-5151 Chute, Deflector.....................................1
-4-
52” DECK GROUP
Item Part No. Description Qty.
1 109-6254 Asm,52 Deck W/ Decals..................... . ...1
2 52-2860 Washer ..................................................2
3 109-9158 Asm, Idler Arm W/Bearings....................1
3:1 302-40 Zerk, 90° 1/4-28.....................................1
3:2 1-513034 Bearing ..................................................2
4 103-3330 Spring, Extension...................................1
5 1-603384 Bushing..................................................1
6 3231-11 Bolt, Carriage 3/8-16 x 3 1/2 ........ ..........1
7 104-8301 Nut, Nyloc 3/8-16 Flg...... .......... .............8
8 1-413113 Bushing..................................................1
9 109-8891 Asm, Sheave and Bearing......................2
10 3231-31 Bolt, Carriage 3/8-16 x 2 1/2 ........ ..........1
11 109-6572 Bushing..................................................2
12 1-603843 Pulley, Idler............................................1
13 109-6868 Bolt, Carriage 3/8-16 x 3........................2
14 109-3723-01 Strut, Deck.............................................1
15 109-8788 Bushing, Flanged...................................4
Exmark black touch up spray paint – gloss black.
Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140).
V Includes all item shown on pages 5, 6 & 7. Does not include struts or strut hardware.
Item Part No. Description Qty.
16 3231-25 Bolt, Carriage 3/8-16 x 1 1/4..................4
17 109-3449 Shield, Belt............................................2
18 3230-23 Bolt, Carriage 5/16-18 x 3/4 Short Neck.6
19 109-5667 Ring, Bolt Retaining............................... 4
20 104-8300 Nut, Nyloc 5/16-18 Flg........................... 12
21 109-5498-03 Baffle, Discharge...................................1
22 110-6691 Decal, Danger........................................2
23 109-6459 Decal, Belt Shield Warning.................... 2
24 109-6033 Decal, Deck 52 ...................................... 1
25 109-6035 Decal, Belt Routing................................ 1
26 109-6036 Decal, Anti-Scalp Roller......................... 1
27 93-7009 Decal, Danger........................................ 1
28 322-2 Screw, HH 5/16-18 x 5/8........................6
29 109-9159 Decal, Hole Cover..................................3
30 1-303520 Decal, Trivantage...................................1
109-8746 Asm,52 Deck Complete
V
-5-
52” DECK GROUP (Continued)
Item Part No. Description Qty.
1 109-6388 Kit, Anti-Scalp Roller ..............................3
1:1 112-3977 Bolt, Shoulder........................................1
1:2 1-603299 Roller, Anti-Scalp...................................1
1:3 104-8301 Nut, Nyloc 3/8-16 Flg......... .......... ..........1
2 109-8744 Asm, Cutter Housing Complete........... ...3
3 103-6402 Blade, Notched 18.0 ..............................3
109-6390 Blade. Mulch..........................................3
Q
109-6392 Blade, High Lift ......................................3
4 109-3671 Sheave, Blade Drive ... . ..........................3
5 109-3410 Hanger, Deck.........................................4
6 109-8788 Bushing, Flanged...................................8
Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140).
Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles & sheaves. DO NOT
use a copper or nickel based anti-seize.
Q Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N 109-5982.
Item Part No. Description Qty.
7 3231-25 Bolt, Carriage 3/8-16 x 1 1/4..................8
8 104-8301 Nut, Nyloc 3/8-16 Flg............................. 8
9 109-3661 Belt........................................................1
10 109-6393 Kit, Washout Port...................................1
10:1 95-2747 Fitting, Washout Port .............................1
10:2 46-6290 O-Ring...................................................1
10:3 93-6083 Screw, HWH 1/2-20 x 1/2 Taptite...........2
10:4 95-3270 Connector, Hose.................................... 1
13 109-8854 Pin, Chute..............................................1
14 109-6886 Spring....................................................1
15 109-5151 Chute, Deflector.....................................1
-6-
CUTTER HOUSING ASSEMBLY
Item Part No. Description Qty.
1 109-9380 Asm, Cutter Housing..............................1
1:1 62-3661 Spacer, Bearing.....................................1
1:2 109-9379 Bearing, Ball ..........................................2
2 80-4380 Spacer...................................................1
3 80-4360 Shield, Bearing ......................................1
Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindle & bearings. DO NOT
use a copper or nickel based anti-seize.
Item Part No. Description Qty.
4 109-7431 Spindle, Hex Pilot .................................. 1
5 109-7429 Washer, Blade Drive..............................1
6 116-0005 Bolt, Sems Blade................................... 1
7 3219-6 Nut, Hex 5/8-18......................................1
8 32144-41 Screw, HWH 3/8-16 x 7/8 Taptite...........6
-7-
FRAME GROUP
Item Part No.
1 109-8825 Asm, Frame W/ Decal .......... .......... ........1
1:2 109-6008 Decal, Drive Release ..... . .......................2
1:3 106-5517 Decal, Surface, Hot................................2
1:4 109-8965 Decal, Safety Warning ...........................1
2 109-8845 Asm, Seat Box W/ Decals .... .......... ........1
2:2 109-9182 Decal, Control, Motion........................... .1
2:3 109-9173 Decal, Control/Brake..............................1
2:4 109-9120 Decal, Fuse Block..................................1
2:5 109-6014 Decal, Belt Routing ................................1
2:6 109-6210 Decal, Danger........................................1
3 32144-70 Screw, HWH 5/16-18 x 3/4 TF................16
4 109-3678 Bearing, Ball ..........................................4
5 109-6218-01 Wld, Caster Fork ....................................2
6 109-3724 Washer..................................................2
8 109-6405 Asm, Caster Wheel ................................2
8:1 105-1863 Asm, Caster Wheel W/Bearings.............1
8:1:1 105-1864 Tire........................................................1
8:1:2 62-5580 Bearing ..................................................2
8:1:3 83-4740 Bearing ..................................................1
Exmark black touch up spray paint – gloss black.
Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140).
Description
Qty.
Item Part No.
8:1:4 302-5 Zerk 1/4-28 Str Thrd Forming.................1
8:1:5 93-4244 Tube, Inner............................................ 1
8:2 104-3667 Spanner, Wheel..................................... 1
8:3 325-20 Screw, HH 1/2-13 x 6.............................1
8:4 92-2651 Washer..................................................2
8:5 3296-45 Nut, Nyloc 1/2-13 Thin........................... 1
9 109-3667 Bearing, Flange..................................... 4
10 104-8300 Nut, Nyloc 5/16-18 Flg........................... 21
11 322-5 Screw, HH 5/16-18 x 1...........................10
12 109-6045-03 Bracket, Tank Mount..............................1
13 3230-23 Bolt, Carriage 5/16-18 x 3/4, Short Neck. 2
14 109-6867-01 Bracket, Rear Tank (LH)........................ 1
15 109-3406-01 Bracket, Rear Console (RH).................. 1
16 109-3381-01 Guard, Engine (LH)................................1
17 109-3391-01 Guard, Engine (RH)............................... 1
18 109-5363-01 Casting, Rear ........................................ 1
19 109-3709 Panel, Front........................................... 1
20 109-3707 Fender, Exmark (LH)............................. 1
21 109-3708 Fender, Exmark (RH)............................. 1
Description
Qty.
-8-
FRAME GROUP (Continued)
Item Part No.
22 109-8870-01 Wld, Shaft Front.....................................1
23 109-8871-01 Wld, Shaft Rear......................................1
24 114-1658-03 Guard, Muffler........................................1
25 9266714 Screw, HWH 1/4-20 x .50........... ............6
26 3234-5 Screw, HH FLG 5/16-18 x 3/4 .... ............11
27 104-8301 Nut, Nyloc 3/8-16 Flg ............. ................4
28 3231-9 Bolt, Carriage 3/8-16 x 2 3/4 ................. .4
29 3256-3 Washer, 5/16 Std...................................2
30 109-8758 Asm, Height Adjust W/ Decal.................1
30:2 109-8759 Decal, Cut Height...................................1
31 109-5819 Pin, Clevis..............................................2
32 3256-26 Washer, 1/2 SAE...................................3
33 32120-47 Ring, Retaining ......................................3
34 109-8755 Stop, Height Adjust................................1
35 109-5814 Arm, Float Link...... .................... . ............1
36 109-5818 Pin, Pivot................................................1
37 109-6172 Pin, Clevis..............................................1
Exmark black touch up spray paint – gloss black.
Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140).
Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on Spring Pin hub threads.
Description
Qty.
Item Part No.
38 93-4696 Pin, Hitch............................................... 1
39 109-6177 Pin, Spring.............................................1
40 109-5486 Asm, Wheel And Tire (48" Only)............ 2
40 109-5268 Asm, Wheel And Tire (52" Only)............ 2
40:1 109-5487 Wheel (48" Only).................................... 1
40:1 109-5270 Wheel (52" Only).................................... 1
40:2 109-5488 Tire, 20 X 8-8 (48" Only)........................1
40:2 109-5269 Tire, 20 X 10-8 (52" Only)......................1
41 242-50 Nut, Lug 1/2-20......................................8
42 109-6190-03 Cover, Hydro Fan ..................................1
43 99-6810 Screw, HH 1/4-20 x 5/8..........................2
44 92-7054 Spring, Compression ............................. 3
45 109-6214 Stop, Motion Control..............................2
46 1-303435 Washer, Spring Disc 1/4........................4
47 321-2 Screw, HH 1/4-20 x 1/2..........................4
48 109-6280 Decal, Quest Logo................................. 1
Description
Qty.
-9-
MOTION CONTROL GROUP
Item Part No.
1 109-6915 W ld, Motion Control Pivot (LH)...............1
2 109-6914 W ld, Motion Control Pivot (RH) ..............1
3 103-9928 Bearing..................................................4
4 52-2900 Washer ..................................................8
5 109-3689 Post, Lever Mount..................................2
6 5-0838 Washer..................................................4
7 323-9 Screw, HH 3/8-16 x 1 3/4........ . ..............4
8 104-8301 Nut, Nyloc 3/8-16 Flg ...................... .......4
9 109-7098 Asm, Lever W/Grip (RH)........................1
9:2 109-5192 Grip, Control Lever.................................1
10 109-7099 Asm, Lever W/Grip (LH).........................1
10:2 109-5192 Grip, Control Lever.................................1
11 98-5975 Washer, Spring Disc 3/8.........................4
12 323-6 Screw, HH 3/8-16 x 1.............................4
13 109-3414 Rod, Steering.........................................2
14 2411-53 Balljoint LH.............................................2
15 322-6 Screw, HH 5/16-18 x 1 1/4....... ..............2
16 104-8300 Nut, Nyloc 5/16-18 Flg .. .......... ...............4
17 109-3728 Nut, Rod Adjustment..............................2
18 37-8771 Screw, Shoulder 5/16-18 x 5/8...............2
19 3220-2 Nut, Jam 5/16-24 ...................................2
20 3220-20 Nut, Jam 5/16-24 ...................................2
Description
Qty.
Item Part No.
21 109-6220 Wld, Brake Pivot....................................2
22 109-3705 Pin, Control Pivot................................... 2
23 3272-10 Pin, Cotter 1/8 x 3/4...............................2
24 32128-20 Nut, Whizlock 5/16-18............................ 12
25 1-403180 Screw, HH 5/16-18 x 1 1/4 Sp................4
26 109-5957 Damper, Motion Control.........................2
27 109-5825 Tube, Brake Pivot..................................1
28 109-5918 Asm, Lever W/Grip ................................1
28:2 1-633268 Grip, Brake Lever................................... 1
29 107-7581 Bushing ................................................. 2
30 109-5824 Wld, Bellcrank........................................1
31 701197 E-Ring ...................................................4
32 109-5834 Spacer...................................................1
33 109-5868 Bolt, Carriage 1/4-20 x 9........................ 1
34 104-7201 Nut, Nyloc 1/4-20 Flg. ............................ 1
35 109-5914 Spacer...................................................1
36 109-8765 Asm, Brake Shaft................................... 1
37 109-6907 Link, Brake Actuation.............................2
38 109-5833 Arm, Brake.............................................1
39 99-4958 Spacer...................................................1
40 109-6887 Pin, Clevis 5/16 x 5/8............................. 2
41 1-603693 Spring....................................................2
Description
Qty.
-10-
SEAT GROUP
Item Part No.
1 109-6916 Asm, Seat Plate . . .......... .......... ...............1
2 109-2628 Cable-Stop, Seat....................................1
3 321-5 Screw, HH 1/4-20 x 7/8. .........................2
4 104-7201 Nut, Nyloc 1/4-20 Flg ...................... .......2
5 109-6399 Asm, Seat W/Decals ..............................1
5:1 107-1880 Kit, Seat Tracks......................................1
5:2 109-6382 Seat.......................................................1
5:3 108-6163 Armrest Kit.............................................1
Description
Qty.
Item Part No.
5:3:1 110-6569 LH Armrest Kit....................................... 1
5:3:2 110-6570 RH Armrest Kit.......................................1
5:3:3 108-6179 Screw, Button Head 5/16-18 x 1/2 ......... 6
6 104-8300 Nut, Nyloc 5/16-18 Flg...........................8
7 103-9376 Bumper-Seat.........................................2
8 27-0410 Screw, Shoulder 5/16-18 x 1 Sp.............2
9 103-3999 Decal, Exmark Logo...............................1
10 109-6016 Decal, Service Aid ................................. 1
Description
Qty.
-11-
FUEL GROUP
Item Part No.
1 109-5510 Asm, Fuel Tank......................................1
1:1 103-2605 Fitting, Fuel Bulkhead W/Strainer...........1
103-2784 O-Ring ...................................................1
1:2 109-0346 Cap, Fuel...............................................1
2 3230-3 Bolt, Carriage 5/16-18 x 1 1/4.................2
3 3256-23 Washer, 5/16 SAE..................................2
4 1-633349 Spring, Compression..............................2
5 3296-47 Nut, Nyloc 5/16-18 Thin..........................2
6 3230-16 Bolt, Carriage 5/16-18 x 7/8 ..... ..............1
) Refer to Engine Owner’s manual. (Fuel filter Must be 30 Micron).
Description
Qty.
Item Part No.
7 104-8300 Nut, Nyloc 5/16-18 Flg...........................1
8 1-303077 Clamp, Fuel Line....................................4
9 105-1853 Clamp, Fuel Line....................................1
10 109-0304 Hose, Fuel Line 2 1/2"............................1
11 1-603770 Valve, Fuel.............................................1
12 109-0286 Hose, Fuel Line 35"...............................1
13)
Briggs & Stratton
Kohler Co mmand
Description
Part No. 695666 Fuel Filter.................... 1
Part No. 24 050 10 Fuel Filter................ 1
Qty.
-12-
ENGINE GROUP –BRIGGS & STRATTON
Item Part No.
1 104-8300 Nut, Nyloc 5/16-18 Flg .. .......... ...............1
2 5-7280 Key, Machine 1/4 SQ x 1........ ................1
3 109-3386 Sheave ..................................................1
4 110-6766 Clutch-Electric........................................1
5 109-8851 Asm, Muffler W/Gaskets.........................1
5:1 104-3226 Gasket...................................................2
6 109-8855-03 Anchor, Clutch.......................................1
7 322-10 Screw, HH 5/16-18 x 2.. .........................1
8 1-603610 W asher, Spring Disc 7/ 16.......................2
9X 3212-11 Screw, HH 7/16-20 x 2 3/4....... ..............1
10 109-9162 Asm, Idler Arm W/Bearings....................1
10:1 302-40 Zerk, 90° 1/4-28.....................................1
10:2 1-513034 Sleeve, Bearing......................................2
Exmark black touch up spray paint – gloss black.
W Use a Teflon Pipe Sealant or equivalent on threads.
X Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt and self-tapping engine mounting bolts.
Description
Qty.
Item Part No.
11 109-3397 Pulley, Flat Idler 3.50 Dia.......................2
12 1-603384 Bushing, Pivot Idler................................1
13 3231-11 Bolt, Carriage 3/8-16 x 3 1/2..................1
14 3256-4 Washer, 3/8 Std.....................................1
15 3231-5 Bolt, Carriage 3/8-16 x 1 3/4..................2
16 104-8301 Nut, Nyloc 3/8-16 Flg. ............................ 3
17 1-603402 Spring....................................................1
18W 1-403124 Elbow, 90° ............................................. 1
19 109-3388 Belt........................................................1
20 1-303334 Washer, Spring Disc 5/16......................1
21X 32144-109 Screw, HWH 3/8-16 x 1 1/4 Taptite........3
22W 281-2 Plug, Pipe.............................................. 1
Description
Qty.
-13-
ENGINE GROUP – KOHLER COMMAND
Item Part No.
1W 288-10 Cap, Pipe...............................................1
2 5-7280 Key, Machine 1/4 SQ x 1........ ................1
3 109-3386 Sheave ..................................................1
4 110-6766 Clutch-Electric........................................1
5 109-8951 Asm, Muffler W/Gaskets.........................1
5:1 110-6697 Gasket ...................................................2
6 109-8855-03 Anchor, Clutch .......................................1
7 33014-00 Nut, Hex M8-1.25........ ...........................4
8 1-603610 Washer, Spring Disc 7/16...... .................2
9X 3212-11 Screw, HH 7/16-20 x 2 3/4....... ..............1
10 109-9162 Asm, Idler Arm W/Bearings....................1
10:1 302-40 Zerk, 90° 1/4-28.....................................1
Exmark black touch up spray paint – gloss black.
W Use a Teflon Pipe Sealant or equivalent on threads.
X Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt and self-tapping engine mounting bolts.
Description
Qty.
Item Part No.
10:2 1-513034 Sleeve, Bearing.....................................2
11 109-3397 Pulley, Flat Idler 3.50 Dia....................... 2
12 1-603384 Bushing, Pivot Idler................................1
13 3231-11 Bolt, Carriage 3/8-16 x 3 1/2..................1
14 3256-4 Washer, 3/8 Std.....................................1
15 3231-5 Bolt, Carriage 3/8-16 x 1 3/4..................2
16 104-8301 Nut, Nyloc 3/8-16 Flg.............................3
17 1-603402 Spring.................................................... 1
18W 82-4201 Asm, Hydraulic Hose............................. 1
19 109-3388 Belt........................................................1
20 3253-4 Washer, Lock 5/16................................. 4
21X 32144-109 Screw, HWH 3/8-16 x 1 1/4 Taptite........4
Description
Qty.
-14-

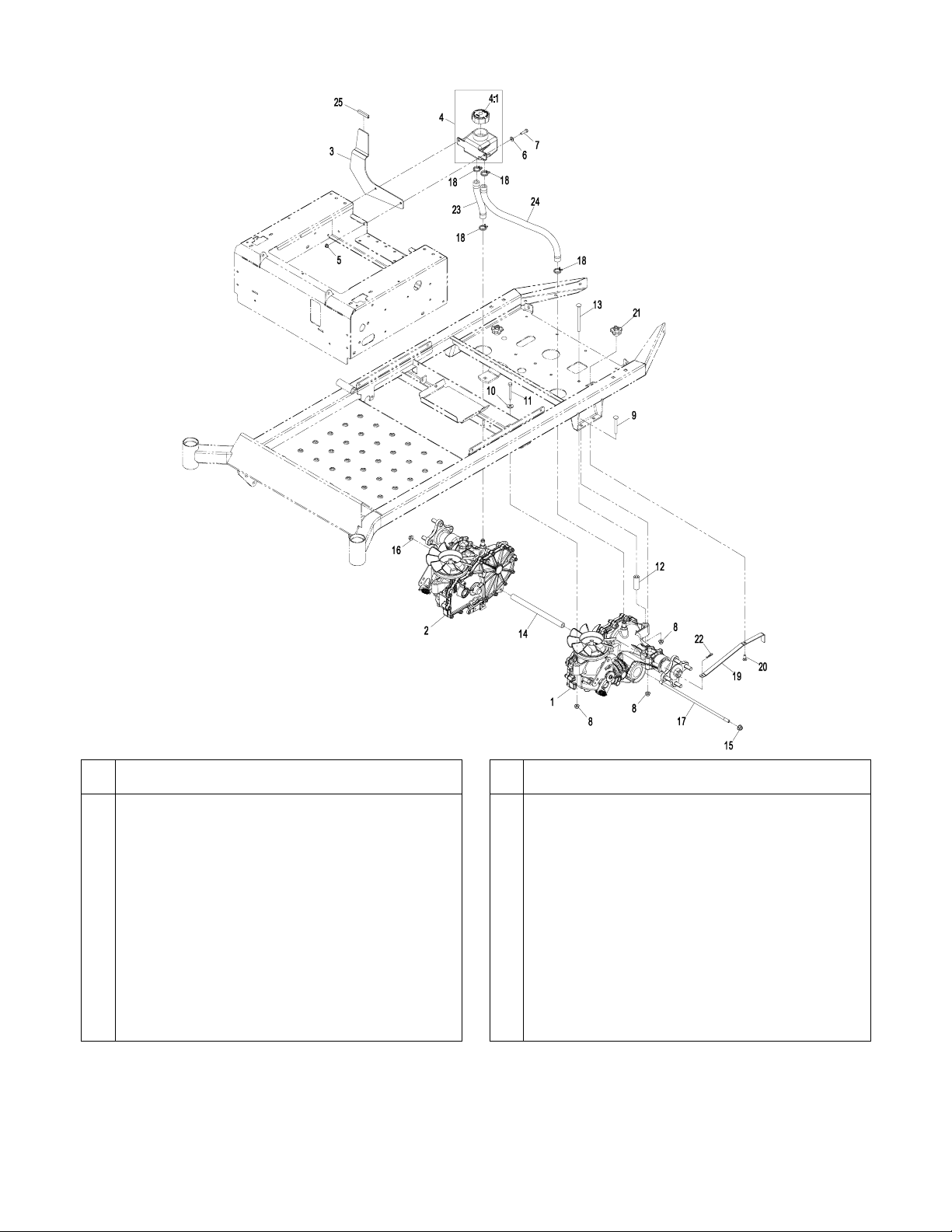

TRANSAXLE GROUP
Part No.
Item
1 109-3372 Asm, Transaxle (LH) . . .......... .................. 1
2 109-3371 Asm, Transaxle (RH)......... ................... .. 1
3 109-6570-03 Bracket, Fender Support........................ 1
4 109-2250 Tank, Hydraulic......................... ............. 1
4:1 109-3320 Cap, Hydraulic Reservoir .. ..................... 1
5 104-7201 Nut, Nyloc 1/4-20 Flg ...................... ....... 2
6 3256-22 Washer, 1/4 SAE ........................... ........ 2
7 321-6 Screw, HH 1/4-20 x 1... . ......................... 2
8 104-8300 Nut, Nyloc 5/16-18 Flg .. .......... ............... 8
9 3230-9 Bolt, Carriage 5/16-18 x 2 3/4....... . ......... 4
10 3256-3 Washer, 5/16 Std ................................... 2
11 322-12 Screw, HH 5/16-18 x 2 1/2....... .............. 2
12 109-3652 Spacer ................................................... 2
Description
Qty.
Exmark black touch up spray paint – gloss black.
Part No.
Item
13 3230-30 Bolt, Carriage 5/16-18 x 4 1/2................ 2
14 109-3710 Tube, Spacer......................................... 1
15 104-8301 Nut, Nyloc 3/8-16 Flg............................. 1
16 3290-357 Nut, Whizlock 3/8-16.............................. 1
17 109-3711 Rod, Tension ......................................... 1
18 109-3322 Clamp, Hose.......................................... 4
19 109-5395 Arm, Hydro Bypass................................ 2
20 3229-1 Bolt, Carriage 1/4-20 x 3/4..................... 2
21 108-6402 Knob...................................................... 2
22 1-806003 Hairpin, Cotter ....................................... 2
23 109-5577 Hose, Hydraulic ..................................... 1
24 109-5578 Hose, Hydraulic ..................................... 1
25 109-2985 Trim,.13 X 2.0 Edge............................... 1
Description
Qty.
-15-
TRANSAXLE ASSEMBLY
Part No.
Item
1 109-3321 Filter, Hydraulic......................................1
2 109-3278 Adapter, Straight....................................1
2:1 1-603921 O-Ring, SAE #6 ........................ .......... ...1
3 109-3540 O-Ring, Charge Seal Cover .. .................1
4 109-5592 Spring....................................................1
Note: The above numbers can be used on both right and left hand transaxle assemblies.
Q Not shown
Description
Qty.
Part No.
Item
5 109-5939 Kit, Hub..................................................1
5:1 109-3536 Nut, Hub................................................ 1
6 109-5938 Kit, Fan And Pulley................................1
6:1 109-5940 Fan, Hydro.............................................1
7Q 109-3537 Kit, Complete Seal.................................1
Description
Qty.
-16-
DECAL GROUP
Item Part No.
1 109-6016 Decal, Service Aid.................................. 1
2 109-8759 Decal, Cut Height. . ......... . ....................... 1
3 109-9173 Decal, Control/Brake.............................. 1
4 93-7009 Decal, Danger........................................ 1
5 109-6210 Decal, Danger........................................ 1
6 109-6459 Decal, Belt Shield Warning..................... 2
7 109-6008 Decal, Dri ve Release .... . ........................ 2
8 109-9182 Decal, Motion Cont rol................. ............ 1
9 109-6034 Decal, Deck 48" ............... .................. . ... 1
10 109-6033 Decal, Deck 52" ............... .................. . ... 1
11 109-6014 Decal, Belt Routing................................ 1
12 103-3999 Decal, Exmark Logo............................... 1
Description
Qty.
Item Part No.
13 109-6029 Decal, Console ...................................... 1
14 109-6036 Decal, Anti-Scalp Roller......................... 1
15 1-303520 Decal, Trivantage................................... 1
16 109-6280 Decal, Quest Logo................................. 1
17 106-5517 Decal, Hot Surface................................. 2
18 109-6035 Decal, Belt Routing................................ 1
19 109-8965 Decal, Safety Warning........................... 1
20 109-9159 Decal, Hole Cover.................................. 3
21 109-9120 Decal, Fuse Block.................................. 1
22 110-6691 Decal, Danger........................................ 2
109-8889 Decal Kit
Description
Qty.
-17-
ELECTRICAL GROUP
Item Part No.
1xV 109-8786 Harness.................................................1
109-8963 Harness .................................................1
xO
1:2 109-9186 Diode, TVS ............................................1
2 240-3 Grommet, Rubber ..................................2
3V 32144-1 Sc rew, HW H #10-24 x 1/2 Taptite..........3
32144-1 Screw, HWH #10-24 x 1/2 Taptite.. ........4
O
4 3296-2 Nut, Nyloc #10-24 ........... . ......... ......... . ...4
5V 1-643275 Relay, 12VDC 40 Amp ...........................1
1-643275 Relay, 12VDC 40 Amp...........................2
O
6V 1-513075 Switch, Solenoid ....................................1
7 3256-22 Washer, 1/4 SAE ...................................2
8 321-4 Screw, HH 1/4-20 x 3/4. .........................2
9V 46-8560 Sc rew, HHF 1/4-20 X 1/2 ................ .......2
10 107069 Nut, Retainer-Panel 1/4-20............ .........4
11 109-6398 Asm, Control Panel W/Decal..................1
11:2 109-6029 Decal, Console.......................................1
12 3258-166 Screw, PPH 1/4-20 x 3/4......... ...............4
13 1-513374 Meter, Engine Hours ..............................1
14 103-5221 Switch, PTO...........................................1
15 109-4736 Switch, Ignition W/Nut............................1
16 103-0498 Nut, Ignition............................................1
17 109-3987 Control, Throttle.....................................1
18V 109-8747 Control, Choke.......................................1
109-9147 Control, Choke.......................................1
O
x Use dielectric grease on all wiring harness connectors
V For Briggs & Stratton engines
O For Kohler Command engines.
Exmark black touch up spray paint – gloss black.
Description
Qty.
Item Part No.
19 1-807513 Bolt, Carriage #10-24 x 1/2....................4
20 614249 Tie, Cable.............................................. 2
21 32128-33 Nut, Whizlock 1/4-20.............................. 2
22 99-7408 Switch....................................................1
23 105-1853 Clamp....................................................1
24 109-2407 Insulator, Battery +.................................1
25V 109-7653 Asm, Cable, Battery +............................ 1
109-7621 Asm, Cable, Battery +............................1
O
26 103-0705 Cable, Ground -.....................................1
27V 109-9415 Cable, Starter + ..................................... 1
28V 1-543393 Insulator, Solenoid +..............................3
1-543393 Insulator, Solenoid +..............................1
O
29 110-6765 Switch....................................................2
30 82-2190 Switch....................................................1
31 103-1311-03 Holddown, Battery .................................1
32 103-2106 Key, Exmark Logo .................................1
33 1-633651 Bolt, Battery Holddown .......................... 2
34 1-543792 Wingnut, Nyloc 1/4-20............................ 2
1-603511 Key, Ignition...........................................1
35V 32128-33 Nut, Whizlock 1/4-20..............................1
57-6390 Nut, Jam M8-1.25..................................1
O
Description
Qty.
-18-
ELECTRICAL DIAGRAM – BRIGGS & STRATTON
-19-
ELECTRICAL DIAGRAM – KOHLER COMMAND
-20-
ELECTRICAL SCHEMATIC – BRIGGS & STRATTON
-21-
ELECTRICAL SCHEMATIC – KOHLER COMMAND
-22-
©
A
2007—2008 Exmark Mfg. Co., Inc. Part No. 4500-339 Rev.
Industrial Park Box 808 (402) 223-6300
Beatrice, NE 68310 Fax (402) 223-5489
All Rights Reserved Printed In USA.
Loading...
