LAZER Z® XS
DIESEL MODELS
For Serial Nos. 790,000 & Higher
Part No. 4500-380 Rev. B
READ OPERATOR’S MANUAL BEFORE
OPERATING OR SERVICING EXMARK EQUIPMENT.
TABLE OF CONTENTS
Description Page
Cooling Group .............................................................19-20
Deck Group .....................................................................3-5
Decal Group ................................................................23-24
Electrical Diagram ............................................................26
Electrical Group................................................................25
Electrical Logic Schematic................................................27
Engine Group ..............................................................15-16
Engine Deck Group ..........................................................17
Front Frame Group..........................................................7-8
Fuel Group...................................................................11-12
Hood and Panel Group.....................................................18
Hydraulic Group...........................................................21-22
Main Frame Group.........................................................9-10
Motion Control Group .......................................................14
Park Brake Group.............................................................13
Spindle Assembly...............................................................6
-2-
DECK GROUP
Item Part No.
1 1-303334 Washer, Spring Di sc 5/16... ...................1
2 1-303537 Stud, Belt Shield ...... . ............. . ............. ..2
3 1-322110 Wld, Belt Guide......................................1
4 1-323385 Knob......................................................2
5 1-323417 Washer, Belt Shield............................. ..2
6 1-603805 Sheave, Idler..........................................1
7 109-2796 Pulley, Idler ...........................................2
8 1-633456 Bushing, Idler.........................................2
9 98-5961 Screw, HH 3/8-16 x 4 Gr8... ............. . .....1
10 98-5975 Washer, Spring Di sc 3/8........................3
11 103-2916 Guard, Top.............................................1
12 116-0133 Spring....................................................1
13 103-3504 Bearing, Spherical..................................2
14 103-3505 Seal, Double Lip..... ............. . ............. . .... 1
15 103-3506 Seal, Single Lip......................................1
16 103-5677 Spacer...................................................1
17 103-8103-01 Latch, Belt Shield...................................2
18 109-2097 Asm, Shield W/Decal 60” RH.................1
109-2133 Asm, Shield W/Decal 66” RH.................1
109-2135 Asm, Shield W/Decal 72” RH.................1
19 109-2096 Asm, Shield W/Decal 60” LH ...... ...........1
109-2132 Asm, Shield W/Decal 66” LH ...... ...........1
109-2134 Asm, Shield W/Decal 72” LH ...... ...........1
20 105-7699 Strip-Seal, 3”..........................................4
21 106-7159 O-Ring...................................................2
Exmark red touch up paint (spray paint – P/N 1-850337 - .6 oz liquid bottle – P/N 103-9140). V Complete deck assembly includes all items from pages 3 – 5 except items ( #8, #16, #28, #31,#38, and #40 from
page 4) and includes mule drive belt from page 14.
Kit also includes items #10 & #37.
Description
Qty.
Item Part No.
22 109-2100 Asm, Deck W / Dec als 60” ... .................... 1
109-2103 Asm, Deck W / Decals 66” ....................... 1
109-2105 Asm, Deck W / Decals 72” ....................... 1
23 1-633127 Belt 60”..................................................1
109-5018 Belt 66”..................................................1
1-643052 Belt 72”..................................................1
24109-2095 Kit, Idler Arm W/Bearings ......................1
25 302-40 Zerk, 90° 1/4-28.....................................1
26 322-6 Screw, HH 5/16-18 x 1 1/4..................... 1
27 323-11 Screw, HH 3/8-16 x 2 1/4.......................2
28 3230-18 Bolt, Carriage 5/16-18 x 5/8...................9
29 3230-22 Bolt, Carriage 5/16-18 x 1......................2
30 3234-11 Screw, HH FLG 3/8-16 x 1..................... 1
31 3256-23 Washer, 5/16 SAE.................................2
32 3256-24 Washer, 3/8 SAE...................................3
33 3256-3 Washer, 5/16 Std................................... 6
34 3256-4 Washer, 3/8 Std..................................... 2
35 3290-357 Nut, Whizlock 3/8-16 .............................2
36 3296-29 Nut, Nyloc 5/16-18.................................2
37 3296-39 Nut, Nyloc 3/8-16...................................1
38 32120-10 Ring, Retaining......................................2
39 32128-20 Nut, Whizlock 5/16-18 ...........................12
40V 109-8525 Asm, Deck Complete 60”... .................... 1
109-8526 Asm, Deck Complete 66” ....................... 1
109-8527 Asm, Deck Complete 72” ....................... 1
Description
Qty.
-3-
DECK GROUP
-4-
Item Part No.
1 1-513208 Washer, Spring Di sc 5/8........................1
2 1-632199-01 Wld, Pin Deck S trut........... .....................2
3 1-633029 Balljoint..................................................2
4 1-633447 Chain, Deck Lift.....................................4
5O 1-643393 Jackshaft, Lazer.....................................1
6 109-6658 Nut, Nyloc 3/8-16 Flg .............................6
7 98-5975 Washer, Spring Di sc 3/8........................12
8 103-8543 Asm, Strut 60”......... ............. . ............. . ...2
103-8544 Asm, Strut 66” & 72”................. .............2
9 103-1898 Screw, HH 7/16-20 x 1-5/8 Sp................8
10 103-2535 Spacer, Guard Bottom...........................1
11O 103-9746 Asm, Jackshaft Housing........................1
12O 103-3046 Sheave, Jack Shaft- Double.... . ............. .1
13 103-3249 Asm, Jackshaft ......................................1
14 109-9851 Axle, Anti-Scalp Roller ................ . ..........6
15 103-8415 Roller, Anti-Scalp ...................................6
16 103-9792 Asm, Chain Deck ........... . ............. ..........4
17 109-2739 Chute, Discharge LZ. .......................... ...1
18 109-0498-01 Hinge, Grass Discharge.... ............. . .......1
19 32128-20 Nut, Whizloc k 5/16-18 72”....... ...............2
20 3256-3 Washer, 5/16 S td 72”.. ............. ..............2
21 103-9423-01 Deflector, Discharge 72” ... ............. ........1
22 322-4 Screw, HH 5/16-18 x 7/8 72”..................2
23 302-19 Zerk, 1/4-28 Str........ ........................... ...4
24 322-5 Screw, HH 5/16-18 x 1...........................4
25 323-6 Screw, HH 3/8-16 x 1....... ......................4
26 109-2099 Asm, Disc harge Chut e ........... . ............. ..1
27 3211-46 Screw, HH 3/8-24 x 2 Gr8... ............. . .....6
28 3217-11 Nut, Hex 5/8-11 ............. . ............. . .........2
Exmark red touch up paint (spray paint – P/N 1-850337 - .6 oz liquid bottle – P/N 103-9140). O Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and
bearings and jackshaft and sheaves. DO NOT use a copper or nickel based antisieze.
-5-
Description
Qty.
Item Part No.
29 3219-6 Nut, Hex 5/8-18......................................3
30 3231-22 Bolt, Carriage 3/8-16 x 1 ........................ 10
31 3253-8 Washer, Lock 5/8 .................................. 2
32 3230-22 Bolt, Carriage 5/16-18 x 1......................6
33 3256-24 Washer, 3/8 SAE...................................9
34 3256-82 Washer.................................................. 3
35 3290-357 Nut, Whizlock 3/8-16 .............................3
36 3296-29 Nut, Nyloc 5/16-18.................................7
37 3296-39 Nut, Nyloc 3/8-16...................................8
38 32128-37 Nut, Whizlock 7/16-14 ...........................16
39 109-2098 Kit, Anti-Scalp Roller..............................6
40 327-28 Screw, HH 5/8-11 x 5 1/2.......................2
41 109-0694-01 Wld, Dogleg 60”..................................... 1
109-0821-01 Wld, Dogleg 66”.....................................1
109-1039-01 Wld, Dogleg 72”.....................................1
42 109-0701-01 Wld, Baffle Front Adj LH 60”..................1
109-0822-01 Wld, Baffle Front Adj LH 66”..................1
109-1044-01 Wld, Baffle Front Adj LH 72”..................1
43 109-0704-01 Wld, Baffle Front Adj RH 60” .................1
109-0823-01 Wld, Baffle Front Adj RH 66” .................1
109-1047-01 Wld, Baffle Front Adj RH 72” .................1
44 109-1184 Wld, Deck Strut-Std 60”.........................2
109-1183 Wld, Deck Strut-Std 66” & 72” ...............2
45 109-5424-01 Baffle, Scroll 60”.................................... 1
109-5531-01 Baffle, Scroll 66”....................................1
109-5532-01 Baffle, Scroll 72”....................................1
46 104-8300 Nut, Nyloc 5/16-18 Flg...........................3
47 323-4 Screw, HH 3/8-16 x 3/4..........................1
Description
DECK GROUP (cont.)
Qty.
SPINDLE ASSEMBLY
Item Part No.
1 109-2102 Asm, Cutter Hous i ng Complete..............3
2 3296-39 Nut, Nyloc 3/8-16 .......... . ............. ...........18
3 92-5581 Retaining Ring, Internal..........................3
4 103-3037 Bushing, Splined....................................3
5 109-2064 Asm, Bearing W/O-Rings.............. . ........6
6 103-5895 O-Ring ...................................................12
7 109-7033 Nut, Flange 5/8-18 Centerlock .. .............3
8 103-9504 Guard, Bottom .......................................3
9 103-9506 Spacer, Bearing.....................................3
10 103-9522 Spacer, Splined Stepped .......................3
11 103-9523 Spacer, Splined .....................................3
12 103-9539 Asm, Cutter Hous i ng.................... . .........3
13O 109-6881 Spindle, Double Spline...........................3
14 109-6917 Asm, Spindle Hous i ng............ ................3
15 109-0764 Asm, Housing W/Studs........... . ............. .3
16 109-1023 Sheave, Blade Drive 60” ..................... . ..3
109-0914 Sheave, Blade Drive 66” ..................... . ..3
109-0929 Sheave, Blade Drive 72” ..................... . ..3
17 109-1058 Nut, Spindle 7/8-14 ..................... . ..........3
Exmark red touch up paint (spray paint – P/N 1-850337 - .6 oz liquid bottle – P/N 103-9140). Q Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK605 (60”), MK665 (66”), and
MK725 (72”).
O Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the spindles and
bearings. DO NOT use a copper or nickel based antisieze.
Description
Qty.
Item Part No.
18 109-9220 Screw, SEMS 1/2-20 x 2.19...................3
19 103-8240 Blade, Low Lift 60”.................................3
103-8396 Blade, Medium Lift 60”........................... 3
103-8239 Blade, High Lift Solid 60”....................... 3
109-6463 Blade, High Lift Notched 60”..................3
109-5396 Blade, Mulch 60”....................................3
Q
103-9629 Blade, Extreme 60”................................3
103-9616 Blade, Low Lift 66”.................................3
103-9619 Blade, Medium Lift 66”........................... 3
103-9617 Blade, High Lift Solid 66”....................... 3
109-6464 Blade, High Lift Notched 66”..................3
109-5878 Blade, Mulch 66”....................................3
Q
103-9630 Blade, Extreme 66”................................3
103-9622 Blade, Low Lift 72”.................................3
103-9625 Blade, Medium Lift 72”........................... 3
103-9623 Blade, High Lift Solid 72”....................... 3
109-6465 Blade, High Lift Notched 72”..................3
109-5879 Blade, Mulch 72”....................................3
Q
103-9631 Blade, Extreme 72”................................3
Description
Qty.
-6-
FRONT FRAME GROUP
Item Part No.
1V 109-2072 Asm, Front Frame (60”) ......... . ...............1
V
109-2073 Asm, Front Frame (66”) ........... ..............1
V
109-2074 Asm, Front Frame (72”) ........... ..............1
2 302-19 Zerk, 1/4-28 Straight ..............................5
3 109-1903 Asm, Floorpan (103-8274-01)
W/Decals...............................................1
4 1-543509 Bearing Cone, Tapered Roller............. . ..4
5 103-2084 Asm, Lever (103-2083-03)W/Grip..........1
6 1-633295 Grip, Lift Lever.......................................1
7 103-9529-03 Arm Wldm t, Deck Lift.......... ..................1
8 1-633325 Spring, Compression .............................1
9 3256-24 Washer, 3/8 SAE Flat.... ............... .........1
10 3296-39 Nut, Nyloc 3/8-16 .......... . ............. ...........4
11 32151-103 E-Ring....................................................5
12 1-633068 Arm, Deck Lift ......... . ............. .................2
13 1-633889-01 Plate, Deck Lift.. ............. . ............. ..........1
14 109-1900 Wld, Deck Li f t Plate ...............................1
15 1-633082 Bushing, Lift Lever .................................1
16 109-3193 Stop, Deck Height..................................1
17 323-13 Screw, 3/8-16 x 2 3/4........................... . .1
18 1-633097 Hitch Pin W/Lanyard ..............................1
19 1-806005 Hairpin Cotter.........................................1
20 323-9 Screw, 3/8-16 x 1 3/4........................... . .2
21 98-5975 Washer, 3/8 Di sc Spring........................12
22 3290-357 Nut, Whizloc k 3/8-16....... .......................15
23 323-6 Screw, 3/8-16 x 1............................... . ...1
24 323-7 Screw, 3/8-16x1 1/4.. ............. ................12
25 3256-29 Washer, 7/8 SAE Flat.... ............... .........4
26 1-633096 Rod, Deck Lift........................................2
27 3217-11 Nut, 5/8-11 Regular.......................... . .....6
28 1-633441 Swivel, Deck Mount ...............................4
Exmark red touch up paint (spray paint – P/N 1-850337 - .6 oz liquid bottle – P/N 103-9140).
Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on spacer nut, Item #52. V Includes frame weldment plus items #2, #31, #34, #39, #49, #51, #55, #56 and #57.
Description
Qty.
Item Part No.
29 3256-7 Washer, 5/8 Std Flat..............................4
30 109-4963 Spring, Deck Support.............................2
31 103-4882 Cap, Grease..........................................2
32 3218-6 Jam Nut, 5/8-11.....................................6
33 109-1902 Asm, Floorpan, Liftout (103-8276-01)
W/Decal.................................................1
34 1-543511 Seal, Grease..........................................2
35 103-1474-01 Caster Wldmt.........................................2
36 3296-51 Nut, 3/4-10 Nyloc . ..................................2
37 1-633508 Washer, Spring Disc..............................6
38 325-39 Screw, 1/2-13 x 9 1/2.............................2
39 1-811010 Plug.......................................................2
40 103-2768 Guard, Seal ...........................................4
41 3296-23 Nut, 1/2-13 Nyloc . ..................................2
42 3230-1 Bolt, Carriage 5/16-18 x 3/4...................4
43 103-0063 Seal, Bearing.........................................4
44 1-633585 Bearing Cone.........................................4
45 32128-20 Nut, Whizlock 5/16-18 ...........................4
46 103-5156 Axle, Caster........................................... 2
47 103-1918 Bushing................................................. 2
48 323-29 Screw, 3/8-16 x 1 3/8.............................2
49 32151-29 Ring, Retaining......................................2
50 3274-18 Screw, Socket HD5/16-18x1 1/4............2
51 1-543508 Bearing Cup, Tapered Roller .................4
52103-3051 Spacer, Nut ........................................... 4
53 109-9127 Asm, Caster Wheel (Semi-Pneumatic)..2
54 3218-2 Jam Nut, 5/16-18...................................2
55 103-9741-01 Weldmt, Front Lift Shaft (LH).................1
56 103-9740-01 Weldmt, Front Lift W /Lever(RH) ............ 1
57 1-523157 Washer, Spacer ..................................... 2
58 109-4995 Asm, Front Frame Spring ......................2
Description
Qty.
-7-
FRONT FRAME GROUP
-8-
MAIN FRAME GROUP
Item
Part No.
1 1-513658 Bumper..................................................2
2 1-633964-03 Stop, Park Brake . ............. . ............. . .......1
3 322-5 Screw, HH 5/16-18 x 1...........................6
4 323-39 Screw, HH 3/8-16 x 5....... ......................2
5 3296-29 Nut, Nyloc 5/16-18 .................................6
6 3296-39 Nut, Nyloc 3/8-16 .......... . ............. ...........7
7 32128-20 Nut, Whizloc k 5/16-18.................. . .........5
8 323-6 Screw, HH 3/8-16 x 1....... ......................10
9 3290-357 Nut, Whizloc k 3/8-16..............................10
10 103-5519 Spring....................................................1
11 242-50 Nut, Lug 1/2-20 ........................... . .........8
12 109-3157 Asm, Wheel & Tire...... . ............... ...........2
103-4963 Tire, 26x12-12 4 Ply.......... . ....................2
109-3156 Wheel ....................................................2
13 109-3984 Asm, Engine Deck (116-0573-03)
14 103-5161 Link, XP Seat Stop.......... .......................2
15 107-1881 Kit, Knob................................................1
16V 116-1080 Seat, Suspension...................................1
109-3343 Kit, Spring and Saddle .................. . ........1
109-3344 Kit, Back Panel ......................................1
109-3345 Kit, Wei ght Adjust.......................... . .......1
17 1-653282-03 Stop, Seat..............................................2
18 107-1885 Kit, Wei ght Indicator....... . ............. . .........1
19 107-0075 Bushing..................................................1
20 109-2759 Link, XP Lower Seat Stop ..................... .2
21 103-3666 Asm, Cubby...........................................1
22 32122-28 Screw, Truss HD #10-24 x 1............ ......4
23 3296-2 Nut, Nyloc #10-24 ...................... . ...........8
24 3256-4 Washer, 3/8 S td........................... . .........1
25 107-1880 Kit, Seat Track ......................... ..............1
Exmark black touch up spray paint – Gloss black
Q Includes ROPS fold pin plus hairpin, item #45. X Rollover protection frame is serviced as a complete assembly only. Includes complete ROPS frame, mounting
hardware, fold pivot and locking hardware, seat frame assembly item #52, and seat belt assembly item #42. Items #51, #55, & #56 are not included. Includes seat assembly plus tracks item #25, seat stops item #17, and seat wiring harness (item #5 pg. 25).
V
Does not include seat belt assembly item #42.
Description
W/Decals............................................... 1
Qty.
Item
Part No.
26 103-3790 Latch, Cubby Door................................. 1
27 3290-500 Screw, PPH #10-24 x 5/8.......................2
28
109-2075 Asm, Console(103-8273-03) W/Decals.. 1
29 322-3 Screw, HH 5/16-18 x 3/4........................6
30 3256-23 Washer, 5/16 SAE.................................6
31 3296-42 Nut, Nyloc 1/4-20...................................2
32 3256-14 Washer, #10 Std. ...................................8
33 1-803075 Screw, Truss Head #10-24 x 3/4............2
34 98-5975 Washer, Spring Disc 3/8........................8
35 109-2394 U-bolt.....................................................2
36X 109-0060 Kit, XP ROPS ........................................1
37 107-1883 Kit, Bottom Cushion...............................1
38 82-2190 Kit, Switch..............................................1
39 107-1887 Kit, Armrest............................................1
40 107-1884 Kit, Shock Absorber...............................1
41 107-1882 Kit, Back Cushion.................................. 1
42 110-0883 Kit, Seat Belt.......................................... 1
43 3212-4 Screw, HH 7/16-20 x 1.0........................2
44 1-603610 Washer, Spring Disc 7/16...................... 2
45 107-3155 Cotter, Hair Pin Double Loop.................2
46 325-13 Screw, HH 1/2-13 x 3 1/4.......................2
47Q 103-4553 Asm, Rops Fold Pin...............................2
48 32128-23 Nut, Hex Flange Side Lock 1/2-13......... 2
49 3296-73 Nut, Nyloc 1/4-20...................................2
50 109-2365 Bumper..................................................4
51 1-543963 Bumper, Rubber.................................... 1
52 109-9228 Kit, Seat Frame .....................................1
53 323-9 Screw, HH 3/8-16 x 2.............................1
54 103-5520 Latch, Seat............................................ 1
55 103-7599-03 Guard ....................................................1
56 63-8410 Washer.................................................. 1
Description
Qty.
-9-
MAIN FRAME GROUP
-10-
FUEL GROUP
Item Part No.
1 92-2379 Clamp, Fuel Line............ ............. . ..........14
2 3296-2 Nut, Nyloc #10-24 ...................... . ...........3
3 321-3 Screw, HH 1/4-20 x 5/8..........................1
4X 1-633023 Stud, Fuel Tank ...... ............... ................6
5 1-633349 Spring, Compression .............................6
6 1-643312 Clip, Loom .............................................1
7 1-643115 Tie, Cable 11.4 .................. ....................4
8 116-0973 Valve, Fuel Dual Flow.. . .........................1
9 1-805005 Washer, Lock 5/16 Heavy. . ............. .......4
10 1-807513 Bolt, Carriage #10-24 x 1/2 ....................2
11 1-807533 Bolt, Carriage #10-24 x 5/8 ....................1
12 103-6564 Kit, Fuel Gauge......................................1
13 112-7836 Filter, Fuel..............................................1
14 103-1193 Clip, Loom Half......................................1
15 103-2595 Connector, Fuel 1/4 X 5/16 ....... .............1
16+ 116-0968 Fitting, Fuel Bulkhead ............................4
103-2784 O-Ring ...................................................1
17 109-0299 Hose, Fuel Line 18”................ .............. ..2
186 116-0141 Asm, Fuel Tank (LH). ............... ..............1
19 32128-33 Nut, Whizloc k 1/4-20....... .......................2
20 32128-20 Nut, Whizloc k 5/16-18.................. . .........1
21W 109-2661 Screw, PPH #10-24 x 1/2..................... . .4
226 116-0142 As m, Fuel Tank (RH)................. ............1
23 110-8806 Pump, Fuel ............................................1
24 110-4100 Hose, Fuel Line 43.5” .............. .............. .2
X Use Pro-Lock, Retaining type (Part No. 1-840023), .5cc tube on stud threads going into the tank. W Snug fit only on slotted holes, Do Not Overtighten, tank must be able to expand. + Use Prolock, Nut type (Part No. 1-840022), .5ml tube on fuel fitting. 6 Includes tank, cap, fittings, and studs. LH tank also includes fuel gauge.
Description
Qty.
Item Part No.
25 108-5928 Swivel, Cable Stop.................................1
26 109-0274 Hose, Fuel Line 16” ...............................1
27 110-9662 Hose, Fuel Line 32” ...............................1
28 3296-47 Nut, Nyloc 5/16-18 Thin.........................6
29 110-8817 Bracket, Pump Mount............................ 1
30 109-0308 Hose, Fuel Line 24” ...............................1
31 110-4114 Hose, Fuel Line 39” ...............................1
32 114-5062 Cap, Fuel (Bio-Diesel) ...........................2
33 1-303077 Clamp, Fuel Line ................................... 1
34 109-7875 Asm, Control Panel W/Decals............... 1
35 3256-23 Washer, 5/16 SAE.................................13
36 109-6652 Cable, Throttle.......................................1
37 116-0290 Asm, Filter and Mount............................1
38 3256-14 Washer, #10 Std. ...................................1
39 3220-1 Nut, Jam 1/4-28.....................................2
40 110-6186 Hose, Fuel Line 30” ...............................1
41 110-0047 Hose, Fuel Line 2 3/8” ...........................1
42 110-4104 Hose, Fuel Line 11” ...............................1
43 104-8300 Nut, Nyloc 5/16-18 Flg...........................2
44 322-3 Screw, HH 5/16-18 x 3/4........................4
45 322-4 Screw, HH 5/16-18 x 7/8........................3
46 353-707 Adapter, 90° ..........................................2
47 2412-108 Clamp, Hose.......................................... 5
48 116-0289 Element, Fuel Filter ............................... 1
49 321-8 Screw, HH 1/4-20 x 1 1/4.......................1
Description
Qty.
-11-
FUEL GROUP
-12-
PARK BRAKE GROUP
Item Part No.
1 1-513140 Bushing..................................................2
2 109-2230 Spring, Brake Rod..................................2
3 323-58 Bolt, HH 3/8-16 x 6 Tap.... ......................2
4 3296-39 Nut, Nyloc 3/8-16 .......... . ............. ...........4
5 3218-3 Nut, Jam 3/8-16 ....... ............. .................2
6 103-0197 Asm, Lever (103-0201-03) W/Grip.........1
7 1-633268 Grip, Brake Lever...................................1
8 103-9761 Band, Brake...........................................2
9 1-809036 Nut, Slotted 1-20....................................2
10 1-633380 Spacer (Short)(60”)................................4
109-5011 Spacer (Short)(66” & 72”)............ . ..........4
11 1-633382 Spacer (Long)(60”).................................4
109-5012 Spacer (Long)(66” & 72”) .......................4
12 1-633102 Bearing, Flange......................................2
13 103-0051 Spacer, Brake Retainer..........................2
14 1-633144 Pin, Trunion ...........................................2
15 103-0590 Asm, Wheel Hub W/Studs & Drum ........2
X
1-633926 Studs, Wheel.........................................8
16 323-4 Screw, HH 3/8-16 x 3/4..........................2
17 323-10 Screw, HH 3/8-16 x 2....... ......................2
18 103-2399 Pin, Clevis Spring 3/8........... ..................1
19 1-808284 Pin, Clevis 3/8 x 1 ........... ............. . .........2
Exmark black touch up spray paint – Gloss black X Not Illustrated.
Description
Qty.
Item Part No.
20 32128-49 Nut, Whizlock 1/2-13 .............................8
21 325-17 Screw, HH 1/2-13 x 4 (60”).................... 8
325-22 Screw, HH 1/2-13 x 5 1/2 (66” & 72”).....8
22 3290-357 Nut, Whizlock 3/8-16 .............................4
23 1-808285 Pin, Clevis 3/8 x 1 1/8............................1
24 3256-4 Washer, 3/8 Std..................................... 6
25 3272-10 Pin, Cotter 1/8 x 3/4...............................4
26 1-806800 Pin, Cotter 9/64 x 1 1/2..........................2
27 1-523157 Washer, Spacer ..................................... 2
28 103-1117-03 Lower Brake Linkage............................2
29 103-5243-03 Brake Shaft............................................1
30 103-0844-03 Bracket, Brake (60”)...............................2
103-0810-03 Bracket, Brake (66” & 72”).....................2
31 1-633131 Yoke......................................................2
32 3219-3 Nut, Hex 3/8-24......................................2
33 3257-42 Key, Woodruff 5/16 x 1.......................... 2
34 103-0384 Spacer................................................... 6
35 103-0374 Retainer, Brake Band ............................ 2
36 322-9 Screw, HH .312-18 x 1.75...................... 6
37 32151-48 E-Ring...................................................1
38 103-1708 Rod, Brake ............................................1
39 1481 Zerk, 45° 1/4-28..................................... 2
Description
Qty.
-13-
MOTION CONTROL GROUP
Item Part No.
1 1-303105 Yoke ......................................................2
2 109-2339 Damper..................................................2
3 1-543017 Balljoint (RH)..........................................2
4 109-3769 Bushing, Nylon.......................................2
5 1-603737 Bolt, Neutral Return .............. .................2
6 1-603807 Spring....................................................2
7 1-633102 Bearing, Flanged....................................4
86 103-3457 Asm, Lever W /Grip (LH).......... . ............. .1
9 103-3458 Asm, Lever W/Grip (RH)...................... ..1
10 109-3983 Wld, Motion Control B racket (LH).......... .1
11 109-3980 Wld, Motion Control B racket (RH)..........1
12 103-5182 Link, Hydro Connecting (RH) .. ...............1
13 103-3065 Link, Hydro Connecting (LH) ............... .1
14 1-633152 Balljoint (LH)..........................................2
15 103-0407 Arm, Control Shaft .................................2
16 98-5975 Washer, Spring Di sc 3/8........................4
17 1-403180 Screw, HH 5/16-18 x 1 1/4 Sp.......... ......4
18 32128-20 Nut, Whizloc k 5/16-18.................. . .........10
19 322-6 Screw, HH 5/16-18 x 1 1/4.....................2
20 323-4 Screw, HH 3/8-16 x 3/4..........................8
21 323-6 Screw, HH 3/8-16 x 1....... ......................4
22 323-9 Screw, HH 3/8-16 x 1 3/4... ....................6
Exmark black touch up spray paint – Gloss black.
6 Not illustrated. x Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on setscrews.
-14-
Description
Qty.
Item Part No.
Description
23x 1-803022 Setscrew, 5/16-18 x 5/8.........................2
24 3296-39 Nut, Nyloc 3/8-16...................................6
25 3219-2 Nut, Hex 5/16-24....................................10
26 1-804524 Nut, Hex 5/16-24 (LH)............................4
27 109-3908 Tab, Adjustment ....................................2
28 3256-2 Washer, 1/4 Std..................................... 2
29 322-14 Screw, HH 5/16-18 x 3...........................1
30 322-12 Screw, HH 5/16-18 x 2 1/2..................... 1
31 3290-357 Nut, Whizlock 3/8-16 .............................8
32 3272-5 Pin, Cotter 3/32 x 1/2.............................2
33 1-808280 Pin, Clevis 5/16 x 1................................2
34 3296-29 Nut, Nyloc 5/16-18.................................4
35 103-5192 Spacer, Hyd Control (RH)......................1
36 103-0194-03 Wld, Pump Control Arm.........................2
37 103-1361 Spacer, Hyd Control (LH).......................1
38 103-3456 Grip, Motion Control Handle...................2
39 103-3060 Knob, Tracking ......................................1
40 1-323245 Spring, Compression............................. 3
41 103-3062 Asm, Tracking Rod Linkage (LH)...........1
42 103-5190 Asm, Tracking Rod Linkage (RH) ..........1
43 3217-6 Nut, Hex 5/16-18....................................4
44 3230-23 Bolt, Carriage 5/16-18 x 3/4, short nec k 2
Qty.
ENGINE GROUP
(
.
Item Part No.
1 1-303334 Washer, Spring Di sc 5/16... ...................5
2 109-1245 Washer ..................................................1
3 1-603610 Washer, Spring Di sc 7/16... ...................2
4 1-805005 Washer, Lock 5/16 Heavy. . ............. . ......5
5 1-807014 Key, Woodruff 1/ 4 x 7/8 ....................... ..1
6 1-543610 Washer ..................................................1
7 42-9600 Washer, Lock M10..... .......................... ..12
8 63-7790 Screw, HH M10-1.25 x 1.25mm ....... ......12
9 83-1040 Washer..................................................2
10 86-1990 Washer..................................................1
11 93-6099 Washer..................................................4
12 98-5975 Washer, Spring Di sc 3/8........................1
13 100-2436 Asm, Hood Air Int ake W/Clamp .............1
14 103-0608 Balljoint..................................................2
15 103-1022 Isolator, Rear .........................................2
16 103-1058 Bracket, Air Filter ...... ........................... . .1
17 103-1060 Cover, Air Filter W/Latch.............. . .........1
18 103-1326 Filter, Safety Air ........ . ............................1
19 103-1327 Filter, Air ................................................1
20 103-2613 Isolator, Side..........................................2
21 103-3567 Link, Rear A-T Axial.................. .............1
22 103-3568 Isolator, A-T ...........................................2
23 103-3745 Asm, RR A-T .........................................1
24 103-4718 Sheave ..................................................1
25 103-5178 Asm, Canister A i r Fi lter W/Hood............1
26 33114-090 Screw, HH M8-1.25 x 90mm..................1
27 103-7530-03 Wld, Engine Mount (LH).........................1
28 103-7531-03 Wld, Engine Mount (RH) .......... . .............1
29 103-7541-03 Bracket, Engine Mount............ ............. . .1
30 109-7678-03 Anchor, Clutch .......................................1
31 109-8528 Asm, A-T Link ............ ............... .............1
32 103-7544 Link, Rear A-T Axial.................. .............1
33 109-9873 Shaft, Kubota 902 Stub..... ............. . .......1
34 103-7556 Hub, Pump Drive....................................1
35 103-7567-03 Wld, Flywheel Cover ..............................1
Exmark black touch up spray paint – gloss black. X Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on (5) screws, item #70 securing shaft, item #33 to engine, and
muffler bracket, item #41 to engine.
O Includes item #44.
Kubota Replacement Parts List
Refer to Engine Owner’s Manual)
Description
Engine Oil Filter...................................
Description
Kubota Part No.
15853-3243
Qty.
Item Part No.
36 103-7597 Hose, Air Intake.....................................1
37O 109-2855 Kit, Muffler............................................. 1
38 33114-080 Screw, HH M8-1.25 x 80mm.................. 3
39 104-3082 Nut, Nyloc M8-1.25 Flg..........................1
40 108-5922 Bracket, Throttle Support......................1
41 109-0787-03 Bracket, Muffler Mounting......................1
42 109-0789 Fan........................................................1
43 109-1211 Solenoid, Fuel........................................1
44 109-2783 Gasket, Exhaust.................................... 1
45 99-3174 Latch, Air Cleaner..................................2
46 109-2820 Ejector, Air Cleaner................................1
47 109-2901 Belt........................................................ 1
48 109-7668 Clutch....................................................1
49 322-3 Screw, HH 5/16-18 x 3/4........................8
50 322-5 Screw, HH 5/16-18 x 1...........................2
51 323-11 Screw, HH 3/8-16 x 2 1/4.......................2
52 323-8 Screw, HH 3/8-16 x 1 1/2.......................1
53 323-7 Screw, HH 3/8-16 x 1 3/4.......................1
54 325-11 Screw, HH 1/2-13 x 2 3/4.......................1
55 2412-42 Clamp, Hose.......................................... 3
56X 3212-8 Screw, HH 7/16-20 x 2........................... 1
57 3220-3 Nut, Jam 3/8-24.....................................2
58 3253-4 Washer, Lock 5/16.................................4
59 3256-2 Washer, 1/4 Std..................................... 2
60 3256-23 Washer, 5/16 SAE.................................5
61 3256-24 Washer, 3/8 SAE...................................4
62 3256-4 Washer, 3/8 Std..................................... 2
63 3296-23 Nut, Nyloc 1/2-13...................................1
64 3296-39 Nut, Nyloc 3/8-16...................................4
65 3296-6 Nut, Nyloc 3/8-24 ...................................2
66 32128-20 Nut, Whizlock 5/16-18 ...........................10
67 33014-00 Nut, Hex M8-1.25...................................4
68 33113-012 Screw, HH M6-1 x 12mm.......................2
69 33113-020 Screw, HH M6-1 x 12mm.......................2
70X 33114-020 Screw, HH M8-1.25 x 20mm..................10
Description
Qty.
-15-
ENGINE GROUP
-16-
ENGINE DECK GROUP
Item Part No.
1 1-603496 Bushing, Idler.........................................1
2 1-603805 Pulley, Idler............................................1
3 3296-39 Nut, Nyloc 3/8-16 .......... . ............. ...........1
4 1-633166 Pulley, Idler............................................1
5 116-0932 Dampener, Spring..................................1
6 98-5975 Washer, Spring Di sc 3/8........................1
7 103-2627 Bushing, Idler.........................................1
8 103-2916 Guard, Top.............................................2
9 103-3504 Bearing, Spherical..................................2
10 103-3506 Seal, Single Lip......................................2
11 103-5677 Spacer...................................................1
12 116-0608 Spring....................................................1
13 103-9250 Kit, Idler Arm (109-3194-03) W/Brgs......1
Description
Qty.
Item Part No.
14 106-7159 O-Ring................................................... 2
15 32120-10 Ring, Retaining......................................2
16 109-4199 Belt, Mule Drive.....................................1
17 302-40 Zerk, 90° 1/4-28.....................................1
18 323-12 Screw, HH 3/8-16 x 2 1/2.......................3
19 323-42 Screw, HH 3/8-16 x 3 3/4.......................1
20 323-9 Screw, HH 3/8-16 x 1 3/4.......................1
21 3256-24 Washer, 3/8 SAE...................................3
22 3290-357 Nut, Whizlock 3/8-16 .............................2
23 104-8301 Nut, Nyloc 3/8-16 Flg.............................2
24 109-8866 Bushing, Plastic.....................................2
25 109-8754 Spacer................................................... 2
Description
Qty.
-17-

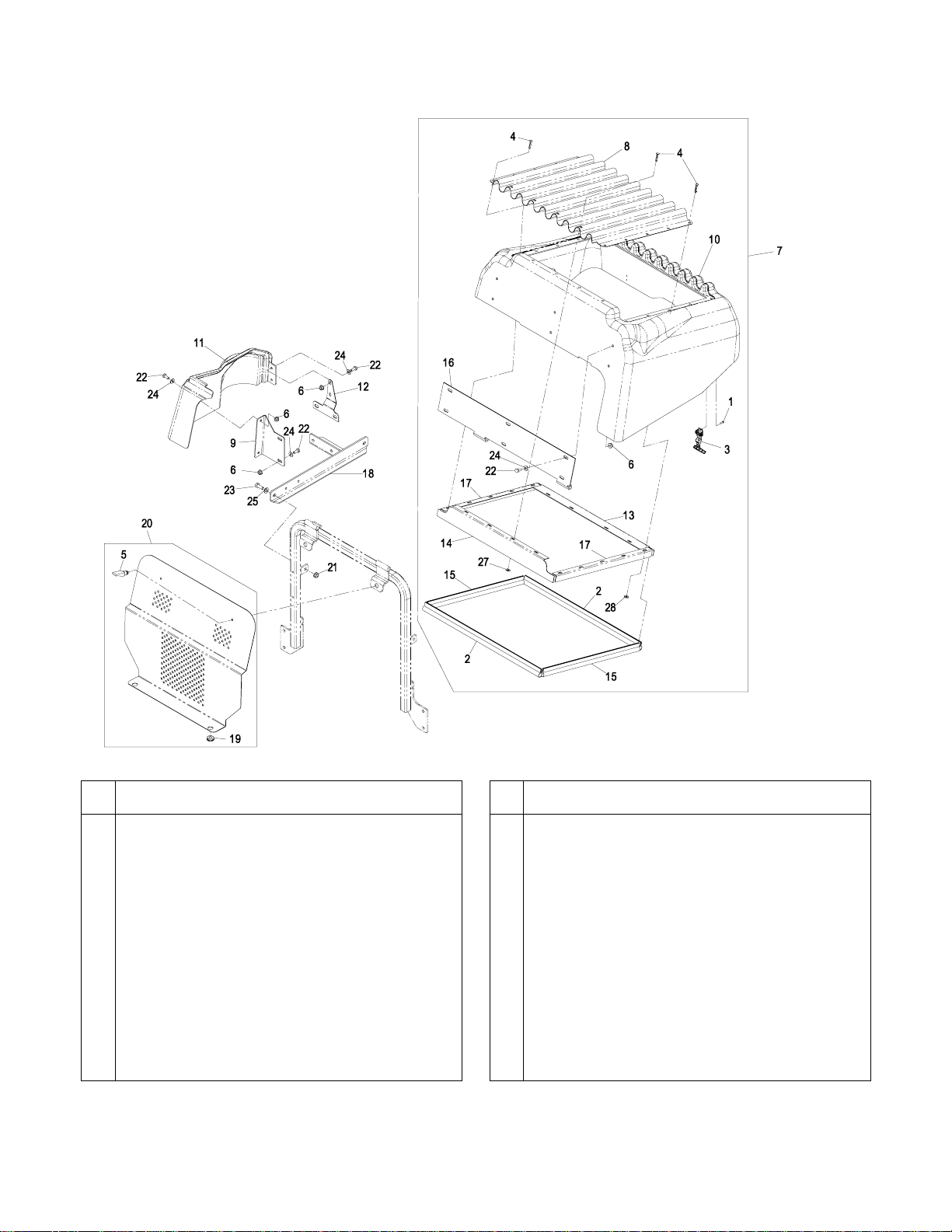

HOOD AND PANEL GROUP
Item Part No.
1 923786 Rivet ......................................................4
2 1-643187 Seal, Trim 20"........................................2
3 1-643188 Latch, Rubber ........................................2
4 1-803072 Rivet ......................................................18
5 74-5950 Latch......................................................2
6 32128-33 Nut, Whizloc k 1/4-20....... .......................12
7X 103-9200 Asm, Hood.............................................1
8 103-9201-03 Screen, Radiator....................................1
9 103-9206-03 Bracket, Front Cover..............................1
10 103-9220 Cover, Radiator......................................1
11 103-9221 Panel, Side ............................................1
12 103-9222-03 Bracket, Rear Cover .. . ............. . .............1
13 103-9223-03 Mount, Seal Rear....... ............. ...............1
14 103-9224-03 Mount, Seal Front ..................... .............1
Exmark black touch up spray paint – gloss black. X Hood assembly comes with back logo decal, side decals need to be ordered separately.
Description
Qty.
Item Part No.
15 103-9225 Seal, Trim 17.1".....................................2
16 103-9226-03 Wld, Hinge............................................. 1
17 103-9228-03 Mount, Seal Side................................... 2
18 109-3257 Asm, Air Cleaner Brkt W/Decals............1
19 109-0023 Grommet...............................................2
20 116-0136 Asm, Air Deflector W/Decal................... 1
21 32128-33 Nut, Whizlock 1/4-20 .............................12
22 321-3 Screw, HH 1/4-20 x 5/8..........................12
23 322-4 Screw, HH 5/16-18 x 7/8........................2
24 3256-22 Washer, 1/4 SAE...................................12
25 3256-23 Washer, 5/16 SAE.................................2
26 32128-20 Nut, Whizlock 5/16-18 ...........................2
27 1-303435 Washer, Spring Disc..............................4
28 3256-14 Washer.................................................. 14
Description
Qty.
-18-
COOLING GROUP
Item Part No.
1 1-303287 Tie, Cable 5 1/2 (Small) ...... ............... ....3
2 1-513645 Bushing..................................................1
3 1-513658 Bumper..................................................2
4 1-633989 Clamp....................................................4
5 1-643161 Cap, Radiator.........................................1
6 1-643163 Tank, Overflow.......................................1
7 1-643164 Cap, Overflow Tank ...............................1
8 1-643189 Keeper, Rubber Latch............................2
9 1-643259 Fitting, Elbow .........................................1
10 109-8431 Hook, Latch............................................1
11 923786 Rivet ......................................................4
12 103-1479-03 Wld, Rear Bumper.................................1
13 103-6643 Spring....................................................1
14 103-7532 Hose, Radiator.......................................1
15 103-7558-03 Rib, Top .................................................1
16 103-7579-03 Rib, Bottom............................................1
17 109-8546-03 Wld, Rear Radiator Mount......................1
18 109-2804 Asm, Front Radiator Mount W/Decal......1
19 321-6 Screw, HH 1/4-20 x 1....... ......................4
20 103-9207 Rod, Prop...............................................1
21 109-8539 Asm, Latch Pl ate W/Decals ....... . ...........1
22 103-9214-03 Bracket ..................................................1
23 103-9218 Pin, Cover Pivot.....................................2
24 109-0089-03 Bracket, Hydraulic Tank.........................1
25 107069 Nut, Retainer Panel......... ............. . .........4
26 109-9195 Fan, 14” Electric.....................................1
27 32128-20 Nut, Whizloc k 5/16-18.................. . .........15
28 109-8541 Kit, Fan 16”.. . ............................. ............1
Exmark black touch up spray paint – gloss black. X Radiator assembly does not include items, #1 or #32.
Description
Qty.
Item Part No.
29 109-2669 Hose......................................................1
30 109-2950 Mount, Fan............................................ 4
31 109-3142 Hose, Radiator.......................................1
32 109-3143 Hose, Overflow......................................1
33 109-3179-03 Wld, Hinge Plate....................................2
34 32120-18 E-Ring...................................................2
35 321-2 Screw, HH 1/4-20 x 1/2..........................2
36 109-8732-03 Shroud, Fan...........................................1
37 322-10 Screw, HH 5/16-18 x 2...........................1
38 322-3 Screw, HH 5/16-18 x 3/4........................12
39 322-4 Screw, HH 5/16-18 x 7/8........................15
40 322-5 Screw, HH 5/16-18 x 1...........................1
41 3234-47 Screw, HH FLG 5/16-18 x 3/4.... ............ 4
42 112-6950
43 3253-3 Washer, Lock 1/4 .................................. 4
44 3253-4 Washer, Lock 5/16.................................12
45 3256-22 Washer, 1/4 SAE...................................6
46 3256-23 Washer, 5/16 SAE.................................31
47 3296-29 Nut, Nyloc 5/16-18.................................1
48 32128-25 Nut, Hex 5/16-18 Side Lock...................1
49 3256-3 Washer, 5/16 Std................................... 1
50 107-0075 Spacer................................................... 1
51 109-8430 Spring.................................................... 1
52 109-8432 Pin, Latch ..............................................1
53 1-303334 Washer, Spring Disc 5/16...................... 1
54 99-8551 Plug, Pipe..............................................1
55X 109-8733 Asm, Radiator........................................1
Description
Bolt, Carriage 5/16-18 x 1 3/8, short neck..
Qty.
2
-19-
COOLING GROUP
-20-

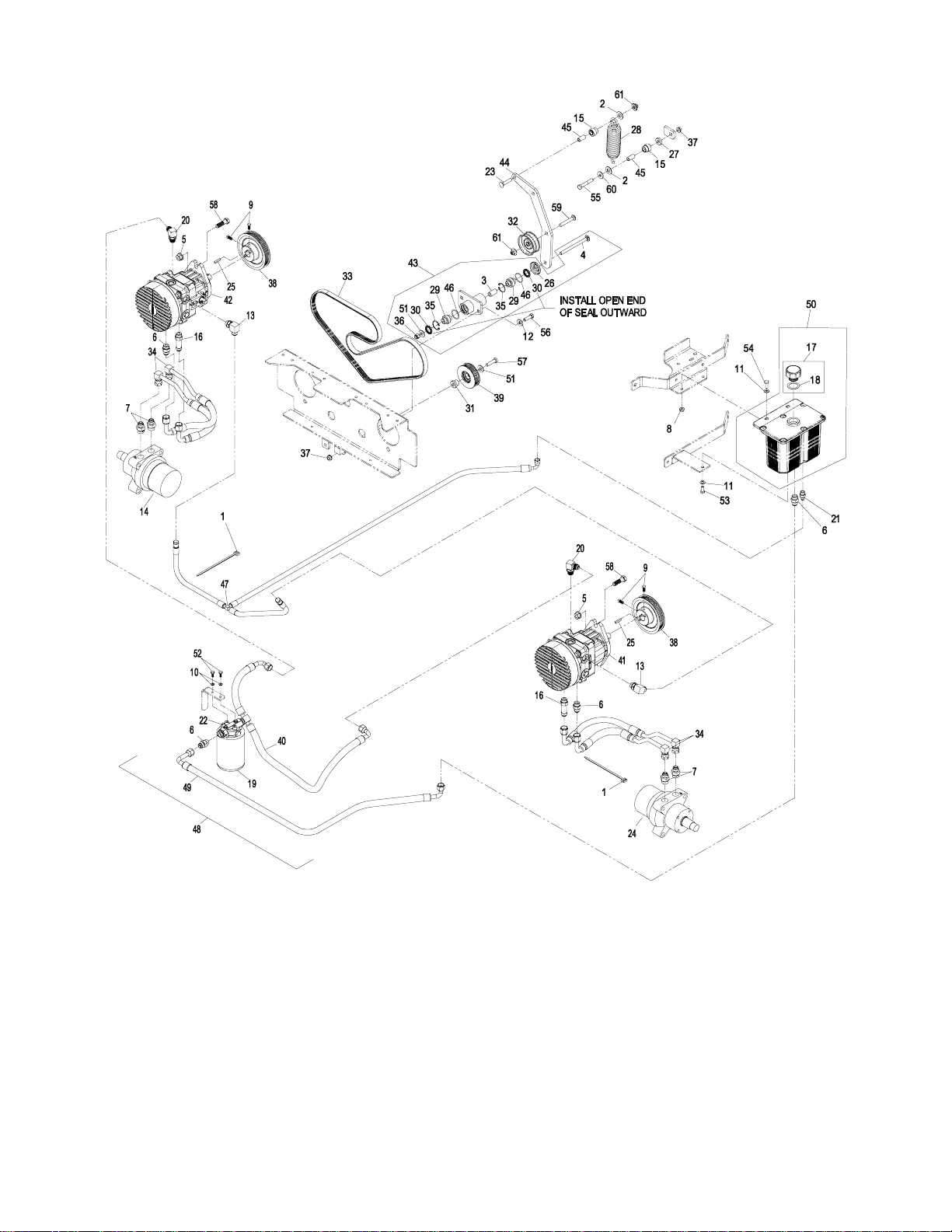

HYDRAULIC GROUP
Item Part No. Description Qty.
Item Part No. Description Qty.
1 1-303335 Tie, Cable 7 15/16 (Large) .....................2
2 112-9771 Washer ..................................................2
3 1-603401 Spacer ...................................................1
4 9000784 Bolt, Carriage 3/8-16 x 5 ........................1
5 32128-49 Nut, Whizloc k 1/2-13..............................4
6W 1-603990 Adapter, Straight....................................4
1-603992 O-Ring, 37 Flare #8 ................... ............1
1-603920 O-Ring, SAE #8 .....................................1
7 1-603991 Adapter, Straight....................................4
1-603992 O-Ring, 37 Flare #8 ................... ............1
1-603919 O-Ring, SAE #10 ...................................1
8 32128-20 Nut, Whizloc k 5/16-18.................. . .........2
9x 30-1710 Set screw, 5/16-18 x 1.............. . .............4
10 1-805004 Washer, Lock 1/4 Heavy........................2
11 3256-23 Washer, 5/16 S A E ...... ............. . .............3
12 98-5975 Washer, Spring Di sc 3/8........................3
13 103-1014 Elbow, 90°..............................................2
1-603920 O-Ring, SAE #8 .....................................1
14O 112-8357 Motor, Wheel Drive (RH)........ ................1
15 109-8752 Spacer...................................................1
16 103-1940 Adapter, Straight....................................2
1-603992 O-Ring, 37 Flare #8 ................... ............1
1-603920 O-Ring, SAE #8 .....................................1
17 103-7615 Asm, Cap W/Gasket.... ............. . ............1
18 103-1949 Gasket, Reservoir Cap......... . ............. ....1
19 103-2146 Element, Hydraulic Oi l Fi l ter........... ........1
20 103-2153 Elbow, 90°..............................................2
1-603992 O-Ring, 37 Flare #8 ................... ............1
1-603920 O-Ring, SAE #8 .....................................1
21W 103-2156 Adapter, Straight....................................1
103-1020 O-Ring, 37 Flare #6 ................... ............1
1-603921 O-Ring, SAE #6 .....................................1
22 103-2259 Filter Head.............................................1
23 3231-5 Bolt, Carriage 3/8-16 x 1 3/4 ................. .1
24O 112-8358 Motor, Wheel Drive (LH) ................ ........1
25 1-807259 Key, Machine 1/4 x 1/4 x 1........ .............2
26 103-2916 Guard, Top.............................................1
Exmark black touch up spray paint – gloss black.
W Use Teflon pipe sealant on pipe threads in reservoir.
x Use Prolock, Nut Type (P/N 1-840022, .5ml tube) on setscrews. 6 Does not include items #10 & 52. O Seal Kit: 109-5966
27 103-3186 Spacer................................................... 1
28 116-0133 Spring, Extension...................................1
29 103-3504 Bearing, Spherical.................................2
30 103-3506 Seal, Single Lip...................................... 2
31 103-4566 Spacer................................................... 1
32 103-4567 Pulley, Hydro Pump Idler.......................1
33 109-7582 Belt........................................................ 1
34 103-4680 Hose, Wheel Motor (60") .......................4
103-4679 Hose, Wheel Motor (66" & 72")..............4
35 32120-10 Ring, Retaining......................................2
36 3296-39 Nut, Nyloc 3/8-16...................................1
37 3290-357 Nut, Whizlock 3/8-16 .............................4
38 109-7561 Sheave , Hydro Pump............................2
39 103-4728 Asm, Lower Frame Idler ........................1
40 109-6903 Hose, Pump Inlet................................... 1
41109-7543 Pump, Hydro (LH)..................................1
42109-7544 Pump, Hydro (RH)................................. 1
43 109-3250 Asm, Pump Idler W /Bearings ................1
44 103-7569-03 Arm, Pump Idler ....................................1
45 109-8753 Spacer................................................... 1
46 106-7159 O-Ring................................................... 2
47 109-0087 Asm, Case Drain Hose.......................... 1
486 109-6905 Asm, Charge Hose................................1
49 109-6904 Asm, Filter Inlet Hose............................ 1
50 109-0582 Asm Hydraulic Reservoir W/Decals....... 1
51 3256-4 Washer, 3/8 Std..................................... 2
52 321-3 Screw, HH 1/4-20 x 5/8..........................2
53 322-3 Screw, HH 5/16-18 x 3/4........................1
54 322-4 Screw, HH 5/16-18 x 7/8........................2
55 323-11 Screw, HH 3/8-16 x 2 1/4.......................1
56 323-7 Screw, HH 3/8-16 x 1 1/4.......................3
57 323-8 Screw, HH 3/8-16 x 1 1/2.......................1
58 325-5 Screw, HH 1/2-13 x 1 1/4.......................4
59 3231-31 Bolt, Carriage 3/8-16 x 2 1/2..................1
60 5-0838 Spacer...................................................1
61 109-6658 Nut, Nyloc 3/8-16 Flg.............................2
Hydro Pump Service Kits
Part No. Description Qty.
109-8113 Kit, Seal Service 21L....................................1
109-8109 Kit, Input Shaft 21L ......................................1
103-2670 Kit, Thrust Bearing 21L ................................1
94-1913 Kit, Cylinder Block 21L.................................1
100-6112 Kit, Valve Plate 21L......................................1
116-1739 Fan, PW Pump Cooling ...............................1
116-0917 Guard, PW Pump Fan..................................1
109-8110 Kit, Input Bearing .........................................1
106-2053 Kit, Shock Valve...........................................1
-21-
HYDRAULIC GROUP
-22-
DECAL GROUP
Item Part No.
1 109-3148 Decal, Bolt Torque ........................ .........1
2 109-7949 Decal, Wheel Hub................. . ............. . ..2
3 98-5954 Decal, Missing Cover ........... ............. . .... 3
4 1-513742 Decal, No Step. ............. . ............. . ..........2
5 110-3842 Decal, Antifreeze....................................1
6 103-0261 Decal, Fuel Valve............ .............. .........1
7 109-2219 Decal, Belt Routing ........ ........................1
8 109-0872 Decal, Baffle Adjus tment.................... . ...1
9 116-0404 Decal, Hyd Tank / Hot Surface........ .......1
10 103-2076 Decal, Caution Hot Surfac e....................1
11 1-513748 Decal, Guard..........................................1
12 109-2478 Decal, 3850 RPM........... ........................1
13 110-0806 Decal, No Starting Fluid ........... ..............1
14 107-2102 Decal, Folding ROPS..................... ........1
15 1-633706 Decal, Deck Height ........ . ............. ..........1
16 109-2264 Decal, Warning ....... .......................... . .... 1
17 1-303508 Decal, Discharge Warning. ............. . ......1
18 116-0127 Decal, Belt Routing ........ ........................1
19 109-2951 Decal, Relay ..........................................1
Description
Qty.
Item Part No.
20 103-1798 Decal, Throttle.......................................1
21 109-1399 Decal, Anti-Scalp...................................1
22 107-2112 Decal, Danger Slope..............................1
23 103-7474 Decal, Lazer XS Model..........................1
24 109-2263 Decal, Pump Fan Warning.....................1
25 116-0997 Decal, Check Service ............................1
26 109-1214 Decal, Park Brake..................................1
27 1-403005 Decal, Danger........................................2
28 109-1215 Decal, Cutting Height............................. 1
29 117-2718 Decal, Spark Arrester............................ 1
30 109-1803 Decal, Triton 60”....................................1
31 109-1804 Decal, Triton 66”....................................1
32 109-1805 Decal, Triton 72”....................................1
33 107-9866 Decal, Top Console ...............................1
34 109-1801 Decal, Exmark Logo ..............................1
35 109-6855 Decal, Ignition, Glow, PTO.....................1
36 109-2586 Decal, Hood RH.....................................1
37 109-2585 Decal, Hood LH..................................... 1
109-5609 Kit, Decal XS......................................... 1
Description
Qty.
-23-
DECAL GROUP
-24-
Item Part No.
1 1-303335 Tie, Cable 7 15/16 (Large) .....................5
2 1-513051 Switch, N.O............................................2
3 1-513374 Meter, Engine Hours ..............................1
4 1-543792 Wingnut, Nyloc 1/4-20.......... ..................2
5 1-633111 Switch....................................................1
6 1-633181 Plate, Tapped ........................................3
7 1-633396 Clip, Loom 5/8........................................1
8 1-643021 Gauge, Temperature..............................1
9 1-643037 Gauge, Voltmeter...................................1
10 1-643145 Tab #10 Stud X .25 Spade 45....... .........1
11 103-1420 Insulator, Starter ....................................1
12 1-643275 Relay, 12VDC 40 Amp..... . ............. . .......5
13 1-643312 Clip, Loom .............................................1
14 1-807513 Bolt, Carriage #10-24 x 1/2 ....................2
15 1-816001 Fuse, 20 Amp........................................1
16 1-816003 Fuse, 30 Amp........................................1
17 49-2040 Screw, HWH 1/4-20 x 3/4 TF .................2
18 100-4918 Diode.....................................................1
19 103-0205 Alarm, Dual Tone 12VDC. ......................1
20 109-4736 Switch, Ignition W/Keys ................ . ........1
21 32128-20 Nut, Whizloc k 5/16-18.................. . .........1
22 103-0498 Nut, Ignition............................................1
23 103-1227 Harness, Wi ri ng S eat.. ............. ..............1
Description
Exmark black touch up spray paint – gloss black. X Use dielectric grease on all wiring harness connectors.
Qty.
Item Part No.
24 103-1311-03 Holddown, Battery .................................1
25 103-1312 Bolt, Battery Hold Down.........................2
26 103-1349 Cable, Engine Ground........................... 1
27 103-1368 Fuse, 40 Amp ........................................1
28 103-2106 Key, Exmark Logo .................................1
29 103-3684 Bezel, Guage......................................... 1
30X 103-4339 Harness-Gauge .....................................1
31 103-5218 Module, Seat Delay............................... 1
32 103-5221 Switch, PTO ..........................................1
33 109-3495 Asm, Relay Mount Bracket.................... 1
34Q 103-7886 Sender, Temperature.............................1
35 3296-2 Nut, Nyloc #10-24..................................4
36 3290-500 Screw, PPH #10-24 x 5/8.......................8
37 109-2488 Light Cluster.......................................... 1
38 109-2661 Screw, PPH #10-24 x 1/2.......................4
39 3256-23 Washer, 5/16 SAE.................................1
40 109-8734 Harness.................................................1
41 109-3074 Cable-Battery (-) ...................................1
42O 109-7607 Asm, Cable-Battery (+)..........................1
43 103-1340 Insulator, Battery ...................................1
44 110-0811 Switch.................................................... 1
45 322-4 Screw, HH 5/16-18 x 7/8........................1
46 110-8808 Harness, Wire Fuel Pump...................... 1
Q Use Teflon pipe sealant on pipe threads on temperature sending unit.
Includes item 28. O Includes items 11 and 43.
ELECTRICAL GROUP
Description
Qty.
-25-
ELECTRICAL DIAGRAM
-26-
ELECTRICAL LOGIC SCHEMATIC
-27-
SERVICE RECORD
Date Description of Work Done Service Done By
-28-
NOTES
-29-
-30-
© 2009 Exmark Mfg. Co., Inc. Part No. 4500-380 Rev. B Industrial Park Box 808 (402) 223-6300 Beatrice, NE 68310 Fax (402) 223-5489 All Rights Reserved Printed In USA
Loading...
