FRONTRUNNERTM
DIESEL MODELS
For Serial Nos.
720,000 & Higher
Part No. 4500-228 Rev. A
1
1
READ OPERATOR’S MANUAL BEFORE
OPERATING OR SERVICING EXMARK EQUIPMENT.
TABLE OF CONTENTS
Description Page
Auxiliary Hydraulic Group ................................................. 14

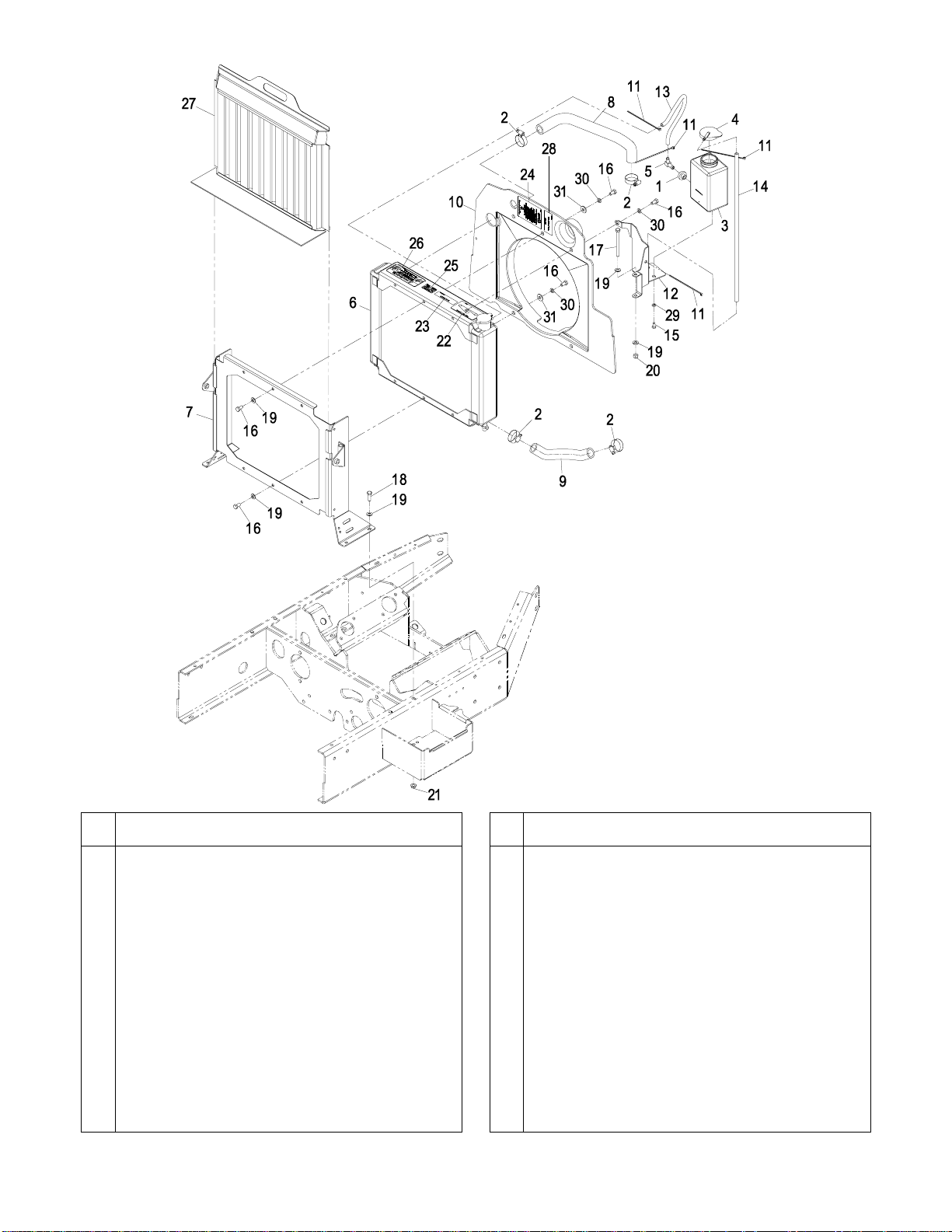

Cooling Group .................................................................. 13
Decal Group ..................................................................... 20
Electrical Diagram ............................................................ 18
Electrical Logic Schematic................................................ 19
Electrical Group ................................................................ 17

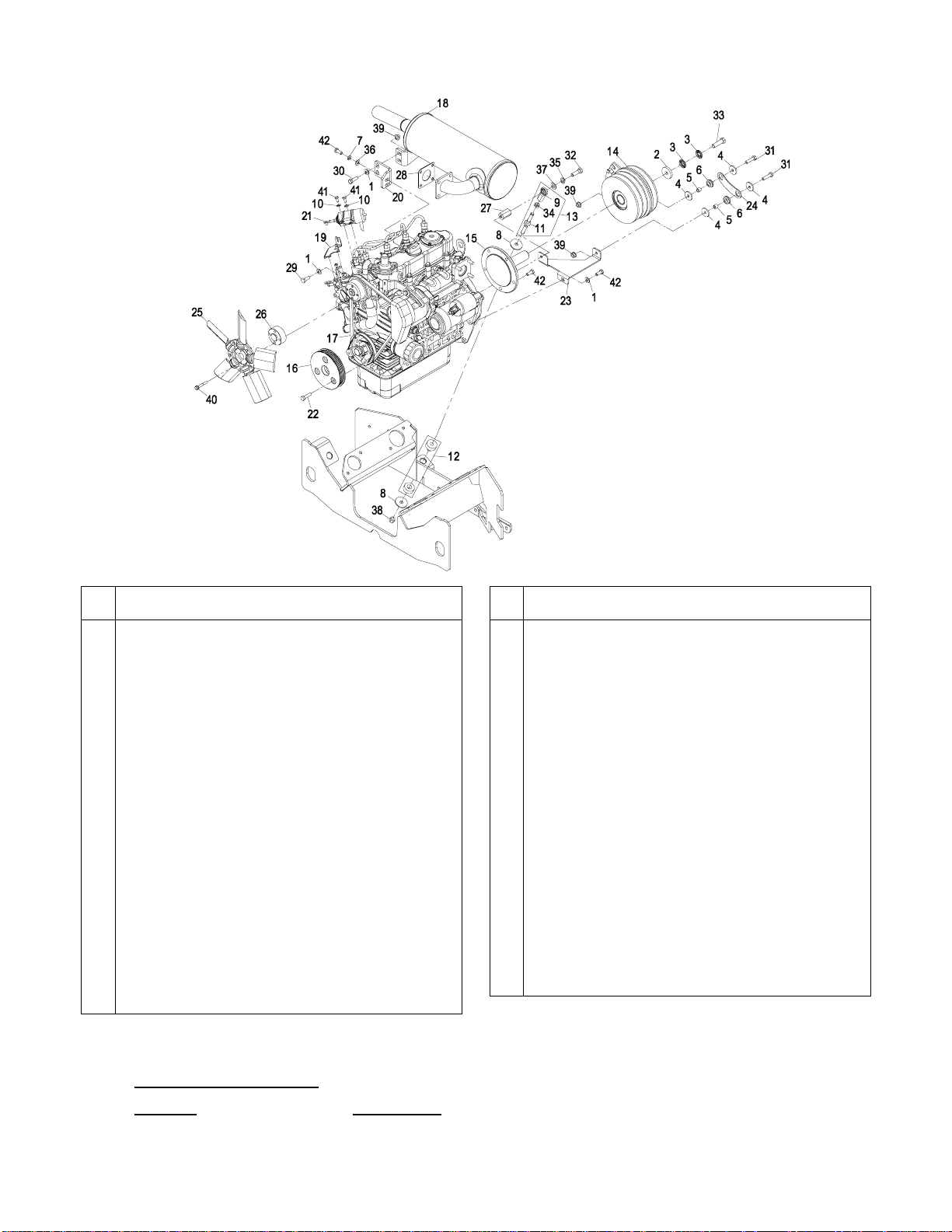

Engine Group ..............................................................11-12
Fuel Group........................................................................ 10
Hydraulic Group........................................................... 15-16
Main frame Group............................................................ 3-5
Motion Control Group ......................................................... 9
Park Brake Group............................................................... 8
PTO Drive Group................................................................ 7
Rear Frame Group.............................................................. 6
2
MAIN FRAME GROUP
Item
Part No.
1 1-323142 Nut, Push 1/2 .........................................2
2 109-2365 Bumper ..................................................4
3 3256-14 Washer, #10 Std.................................... 9
4 1-633859 Frame, Seat ...........................................1
5 1-803035 Rivet 3/16 x 1/4 ......................................9
6 98-5975 Washer, Spring Disc 3/8 ........................8
7 103-0291 Cushion, Armrest LH..............................1
8 103-0292 Cushion, Armrest RH ............................. 1
9 103-2882 Decal, Exmark Logo...............................2
10 103-3520 Seat, Back .............................................1
11Q 103-4553 Asm, ROPS Fold Pin .............................2
12 1-543401 Spacer, Seat Track ................................2
13 103-8383 Screw, HW H 1/4-20 x 3/4 Taptite........... 11
14 103-5161 Link, Seat Stop ...................................... 2
15 103-6761 Asm, Seat Frame................................... 1
16 103-6765-03 Latch, Seat ............................................ 1
17 32128-33 Nut, W hizlock 1/4-20..............................2
18 9264964 Bolt, HWH 5/16-18 x 3/4 Tap ................. 4
19 32128-20 Nut, W hizlock 5/16-18............................16
20 3296-73 Nut, Nyloc 1/4-20 ...................................2
21 103-8316 Spring .................................................... 1
22 103-8826 Link, Lower Seat Stop............................2
23 103-9446-03 Plate, Seat Mount .................................. 1
24 1-633080 Bushing..................................................2
25X 109-2817 Kit, ROPS ..............................................1
26 107-2102 Decals, Warning ....................................1
27 107-3155 Cotter, Hair Pin Double Loop .................2
28 109-3633-03 Support, Angled Seat.............................2
DESCRIPTION
Qty.
Exmark black touch up spray paint – Gloss black
Q Includes ROPS fold pin plus hairpin, item #27.
X Rollover protection frame is serviced as a complete assembly only. Includes complete ROPS frame, mounting
hardware, fold pivot and locking hardware, seat frame assembly item #15 and seat belt assembly item #39.
O Includes armrests and seat back decal. Does not include seat belt or tracks.
Does not include item #19 or #48.
Item
Part No.
29 3296-7 Nut, Nyloc 7/16-20................................. 2
30 109-0768 Skirt, Rubber.......................................... 1
31 109-3547 Asm, Front Console W/Decals............... 1
32 109-2008 Cushion, Seat Bottom/W Switch............ 1
33 109-2009 Grp, Seat Track ..................................... 1
34O 109-2005 Asm, Seat W/Decal ............................... 1
35 109-2360 Decal, Top Console ............................... 1
36 109-3478 Asm, Wheel & Tire (RH)........................ 1
109-3156 Wheel .................................................... 1
103-6771 Tire, 24x12-12 4 Ply............................... 1
37 3296-39 Nut, Nyloc 3/8-16 ................................... 4
38 109-3637 Decal, Service Aid ................................. 1
39 110-0883 Kit, Seatbelt........................................... 1
40 242-50 Nut, Lug 1/2-20...................................... 8
41 283-69 Pin, Clevis 1/2 x 3 1/2............................ 2
42 322-5 Screw, HH 5/16-18 x 1........................... 8
43 322-7 Screw, HH 5/16-18 x 1 1/2..................... 2
44 323-6 Screw, HH 3/8-16 x 1............................. 2
45 323-8 Screw, HH 3/8-16 x 1 1/2....................... 8
46 323-9 Screw, HH 3/8-16 x 1 3/4....................... 2
47 3212-4 Screw, HH 7/16-20 x 1........................... 2
48 3296-29 Nut, Nyloc 5/16-18 ................................. 4
49 3256-3 Washer, 5/16 Std................................... 6
50 3256-4 Washer, 3/8 Std..................................... 1
51 3290-357 Nut, Whizlock 3/8-16 ............................. 8
52 109-3479 Asm, Wheel & Tire (LH)......................... 1
109-3156 Wheel .................................................... 1
103-6771 Tire, 24x12-12 4 Ply............................... 1
DESCRIPTION
Qty.
3
MAIN FRAME GROUP
4
MAIN FRAME GROUP (cont.)
Item
Part No.
1 1-513747 Decal, Battery ........................................1
2 1-523157 Washer .................................................. 4
3 1-643189 Keeper, Rubber Latch ............................2
4 1-806003 Hairpin, Cotter........................................ 2
5 1-806005 Hairpin, Cotter........................................ 1
6 1-808285 Pin, Clevis 3/8 x 1 1/8 ............................2
7 5-0652 Spacer ................................................... 4
8 93-2699 Pin ......................................................... 2
9 98-4361 Decal, Warning ...................................... 2
10 100-1663 Pin .........................................................2
11 103-1166 Spacer ................................................... 2
12 32151-36 Ring, Retaining ......................................4
13 109-2764 Asm, Main Frame W/Decals ..................1
14 103-7218 Decal, Pump Fan Warning ..................... 1
15 103-9727 Latch, Hitch............................................2
16 107-2112 Decal, Danger........................................1
17 107-8042 Bumper, Rubber.....................................2
18 109-0075 Asm, Hitch ............................................. 1
19 109-0080-03 Wld, Hitch .............................................. 1
20 109-0325 Pin, Full Fold..........................................1
21 109-0411 Spring .................................................... 2
22 109-0435 Bushing..................................................4
23 109-0450 Asm, Spring ........................................... 2
24 109-2772 Asm, Floorpan W/Decals ....................... 1
25 109-2773 Asm, Spring Bellcrank W/Decals (RH)...1
26 109-2774 Asm, Spring Bellcrank W/Decals (LH) ...1
27 109-0634 Wld, Spring Anchor ................................ 4
DESCRIPTION
Qty.
Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140).
Exmark black touch up spray paint – Gloss black
Item
Part No.
28 109-3461-03 Arm, Pivot.............................................. 2
29 109-1257-03 Hook, Hood............................................ 2
30 109-3198 Hood W/Decal ....................................... 1
31 109-2858 Asm, Hood............................................. 1
32 109-1990-03 Screen, Hood......................................... 1
33 109-2004 Roller, Lock Lever.................................. 2
34 109-2114 Decal, Frontrunner................................. 1
35 109-2355 Decal, Spring Loaded ............................ 2
36 109-2356 Decal, Motion Control ............................ 1
37 109-2357 Decal, Motion Cntl/Park Brake............... 1
38 109-2396 Decal, Pump Drive Release................... 1
39 302-19 Zerk, 1/4-28 Str...................................... 2
40 322-4 Screw, HH 5/16-18 x 7/8........................ 8
41 323-11 Screw, HH 3/8-16 x 2 1/4....................... 2
42 323-8 Screw, HH 3/8-16 x 1 1/2....................... 2
43 325-18 Screw, HH 1/2-13 x 4 1/2....................... 2
44 3256-23 Washer, 5/16 SAE ................................. 16
45 3256-24 Washer, 3/8 SAE ................................... 2
46 3256-26 Washer, 1/2 SAE ................................... 8
47 3256-27 Washer, 5/8 SAE ................................... 2
48 3269-10 Washer.................................................. 6
49 3269-24 Rivet...................................................... 10
50 3296-23 Nut, Nyloc 1/2-13 ................................... 2
51 3296-29 Nut, Nyloc 5/16-18 ................................. 8
52 3296-39 Nut, Nyloc 3/8-16 ................................... 4
53 32120-19 E-Ring ................................................... 2
54 32120-47 Ring, Retaining ......................................4
DESCRIPTION
5
Qty.
REAR FRAME GROUP
Item
Part No.
1 1-513746 Decal, Muffler......................................... 2
2 1-543508 Cup, Bearing Tapered Roller..................4
3 1-543509 Cone, Bearing Tapered Roller................4
4 1-543511 Seal, Grease..........................................2
5 1-633508 Washer, Spring Disc ..............................6
6 1-633585 Bearing, Cone Tapered Roller................4
7 1-643188 Latch...................................................... 2
8 1-811010 Plug .......................................................2
9 103-0063 Seal, Double Lip.....................................4
10 103-2768 Guard, Seal............................................ 4
11 103-3051 Spacer, Nut............................................4
12 923786 Rivet ...................................................... 4
13 103-3799 Asm, Caster Wheel................................ 2
14 103-4882 Cap, Grease ..........................................2
15 103-5156 Axle, Caster ...........................................2
16 103-6825 Bearing, Sleeve......................................2
17 103-7957-03 Wld, Dual Caster Tube...........................1
18 103-8347 Asm, Dual Rear Wheels......................... 1
19 103-9045-03 Wld, Rear Frame Dual Wheel ................ 1
20 103-9051 Bearing, Thrust ...................................... 2
Exmark black touch up spray paint – Gloss black
Description
Qty.
Item
Part No.
21 103-9789-03 Guard, Hose .......................................... 1
22 103-9868-03 Wld, Caster Fork ...................................2
23 103-9974 Washer .................................................. 1
24 105-7699 Strip, Seal .............................................. 2
25 109-2769 Asm, Rear Guard W/Decals ..................1
26 109-1312-03 Cover, Muffler ........................................ 1
27 302-19 Zerk, 1/4-28 Str...................................... 1
28 322-3 Screw, HH 5/16-18 x 3/4........................ 7
29 323-6 Screw, HH 3/8-16 x 1............................. 4
30 325-39 Screw, HH 1/2-13 x 9 1/2....................... 2
31 325-5 Screw, HH 1/2-13 x 1 1/4....................... 6
32 327-24 Screw, HH 5/8-11 x 5 3/4....................... 1
33 3256-23 Washer, 5/16 SAE ................................. 7
34 3256-4 Washer, 3/8 Std..................................... 2
35 3290-357 Nut, Whizlock 3/8-16 ............................. 4
36 3296-23 Nut, Nyloc 1/2-13 ................................... 2
37 3296-51 Nut, Nyloc 3/4-10 ................................... 2
38 3296-53 Nut, Nyloc 5/8-11 ................................... 1
39 32128-20 Nut, Whizlock 5/16-18 ...........................7
40 32128-49 Nut, Whizlock 1/2-13 ............................. 6
Description
Qty.
6
PTO DRIVE GROUP
Item Part No.
1 1-413088 Spacer ................................................... 1
2▲ 1-803050 Setscrew, 5/16-18 x 3/4 .........................2
3 5-1336 Key, Machine 1/4 x 1/4 x 2..................... 1
4 92-8799 Bearing, Flanged.................................... 2
5 94-4685 Spacer, Idler ..........................................1
6 98-5975 Washer, Spring Disc 3/8 ........................4
7 103-2916 Guard, Top............................................. 2
8 103-3186 Spacer, Guide Bracket ...........................1
9 103-3330 Spring, Extension................................... 1
10 103-3504 Bearing, Spherical..................................2
11 103-3506 Seal, Single Lip...................................... 2
12 32151-13 Ring, Retaining ......................................2
13 103-6409 Asm, Pump Idler ....................................1
14 103-6779-03 Shaft, Line ............................................. 1
15 103-6813 Pulley, Idler ............................................ 1
16 103-6814 Sheave ..................................................1
17 103-8366-03 Guard, Linedrive .................................... 1
18 106-7159 O-Ring ................................................... 2
19 109-6658 Nut, Nyloc 3/8-16 Flg ............................. 3
DESCRIPTION
Qty.
Exmark black touch up spray paint – Gloss black
V Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on setscrew, item #2.
Item Part No.
20 109-7588 Belts, Matched Pair ............................... 2
21 109-8752 Bushing, Plastic..................................... 2
22 109-8753 Spacer ................................................... 2
23 109-8833 Spacer, Idler Bearing ............................. 1
24 109-8838 Arm, Idler............................................... 1
25 109-8876 Asm, Linedrive Idler............................... 1
26 112-9771 Washer, Teflon ...................................... 2
27 251-347 Bearing, Ball Deep Groove .................... 1
28 302-40 Zerk, 90° 1/4-28..................................... 1
29 323-10 Screw, HH 3/8-16 x 2............................. 1
30 323-11 Screw, HH 3/8-16 x 2 1/4....................... 1
31 323-17 Screw, HH 3/8-16 x 4 1/4....................... 1
32 323-6 Screw, HH 3/8-16 x 1............................. 4
33 323-7 Screw, HH 3/8-16 x 1 1/4....................... 3
34 323-8 Screw, HH 3/8-16 x 1 1/2....................... 4
35 3231-31 Bolt, Carriage 3/8-16 x 2 1/2 .................. 1
36 3290-357 Nut, Whizlock 3/8-16 ............................. 12
37 32120-10 Ring, Retaining ......................................2
7
DESCRIPTION
Qty.
PARK BRAKE GROUP
Item Part No.
1 1-633102 Bearing, Flanged....................................2
2 323-4 Screw, HH 3/8-16 x 3/4..........................4
3 3290-357 Nut, Whizlock 3/8-16.............................. 9
4 109-0262 Spacer ................................................... 2
5 3256-4 Washer, 3/8 Std .....................................6
6 1-633630 Grommet................................................4
7 322-9 Screw, HH 5/16-18 x 1 3/4 ..................... 2
8 3296-29 Nut, Nyloc 5/16-18 ................................. 4
9 322-6 Screw, HH 5/16-18 x 1 1/4 ..................... 2
10 103-0126 Bushing..................................................2
11 3256-3 Washer, 5/16 Std................................... 2
12 109-0132 Asm, Brake Linkage...............................2
13 103-8625-03 Wld, Brake Cross Shaft .........................1
14 3296-59 Nut, Nyloc 3/8-16 Thin ........................... 2
Exmark black touch up spray paint – Gloss black
DESCRIPTION
Qty.
Item Part No.
15 1-513140 Bearing .................................................. 2
16 103-0608 Balljoint.................................................. 1
17 103-4399 Rod, Linkage Brake ............................... 1
18 3219-3 Nut, Hex 3/8-24...................................... 1
19 3256-24 Washer, 3/8 SAE ................................... 1
20 3272-10 Pin, Cotter 1/8 x 3/4............................... 1
21 323-7 Screw, HH 3/8-16 x 1 1/4....................... 1
22 32120-47 Ring, Retaining ......................................1
23 1-633268 Grip, Brake Lever................................... 1
24 103-4388 Spring.................................................... 2
25 109-0130 Link, Brake ............................................ 2
26 109-0131 Clevis, Brake ......................................... 2
27 109-1192 Asm, Brake Lever W/Grip & Bearings.... 1
28 323-59 Screw, HH 3/8-16 x 5............................. 2
DESCRIPTION
Qty.
8
MOTION CONTROL GROUP
Item Part No.
1 1-303105 Yoke, Adjustable ....................................2
2 1-323245 Spring, Compression ............................. 2
3 1-403180 Screw, HH 5/16-18 x 1 1/4 Sp................4
4 1-543017 Balljoint .................................................. 2
5 1-603735 Bushing, Flanged ................................... 2
6 1-603737 Bolt, Neutral Return ............................... 2
7 1-603807 Spring .................................................... 2
8 1-633102 Bearing, Flanged....................................4
9 1-633152 Balljoint, LH............................................2
10V 1-803022 Setscrew, 5/16-18 x 5/8 .........................2
11 1-804524 Nut, Hex 5/16-24 (LH) ............................ 4
12 1-808280 Pin, Clevis 5/16 x 1 ................................2
13 98-5975 Washer, Spring Disc 3/8 ........................ 6
14 103-1361 Spacer ................................................... 2
15 103-3457 Asm, Handle W/Grip (LH) ...................... 1
16 103-3458 Asm, Handle W/Grip (RH)...................... 1
17 103-3456 Grip, Control Lever................................. 2
18 109-3623 Wld, Lever Control (LH) ......................... 1
19 109-3622 Wld, Lever Control (RH)......................... 1
20 103-8262 Tab, Motion Cntrl ...................................2
Description
Qty.
Exmark black touch up spray paint – Gloss black.
V Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on screw, item #10 & screw, item #32 going into control shaft
weldment item #21.
Item Part No.
21 109-3618 Wld, Control Shaft ................................. 2
22 3290-357 Nut, Whizlock 3/8-16 ............................. 8
23 3296-29 Nut, Nyloc 5/16-18 ................................. 4
24 32128-20 Nut, Whizlock 5/16-18 ...........................8
25 106-5335 Washer, Wave....................................... 6
26 103-8286-03 Wld, Pump Ctrl (RH).............................. 1
27 103-8285-03 Wld, Pump Ctrl (LH) .............................. 1
28 103-8300 Link, Tracking Rod................................. 2
29 109-2339 Damper, Motion Control......................... 2
30 322-12 Screw, HH 5/16-18 x 2 1/2..................... 2
31 322-6 Screw, HH 5/16-18 x 1 1/4..................... 2
32 323-4 Screw, HH 3/8-16 x 3/4.......................... 10
33 323-6 Screw, HH 3/8-16 x 1............................. 4
34 3217-6 Nut, Hex 5/16-18.................................... 4
35 3219-2 Nut, Hex 5/16-24.................................... 6
36 3220-2 Nut, Jam 5/16-24 ................................... 6
37 3256-2 Washer, 1/4 Std..................................... 2
38 3272-5 Pin, Cotter 3/32 x 1/2 ............................. 2
39 109-2582 Asm, Tracking Rod................................ 2
Description
Qty.
9
Item Part No.
1 1-303287 Tie, Cable 5 1/2 (Small) .........................3
2 1-303334 Washer, Spring Disc 5/16 ......................2
3 1-323385 Knob, 3 Prong........................................1
4 3220-1 Nut, Jam 1/4-28 .....................................2
5 1-603175 Knob, Ball ..............................................1
6Q 1-633023 Stud, Fuel Tank ..................................... 4
7 1-633349 Spring, Compression ............................. 4
8 2412-108 Clamp, Hose .......................................... 10
9 1-805005 Washer, Lock 5/16 Heavy...................... 2
10 1-807513 Bolt, Carriage #10-24 x 1/2 ....................2
11 95-8972 Grommet................................................ 1
12 98-7612 Filter, Fuel..............................................2
13 103-1636 Decal, Diesel Only .................................1
14V 109-6627 Fitting, Fuel Bulkhead ............................ 2
103-2784 O-Ring ................................................... 1
15 32128-33 Nut, W hizlock 1/4-20..............................2
16 110-8752 Hose, Fuel Line 14"................................1
17 110-4111 Hose, Fuel Line 7 1/2"............................2
18 107-0122 Pump, Fuel ............................................1
19 108-5928 Swivel, Cable Stop.................................1
20 109-0284 Hose, Fuel Line 29"................................1
Description
FUEL GROUP
Qty.
Item Part No.
21 109-0347 Cap, Fuel (Diesel).................................. 1
22 109-2776 Asm, Console W/Decals........................ 1
23 109-4478 Asm, Fuel Tank ..................................... 1
24 3296-2 Nut, Nyloc #10-24.................................. 2
25 109-1202 Hook, Fender......................................... 1
26 109-1213 Gauge, Fuel ........................................... 1
27 109-1226 Asm, Fender.......................................... 1
28 3256-23 Washer, 5/16 SAE ................................. 11
29 109-4482 Asm, Fitting 1/4" Npt.............................. 1
109-4483 O-Ring ................................................... 1
30 109-2358 Decal, Ignition ........................................ 1
31 109-2572 Bracket, Fender..................................... 1
32 109-2652 Bolt, Fender ........................................... 1
33 109-2660 Cable, Throttle ....................................... 1
34X 109-2661 Screw, PPH #10-24 x 1/2....................... 4
35 109-2698 Decal, Console ...................................... 1
36 3296-47 Nut, Nyloc 5/16-18 Thin .........................6
37 110-0047 Hose, Fuel Line 2 3/8" ........................... 1
38 304-46 Valve, Draincock 1/4.............................. 1
39 321-3 Screw, HH 1/4-20 x 5/8.......................... 2
40 322-3 Screw, HH 5/16-18 x 3/4........................ 4
Description
Exmark black touch up spray paint – Gloss black
Q Use Pro-Lock, Retaining Type (P/N 1-840023, .5ml tube) on stud threads, item #6 going into the tank.
V Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on fuel fitting, item #14.
X Snug fit only on slotted holes, Do Not Overtighten, tank must be able to expand.
Qty.
10
ENGINE GROUP
(
.
Item Part No.
1 1-303334 Washer, Spring Disc 5/16 ......................4
2 1-543610 Washer .................................................. 1
3 1-603610 Washer, Spring Disc 7/16 ......................2
4 1-613235 Washer .................................................. 4
5 1-633545 Spacer ................................................... 2
6 1-633630 Grommet................................................2
7 1-805005 Washer, Lock 5/16 Heavy...................... 2
8 93-6099 Washer ..................................................2
9 103-0608 Balljoint .................................................. 1
10 1-805004 Washer, Lock 1/4 Heavy........................2
11 103-3567 Link, Rear A-T Axial...............................1
12 103-3568 Isolator, A-T ...........................................1
13 103-3745 Asm, RR A-T .........................................1
14 109-6627 Kit, Clutch .............................................. 1
15 103-6773 Shaft, Flywheel ...................................... 1
16 103-6774 Sheave ..................................................1
17 109-2901 Belt ........................................................1
18X 109-2855 Kit, Muffler ............................................. 1
19 108-5922 Bracket, Throttle Support .......................1
20 109-0787-03 Bracket, Muffler Mounting ...................... 1
21 109-1211 Solenoid, Fuel........................................ 1
22V 33114-030 Screw, HH M8-1.25 x 30mm ..................3
Exmark black touch up spray paint – gloss black.
V Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on screws, item #22, #33, #40 & #42
X Includes item #28.
Kubota Replacement Parts List
Refer to Engine Owner’s Manual)
Description
Engine Oil Filter...................................
Description
Kubota Part No.
15853-3243
Qty.
Item Part No.
23 109-2361-03 Bracket, Clutch Anchor .......................... 1
24 109-2362 Link, Clutch............................................ 1
25 109-2587 Fan ........................................................ 1
26 109-2675 Spacer, Fan........................................... 1
27 109-2763 Spacer, A-T ........................................... 1
28 109-2783 Gasket, Exhaust .................................... 1
29 322-4 Screw, HH 5/16-18 x 7/8........................ 1
30 322-5 Screw, HH 5/16-18 x 1........................... 2
31 322-6 Screw, HH 5/16-18 x 1 1/4..................... 2
32 323-7 Screw, HH 3/8-16 x 1 1/4....................... 1
33V 3212-6 Screw, HH 7/16-20 x 1 1/2..................... 1
34 3220-3 Nut, Jam 3/8-24 ..................................... 1
35 3253-5 Washer, Lock 3/8 Heavy........................ 1
36 3256-23 Washer, 5/16 SAE ................................. 2
37 3256-24 Washer, 3/8 SAE ................................... 1
38 3296-6 Nut, Nyloc 3/8-24................................... 1
39 32128-20 Nut, Whizlock 5/16-18 ...........................4
40V 33103-040 Screw, HH FLG M6-1 x 40mm ............... 4
41 33113-012 Screw, HH M6-1 x 12mm....................... 2
42V 33114-020 Screw, HH M8-1.25 x 20mm .................. 8
43 103-9891 Spacer ................................................... 1
Description
Qty.
11
ENGINE GROUP (cont.)
Item Part No.
1 1-303334 Washer, Spring Disc 5/16 ......................3
2 1-805005 Washer, Lock 5/16 Heavy...................... 1
3 66-6480 Washer ..................................................2
4 83-1040 Washer ..................................................2
5 86-1990 Washer ..................................................2
6 93-6099 Washer ..................................................2
7V 98-9322 Screw, SH M10-1.25 x 20mm ................ 10
8 103-0608 Balljoint .................................................. 1
9 103-1058 Bracket, Air Filter ...................................1
10 103-1060 Cover, Air Filter W/Latch ........................1
11 103-1326 Filter, Safety Air .....................................1
12 103-1327 Filter, Air ................................................1
13 103-3567 Link, Rear A-T Axial...............................1
14 103-3568 Isolator, A-T ...........................................1
15 103-3745 Asm, RR A-T .........................................1
16 103-6743-03 Wld, Engine Bracket (RH) ...................... 1
17 103-1022 Isolator, Rear .........................................2
18 103-2613 Isolator, Side..........................................2
19 103-6824-03 Wld, Engine Bracket (LH) ...................... 1
20 109-1245 Washer .................................................. 2
21 109-1832 Hose, Air Cleaner................................... 1
Exmark black touch up spray paint – gloss black.
V Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on screws, item #7, #31, #33 & #41
Description
Qty.
Item Part No.
22 109-1977 Hose, Air Intake ..................................... 1
23 109-2003-03 Shield, Air Cleaner................................. 1
24 109-2019-03 Wld, Bracket Air Cleaner ....................... 1
25 109-3539 Asm, Air Cleaner ................................... 1
26 99-3174 Latch, Nelson Air Cleaner ...................... 2
27 109-2820 Ejector ................................................... 1
28 322-4 Screw, HH 5/16-18 x 7/8........................ 2
29 322-5 Screw, HH 5/16-18 x 1........................... 8
30 322-7 Screw, HH 5/16-18 x 1 1/2..................... 1
31V 323-12 Screw, HH 3/8-16 x 2 1/2....................... 2
32 323-8 Screw, HH 3/8-16 x 1 1/2....................... 1
33V 325-10 Screw, HH 1/2-13 x 2 1/2....................... 2
34 2412-42 Clamp, Hose.......................................... 3
35 3217-6 Nut, Hex 5/16-18.................................... 1
36 3220-3 Nut, Jam 3/8-24 ..................................... 1
37 3256-24 Washer, 3/8 SAE ................................... 1
38 3296-39 Nut, Nyloc 3/8-16 ................................... 1
39 3296-6 Nut, Nyloc 3/8-24................................... 1
40 32128-20 Nut, Whizlock 5/16-18 ...........................10
41V 33114-020 Screw, HH M8-1.25 x 20mm .................. 1
42 110-0806 Decal, No Starting Fluid ......................... 1
12
Description
Qty.
COOLING GROUP
Item Part No.
1 1-513645 Bushing, Fuel Valve ............................... 1
2 1-633989 Clamp .................................................... 4
3 1-643163 Tank, Overflow....................................... 1
4 1-643164 Cap, Overflow Tank ..............................1
5 1-643259 Fitting, Elbow ......................................... 1
6 109-2768 Asm, Radiator W/Decals........................1
1-643161 Cap, Radiator......................................... 1
7 103-8332-03 Wld, Radiator Support............................1
8 103-8824 Hose, Upper Radiator ............................1
9 103-8825 Hose, Lower Radiator ............................1
10 109-3497 Asm, Shroud W/Decals ..........................1
11 1-303287 Tie, Cable 5 1/2 (Small) ......................... 4
12 109-2209-03 Bracket, Overflow Bottle.........................1
13 109-2221 Hose, .31 ID x 14"..................................1
14 109-2669 Hose, .25 ID x 22"..................................1
15 321-2 Screw, HH 1/4-20 x 1/2 .......................... 2
Exmark black touch up spray paint – gloss black.
Description
Qty.
Item Part No.
16 322-2 Screw, HH 5/16-18 x 5/8........................ 11
17 322-23 Screw, HH 5/16-18 x 3 3/4..................... 1
18 322-5 Screw, HH 5/16-18 x 1........................... 4
19 3256-23 Washer, 5/16 SAE ................................. 12
20 3296-29 Nut, Nyloc 5/16-18 ................................. 1
21 32128-20 Nut, Whizlock 5/16-18 ...........................4
22 1-643339 Decal, Belt Routing ................................ 1
23 98-5954 Decal, Danger........................................ 1
24 103-0223 Decal, Shell Coolant .............................. 1
25 103-2076 Decal, Caution....................................... 1
26 103-5881 Decal, Guard ......................................... 1
27 109-3147 Asm, Radiator Screen............................1
28 110-3842 Decal, Antifreeze ................................... 1
29 3253-3 Washer, Lock 1/4 .................................. 2
30 3253-4 Washer, Lock 5/16................................. 5
31 3256-3 Washer, 5/16 Std................................... 4
Description
13
Qty.
AUXILIARY HYDRAULIC GROUP
Item Part No.
1 1-806005 Hairpin, Cotter........................................ 1
2 98-5975 Washer, Spring Disc 3/8 ........................2
3 103-1193 Clip, Loom Half ...................................... 2
4X 109-2853 Asm, Hydraulic Power Unit .................... 1
5 109-0760 Adapter, 90°...........................................2
109-1284 O-ring (37° Flare #4) .............................. 1
1-603923 O-ring (SAE #4) .....................................1
6 109-2812 Asm, Cylinder W/Decal..........................1
109-2856 Kit, Hyd Cylinder Seal ............................1
7 109-1180 Pin, Cylinder Mount................................1
X Includes item #12.
Description
Qty.
Item Part No.
8 109-2015 Hose, Hydraulic ..................................... 1
9 109-2016 Hose, Hydraulic ..................................... 1
10 109-2017 Adapter, Straight.................................... 2
109-1284 O-ring (37° Flare #4).............................. 1
1-603923 O-ring (SAE #4) ..................................... 1
11 109-2377 Decal , High Pressure Oil ...................... 1
12 109-2663 Terminal, Ring 5/16 ............................... 2
13 321-4 Screw, HH 1/4-20 x 3/4.......................... 1
14 323-4 Screw, HH 3/8-16 x 3/4.......................... 2
15 3296-42 Nut, Nyloc 1/4-20 ................................... 1
Description
Qty.
14
HYDRAULIC GROUP
Item Part No. Description Qty.
1 1-413088 Spacer ................................................... 1
2 1-603990 Adapter, Straight ....................................11
1-603992 O-Ring (37° Flare #8)............................. 1
1-603920 O-Ring (SAE #8) ....................................1
3 109-4076 Sheave, Idler.......................................... 1
4 1-805004 Washer, Lock 1/4 Heavy........................ 2
5 103-2739 Key, 5mm x 5mm x 32mm .....................2
6V 30-1710 Setscrew, 5/16-18 x 1 ............................ 4
7 98-5975 Washer, Spring Disc 3/8 ........................1
8 103-1828 Adapter, Running Tee............................3
1-603921 O-Ring (SAE #6) ....................................1
9 109-0582 Asm, Hydraulic Reservoir
W/Decal.................................................1
10 103-7615 Asm, Cap W/Gasket ..............................1
11 103-1949 Gasket, Reservoir Cap........................... 1
12 103-1988 Clamp, Hose 11/16 ................................6
13 103-2146 Element Hydraulic Oil Filter....................1
14 103-2155 Adapter, 90°...........................................2
15 32128-43 Nut, W hizlock 3/8-16..............................4
16 103-2259 Head, Filter ............................................ 1
17 103-2916 Guard, Top............................................. 2
18 103-3330 Spring, Extension................................... 1
19 103-3504 Bearing, Spherical..................................2
20 103-3506 Seal, Single Lip...................................... 2
21 103-6409 Kit, Pump Idler ....................................... 1
22 1-303287 Tie, Cable 5 1/2 (Small) ......................... 1
23 103-8011 Spacer, Spring ....................................... 1
24 103-8357 Pump, Hydro W/Fan (LH) ......................1
25 103-8358 Pump, Hydro W/Fan (RH) ...................... 1
26 106-7159 O-Ring ................................................... 2
27 109-0633-03 Arm, Idler ...............................................1
28 109-0816 Belt ........................................................1
Exmark black touch up spray paint – gloss black.
V Use Prolock, Nut Type (P/N 1-840022, .5ml tube) on setscrews, items #6.
O Wheel Motor Service Kits
Part No. Description Qty.
103-9762 Kit, Seal ....................................................... 1
103-9763 Handle, Actuating.........................................1
103-9764 Clip, Retaining..............................................1
Hydro Pump Service Kits
Part No. Description Qty.
109-2863 Bearing, Input Shaft PR ............................... 1
109-2864 Kit, Cylinder Block 12CC PR........................ 1
109-2865 Bearing, Thrust PR ...................................... 1
109-2866 Kit, Overhaul Seal PR .................................. 1
Item Part No. Description Qty.
29 109-0899 Hose, Hydraulic ..................................... 1
30 109-0900 Hose, Hydraulic ..................................... 1
31 109-0901 Hose, Hydraulic ..................................... 1
32 109-0902 Hose, Hydraulic ..................................... 1
33 109-1008 Hose, Case Drain .................................. 2
34 109-1009 Hose, Hydraulic ..................................... 1
35 109-1010 Hose, Hydraulic ..................................... 1
36O 103-9519 Motor, Wheel (RH)................................. 1
37O 103-9520 Motor, Wheel (LH) ................................. 1
38 103-2153 Adapter, 90° .......................................... 2
103-1020 O-Ring (37° Flare #6) ............................ 1
1-603920 O-Ring (SAE #8).................................... 1
39 109-2202 Sheave .................................................. 2
40 109-4644 Hose, Hydraulic ..................................... 1
41 109-4645 Hose, Hydraulic ..................................... 1
42 302-40 Zerk, 90° 1/4-28..................................... 1
43 321-3 Screw, HH 1/4-20 x 5/8.......................... 2
44 321-6 Screw, HH 1/4-20 x 1............................. 2
45 323-16 Screw, HH 3/8-16 x 4............................. 1
46 323-7 Screw, HH 3/8-16 x 1 1/4....................... 7
47 325-10 Screw, HH 1/2-13 x 2 1/2....................... 8
48 3231-10 Bolt, Carriage 3/8-16 x 3 ........................ 1
49 3231-6 Bolt, Carriage 3/8-16 x 2........................ 1
50 3256-22 Washer, 1/4 SAE ................................... 2
51 3256-26 Washer, 1/2 SAE ................................... 8
52 3256-4 Washer, 3/8 Std.....................................
53 3290-357 Nut, Whizlock 3/8-16 ............................. 6
54 32120-10 Ring, Retaining ......................................2
55 32128-33 Nut, Whizlock 1/4-20 ............................. 2
56 32128-49 Nut, Whizlock 1/2-13 ............................. 8
57 1-523552 Decal, Hydraulic Tank............................ 1
O Wheel Motor Service Kits
Part No. Description Qty.
103-9765 Nut, Hex Toplock 1-20UNEF-2B .................. 1
103-4242 Asm, Wheel Hub W/Studs........................... 1
103-7447 Stud, Wheel 1/2-20 x 1/2 ............................. 4
Hydro Pump Service Kits
Part No. Description Qty.
109-2867 Plate, Valve PR ........................................... 1
103-7488 Fan, Pump Cooling...................................... 1
103-7489 Guard, Pump Fan ........................................ 1
As
Req’d.
15
HYDRAULIC GROUP
16
ELECTRICAL GROUP
Item Part No.
1 1-303335 Tie, Cable 7 15/16 (Large) ..................... 20
2 1-513374 Meter, Engine Hours .............................. 1
3 1-543393 Insulator, Solenoid ................................. 2
4 1-543792 Wingnut, Nyloc 1/4-20............................2
5 1-603727 Clip, Loom ............................................. 2
6 1-633110 Switch ....................................................1
7 1-633111 Switch ....................................................1
8 1-633181 Plate, Tapped ........................................2
9 1-643021 Gauge, Temperature.............................. 1
10 1-643275 Relay, 12VDC 40 Amp...........................4
11 1-805005 Washer, Lock 5/16 Heavy ...................... 4
12 1-807513 Bolt, Carriage #10-24 x 1/2 ....................2
13 82-2190 Switch.................................................... 2
14 109-4813 Switch ....................................................1
15 100-8070 Cluster, Lights........................................1
16 100-8071 Cluster, Lights........................................1
17 103-0205 Alarm, Dual Tone 12VDC.......................1
18 109-4736 Asm, Switch W/Nut ................................1
19 103-0498 Nut, Ignition............................................ 1
20 103-1159 Cable, Ground (-) ................................... 1
21● 109-7607 Cable, Battery (+)................................... 1
22 109-1898-03 Strap, Battery.........................................1
23 103-1312 Bolt, Hold Down .....................................2
24 103-1349 Cable, Engine Ground............................1
25 103-2106 Key, Exmark Logo.................................. 1
26 103-5218 Module, Seat Delay................................ 1
27 103-5221 Switch, PTO...........................................1
Exmark black touch up spray paint – gloss black.
X Use dielectric grease on all wiring harness connectors.
Use Teflon Pipe sealant on Pipe threads on temperature sending unit
● Includes items 3 and 28.
Description
Qty.
Item Part No.
28 103-1340 Insulator, Battery ................................... 1
29 109-0742 Contactor, Reversing Polarity ................ 1
30 109-2398 Breaker, Circuit 40A............................... 1
31 109-2571 Cover, Circuit Breaker ........................... 1
32 110-0811 Switch .................................................... 1
33 240-3 Grommet ............................................... 1
34 322-5 Screw, HH 5/16-18 x 1........................... 2
35 3219-2 Nut, Hex 5/16-24.................................... 4
36 3229-2 Bolt, Carriage 1/4-20 x 1........................ 2
37 3250-27 Screw, PPH #10-24 x 7/8....................... 2
38 3256-22 Washer, 1/4 SAE ................................... 2
39 3256-23 Washer, 5/16 SAE ................................. 2
40 3290-500 Screw, PPH #10-24 x 5/8....................... 6
41 3296-2 Nut, Nyloc #10-24.................................. 6
42 3296-29 Nut, Nyloc 5/16-18 ................................. 2
43 3296-42 Nut, Nyloc 1/4-20 ................................... 2
44 32149-8 Nut-Keps 10-32 Unf YZ ......................... 2
45♦ 109-1212 Harness, Wiring..................................... 1
46♦ 109-2589 Harness, Auxiliary Hydraulics ................1
47 1-643178 Cap, Insulator........................................ 1
48 33013-00 Nut, Whizlock M8-1.25........................... 1
49 100-4918 Diode ..................................................... 3
50 109355 Fuse, 15A .............................................. 1
51 1-816001 Fuse, 20 Amp ........................................ 1
52 103-1368 Fuse, 40 Amp ........................................ 1
53■ 103-7886 Sender, Temperature............................. 1
54♦ 109-4433 Harness, Diode ...................................... 1
Description
17
Qty.
ELECTRICAL DIAGRAM
3
321
HOUR
2
METER
1
ALTERNATOR
1
3
5
4
54321
RELAY
OIL
RELAY
PRESSURE
1
2
5
54321
2
3
4
DUAL
TONE
P
+
ALARM
OIL
TEMP
TEMP.
SENDER
SWITCH
SWITCH
S
ALT "B"
2
TERMINAL
1
ENGINE
FUEL
SOLENOID
CONNECTOR
ALTERNATOR
RED
STARTER
MOTOR
GROUND
2
1
STARTER
SOLENOID
SIGNAL
RAIL
PLUG
GLOW
SWITCH IN: ORANGE TO PINK/BLACK
SWITCH OUT: ORANGETO GRAY
SWITCH IS CLOSED
WITH OPERATOR
IN THE SEAT
FUEL
PUMP
OIL PRES AND
ALT CHARGE LED
TEMP AND
GLOW LED
PTO
SWITCH
PTO
CLUTCH
SEAT
SWITCH
SEAT DELAY
MODULE INPUT
TEMP
GAUGE
SEAT DELAY
MODULE CONTROL
2
1
1A1B2A
2B
2A
1A
2B
1B
SEAT DELAY
MODULE DIODE
4
7
8
21
3
9
BA
2
1
A
C
B
G
I
S
A
C
B
BLACK
BLACK
21
1A 1B 2A 2B
1A 1B 2A 2B
GRAY
4172 56389
BA
21
ABC
AB C
PINK
PINK
YELLOW/BLACK
YELLOW/BLACK
ORANGE
VIOLET
YELLOW/BLACK
YELLOW/BLACK
BLACK/WHITE
PINK
BLACK
BLACK
PINK/BLACK
BLACK/GREEN
YELLOW/BLACK
GRAY
ORANGE
ORANGE
VIOLET
ORANGE
ORANGE
GRAY
GRAY
GRAY/BLACK
BLACK
TAN
BROWN
BROWN
BLACK
BLACK
ORANGE
YELLOW/RED
LT. BLUE
LT. BLUE
BLACK
BLACK
TAN
TAN
YELLOW/BLACK
6 5 4 7
AUXILLARY
HYDRAULICS
PINK
PINK
YELLOW/BLACK
3 2 1 8
RAISE/LOWER
VIOLET
BLUE/BLACK
4512378
VIOLET
WHITE/BLACK
6
BLACK
YELLOW/BLACK
YELLOW/BLACK
WHITE/BLACK
BLUE/BLACK
MOTOR (FWD)
MOTOR (REV)
BLACK/WHITE
BLACK
BLACK/WHITE
DK. BLUE
PINK
BLACK
BATTERY (NEG)
CONTACTOR
ORANGE
BATTERY (POS)
ORANGE
CIRCUIT
YELLOW/BLACK
RED
BREAKER
YELLOW/BLACK
BLACK/WHITE
BLACK
BLACK/GREEN
BLACK
BLACK
RED
BLACK
GROUND
X + Y
NONE
B + I + S
B + I + A
CIRCUIT "MAKE"
YELLOW/RED
RED
STARTER;
BATTERY (POS)
RED
DK. BLUE
RED
BLACK/GREEN
BLACK/GREEN
RED
1
1
20 AMP FUSE
TERMINAL S
RED
RED
2
(IGN. SWITCH)
VIOLET
ORANGE
ORANGE
2
TERMINAL B
YELLOW/BLACK
ORANGE
ORANGE
I
IGNITION
YELLOW/BLACK
TAN
1
SWITCH
BLACK
RED
3
2
5
4
TERMINAL A
WHITE
DK. GREEN
YELLOW
YELLOW/BLACK
35412
TERMINAL Y
YELLOW/BLACK
ORANGE/BLACK
PINK/BLACK
PINK/BLACK
BROWN/BLACK
BROWN/BLACK
PINK/BLACK
BLACK
BLACK
RED
BROWN/BLACK
YELLOW/BLACK
YELLOW/BLACK
BROWN/BLACK
ORANGE/BLACK
DK. GREEN
DK. GREEN
ORANGE/BLACK
ORANGE/BLACK
BLACK
BLACK
YELLOW
DK. GREEN
DK. GREEN
VIOLET
LT. BLUE
LT. BLUE
LT. BLUE
DK. GREEN
LT. GREEN
LT.GREEN
LT. BLUE
RED
RED
YELLOW/BLACK
YELLOW/BLACK
YELLOW/BLACK
BLACK
GRAY
GRAY
GRAY
GRAY/BLACK
GRAY/BLACK
GRAY/BLACK
IGNITION SWITCH
TERMINAL CONNECTIONS
TERMINAL A VOLTAGE REGULATOR
TERMINAL B BATTERY
TERMINAL I HOUR METER, AUX HYD, PTO SWITCH
1
54321
12345678
BA
54321
3241
21
21
21
12
BA
2341
TERMINAL S START RELAY
TERMINAL X SEAT DELAY
5
6 5 4 7
5
4
3
1
2
1
2
1
2
1
1
2
3
2
TERMINAL Y HOUR METER, AUX HYD, PTO SWITCH
3
4
3 2 1 8
AB
1
3
4
4
1
AB
2
GLOW
GLOW SWITCH
DIODE
2
START
BRAKE
SWITCH
CONTROL
LH MOTION
CONTROL
RH MOTION
40 AMP FUSE
(GLOW)
15 AMP FUSE
(HEADLIGHTS)
HEADLIGHT
HARNESS
DECK LIFT
SAFETY SWITCH
RELAY
RELAY
OPEN WITH
BRAKE
BRAKE
ENGAGED
CLOSED WITH
BOTH MOTION CONTROL
ENGAGED
SWITCHES ARE CLOSED WITH
CONTROL LEVERS IN NEUTRAL
LOCK POSITION
NOTE:
CONNECTORS VIEWED FROM TERMINAL END
POSITION
1. OFF
3. START
2. RUN
TERMINAL I
TERMINAL X
G007979
18
SHOWN WITH PTO
DISENGAGED (SWITCH IN)
SEAT DELAY
AUX. HYDRAULIC
ALT CHARGE LED
OIL PRES LED
GLOW LED
TEMP LED
PTO
SWITCH
SHOWN WITH OPERATOR
IN SEAT
TEMP
MODULE
RAISE / LOWER
SEAT
GUAGE
+
HOUR
METER
-
+-
FUEL
PUMP
R
R
OR
ELECTRIC
CLUTCH
SWITCH
ELECTRICAL LOGIC SCHEMATIC
TEMP
SWITCH
GROUND
OIL
TEMP
YELLOW/RED
SENDER
WHITE
SWITCH
DK. BLUE
RED
20 AMP FUSE
(IGN. SWITCH)
BLACK/GREEN
BLACK/GREEN
RED
RED
YELLOW / BLACK
YELLOW / BLACK
DUAL TONE
DK. BLUE
GROUND
ALARM
+
S
P
YELLOW/BLACK
BLACK/WHITE
BLACK/GREEN
YELLOW/BLACK
BLACK
RED
BLACK
RED
RED
RED
BLACK
M
+12V
STARTER
ALTERNATOR
RELAY
VIOLET
RED
ORANGE
VIOLET
YELLOW/BLACK
YELLOW/BLACK
WHITE / BLACK
GREEN/WHITE
PINK
YELLOW/BLACK
YELLOW/BLACK
PINK
PINK
BLACK
BLACK
ORANGE
BLACK
VIOLET
YELLOW/BLACK
YELLOW/BLACK
BLACK/WHITE
PINK
BLACK
BLACK
PINK/BLACK
BLACK/GREEN
YELLOW/BLACK
GRAY
GRAY
VIOLET
GRAY
GRAY
ORANGE
ORANGE
GRAY/BLACK
40 AMP
CIRCUIT
BREAKER
BLACK
TAN
BROWN
BLACK
BLACK
ORANGE
YELLOW/RED
BROWN
GRAY
BLACK
BLACK
LT. BLUE
LT. BLUE
TAN
TAN
YELLOW/BLACK
YELLOW/BLACK
BLUE / BLACK
WHITE / BLACK
(PTO)
G
I
S
OIL PRESSURE
RELAY
PINK
PINK
BLACK
BLACK
BLACK/WHITE
BLACK/WHITE
BLACK
BLUE / BLACK
BLUE/WHITE
AUXILARY
PUMP
HYDRAULIC
GROUND
FUEL
YELLOW/BLACK
ORANGE
SOLENIOD
GLOW
IG
HOLD
GROUND
PULL
RED
WHITE
BLACK
DK. GREEN
YELLOW/BLACK
ORANGE
ORANGE
TAN
YELLOW
STARTER
SOLENIOD
ORANGE/BLACK
SIGNAL
PLUGS
PINK/BLACK
PINK/BLACK
BROWN/BLACK
BROWN/BLACK
BLACK
BLACK
PINK/BLACK
RED
BROWN/BLACK
YELLOW/BLACK
YELLOW/BLACK
BROWN/BLACK
ORANGE/BLACK
DK. GREEN
DK. GREEN
BLACK
BLACK
ORANGE/BLACK
ORANGE/BLACK
YELLOW
LT. BLUE
DK. GREEN
DK. GREEN
VIOLET
DK. GREEN
LT. GREEN
LT. GREEN
LT. BLUE
RED
RED
YELLOW / BLACK
YELLOW / BLACK
YELLOW/BLACK
BLACK
GRAY
GRAY
GRAY
GRAY / BLACK
GRAY / BLACK
GRAY/BLACK
LH MOTION
RH MOTION
40 AMP FUSE
15 AMP FUSE
AUX 15A -
12V OUTLET
GLOW
RELAY
GLOW
SWITCH
DIODE
START
RELAY
BRAKE
SWITCH
CONTROL
SHOWN WITH CONTROL
LEVERS IN NEUTRAL
CONTROL
(GLOW)
(HEADLIGHTS)
ACCY PLUG
(HEADLIGHT)
DECK TILT
SAFETY SWITCH
SHOWN WITH
BRAKE ENGAGED
LOCK POSITION
(HANDLES OUT)
ALTERNATOR
B
L
RED
VIOLET
ORANGE
STARTRUNOFF
WIRES CONNECTED
WIRES CROSSING
A
YXSIB
(NOT CONNECTED)
X + Y
NONE
CIRCUIT "MAKE"
B + I + A
2. RUN
1. OFF
POSITION
B + I + S
3. START
TERMINAL S
TERMINAL I
TERMINAL B
19
TERMINAL A
TERMINAL Y
TERMINAL X
IGNITION
SWITCH
G007978
DECALS GROUP
Item Part No.
1 1-523552 Decal, Hydraulic Tank ............................ 1
2 103-5881 Decal, Rotating Devices......................... 1
3 103-7218 Decal, Pump Fan Warning.....................1
4 109-2355 Decal, Spring Loaded ............................ 2
5 103-2076 Decal, Caution Hot Surface.................... 3
6 98-5954 Decal, Missing Cover............................. 1
7 109-2377 Decal, High Pressure Oil........................ 1
8 109-2360 Decal, Top Console ............................... 1
9 109-3637 Decal, Service Aid .................................1
10 107-2102 Decal, Folding Rops Warning ................1
11 109-2396 Decal, Pump Drive Release ................... 1
12 103-0223 Decal, Shell Coolant ..............................1
13 109-2698 Decal, Console ......................................1
Description
Qty.
Item Part No.
14 103-2882 Decal, Exmark Logo .............................. 2
15 1-513747 Decal, Battery ........................................ 1
16 1-643339 Decal, Routing Belt................................ 1
17 107-2112 Decal, Warning...................................... 1
18 109-2356 Decal, Motion Control ............................ 1
19 109-2357 Decal, Motion Cntl/Park Brk................... 1
20 109-2358 Decal, Ignition........................................ 1
21 98-4361 Decal, Warning ...................................... 2
22 103-1636 Decal, Diesel Only .................................1
23 110-3842 Decal, Antifreeze ................................... 1
24 110-0806 Decal, No Starting Fluid ......................... 1
25 109-2114 Decal, Frontrunner................................. 2
109-2854 Kit, Decal
Description
Qty.
20
SERVICE RECORD
Date
Description of Work Done Service Done By
21
NOTES
22
© 2006–2008 Exmark Mfg. Co., Inc. Part No. 4500-228 Rev. A
Industrial Park Box 808 (402) 223-6300
Beatrice, NE 68310 Fax (402) 223-5489
All Rights Reserved Printed In USA.
Loading...
