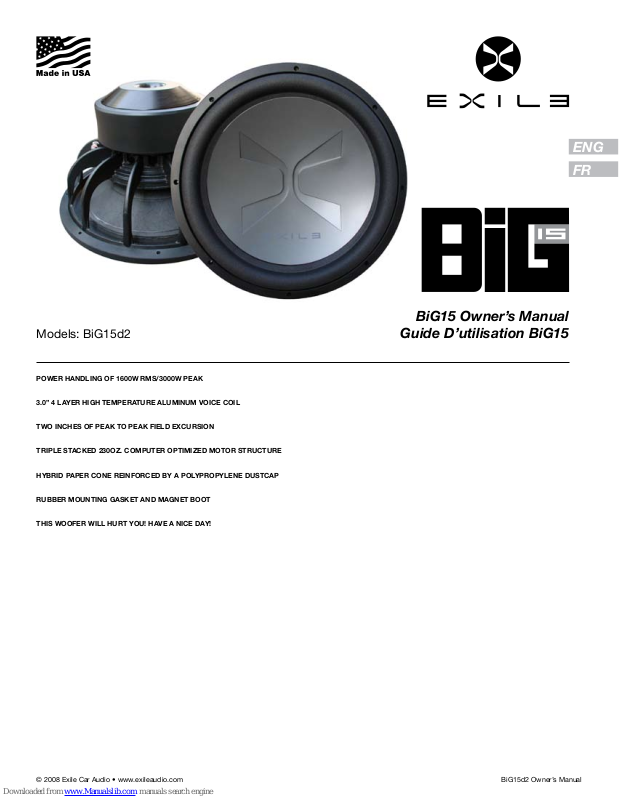

Models: BiG15d2
Power handling of 1600w rMS/3000w Peak
3.0” 4 layer high teMPerature aluMinuM voice coil
two incheS of Peak to Peak field excurSion
ENG
FR
BiG15 Owner’s Manual
Guide D’utilisation BiG15
triPle Stacked 230oz. coMPuter oPtiMized Motor Structure
hybrid PaPer cone reinforced by a PolyProPylene duStcaP
rubber Mounting gaSket and Magnet boot
thiS woofer will hurt you! have a nice day!
© 2008 Exile Car Audio • www.exileaudio.com BiG15d2 Owner’s Manual
exile Subwoofer Manual
Manuel du caiSSon d’extrêMeS graveS exile
box SizeS and building tiPS
The material of choice for building a strong box is 3/4” to 1” MDF (Medium Density
Fiberboard or HDF (High Density Fiberboard). For a large dual boxes more than 2 Cu.Ft.
adding additional cross bracing using strips of this material is a good idea to help reduce
panel vibration. Don’t use particle board is not very good for speaker enclosures. It
soaks up water like a sponge, is exible and will crumble when you try to screw the
woofer in. A solid bead of wood glue is recommended for joining two pieces of wood
together along with 1-1/4 to 1 1/2” drywall screws or 1-1/2” staples. Remember the
glue will be doing almost all the work once it has dried. A fastener placed about every
3” will hold the box together good enough until the glue dries. After assembling the box
and allowing the glue to set up, use silicone sealer to make absolutely sure the corners
and other visible seams are perfectly sealed. The sizes below are a guidelines according
to our in car testing and computer analysis. Don’t worry if you box is a little larger or
smaller than the below recommendations the world will not come to an end, the sun will
come up tomorrow and you will probably won’t hear the difference. Usually a change of
more than .15 Cu.Ft. is needed before even someone with golden ears is able to hear
the difference.
vented boxeS Size Slot vent
oPening
big15d2 - SPl
big15d2 - Sq
2.5 2” x14” 18.5”
4.6 2” x 12” 18.75”
Slot vent
length
(All Boxes sizes in CU. FT. and INCLUDE 0.3 CU.FT. displacement of the subwoofer)
tailleS de boîtier et conSeilS de fabrication
Le matériau de choix pour construire un boîtier solide est le MDF (panneau de bres à
densité moyenne) ou le HDF (panneau de bres à haute densité) de ¾ po à 1 po. Pour un
grand boîtier double de plus de 2 pieds carrés, ajouter un renforcement croisé supplémen-
taire en utilisant des bandes de ce matériau est une bonne idée pour contribuer à réduire
les vibrations des panneaux. N’utilisez pas de l’aggloméré de bois qui n’est pas très adapté
aux boîtiers pour haut-parleur. Il absorbe l’eau comme une éponge, est exible et s’émiettera
lorsque vous essaierez de visser le haut-parleur de graves en place. Il est recommandé
d’utiliser une quantité importante de colle à bois pour xer deux pièces de bois ensemble en
plus des vis à cloison sèche de 1-1/4 à 1 ½ po ou des agrafes 1-1/2 po. N’oubliez pas
que la colle fera presque tout le travail une fois qu’elle aura séché. Des attaches placées tous
les 3 po environ maintiendront sufsamment le boîtier jusqu’à ce que la colle sèche. Une
fois le boîtier assemblé et une fois la colle sèche, utilisez un agent d’étanchéité à base de
silicone pour vous assurer à 100 % que les coins et autres arêtes visibles sont parfaitement
étanches. Les tailles ci-dessous sont des recommandations découlant de nos analyses
effectuées sur ordinateur et en conditions réelles dans des voitures. Ne vous inquiétez pas si
votre boîtier est un petit peu plus grand ou plus petit que les recommandations ci-dessous.
Ce n’est pas la n du monde, le soleil continuera à se lever demain matin et vous n’entendrez
probablement pas la différence. Il faut généralement une variation de plus de 0,15 pied cube
avant que la différence puisse être entendue par quelqu’un ayant une oreille en or !
Sealed boxeS Size
big15d2 - SPl
big15d2 - Sq
1.7
2.6
ENG
FR
big15d2 SPecificationS
Mounting Depth
Mounting Diameter
Overall Diameter
Nominal Impedance
RMS Power Handling
Peak Power Handling
t/S ParaMeterS:
FS
RE
QMS
QES
QTS
VAS
MMS
CMS
BL
SPL (1w/1m)
Xmax
Specications subject to change.
EXILE CAR AUDIO
PORTLAND, OR USA
WWW.EXILECARAUDIO.COM
big15d2
8.75 Inches
14.2 Inches
15.4 Inches
Dual 2 ohm
1600 Watts
3200 Watts
35.8 Hz
3.14 Ohms
7.9
.654
.607
49.78 Liters
360.3 Grams
54.78 uM/Newton
19.7 Tesla-M
87.5dB
51mm Peak to Peak
Profondeur de montage
Diamètre de montage
Diamètre global
Nominal Impedance
Puissance R.M.S admissible
Puissance de crête admissible
t/S ParaMeterS:
FS
RE
QMS
QES
QTS
VAS
MMS
CMS
BL
SPL (1w/1m)
Xmax
big15d2
8.75 po
14.2 po
15.4 po
Dual 2 ohm
1600 Watts
3200 Watts
35.8 Hz
3.14 Ohms
7.9
.654
.607
49.78 Liters
360.3 Grams
54.78 uM/Newton
19.7 Tesla-M
87.5dB
51mm Peak to Peak
DESIGNED AND ENGINEERED IN THE USA
Exile warrants this product to be free from defects in material and workmanship under normal use for a period of two years from date of original purchase when purchased from an Authorized Exile Dealer.
BURNT VOICE COIL FAILURES WILL ONLY OCCUR UNDER ABUSE SITUATIONS AND ARE NOT COVERED UNDER WARRANTY!
If the product is labeled B Stock/Refurbished and purchased from an Authorized Exile Dealer, it is warranted for 90 days from date of purchase, regardless of place of installation. Should service be necessary under this warranty for any reason
due to manufacturing defect or malfunction during the warranty period, Exile will replace or repair (at its discretion) the defective merchandise with equivalent merchandise at no charge. Warranty replacements on B-Stock merchandise may
have cosmetic scratches and blemishes. Discontinued products may be replaced with more current equivalent products. This warranty is valid only for the original purchaser and is not extended to owners of the product subsequent to the
original purchaser. Any applicable implied warranties are limited in duration to a period of the express warranty as provided herein beginning with the date of the original purchase at retail, and no warranties, whether express or implied, shall
apply to this product thereafter. Some states do not allow limitations on implied warranties, therefore these exclusions may not apply to you. This warranty gives you specic legal rights; however you may have other rights that vary from state
to state. This warranty is only valid within the USA, for warranties outside of the USA consult the appropriate international distributor.
© 2008 Exile Car Audio • www.exileaudio.com BiG15d2 Owner’s Manual 9/08 Rev. A
