EXEDY Compe-R Multi User Manual [ja, en]

Page 1
要保管
Keep this manual
取扱説明書
この度は、EXEDY RACING CLUTCH をご購入いただきまして誠にありがとうございま す。 ご使用前に必ずこの取扱説明書をよくお読み下さい。
Thank you very much for your purchase of EXEDY RACING CLUTCH.
Be sure to read this installation manual prior to use.
発行日:2005/03/18
Issued on: March 18, 2005 発行元:(株)エクセディ SBC
Issued by: EXEDY Corporation Sports BC
M310 - 1 -
Page 2
取り扱い説明書について
本製品を正しくお使い頂き、あなたや他の人々への危害や財産への損害を未然に防止する為の注意事項 を記載しています。
This installation manual includes useful information to prevent problems from occurring during installation.
1.
本書は取付けを行う前に必ず読み、良く理解したうえで作業を行って下さい。
Please read through this manual before installation.
2.
取付けは必ず専門業者に依頼し、取付け後は本書に記載されている内容を守り安全に使用して下さ い。
Installation work has to be done by a professional installer who will use the product safely.
3.
お客様及び第三者が、本製品及び付属品を誤使用、又は改造したことにより受けた損害については、 当社は一切の責任を負いかねます。
Please do not use the product wrongfully nor modify the parts. In such case, we will not take any
responsibility.
4.
本製品は競技用部品の為、クレーム返品には応じかねます。また改良の為予告なく仕様を変更する 事があります。
We will not accept any claim nor return as this product is used predominately for racing and
specification may change without prior notice.
5.
取付け後も本書は大切に保管下さい。
Please keep this manual following installation.
安全上の注意
For safety
!
!
本書では下記の様な表示にて、お客様への注意レベルを示しています。
Please note the following as these are important warnings and cautions for our customers.
警告
WARNING
注意
CAUTION
Installation manual introduction
この表示を無視して誤った取り扱いをすると、人が死亡又は重傷を負う可能性が 想定される内容を示しています。
Ignoring this warning may cause death or extreme injury.
この表示を無視して誤った取り扱いをすると、人が傷害を負う可能性が想定され る内容及び、物的損害の発生が想定される内容を示しています。
Ignoring this caution may cause injury or damage.
M310 - 2 -
Page 3
取り扱い上のご注意
1.
2.
3.
4.
!
!
!
!
注意
CAUTION
注意
CAUTION
注意
CAUTION
注意
CAUTION
Caution during handling
梱包から取り出す際には、製品が重いので取り扱いに注意して下さい。
As this product is heavy, handle carefully when removing it from the box.
プルタイプの場合、ダイヤフラムの内周部を絶対に持たないで下さい。 (カラーやCリングが変形し
As for the pull type, NEVER hold the inner diameter of the diaphragm. (Otherwise, the color or C-ring may be deformed, leading to release of the bearing.)
直置きはしないで下さい。 (錆発生の原因になります。)
Do not place the product on the floor directly as this may cause rust to appear on the product.
精密部品ですので運搬時、投げ積みや落下など手荒な取り扱いをしないで下さ い。
Do not throw or drop the product as it is a precision part.
BRG
取り付け上のご注意 Caution during installation
1.
2.
3.
4.
5.
!
!
!
!
!
警告
WARNING
警告
WARNING
警告
WARNING
警告
WARNING
警告
WARNING
クラッチの交換作業は、トランスミッションの脱着作業を伴いますので必ず認証 指定工場で行って下さい。
Use a licensed installer as the transmission unit is to be taken out of the vehicle.
交換の際は必ず自動車メーカー発行の当該車種の整備マニュアルに従い、本書の 注意事項を守って作業を行って下さい。
Install the product according to the maintenance manual of the vehicle and this installation manual.
適応車種以外の車輌への取付けは、絶対に行わないで下さい。
Do not apply this product to vehicles other than those specified by EXEDY.
製品の加工、改造、決められた所以外の分解は絶対に行わないで下さい。
Do not modify this product unless instructed to in this manual.
走行中に不具合(異音・振動・異臭・切れ不良)が発生した時は、直ちに走行を 中止し、専門業者で点検を受けて下さい。
If a failure such as abnormal noise, vibration, odor or disengagement problem occurs during driving, stop the vehicle immediately and have a licensed garage inspect the vehicle.
抜けの原因になります。)
M310 - 3 -
Page 4
適応車種及び商品品番
日産
NISSAN
マツダ
MAZDA
三菱
スバル
ホンダ
HONDA
メーカー
Manufacturer
MITSUBISHI
SUBARU
Applicable vehicle and model
商品品番
Part No.
NM012SBL
NM022SBL
NM032SBL
NM042SBL
NM052SBL
ZM012SBL
ZM022SBL
MM012SR
MM032SR
MM022SBL
FM012SBL
FM022SBL
HM022SR
クラッチサイズ
Clutch size
φ
φ
φ
φ
φ
φ
φ
φ
φ
φ
φ
φ
φ
適合車種
Applicable vehicle model
車種
Vehicle model
200 S13/14
200 S15
BNR32 前期及び BNR32 後期、
BCNR33
200
200
200 BNR34
200 FC3S 13B
200 FD3S 13B-REW
180 CE9A
180 CD9A
200 CN/CP/CT9A
200 GC8
200 GDB
180 EG6 EK4/9 DC2 B16A/B B18C
BNR32 early model and BNR32
BNR32
BNR32 later model, BCNR33
の作動変換車
later model, BCNR33
conversion model
後期、
BCNR33
エンジン型式
Engine model
SR20DET
RB26DETT
4G63
EJ20
M310 - 4 -
Page 5
構成部品及び構成図
NO.
構成図
No.
クラッチカバー
①
Clutch cover Assy (CCA)
プレッシャープレート(PP)
②
Pressure plate (PP)
センタープレート(
③
Center plate (IMP)
4A
4B
4C
クラッチディスク
Clutch disc A (CDA)
クラッチディスク
Clutch disc B (CDB)
クラッチディスク
Clutch disc C (CDC)
センターハブ(
⑤
Center hub (C.HUB)
ドライブボス(
⑥
Drive boss (D.BOSS)
FLYWHEEL
⑦
Flywheel (F/W)
ボルト
⑧
Bolt
平ワッシャー
⑨
Washer
ピボットリング
⑩
Pivot ring
フライホイール取付けボルト(クランクボルト)
⑪
Flywheel mounting bolt (Crank bolt)
ナット
⑫
Nut
Components and structural drawing
部品名称
Description
Assy (CCA)
IMP)
A (CDA)
B (CDB)
C (CDC)
C.HUB)
D.BOSS)
個数
Number of pieces
プル式
Pull type
1
1
ツイン1:トリプル
Twin 1 : Triple 2
1 1
1 1
トリプル
Triple 1
1
6
1
6
6
1 ―
7
ページ参照
See page 7
6
プッシュ式
Push type
2
1
M310 - 5 -
Page 6
Pull type Push type
M310 - 6 -
Page 7
別途ご準備必要な部品
メーカー
Manufacturer
日産
NISSAN
トヨタ
TOYOTA
マツダ
MAZDA
三菱
MITSUBISHI
スバル
SUBARU
ホンダ
HONDA
車種
Vehicle model
S13/14 SR20DET NM012SBL
S15 SR20DET NM022SBL
BNR32 RB26DETT NM032SBL
BCNR33 RB26DETT NM042SBL
BNR34 RB26DETT NM052SBL
JZX90/100/110 JZA70
JZA80 2JZ-GTE TM042SBL
FC3S 13B ZM012SBL
FD3S 13B-REW ZM022SBL
CD9A MM012SR
CE9A MM032SR
CN/CP/CT9A
GC8 EJ20 FM012SBL
GDB EJ20 FM022SBL
EG6, EK4/9, DC2
Parts required additionally
エンジン形式
Engine model
1JZ-GTE TM032SBL
4G63
B16A/B B18C
商品番号
Parts No.
MM022SBL
HM022SR
レリーズベアリング Release bearing
レリーズベアリング
Release bearing
パイロットブッシュ
Pilot bush レリーズベアリング Release bearing
レリーズベアリング
Release bearing
レリーズベアリング
Release bearing
フライホイール取付けボルト
Flywheel mounting bolt レリーズベアリング Release bearing
マツダ純正カウンターウェイト
Mazda genuine counterweight
シャーシ
200001以降 N351-11-521 Chassis No. from 0 to 200000 200001 and later
レリーズベアリング
Release bearing Genuine parts
カウンターウェイト
Counterweight
レリーズベアリング
Release bearing
フライホイール取付けボルト
Flywheel mounting bolt
レリーズベアリング
Release bearing
フライホイール取付けボルト
Flywheel mounting bolt
レリーズベアリング
Release bearing
フライホイール取付けボルト
Flywheel mounting bolt レリーズベアリング Release bearing
パイロットベアリング
Pilot bearing
レリーズベアリング
Release bearing
パイロットベアリング
Pilot bearing
レリーズベアリング
Release bearing
フライホイール取付けボルト
Flywheel mounting bolt レリーズベアリング Release bearing
準備必要部品
Parts required to be prepared
NO.0〜200000迄 N327-11-521A
日産純正 30502-14601 Nissan genuine parts
日産純正
30502-14601
Nissan genuine parts
日産純正
32202-B9500
Nissan genuine parts 日産純正 30502-14601 Nissan genuine parts
純正装着部品
Genuine parts
純正装着部品
Genuine parts トヨタ純正 90910-02103 TOYOTA genuine parts 純正装着部品 Genuine parts
純正装着部品
マツダ純正
MAZDA genuine parts
純正装着部品
Genuine parts
純正装着部品
Genuine parts
純正装着部品
Genuine parts
純正装着部品
Genuine parts
純正装着部品
Genuine parts 純正装着部品 Genuine parts 純正装着部品 Genuine parts
純正装着部品
Genuine parts
純正装着部品
Genuine parts
純正装着部品
Genuine parts
純正装着部品
Genuine parts ホンダ純正 90011-PR7-000 HONDA genuine parts 純正装着部品 Genuine parts
N351-11-521
M310 - 7 -
Page 8
上記以外の準備部品
Parts to be prepared other than the above ones
1.
プッシュ系日産車については13ページに記載のレリーズスリーブが必要となります。。
Release bearings shown in page 13 are required for the push type Nissan vehicles.
2.
全車レリーズベアリングを新品に交換されることを推奨します。
We recommend you replace the release bearing for all vehicle models with a new one.
3.
全車フライホイール取付けボルトを新品に交換されることを推奨します。 上表に記載の無い車種については、製品に同梱のボルトを使用下さい。
We recommend you replace the flywheel mounting bolts for all vehicle models with new ones.
For the vehicle models not shown in the table above, use bolts enclosed with the product.
4.
パイロットベアリングについて特に記載の無い車種で、クランク側にベアリングが入っている車種 においても、クラッチ交換の機会に新品に交換されることをお勧めします。
As for the vehicle model that no description is provided for the pilot bearing and a bearing is
incorporated into the crank, we recommend you replace the pilot bearing with a new one at the time of replacement of the clutch.
取付け方法
1.
キットの分解
Disassembly of kit
構成図⑧のボルト
Loosen the bolt No. 8
注意
CAUTION
!
2. パイロットベアリングの取付け Installation of pilot bearing
フライホイールにパイロットベアリングが必要となる車種については新品の純正部品を準備していた だき取付けてください。 (7ページ一覧表を参照ください。)
As for the vehicle model that the pilot bearing is required for the flywheel, prepare the new and genuine parts, and install them. (Refer to the list in page 7.)
Installation procedure
を緩め、キットを分解して下さい。
and disassemble the kit.
構成図⑫のナット い。 万一緩めてしまった場合は、ネジロック剤(高強度用)を塗布し規定トルク
75 Nm {6.6〜7.6 kgm}
〜
DO NOT loosen the bolt No. 12 before delivery. If it is loosened by mistake, apply a screw lock agent (strong) to it, and tighten it with the specified torque 65 Nm to 75 Nm {6.6 to 7.6 kgm}
は、正規トルクで締付けて出荷していますので緩めないで下さ
で締付けて下さい。
65
that was tightened with the specified torque
.
M310 - 8 -
Page 9
3.
フライホイール(F/W)の取付け
Installation of flywheel (F/W)
1)
日産車、トヨタ車、スバル車、三菱車、ホンダ車 構成図⑦の さい。
F/W
の取付けは一覧表にて指定のクランクボルト(FW取付けボルト)を必ず御使用下
Nissan, Toyota, Subaru, Mitsubishi, and Honda vehicles
At the time of installation of the flywheel No. 7
, be sure to use the crank bolt (flywheel mounting bolt) specified on the list.
トヨタ車のクランクボルトのねじ山部には、必ずアドヘシブ い。 塗布せずそのまま締め付けるとエンジンオイルがボルト穴よりにじみ出ます。
1324
を塗布して締め付けてくださ
Be sure to apply "Adhesive 1324" to the thread ridges of the crank bolt for the Toyota vehicle
before tightening it. Otherwise, engine oil will ooze from the bolt hole.
クランクボルトは、対角順に数回に分けて、均等に締め付け、最後に規定トルクに合わせて、 本締めを行って下さい。
Tighten the crank bolt diagonally not at a time, but for several times with equal force. Finally,
tighten up it with the specified torque.
その後、構成図 取付けて下さい。
NO.
⑦のフライホイール
Then, install the flywheel No. 7
to the crank shaft in accordance with the maintenance manual
をクランクシャフトにカーメーカー発行の整備書に従って
issued by the vehicle manufacturer.
クランクボルト締付トルク一覧
Crank bolt tightening torque list
メーカー名
Manufacturer
エンジン型式
Engine model
締付トルク
Tightening torque
SR20DET 83〜93 Nm {8.5〜9.5 kgm}
日産
NISSAN
RB26DETT, RB25DET, RB20DET
142〜152 Nm {14.5〜15.5 kgm}
VG30DETT 83〜93 Nm {8.5〜9.5 kgm}
トヨタ TOYOTA
スバル
SUBARU
三菱
MITSUBISHI
ホンダ
HONDA
1JZ-GTE, 2JZ-GTE
EJ20 69〜78 Nm {7〜8 kgm}
4G63 127〜137 Nm {13〜14 kgm}
B16A/B, B18C 103 Nm {10.5k gm}
49 Nm (5.0 kgm) 注 1 Note 1
1.
注
1JZ,2JZ
トヨタ ジの図面参照)
については上表のトルクで締付けた後、下記締付けを行います。(10ペー
Note 1. As for the Toyota 1JZ and 2JZ, tightening below must be carried out after the crank bolts are
tightened with the tightening torque shown in the table above. (See the drawing in page 10.)

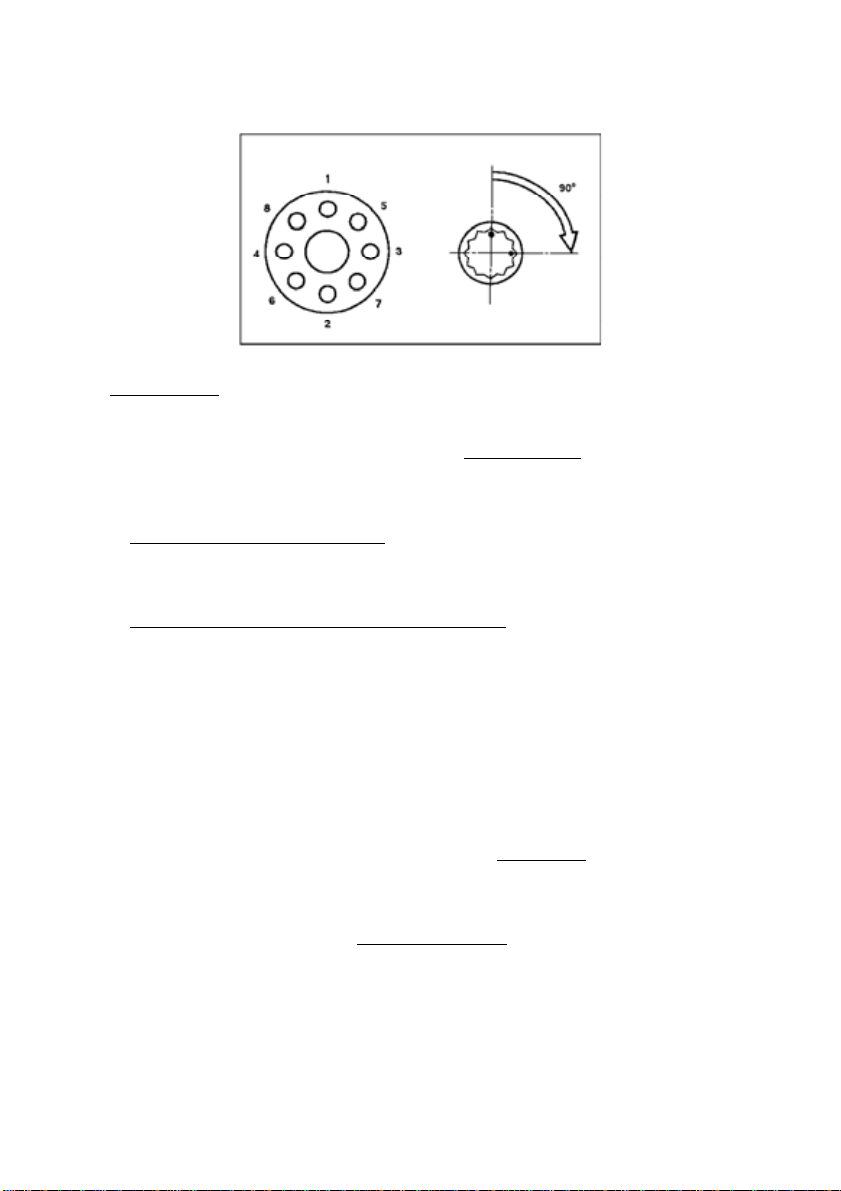

1)
クランクボルトの頭部にペイントマークを付ける。
Paint the bolt-head with a color paint for marking.
2)
ペイントマークを目安にして、各クランクボルトを対角順に90°締付ける。
Tighten the crank bolt a further 90 degree relative the paint mark.
M310 - 9 -
Page 10
3)
ペイントマークが全て右側にあることを確認する。
Check the paint mark located on the right side.
2)
マツダ車 構成図⑦の ます。
F/W
に純正部品のカウンターウェイト(7ページ参照)を付属の専用ボルトにて固定し
Mazda vehicle
Fix the Mazda genuine counterweight (see page 7) to the flywheel No. 7
with the supplied special
bolts.
☆ クランクボルトは、対角順に数回に分けて、均等に締め付け、最後に規定トルクに合わせて、
本締めを行って下さい。 規定トルク54〜
F/W
その後
をエキセントリックにカーメーカー発行の整備書に従って取付けて下さい。
74 Nm {5.5〜7.5 kgm}
Tighten the crank bolts diagonally not at a time, but for several times with equal force. Finally, tighten up it with the specified torque. Specified torque: From 54 to 74 Nm {from 5.5 to 7.5 kgm} Then, install the flywheel to the Eccentric shaft in accordance with the maintenance manual issued by the vehicle manufacturer.
4. 部品の組み込み Assembly of parts
1) φ200 φ200 Series
《組立順序》P6の構成図に従って各部品を組み込みます。 ディスクC→センタープレート→センターハブ→ディスクB→センタープレート→ディスクA→ プレッシャープレート→ピボットリング→クラッチカバー 組み込み時、①②③⑦の位置決めは、外周部にペイントされた青色合マーク
シリーズ
Assy
を必ず合せて下さい。
«Assembly order» Assemble the parts in accordance with the structural drawing in page 6. Disc C → Center plate → Center hub → Disc B → Center plate → Disc A → Pressure plate → Pivot ring → Clutch cover Assy At the time of assembly, be sure to match the painted blue marks
on the outer diameter for positioning
of the [1], [2], [3] and [7].
2) φ180
シリーズ
φ180 Series
180
シリーズについてはセンターハブが無いタイプとなっているため下記順番で組み込みます。
φ
《組立順序》 ディスクB(
FW SIDE
と刻印のあるディスク)→センタープレート→ディスクA(
TM SIDE
と刻印の
M310 - 10 -
Page 11
あるディスク)→プレッシャープレート→クラッチカバー ☆ ディスクAとディスクBのリベットが同じ位置にならないように注意して組みつけてください。 組み込み時、①②③⑦の位置決めは、外周部にペイントされた青色合マーク
The φ180 Series is of the type without a center hub, and should be assembled in the order shown below. «Assembly order» Disc B (disc with stamp of "FW SIDE") → Center plate → Disc A (disc with stamp of "TM SIDE") → Pressure plate → Clutch cover Assy When assembling them, pay close attention to prevent the rivet on the disc A from being oriented to the same direction as that of the disc B. At the time of assembly, be sure to match the painted blue mark [1], [2], [3], and [7].
!
!
!
5. エンジン側パイロットに、芯出しバーをセットし構成図⑤のセンターハブ
!
注意
CAUTION
注意
CAUTION
注意
CAUTION
ダ車用 φ 構成図①のクラッチカバー 芯出しバーには純正のメインドライブシャフトの使用を推奨します。
Set up the center bar to the pilot at engine side, and center the center hub No. 5 Series intended for the Honda vehicles, align the tooth traces on the disc A and the disc B, 4A in the structural drawing.) Tighten the clutch cover Assy No. 1. The genuine main drive shaft is recommended for this process.
注意
CAUTION
ディスクには方向がありますので、向きを間違えないよう十分注意して下さい。
EXEDY』
『 上記識別文字が、カバー側から見える方向に組み込む。
Be careful of the direction/location of the disc. "EXEDY" It should be assembled in such the direction that the identification mark above can be seen from the cover side.
合マークが合っていないと回転バランスが崩れ異音、振動が発生し、また出力低 下の原因にもなります。
If the marking is not met, it will cause unbalance, noise and vibration problems.
スプラインハブのグリスアップはディスク及びシャフトに純正指定グリスを塗布 後、シャフトにディスクを通してはみ出た余分なグリスは滑りの原因になります ので必ず拭き取って下さい。
Apply grease specified by the vehicle manufacturer to the spline hub then insert the shaft and wipe away any grease which is forced out.
180
シリーズは構成図4Aのディスク
Assy
構成図⑤のセンターハブ てはディスクABの歯筋が合っていないと スクの破損の原因になります。
Failure in centering of the center hub No. 5 discs A and B of the φ180 Series will lead to difficulty in the assembly of the transmission and damage to the disc.
を締め付け固定します。
のセンターが合っていないと、また φ
Assy
の順で組みつけてください。
を必ず合せて下さい。
at the outer diameter for positioning of
のセンターを出し(ホン
A
と4BのディスクBのスプラインの歯筋を揃えて)
. (For the φ180
180
T/M
組み付けが困難になり、またディ
or aligning of the tooth traces of the
シリーズについ
M310 - 11 -
Page 12
構成図⑧のボルト
Specified torque of bolt No. 8
ボ ルトの締め付けが不均一な場合(一気にしめた場合)切れ不良やジャダー発生の原因に
なります。
Unequal bolt tightening will cause disengagement problems and judder/shudder.
6. ボルト締め付け後、レバーの高さが均等にそろっているか確認して下さい。
もし、不均一な場合、再度「項目3」よりやり直して下さい。
Confirm that lever height is equal after tightening. If it is not equal, then restart from item 3.
T/M
7.
Replace the T/M.
8. ストローク調整
Stroking adjustment
《アドバイス》
を再組付けします。 プル式の場合レリーズベアリングは純正の新品に交換し、各摺動部には純正指定のグリースを適量 塗布して下さい。 また、プッシュ式の場合、レリーズベアリングとクラッチスリーブを別紙に指定の純正部品に交換 を行って下さい。 詳しくはカーメーカー発行の整備書に従って、なるべく水平な状態で作業下さい。
For the pull type, replace the release bearing with the genuine new one, and apply specified genuine grease to the sliding surfaces appropriately. For the push type, replace the release bearing and the clutch sleeve with the genuine ones specified in the separate sheet. Follow the maintenance manual issued by the vehicle manufacturer.
注意
CAUTION
!
当キットに交換した場合、ペダル位置(切れ点及び繋がり点)が変化する場合があります。この場 合はペダル調整を行って下さい。 詳しくはカーメーカー発行の整備書に従って下さい。
After installing of this kit, the pedal position (engagement or disengagement point) may change. Adjust the pedal according to the maintenance manual issued by the vehicle manufacturer.
«Advice» z
ペダル位置を深くしたい場合(床側に近付ける) マスターシリンダー部のプッシュロッドを短く調整し、フリー時のペダル高さを下げる方向に調整 する。
If the pedal position should be moved towards the floor, adjust the push-rod of the master cylinder
in the manner the pedal height is down in free position.
z
ペダル位置を高くしたい場合(床から遠くする) 上記と逆の方向に調整する。
If the pedal position should be moved away from the floor, adjust the push-rod in the opposite to
the above.
締め付けトルク:27〜
:
T/M
組み付け時、メインドライブシャフト先端で、クラッチディスクのスプライ ン部をこじったり、変形させない様十分注意下さい。切れ不良やディスク破損の 原因になります。
Do not hit the spline teeth with the edge of the main drive shaft. It will cause disengagement problems or damage to the clutch disc.
29Nm {2.8〜3.0kgm}
M310 - 12 -
Page 13
レリーズベアリング及びクラッチスリーブ(日産車プッシュ式用)
Release bearing and clutch sleeve (for Nissan push type)
z
レリーズベアリングは7ページに記載の当社指定品を別途購入しご準備下さい。
Additionally purchase the release bearing specified by us on page 7.
z

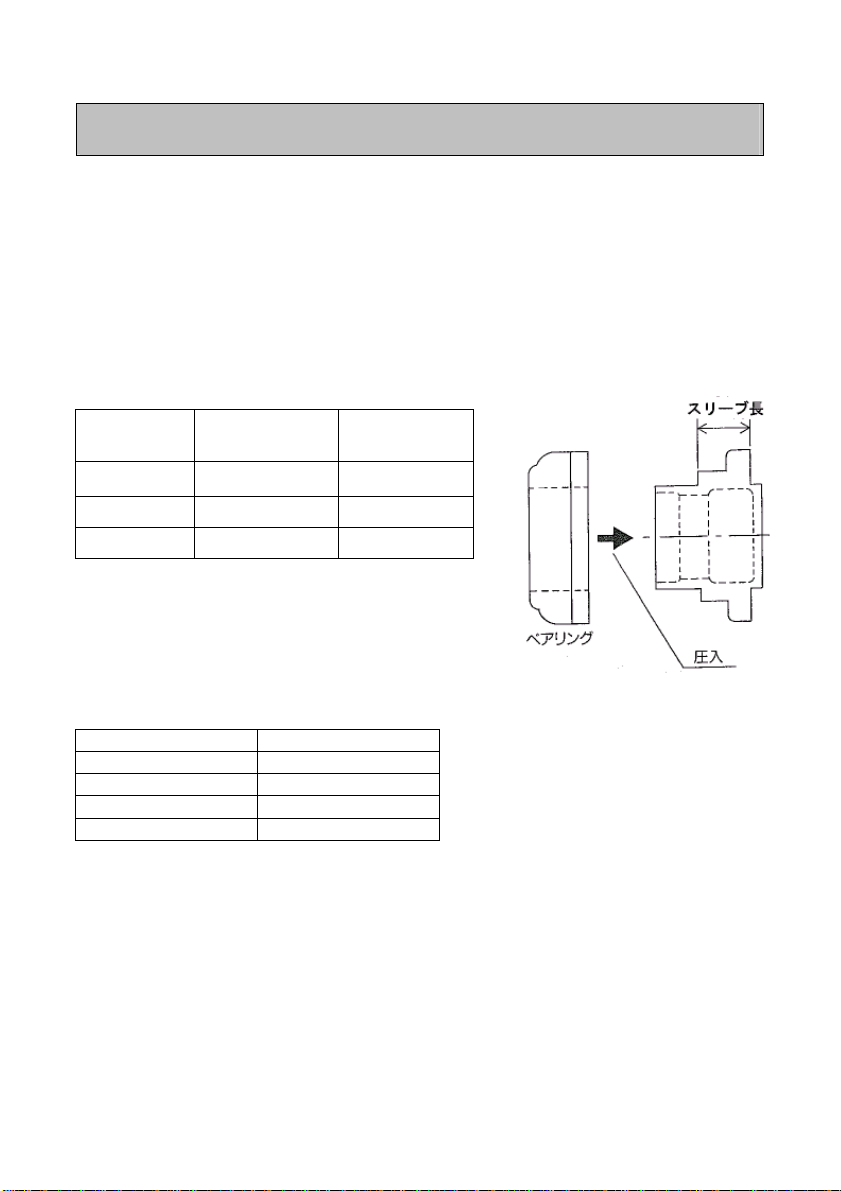

クラッチスリーブの選択 クラッチスリーブは各車両別に、純正クラッチ装着時(新品時)とレリーズフォークの傾きが同じ になるスリーブ長さのものを御使用下さい。
Selection of clutch sleeve
Use the clutch sleeve whose sleeve length allows the same inclination of the release fork as that in the case the genuine clutch (new one) is installed, appropriate for each vehicle.
【日産車】
[Nissan vehicle]
クラッチ品番
Clutch model
NM01 NM02 NM03 R32 (RB26DETT) 14〜16 mm
NM06 Z32 (VG30DETT) 22〜24 mm
適応車種
Applicable vehicle
S14 (SR20DET) S15 (SR20DET)
model
推奨スリーブ長
Recommended sleeve
24〜26 mm
length
* 車輌によって個体差が有りますので現車での確認をお願い
します。
Since all the vehicles are individual, check the clutches
and release bearings with installed to them actually.
Bearing
日産純正部品番号(クラッチスリーブ)
Nissan genuine parts number (clutch sleeve)
30501-A3800 (12 mm) 30501-S0160 (22 mm)
30501-N1601 (14 mm) 30501-0H600 (24 mm)
30501-U0200 (16 mm) 30501-K0510 (26 mm)
30501-A0200 (18 mm) 30501-N1600 (28 mm)
30501-B6000 (20 mm) 30501-N8400 (30 mm)
プル式車は、純正指定のプルベアリングの新品に交換下さい。(変更不要)
For the pull type vehicles, replace the bearing with the genuine new pull type bearing. (No
modification is required.)
Sleeve length
Press-in
M310 - 13 -
Page 14
使用上の注意事項
1.
注意
CAUTION
!
2.
注意
CAUTION
!
3.
メタルフェーシングの性質上、発進時に若干の鳴きやジャダーが出る場合がありますが特に異常で はありません。
In the early stage, it is not abnormal if subtle noise or chattering occurs. This is due to the
characteristics of metal facings.
4.
クラッチの構造上、クラッチを切っている時に多板クラッチ特有のカラカラ音が発生しますが異常 ではありません。
Due to the clutch design, the multiple disc clutch may cause a rattle noise when disengaged. This is
not an abnormal condition.
5.
警告
WARNING
!
6.
警告
WARNING
!
Caution during operation
クラッチ取り付け後は、必ず慣らし運転(市街地走行で約 て下さい。 各摩擦面が全面当たりしない状態で過酷な使用をすると、部分的な焼き付きを生 じ、ジャダーや寿命低下につながります。
After installation, drive carefully and gently. (Travel for approximately 500 km in a city area) If the clutch is used in a condition where the friction surface is not contacting fully with the mating surface, it will cause burning, judder/shudder or short life.
メタル多板クラッチの性質上、新品時と慣らし後ではペダル位置が変化し、半ク ラッチ操作性に変化がありますが特に異常ではありません。 慣らし後に再度ストローク調整する事を推奨します。
It is recommended to re-adjust the stroke after the break in period. Due to the nature of the metal multiple disc clutch, half engaged clutch operation will also be affected after break in period but this is a normal symptom.
車輌側のレリーズコントロール系は一切の改造を行わないで下さい。 (純正の状態で使用出来るように設定しています。) 特に、クラッチオペレーター内部のスプリングは取り除かないで下さい。 レリーズベアリングに作用するプリロードが無くなり、使用中にベアリング抜け につながります。(プルタイプの場合)
Do not change any release control function of the vehicle. (The clutch is used under normal condition.) Especially, DO NOT remove the spring in the clutch operator. Otherwise, the preload working on the release bearing will be lost, leading to release of the bearing during usage (for the pull type).
本製品は競技専用に設計されていますので、純正品に比べ踏力が重く、発 進操作 が難しくなりますので、十分な慣れが必要です。 体力、技量に自信のない方は使用をご遠慮下さい。
This clutch system is specially designed for racing purposes, therefore pedal effort is slightly heavier and start operation is more difficult than standard manual clutch products. Avoid using if you are not completely confident with your driving technique and physical strength.
500km
程度)を行っ
M310 - 14 -
Page 15
7.
!
《アドバイス》
«Advice»
新品状態のレリーズフォークの位置を記録しておいて、その変化量を常に管理して摩擦材の摩耗量を 把握し、早めのオーバーホールを実施する事が長く性能を維持する秘訣です。
Record the new release fork position and confirm its variation. Facing wear amount can then be foreseeable. Preventative maintenance before the discs are worn out is a key factor to maintain steady performance.
8.
!
9.
!
注意
CAUTION
ディスクの使用限度;摩擦材厚さ_
Maximum facing wear: Facing thickness
警告
WARNING
警告
WARNING
メタル多板クラッチの性質上、操作方法、使用環境によって摩擦材の寿命は著し
シリーズ
シリーズ
3.3 mm
3.5 mm
(新品時
(新品時
4.2mm
4.0 mm
)
)
く低下する事があります。 特にゼロ発進を多用する競技(ドラッグレース等)では、摩擦材の消耗が早い為 まめに点検して下さい。
The life of a metal multiple disc clutch may be adversely affected by driving technique and driving conditions. Especially, the friction material is worn prematurely in a racing which necessitates frequent abrupt start operation (for example, drag race). Check it frequently.
200
φ
200 Series 3.3 mm (At new 4.2 mm)
φ
180
φ
180 Series 3.5 mm (At new 4.0 mm)
φ
多板クラッチの構造上、半クラッチを多用するとクラッチ内部が高温になり構造 部品の膨張、変形等で切れ量が減少し一時的に切れが悪化する事があります。 この場合走行を中止し一度冷やしてから運転を行って下さい。
Due to the nature of the multiple disc clutch, if the clutch is used in the half engaged position for extended periods of time, the clutch set will generate high temperatures. This high heat creates expansion or deformation which causes disengagement problems temporarily or permanently. Stop driving and allow the clutch to cool down.
本製品は下記の使用限界を超えて使用した場合、破損又は走行不能となり、人命 に関わる事故に繋がる恐れが有りますので、絶対に行わないで下さい。
Do not over use the clutch beyond the following limits.
M310 - 15 -
Page 16
10.
11.
12.
《使用限界表》
«Operation limit list»
最大実用トルク
Max. engine torque
ディスク摩耗限界
Max. disc wear
最高摩擦面温度
Max. friction surface temperature
最大レリーズストローク量
Max. release stroke
警告
WARNING
!
警告 WARNING
!
警告 WARNING
!
最大入力回転速度
Max. engine rpm
各プレート類及びフライホイールは、一切の修正加工を行わないで下さい。各 部品の強度が低下し破損する恐れが有り人命に関わる事故に繋がる恐れがあり ます。
Do not machine any part of this product, otherwise the strength of each part will be reduced and may fail prematurely.
ボルト締結部は締付けが緩くても強くても緩みや折損に繋がりますので必ず本 書にて規定の締付けトルクで締付けて下さい。 また部品の合せ面には異物の噛み込み等の無い様に洗浄を行って下さい。 同様に緩みや破損の原因になります。
The bolts have to be tightened at the specified torque. The mating surfaces should be cleaned, wiped with a clean towel to remove any foreign waste. They may affect the performance of the clutch.
ボルト類は重要品質部品ですので必ず付属の部品か本書にて指定の純正部品を 使用して下さい。 指定以外のものでは、必要な強度が得られず破損し人命に関わる事故に繋がる 恐れがあります。 また一度使用したものを緩めた場合、新品に交換して下さい。
The bolts are the very important parts. Use either genuine parts or the bolts included as auxiliary parts in the box. Do not reuse the old bolts after un-tightening.
項目
Item
ツイン
Twin
トリプル
Triple
Limit
180
φ
φ
1.0 mm迄
800°C
シリーズ
180 Series
675 Nm
{69 kgm}
==
許容限界値
200
φ
200 Series
φ
890 Nm {91 kgm}
1340 Nm
{137 kgm}
9.0 mm 7.0 mm
シリーズ
合計
Total 1.0 mm
12000 r/mim
M310 - 16 -
Page 17
お問い合わせ先
For further information
(株)エクセディ スポーツ
BC
EXEDY Corporation Sports BC
572-0822
〒
 大阪府寝屋川市木田元宮
1-1-1
1-1-1 Kidamotomiya, Neyagawa-shi, Osaka 572-0822, Japan
TEL:072-822-1246FAX:072-821-6541
Exedy USA
8601 Haggerty Road South
Belleville, MI 48111
TEL: (800) 346-6091 FAX: (734) 397-7300
EXEDY AUSTRALIA PTY LTD
21 Five ways Boulevard Keys borough,
Victoria 3173, AUSTRALIA
TEL: 61-3-9701-5556 FAX: 61-3-9701-5684
EXEDY Clutch Europe Ltd. Unit 2, Rokeby Court, Manor Park, Runcom, Cheshire WA7 1RW, UK
TEL: 44-1928-571850 FAX: 44-1928-571852
M310 - 17 -
Loading...
