PWH3
© Excell Precision Limited 2015. All rights reserved Worldwide.
The information contained herein is the property of Excell Precision Limited and is supplied without liability for errors or omissions. No part may be reproduced or used except as authorised by contract or other written permission. The copyright and the foregoing restriction on reproduction and use extend to all media in which the information may be embodied.
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
1
Table of Contents
Special Notice .................................................................................................................................. 3
Before Using the Scale................................................................................................................... 4
Instructions for Use ......................................................................................................................... 4
Preparing to Use the Scale ............................................................................................................ 4
Chapter 1 Introduction .................................................................................................................... 6
1-1 Product Features .................................................................................................................. 6
1-2 Specifications ........................................................................................................................ 6
1-3 Product Appearance ............................................................................................................ 6
1-4 Display Description .............................................................................................................. 7
1-5 Power Supply ........................................................................................................................ 7
1-6 Keypad Function ................................................................................................................... 8
1-7 Self-Te st Mode .................................................................................................................... 10
1-8 Error Messages .................................................................................................................. 11
1-9 Weight Units ........................................................................................................................ 11
Chapter 2 Configurations ............................................................................................................. 12
Configuration Workflow ............................................................................................................... 12
2-1 General Function Setting .................................................................... 13
2-1-1 Auto Backlight Function Setting .................................................. 14
2-1-2 Auto Power-off Timer Setting ...................................................... 15
2-1-3 HI/LO/OK Settings ......................................................................... 16
2-1-4 Restore to the Default Settings .................................................... 17
2-1-5 Noise Filter Settings ..................................................................... 18
2-1-6 Hold Function Settings ................................................................. 19
2-1-7 Auto Unit Weight Averaging Setting ........................................... 22
2-1-8 Record Last Zero ........................................................................... 22
2-1-9 Foot Switch Settings (Option) ..................................................... 23
2-1-10 F Key Function Settings ....................................................... 24
2-1-11 Zero Setting ................................................................................. 24

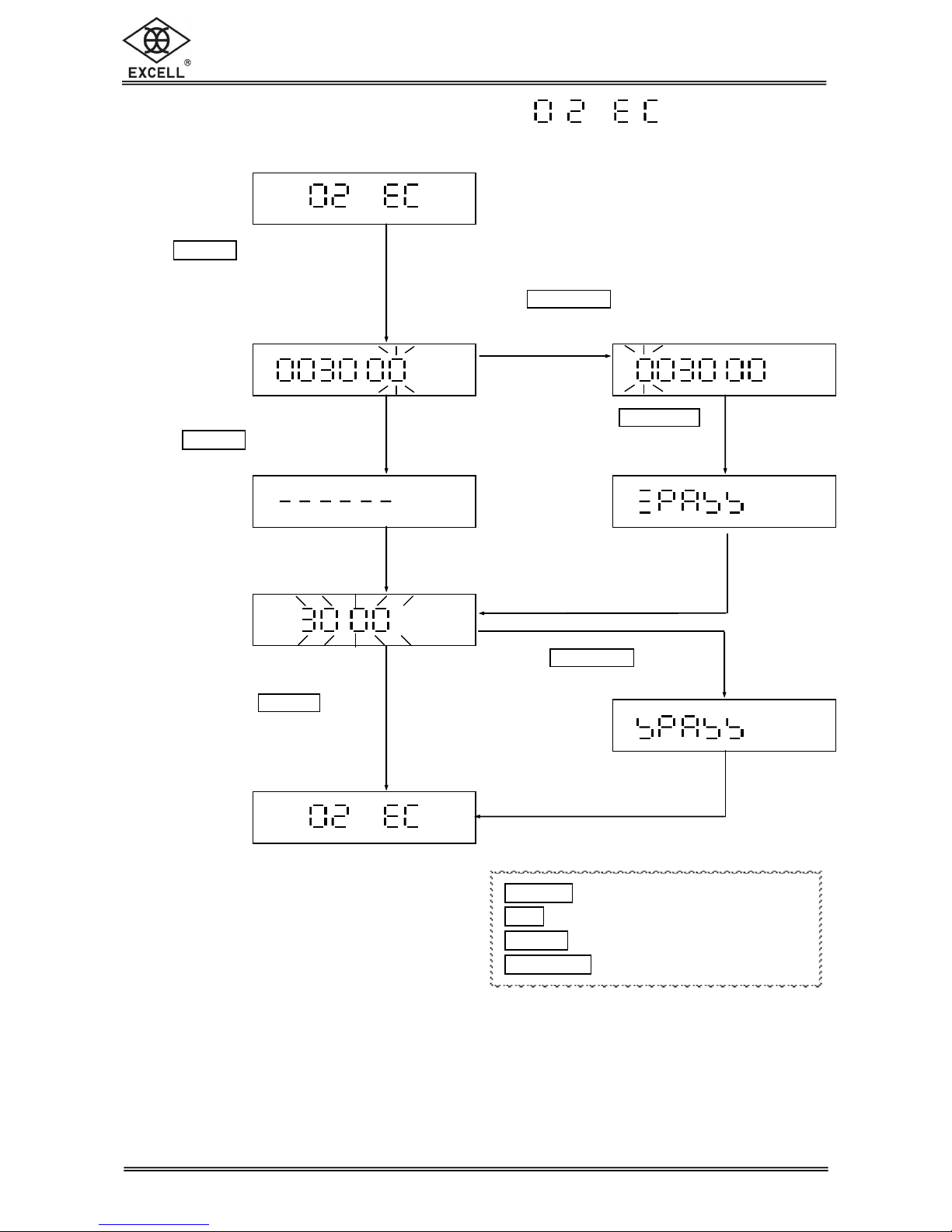

2-2 External Weight Calibration ................................................................... 25

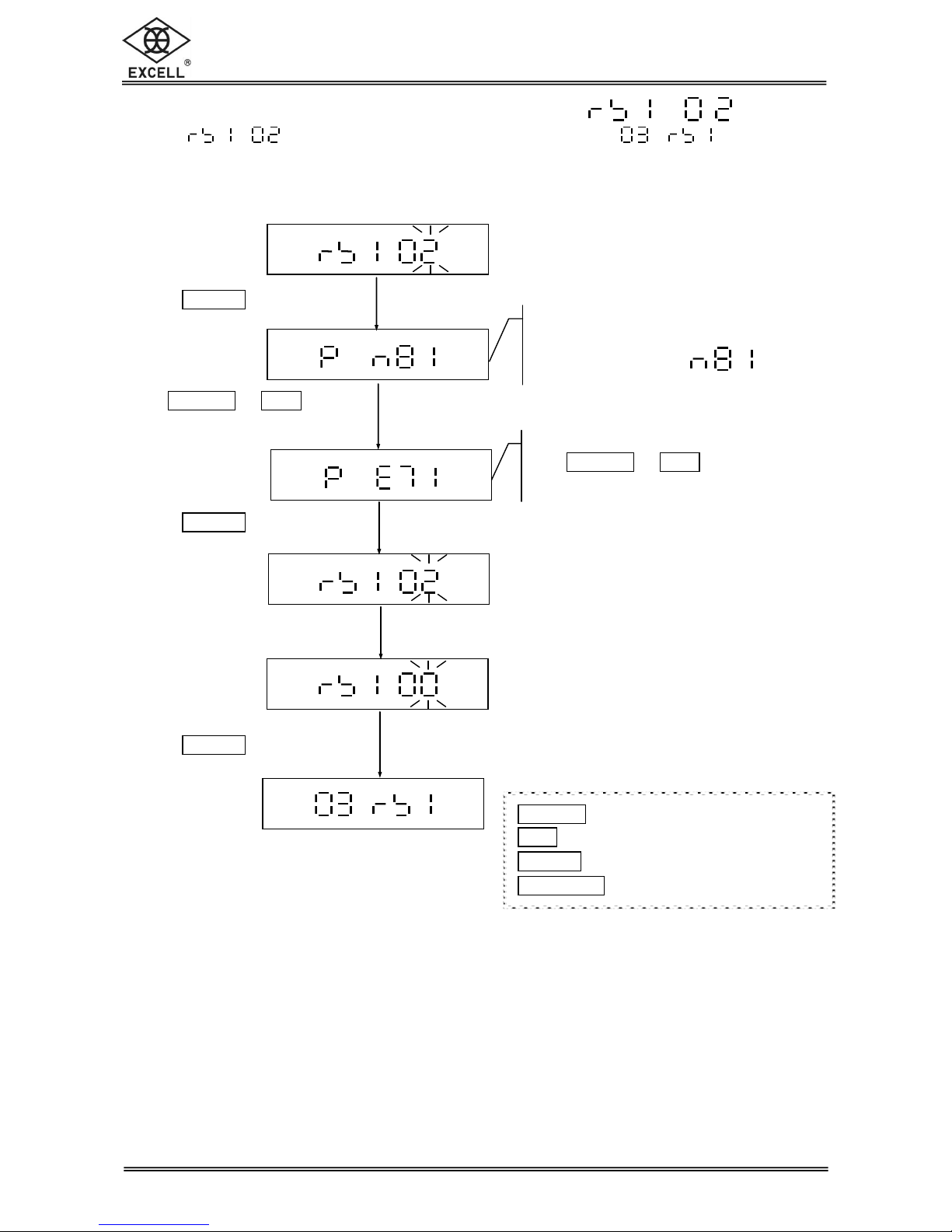

2-3 RS232 Serial Interface Settings .......................................................... 26

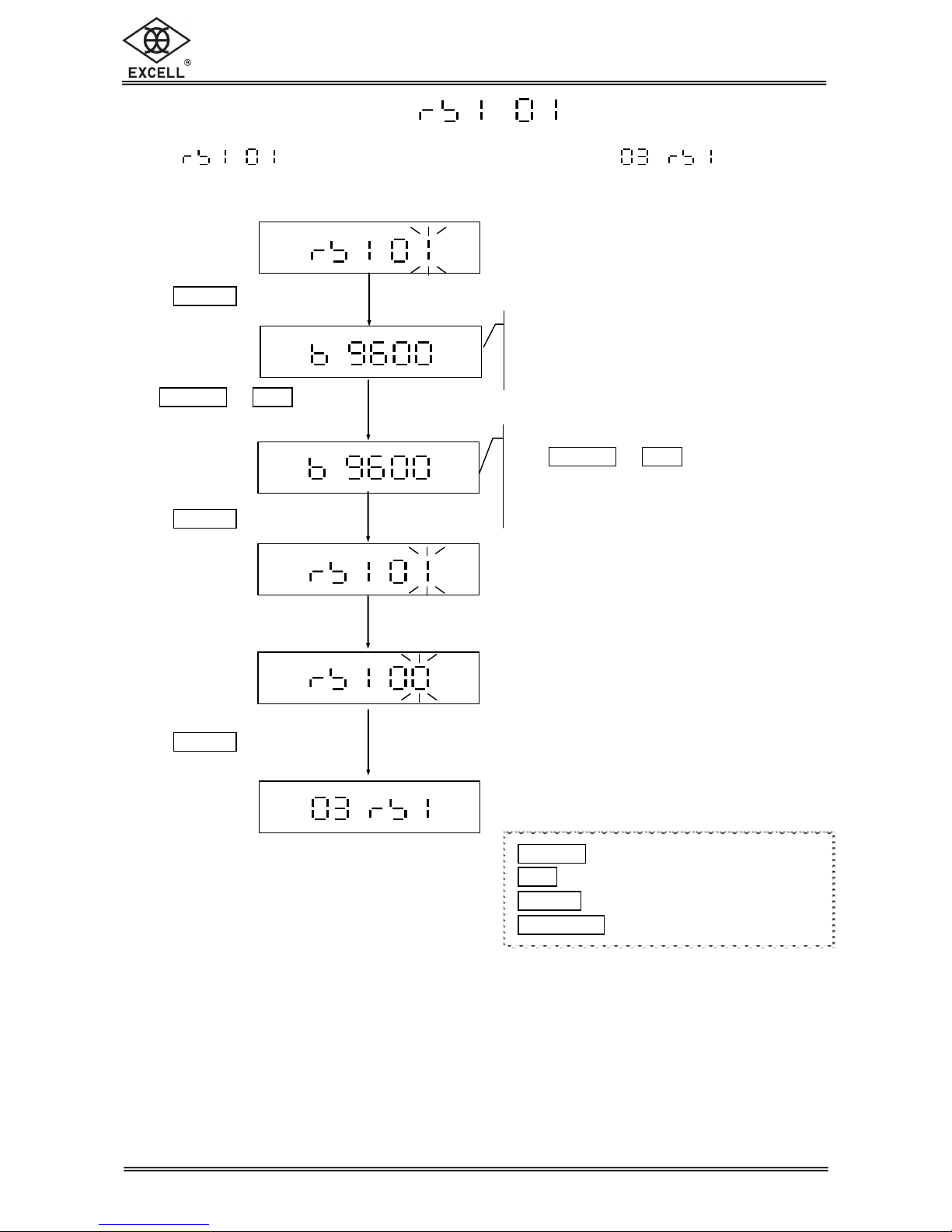

2-3-1 Baud Rate Settings ..................................................................... 27
2-3-2 Communication Protocol Settings .......................................... 28
2-3-3 Output Format Settings ............................................................... 29
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
2
2-3-4 Continuous Transmission Settings ............................................ 31
2-3-5 Selection of the Continuous Transmission Rate ........................... 32
2-3-6 Auto Transmission at Zero .......................................................... 33
2-3-7 Reset Auto Transmission ............................................................... 34
2-3-8 Output Condition Settings ............................................................. 35
2-3-9 RS232 6/7 Digits Setting ............................................................... 36
2-3-10 RTC Adjustment ............................................................. 37
2-3-11 Y/M/D Print Layout Selection ........................................................ 37
2-3-12 RS485 ID Input (Option) ................................................................ 38
2-3-13 Line Feed Input ............................................................................ 38
Appendix 1 ASCII Code Table .................................................................................................... 43

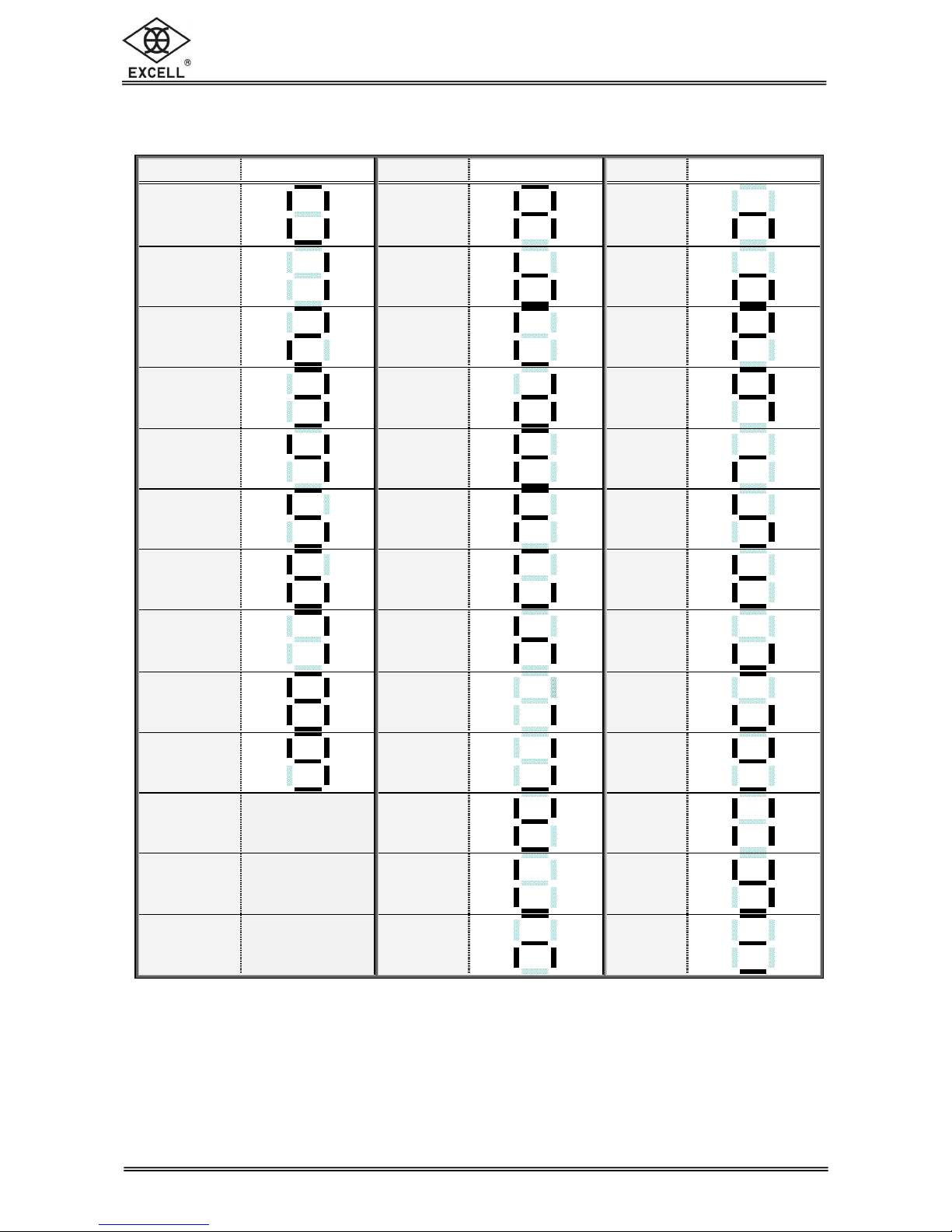

Appendix 2 7-Segment Display Characters ............................................................................. 44

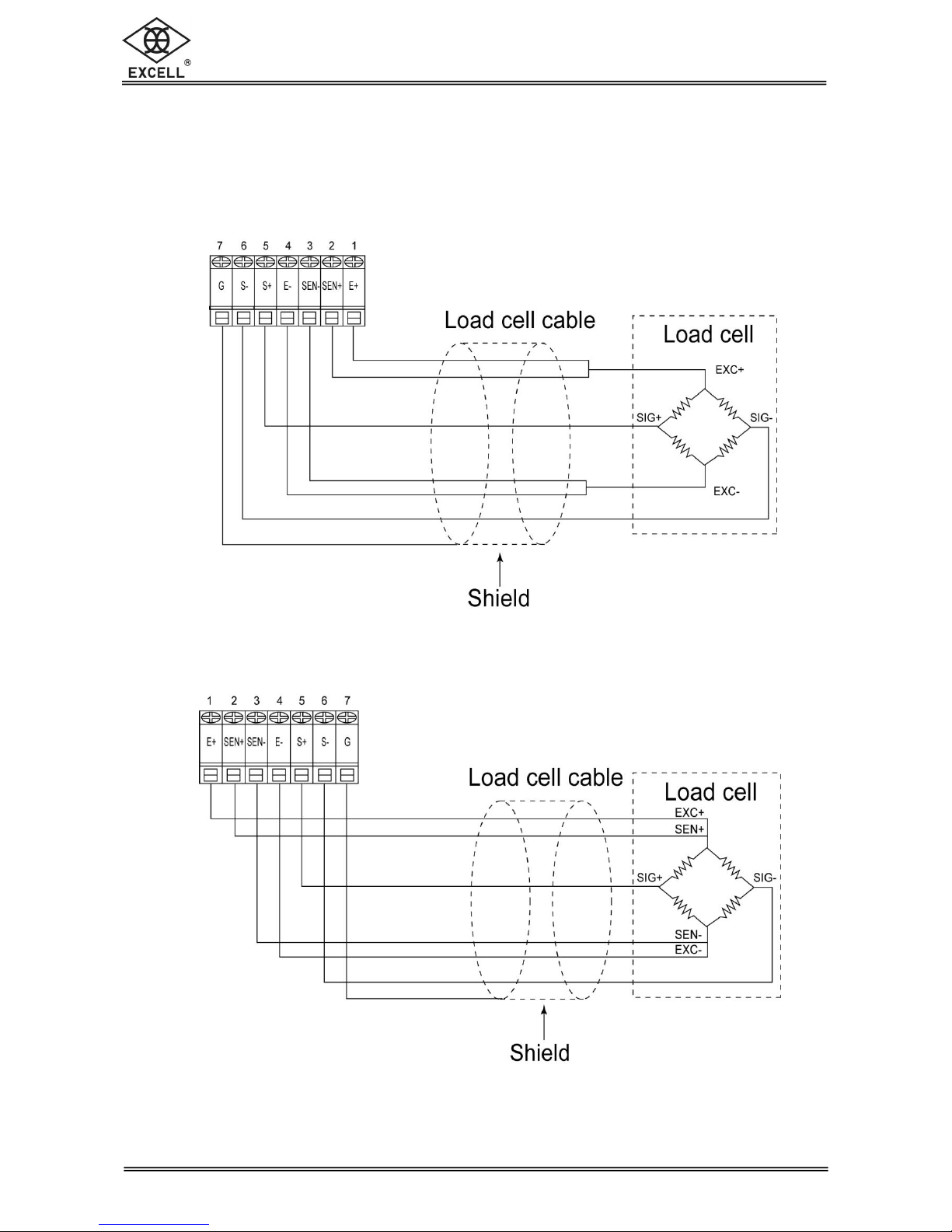

Appendix 3 Wiring Instructions .................................................................................................. 45
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
3
Special Notice
While installing the load cell, power cord hookup or replacing a new rechargeable battery, the indicator housing must be opened. It must be done by a technician assigned by your electronic indicator provider to avoid affecting the waterproof ability of this indicator. Before opening the housing, make sure the indicator is dry, if there is any liquid on it, please wipe it with a clean cloth.
HOW TO INSTALL THE HOUSING
After installing the load cell, power cord hookup or replacing a new rechargeable battery, the housing must be screwed by the assigned order as shown below. Screw lightly first, then screw them tight using a 12 kgf-cm torsion. P.s. Please use a torsion-adjustable screw driver.
Screwing order:
1
2
3
4
5
6
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
4
Before Using the Scale
In order to use this scale correctly, we suggest that you read this manual carefully.
Instructions for Use
1. The load placed on the weigh pan must NOT exceed the maximum weighing capacity of the scale.
2. Protect the scale from high temperatures.
3. Avoid objects impacting with the scale. Do not drop loads onto the scale or subject the weigh pan to any strong shock loads.
4. Please operate or charge the scale in an open area. Do not squeeze the power cord to avoid wire on fire.
Preparing to Use the Scale
1. Locate the scale on a firm level surface free from vibrations for accurate weight readings.
2. Adjust the four levelling feet (if fitted) to set the scale pan level.
3. Avoid operating the scale in direct sunlight or drafts of any kind.
4. If possible avoid connecting the scale to ac power outlet sockets which are adjacent to other appliances to minimise the possibility of interference affecting the performance of the scale.
5. Remove any weight that might be on the weigh pan before the scale is switched on and avoid leaving weight on the pan for long periods of time.
6. All goods weighed should be placed in the centre of the weigh pan for accurate weighing. The overall dimensions of the goods being weighed should not exceed the dimension of the weigh pan.
7. Once the scale has been powered on, it will go through an LCD display test and it is ready for use when the display shows zero.
8. The scale requires 15~20 minutes warm up before operation to ensure best accuracy.
9. Please note when the symbol keeps flashing on the screen, the batteries need to be charged.
10. Introduction of Storage Battery
Thank you for purchasing EXCELL WEIGHING INDICATOR, to help use the product properly, operate smoothly, and extend its life cycle, please read this manual carefully.
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
5
No burning
Caution Corrosion
Due to the storage battery adopt the advanced free-maintaining technique, customers need not to replenish electrolyte. The scale should be recharged every 3 months to prevent failure of the internal rechargeable battery.
1. The battery should be charged for 8~10 hours.
2. The temperature of battery should below 45℃.
Maintaining
1. Please do not discharge with over-current when using the battery. Please charge the battery after discharging current.
2. Please take down the battery when the scale is not used for a long time or break the connection of cathode.
3. Do not short the battery terminals to check whether there is current. Please check whether the connection point is firm to guarantee good connection.
4. The battery should be replaced by specialized person. No reverse-battery or the product will be damaged.
a) Anode of battery should be connected with Anode of product battery（usually red
cable）
b) Cathode of battery should be connected with Cathode of product battery (usually
brown cable or black cable)
c) See the picture following
Safety warnings
1. The electrolyte of battery is caustic which causes metal, cotton, etc to corrode.
2. The hydrogen will be resolved when using or charging the battery and it will cause explosion when approaches fire.
Brown cable(or black cable) connected with Anode of battery
Red cable connected with Cathode of battery
Warning explosion
Children faraway
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
6
Chapter 1 Introduction
1-1 Product Features
Sealed to IP68, (Only use cables of 3mm~5mm diameter to ensure
correct sealing of the cable glands)
Kilogram (kg) and pound (lb) weighing modes Full range tare; Pre-tare; Auto zero tracking; Sampling counting; Gross/Net indication Adjustable gravity value Low power indication and auto power off AC/DC power in and rechargeable battery. Built-in RS-232 Options: pressure release valve, foot switch
1-2 Specifications
Analogue Input: Input Sensitivity 0.3 V/d (Min.) Input Signal Range: -1mV~+14mV Input Zero Range: -1mV~+5mV
Load Cell Excitation: 5V DC Load Cell Drive Capacity: Up to 8 x 350 load cells Non-linearity: 0.01% of full scale A/D Resolution: 500,000 counts (Maximum)
Operating temperature: -10℃ ~ 40℃
1-3 Product Appearance
256 mm
170 mm
90 mm
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
7
1-4 Display Description
HI
:
Upper limit
“” indications description
OK
:
Value between HI and LO
1
:
(STABLE) stable indication
LO : Lower limit
2
:
(GROSS) gross weight indication
kg
:
Unit “kilogram”
3
:
(
Pcs
) unit weight insufficient indication
lb
:
Unit “pound”
4
:
( PT ) pre-tare indication
t
:
hk tael
5
:
(Hold) weight hold indication
Pcs
:
Counting mode indication
6
:
“GN”、“dwt”、 “carat” 、”M+” unit indication
0
:
Zero point indication
7
:
“oz” or “viss” unit indication (set as needed),
or no unit indication
Net
:
Net weight indication
:
Low Power indication
1-5 Power Supply
Power Supply Selection
➀ 6V / 4.5Ah rechargeable battery ➁ Input 110VAC or 230VAC ±15% ; Output 10VDC/1A adaptor
Power Consumption
Approximately DC 14 mA (Indicator) Approximately DC 24 mA (Indicator + Display backlight)
Charging Voltage
DC 10V/1A output adaptor
(RS-232 and load cell cables size 3mm~5.5mm diameter to ensure correct sealing of the cable glands)
Power supply connector
Load cell cable entry
RS-232 cable entry
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
8
Low Battery Warning
Please note when the ( ) symbol keeps flashing on the display, the internal battery should be recharged.
The scale will turn off automatically after a few hours when the low battery warning
symbol shows up. The scale must be fully charged, before operating again.
When the battery status indication is full, the power is about 6.1V; Each block is about
0.2V; When the battery warning symbol shows up, the power is about 5.4V.
1-6 Keypad Function
1OFF KEY
Press the
OFF
key to switch the indicator off.
ON|ZERO KEY
When the power is off, press
ON|ZERO
key to switch the indicator on.
When the power is on, press
ON|ZERO
key to return to zero.
Zero Range : OIML&NTEP is ±2% F.S., and Sri Lanka is ±3% F.S.
1TARE|PT KEY: Tare / Pre-tare key
To TARE: Place the container onto the scale, until the weight value is stable, press
TARE|PT
key for
zero return and the NET indication is shown on the display. Place the object onto the container and the display shows the net weight value of the object. Remove both object and container, and negative value of the container will show on the display. Press
TARE|PT
key again to clear “tare value”. The scale returns to zero and NET indication goes off.
Tare can be continuously done until tare value=full load capacity Continuous Tare  Press
TARE|PT
key for continuous weight increase/decrease on
platter.
If there is Tare, the pre-tare cannot be done. If there is pre-tare first, and the tare weight
more than pre-tare weight, Tare can be done.
No Tare can be done under gross weight display mode. To PRE-TARE:
Press
TARE|PT
key, use keypad to input pre-tare weight. When the cursor flashes on the
rightmost digit, press
TARE|PT
key again to complete.
Pre-tare mode, keypad function as followed:
ON|ZERO
upward key (0~9 digit entry)
NET|GROSS
move cursor leftward
UNIT
downward key (0~9 digit entry)
TARE|PT
move cursor rightward
UNIT
KEY
Press the
UNIT
key to switch weight units; the display icons will indicate the active units.
NET|GROSS
KEY
In the Tare mode, the screen displays the “
TARE
” icon; press the
NET|GROSS
key to switch
between the “Net value” and the “Gross value”. When the ”GROSS” arrow
shows up,
the Gross Weight in the screen = Tare weight + Net weight, meanwhile, keys except the
1
NET|GROSS
key, have no response.
1
M+|PRINT
KEY
Totalization function. M+/Print function is available when RS232 is on keypad transmission mode. ( output).
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
9
Pcs
This key is a composite key, while totalization is shown and weight returns to net zero, press M+ key to erase memory. RS232 will output MC print format ( output). If there is new weight added on platter（it is less than 20 divisions in Brazil version, no
accumulation ）, a new item will be added to totalization. If this weight is not taken off, nothing can be added to totalization.Display will show the totalization numbers for one
second, then show net weight for one second, then the scale returns to the current weight, and prints out the last item for totalization.
To clear totalization data, press M+ key to let display shows up totalization numbers,
then press the
M+|PRINT
key again, to clear totalization data. RS232 will print out
totalization numbers, total weight, etc.
P.s. Weight must return to net zero if to perform clear function.
F
KEY
Function key (In , select F key as “MC” or “HR”)
Foot Switch Mode
This function is optional. Use to select TARE|PT key as “ZERO” or “PRINT” key If “PRINT” key is set ( = 10/11), all totalization data will be printed out, and
totalization will be cleared.
If it is Brazil version and foot switch is set as Print function, it has totalization function
and print function.
Simple Counting Mode
Use UNIT key to switch unit to Pcs, to go into simple counting mode.
1. Use
NET|GROSS
key to select a sample number from “10, 20, 50, 100, or 200”. Display
will show , , , , in an sequential order by pressing
NET|GROSS
key.
2. Select a sampling number, and put appropriate weight on platter, and press UNIT key.
Display will show “ ”. The scale will go into counting mode after weight is stable, and display will show the sample number.
Unit weight insufficient ( ): Sample unit weight is less than 0.2d or total sample
weight is less than 20d (d=division)
While sampling, if there is insufficient sample or unit weight insufficient indication “”,
the scale is still usable, but there may be slight inaccuracy.
After Power-off, the scale automatically memorizes the sampling number, and it is
available when “Pcs” unit is selected next time.
If the setting is “automatic average unit weight “, if the object on platter > the previous
sampling number more than 5 pcs, and also < less than 100% the previous sampling number, the scale will execute unit weight calibration automatically.
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
10
1-7 Self-Test Mode
When power is off, hold
NET|GROSS
key and press ON|ZERO key, Wait till display shows
to enter “Self-Test Mode”.
INTERNAL VALUE MODE
(
must hook up full-bridge Load Cell to test)
Press
TARE|PT
key to enter, and the display shows internal value
Please check the internal value is within normal range is 0 ~ 400000 (no load) Check whether the backlight is on Press
ON|ZERO
key to back to the last screen, the display shows
KEYPAD TEST MODE
Press TARE|PT key to enter, display shows Keypad’s internal code: TARE|PT key = 06,
UNIT
key= 05, F key = 02
1
NET|GROSS
key=04
Press
ON|ZERO
key to back to the last screen , the display shows
FIRMWARE VERSION DISPLAY MODE
Press TARE|PT key to enter , display shows the firmware version , Press TARE|PT key again, the display shows maintenance number for 2 seconds Press
ON|ZERO
key to back to the last screen, display shows
BACK TO THE LAST SCREEN
Press TARE|PT key to exit self-test mode, the scale will re-power on automatically.
Press UNIT key
Press
ON|ZERO
key
Press UNIT key
Press UNIT key
Press UNIT key
Press
ON|ZERO
key
Press
ON|ZERO
key
Press
ON|ZERO
key
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
11
1-8 Error Messages
 The EEPROM is not working correctly.
The EEPROM is not set yet, or the circuit on PCB is broken.
Zero is higher than the zero range when switching the indicator on. Zero is lower than the zero range when switching the indicator on. A/D value is unstable.
 The weight of the object is over 9 divisions of the maximum capacity . The weight of the object is under -1/6 maximum capacity.  ADIC value is over the maximum range.
The scale is not in level status.
(Only available with level detector equipped)
1-9 Weight Units
kg
1 g = 0.001 kg
g
1 g = 1 g
lb
1 g = 0.002204623 lb
lb/oz
1 g = 0.03527396 oz
oz
1 g = 0.03527396 oz
GN
1 g = 15.432358 GN
dwt
1 g = 0.6430149 dwt
ct
1 g = 5 ct
hk.tael
1 g = 0.02645546 Hk.catty
viss
1kg = 0.612245 viss
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
12
Chapter 2 Configurations
Configuration Workflow
In the weighing mode, press
NET|GROSS
key and
ON|ZERO
key s at the same time to
enter the configuration mode. The LCD shows .
Overall workflow of the Advanced Function setting mode:
General Function Setting Mode  External Weight Calibration RS232 Bi-direction Function Setting Exit the Advanced Function Setting Mode
Refer to the following sections for the detailed operation procedures of each function setting.
Press UNIT key
Press
ON|ZERO
key
Press UNIT key
Press UNIT key
Press UNIT key
Press
ON|ZERO
key
Press
ON|ZERO
key
Press
ON|ZERO
key
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
13
2-1 General Function Setting
Workflow of the General Function setting:
Press
TARE|PT
key
key in the parameter “00 ~ 13”
Key in “00” and press
1
TARE|PT
key to return to the Advanced function setting menu
Return to the Advanced Function Setting Mode Menu Automatic Backlight Function Settings Automatic Power-off Timer Settings Hi/Lo/OK Settings Restore the Default Settings Noise Filter Settings Hold Function Settings Auto Unit Weight Averaging Setting Reserved Reserved Record Last Zero Foot switch on/off settings (Option) F key function settings Zero Setting
ON|ZERO
key Upward key (0~9 digit entry)
1
UNIT
key Downward key (0~9 digit entry)
1
TARE|PT
key Move cursor rightward
1
NET|GROSS
key Move cursor leftward
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
14
2-1-1 Auto Backlight Function Setting
Select in the general function setting mode to change the backlight function setting.
LCD displays the last status Default setting = off
Press
TARE |PT
key
Use
ON|ZERO
or
UNIT
key
to select function “on” or “off
Press
TARE|PT
key to go
back to the advanced function setting menu
On backlight function is on Off backlight function is off
Auto backlight function
When the weight is over 10d, the display backlight will be on. After the weight is stable for 10 seconds or when the scale returns to zero, the display
backlight switches off.
ON|ZERO
key Upward key (0~9 digit entry)
1
UNIT
key Downward key (0~9 digit entry)
1
TARE|PT
key Move cursor rightward
1
NET|GROSS
key Move cursor leftward
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
15
2-1-2 Auto Power-off Timer Setting
Select in the general function setting mode to change the automatic power-off timer setting.
LCD displays the last status Default setting = 0 (No auto power-off)
Auto power-off function
When the weight on weigh pan is less than 10d or keeps idle for the set time, the scale will automatically switch off.
Press
TARE|PT
key
Use
ON|ZERO
or
UNIT
key
to key in parameter
Press
TARE|PT
key to
go back to the Advanced function setting menu
Automatic power-off timer setting Use
ON|ZERO
or
UNIT
key to key in
parameter 0  No auto power-off
1  When the scale is idle for 1
minute, the scale automatically switches off
2  When the scale is idle for 2
minutes, the scale automatically switches off
9  When the scale is idle for 9
minutes, the scale automatically switches off
ON|ZERO
key Upward key (0~9 digit entry)
1
UNIT
key Downward key (0~9 digit entry)
1
TARE|PT
key Move cursor rightward
1
NET|GROSS
key Move cursor leftward
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
16
lb
lb
lb
lb
2-1-3 HI/LO/OK Settings
Select in the general function setting mode to set the HI/LO/OK function. When the high limit and low limit are both set as “0”, the Hi/Lo/OK function is disabled.
LCD displays the last status
Press
TARE|PT
key
Key in the desired high limit value
Press
TARE|PT
key
Key in the desired low limit value
Press
TARE|PT
key
Key in the parameter setting for alarm
Press
TARE|PT
key
LCD displays the last status
LCD displays the last status
.
.
.
.
Alarm setting
(a)(b)(c) The definition of a, b, c positions:
(a) 1 = beep sound on
0 = beep sound off (b) 1 = beep sound on when stable
0 = beep sound on when unstable (c) 1 = beep sound on when the weight is
between high and low limits
0 = beep sound on when the weight is
not between high and low limits and higher than 10d
ON|ZERO
key Upward key (0~9 digit entry)
1
UNIT
key Downward key (0~9 digit entry)
1
TARE|PT
key Move cursor rightward
1
NET|GROSS
key Move cursor leftward
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
17
2-1-4 Restore to the Default Settings
Select in the general function setting mode to restore to the default settings.
The defaults are included the following:
1) External weight calibration
2) HI/LO/OK setting values
3) Noise filter setting (External)
4) Sampling settings for the counting function
Return (Cancel the
restoration)
Restore the default
setting
Press
TARE|PT
key
Use
ON|ZERO
or
UNIT
key
to select “return”or “fo rmat”
Press
TARE|PT
key
ON|ZERO
key Upward key (0~9 digit entry)
1
UNIT
key Downward key (0~9 digit entry)
1
TARE|PT
key Move cursor rightward
1
NET|GROSS
key Move cursor leftward
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
18
2-1-5 Noise Filter Settings
Select in the general function setting mode to set the noise filter settings.
Returning to the zero point setting
Use
ON|ZERO
or
UNIT
key to key in the
parameters or zero point
Default setting = 0
0  No skip 5  skip 5d 1  skip 1d 6 skip 6d 2  skip 2d 7 skip 7d 3  skip 3d 8 skip 8d 4  skip 4d 9 skip 9d When the weight on the scale is over 1/3 full capacity, the function is on.
Digital switch & Stabilization range setting LCD displays the last parameter setting
Filter parameter setting
LCD displays the last parameter setting.
Returning to zero point setting
LCD displays the last status
Filter parameter setting
Use
ON|ZERO
or
UNIT
key to key in the
parameters. Default setting = 5
Parameter 0 ~ 9. The larger the number is, the faster the filter responds. Fast response can lead to weighing instability. Parameter 9 the AD value is not filtered. Input AD value = Output AD value
Digital switch & Stabilization range setting Use
ON|ZERO
or
UNIT
key to key in the
parameters. Default setting = 0 Parameter 0 ~ 9, the larger the number the more stable the weight.
Press
TARE|PT
key
Use
ON|ZERO
or
UNIT
key
to key in the parameters
Press
TARE|PT
key
Use
ON|ZERO
or
UNIT
key
to key in the parameters
Press
TARE|PT
key
Use
ON|ZERO
or
UNIT
key
to key in parameters
Press
TARE|PT
key
ON|ZERO
key Upward key (0~9 digit entry)
1
UNIT
key Downward key (0~9 digit entry)
1
TARE|PT
key Move cursor rightward
1
NET|GROSS
key Move cursor leftward
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
19
2-1-6 Hold Function Settings
Hold function setting
Use
ON|ZERO
or
UNIT
key to key in the
parameters
Default setting = 0
0  Hold function disabled 1 “Peak hold” mode 2 “Stable hold 1” mode 3 “Stable hold 2” mode 4 “Animal scale hold 1” mode 5 “Animal scale hold 2” mode
Hold function setting
LCD displays the last parameter setting
Press
TARE|PT
key
Use
ON|ZERO
or
UNIT
key
to key in the parameters
Press
TARE|PT
key
ON|ZERO
key Upward key (0~9 digit entry)
1
UNIT
key Downward key (0~9 digit entry)
1
TARE|PT
key Move cursor rightward
1
NET|GROSS
key Move cursor leftward
= Hold function disabled = “Peak hold” mode
The scale keeps displaying the maximum weight when the weight is continually changing. Press any key to exit this mode.
= “Stable hold 1” mode
When the weight is stable, the LCD shows the current weight value. Press any key to exit this mode.
= “Stable hold 2” mode
When the weight is stable, the LCD shows the current weight value. When the weight returns to zero (<10d), the hold mode is cancelled automatically.
= “Animal scale hold 1” mode
When no load, the display shows “- - - - - -”. After the animal or object is on the platter and the weight is stable, the display shows the weight value and hold. When the animal or object is off the platter, the display shows “ - - - - - - ” and the hold function is off. If the weight is hardly stable, display shows the average weight in 10 seconds and holds the status, until the weight is less than 10e and display shows “- - - - - -” or press any key to calculate a new weight.
= “Animal scale hold 2” mode
When no load,the display shows “0.000”. After the animal or object is on the platter and the weight is stable, the display shows the weight value and hold. When the weight added or removed on the platter is larger than the weight set in hold 5, the hold function release and to calculate a new weight. If the weight is hardly stable, the display shows the average weight in 10 seconds and holds the
status. In this mode,
ON|ZERO
and
TARE|PT
keys are useless.
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
20
Use
ON|ZERO
or
UNIT
key
to key in the parameters
Use
ON|ZERO
or
UNIT
key
to key in the parameters
Use
ON|ZERO
or
UNIT
key
to key in the parameters
Hold Function Setting (Animal scale)
%
%
Press
TARE|PT
key
Press
TARE|PT
key
Press
TARE|PT
key
Press
TARE|PT
key
Hold function setting
Use
ON|ZERO
or
UNIT
key to key in 4 and
TARE|PT
key to enter the hold
function setting mode.
Hold function setting
LCD displays the last parameter setting
Error range setting
Use
ON|ZERO
or
UNIT
key to key in the parameters ( Among 1%~100%) Default setting = 10%
Counts averaging setting
Use
ON|ZERO
or
UNIT
key to key in the parameters (1,2,4,8,16,32,64)
Default setting = 8
ON|ZERO
key Upward key (0~9 digit entry)
1
UNIT
key Downward key (0~9 digit entry)
1
TARE|PT
key Move cursor rightward
1
NET|GROSS
key Move cursor leftward
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
21
Use
ON|ZERO
or
UNIT
key
to key in the parameters
Use
ON|ZERO
or
UNIT
key
to key in the parameters
Hold Function Setting (Animal scale)
.
kg
.
kg
Press
TARE|PT
key
Press
TARE|PT
key
Press
TARE|PT
key
Hold function setting
Use
ON|ZERO
or
UNIT
keys to key in 5
Hold function setting
LCD displays the last parameter setting
Release Hold range setting
Use
ON|ZERO
or
UNIT
keys to key in the
parameters (0 ~ full scale ) Default setting = full scale
Release Hold range setting
LCD displays the last parameter setting
ON|ZERO
key Upward key (0~9 digit entry)
1
UNIT
key Downward key (0~9 digit entry)
1
TARE|PT
key Move cursor rightward
1
NET|GROSS
key Move cursor leftward
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
22
Use
ON|ZERO
or
UNIT
key to key in the parameter.
2-1-7 Auto Unit Weight Averaging Setting
2-1-8 Record Last Zero
Auto unit weight averaging setting
Use
ON|ZERO
or
UNIT
key to key in the parameters
Default setting = 0
0  Auto unit weight averaging 1  Non auto unit weight averaging
Auto unit weight averaging setting
LCD displays the last parameter setting
Record Last Zero
Use
ON|ZERO
or
UNIT
key to select the setting Default setting =
Record the last zero setting
No record
LCD displays the last parameter setting
Press
TARE|PT
key
Use
ON|ZERO
or
UNIT
key
to key in the parameters
Press
TARE|PT
key
Press
TARE|PT
key
Press
TARE|PT
key
ON|ZERO
key Upward key (0~9 digit entry)
1
UNIT
key Downward key (0~9 digit entry)
1
TARE|PT
key Move cursor rightward
1
NET|GROSS
key Move cursor leftward
ON|ZERO
key Upward key (0~9 digit entry)
1
UNIT
key Downward key (0~9 digit entry)
1
TARE|PT
key Move cursor rightward
1
NET|GROSS
key Move cursor leftward
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
23
Use
ON|ZERO
or
UNIT
key to select parameter
Use
ON|ZERO
or
UNIT
key to select parameter
2-1-9 Foot Switch Settings (Option)
Foot switch on “ZERO” function
Display shows parameter from the previous setup
Foot switch on “TARE” function
Foot switch on “PRINT” function
RS232 print out data sent from pressing M+ key
If it is Brazil version and =
_
, the format is
format and it has totalization function.
Press
TARE|PT
key
Press
TARE|PT
key
ON|ZERO
key Upward key (0~9 digit entry)
1
UNIT
key Downward key (0~9 digit entry)
1
TARE|PT
key Move cursor rightward
1
NET|GROSS
key Move cursor leftward
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
24
Use
ON|ZERO
or
UNIT
key to select parameter
Use
ON|ZERO
or
UNIT
key To select parameter
2-1-10 F Key Function Settings
2-1-11 Zero Setting
Unrestricted zero setting off
Display shows parameter from the previous setup. Here is:
Unrestricted zero setting on
F key function represents “MC”
function
Display shows parameter from the previous setup
F key function represents
“HR” function
Press
TARE|PT
key
Press
TARE|PT
key
F key function represents
tare or pre-tare value
Press
TARE|PT
key
Press
TARE|PT
key
ON|ZERO
key Upward key (0~9 digit entry)
1
UNIT
key Downward key (0~9 digit entry)
1
TARE|PT
key Move cursor rightward
1
NET|GROSS
key Move cursor leftward
ON|ZERO
key Upward key (0~9 digit entry)
1
UNIT
key Downward key (0~9 digit entry)
1
TARE|PT
key Move cursor rightward
1
NET|GROSS
key Move cursor leftward
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
25
When the right digit is flashing,
Press
TARE|PT
key while there
is no load on platter
kg
Put the calibrated weight on platter and press
TARE|PT
key;
After 3 beep sounds, calibration completes; Remove weight
kg
kg
Press
NET|GROSS
key to skip
Press
NET|GROSS
key to move the flashing digit to the left.
About 2 seconds later
Press
NET|GROSS
key to exit
About 2 seconds later
2-2 External Weight Calibration
 The conditions for external weight calibration:
The calibration weight value placed on the platter must be over 100e, and the standard deviation of the weight must be within 10%.
.
.
.
Press
TARE|PT
key, the display
shows the calibration value. The right digit keeps flashing.
The calibration value could
be changed
Reading Zero
kg
ON|ZERO
key Upward key (0~9 digit entry)
1
UNIT
key Downward key (0~9 digit entry)
1
TARE|PT
key Move cursor rightward
1
NET|GROSS
key Move cursor leftward
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
26
2-3 RS232 Serial Interface Settings
Exit the RS232 Serial Interface Setting Mode Baud Rate Settings Communication Protocol Settings Output Format Settings Transmission method setup The Selection of Continuous Transmission Rate Auto Transmission at Zero Reset of Auto Transmission Output Condition Settings RS232 6/7 digits setting
RTC adjustment Y/M/D Print Format Selection RS485 ID Input (Option) Line Feed Input
Press
TARE|PT
key
Key in the parameter 00 ~ 08
Key in the parameter “00”, then press
1
TARE|PT
key to exit
ON|ZERO
key Upward key (0~9 digit entry)
1
UNIT
key Downward key (0~9 digit entry)
1
TARE|PT
key Move cursor rightward
1
NET|GROSS
key Move cursor leftward
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
27
2-3-1 Baud Rate Settings
Select in the RS232 serial interface setting mode to set the Baud Rate.
Baud rate setting LCD displays the last value
Default value: 9600 (bits/sec)
Baud rate setting Use
ON|ZERO
or
UNIT
key to select the
desired Baud rate 600、1200、2400、 4800、9600、19200 (bits/sec)
Press
TARE|PT
key
Use
ON|ZERO
or
UNIT
key
to select the desired Baud rate
Press
TARE|PT
key
Key in the parameter “00”
Press
TARE|PT
key to exit
ON|ZERO
key Upward key (0~9 digit entry)
1
UNIT
key Downward key (0~9 digit entry)
1
TARE|PT
key Move cursor rightward
1
NET|GROSS
key Move cursor leftward
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
28
2-3-2 Communication Protocol Settings
Select in the RS232 serial interface setting mode to set the Communication Protocol.
Communication protocol setting
LCD shows the last setting value.  Default setting:
Communication protocol setting Use
ON|ZERO
or
UNIT
key to select the
protocol setting: n 8 1, E 7 1, O 7 1
Press
TARE|PT
key
Use
ON|ZERO
or
UNIT
key
select the protocol setting
Press
TARE|PT
key
Key in the parameter “00”
Press
TARE|PT
key to exit
ON|ZERO
key Upward key (0~9 digit entry)
1
UNIT
key Downward key (0~9 digit entry)
1
TARE|PT
key Move cursor rightward
1
NET|GROSS
key Move cursor leftward
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
29
2-3-3 Output Format Settings
Select in the RS232 serial interface setting mode to set the Output Format.
RS232 output format setting LCD shows the last setting. Default setting:
RS232 output format setting Use
ON|ZERO
or
UNIT
key to select the
output format:
= Same data as the scale
= Gross weight = Net weight = Same data as the scale in
simple format
= Same gross data as the scale in
simple format
= Same net data as the scale in
simple format
= Hi/Lo/OK status + Same data as
the scale in simple format
= Hi/Lo/OK status + Simple gross
weight
= Hi/Lo/OK status + Simple net
weight
= Tare value
= M+ Transmission 1 note 1
= M+ Transmission 2 note 2 = Brazil printing format note 3
Format 12 are only for Brazil
Format 10.11 are not available on counting mode
Press
TARE|PT
key
Use
ON|ZERO
or
UNIT
key
to select the output format
Press
TARE|PT
key
Key in the parameter “00”
Press
TARE|PT
key to exit
ON|ZERO
key Upward key (0~9 digit entry)
1
UNIT
key Downward key (0~9 digit entry)
1
TARE|PT
key Move cursor rightward
1
NET|GROSS
key Move cursor leftward
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
30
Note1:
Ticket No. Date year/month/day & day/month/year
(choose 1 out of 2 date formats) Time G T N Total Net
(This line will only print when data is erased, showing net weight total of every count)
Note2:
Ticket No. Date year/month/day & day/month/year
(choose 1 out of 2 date formats) Time G T N Total Weight
(This line will only print when data is erased, showing gross weight total of every count)
Note3:
If it is not Brazil version, it can only print under continuous transmition. If it is Brazil version, under decimal units mode, =
and
= _
, it can print out. It is not available on counting mode.
For example:
70.15Kg print as: =51.07000=51.07000=51.07000=51.07000=51.07000 negative 70.15Kg print as: =51.0700-=51.0700-=51.0700-=51.0700-=51.0700-
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
31
2-3-4 Continuous Transmission Settings
Select in the RS232 serial interface setting mode to set the Continuous Transmission status.
Transmission setting LCD shows the last setting Default setting:
Transmission setting Use
ON|ZERO
or
UNIT
key to select the
transmission type:
= Command mode
= Continuous transmission
= Constantly auto
transmission
= Shut down RS232
_ = M+ Mode
Press
TARE|PT
key
Use
ON|ZERO
or
UNIT
key to select the transmission type
Press
TARE|PT
key
Key in the parameter “00”
Press
TARE|PT
key to exit
ON|ZERO
key Upward key (0~9 digit entry)
1
UNIT
key Downward key (0~9 digit entry)
1
TARE|PT
key Move cursor rightward
1
NET|GROSS
key Move cursor leftward
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
32
2-3-5 Selection of the Continuous Transmission Rate
Select in the RS232 serial interface setting mode to set the Continuous Transmission Rate.
Continuous transmission rate setting
The LCD shows the last setting. Default setting:
Use
ON|ZERO
or
UNIT
key to select the continuous transmission rate:
= 1 time/sec = 2 times/sec = 4 times/sec
= 8 times/sec
= 16 times/sec
= More than16 times/sec
Note: Actual output times vary by
hardware implements
Press
TARE|PT
key
Use
ON|ZERO
or
UNIT
key
to select the continuous transmission rate.
Press
TARE|PT
key
Key in the parameter “00”
Press
TARE|PT
key to exit
ON|ZERO
key Upward key (0~9 digit entry)
1
UNIT
key Downward key (0~9 digit entry)
1
TARE|PT
key Move cursor rightward
1
NET|GROSS
key Move cursor leftward
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
33
2-3-6 Auto Transmission at Zero
Select in the RS232 serial interface setting mode to set the
Auto Transmission at Zero.
When the value of “Auto transmission at zero” set as , the “Auto
transmission a t zero” function is not available. Because when the scale is at zero and
keeping stable, the data are keeping transmitted, and that would be the same as “Continuous Transmission”.
Press
TARE|PT
key
Use
ON|ZERO
or
UNIT
key to key in the desired parameters
Press
TARE|PT
key
Key in the parameter “00”
Press
TARE|PT
key to exit
Auto transmission at zero
LCD shows the last setting Default setting:
Auto transmission at zero
Use
ON|ZERO
or
UNIT
key to key in the
desired parameters:
= 00 division of weight value
= 01 division of weight value
= 99 divisions of weight value
ON|ZERO
key Upward key (0~9 digit entry)
1
UNIT
key Downward key (0~9 digit entry)
1
TARE|PT
key Move cursor rightward
1
NET|GROSS
key Move cursor leftward
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
34
2-3-7 Reset Auto Transmission
Select in the RS232 serial interface setting mode to Reset Auto Transmission.
When the value of “Auto transmission at zero” set as , the “Auto
transmission a t zero” function is not available. Because when the scale is at zero and
keeping stable, the data are keeping transmitted, and that would be the same as “Continuous Transmission”.
Resetting auto transmission
Use
ON|ZERO
or
UNIT
key to key in the desired parameters:
= 00 division of weight value
= 01 division of weight value
= 99 divisions of weight value
Press
TARE|PT
key
Use
ON|ZERO
or
UNIT
key to key in the desired
parameters
Press
TARE|PT
key
Key in the parameter “00”
Press
TARE|PT
key to exit
Resetting auto transmission
The LCD shows the last setting Default setting:
ON|ZERO
key Upward key (0~9 digit entry)
1
UNIT
key Downward key (0~9 digit entry)
1
TARE|PT
key Move cursor rightward
1
NET|GROSS
key Move cursor leftward
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
35
2-3-8 Output Condition Settings
Select in the RS232 serial interface setting mode to Reset of Auto Transmission.
Output condition settings The LCD shows the last setting.
Default setting:
Output condition settings Use
ON|ZERO
or
UNIT
key to select the desired setting:
= All output = Stable output
(No output when OL or unstable)
= Stable output
(OL included)
Press
TARE|PT
key
Use
ON|ZERO
or
UNIT
key to select the desired setting
Press
TARE|PT
key
Key in the parameter “00”
Press
TARE|PT
key to exit
RS232 2-way serial interface settings
ON|ZERO
key Upward key (0~9 digit entry)
1
UNIT
key Downward key (0~9 digit entry)
1
TARE|PT
key Move cursor rightward
1
NET|GROSS
key Move cursor leftward
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
36
Use
ON|ZERO
or
UNIT
key to select the desired setting
2-3-9 RS232 6/7 Digits Setting
Select in the RS232 serial interface setting mode to Reset of Auto Transmission.
Press
TARE|PT
key
Output Condition Restriction Settings Display shows the previous setup Factory Default is
(6 places)
Press
TARE|PT
key
Output Condition Restriction Settings
Use
ON|ZERO
or
UNIT
key to select desired setting. Output condition:
= 6 digits
= 7 digits
Key in the parameter “00”
Press
TARE|PT
key to exit
ON|ZERO
key Upward key (0~9 digit entry)
1
UNIT
key Downward key (0~9 digit entry)
1
TARE|PT
key Move cursor rightward
1
NET|GROSS
key Move cursor leftward
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
37
Use
ON|ZERO
or
UNIT
key to select the desired setting
2-3-10 RTC Adjustment
Select in the RS232 serial interface setting mode to reset of Auto Transmission.
2-3-11 Y/M/D Print Layout Selection
Select in the RS232 serial interface setting mode to reset of Auto Transmission.
Press
TARE|PT
key
Move cursor to the right end and Press
TARE|PT
key
Press
TARE|PT
key
Press
TARE|PT
key
Enter time in HH/MM/SS Use upward and downward key to
select, and use
TARE|PT
key to
confirm, and move rightward.
Move cursor to the right end and Press
TARE|PT
key to confirm.
RTC adjustment is complete
Press
TARE|PT
key
Display shows the previous setup Use upward and downward key to select,
and use
TARE|PT
key to confirm
If y_m_d, printed as Year/Month/Day If d_m_y, printed as Day/Month/Year
Enter the date in YY/MM/DD Use upward and downward key to
select, and use
TARE|PT
key
to confirm
Press
TARE|PT
key
Press
TARE|PT
key
ON|ZERO
key Upward key (0~9 digit entry)
1
UNIT
key Downward key (0~9 digit entry)
1
TARE|PT
key Move cursor rightward
1
NET|GROSS
key Move cursor leftward
ON|ZERO
key Upward key (0~9 digit entry)
1
UNIT
key Downward key (0~9 digit entry)
1
TARE|PT
key Move cursor rightward
1
NET|GROSS
key Move cursor leftward
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
38
2-3-12 RS485 ID Input (Option)
Select in the RS232 serial interface setting mode to reset of Auto Transmission.
2-3-13 Line Feed Input
Line feed would be available only when was set as or .
Press
TARE|PT
key
Press
TARE|PT
key
Display shows the previous setup Use upward and downward key to
select, and use
TARE|PT
key to confirm
Factory default: 2 Display shows the previous setup Use upward and downward key to select, and use
TARE|PT
key to
confirm Press
TARE|PT
key
Press
TARE|PT
key
ON|ZERO
key Upward key (0~9 digit entry)
1
UNIT
key Downward key (0~9 digit entry)
1
TARE|PT
key Move cursor rightward
1
NET|GROSS
key Move cursor leftward
ON|ZERO
key Upward key (0~9 digit entry)
1
UNIT
key Downward key (0~9 digit entry)
1
TARE|PT
key Move cursor rightward
1
NET|GROSS
key Move cursor leftward
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
39
Command Mode
Command Format A
Host
Command
Slave
Command
MZ
Zero
SO
Command mode
MT
Tare
UA
Switch to the first unit
MG
Gross weight
UB
Switch to the second unit
MN
Net weight
UC
Switch to the third unit
CT
Clear TARE value
UD
Switch to the forth unit
SC
Continuous transmission
UE
Switch to the fifth unit
SA
Auto transmission
UF
Switch to the sixth unit
%
Stop continuous transmission and enter the command mode
Note: UA ~ UF settings are depended on the model of the scale
Command Format B
Host
Command
Slave
Data
RW
Read current weight
RH
Read Gross (simple)
RG
Read Gross weight
RI
Read Net (simple)
RN
Read Net weight
RJ
Read comparison situation + current display of weight (simple)
RT
Read TARE
RK
Read comparison situation + Gross (simple)
RB
Read current display of weight (simple)
RL
Read comparison situation + Net (simple)
Note: a. add % before the command to read continuously
b. add # before the command to transmit a stable value
RJ,RK,RL Command Description
If RL command entered, and if weight is higher than HI (FNC 03 setting), and if the current weight is 10 kg, the following will be displayed: “100+ 10.000” If weight is higher than HI (FNC 03 setting), and if the current weight is 0.5 kg, the following will be displayed: “001+ 0.500” If weight is between HI and LOW, and if the current weight is 1 kg, the following will be displayed: 010+ 1.000
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
40
˙
Read weight comparison setting value RS
: Groups(00 ~ 09) : Setting Items
HI
Show “HI” presetting value
LO
Show “LO” presetting value
Note : (Group) is various depended on different models
00  The first group 01  The second group 02  The third group
EX:
RS02LO＜CR＞＜LF ＞ Show “LO” presetting value
ANS:
RS02LOXXXXXX＜CR＞＜LF＞
Command Format C
Host
Command+ Data
Slave
Command+ Data
Write weight comparison setting value WSXXXXXX
: Groups(00 ~ 09) : Setting Items XXXXXX: Setting Value
HI
Write “HI” setting value
LO
Write “LO” setting value
Note :  (Group) is various depended on different models
00  The first group 01  The second group 02  The third group
EX:
WS00HI001000＜CR＞＜LF＞ Write “HI” setting value
ANS:
WS00HI001000＜CR＞＜LF＞
Command Format D
Host
Data
Slave
Value (e.g. Price)
Position of decimal point
CR
LF
1 2 3 4 5
6
1
When the Slave receives this data format, it will transfer the data and display it on its LCD.
The function is effective when the weight value is over 0. The above 4 (ABCD) command formats are RS232 bi-directional. There are the
following error messages received by Slave terminal (scale).
Error messages: E1: Wrong command E2: Command format error (Wrong parameters) E3: Command not recognised
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
41
Output data format
1. 7 places (first decimal place not included)
Weight format
Gross
S T , G S , + 0 1 2 3 4 5 6 7
SP
SP o z
CR
LF
Net
S T , N T , + 1 . 2 3 . 4 5 6 t l . g
Tare
S T , T R , + 0 1 2 . 3 4 5 6
SP
SP k g
Plus OL
O L , G S , +
SP
SP
SP
SP
SP
SP
SP
SP
SP
SP
SP
SP
Minus OL
O L , G S , -
SP
SP
SP
SP
SP
SP
SP
SP
SP
SP
SP
SP
Unstable
U S , G S , + 0 1 2 3 4 . 5 6
SP
SP l b
Simple format
G/N
+ 1 . 2 3 . 4 5 6
CR
LF
G/N
+ 0 1 2 3 4 5 . 6
G/N
+ 0 1 2 . 3 4 5 6
Plus OL
+
SP
SP
SP
SP
SP
SP
SP
SP
Minus OL
-
SP
SP
SP
SP
SP
SP
SP
SP
Comparison status + Simple format
Byte0
Byte1
Byte2
+/- 1 . 2 3 . 4 5 6
CR
LF
Byte0 : HI 30H/31H Byte1 : OK 30H/31H Byte2 : LO 30H/31H
2. 6 places ( first decimal place not included)
Weight format
Gross
S T , G S , + 1 2 3 4 5 6 7 SP
SP o z
CR
LF
Net
S T , N T , + . 2 3 . 4 5 6 t l . g Tare
S T , T R , + 1 2 . 3 4 5 6 SP
SP k g
Plus OL
O L , G S , +
SP
SP
SP
SP
SP
SP
SP
SP
SP
SP
SP
Minus OL
O L , G S , -
SP
SP
SP
SP
SP
SP
SP
SP
SP
SP
SP
Unstable
U S , G S , + 1 2 3 4 . 5 6 SP
SP l b
Simple format
G/N + . 2 3 . 4 5 6
CR
LF
G/N
+ 1 2 3 4 5 . 6 G/N
+ 1 2 . 3 4 5
6
Plus OL
+
SP
SP
SP
SP
SP
SP
SP
Minus OL
-
SP
SP
SP
SP
SP
SP
SP
Comparison status + simple format
Byte0
Byte1
Byte2
+/- . 2 3 . 4 5 6 CR
LF
Byte0 : HI 30H/31H Byte1 : OK 30H/31H Byte2 : LO 30H/31H
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
42
Serial Data Transfer/Receive Format
LSB MSB
1 0
n , 8 , 1
S
8-bit data
STOP
1 0
e , 7 , 1
S
7-bit data
P
STOP
1 0
o , 7 , 1
S
7-bit data
P
STOP
Note: S : Start bit STOP: Stop bit P : Parity bit
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
43
Appendix 1 ASCII Code Table
Symbol
ASC II
Code
Symbol
ASC II
Code
Symbol
ASC II
Code
A
41H
a
61H
0
30H
B
42H
b
62H
1
31H
C
43H
c
63H
2
32H
D
44H
d
64H
3
33H
E
45H
e
65H
4
34H
F
46H
f
66H
5
35H
G
47H
g
67H
6
36H
H
48H
h
68H
7
37H
I
49H
i
69H
8
38H
J
4AH
j
6AH
9
39H
K
4BH
k
6BH
0DH
L
4CH
l
6CH
M
4DH
m
6DH
N
4EH
n
6EH
O
4FH
o
6FH
P
50H
p
70H
Q
51H
q
71H R 52H
r
72H
S
53H
s
73H
T
54H
t
74H
U
55H
u
75H
V
56H
v
76H
W
57H
w
77H
X
58H
x
78H
Y
59H
y
79H
Z
5AH
z
7AH
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
44
Appendix 2 7-Segment Display Characters
Digit
7 segment letter
Alphabet
7 segment letter
Alphabet
7 segment letter
0 A N
1 B O
2 C P
3 D Q 4 E R 5 F S 6 G T
7 H U
8 I V 9 J W
K X
L Y
M Z
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
45
Appendix 3 Wiring Instructions
Load cell wiring method
(1) As shown below, when a load cell is connected with a 4PIN cable,
SEN+ and SEN- can be unconnected. J11 and J12 on PCB must be tin-soldered in short circuit.
(2) If Load Cell is 6PIN, please wire as the following diagram:
EXCELL PRECISION CO., LTD
02005159 ZSME300000225
46

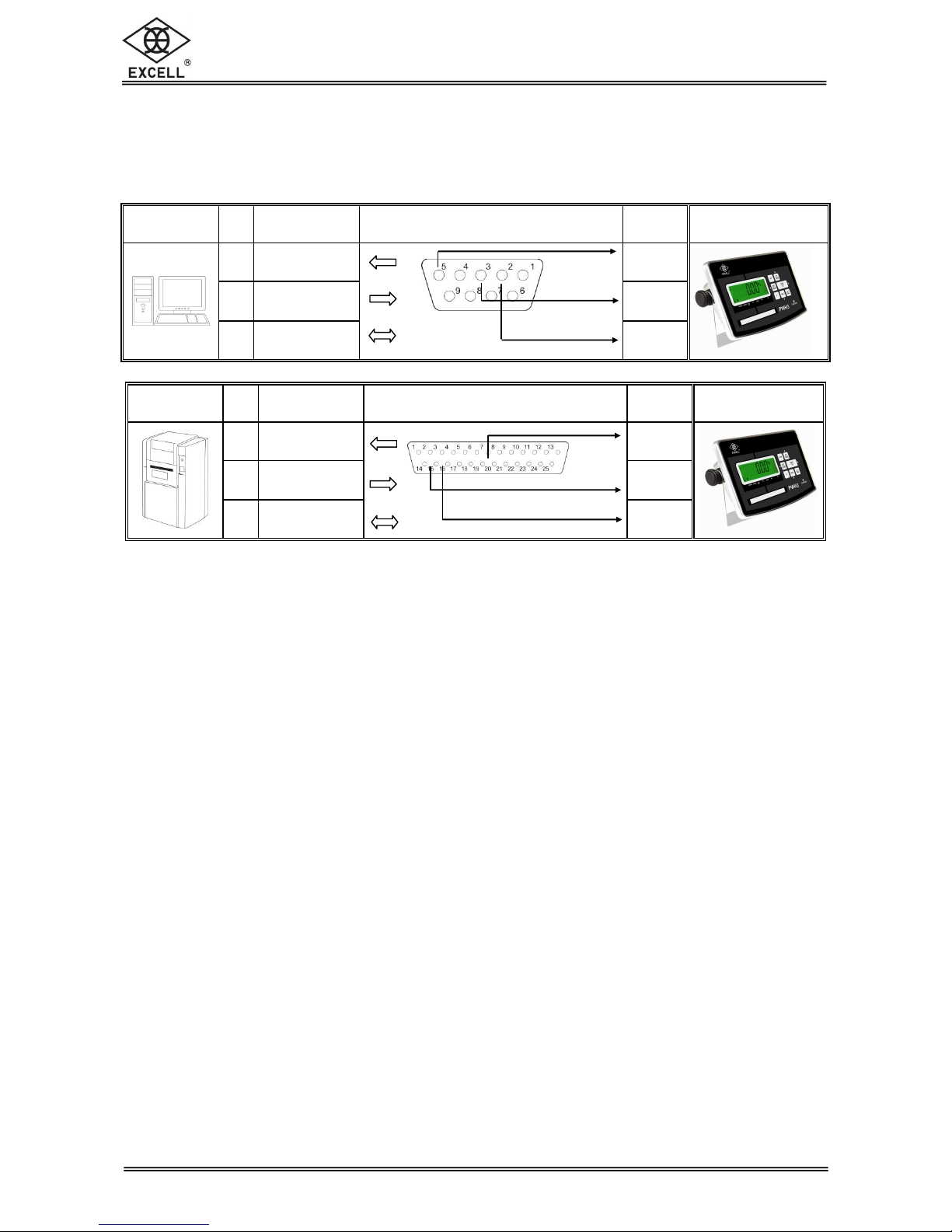

RS232 wiring instruction
To connect RS232, please open the housing, RS232’s PIN connectors locate on the bottom-right corner of the main board. The most common connection method is using 9PIN and 25PIN, as shown below:
PC
PIN
Function
Female 9 PINS
Function
PWH3
2
Transmit Data
SG
3
Receive Data
RxD
5
Signal Ground
TxD
Printer
PIN
Function
Male 25 PINS
Function
PWH3
2
Receive Data
SG
3
Transmit Data
RxD
7
Signal Ground
TxD
To use other connection methods, please identify the signal and following the above principles. After it is finished, please install the housing by the instruction in the SPECIAL NOTICE.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
