Excel XR2600TY0, XR2600TY2, XR2600TY1 Owner’s Manual
®
Pressure Washer
Record All Information and attach sales
receipt here for future reference:
Purchase Date:
Serial #:
Do Not return this product to the retailer!
Questions? 1-800-888-2468
Learn more about your pressure washer,
get answers to frequently asked questions,
and register on line at
www, excellpressurewasher, com
Operation D'dilanuam
for model XR2600
Table of Contents
Safety Guidelines/Definitions .............................2
Consumer Saftey Information ............................2
Important Safety Instructions .....................2-5
Carton Contents ...................................... 6
Assembly Instructions ..................................6

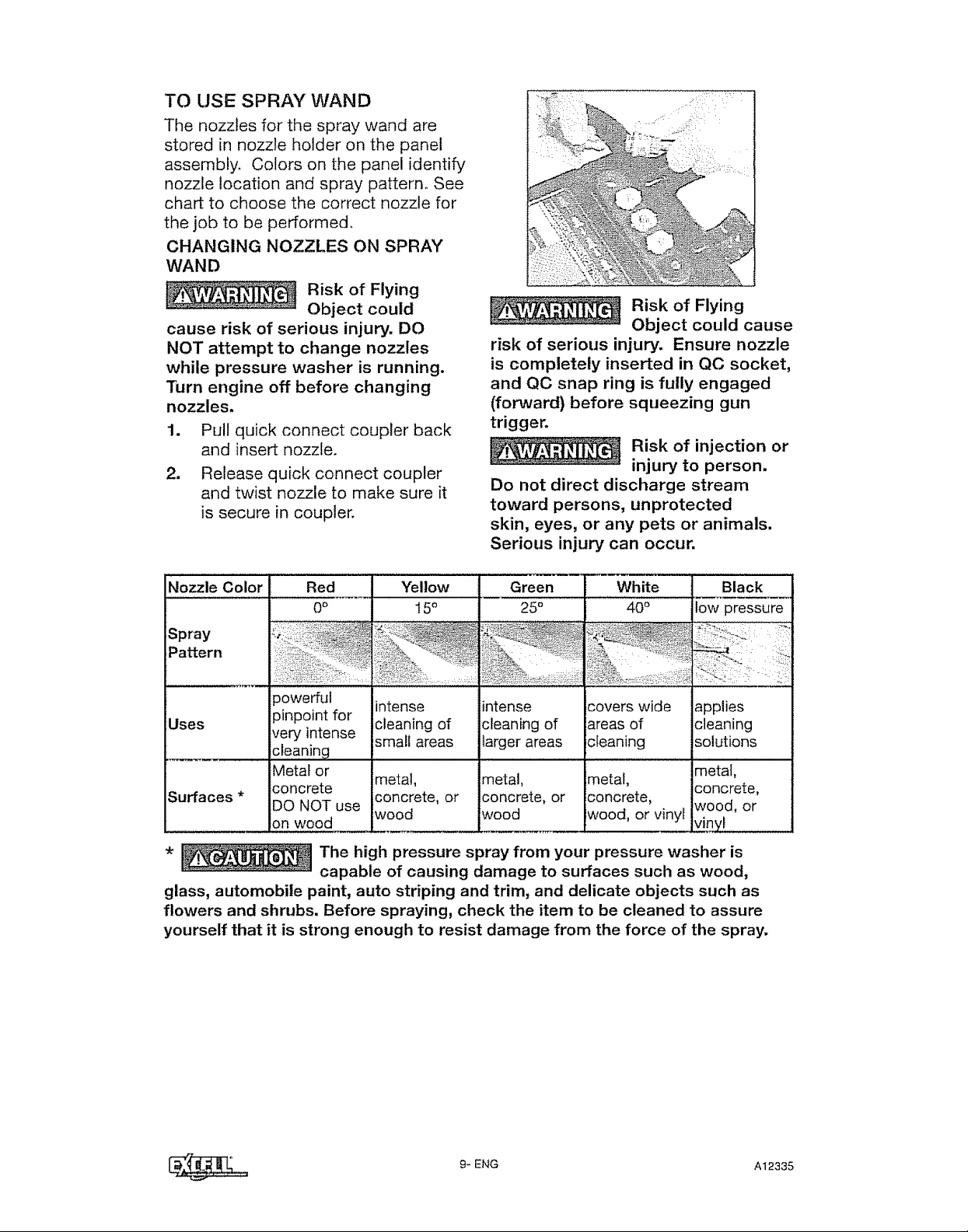

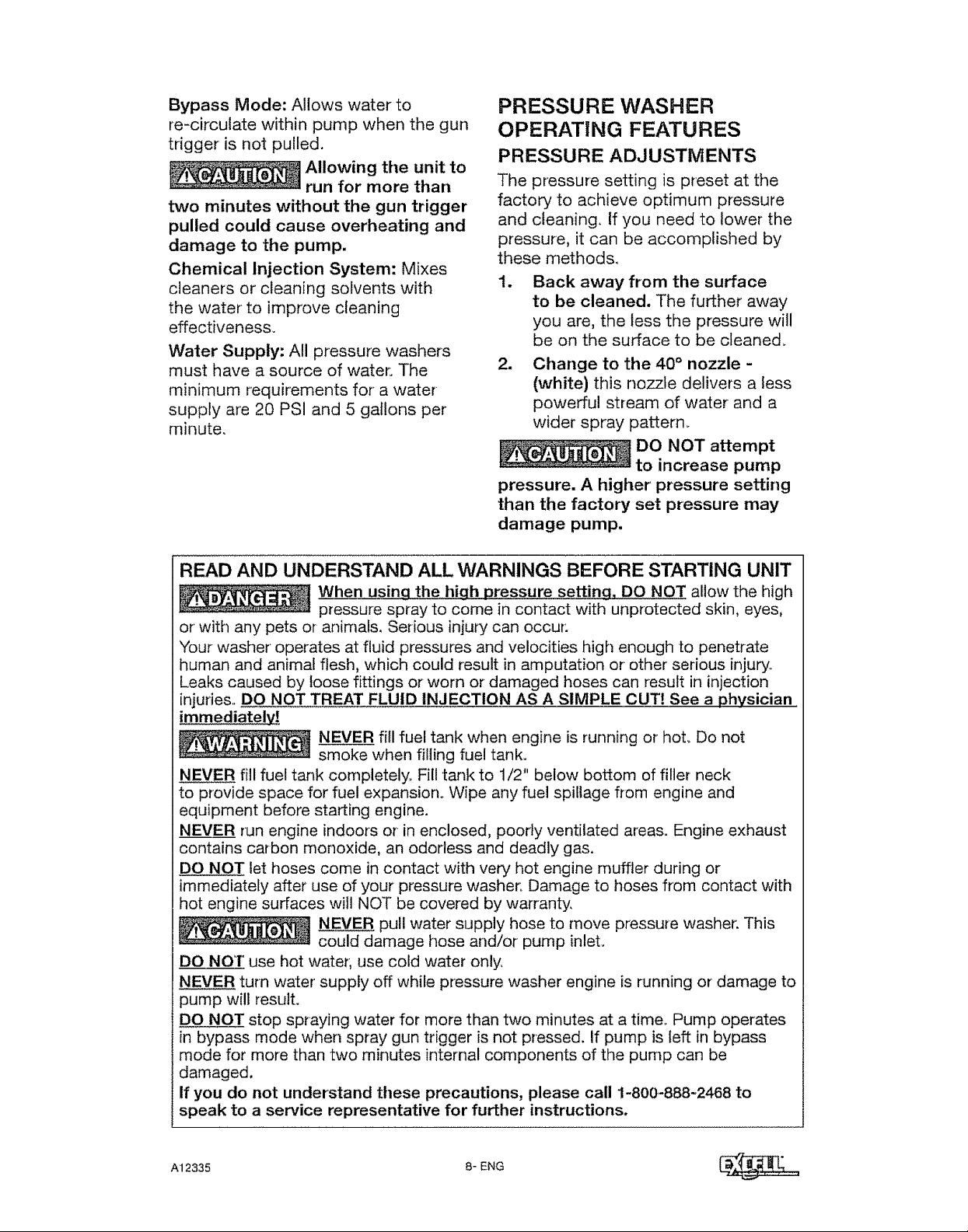

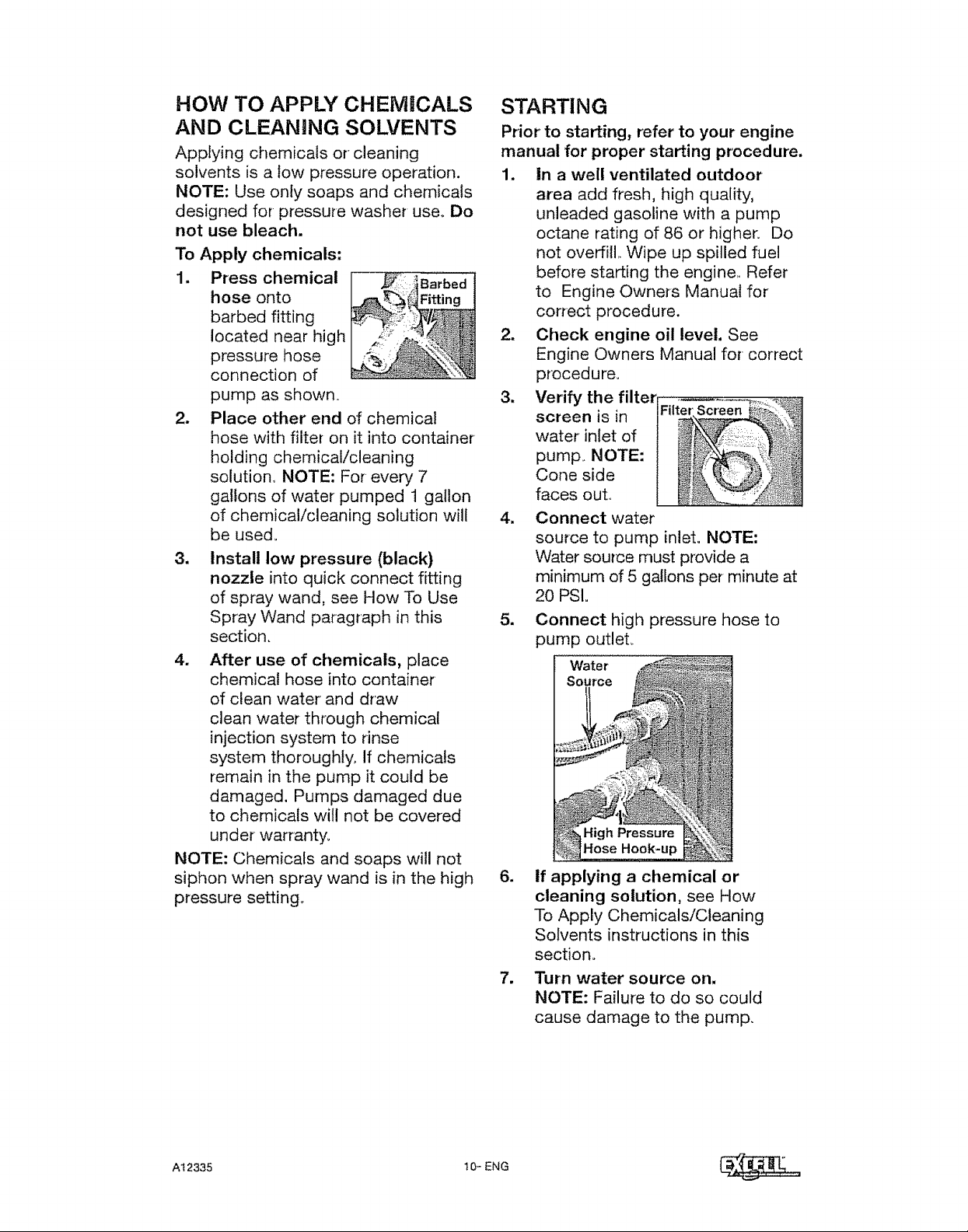

Operating Instructions ....................................7-11
IMPORTANT
Please make certain that the person who is to use this equipment carefully
reads and understands these instructions before operatin#

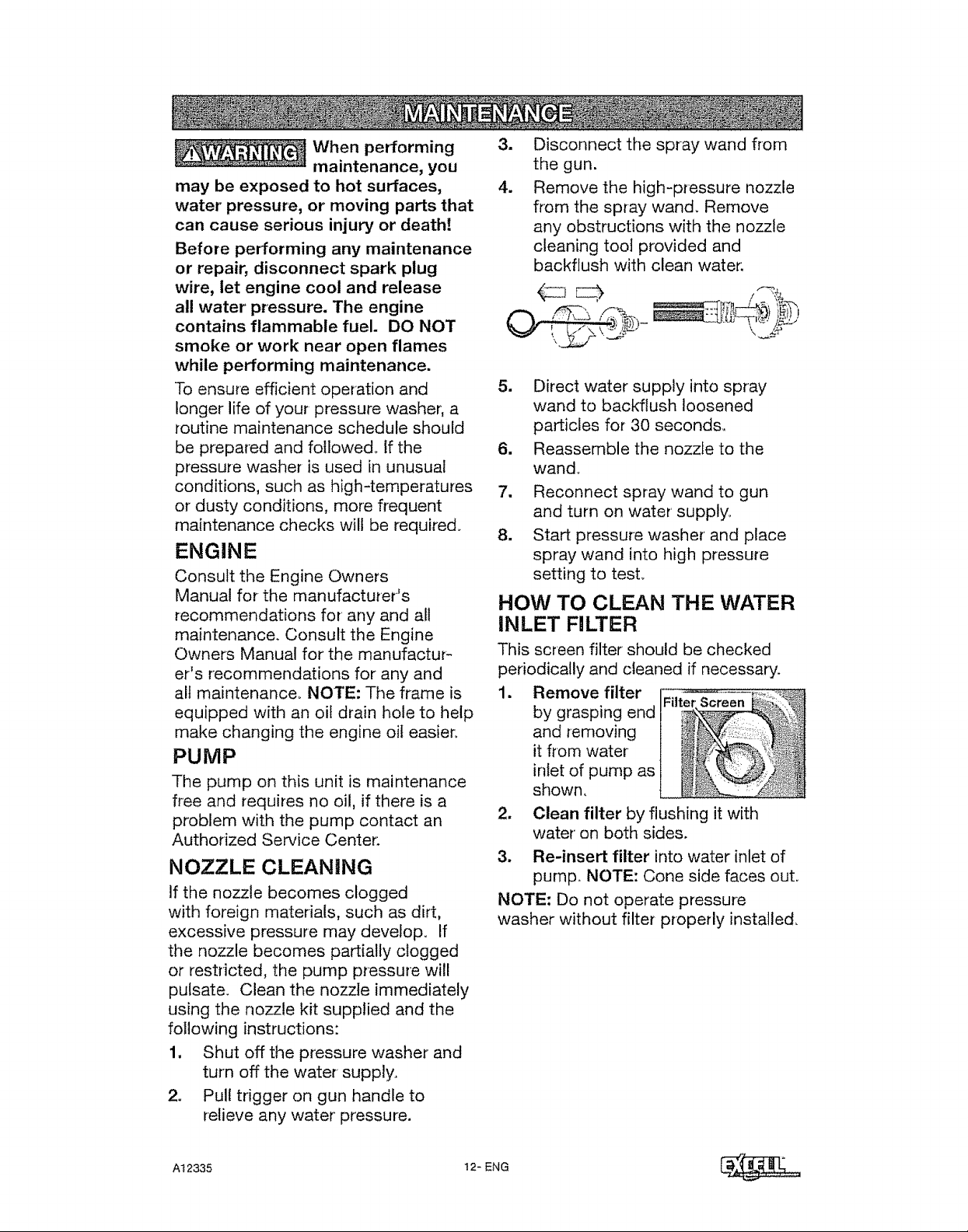

Maintenance .................................................12
Storage ............................................................13
Trouble Shooting Guide ................... 14-I5
Warranty .............................................................................16
Espa_ol .......................................................................17-32
Frangais ...................................................33-48
Part No. A12335 Rev. 0 05/18/05
Thismanualcontainsinformationthatisimportantforyoutoknowandunderstand,
ThisinformationrelatestoprotectingYOURSAFETYandPREVENTINGEQUIPMENT
PROBLEMS..Tohelpyourecognizethisinformation,weusethesymbolsbelow.Please
readthemanualandpayattentiontothesesymbols.
_ Indicatesanimminently
which,ifnotavoided,wi resultindeath
or serious injury.
_ ndicates a potentially
which, if not avoided, could result in death
or serious injury.
_This product may not be equipped with a spark arresting muffler.
hazardoussituation
which, if not avoided, may result in minor
or moderate injury.
hazardous situation
If the product is not equipped and will be used around flammable
_Used without the safety
potentially hazardous situation which, if not
avoided, may result in property€ damage.
Indicates a potentially
hazardous situation
alert symbol indicates a
materials, or on land covered with materials such as agricultural crops, forest, brush,
grass, or other similar items, then an approved spark arrester must be installed and
is legally required in the state of California. It is a violation of California statutes
section 130050 and/or sections 4442 and 4443 of the California Public Resources
Code, unless the engine is equipped with a spark arrester, as defined in section 4442,
and maintained in effective working order; Spark arresters are also required on some
U.S. Forest Service land and may also be legally required under other statutes and
ordinances.
__j_ Engine exhaust contains chemicals known, in certain quantities, to
cause cancer, birth defects or other reproductive harm
Do not operate this unit until you have read and understand this
Operators Manual and the Engine Owners Manual for Safety,
Operation, and Maintenance Instructions.
READ AND SAVE THESE INSTRUCTIONS
_RISK OF EXPLOSION OR FIRE
HAZARD _
WHAT CAN HAPPEN HOW TO PREVENT IT
o
Spilled gasoline and it's vapors can
become ignited from cigarette sparks,
electrical arcing, exhaust gases, and hot
engine components such as the muffler:.
Heat will expand fuel in the tank which
could result in spillage and possible fire
explosion°
Operating the pressure washer in an ex-
plosive environment could result in a fire..
A!2335 2- ENG
o
Shut off engine and allow it to cool before
adding fuel to the tank.
Q
Use care in filling tank to avoid spilling fuel,
Move pressure washer away from fueling
area before starting engine..
Keep maximum fue! level 1/2"below top of
tank to allow for expansion,
Operate and fuel equipment in well venti-
lated areas free from obstructions. Equip
areas with fire extinguisher suitable for
gasoline fires.
_RISK OF EXPLOSION OR FIRE (continued)
WHAT CAN HAPPEN HOW TO PREVENT IT
• + Never operate pressure washer in an area
Materials placed against or near the
pressure washer can interfere with its proper
containing dry brush or weeds,,
ventilation features causing overheating and
possible ignition of the materials.
Muffler exhaust heat can damage painted
surfaces, melt any material sensitive to
heat (such as siding, plastic, rubber, or
vinyl), and damage live plants..
Improperly stored fuel could lead to
accidental ignition., Fuel improperly
Always keep pressure washer a minimum of
four feet away from surfaces (such as houses,
automobiles, or live plants) that could be
damaged from muffler exhaust heat..
Store fuel in an QSHA approved container,
in a secure location away from work area.
secured could get into the hands of
children or other unqualified persons°
Use of acids, toxic or corrosive chemicals,
poisons, insecticides, or any kind of
flammable solvent with this product could
result in serious injury or death.
Over inflation of tires could result in
serious injury and property damage.
HAZARD_RISK TO BREATHING
WHAT CAN HAPPEN HOW TO PREVENT IT
D O
Breathing exhaust fumes will cause
serious injury or death! Engine exhaust
contains carbon monoxide, an odorless
and deadly gas.
Some cleaning fluids contain substances
which could cause injury to skin, eyes, or
lungs..
, Do not spray flammable liquids..
Use a tire pressure gauge to check the tires
pressure before each use and while inflating
tires; see the tire sidewall for the correct tire
pressure NOTE: Air tanks, compressors, and
similar equipment used to inflate tires can fill
small tires similar to these very rapidly. Add
air in small increments and frequently use the l
tire gauge to prevent over inflation.
Operate pressure washer in a well
ventilated area. Avoid enclosed areas such
as garages, basements, etc.
o
Never operate unit in a location occupied
by humans or animals.
o
Use only cleaning fluids specifically recom-
mended for high pressure washers. Follow
manufacturers recommendations. Do not
use chlorine bleach or any other corrosive
compound.
_RISK OF CHEMICAL BURN
HAZARD
WHAT CAN HAPPEN HOW TO PREVENT IT
o °
Use of acids, toxic or corrosive chemicals,
poisons, insecticides, or any kind of
flammable solvent with this product could
result in serious injury or death
3- ENG A12335
Do not use acids, gasoline, kerosene,
or any other flammable materials in this
product. Use only household detergents,
cteaners and degreasers recommended
for use in pressure washers
Wear protective clothing to protect eyes
and skin from contact with sprayed
materials.
HAZARD
RISK TO FLUID INJECTION
WHAT CAN HAPPEN
Your washer operates at fluid pressures
and velocities high enough to penetrate
human and animal flesh, which could
result in amputation or other serious injury,.
Leaks caused by loose fittings or-worn
or damaged hoses can result in injection
injuries. DO NOT TREAT FLUID INJECTION
AS A SIMPLE CUT! See a physician
immediately!
Injuries can result if system pressure is not
reduced before attempting maintenance or
disassembly
o
Never place hands in front of nozzle..
o
Direct spray away from self and others_
o
Make sure hose and fittings are tightened
and in good condition. Never hold onto the
hose or fittings during operation..
o
Do not allow hose to contact muffler:
6
Never attach or' remove wand or hose
fittings while system is pressurized.
• To relieve system pressure, shut off
engine, turn off water supply, and pull gun
trigger until water stops flowing..
HOW TO PREVENT IT
• Use only hoses and accessories rated
for pressure higher than your pressure
washer's PSI.
_RISK OF ELECTRICAL SHOCK
HAZARD
WHAT CAN HAPPEN HOW TO PREVENT IT
o Spray directed at electrical outlets or ° Unplug any electrically operated product
switches, or objects connected to an before attempting to clean it. Direct spray
electrical circuit, could result in a fatal away from electric outlets and switches.
electrical shock..
RiSK OF HOT SURFACES
WHAT CAN HAPPEN HOW TO PREVENT IT
Contact with hot surfaces, such as
engines exhaust components, could
result in serious burn.
RISK OF INJURY OR PROPERTY DAMAGE
WHEN TRANSPORTING OR STORING
WHAT CAN HAPPEN
Fuel or oil can leak or spill and could
result in fire or breathing hazard, serious
injury or death can result. Fuel or oil
leaks will damage carpet, paint or other"
surfaces in vehicles or trailers.
HAZARD
During operation, touch only the control
surfaces of the pressure washer. Keep
children away from the pressure washer
at all times. They may not be able to
recognize the hazards of this product..
HAZARD
HOW TO PREVENT IT
tf pressure washer is equipped with a
fuel shut-off valve, turn the valve to the
off position before transporting to avoid
fuel leaks If pressure washer is not
equipped with a fuel shut-off valve, drain
the fuel from tank before transporting,
Only transport fuel in an OSHA approved
container. Always place pressure washer
on a protective mat when transporting to
protect against damage to vehicle from
leaks,. Remove pressure washer from vehicle
immediately upon arrival at your destination.
A12335 4- ENG
_RiSK OF UNSAFE OPERATION
HAZARD
WHAT CAN HAPPEN HOW TO PREVENT IT
a
Unsafe operation of your pressure washer
o Do not use chlorine bleach or any other
could lead to serious injury or death to
you or others.
o Become familiar with the operation and
° Keep operating area clear of all persons,
. Do not operate the product when
° Never defeat the safety features of this
° Never leave wand unattended while unit
if proper starting procedure is not
o
followed, engine can kickback causing
serious hand and arm injury.
corrosive compound.
controls of the pressure washer.
pets, and obstacles
fatigued or under the influence of alcohol
or drugs,. Stay aler_ at all times
product,
Do not operate machine with missing,
broken, or unauthorized parts,.
is running.
If engine does not start after two pulls,
squeeze trigger of gun to relieve pump
pressure. Pull starter cord slowly until
resistance is felt. Then pull cord rapidly
to avoid kickback and prevent hand or
arm injury.
The spray gun/wand is a powerful clean-
ing tool that could look like a toy to a
child,.
Reactive force of spray will cause gun/
. Do not overreach or stand on an unstable
wand to kickback, and could cause the op-
erator to slip or fall, or misdirect the spray°
improper control of gun/wand can result in
injuries to self and others,
_RISK OF INJURY FROM SPRAY
• Grip gun/wand firmly with both hands,.
HAZARD
WHAT CAN HAPPEN HOW TO PREVENT IT
• e
High velocity fluid spray can cause
objects to break, propelling particles at
high speed.
Light or unsecured objects can become
hazardous projectifes_
Always wear ANSI approved Z87 safety
glasses .Wear protective clothing to protect
against accidental spraying.
• Never point wand at, or spray people or
animals..
• Always secure trigger lock when wand
is not in service to prevent accidental
operation.
° Never permanently secure trigger in pull
back (open) position.
Keep children away from the pressure
washer at all times.
support.
Do not use pressure washer while
standing on a ladder.
Expect the gun to kickback when
triggered,
5-ENG A12335
Loading...
