Excamera I2CDriver User Manual

Download

Contents

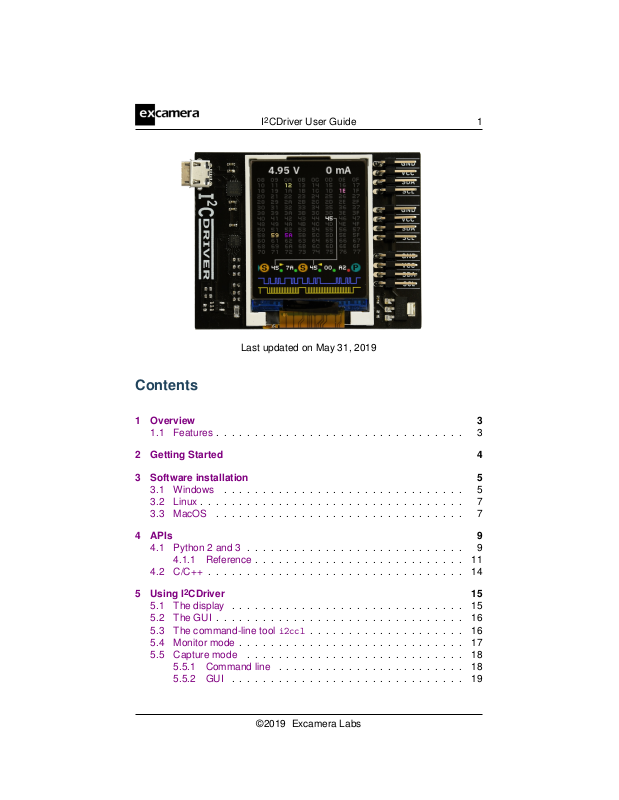

I2CDriver User Guide 1

Last updated on May 31, 2019

1 Overview 3

1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2 Getting Started 4

3 Software installation 5

3.1 Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

3.2 Linux . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3.3 MacOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

4 APIs 9

4.1 Python 2 and 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

4.1.1 Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4.2 C/C++ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

5 Using I2CDriver 15

5.1 The display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

5.2 The GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

5.3 The command-line tool i2ccl . . . . . . . . . . . . . . . . . . . . 16

5.4 Monitor mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

5.5 Capture mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

5.5.1 Command line . . . . . . . . . . . . . . . . . . . . . . . . 18

5.5.2 GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

I2CDriver User Guide 2

6 Examples 20

6.1 Color Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

6.2 Egg Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

6.3 Take-a-ticket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

7 Technical notes 22

7.1 Port names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

7.2 Decreasing the USB latency timer . . . . . . . . . . . . . . . . . 22

7.3 Temperature sensor . . . . . . . . . . . . . . . . . . . . . . . . . 23

7.4 Raw protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

7.5 Pull-up resistors . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

7.6 Speciﬁcations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

8 Support information 29

Index 30

I2CDriver User Guide 3

1 Overview

I2CDriver is an easy-to-use, open source tool for controlling I2C devices. It

works with Windows, Mac, and Linux, and has a built-in color screen that shows

a live dashboard of all the I2C activity. It uses a standard FTDI USB serial chip

to talk to the PC, so no special drivers need to be installed. The board includes

a separate 3.3 V supply with voltage and current monitoring.

1.1 Features

• Live display: shows you exactly what it’s doing all the time

• Supports all I2C features: 7- and 10-bit I2C addressing, clock stretching,

bus arbitration, and sustained I2C transfers at 400 and 100 kHz

• I2C pullups: programmable I2C pullup resistors, with automatic tuning

• USB voltage monitoring: USB line voltage monitor to detect supply

problems, to 0.01 V

• Target power monitoring: target device high-side current measurement,

to 5 mA

• Three I2C ports: three identical I2C ports, each with power and I2C sig-

nals

• Jumpers: three sets of high-quality color coded 100mm jumpers included

• 3.3 V output: output levels are 3.3 V, all are 5 V tolerant

• Sturdy componentry: uses an FTDI USB serial adapter, and Silicon

Labs automotive-grade EFM8 controller

• Open hardware: the design, ﬁrmware and all tools are under BSD li-

cense

• Flexible control: GUI, command-line, C/C++, and Python 2/3 host soft-

ware provided for Windows, Mac, and Linux

I2CDriver User Guide 4

2 Getting Started

When you ﬁrst connect I2CDriver to the USB port, the display blinks white for a

moment then shows something like this:

Connect the three sets of colored hookup wires as shown, following the same

sequence as on the colored label:

GND black

VCC red

SDA blue

SCL yellow

The top two signals carry power, the VCC line supplies 3.3 volts.

Across the top of the display I2CDriver continuously measures the USB bus

voltage and the current output.

I2CDriver User Guide 5

3 Software installation

The source for all the I2CDriver software is the repository. Available are:

• a Windows/Mac/Linux GUI

• a Windows/Mac/Linux command-line

• Python 2 and 3 bindings

• Windows/Mac/Linux C/C++ bindings

Installation of the GUI and command-line utilities varies by platform.

3.1 Windows

This installer contains the GUI and command-line utilities.

The GUI shortcut is installed on the desktop:

launching it brings up the control window:

I2CDriver User Guide 6

If there is only one serial device, the I2CDriver device should be automatically

selected. If there is more than one device, select its COM port from the pull-

down menu at the top. Once connected, you can select a connected I2C device

and write and read data.

The command line utility i2ccl is also installed. For example to display status

information:

c:\>"c:\Program Files\Excamera Labs\I2CDriver\i2ccl.exe" COM6 i uptime 8991 4.957 V 30 mA 25.8 C SDA=1 SCL=1 speed=100 kHz

I2CDriver User Guide 7

See below for more information on the command-line syntax.

3.2 Linux

The GUI is included in the i2cdriver Python package, compatible with both

Python 2 and 3. To install it, open a shell prompt and do:

sudo pip install i2cdriver

Then run it with

i2cgui.py

For the command-line tool, clone the repository, then do:

cd i2cdriver/c make -f linux/Makefile sudo make -f linux/Makefile install i2ccl /dev/ttyUSB0 i

and you should see something like:

uptime 1651 4.971 V 0 mA 21.2 C SDA=1 SCL=1 speed=100 kHz

3.3 MacOS

The GUI is included in the i2cdriver Python package, compatible with both

Python 2 and 3. To install it, open a shell prompt and do:

sudo pip install i2cdriver

Then run it with

i2cgui.py

I2CDriver User Guide 8

For the command-line tool, clone the repository , then do:

cd i2cdriver/c make -f linux/Makefile sudo make -f linux/Makefile install i2ccl /dev/cu.usbserial-DO00QS8D i

(substituting your actual I2CDriver’s ID for DO00QS8D) and you should see some-

thing like:

uptime 1651 4.971 V 5 mA 21.2 C SDA=1 SCL=1 speed=100 kHz

Note that the port to use is /dev/cu.usbserial-XXXXXXXX, as explained here.

I2CDriver User Guide 9

4 APIs

4.1 Python 2 and 3

The I2CDriver bindings can be installed with pip like this:

pip install i2cdriver

then from Python you can read an LM75B temperature sensor with:

>>> import i2cdriver >>> i2c = i2cdriver.I2CDriver("/dev/ttyUSB0") >>> d=i2cdriver.EDS.Temp(i2c) >>> d.read()

17.875 >>> d.read()

18.0

You can print a bus scan with:

>>> i2c.scan()

-- -- -- -- -- -- -- --

-- -- -- -- 1C -- -- --

-- -- -- -- -- -- -- --

-- -- -- -- -- -- -- -48 -- -- -- -- -- -- --

-- -- -- -- -- -- -- --

-- -- -- -- -- -- -- -68 -- -- -- -- -- -- --

-- -- -- -- -- -- -- -[28, 72, 104]

The Python GUI (which uses wxPython) can be run with:

python i2cgui.py

I2CDriver User Guide 10

which depending on your distribution looks something like this:

There are more examples in the samples folder in the repository.

The module has extensive help strings:

>>> help(i2cdriver)

displays the API documentation.

I2CDriver User Guide 11

4.1.1 Reference

class i2cdriver.I2CDriver(port=’/dev/ttyUSB0’, reset=True)

A connected I2CDriver.

Variables

• product – product code e.g. i2cdriver1

• serial – serial string of I2CDriver

• uptime – time since I2CDriver boot, in seconds

• voltage – USB voltage, in V

• current – current used by attached device, in mA

• temp – temperature, in degrees C

• scl – state of SCL

• sda – state of SDA

• speed – current device speed in KHz (100 or 400)

• mode – IO mode (I2C or bitbang)

• pullups – programmable pullup enable pins

• ccitt crc – CCITT-16 CRC of all transmitted and re-

ceived bytes

init (port=’/dev/ttyUSB0’, reset=True)

Connect to a hardware i2cdriver.

Parameters

• port (str ) – The USB port to connect to

• reset (bool ) – Issue an I2C bus reset on connection

setspeed(s)

Set the I2C bus speed.

Parameters s (int ) – speed in KHz, either 100 or 400

setpullups(s)

Set the I2CDriver pullup resistors

Parameters s – 6-bit pullup mask

I2CDriver User Guide 12

scan(silent=False)

Performs an I2C bus scan. If silent is False, prints a map of devices.

Returns a list of the device addresses.

>>> i2c.scan()

-- -- -- -- -- -- -- --

-- -- -- -- 1C -- -- --

-- -- -- -- -- -- -- --

48 -- -- -- -- -- -- --

-- -- -- -- -- -- -- --

68 -- -- -- -- -- -- --

-- -- -- -- -- -- -- --

[28, 72, 104]

reset()

Send an I2C bus reset

start(dev, rw)

Start an I2C transaction

Parameters

• dev – 7-bit I2C device address

• rw – read (1) or write (0)

To write bytes [0x12,0x34] to device 0x75:

>>> i2c.start(0x75, 0)

>>> i2c.write([0x12,034])

(continues on next page)

I2CDriver User Guide 13

(continued from previous page)

>>> i2c.stop()

read(l)

Read l bytes from the I2C device, and NAK the last byte

write(bb)

Write bytes to the selected I2C device

Parameters bb – sequence to write

stop()

stop the i2c transaction

regrd(dev, reg, fmt=’B’)

Read a register from a device.

Parameters

• dev – 7-bit I2C device address

• reg – register address 0-255

• fmt – struct.unpack() format string for the register

contents

If device 0x75 has a 16-bit register 102, it can be read with:

>>> i2c.regrd(0x75, 102, ">H")

4999

regwr(dev, reg, *vv)

Write a devices register.

Parameters

• dev – 7-bit I2C device address

• reg – register address 0-255

• vv – sequence of values to write

To set device 0x34 byte register 7 to 0xA1:

I2CDriver User Guide 14

>>> i2c.regwr(0x34, 7, [0xa1])

If device 0x75 has a big-endian 16-bit register 102 you can set it to

4999 with:

>>> i2c.regwr(0x75, 102, struct.pack(">H", 4999))

monitor(s)

Enter or leave monitor mode

Parameters s – True to enter monitor mode, False to leave

getstatus()

Update all status variables

4.2 C/C++

I2CDriver is contained in a single source ﬁle with a single header. Both are in

this subdirectory. Usage follows the Python API and is fairly self-explanatory.

I2CDriver User Guide 15

5 Using I2CDriver

5.1 The display

The main display on the screen has three sections. The top section is a heat-

map showing all 112 legal I2C addresses. Devices that are currently active

are white. Inactive devices fade to yellow, purple and ﬁnally blue. The middle

section is a symbolic interpretation of current I2C trafﬁc. Details on this are

below. The bottom two lines show a representation of the SDA (blue) and SCL

(yellow) signals.

The symbolic decode section shows I2C transactions as they happen. Start

and stop are shown as S and P symbols. After a S symbol the address

byte is shown, with a right arrow (write) or left arrow (read). There are gray

lines connecting the address byte to its heat-map indicator. Following this is a

series of data bytes. Each byte is shown in hex, with either a green dot (ACK)

I2CDriver User Guide 16

or red dot (NACK).

So for example the above sequence is showing

• Start, write to address 45

• Write byte 7A

• Repeated Start, read from address 45

• Read byte 00

• Read byte A2

• Stop

The above sequence is very typical for reading registers from an I2C Device.

Note that the ﬁnal NACK (red dot) is not an error condition, but the standard

way of handling the last byte of read transaction.

5.2 The GUI

(TBD: describe how each button in the GUI works)

5.3 The command-line tool i2ccl

i2ccl is the same on all platforms.

The ﬁrst parameter to the command is the serial port, which depends on your

operating system. All following parameters are control commands. These are:

I2CDriver User Guide 17

i display status information (uptime, voltage, current, temperature)

d device scan

w dev bytes write bytes to I2C device dev

p send a STOP

r dev N read N bytes from I2C device dev, then STOP

m enter I2C bus monitor mode

For example the command:

i2ccl /dev/ttyUSB0 r 0x48 2

reads two bytes from the I2C device at address 0x48. So with an LM75B tem-

perature sensor connected you might see output like:

0x16,0x20

which indicates a temperature of about 22◦C.

I2C devices usually have multiple registers. To read register 3 of the LM75B,

you ﬁrst write the register address 3, then read two bytes as before:

i2ccl /dev/ttyUSB0 w 0x48 3 r 0x48 2 0x50,0x00

Which shows that register 3 has the value 0x5000.

5.4 Monitor mode

In monitor mode, the I2CDriver does not write any data to the I2C bus. Instead

it monitors bus trafﬁc and draws it on the display. This makes it an ideal tool for

troubleshooting and debugging I2C hardware and software.

To show that it is in monitor mode, the I2CDriver changes the character in the

top-left of the display from D to M.

There are several ways of entering monitor mode:

• use the command-line tool:

I2CDriver User Guide 18

i2ccl m

• from the GUI check the ”Monitor” box

• from Python issue:

i2c.monitor(True)

and to exit:

i2c.monitor(False)

• connect a terminal to the I2CDriver (at 1000000 8N1) and type the m char-

acter, then type any character to exit monitor mode

5.5 Capture mode

In capture mode, the I2CDriver does not write any data to the I2C bus. Instead

it monitors bus trafﬁc and transmits it via USB for recording on the PC.

5.5.1 Command line

There is a Python sample program that can be used to capture trafﬁc on the

command-line at capture.py.

Running it with the I2CDriver address as an argument puts the I2CDriver into

capture mode: the character in the top-left of the display changes from D to C.

$ python samples/capture.py /dev/ttyUSB0

Now capturing traffic to

standard output (human-readable)

log.csv Hit CTRL-C to leave capture mode <START 0x14 WRITE ACK> <WRITE 0x02 ACK> <WRITE 0x22 ACK> <STOP> ^C

I2CDriver User Guide 19

Capture finished

When run, it displays any trafﬁc on standard output. It also writes a trafﬁc

summary to log.csv which can be examined and processed by any tool that

can accept CSV ﬁles.

5.5.2 GUI

The GUI also supports capture to CSV ﬁle.

Clicking “Capture mode” starts the capture and prompts for a destination CSV

ﬁle. The character in the top-left of the display changes from D to C. Capture

continues until you click “Capture mode” again.

I2CDriver User Guide 20

6 Examples

The Python samples directory contains short examples of using all Electric

Dollar Store I2C modules:

Module Function Sample

DIG2 2-digit 7-seg display EDS-DIG2.py

LED RGB LED EDS-LED.py

POT potentiometer EDS-POT.py

BEEP Piezo beeper EDS-BEEP.py

REMOTE IR remote receiver EDS-REMOTE.py

EPROM CAT24C512 64 Kbyte EPROM EDS-EPROM.py

MAGNET LIS3MDL magnetometer EDS-MAGNET.py

TEMP LM75B temperature sensor EDS-TEMP.py

ACCEL RT3000C Accelerometer EDS-ACCEL.py

CLOCK HT1382 real-time clock EDS-CLOCK.py

All demos and applications are run the same way, supplying the I2CDriver on

the command-line. For example:

python EDS-LED.py COM16

Also included are some small applications which demonstrate combinations of

modules.

6.1 Color Compass

Source code: EDS-color-compass.py

Color compass uses MAGNET and LED, reading the current magnetic ﬁeld

direction and rendering it as a color on the LED. As you twist the module, the

color changes. For example there is a particular direction for pure red, as well

as all other colors. The code reads the magnetic ﬁeld direction, scales the

values to 0-255, and sets the LED color.

I2CDriver User Guide 21

6.2 Egg Timer

Source code: EDS-egg-timer.py

The demo uses POT, DIG2 and BEEPER to make a simple kitchen egg timer.

Twisting the POT sets a countdown time in seconds, and after it’s released the

ticker starts counting. When it reaches “00” it ﬂashes and beeps.

6.3 Take-a-ticket

Source code: EDS-take-a-ticket.py

This demo runs a take-a-ticket display for a store or deli counter, using RE-

MOTE, DIG2 and BEEP modules. It shows 2-digit “now serving” number, and

each time ’+’ is pressed on the remote it increments the counter and makes a

beep, so the next customer can be served. Pressing ’-’ turns the number back

one.

I2CDriver User Guide 22

7 Technical notes

7.1 Port names

The serial port that I2CDriver appears at depends on your operating system.

On Windows, it appears as COM1, COM2, COM3 etc. You can use the De-

vice Manager or the MODE command to display the available ports. This article

describes how to set a device to a ﬁxed port.

On Linux, it appears as /dev/ttyUSB0, 1, 2 etc. The actual number depends

on the order that devices were added. However it also appears as something

like:

/dev/serial/by-id/usb-FTDI_FT230X_Basic_UART_DO00QS8D-if00-port0

Where DO00QS8D is the serial code of the I2CDriver (which is printed on the

bottom of each I2CDriver). This is longer, of course, but always the same for a

given device.

Similarly on Mac OS, the I2CDriver appears as /dev/cu.usbserial-DO00QS8D.

7.2 Decreasing the USB latency timer

I2CDriver performance can be increased by setting the USB latency timer to its

minimum value of 1 ms. This can increase the speed of two-way I2C trafﬁc by

up to 10X.

On Linux do:

setserial /dev/ttyUSB0 low_latency

On Windows and Mac OS follow these instructions.

I2CDriver User Guide 23

7.3 Temperature sensor

The temperature sensor is located in the on-board EFM8 microcontroller. It is

calibrated at manufacture to within 2◦C.

I2CDriver User Guide 24

7.4 Raw protocol

I2CDriver uses a serial protocol to send and receive I2C commands. Connect

to the I2CDriver at 1M baud, 8 bits, no parity, 1 stop bit (1000000 8N1).

Because many I2CDriver commands are ASCII, you can control it interactively

from any terminal application that can connect at 1M baud. For example typing

u and s toggles the CS line and ? displays the status info.

Commands are:

? transmit status info

e byte echo byte

1 set speed to 100 KHz

4 set speed to 400 KHz

s addr send START/addr, return status

0x80-bf read 1-64 bytes, NACK the ﬁnal byte

0xc0-ff write 1-64 bytes

a N read N bytes, ACK every byte

p send STOP

x reset I2C bus

r register read

d scan devices, return 112 status bytes

m enter monitor mode

c enter capture mode

b enter bitbang mode

i leave bitmang, return to I2C mode

u byte set pullup control lines

v start analog voltage measurement

w read voltage measurement result

So for example to send this sequence:

I2CDriver User Guide 25

The host should send:

s 0x90 Start write to device 45

0xc0 0x7a Write 1 byte

s 0x91 Start read from device 45

0x80 Read 1 byte

p Stop

The status response is always 80 characters, space padded. For example::

[i2cdriver1 DO01JUOO 000000061 4.971 000 23.8 I 1 1 100 24 ffff ]

The ﬁelds are space-delimited:

identiﬁer always i2cdriver1

serial serial code identiﬁer

uptime I2CDriver uptime 0-999999999, in seconds

voltage USB bus voltage, in volts

current attached device current, in mA

temperature junction temperature, in◦C

mode current mode, I for I2C, B for bitbang

SDA SDA line state, 0 or 1

SCL SCL line state, 0 or 1

speed I2C bus speed, in KHz

pullups pullup state byte

crc 16-bit CRC of all input and output bytes (CRC-16-CCITT)

The sample confirm.py shows the CRC-16-CCITT calculation.

I2CDriver User Guide 26

7.5 Pull-up resistors

I2CDriver has 6 programmable pull-up resistors, 3 each for SDA and SCL. 6

control bits each enable or disable a pull-up resistor. These bits are:

bit resistor

0 2.2K to SDA

1 4.3K to SDA

2 4.7K to SDA

3 2.2K to SCL

4 4.3K to SCL

5 4.7K to SCL

At boot the two 4.7K resistors are enabled. By setting combinations of parallel

resistors, a range of pull-up strengths can be achieved:

4.7K 4.3K 2.2K pull-up strength

0 0 0 0 (i.e. no pull-up)

0 0 1 2.2K

0 1 0 4.3K

0 1 1 1.5K

1 0 0 4.7K

1 0 1 1.5K

1 1 0 2.2K

1 1 1 1.1K

Ordering this by useful resistances, the 3-bit combinations are:

3-bit value Resistance

0 0

1 2.2K

2 4.3K

4 4.7K

5 1.5K

7 1.1K

I2CDriver User Guide 27

In Python, the pullups are controlled by the setpullups() method, and the

state can be read from the pullups variable. Both are 6-bit values as above.

The GUI has a control for the pull-up resistors. It sets the same pull-up strength

for both SDA and SCL.

7.6 Speciﬁcations

DC characteristics

I2CDriver User Guide 28

min typ max units

Voltage accuracy

Current accuracy

Temperature accuracy

SDA,SCL

low voltage

high voltage

Output current

Current consumption

AC characteristics

I2C speed

0.01 V

5 mA

± 2

◦

0.6 V

2.7 5.8 V

470 mA

25 mA

min typ max units

100 400 Kbps

Uptime accuracy

Uptime rollover

Startup time

150 ppm

31.7 years

200 ms

I2CDriver User Guide 29

8 Support information

Technical and product support is available at support@i2cdriver.com

I2CDriver is built and maintained by Excamera Labs.

Index

init () (i2cdriver.I2CDriver

method), 11

bus scan, 9, 17

Capture mode, 18

capture.py, 18

CRC, 25

display, 15

drivers

C/C++, 14

Linux, 7

Mac, 7

Python, 9

Windows, 5

Example

Beeper, 21

Compass, 20

LM75B, 9, 17

Magnetometer, 20

Potentiometer, 21

RGB, 20

getstatus() (i2cdriver.I2CDriver

method), 14

GUI, 16

heat-map, 15

I2CDriver (class in i2cdriver ), 11

Monitor mode, 17

monitor() (i2cdriver.I2CDriver

method), 14

protocol, 24

pull-ups, 26

read() (i2cdriver.I2CDriver method ),

regrd() (i2cdriver.I2CDriver

method), 13

regwr() (i2cdriver.I2CDriver

method), 13

Remote control, 21

reset() (i2cdriver.I2CDriver

method), 12

scan() (i2cdriver.I2CDriver method ),

setpullups() (i2cdriver.I2CDriver

method), 11

setspeed() (i2cdriver.I2CDriver

method), 11

speed, 25

start() (i2cdriver.I2CDriver

method), 12

stop() (i2cdriver.I2CDriver method ),

symbols, 15

temperature sensor, 23

uptime, 28

USB

latency, 22

ports, 22

write() (i2cdriver.I2CDriver

method), 13

I2CDriver User Guide 31

Excamera I2CDriver User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
