Excalibur electronic P95-NG3, P95-LP3 User Manual

www.excalibur-ﬁ re.com

P95-3 Zero Clearance Direct Vent Gas Fireplace

Owners &

Installation Manual

MODELS: P95-NG3 Natural Gas P95-LP3 Propane

WARNING: If the information in these instructions are not followed exactly, a ﬁ re or explosion may result causing property damage, personal injury or loss of life.

FOR YOUR SAFETY Do not store or use gasoline or other ﬂ ammable vapours and liquids in the vicinity of this or any other appliance.

Installation and service must be performed by a qualiﬁ ed installer, service agency or the gas supplier.

Tested by:

918-526

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4

Installer: Please complete the details on the back cover

and leave this manual with the homeowner.

Homeowner: Please keep these instructions for future reference.

FOR YOUR SAFETY What to do if you smell gas:

 Do not try to light any appliance  Do not touch any electrical switch:

do not use any phone in your building.

 Immediately call your gas supplier

from a neighbour's phone. Follow the gas supplier's instructions.

 If you cannot reach your gas

supplier, call the ﬁ re department.

07/17/06

To the New Owner:

Congratulations! You are the owner of a state-of-the-art Excalibur® Gas Fireplace by FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. The P95-3 is a hand crafted appliance and has been designed to provide you with all the warmth and charm of a wood ﬁ replace at the ﬂ ick of a switch. The model P95-3 has been approved by Warnock Hersey for both safety and efﬁ ciency. As it also bears our own mark, it promises to provide you with economy, comfort and security for many trouble free years to follow. Please take a moment now to acquaint yourself with these instructions and the many features of your Excalibur® Fireplace.

INFORMATION FOR MOBILE / MANUFACTURED HOMES AFTER FIRST SALE

This Excalibur® product has been tested and listed by Warnock Hersey as a Direct Vent Wall Furnace to the following standards: VENTED GAS FIREPLACE HEATERS ANSI Z21.88b-2003/CSA 2.33b-2003 and GAS-FIRED APPLIANCES FOR USE AT HIGH ALTITUDES CAN/CGA 2.17M91.

This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard in Canada.

This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of local codes follow the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA 70 in the U.S.A., and the current CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1 in Canada.

This Excalibur® Mobile/Manufactured Home Listed appliance comes factory equipped with a means to secure the unit.

This Excalibur® Mobile/Manufactured Home listed appliance comes equipped with a dedicated #8 ground lug to which an 18 gauge copper wire from the steel chassis ground must be attached.

This appliance may only be installed in an aftermarket permanently located, manufactured (mobile) home, where not prohibited by local codes.

This appliance is only use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases, unless a certiﬁ ed kit is used.

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace

TABLE OF CONTENTS

SAFETY LABEL

Serial No. Decal ............................................................4

REQUIREMENTS

MA Code - CO Detector

(for state of Massachusetts only) ..................................5

INSTALLATION

Important Message ......................................................6

Before You Start ............................................................6

General Safety Information ...........................................6

Installation Checklist ......................................................6

Locating Your Gas ﬁ replace ..........................................7

Manufactured Mobile Home Additional Requirements ..7

Optional Heatwave .......................................................7

Duct System Kit ............................................................. 7

Optional Heat Release Kit .............................................7

Clearances ....................................................................7

Combustible Mantels ....................................................8

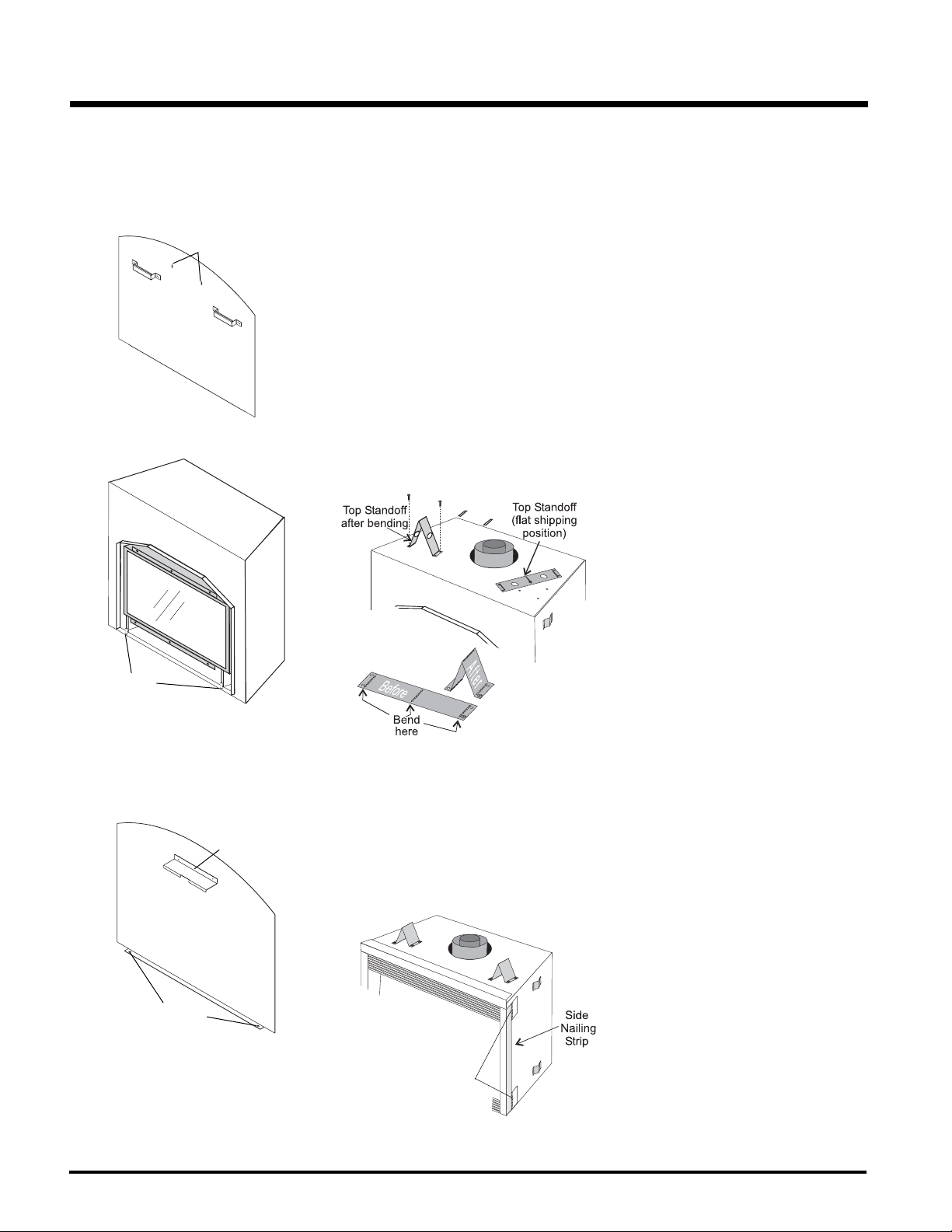

Unit Base Stand-offs ......................................................8

Framing and Finishing ...................................................8

Facing Requirement ......................................................9

Hearth Requirements ....................................................9

Optional Cover Plate Template ....................................10

Unit Assembly Prior To Installation ..............................10

Venting Introduction .....................................................10

Venting ........................................................................11

Exterior Vent Termination Locations ............................ 12

Simpson Dura-vent Venting .........................................13

Simpson Dura-vent Venting Components List .............14

Venting Arrangements - Horizontal Terminations ........15

Venting Arrangements - Vertical Terminations ............18

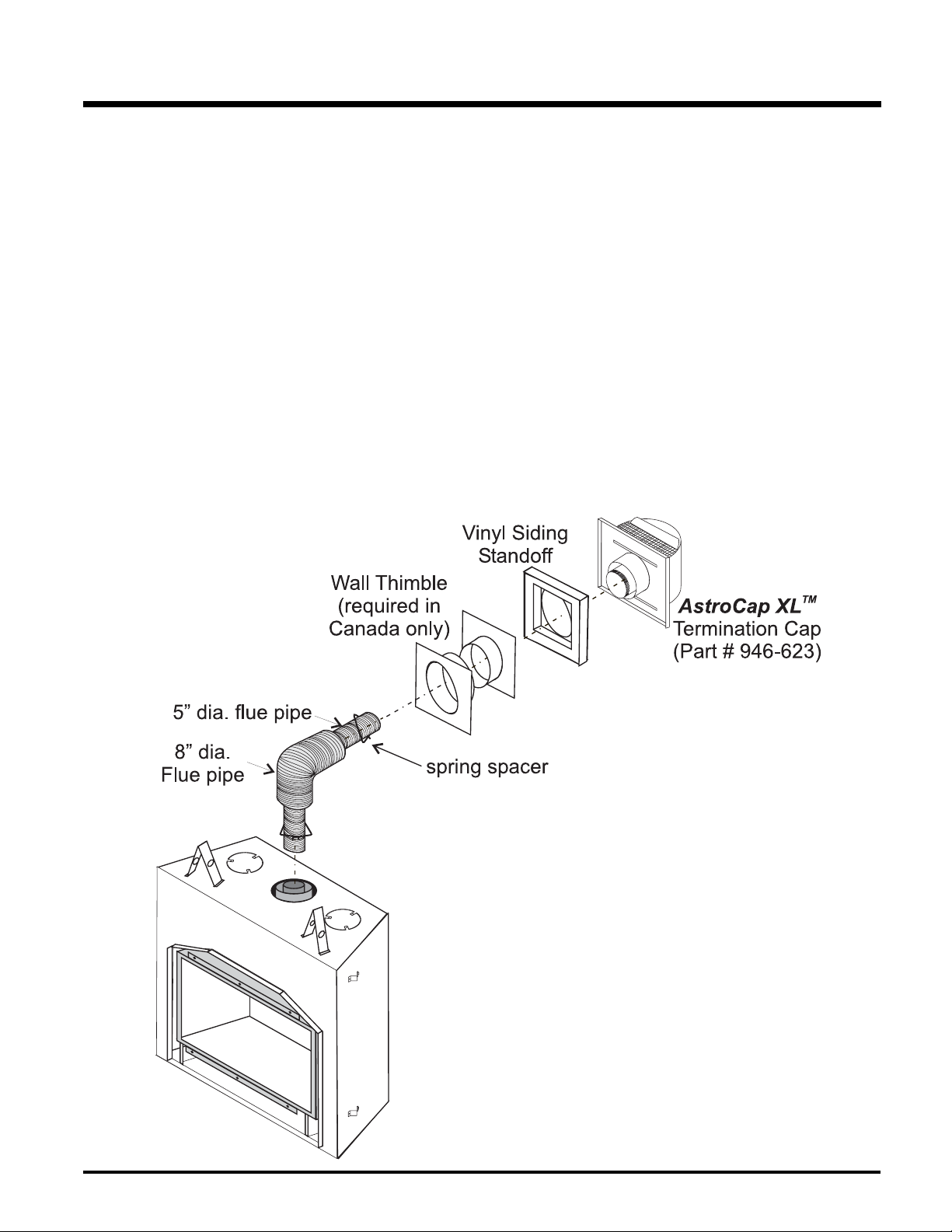

Unit Installation with Horizontal Termination ................20

Vertical Termination .....................................................21

Installation Procedures ................................................22

High Elevation .............................................................23

Gas Line Installation ....................................................23

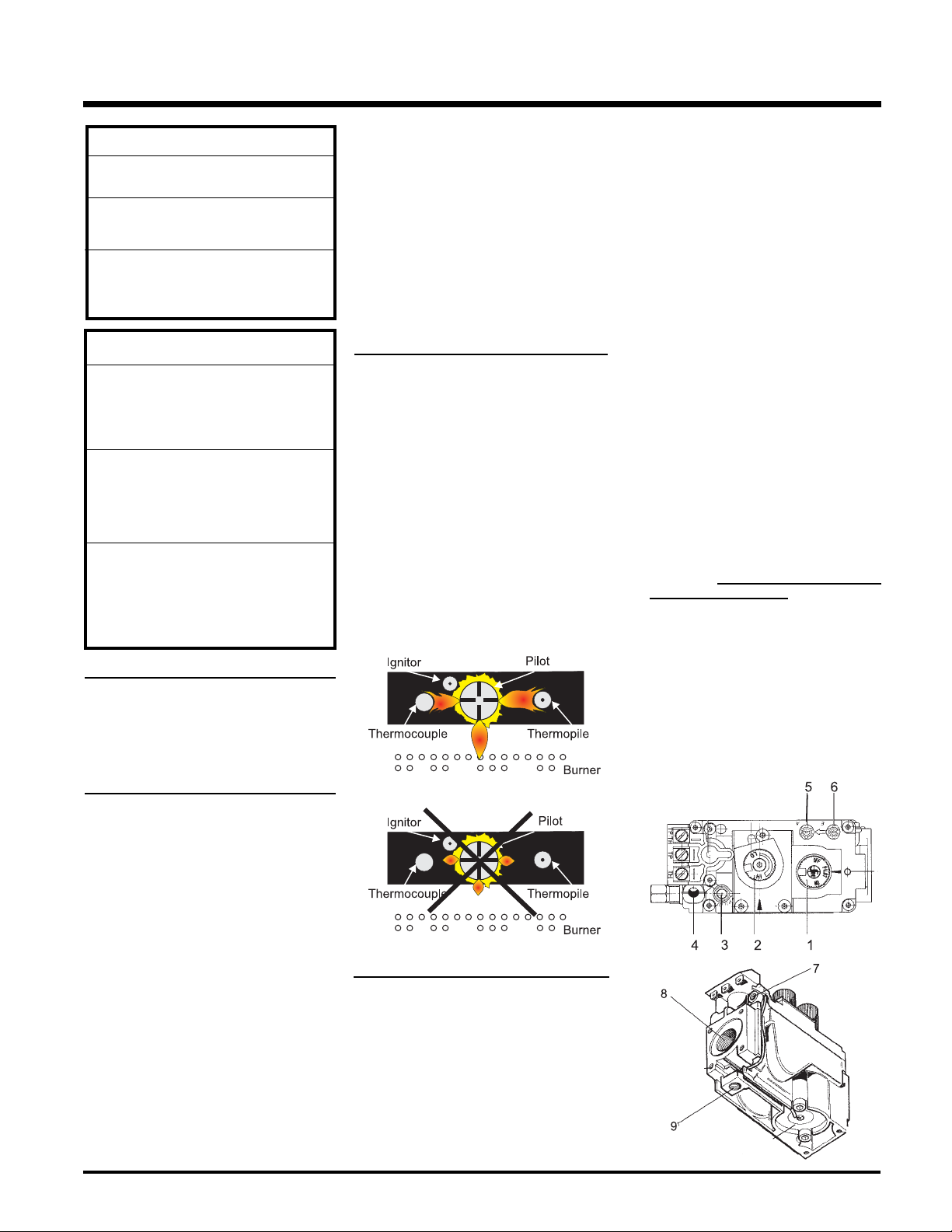

Pilot Adjustment ...........................................................23

Gas Pipe Pressure Testing ..........................................23

Conversion Kit# 773-969 From NG To LP ..................24

Optional Brick Panels ..................................................27

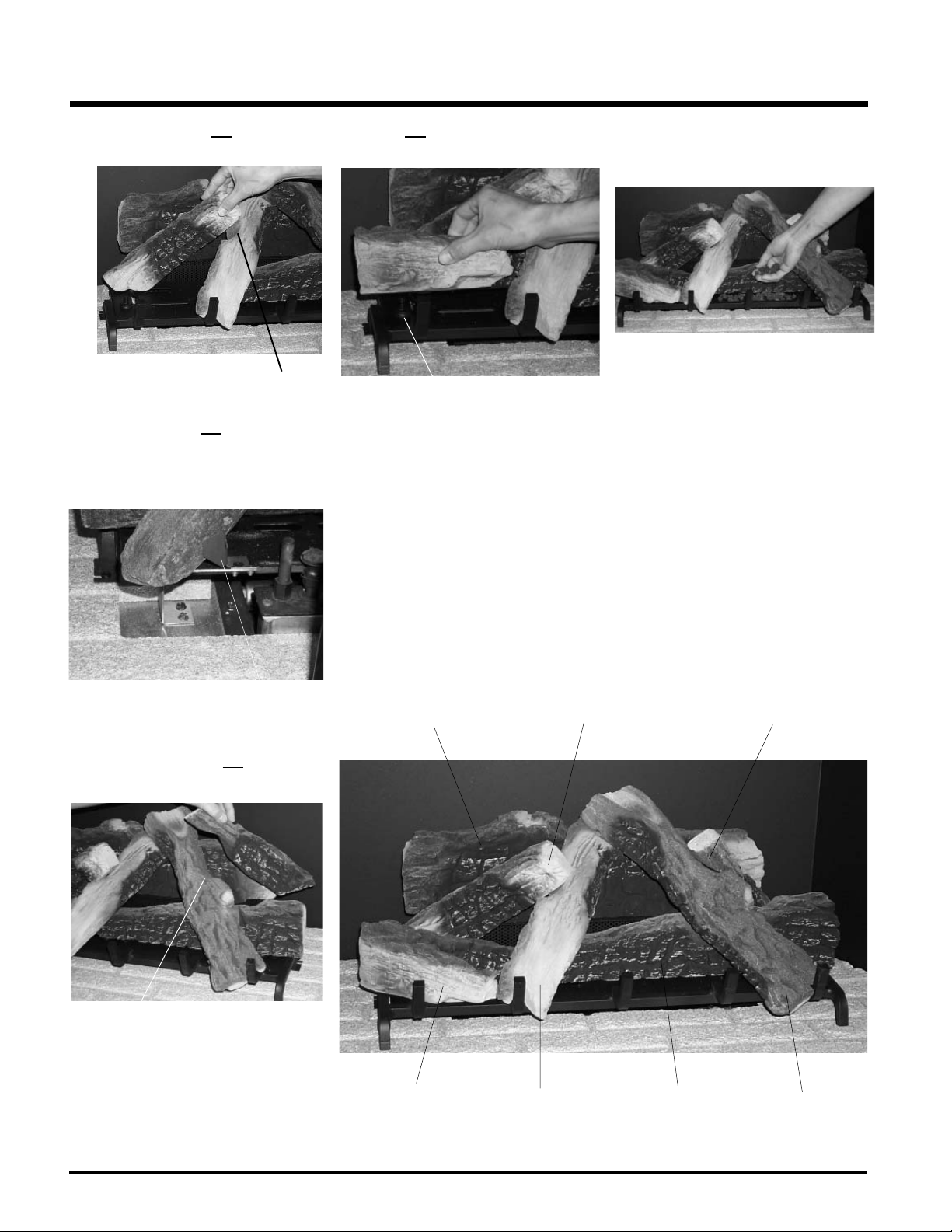

Log Set Installation ......................................................27

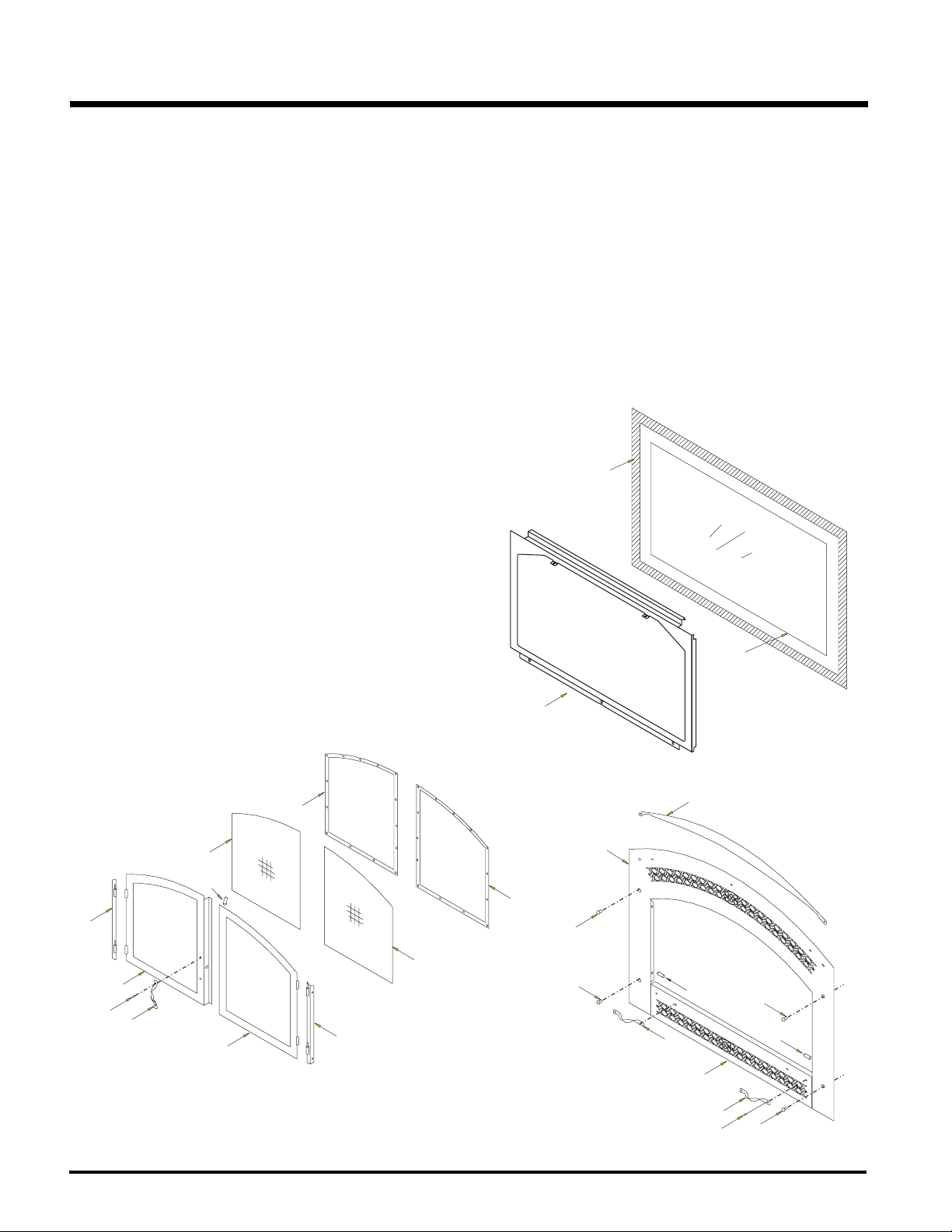

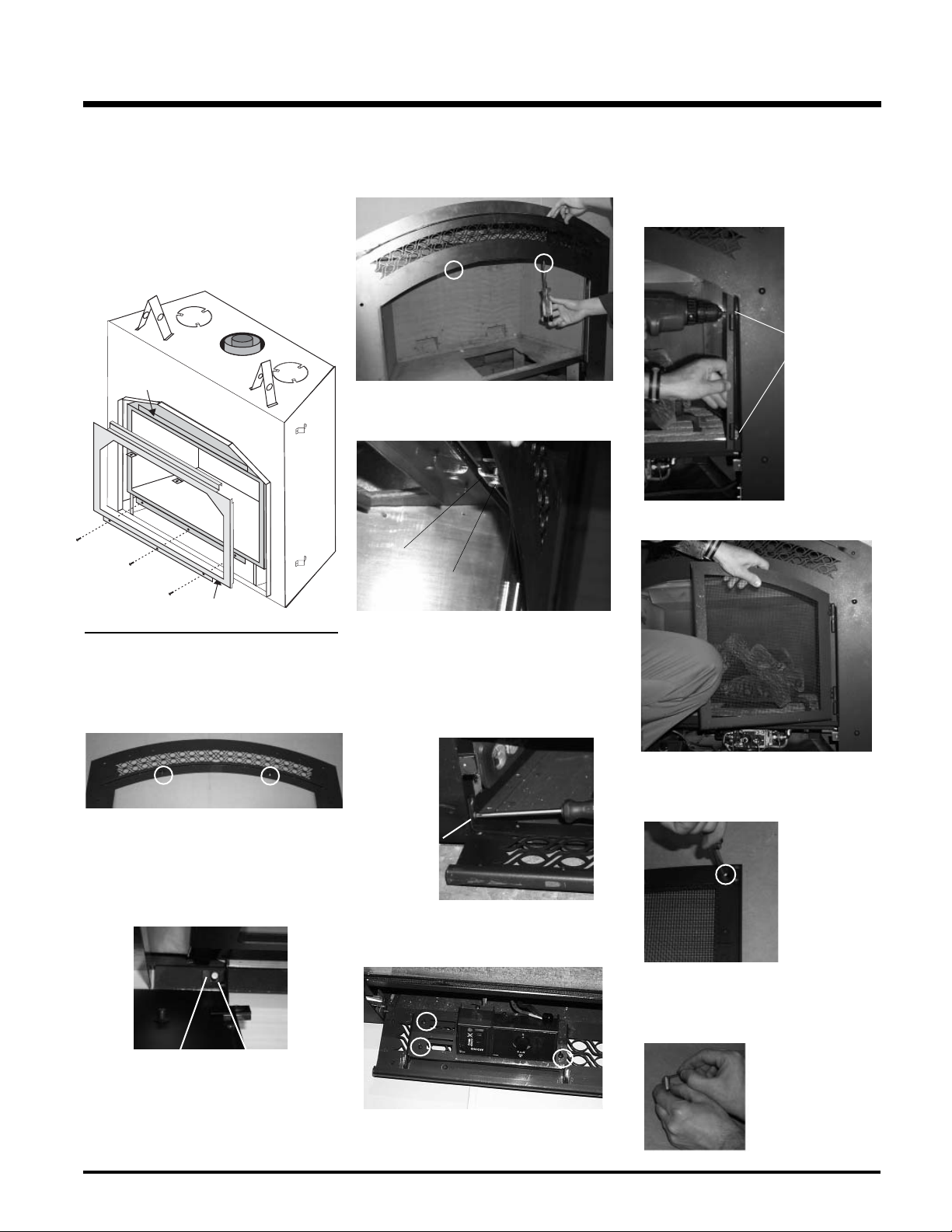

Glass Door Installation ................................................29

Front Facade ...............................................................29

Optional Screen Doors ................................................29

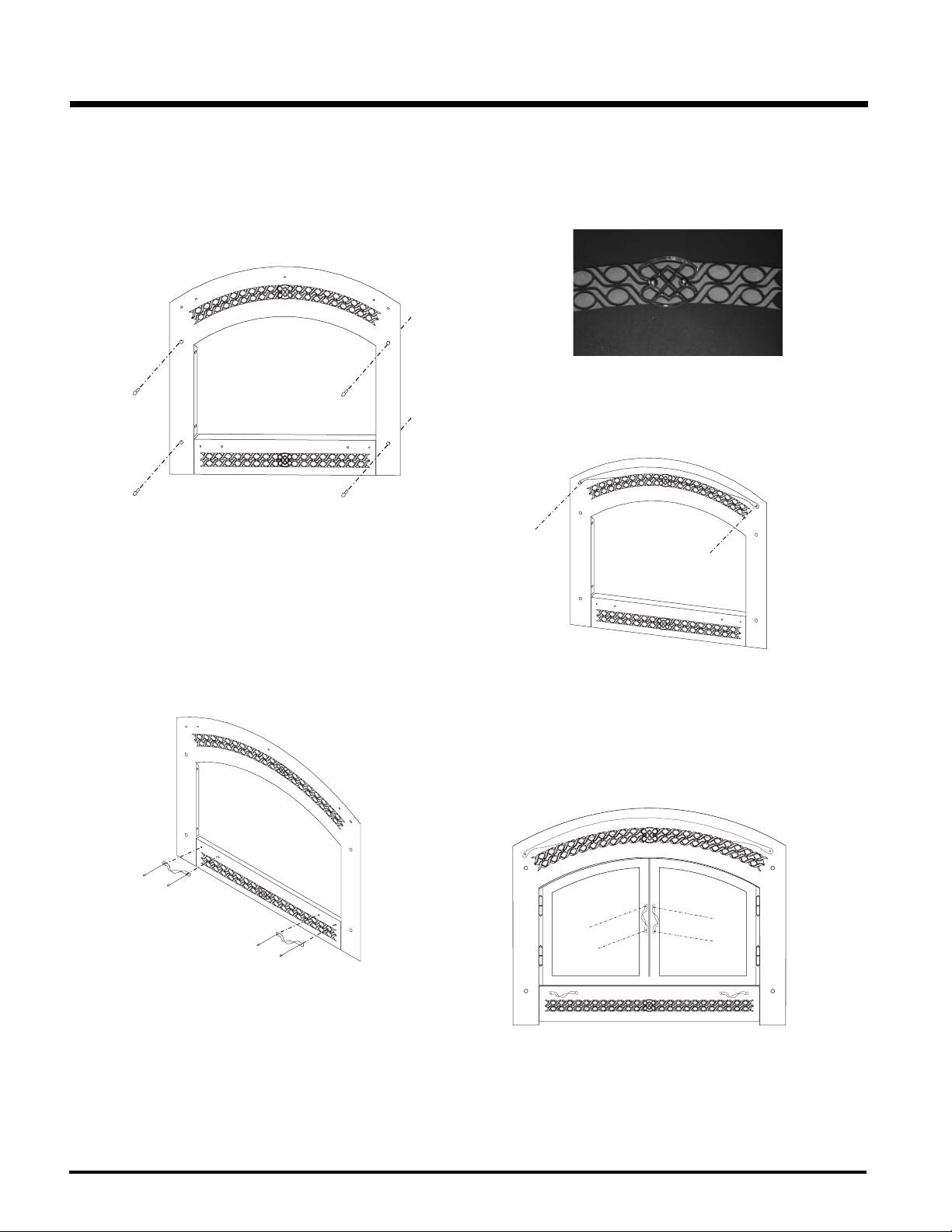

Accent Kit Installation ..................................................30

Option 1: Remote Control ............................................31

Option 2: Wall Switch ..................................................31

Option 3: Wall Thermostat ..........................................31

Wiring Diagrams ......................................................... 32

OPERATING INSTRUCTIONS

Operating Instructions .................................................34

Lighting Procedure ......................................................34

Shutdown Procedure ...................................................34

First Fire ......................................................................34

Aeration Adjustment ....................................................34

Normal Operating Sounds Of Gas Appliances ............ 35

MAINTENANCE

Maintenance Instructions ............................................36

Gold-plated Door or Surround .....................................36

Log Replacement .......................................................36

Thermopile / Thermocouple .........................................36

Glass Gasket ...............................................................36

Door Glass ..................................................................36

Fan Maintenance .........................................................37

Removing Valve ...........................................................38

Installing Valve .............................................................38

P95-3 Main Assembly ..................................................39

P95-3 Burner Assembly & Log Set ..............................41

P95-3 Flush Front Accessories ...................................42

WARRANTY

The Warranty: Limited Lifetime ...................................43

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace 3

SAFETY LABEL

This is a copy of the label that accompanies each P95-3 Zero Clearance Direct Vent Gas Fireplace. We have printed a copy of the contents here for your review. The safety label is located on the front inside base of the unit, visible when the bottom louver is open.

NOTE: Excalibur® units are constantly being improved. Check the label on the unit and if there is a difference, the label on the unit is the correct one.

For the State of Massachusetts, installation and repair must be done by a plumber or gasﬁ tter licensed in the Commonwealth of Massachusetts.

For the State of Massachusetts, ﬂ exible connectors shall not exceed 36 inches in length.

For the State of Massachusetts, the appliances individual manual shut-off must be a t-handle type valve.

The State of Massachusetts requires the installation of a carbon monoxide alarm in accordance with NFPA 720 and a CO alarm with battery back up in the same room where the gas appliance is installed.

Copy of Safety Decal for P95-3

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace

REQUIREMENTS

MA Code - CO Detector

(for the State of Massachusetts only)

5.08: Modifications to NFPA-54, Chapter 10

(2) Revise 10.8.3 by adding the following additional requirements:

(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied:

1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of qualified licensed professionals for the installation of hard wired carbon monoxide detectors

a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.

b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon monoxide detector with an alarm shall be installed.

2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.

3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL

OBSTRUCTIONS".

4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR

5.08(2)(a)1 through 4.

(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:

1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by the Board; and

2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or structure used in whole or in part for residential purposes.

(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the instructions provided by the manufacturer for installation of the equipment and the venting system shall include:

1. Detailed instructions for the installation of the venting system design or the venting system components; and

2. A complete parts list for the venting system design or venting system.

(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies "special venting systems", the following requirements shall be satisfied by the manufacturer:

1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and

2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and detailed installation instructions.

(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation.

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace 5

INSTALLATION

IMPORTANT MESSAGE

SAVE THESE

INSTRUCTIONS

The P95-NG3 or P95-LP3 Direct Vent Fireplace must be installed in accordance with these instructions. Carefully read all the instructions in this manual ﬁ rst. Consult the "authority having jurisdiction" to determine the need for a permit prior to starting the installation. It is the responsibility of the installer to ensure this ﬁ replace is installed in compliance with manufacturer's instructions and all applicable codes.

BEFORE YOU START

Safe installation and operation of this appliance requires common sense, however, we are required by the Canadian Safety Standards and ANSI Standards to make you aware of the following:

INSTALLATION AND REPAIR SHOULD BE DONE BY A QUALIFIED SERVICE PERSON. THE APPLIANCE SHOULD BE INSPECTED BEFORE USE AND AT LEAST ANNUALLY BY A PROFESSIONAL SERVICE PERSON. MORE FREQUENT CLEANING MAY BE REQUIRED DUE TO EXCESSIVE LINT FROM CARPETING, BEDDING MATERIAL, ETC. IT IS IMPERATIVE THAT CONTROL COMPARTMENTS, BURNERS AND CIRCULATING AIR PASSAGEWAYS OF THE APPLIANCE BE KEPT CLEAN.

DUE TO HIGH TEMPERATURES, THE APPLIANCE SHOULD BE LOCATED OUT OF TRAFFIC AND AWAY FROM FURNITURE AND DRAPERIES.

WARNING: FAILURE TO INSTALL THIS APPLIANCE CORRECTLY WILL VOID YOUR WARRANTY AND MAY CAUSE A SERIOUS HOUSE FIRE.

CHILDREN AND ADULTS SHOULD BE ALERTED TO THE HAZARDS OF HIGH SURFACE TEMPERATURES, ESPECIALLY THE FIREPLACE GLASS, AND SHOULD STAY AWAY TO AVOID BURNS OR CLOTHING IGNITION.

YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN THEY ARE IN THE SAME ROOM AS THE APPLIANCE.

CLOTHING OR OTHER FLAMMABLE MATERIAL SHOULD NOT BE PLACED ON OR NEAR THE APPLIANCE.

GENERAL SAFETY

INFORMATION

1) The appliance installation must conform

with local codes or, in the absence of local codes, with the current Canadian or National Gas Codes, CAN1-B149 or ANSI Z223.1 Installation Codes.

2) The appliance when installed, must be

electrically grounded in accordance with local codes, or in the absence of local codes with the current National Electrical Code, ANSI/NFPA 70 or CSA C22.1 Canadian Electrical Code.

3) See general construction and assembly

instructions. The appliance and vent should be enclosed.

4) This appliance must be connected to the

speciﬁ ed vent and termination cap to the outside of the building envelope. Never vent to another room or inside a building. Make sure that the vent is ﬁ tted as per Venting instructions.

5) Inspect the venting system annually for

blockage and any signs of deterioration.

6) Venting terminals shall not be recessed into

a wall or siding.

7) Any safety glass removed for servicing

must be replaced prior to operating the appliance.

8) To prevent injury, do not allow anyone who

is unfamiliar with the operation to use the ﬁ replace.

9) Wear gloves and safety glasses for protection

while doing required maintenance.

10) Be aware of electrical wiring locations in

walls and ceilings when cutting holes for termination.

11) Under no circumstances should this

appliance be modiﬁ ed. Parts that have to be removed for servicing should be replaced prior to operating this appliance.

12) Installation and any repairs to this appliance

should be done by a qualiﬁ ed service person. A professional service person should be called to inspect this appliance annually. Make it a practice to have all of your gas appliances checked annually.

13) Do not slam shut or strike the glass door.

14) Under no circumstances should any solid

fuels (wood, paper, cardboard, coal, etc.) be used in this appliance.

15) The appliance area must be kept clear and

free of combustible materials, (gases and other ﬂ ammable vapours and liquids).

Emissions from burning wood or gas could contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

INSTALLATION

CHECKLIST

1) Check all clearances to combustibles. Refer

to the following sections:

a) Locating Your Gas Fireplace b) Clearances c) Combustible Mantels d) Unit Base Stand-offs e) Framing and Finishing f) Hearth Requirement g) Unit Assembly Prior to Installation h) Venting

2) Make gas and electrical connections. Test

the pilot. Must be as per diagram. Refer to the "Gas Line Installation" section.

3) Install standard and optional features. Refer

to the following sections where applicable:

a. Brick Panels b. Log Set c. Glass Door d. Arch Surround e. Double Screen Doors f. Accent Kit (Double Door & Surround) g. Remote Control h. Wall Switch i. Wall Thermostat

4) Final check.

Before leaving this unit with the customer, the installer must ensure that the appliance is ﬁ ring correctly and operation fully explained

to customer.

This includes:

1) Clocking the appliance to ensure the correct

ﬁ ring rate (rate noted on label 45,000 Btu/h) after burning appliance for 15 minutes.

2) If required, adjusting the primary air to ensure

that the ﬂ ame does not carbon. First allow the unit to burn for 15-20 min. to stabilize.

CAUTION: Any alteration to the product that causes sooting or carboning that results in damage is not the responsibility of the manufacturer.

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

LOCATING YOUR

GAS FIREPLACE

1) When selecting a location for your ﬁ replace,

ensure that the clearances outlined on this page are met.

2) Provide adequate clearances for

servicing.

3) The appliance must be installed on a ﬂ at,

solid, continuous surface (e.g. wood, metal, concrete). This may be the ﬂ oor, or raised up on a platform to enhance its visual impact. If the appliance is going to be installed on carpeting, combustible linoleum tile or other combustible material other than wood ﬂ ooring, the appliance must be installed on a metal or wood panel extending the full width and depth of the appliance.

4) The P95-3 Direct Vent Gas Fireplace

can be installed in a recessed position or framed out into the room as in A, B, C, D.

See Diagram 1.

MANUFACTURED

MOBILE HOME

ADDITIONAL

REQUIREMENTS

1) Ensure that structural members are not cut

or weakened during installation.

2) Ensure proper grounding using the #8

ground lug provided. See the "Wiring Diagram" section.

OPTIONAL

HEATWAVE

DUCT SYSTEM KIT

#946-556

The HeatWave Air Duct Kit increases the effectiveness of your ﬁ replace by dispersing warm air from the ﬁ replace to remote locations in the same room or other rooms in your home.

CLEARANCES

The clearances listed below are Minimum distances unless otherwise stated:

A major cause of chimney related ﬁ res is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance that this ﬁ replace and vent system be installed only in accordance with these instructions.

Clearance to Combustibles from: Back 0" (0mm) Side 0" (0mm) Floor 0" (0mm)

NOTE: The minimum ﬂ oor clearance must be maintained from the top surface of the carpeting, tile, etc.

A) Flat on Wall B) Flat on Wall Corner C) Recessed into

Wall/Alcove D) Corner

Diagram 1

5) This appliance is Listed for bedroom

installations when used with a Listed Millivolt Thermostat. Some areas may have further requirements, check local codes before installation.

6) The P95-3 Direct Vent Gas Fireplace is

approved for alcove installations, which meet the clearances listed on this page.

7) We recommend that you plan your installation

on paper using exact measurements for clearances and ﬂ oor protection before actually installing this appliance. Have a qualiﬁ ed inspector, dealer, or installer review your plans before installation.

Note: For vent terminations see the

"Venting" section.

Up to two kits may be installed on the ﬁ replace. Please Note: Only 1 HeatWave kit may be operated at one time. This includes the internal blower option as well.

OPTIONAL

HEAT RELEASE KIT

#946-570

The Heat Release Kit expels warm air from the ﬁ replace to the outside of the building, allowing the ﬁ replace to be operated with less heat entering the room. The kit may be used on either the left or right side.

Side Wall Clearance 6-1/2" (165mm)

Horizontal Vent Clearances

Top 3" Side 2" Bottom 2"

Vertical Vent Clearances 1-1/4" (32mm)

* see mantle clearance instructions in the "Combustible Mantels" section.

WARNING:

Fire hazard is an extreme risk if

these clearances are not adhered to.

Clearances for HeatWave and

Heat Release Kit

The HeatWave Duct Kit and the Heat Release Kit have different clearance and framing requirements, check the HeatWave and Heat Release manual for details.

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace 7

INSTALLATION

COMBUSTIBLE MANTELS

Because of the extreme heat this ﬁ replace emits, the mantel clearances are critical.

Combustible mantel clearances from top of unit are shown in Diagram below.

Note: A non-combustible mantel may be

installed at a lower height if the framing is made of metal studs covered with a non-combustible board.

These drawings are to scale at 1:6 (one inch = 6 inches) Mantel can be installed anywhere in shaded area or higher using the above scale.

Note: Ensure the paint that is used

on the mantel and the facing is "heat resistant" or the paint may discolour.

P95-3 Flat Wall Surround and Tile Kit

The P95-3 Flat Wall Surround, Hearth Pad and Tile Kit cannot be modiﬁ ed in any way. It must be installed as manufactured.

FRAMING AND

FINISHING

1) Determine the total thickness of facing

material (e.g. drywall plus ceramic tiles) to allow the ﬁ nished surface to be ﬂ ush with the front of the unit. Total facing thickness can vary from 1/2" (13mm) to 1" (32mm) thick.

Install Top Standoffs & Side Nailing Strips before unit is slipped into position. See the "Unit Assembly Prior to Installation" section for assembly details.

2) Frame in the enclosure for the unit with

framing material. The framed opening is 50-1/8" high x 53-3/8" wide x 21-1/4" deep (1276mm high x 1346mm wide x 533mm deep).

P95-3 Flat Wall Surround and Tile Kit Speciﬁ cations

UNIT BASE STAND-OFFS

To accommodate varying thicknesses and ﬁ nishes of hearth materials, we have increased the overall height of the appliance by a further 1-1/8”. This increase is added with the inclusion of two stand-offs at the bottom of the unit, below the outer box, taking the overall height of the framing dimensions from 49” up to 50-1/8”.

In the event that you should choose to use thinner materials to ﬁ nish the hearth, you can omit the stand-offs provided for raising the unit. However, we recommend that you leave the framing dimensions as they are in the manual and alter only the facing requirement by reducing it by the same distance that you have lowered the unit.

Framing Dimensions

A B C

53-3/8" 50-1/8" 21-1/4"

1346mm 1276mm 533mm

Insert the 2 unit base stand-offs underneath the unit as shown in the diagram below. Space the stand-offs centrally, approximately 2 or 2-1/2 feet apart. Ensure that the unit is not unstable.

3) For exterior walls, insulate the enclosure to

the same degree as the rest of the house, apply vapour barrier and drywall, as per local installation codes. (Do not insulate

the ﬁ replace itself.)

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

4) Note: The unit does not have to be completely enclosed in a chase. The clearance on top of the unit is 0" to the standoffs so combustible building materials can be laid directly on top of the

Material

Combustible

Material

Non-combustible

Header

11” dia. hole through wall

for Flex

or for DuraVent

standoffs. You must maintain clearance from the vent to combustible materials for both rigid and ﬂ ex, see the "Clearances" section.

2-1/4”

Gas connection

on this side

2-7/8”

21-1/8” (533mm)

48-3/4”

53-3/4”

Note: 53-3/4" is the minimum height for both ﬂ ex termination or

Simpson Dura-Vent venting.

The HeatWave Duct Kit has different clearance and framing requirements, check the HeatWave manual for details.

FACING REQUIREMENT

This ﬁ replace requires a non-combustible material extending from the framing header and sides.

Facing Over 1" (25mm) Thick

If the facing material is over 1" (25mm) thick (example: brick or river rock), install the facing around the perimeter of the face. You may wish to make a face template as shown on the diagram.

FPI offers a cover plate template. See the "Optional Cover Plate Template" section.

NOTE: If using a brick hearth, the ﬁ replace will need to be raised to accommodate the brick thickness. Example: If the brick is 2" thick, the unit must be raised 1".

HEARTH REQUIREMENTS

Floor Mounted Fireplaces

The ﬂ anges on the front face of the ﬁ replace are for a facing thickness of 1" (25mm).

Please note that all vertical measurements are taken from the base of the unit excluding risers or bottom stand-offs.

Fireplace

Stand

Flooring

Raised Fireplaces

No hearth is required when

the unit is raised 3" (76mm) off of the floor surface

You must take into account the depth of the ﬂ oor covering (carpet, tile, linoleum, etc.) when determining the height of the ﬁ replace stand.

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace 9

INSTALLATION

OPTIONAL COVER

PLATE TEMPLATE

1) Ensure top clip screws are at top of oblong

holes before installation.

Oblong Screw

Holes

2) Position bottom of cover plate over pins

located at the bottom of the ﬁ rebox.

UNIT ASSEMBLY

PRIOR TO

INSTALLATION

The 2 Top Standoffs must be correctly positioned and attached to the top before unit is slipped into position.

Top Standoff Assembly

The top standoffs are shipped in a ﬂ at position and must be folded into shape and attached.

1) Remove the standoffs from the ﬁ replace top.

2) Take each standoff and bend into the correct shape. Bend up at the bend lines until the screw holes in the standoff and the prepunched screw holes on the ﬁ replace top line up.

3) Attach the standoff securely to the top with 2

VENTING

INTRODUCTION

The P95-3 uses the "balanced ﬂ ue" technology Co-axial system. The inner liner vents products of combustion to the outside while the outer liner draws outside combustion air into the combustion chamber thereby eliminating the need to use heated room air for combustion and losing warm room air up the chimney.

Note: These flue pipes must not be

connected to any other appliance.

The gas appliance and vent system must be vented directly to the outside of the building, and never be attached to a chimney serving a separate solid fuel or gas burning appliance. Each direct vent gas appliance must use it's own separate vent system. Common vent systems are prohibited (see "Simpson Dura-Vent Venting" section for more details and exceptions).

Pins

3) Bring cover plate towards the unit and hook

top clip over and behind the glass frame.

The top clip may need to be adjusted. Loosen

the 2 screws that secure the top clip to let the cover plate settle over and behind the glass frame. Once settled tighten screws.

Top Clip

Back View of

Cover Plate

Pin Holes

TO REMOVE:

1) Remove 2 screws that secure top clip.

Ensure to hold cover plate as it will fall forward.

screws per standoff (on opposite corners).

Side Nailing Strips

The side nailing strips come attached to the unit. There are 2 plates, one on the top and bottom that can be folded out as required.

Plates can be

folded out.

2) Pull out top clip that is still hooked onto

glass.

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

VENTING

FPI Direct Vent System Flex Horizontal Terminations Only

These venting systems, in combination with the P95-3 Direct Vent Gas Fireplace, have been tested and listed as a direct vent heater system by Warnock Hersey. The location of the termination cap must conform to the requirements in the Vent Terminal Locations diagram from the "Exterior Vent Termination Locations" section.

FPI Direct Vent Flex System Termination Kit (Part # 946-615) includes all the parts needed to install the P95-3 with a maximum run of 4 feet.

1) 8" dia. ﬂ exible liner (4 ft. length)

2) 5" dia. ﬂ exible liner (4 ft. length)

3) spring spacers (4)

4) thimble (2)

5) AstroCap XL termination cap (1)

6) screws (12)

7) tube of Mill Pac (1)

8) plated screws (8)

9) screws #8 x 1-1/2" Drill Point,

Stainless Steel (4)

10) vinyl siding standoff

If longer runs are needed, the FPI Direct Vent system (Flex) kit is (Part # 946-616) which includes all the parts needed to install the P95-3 with a maximum 10' run.

1) 8" dia. ﬂ exible liner (10 ft. length)

2) 5" dia. ﬂ exible liner (10 ft. length)

3) spring spacers (7)

4) thimble (2)

5) AstroCap XL termination cap (1)

6) screws (12)

7) tube of Mill Pac (1)

8) plated screws (8)

9) screws #8 x 1-1/2" Drill Point,

Stainless Steel (4)

10) vinyl siding standoff

Notes:

1) Liner sections should be continuous without any joints or seams.

2) Only Flex pipe purchased from FPI may be used for Flex installations.

3) Horizontal vent must be supported every 3 feet.

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace 11

INSTALLATION

EXTERIOR VENT TERMINATION LOCATIONS

from the centerline of the regulator.

any other appliance *(12"/30cm)

*(min. 84"/2.1m)

H= Not to be installed above a meter/regulator assembly within (3'/90cm) horizontally

J= Clearance to service regulator vent outlet *(min 36"/90cm)

K= Clearance to non-mechanical air supply inlet to building or the combustion air inlet to

L= Clearance to a mechanical air supply inlet *(min. 72"/1.8m)

M= Clearance above paved sidewalk or a paved driveway located on public property

N= Clearance under veranda, porch, deck, or balcony *(min. 12"/30cm)

distance of (24"/60cm) from the centerline of the terminal (min. 18"/46cm) check with

local code.

Vent Termination Cap (14"/36cm)

Vent Termination Cap (12"/30cm)

Note:

- A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings.

- Only permitted if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the ﬂ oor.

- If the vent termination is accessible, a certiﬁ ed guard shall be installed.

A= Clearance above grade, veranda, porch, deck, or balcony *(min. 12"/30cm)

B= Clearance to window or door that may be opened *(12"/30cm)

C= Clearance to permanently closed window *(min. 12"/30cm)

D= Vertical clearance to ventilated sofﬁ t located above the terminal within a horizontal

E= Clearance to unventilated sofﬁ t (min. 18"/45cm)

F= Clearance to outside corner: with AstroCap Termination Cap (min 6"/15cm), with Dura-

G= Clearance to inside corner: with AstroCap Termination Cap (min 6"/15cm), with Dura-

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace

* As speciﬁ ed in CGA B149 Installation Code. Note: Local codes or regulations may require different clearances.

INSTALLATION

SIMPSON DURA-VENT VENTING

The Simpson Dura-Vent Direct Vent System offers a complete line of component parts for installation of both horizontal and vertical installations. Many items are offered in decorative black, as well as galvanized ﬁ nish. We recommend using the galvanized ﬁ nish for installation with the P95-3.

The minimum components required for a basic horizontal termination are:

1 Horizontal Termination Cap 1 90 1 Flue Adaptor 1 Wall Thimble 1 Length of pipe to suit wall thickness (see chart)

Wall thickness is measured from the back standoffs to the inside mounting surface of termination cap. For siding other than vinyl furring strips may be used, instead of the vinyl siding standoff, to create a level surface to mount the vent terminal. The Terminal must not be recessed into siding. Measure the wall thickness including furring strips.

If a Vinyl Siding Standoff is required (it must be used with vinyl siding), measure to outside surface of wall without siding and add 2 inches.

Elbow

Horizontal and Vertical

Terminations for 5" x 8" Venting

Wall Thickness

4" - 5-1/2" 6"

7" - 8-1/2" 9"

10" - 1-1/2" 12"

9" - 14-1/2" 11" - 14-5/8" Adj. Pipe

15" - 23-1/2" 17" - 24" Adj.

Wall Thickness

3-1/4" - 6-3/4" 11" - 14-5/8" Adj. Pipe

7-3/4" - 16-1/4" 17" - 24" Adj. Pipe

7-1/4" - 8-3/4" 6" + 12"

4-1/4" - 5-3/4" 6" + 9"

Flat Wall Installation

(inches)

Corner Installation

(inches)

Vent Length Required

(inches)

Vent Length Required

(inches)

9" + 9"

Alternate Horizontal

Termination Cap

The FPI AstroCap XL

Simpson

Dura-Vent

Direct Vent GS

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace 13

FPI venting systems as well as Simpson Dura-Vent® and Direct Vent GS.

The FPI AstroCap XLTM is a proprietary trademark of FPI Fireplace Products International Ltd.

Dura-Vent® and Direct Vent GS are registered and/or proprietary trademarks of Simpson Dura-Vent Co. Inc.

is certiﬁ ed for installations using

INSTALLATION

SIMPSON DURA-VENT VENTING COMPONENTS LIST

All Simpson Dura-Vent components are available directly from FPI.

5" x 8" Description

1208 6" Pipe Length 1208B 6" Pipe Length, Black* 1207 9" Pipe Length 1207B 9" Pipe Length, Black* 1206 12" Pipe Length 1206B 12" Pipe Length, Black* 1204 24" Pipe Length 1204B 24" Pipe Length, Black* 1203 36" Pipe Length 1203B 36" Pipe Length, Black* 1202 48" Pipe Length 1202B 48" Pipe Length, Black* 1211 11" to 14-5/8" Pipe, Adjustable 1211B 11" to 14-5/8" Pipe, Adjustable, Black* 1217 17" to 24" Pipe, Adjustable 1217B 17" to 24" Pipe, Adjustable, Black* 1245 45 1245B 45 1245G 45 1245BG 45 1290 90 1290B 90 1290G 90 1290BG 90

Elbow

Elbow, Black*

Elbow, Swivel*

Elbow, Black, Swivel*

Elbow

Elbow, Black*

Elbow, Swivel*

Elbow, Black, Swivel*

5" x 8" Description

1240 Round Ceiling Support/Wall Thimble Cover* 1241 Cathedral Ceiling Support Box Brass Trim for Wall Thimble/Ceiling Support* 1247 Wall Thimble (only required in Canada) 1243 Flashing, 0/12 to 6/12 Roof Pitch 1243S Flashing, 7/12 to12/12 Roof Pitch 1242 Wall Firestop 1253 Storm Collar 1263 Ceiling Firestop 1288 Wall Strap* 1281 Snorkel Termination (36") 1282 Snorkel Termination (14") 1284 Horizontal Square Termination* 1285 Horizontal Square Termination, High Wind 1291 Vertical Termination, High Wind N/A Extended Vertical Termination 1250 Vinyl Siding Standoff

Parts not supplied by Dura-Vent

770-994 Dura-Vent Flue Adaptor

* Not Supplied by FPI.

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

VENTING ARRANGEMENTS - HORIZONTAL TERMINATIONS

SIMPSON DURA-VENT DIRECT VENT GS SYSTEM and

FPI DIRECT VENT SYSTEM (FLEX)

(Propane & Natural Gas)

The diagram shows all allowable combinations of vertical runs with horizontal terminations, using one 90o elbow (two 45o elbows equal one 90o elbow).

Simpson Dura-Vent 5" inner diameter 8" outer diameter

Note: Must use optional ﬂ ue adapter (Part # 770-994)

when using Simpson Dura-Vent pipe.

Regency® Flex Vent 5" inner diameter 8" outer diameter

Note: FPI Direct Vent System (Flex) is only approved

for horizontal terminations.

A vent guard should be used whenever the termination is lower than the speciﬁ ed minimum or as per local codes.

Please note that all vertical measurements are taken from the base of the unit excluding risers or bottom stand-offs.

• Maintain clearances to combustibles as listed in the "Clearances," "Locating Your Gas Fireplace," "Combustible Mantels," "Unit Base Stand-offs," "Framing and Finishing," "Facing Requirement," & "Hearth Requirement" sections.

• Horizontal vent must be supported every 3 feet.

• Firestops are required at each ﬂ oor level and whenever passing through a wall.

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace 15

INSTALLATION

Horizontal Venting with Two (2) 90o Elbows

One 90o elbow = Two 45o elbows.

Option V H + H1

A) 0' Min. 2' Max. B) 1' Min. 3' Max. C) 2' Min. 4' Max. D) 3' Min. 5' Max. E) 4' Min. 6' Max. F) 5' Min. 7' Max. G) 6' Min. 8' Max.

Horizontal Venting with Three (3) 90o Elbows

One 90o elbow = Two 45o elbows.

Option V H V + V1 H + H1

A) 0' Min. 1' Max. 1' Min. 2' Max. B) 1' Min. 2' Max. 3' Min. 3' Max. C) 2' Min. 2' Max. 5' Min. 4' Max. D) 3' Min. 2' Max. 7' Min. 5' Max. E) 4' Min. 3 Max. 9' Min. 6' Max. F) 5' Min. 4' Max. 10' Min. 7' Max. G) 6' Min. 5' Max. 11' Min. 8' Max. H) 7' Min. 6' Max. 12' Min. 9' Max.

With these options, maximum total pipe length is 30 feet with minimum of 6 feet total vertical and maximum 8 feet total horizontal.

Please note minimum 1 foot between 90o elbows is required.

With these options, max. total pipe length is 30 feet with min. of 12 feet total vertical and max. 9 feet total horizontal.

Please note min. 1 foot between 90 elbows is required.

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace

One 90o elbow = Two 45o elbows.

Option V H V + V1 A) 0' Min. 2' Max. 1' Min. B) 1' Min. 4' Max. 2' Min. C) 2' Min. 5' Max. 3' Min. D) 3' Min. 6' Max. 4' Min. E) 4' Min. 7' Max. 5' Min. F) 5' Min. 8' Max. 6' Min.

For additional vertical venting with 2 x 90o elbows, refer to next page.

INSTALLATION

Vertical Venting with Two (2) 90o Elbows

With these options, max. total pipe length is 30 feet with min. of 6 feet total vertical and max. 8 feet total horizontal.

Please note min. 1 foot between 90o elbows is required.

Vertical Venting with Three (3) 90o Elbows

One 90o elbow = Two 45o elbows.

Option V H + H1 V + V1 A) 0' Min. 2' Max. 3' Min. B) 1' Min. 2' Max. 3' Min. C) 2' Min. 3' Max. 4' Min. D) 3' Min. 4' Max. 6' Min. E) 4' Min. 5' Max. 7' Min. F) 5' Min. 6' Max. 8' Min. G) 6' Min. 7' Max. 9' Min. H) 7' Min. 8' Max. 10' Min.

With these options, max. total pipe length is 30 feet with min. of 10 feet total vertical and max. 8 feet total horizontal.

Please note min. 1 foot between 90o elbows is required.

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace 17

INSTALLATION

VENTING ARRANGEMENTS - VERTICAL TERMINATIONS

SIMPSON DURA-VENT DIRECT VENT GS SYSTEM

(Propane & Natural Gas)

The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations, using two 90o elbow, with

Simpson Dura-Vent Direct Vent GS vent systems for Propane and Natural Gas.

• Vent must be supported at offsets.

• Firestops are required at each ﬂ oor level and whenever passing through a wall.

• Maintain clearances to combustibles.

Note: Must use optional ﬂ ue adapter when using Simpson Dura-Vent pipe (Part # 770-994).

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace

The P95-3 is approved for a maximum 40 ft. straight vertical, with Simpson Dura-Vent Direct Vent GS vent systems for Propane and Natural Gas, as per the diagram.

The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations with Simpson Dura-Vent Direct Vent GS vent systems for Propane and Natural Gas. Maximum two 45 elbows allowed.

• Vent must be supported at offsets

• Firestops are required at each ﬂ oor level and whenever passing through a wall.

Please note that all vertical measurements are taken from the base of the unit excluding risers or bottom stand-offs.

INSTALLATION

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace 19

INSTALLATION

UNIT INSTALLATION

WITH HORIZONTAL

TERMINATION

Install the vent system according to the manufacturer's instructions included with the components.

1) Set the unit in its desired location. Check

to determine if wall studs or roof rafters are in the way when the venting system is attached. If this is the case, you may want to adjust the location of the unit. Rough in the gas preferably on the right side of the unit and the electrical (junction block is on the left side) on the left.

2) Direct Vent pipe and ﬁ ttings are designed

with special twist-lock connections to connect the venting system to the appliance ﬂ ue outlet. A twist-lock appliance adaptor is an available option that must be used in conjunction with the Simpson Dura-Vent Direct Vent GS system.

3) Put a bead of silicone inside the outer

section of the adapter and a bead of Mill Pac on the inner collar. Slip the adapter over the existing inner and outer ﬂ ue collar and fasten to the outer collar only with the 3 supplied screws (drilling pilot holes will make this easier). Level the ﬁ replace and fasten it to the framing using nails or screws through the nailing strips.

4) Assemble the desired combination of pipe

and elbows to the appliance adaptor and twist-lock for a solid connection.

Note:

a) Twist-lock procedure: Four indentations,

located on the female ends of pipes and ﬁ ttings, are designed to slide straight onto the male ends of adjacent pipes and ﬁ ttings, by orienting the four pipe indentations so they match and slide in to the four entry slots on the male ends, Diagram 1. Push the pipe sections completely together, then twist-lock one section clockwise approximately one-quarter turn, until the two sections are fully locked. The female locking lugs will not be visible from the outside, on the Black Pipe or ﬁ ttings. They may be located by examining the inside of the female ends.

Diagram 1

Note: Apply sealant "Mill-Pac" to inner

pipe and high temperature silicone sealant to outer pipe on every twistlock joint.

b) Horizontal runs of vent must be

supported every three feet. Wall straps are available for this purpose.

5) Mark the wall for a 11" x 11" square hole.

The center of the square hole should line up with the centerline of the horizontal pipe. Cut and frame the 10 inch square hole in the exterior wall where the vent will be terminated. If the wall being penetrated is constructed of non-combustible material, i.e. masonry block or concrete, a 8" dia. hole is acceptable.

Note: With Dura-Vent, the minimum height is achieved by installing a 90 the ﬂ ue adaptor.

Diagram 2

Note:

a) The horizontal run of vent must be level,

or have a 1/4 inch rise for every 1 foot of run towards the termination. Never allow the vent to run downward. This could cause high temperatures and may present the possibility of a ﬁ re.

b) The location of the horizontal vent

termination on an exterior wall must meet all local and national building codes, and must not be blocked or obstructed. For External Vent Terminal Locations, see diagram from the "Exterion Vent Termination Locations" section.

c) Snorkel Terminations: For installations requiring a vertical rise

on the exterior of the building, 14-inch and 36-inch tall Snorkel Terminations are available. Follow the same installation procedures as used for standard Horizontal Termination. NEVER install the snorkel upside down.

elbow directly to

Diagram 3

*Diagam 3 & 4: As speciﬁ ed in CGA B149 Installation Code. Local codes or regulations may require different clearances.

Below Grade Installation

If the Snorkel Termination must be installed below grade, i.e. basement application, proper drainage must be provided to prevent water from entering the Snorkel Termination. Refer to Diagram 4. Do not attempt to enclose the Snorkel within the wall, or any other type of enclosure.

Diagram 4

NOTE: For Snorkel terminations in ABOVE

grade installations, follow national or local code requirements.

6) The arrow on the vent cap should be pointing up. Insure that the 1-1/2"

clearances to combustible materials are maintained (Diagram 4). Install the termination cap.

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

Diagram 5

The four wood screws provided should

be replaced with appropriate fasteners for stucco, brick, concrete, or other types of sidings.

Note: If installing termination on a siding

covered wall, a vinyl siding standoff or furring strips must be used to ensure that the termination is not recessed into the siding.

7) Before connecting the horizontal run of vent

pipe to the vent termination, slide the Wall Thimble (Part # 1247) over the vent pipe.

8) Slide the appliance and vent assembly

towards the wall carefully inserting the vent pipe into the vent cap assembly. It is important that the vent pipe extends into the vent cap sufﬁ cient distance so as to result in a minimum pipe overlap of 1-1/4 inches. Secure the connection between the vent pipe and the vent cap by attaching the two sheet metal strips extending from the vent cap assembly into the outer wall of the vent pipe. Use the two sheet metal screws provided to connect the strips to the pipe section. See Diagram 6.

Diagram 6

9) Install wall thimble

in the center of the 11" square and attach with wood screws (Diagram 7).

Diagram 7

VERTICAL

TERMINATION

1) Maintain the 1-1/2"

clearances (air spaces) to combustibles when passing through ceilings, walls, roofs, enclosures, attic rafter, or other nearby combustible surfaces. Do not pack air spaces with insulation. Check the "Venting Arrangements

- Vertical Temination" section for the maximum vertical rise of the venting system and the maximum horizontal offset limitations.

2) Set the gas appliance in

its desired location. Drop a plumb bob down from the

ceiling to the position of the appliance ﬂ ue exit, and mark the location where the vent will penetrate the ceiling. Drill a small hole at his point. Next, drop a plumb bob from the roof to the hole previously drilled in the ceiling, and mark the spot where the vent will penetrate the roof. Determine if ceiling joists, roof rafters or other framing will obstruct the venting system. You may wish to relocate the appliance or to offset, as shown in Diagram 2 to avoid cutting load bearing members.

Note: Apply sealant "Mill-Pac" to inner

pipe and high temperature silicone sealant to outer pipe on every twistlock joint.

3) A Firestop spacer must be installed in the

ﬂ oor or ceiling of every level. To install the Firestop spacer in a ﬂ at ceiling or wall, cut a 11 inch square hole. Frame the hole as shown in Diagram 3 and install the ﬁ restop.

Diagram 1

Diagram 2

Diagram 3

4) Assemble the desired lengths of pipe and

elbows. Ensure that all pipes and elbow connections are in the fully twist-locked position and sealed.

5) Cut a hole in the roof centered on the small

drilled hole placed in the roof in Step 2. The hole should be of sufﬁ cient size to meet the minimum requirements for clearance to combustibles of 1-1/2". Slip the ﬂ ashing under the shingles (shingles should overlap half the ﬂ ashing) as per Diagram 4.

Diagram 4: The upper half of the ﬂ ashing is

installed under the rooﬁ ng material and not

nailed down until the chimney is installed. This

allows for small adjustments.

6) Continue to assemble pipe lengths.

Note: If an offset is necessary in the attic

to avoid obstructions, it is important to support the vent pipe every 3 feet, to avoid excessive stress on the elbows, and possible separation. Wall straps are available for this purpose (Diagram 2).

Galvanized pipe is desirable above the rooﬂ ine

due to its higher corrosion resistance. Continue to add pipe sections through the ﬂ ashing until the height of the vent cap meets the minimum height requirements speciﬁ ed in Diagram 5 or local codes. Note that for steep roof pitches,

Diagram 5

Roof Pitch Minimum Vent Height

Feet Meters

ﬂ at to 7/12 2 0.61

over 7/12 to 8/12 2 0.61

over 8/12 to 9/12 2 0.61

over 9/12 to 10/12 2.5 0.76

over 10/12 to 11/12 3.25 0.99

over 11/12 to 12/12 4 1.22

over 12/12 to 14/12 5 1.52

over 14/12 to 16/12 6 1.83

over 16/12 to 18/12 7 2.13

over 18/12 to 20/12 7.5 2.29

over 20/12 to 21/12 8 2.44

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace 21

INSTALLATION

the vertical height must be increased. A poor draft, or down drafting can result from high wind conditions near big trees or adjoining roof lines, in these cases, increasing the vent height may solve the problem.

7) Ensure vent is vertical and secure the base

of the ﬂ ashing to the roof with rooﬁ ng rails, slide storm collar over the pipe section and seal with a mastic.

8) Install the vertical termination cap by twist-

locking it.

Note: Any closets or storage spaces, which

the vent passes through must be enclosed.

Offset Chart

GS 8" Nominal Diameter ID

Offset Pipe Length Height 5-11/16" 0" 15-5/16"

8-13/16" 6" 15-7/16"

10-15/16" 9" 20-9/16"

13" 12" 22-11/16"

21-7/16" 24" 31-1/16"

29-13/16" 36" 37-7/16"

38-1/4" 48" 47-7/8"

INSTALLATION

PROCEDURES

for FPI Direct Vent

System (Flex)

Note: To make the installation more aesthetically pleasing, we recommend framing out a square to mount the terminal to.

Note: If installing termination on a siding

covered wall, furring strips must be used to ensure that the termination is not recessed into the siding.

2) Level the ﬁ replace and fasten it to the framing

using nails or screws through the nailing strips.

3) Assemble the vent assembly by applying

Mill Pac to the 5"(127mm) inner collar of the termination and slipping the 5"(127mm) liner over it at least 1-3/8" (35mm). Fasten with the 3 screws (drilling pilot holes will make this easier). Apply Mill Pac or high temperature silicone to the 8"(203mm) ﬂ ex pipe and slip it over the 8"(203mm) outer collar of the vent terminal at least 1-3/8"(35mm) and fasten with the 3 screws.

NOTE: H or iz ontal sections must be

supported at intervals not exceeding 3 feet (0.9 meter). (Flame picture and performance will be affected by sags in the liner).

4) Separate the 2 halves of the wall thimble and

securely fasten the one with the tabs to the outside wall making sure that the tabs are on top and bottom. Fasten the other thimble half to the inside wall. The thimble halves slip inside each other and can be adjusted for 2 x 4 or 2 x 6 walls. The liners must slip

over the collars a minimum of 1-3/8".

5) Slip the assembled liner and termination

assembly through the thimble making sure the termination cap faces up (there are markings on the cap that show which way is up). This will position the termination cap with proper down slope for draining water. Fasten the cap to the outer wall with the 4 supplied screws.

6) Pull the centre 5"(127mm) liner and outer 8"(203mm) liner out enough to slip over

the ﬂ ue collars of the ﬁ replace. (You may wish to cut the liner shorter to make it more workable.) Do not bend liner more than

7) Apply Mill Pac over the ﬁ replace inner collar

and slip the 5"(127mm) liner down over it and attach with 3 supplied screws.

8) Do the same with the 8"(203mm) liner.

9) Apply a bead of silicone between the thimble

and termination and around the outer edge of the terminal at the wall in order to keep the water out.

IMPORTANT: Do not locate termination hood where excessive snow or ice buildup may occur. Be sure to check vent termination area after snow falls, and clear to prevent accidental blockage of venting system. When using snow blowers, make sure snow is not directed towards vent termination area.

1) Locate the unit in the framing, rough in the

gas (preferably on the right side of the unit) and the electrical (Junction block is on the left side) on the left. Locate the centerline of the termination and mark wall accordingly. Cut a 11"(279mm) hole in the wall (inside dimension).

Note: A 3-1/2"(76mm) clearance around

the liner must be maintained except that only a 1" (25mm) clearance is needed at the termination end. We recommend framing a 11"(279mm) x 11"(279mm) (inside dimensions) hole to give structural rigidity for mounting the termination.

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

P95-NG3 System Data

For 0 to 4500 feet altitude

Burner Inlet Oriﬁ ce Sizes: #30

Max. Input Rating 45,000 Btu/h Min. Input Rating 23,200 Btu/h

Supply Pressure min.5.0" w.c.

Manifold Pressure (High) 3.8"+/- 0.2"w.c.

P95-LP3 System Data

For 0 to 4500 feet altitude

Burner Inlet Oriﬁ ce Sizes: # 4 9 Max. Input Rating 40,000 Btu/h Min. Input Rating 22,400 Btu/h

Supply Pressure min.12.0" w.c.

Manifold Pressure (High) 11"+/- 0.2" w.c.

Electrical: 120 V A.C. System. Circulation Fan: variable speed 200 CFM. Log Set: Ceramic ﬁ bre, 7 per set. Vent System: Simpson Dura-Vent Direct

Vent System or FPI Flex System.

For USA installations follow local codes and/or the current National Fuel Gas Code, ANSI Z223.1.

When using copper or ﬂ ex connectors use only approved ﬁ ttings. Always provide a union so that gas lines can be easily disconnected for servicing. Flare nuts for copper lines and ﬂ ex connectors are usually considered to meet this requirement.

Important: Always check for gas leaks with a soap and water solution or gas leak detector. Do not use open ﬂ ame for leak testing.

PILOT ADJUSTMENT

Periodically check the pilot ﬂ ames. Correct ﬂ ame pattern has three strong blue ﬂ ames: 1 ﬂ owing around the thermopile, 1 around the thermocouple and 1 ﬂ owing across the burner (it does not have to be touching the burner).

Note: If you have an incorrect ﬂ ame pattern,

contact your Excalibur® dealer for further instructions.

Incorrect ﬂ ame pattern will have small, probably yellow ﬂ ames, not coming into proper contact with the rear burner or thermopile or thermocouple.

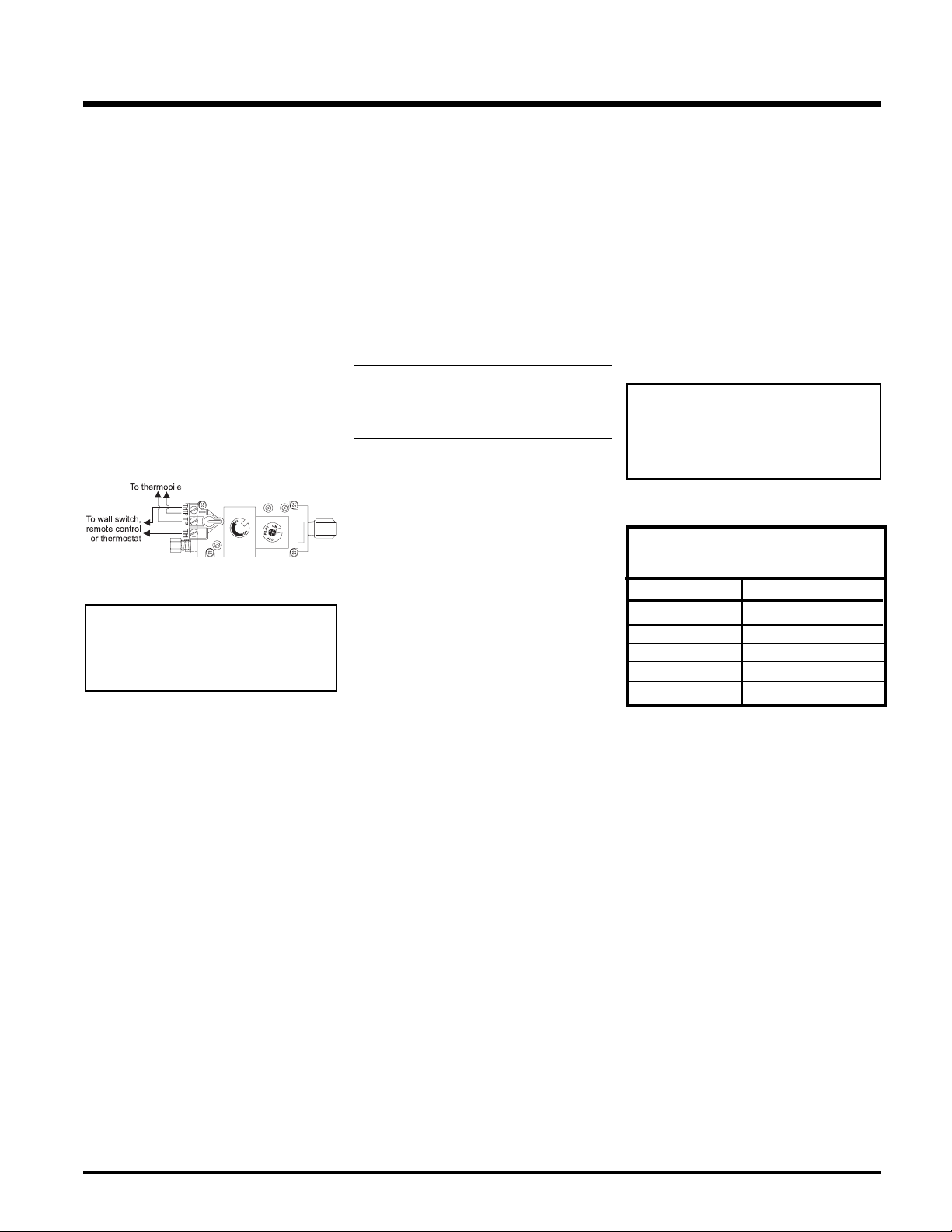

The manifold pressure is controlled by a regulator built into the gas control, and should be checked at the pressure test point.

Note: To properly check gas pressure, both

inlet and manifold pressures should be checked using the valve pressure ports on the valve.

1) Make sure the valve is in the "OFF"

position.

2) Loosen the "IN" and/or "OUT" pressure

tap(s), turning counter clockwise with a

1/8" wide ﬂ at screwdriver.

3) Attach manometer to "IN" and/or "OUT"

pressure tap(s) using a 5/16" ID hose.

4) Light the pilot and turn the valve to "ON"

position.

5) The pressure check should be carried out

with the unit burning and the setting should be within the limits speciﬁ ed on the safety label.

6) When ﬁ nished reading manometer, turn

off the gas valve, disconnect the hose and tighten the screw (clockwise) with a 1/8" ﬂ at screwdriver. Note: Screw should be snug,

but do not over tighten.

S.I.T. VALVE DESCRIPTION

HIGH ELEVATION

This unit is approved in Canada for altitude 0 to 4500 ft. (CAN1 2.17-M91) & U.S.A ANSI ZZ1.88a

GAS LINE

INSTALLATION

The gas line is brought in through the left side of the appliance. The gas valve is situated on the right hand side of the unit and the gas inlet is on the right hand side of the valve.

Note: When the gas line is being installed

from the left side, be sure to leave room to accommodate servicing of the fan.

The gas line connection may be made of rigid pipe, copper pipe or an approved ﬂ ex connector. (If you are using rigid pipe, ensure that the valve can be removed for servicing.) Since some municipalities have additional local codes it is always best to consult with your local authorities and the CAN/CGA B149 installation code.

1) Gas on/off knob

2) Manual high/low adjustment

3) Pilot Adjustment

4) Thermocouple Connection - option

5) Outlet Pressure Tap

6) Inlet Pressure Tap

7) Pilot Outlet

8) Main Gas Outlet

9) Alternative TC Connection

Point

GAS PIPE PRESSURE

TESTING

The appliance must be isolated from the gas supply piping system by closing its individual manual shut-off valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig. (3.45 kPa). Disconnect piping from valve at pressures over 1/2 psig.

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace 23

INSTALLATION

CONVERSION KIT# 773-969 FROM NG TO LP FOR P95-3 USING SIT 820 NOVA GAS VALVE

THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER

IF IN DOUBT DO NOT DO THIS CONVERSION !!

Each Kit contains one LPG Conversion Kit and one DC Sparker Kit.

LPG Conversion Kit Contains: Qty. Part # Description

1 904-431 Burner Oriﬁ ce #49 1 918-590 Label "Converted to

LPG" 1 908-528 Red "LPG" label 1 908-529 5/32" Allen Key 1 910-037 LP Injector (Pilot Oriﬁ ce) 1 918-486 Instruction Sheet

DC Sparker Kit Contains:

Qty. Part # Description

1 820-475 Bracket DC Sparker 1 820-476 Bracket DC Sparker 1 904-153 Washer #8 External Star 1 904-330 Nut 8-32 Hex 1 904-438 Plug Nylon 0.750 Hole,

Black 1 904-531 Bushing Split Plastic

0.500 in.

1 904-543 Screw 8-32 x 3/4 Pan

Head 2 904-553 Screw #8 x 1/2 Type "B",

Black Oxide 1 910-073 Spark Generator Battery

Holder 1 910-074 Spark Generator Switch

C/W Wire 1 910-078 Battery Size AA

Energizer En91 2 910-199 Clip Wire Holder 1 910-903 Wire Fan To Power Cord

Ground 30 in. 904-781 Velcro Hook, Black 904-782 Velcro Hook, Black

Remove

screw

6) Remove the 2 screws, one on each side

of the burner. Slide the burner to the left and then lift out.

Remove screw

Slide the burner to the left and lift out.

8) Unscrew the pilot oriﬁ ce with the allen key

and replace with the LP pilot oriﬁ ce in the kit and replace pilot cap.

Allen Key

9) Remove burner oriﬁ ce with a 1/2" wrench

and discard. Use another wrench to hold on to the elbow behind the oriﬁ ce.

Burner Oriﬁ ce

10) Reinstall new burner oriﬁ ce LP stamped

#49 and tighten.

11) Remove the black protection cap by

hand from the high-low knob (Fig.1).

Installation of LPG Conversion Kit:

1) Turn the gas off.

2) Turn control knob to the “OFF” position.

3) Remove the glass frame.

4) Remove the logs, embers, and brick panels

(if used).

5) Remove the burner/grate assembly, ﬁ rst

by removing the two screws, one on each

side of the grate, then pull out the grate.

7) Pull off the pilot cap to expose the pilot

oriﬁ ce.

Fig. 1

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

12) Insert a 5/32” or 4mm Allen wrench into

the hexagonal key-way of the screw (Fig. 2), rotate it counter-clockwise until it is free and extract it.

Fig.2

13) Check that the screw is clean and if

necessary remove dirt.

14) Flip the screw (Fig. 3).

WARNING!

Do not overtighten the screw.

Recommended to

grip the wrench by the short side.

16) Verify that if the conversion is from

NG to LPG, the screw must be reassembled with the red o-ring visible (Fig. 5).

Red o-ring visible

LPG Configuration

Fig.5

17) Re-assemble the black protection cap

(Fig. 6).

Installation of the DC Sparker:

15) Locate the Piezo Ignitor situated at the side

of valve.

Piezo

Ignitor

16) Remove the Piezo Ignitor by unscrewing the

nut at the back of the mounting bracket.

Ignitor

Wire

Piezo

Ignitor

Fig.3

15) Using the Allen wrench as shown in

Fig.4, rotate the screw clockwise until snug, do not overtighten.

17) Disconnect the ignitor wire from the Piezo

Ignitor and connect it to the DC Sparker.

Sparker

Ignitor

Wire

Fig. 6

18) Install the 3/4" nylon plug to cover up the

hole on the mounting bracket.

WARNING!

Also check that the pilot and main

burner injectors

are appropriate for the gas type.

12) Reverse steps 6) to 1).

13) Attach the label "This unit has been

converted to LPG near or on top of the serial # decal.

14) Replace yellow "Natural Gas" label with

red "LPG" label.

Fig.4

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace 25

INSTALLATION

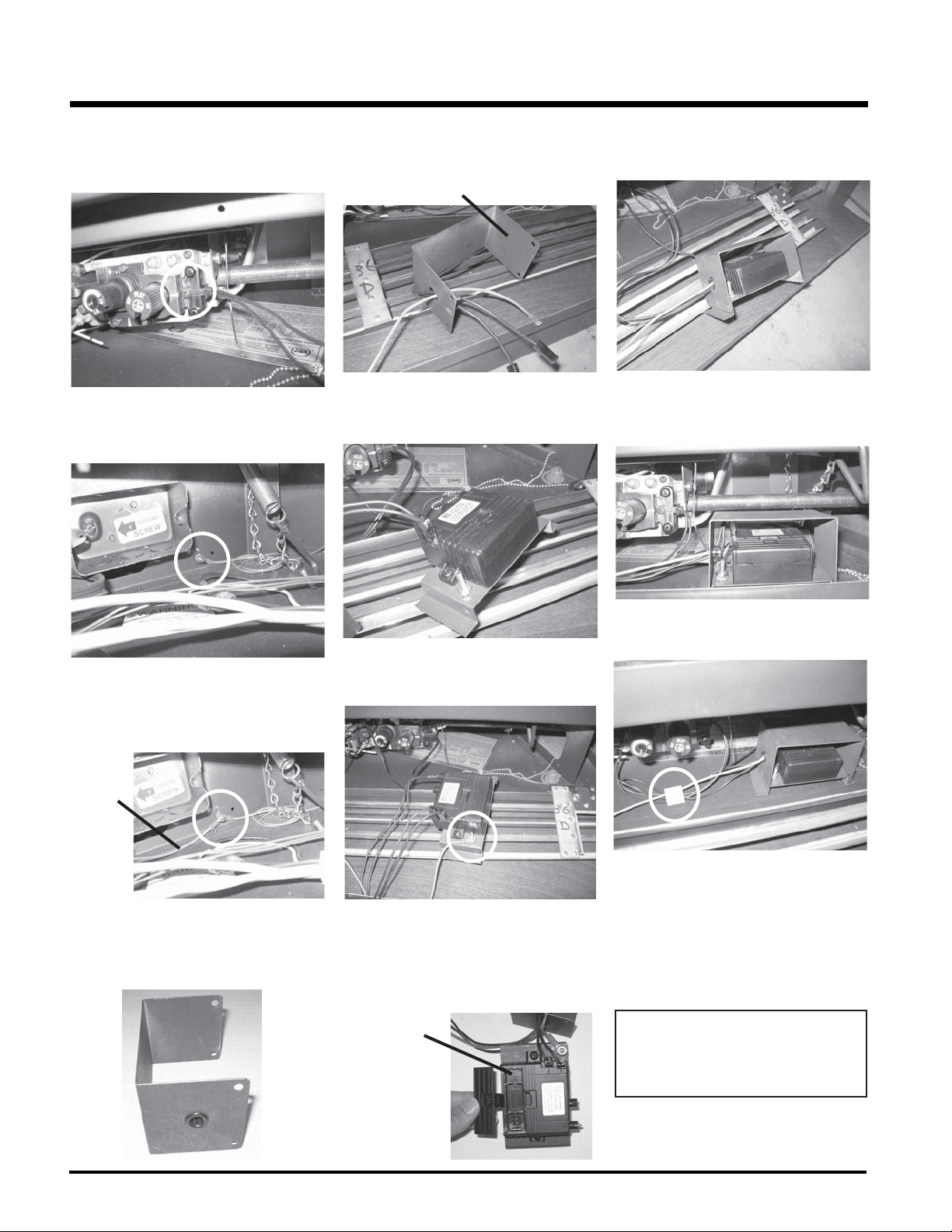

19) Connect the DC spark generator wires

to the SIT Valve with the screw, which is provided in the kit.

20) Locate the ground lug at the receptical box,

left of the unit.

23) Run the other end of the ground wire and

DC spark generator wires through the bushing on the heat shield.

Heat Shield

24) Plug the DC spark generator wires to the

DC Sparker.

27) Mount the heat shield to the DC Sparker.

Secure into place with the velcro, which is provided in the kit.

28) Find a location which is not too hot and

is easy to reach for changing the battery.

21) Connect one end of the supplied green

ground wire to the lug with the nut and washer from the kit.

Ground

wire from

kit

22) Install the 1/2" bushing to the heat

shield.

25) Connect the ground wire to the DC Sparker

mounting bracket.

26) Install the supplied battery into the DC

Sparker Box by opening the battery compartment.

NOTE: The battery in the DC Sparker Box

will need to be replaced annually.

Battery

Compartment

29) Tie up the loose wire with the wire clip.

30) Check inlet and outlet pressures.

31) Check operation of ﬂ ame control.

32) Check for proper ﬂ ame appearance and

glow on logs.

Installer Notice:

These instructions must be

left with the appliance.

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

OPTIONAL

BRICK PANELS

1) Open the bottom louver door. Loosen the 2

screws holding the Burner ON/OFF switch and bracket to the bottom louver and lift the assembly out.

2) Remove facade.

3) Remove glass door. Remove logs.

Note: The logs must not be in the unit.

4) Insert the back brick panel ﬁ rst by carefully

slipping it between the back wall of the ﬁ rebox and the rear log bracket.

5) Put the side panels in next. Slide them in

from the front and push them ﬂ at up against the wall. Be very careful not to scratch them on the ﬁ rebox hardware.

LOG SET

INSTALLATION

Read the instructions below carefully and refer to the diagrams. If logs are broken do not use the unit until they are replaced. Broken logs can interfere with the pilot operation.

Log Kit # 770-930 contains the following pieces:

a) 306 Rear Log b) 307 Middle Left Log c) 308 Center Right Log d) 309 Middle Right Log e) 310 Front Left Log f) 311 Center Left Log g) 312 Front Bottom Log h) Embers 902-154 i) Vermiculite 902-179

306

307

309

4) Place Log 312 on the front right side of the burner, ﬁ tting the log on the 2 pins.

312

5) Position Log 311 across the notch in Log 306 and rest the bottom of the log into the 2nd grate tab.

311

2nd Grate Tab

306

Notch

6) Install the 2 brick retaining clips, one on

each side.

311

The 3-digit numbers (ie. 312) are

molded into the rear of each log.

NOTE: If you will be installing the optional

Brick Panels, install the Brick Panels prior to installing the logs.

1) Carefully remove the logs from the box and unwrap them. The logs are fragile, handle with care - do not force into position.

2) Sprinkle the vermiculite all over the top of the base brick panel.

3) Place Log 306 on the rear log support pins with the ﬂ at side to the back.

306

308

312310

6) Position Log 308 across the log landing in Log 311. Rest the bottom of the log against the 5th grate tab.

311

308

5th Grate Tab

7) Fit the bottom of Log 307 into the bracket on the left side of the burner.

307

Note: If the bottom brick panel must be removed:

Remove the Rear Log Stand, then remove the Burner Tray. See the instructions in the "Removing Valve" section.

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace 27

Pins on the rear log support.

Bracket

INSTALLATION

8) Place the top of Log 307 across the notch on Log 311.

306

311

307

Notch

9) Place the back of Log 309 against the bracket on the top right side of the burner.

The picture below is a view from the back of the burner.

309

11) Fit Log 310 on the pin and then swing the front end of the log to hit the ﬁ rst grate

310

311

12) Place the embers on the front of the burner tray.

Place embers on the burner tray.

DO NOT BLOCK BURNER HOLES

13) Test ﬁ re to ensure proper light off (make sure ﬂ ame ﬂ ows smoothly from one end of burner to the other). If there is any ﬂ ame hesitation, check that area for any blockage of the burner ports.

14) Reverse steps 1-3 under the "Optional Brick Panels" section.

Rest log against

bracket

10) Place the top of Log 309 on Log 308, supported by the knot.

309

308

Knot

306

Rear Log

310

Front Left Log

Middle Left Log

311

Center Left Log

307

312

Front Bottom Log

309

Middle Right Log

308

Center Right Log

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

GLASS DOOR

INSTALLATION

1) Fit top door bracket over the ﬂ ange at the top of the ﬁ rebox.

2) Secure with 3 screws on the bottom.

Flange

Door

FRONT FACADE

1) Remove the 2 screws from the mounting plate that are on the back of the facade.

3) Mount the 2 screws back onto the mounting plate on the rear of the facade through the tab on the glass frame and then tighten screw to secure.

Tighten both screws to secure Front

Facade to Glass Door.

Tab

Screw

View from underneath of the

screw and the bracket.

4) Slide Bottom Louver into position. On each side secure the bottom screw ﬁ rst into the side bracket. Do not overtighten, leave slightly loose to allow the louver to move freely.

OPTIONAL

SCREEN DOORS

1) Attach door bracket to side using 2 screws to the left and right side of the unit.

Door Bracket attaches with

2 screws.

2) Slide the door(s) onto the hinges.

Adjusting the Plunger: Loosen the screw that holds that plunger bracket so that you can remove the plunger.

Remove screws from the mount-

2) Place the Front Facade into position by sliding the 2 holes in the bottom brackets over the pins on the base, one on each side.

Fit the bottom brackets over

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace 29

ing tabs.

Bracket

the pins on the base.

Secure

Screw

5) Attach the two control boxes to the bottom unit base and tighten the 2 screws on the left side and 1 screw on the right side.

Secure left side with 2 screws and right

side with one screw.

Loosen the

screw holding

the bracket.

Once the plunger has been removed take a pin and put it in the hole that is in the round part of the plunger and adjust it accordingly by turning it to the left or right.

Adjust plunger by

turning it to the left

or right with a pin.

INSTALLATION

ACCENT KIT INSTALLATION

SINGLE DOOR ACCENTS

1) Remove the rivets from the surround by pulling out the hoseclamp

with a screwdriver or plyer. Re-install the rivets by putting them through the holes on the sides of the surround.

2) Take the hoseclamps and put them over the back of each rivet.

Squeeze the hoseclamp to secure onto rivets ensuring that the hoseclamp is touching the back side of the surround. The hoseclamp can now be released.

4) Place the emblem over the emblem design on the surround. Insert

the studs through the holes. To secure them ﬁ rst put on the split lock washer and then the nut and tighten.

5) Remove the 2 studs on the sides of the Hood. Insert the new studs

through the holes and secure them by ﬁ rst putting on the washer and then tighten with a nut.

3) Remove the handles by removing the nut and screw. Install the

new handles by placing them in position over the holes on the surround louver. Put the screws through the holes and secure them by tightening them with a nut.

DOUBLE DOOR ACCENTS

1) Remove the handles by removing the nut and screw. Install the

new handles by placing them in position over the holes on the door(s). Put the studs through the holes and secure them by tightening them with a nut.

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

Option 1:

REMOTE CONTROL

Use the Excalibur® Remote Control Kit approved for this unit. Use of other systems may void your warranty.

The remote control kit comes with a hand held transmitter, a receiver and a wall mounting plate.

1) Choose a convenient location on the wall

to install the receiver and the receptacle box (protection from extreme heat is very important). Run wires from the ﬁ replace to that location. Use the Thermostat Wire Ta bl e .

2) Connect the two wires to the gas valve. See

diagram below.

CAUTION

Do not connect millivolt

remote control wires to a

120V wire.

Option 2:

WALL SWITCH

1) Run the wire through the right or left side

inlet opening. Be careful not to damage wire.

Note: We recommend a maximum of 15'

of wire but if you wish to go with a longer run, use the Thermostat Wire Table.

2) Connect the wire to the wall switch and install

into the receptacle box.

CAUTION

Do not connect millivolt

wall switch wire to a 120V wire.

Option 3:

WALL THERMOSTAT

A wall thermostat may be installed if desired, connect the wires as per the wiring diagram. Use the table below to determine the maximum wire length.

Note: Preferable if the thermostat is installed on an interior wall.

Excalibur offers an optional programmable thermostat but any 250-750 millivolt rated nonanticipator type thermostat that is CSA, ULC or UL approved may be used.

CAUTION

Do not connect millivolt

wall thermostat wires

to a 120V wire.

Thermostat Wire Table

Recommended Maximum Lead Length

(Two-Wire) When Using Wall

Thermostat (CP-2 System)

Wire Size Max. Length

14 GA. 16 GA. 18 GA. 20 GA. 22 GA.

50 Ft. 32 Ft. 20 Ft. 12 Ft.

9 Ft.

3) Install 3 AAA alkaline batteries in transmitter

and 4 AA alkaline batteries in the receiver. Install the receiver and its cover in the wall. Switch the remote receiver to "remote" mode. The remote control is now ready for operation.

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace 31

INSTALLATION

WIRING DIAGRAMS

This heater does not require a 120V A.C. supply for operation. In case of a power failure, the burner switch and the optional remote control/ thermostat will continue to operate. However, a 120V A.C. power supply is needed for the fan/blower operation.

For NATURAL GAS Units and Units NOT Equipped with DC Spark Boxes

Star

Lockwasher

washer

Fan

ground wire

Burner

OFF

Thermostat

Power cord ground wire

T-Stat

#8 Ground Lug

(for mobile home)

Nut

Red Black

Pilot

Assembly

Piezo

Ignitor

(To THTP)

(To TH)

(Do not cut the ground terminal off under any circumstances.)

Ground

Neutral

Thermopile

Gas Pilot

120V AC

Thermocouple

Electrode

60 Hz

Live

Ground

ON OFF

Rotary Speed

Brown

White

To Thermocouple IN

NOTE: Even if the fan is not purchased

with the unit, it is still a good idea to bring power to the receptacle box (provided with the unit) in case the fan is installed at a later date.

Fan B

Fan A

Green

Black Red Red

Fan Thermodisc

P I

(normally open)

Gas In

Control

"S.I.T" Valve

White

Caution: Ensure that the wires do not touch any hot surfaces and are away from sharp edges.

ON OFF

Remote Receiver

or Thermostat

(Millivolt) (Optional)

Remote Transmitter

(Optional)

CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation.

Regency

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

For PROPANE Units and Units Equipped with DC Spark Boxes*

*For installation of the DC Spark Box refer to the LP Conversion instructions in this manual.

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace 33

OPERATING INSTRUCTIONS

OPERATING

INSTRUCTIONS

1) Read and understand these instructions

before operating this appliance.

2) Check to see that all wiring is correct and

enclosed to prevent possible shock.

3) Check to ensure there are no gas leaks.

4) Make sure the glass in the door frame is

properly positioned. Never operate the appliance with the glass removed.

5) Verify that the venting and cap are

unobstructed.

6) Ensure that the brick panels are installed.

7) Verify log placement. If the pilot cannot be

seen when lighting the unit, the logs have been incorrectly positioned.

8) The unit should never be turned off, and on

again without a minimum of a 60 second wait.

1) Turn burner OFF using "ON/OFF" switch.

2) Turn gas control knob so indicator points

to "OFF" position and allow 5 minutes for any gas in the combustion chamber to escape.

3) Turn gas control knob counter clockwise

so indicator points to the "PILOT" position. Depress the gas control knob fully. Depress the igniter button several times until the pilot lights. After approximately one minute, release the gas control knob. The pilot ﬂ ame should continue to burn. If the pilot does not remain lit, repeat operation allowing a longer period before releasing gas control knob.

4) When the pilot stays lit, turn the gas knob

further counter clockwise to the "ON" position.

5) Use the wall switch, thermostat or remote

control to turn on the unit.

6) Rotate the ﬂ ame height regulator to adjust

the ﬂ ame height higher or lower.

SHUTDOWN

PROCEDURE

Note: When the glass is cold and the

appliance is lit, it may cause condensation and fog the glass. This condensation is normal and will disappear in a few minutes as

During the ﬁ rst few ﬁ res, a white ﬁ lm may develop on the glass front as part of the curing process. The glass should be cleaned or the ﬁ lm will bake on and become very difﬁ cult to remove. Use a non-abrasive cleaner and NEVER clean the glass while it is hot.

AERATION

ADJUSTMENT

The air shutter can be adjusted by moving the adjusting wire up or down. The wire is accessed through the bottom louver opening. Open the air shutter for a blue ﬂ ame or close for a more yellow ﬂ ame. The burner aeration is factory set but may need adjusting due to either the local gas supply or altitude. This adjustment is performed by the gas ﬁ tter.

Minimum Air Shutter Opening: 5/16" Natural Gas 3/8" Propane

LIGHTING

PROCEDURE

IMPORTANT

To ignite or reignite the pilot,

remove one glass panel/door.

NOTE: For all propane units and units

equipped with electric spark boxes, see "Copy of Lighting Plate Instructions" section for more details.

Only when the pilot holds, without pressure being applied to the control knob, resecure the glass panel to the unit. The unit must not be operated with the glass removed.

IMPORTANT Gas on/off knob cannot be turned from "PILOT" to "OFF" unless it is partially depressed.

1) Use the wall switch, thermostat or remote

control to turn off the main burner.

2) Turn the main gas control clockwise to the

"OFF" position to turn off the pilot.

3) Turn off all electric power to appliance if

service is to be performed.

FIRST FIRE

The ﬁ rst ﬁ re in your ﬁ replace is part of the paint curing process. To ensure that the paint is properly cured, it is recommended that you burn your ﬁ replace for at least four (4) hours the ﬁ rst time before you use it with the fan on.

When ﬁ rst operated, the unit will release an odour caused by the curing of the paint, the burning off of any oils remaining from manufacturing. Smoke detectors in the house may go off at this time. Open a few windows to ventilate the room for a couple of hours.

The glass panel may require cleaning after the unit has cooled down.

DO NOT ATTEMPT TO CLEAN THE GLASS WHILE IT IS HOT.

CAUTION: Carbon will be produced if air shutter is closed too much.

Note: Any damage due to carboning

resulting from improperly setting the aeration controls is NOT covered under warranty.

Adjustment Wire: Push to close or

pull to open aeration cap.

Closed - Tall yellow

Open - Short Blue

Note: Aeration Adjustment should only

be performed by an authorized Excalibur® Installer at the time of installation or service.

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace

OPERATING INSTRUCTIONS

Copy of the Lighting Plate Instructions

NORMAL OPERATING

SOUNDS OF GAS

APPLIANCES

It is possible that you will hear some sounds from your gas appliance. This is perfectly normal due to the fact that there are various gauges and types of steel used within your appliance. Listed below are some examples. All are normal operating sounds and should not be considered as defects in your appliance.

Blower:

Excalibur® gas appliances use high tech blowers to push heated air farther into the room. It is not unusual for the fan to make a "whirring" sound when ON. This sound will increase or decrease in volume depending on the speed setting of your fan speed control.

Burner Tray:

The burner tray is positioned directly under the burner tube(s) and logs and is made of a different gauge material from the rest of the ﬁ rebox and body. Therefore, the varying thicknesses of steel will expand and contract at slightly different rates which can cause "ticking" and "cracking" sounds. You should also be aware that as there are temperature changes within the unit these sounds will likely re-occur. Again, this is normal for steel ﬁ reboxes.

Gas Inlet

OFF

Blower Thermodisc:

When this thermally activated switch turns ON it will create a small "clicking" sound. This is the switch contacts closing and is normal.

Pilot Flame: While the pilot ﬂ ame is on it can make a very slight "whisper" sound.

Gas Control Valve: As the gas control valve turns ON and OFF, a dull clicking sound may be audible, this is normal operation of a gas regulator or valve.

Unit Body/Firebox: Different types and thicknesses of steel will expand and contract at different rates resulting in some "cracking" and "ticking" sounds will be heard throughout the cycling process.

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace 35

MAINTENANCE

INSTRUCTIONS

1) Always turn off the gas valve before cleaning.

For relighting, refer to lighting instructions. Keep the burner and control compartment clean by brushing and vacuuming at least once a year. When cleaning the logs, use a soft clean paint brush as the logs are fragile and easily damaged.

2) Clean appliance and door with a damp

cloth (never when unit is hot). Never use an abrasive cleaner. The glass should be cleaned with a gas ﬁ replace glass cleaner.

The glass should be cleaned when it starts looking cloudy.

3) The heater is ﬁ nished in a heat resistant

paint and should only be reﬁ nished with heat resistant paint. Excalibur® uses StoveBright Paint - Metallic Black #6309.

4) Make a periodic check of burner for proper

position and condition. Visually check the ﬂ ame of the burner periodically, making sure the ﬂ ames are steady; not lifting or ﬂ oating. If there is a problem, call a qualiﬁ ed service person.

5) The appliance and venting system must be

inspected before use, and at least annually, by a qualiﬁ ed ﬁ eld service person, to ensure that the ﬂ ow of combustion and ventilation air is not obstructed.

Note: Never operate the appliance without

the glass properly secured in place.

6) Do not use this appliance if any part has been

under water. Immediately call a qualiﬁ ed service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

7) In the event this appliance has been

serviced check that the vent-air system has been properly resealed & reinstalled in accordance with the manufacturer's instructions.

2) Remove the Cap, and shine a ﬂ ashlight

down the Vent. Remove any bird nests, or other foreign material.

3) Check for evidences of excessive

condensation, such as water droplets forming in the inner liner, and subsequently dripping out the joints, Continuous condensation can cause corrosion of caps, pipe, and ﬁ ttings. It may be caused by having excessive lateral runs, too many elbows, and exterior portions of the system being exposed to cold weather.

4) Inspect joints, to verify that no pipe

sections or ﬁ ttings have been disturbed, and consequently loosened. Also check mechanical supports such as Wall Straps, or plumbers' tape for rigidity.

GOLD-PLATED DOOR

Or SURROUND

The 24 carat gold-plated ﬁ nish on the surround and door requires little maintenance, and need only be cleaned with a damp cloth.

DO NOT use abrasive materials or chemical cleaners, as they may harm the ﬁ nish and void the warranty. Clean any ﬁ ngerprints off before

turning the unit on.

LOG REPLACEMENT

The unit should never be used with broken logs. Turn off the gas valve and allow the unit to cool before opening door and carefully remove the logs. (The pilot light generates enough heat to burn someone.) If for any reason a log should need replacement, you must use the proper replacement log. The position of these logs must be as shown in the diagrams under Log Installation.

Note: Improper positioning of logs may create

carbon build-up and will severely alter the unit's performance which is not covered under warranty.

4) Drop the thermocouple or thermopile down

from the bracket and pull it out of the unit.

5) Reinstall the new ones in reverse order.

GLASS GASKET

If the glass gasket requires replacement use a tadpole glass gasket (Part # 936-155).

DOOR GLASS

Your Excalibur® ﬁ replace is supplied with high temperature, 5 mm Neoceram ceramic glass that will withstand the highest heat that your unit will produce. If your glass requires cleaning, we recommend using an approved glass cleaner available at all authorized dealers. Do not use abrasive materials. Do not clean the glass when hot.

In the event that you break your glass by impact, purchase your replacement from an authorized Excalibur® dealer only, and follow our step-bystep instructions for replacement.

WARNING: Do not operate the appliance with the glass panels removed, cracked or broken. Replacement of the glass panels should be done by a licensed or qualiﬁ ed service person.

Caution: Wear gloves when removing damaged or broken glass.

Glass Replacement

Remove the glass door front. Remove the 4 glass clips from each corner. Slide in the new replacement glass. Push the 4 glass clips back onto the frame. The glass must have

gasketing around it.

8) Verify operation after servicing.

General Vent Maintenance

Conduct an inspection of the venting system semi-annually. Recommended areas to inspect as follows:

1) Check the Venting System for corrosion in

areas that are exposed to the elements. These will appear as rust spots or streaks, and in extreme cases, holes. These components should be replaced immediately.

THERMOPILE /

THERMOCOUPLE

1) Open the bottom louvers.

2) Loosen the thermocouple or thermopile with

a 7/16" wrench.

3) Disconnect thermocouple by loosening

nut from the valve with a 9mm wrench. Disconnect thermopile by loosening 2 screws marked TP on the valve.

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace

MAINTENANCE

FAN MAINTENANCE

Unit must be grounded at all times. Do not cut the ground terminal off under any circumstances.

To Install the Fans

1) Shut the power off.

2) Open the bottom louver. Loosen the 2

screws holding the Burner ON/OFF switch and bracket to the bottom louver and lift the assembly out.

3) Remove the bottom louver by loosening the

2 hinge screws.

IMPORTANT: There are 2 fans in this ﬁ replace. Fan A (the right side fan) and Fan B (the left side fan) are linked by a wire harness. Please do not remove the wire harness when installing the fans.

4) Move both fans and the wire harness

together to the front of the ﬁ replace.

5) Insert Fan A in from the left sideways (see

diagram below). The easiest way to insert Fan A is to put Fan B in front of the louver opening. This ensures that there is sufﬁ cient length of wire between the 2 fans.

Ensure that the fan blades do not rub against the valve tubing. See diagram 1.

Diagram 1

9) Connect the fan ground wire of Fan B and the power cord ground wire to the grounding lug. Refer to the wiring diagram.

10) Slide the thermodisc/cover assembly into the bracket clip on the underside of the ﬁ rebox. Check that no wire will touch the hot surfaces. Diagram 2.

12) Secure the fan wires and power cord by

attaching one of the adhesive backed wire holder clips (Part #910-199) onto the ﬁ replace base. Use the second clip to bundle up the wires approximately 4" from the control box. Ensure that there is no interference with the wires when the louver is closed and that no wire will touch the hot metal surfaces, fan blades or sharp edges.

Slide Fan A in sideways

from the left.

6) Take Fan A to the back above the mounting

studs. Then ﬂ ip the fan and position it onto the mounting studs.

7) Connect the ground wire from Fan A to the

Grounding Lug located on the left hand side. See diagram 1.

8) Insert Fan B in from the front and position

it on top of the mounting studs on the left side.

Position Fan B on

mounting studs.

Diagram 2

11) Attach the two control boxes to the bottom unit base and tighten the 2 screws on the left side and 1 screw on the right side.

Secure left side with 2 screws and right

side with one screw.

13) Plug the fan power cord into the rear end of

the receptacle box to provide the maximum clearance from the louvers.

To Remove the Fans

1) Shut the power off.

2) Reverse the installation instructions.

Note: The bearings are lubricated for life. Do not lubricate them. Make sure you vacuum the fan area on a regular basis.

IMPORTANT:

These fans collect a lot of dust from within your home. Ensure you maintain these fan motors on a regular basis by vacuuming out the fan blades and housing using a soft brush nozzle.

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace 37

MAINTENANCE

REMOVING VALVE

1) Shut the power off.

2) Open the bottom louver door. Loosen the 2

screws holding the Burner ON/OFF switch and bracket to the bottom louver and lift the assembly out.

3) Remove the facade if installed.

4) Remove the glass door.

5) Remove the logs.

6) Remove the burner/grate assembly, ﬁ rst by

removing the 2 screws, 1 on each side of the grill, then lift out the grill.

Remove screw

9) Remove the front bottom brick panel by

sliding it out. Then remove the back bottom brick panel by tilting it slightly up and then out.

The brick panel is very fragile - handle with care.

10) Disconnect the inlet gas line. See dia. 2.

11) Disconnect the 2 TP wires and the 2 TH

wires from the valve.

12) Remove the 12 screws securing the valve

tray assembly in place and then lift the entire assembly out.

Hint: If you are using black pipe, ensure

that there is a union by the valve, otherwise removal will be almost impossible.

INSTALLING VALVE

1) Attach the valve to the valve bracket with

the 4 (m5x8 metric) screws provided.

2) Reconnect the "gas out" ﬂ are ﬁ tting with an

11/16" wrench.

3) Reconnect the "gas out" ﬂ are nut with a

13/16" wrench.

4) Install piezo ignitor push button assembly

and reconnect wire.

5) Reconnect the quick drop out thermocouple

nut with a 9mm wrench.

6) Reconnect the pilot tube nut with a 7/16"

wrench.

7) Scrape off the old gasket from the ﬂ oor of the

ﬁ rebox and from the valve tray assembly.

7) Remove the 2 screws, 1 on each side of the

burner. Slide the burner to the left and then lift out.

Remove screw

Slide the burner to

the left

and lift

out.

8) Remove the rear log stand by removing the

2 screws.

Rear Log Stand

Valve Tray Assembly

13) Undo the pilot tube from the valve with a 7/16" wrench.

14) Undo the quick drop out thermocouple nut

on the valve with a 9mm (metric) wrench.

15) Remove the Piezo igniter wire and push button assembly.

16) Undo the "gas out" ﬂ are nut with a 13/16" wrench.

17)

Undo the "gas out" ﬂ are ﬁ tting with an

11/16" wrench.

18) Remove the 4 Phillips head screws from the sides of the valve bracket and remove valve.

8) Install a new gasket and reinstall the valve

tray assembly.

Note: Failure to install a new gasket may severely affect the appliance performance.

9) Reinstall the 10 hold down screws.

10) Hook up the 2 TP and 2 TH wires to the

appropriate connections on the valve.

11) Reinstall the bottom brick panel, then screw

the 2 screws & sleeves through the brick panel to the ﬁ rebox base (reversing step 8) leaving them about 1/4" (6mm) above the brick panel. Reinstall the rear log stand.

12) Install Burner/grate assembly

13) Hook up the gas line and check for gas

leaks with a soap and water solution or a gas leak detector. (Do not use open ﬂ ame for leak testing.)

14) Fire up the unit temporarily

15) Check the manifold pressure.

16) Reinstall the logs and brick panels as

needed.

17) Reinstall the glass door and the facade.

18) Fire up the unit again and check for proper

ﬂ ame appearance and glow on logs.

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace

PARTS LIST

P95-3 MAIN ASSEMBLY

Part # Description Part # Description Part # Description

1) 430-129 Receptacle Box Mount

2) * Thermodisc Bracket

7) 910-428 Duplex Receptacle

8) 910-429 Box - Receptacle

9) 910-430 Cover - Receptacle

10) 904-687 Clamp Connector

22) 770-033 Bafﬂ e Guide

23) 780-011 Standoff - Top

25) 770-074 Standoff

26) 770-128 Sealing Plate

27) * Outer Flue Collar

28) * Inner Flue Collar Assy

29) * Flue Mounting Bracket

30) * Gasket for Flue Collar

773-528 Brick Panel Base (set of 3)

31) * Brick Panel - Base Rear

32) * Brick Panel - Base Front

770-901 Brick Panel Set - Standard Brown 770-902 Brick Panel Set

- Standard Red 770-903 Brick Panel Set

- Herringbone Brown 770-904 Brick Panel Set

- Herringbone Red

33) * Brick Panel - Back

34) * Brick Panel - Left

35) * Brick Panel - Right

36) 904-716 #10 x 5/8" Butt Spacer 511-031 Brick Panel Clip

432-967 Burner ON/OFF Switch Assy

38) 910-241 Burner ON/OFF - Switch 910-899 Wire Harness - Valve to Burner

42) 430-517/P Fan Assembly (120 Volts) 910-331/P Fan Motor (120 Volts)

770-523 Fan Switch Assembly

43) 910-813 Power Cord (120 Volts)

46) 910-330 Fan Speed Control Switch

47) 904-586 Knob - Speed Control

48) 910-199 Wire Holder Clip

49) 910-142 Thermodisc-Fan Auto On/Off 910-878 Wire Harness - Twin Fan Cable

50) 770-994 Dura-Vent Adaptor (Optional)

60) W260260 Top Relief Frame Gasket

61) 942-117 Top Relief Plate Frame

62) W260280 Top Relief Plate Gasket

63) 770-066 Top Relief Plate

64) * Hex Cap Screw 1/4 20NC 3.5

65) * Hex Cap Screw 1/4 20NC 2.0

80) * Hex Cap Screw 1/4 20NC 1.75

946-556 Heat Wave Duct Kit (Optional)

89) 946-004 Junction Box

90) 946-000 Round Duct Adaptor

91) 946-002 Round to Oval Adaptor

92) 946-001 Oval Duct Adaptor

93) 946-007 Angle Bracket

94) 946-517/P Fan Assy - HeatWave Option

95) 946-006 Grill Plate - White

96) 946-005/01 Wall Adaptor Plate - White

97) 910-417 Knob - White

98) 910-366 Switch Cover Plate - White

99) 910-412 Fan Speed Controller

100) 910-367 Box-Plastic Switch Receptacle

101) 690-022 Cover Plate

102) 946-010 Flexible Air Duct 946-045 Insulation 6" dia. x 60"

946-570 Heat Release Duct Kit (Opt.)

108) 910-165 Fan (120 V)

109) 946-000 Flexible Air Release Duct

918-526 Manual 773-969 Conversion Kit - NG to LP

*Not available as a replacement part.

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace 39

PARTS LIST

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace

P95-3 BURNER ASSEMBLY & LOG SET

Part # Description

52) 910-190 Piezo Ignitor & Nut

54) 948-043 Bottom Relief Spring

770-574/P Valve Assy - Natural Gas 770-576/P Valve Assy - Propane

56) 770-071 Gasket - Valve Tray

57) 910-478 Valve - S.I.T. - NG/LP

58) * Valve Bracket

66) 910-038 Pilot Assy 3 way ﬂ ame - S.I.T. - NG 910-039 Pilot Assy 3 way ﬂ ame - S.I.T. - LP 904-660 Oriﬁ ce #30 - Natural Gas 904-431 Oriﬁ ce #49 - Propane 936-170 Oriﬁ ce Gasket

67) 780-057 Pilot Holder

68) W840470 Pilot Assembly Gasket

69) 770-070 Gasket - Relief Door Bottom

79) 770-525 Burner Assy - NG/LP

82) 770-003 Burner Grate Assy

83) * Rear Log Support Bracket

85) 770-930 Log Set

PARTS LIST

*Not available as a replacement part.

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace 41

PARTS LIST

P95-3 FLUSH FRONT ACCESSORIES

Part # Description Part # Description

771-518 Door Assembly - Complete

132) * Flush Door Frame

135) 940-328/P Glass (Flush)

136) 936-155 Glass Gasket (Tadpole) 904-691 U-Clip

770-920 Surround - Black - Complete 770-922 Surround - Polished Gold - Complete 770-914 Surround - Antique Gold - Complete 770-916 Surround - Antique Nickel - Complete 770-918 Surround - Antique Copper - Complete

141) * Surround - Faceplate - Excalibur

142) * Surround - Louver

145) * Surround - Hood

146) * Handle

148) * Rivet-67-5/16 x 1/2

157) * Carriage Bolt 948-221 Logo Plate

770-931 Double Screen Door - Complete - Black 770-933 Double Screen Door - Complete - Polished Gold 770-941 Double Screen Door - Complete - Antique Gold 770-942 Double Screen Door - Complete - Antique Nickel 770-943 Double Screen Door - Complete - Antique Copper

161) * Double Screen Door Frame - Right

162) * Double Screen Door Frame - Left

163) * Mesh Screen - Double Door

164) * Retaining Plate - Double Door

167) * Door Mounting Bracket - Right

168) * Door Mounting Bracket - Left

146) 790-105 Handle - Black

790-082/10 Handle - Nickel 790-082/02 Handle - Gold

155) 904-735 Push-Fit Ball Plunger

157) 904-722 Carriage Bolt - Black 904-722/02 Carriage Bolt - Gold 904-722/10 Carriage Bolt - Nickel

*Not available as a replacement part.

136

135

168

162

157

146

DOUBLE DOORS

163

155

161

164

167

163

132

FLUSH DOOR

164

148

141

146

145

155

142

146

157

148

155

148

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace

WARRANTY

Excalibur® Fireplace Products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance Team carefully inspects each unit thoroughly before it leaves our facility. FPI Fireplace Products International Ltd. is pleased to extend this limited lifetime warranty to the original purchaser of a Excalibur® Product.

THE WARRANTY: LIMITED LIFETIME

The combustion chamber, heat exchanger, burner tubes/pans, logs, embers and all gold plating (against defective manufacture only) are covered under the Limited Lifetime Warranty for ﬁ ve (5) years for parts and subsidized labour* and parts only thereafter.

Glass is covered for lifetime against thermal breakage only, parts and subsidized labour* for three (3) years and parts only thereafter from date of purchase.

Electrical and mechanical components such as blowers, switches, wiring, thermodiscs, FPI remote controls, spill switches, thermopiles, thermocouples, pilot assembly components, and gas valves are covered for one year parts and subsidized labour* from the date of purchase. Blowers and valves replaced under warranty are considered repairs and continue as if new with appliance. ie. twelve (12) months from original purchase date of appliance with a minimum of three (3) months coverage from date of replacement.

FPI venting components are covered parts and subsidized labour* for three (3) years from date of installation and parts only thereafter.

Conditions:

Any part or parts of this unit which in our judgement show evidence of such defects will be repaired or replaced at FPI's option, through an accredited distributor or agent provided that the defective part be returned to the distributor or agent Transportation Prepaid, if requested.

It is the general practice of FPI to charge for larger, higher priced replacement parts and issue credit once the replaced component has been returned to FPI and evaluated for manufacturer defect.

The authorized selling dealer is responsible for all in-ﬁ eld service work carried out on your Excalibur® product. FPI will not be liable for results or costs of workmanship from unauthorized service persons or dealers.

At all times FPI reserves the right to inspect product in the ﬁ eld which is claimed to be defective.

All claims must be submitted to FPI by authorized selling dealers. It is essential that all submitted claims provide all of the necessary information including customer name, purchase date, serial #, type of unit, problem, and part or parts requested, without this information the warranty will be invalid.

Exclusions:

This limited Lifetime Warranty does not extend to or include paint, door or glass gasketing or trim.

At no time will FPI be liable for any consequential damages which exceed the purchase price of the unit. FPI has no obligation to enhance or modify any unit once manufactured. ie. as products evolve, ﬁ eld modiﬁ cations or upgrades will not be performed.

FPI will not be liable for travel costs for service work.

Installation and environmental problems are not the responsibility of the manufacturer and therefore are not covered under the terms of this warranty policy.

Refractory liners, gaskets, door handles, paint are not covered under the terms of this warranty policy.

Any unit which shows signs of neglect or misuse is not covered under the terms of this warranty policy.

The warranty will not extend to any part which has been tampered with or altered in any way, or in our judgment has been subject to misuse, improper installation, negligence or accident, spillage or downdrafts caused by environmental or geographical conditions, inadequate ventilation, excessive offsets, negative air pressure caused by mechanical systems such as furnaces, fans, clothes dryer, etc.

Freight damage to stoves and replacement parts is not covered by warranty and is subject to a claim against the freight carrier by the dealer.

FPI will not be liable for acts of God, or acts of terrorism, which cause malfunction of the appliance.

Performance problems due to operator error will not be covered by this warranty policy.

Products made or provided by other manufacturers and used in conjunction with the operation of this appliance without prior authorization from Excalibur may nullify your warranty on this product.

Simpson Dura-Vent venting components are covered by Simpson Dura-Vent Inc. warranty.

Excalibur® P95-3 Zero Clearance Direct Vent Gas Fireplace 43

Excalibur® ﬁ replace products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance Team carefully inspects each unit thoroughly before it leaves our door.

FPI Fireplace Products International Ltd. is pleased to extend this Limited Lifetime Warranty to the original purchaser of a Excalibur® Product.

See the inside back cover for details.

http://www.excalibur-ﬁ re.com

Installer: Please complete the following information

Dealer Name & Address: ______________________________________________

___________________________________________________________________

Installer: ___________________________________________________________

Phone #: ___________________________________________________________

Date Installed: ______________________________________________________

Serial No.: __________________________________________________________

Excalibur® is a trademark of FPI Fireplace Products International Ltd.

Printed in Canada

Excalibur electronic P95-NG3, P95-LP3 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
