User’s Guide for
®
1:10 Nascar
#99 Carl Edwards
RC
Model No.
9511-99
ongratulations on your purchase of the 1:10 Nascar
RC from Excalibur Electronics, Inc. The 1:10
®
Nascar
C
your friends will enjoy hours of fun driving your 1:10
®
Nascar
Your 1:10 Nascar
RC features Carl Edwards. (# 99). You and
RC.
®
RC is easy to use but be sure to use it
safely. Before starting, please read this manual thoroughly,
especially noting safety, care and battery information. Keep
this manual for reference.
This package contains the 1:10 Nascar
®
RC, its transmitter, its battery cartridge, its tube for one vehicle antenna, its
transmitter antenna, and its user’s guide.
The legendary King Arthur
brandished a magic sword,
Excalibur, from which we take
our company name. With this
unique weapon in his hands, he
could not be vanquished.
Although Excalibur Electronics
can’t claim the magical secrets
of Merlin, King Arthur’s court
wizard, sometimes our patented
technology may make it seem
as if we could.
We make you think.
NASCAR®is a registered trademark of The National
Association for Stock Car Auto Racing, Inc.
The name OFFICE DEPOT and the OFFICE DEPOT logo
are registered trademarks of Office Depot.
®
Installing Batteries. . . . . . . . . . . . . . . . . . . .page 3
Whats Included with 1:10 Nascar
Functions of Buttons . . . .
How to Play.
Tips.
Troubleshooting.
Caution.
Special Care & Handling
Battery Information.
90-Day Limited Warranty
TABLE OF CONTENTS
®
RC . . . . .page 4
. . . . . . . . . . . . . . .page 5
. . . . . . . . . . . . . . . . . . . . . . . . page 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 6
. . . . . . . . . . . . . . . . . . . . page 7
. . . . . . . . . . . . . . . . . . . . . . . . . . page 8
. . . . . . . . . . . . . . page 9
. . . . . . . . . . . . . . . . . . page 10
. . . . . . . . . . . . . . .page 11
INSTALLING BATTERIES
To install batteries in the transmitter, please follow the following
steps:
1. Remove battery cover located
at the back.
2. Insert one 9-volt battery following the
+/- marking.
3. Replace battery cover.
To install the power pack in your 1:10
Nascar®RC, please follow the following
steps:
1. Insert six AA batteries following
the +/- marking.
2. Place loaded battery cartridge on the underside of the vehicle
following the +/- marking.
3. Lock up and secure the battery cartridge.
(Also see Battery
Information
on page 10.)
2 3

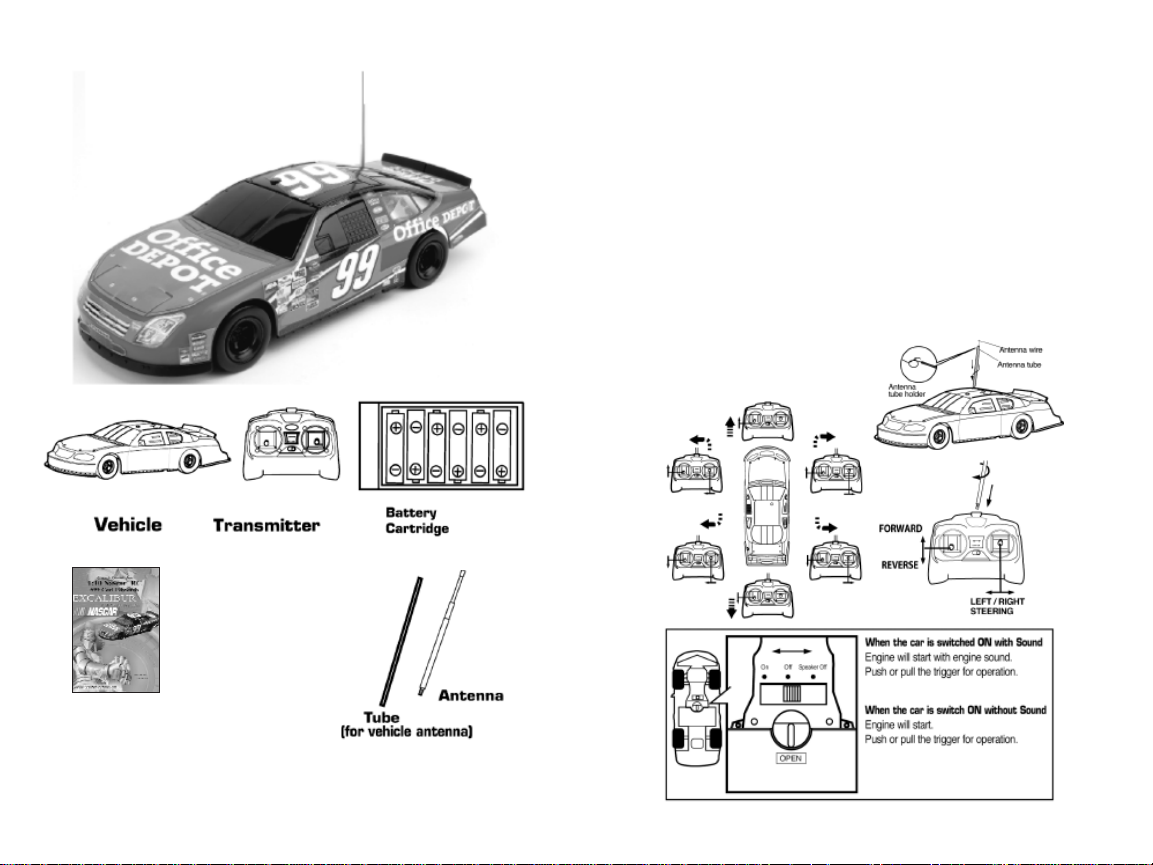

What is included with
1:10 Nascar
®
RC
Functions of Buttons
LEFT SWITCH ON TRANSMITTER:
Switch up to drive the vehicle
forward. Switch down to drive
the vehicle in reverse.
RIGHT SWITCH ON TRANSMIT-
TER: Switch left to steer the
vehicle left. Switch right to
steer the vehicle.
TRIM SWITCH CONTROL: The
trim switch is located on the
underside of your vehicle. This
is used to align the wheels for
consistent straight line driving.
Switch left or right to align the
wheels.
ON/OFF SWITCH: Switch to turn
the transmitter on or off.
ON/OFF/SPEAKER OFF SWITCH:
Switch ON to drive the vehicle
with sound. Switch OFF to turn
the vehicle off. Switch SPEAK-
ER OFF to drive the vehicle
without sound.
Manual
4
5
How to Play
To begin, insert the
antenna wire through the
hollow tube. Avoid pulling
the wire too tight. The wire
is on the top of your 1:10
®
Nascar
top to secure.
position for power.
screw the antenna into the
cavity located at the top of
the transmitter.
on the transmitter to drive
your 1:10 Nascar
switches allow you to drive
it forward, reverse, left and
right. You can also honk the
horn and lift the left and
right doors up.
1:20 Nascar
with the control switches.
Maneuver both control
RC. Tie a knot on
Turn the switch to the
ON
In a clockwise direction,
Use the control switches
®
RC. The
You can control your
®
RC’s turns
switches to turn your 1:20
®
Nascar
RC in any direc-
tion you would like.
To maneuver the auto
forward, turn the right
switch to the right and flip
the left switch up.
To turn the auto left
while driving in reverse use
the switches as follows: flip
the right switch left and flip
the left switch back.
Tip
• Check the wheel mechanisms for lint, thread, hair
or dust frequently. This
ensures the wheels move
freely and that the motor is
not stressed.
Trouble-
shooting
If your 1:10 Nascar®RC
doesn’t move, please check
the following potential
causes:
1. The POWER switch is
turned off. If that is the
case, turn the
on.
2. Your 1:10 Nascar
is too far away from the
controller. If that is the case,
bring your 1:10 Nascar
closer to the controller.
3. The metal tab in the
battery cartridge is flattened
and not touching the batteries installed. If that is the
case, lift up the metal tab so
it touches the tip of the battery.
If you lose control of your
1:10 Nascar
check the following potential cause:
POWER switch
®
RC
®
RC
®
RC, please
Another radio control
vehicle using the same frequency is operating near
your vehicle, or a CB is
being operated nearby. If
that is the case, you should
race other vehicles that use
different frequencies or
channels, or move away
from your location until
there is no more interference.
If your 1:10 Nascar®RC
drives slowly, please check
the following potential
causes:
1. There are weak batteries in the transmitter. If that
is the case, replace with
new batteries.
2. There is strong interference in the surrounding
area. If that is the case, you
should move to a better
location to drive your 1:10
®
Nascar
RC.
Changes or modifications to this unit not expressly
approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
6
7
Caution
• Do not operate your 1:10 Nascar®RC in
thunderstorms.
• Do not touch the wheels when the switch is turned ON.
• Do not leave your 1:10 Nascar®RC or transmitter
near sources of heat or under direct sunlight for
long periods of time.
• Do not operate your 1:10 Nascar®RC near small
children.
• Do not drive your 1:10 Nascar®RC in busy
streets. Always choose a safe place to play.
Special Care & Handling
• Avoid rough handling such as bumping or dropping.
• Avoid moisture and extreme temperatures. For
best results, use between the temperatures of 39º F and
100º F (4º C and 38º C).
• Never drive your 1:10 Nascar
sand, or in mud, rain or snow. These can damage it.
• Be sure to remove the batteries from your 1:10 Nascar
RC and transmitter when storing the product.
• To protect your 1:10 Nascar
from lint, thread, hair and dust particle, you can use a
small brush, tweezers or tie a small bit of cloth to the
tip of a toothpick, etc., and wipe it off.
• Always keep your 1:10 Nascar®RC clean. Use a
dampened cloth to wipe off, and then wipe all the water
off with a dry cloth. Never use chemicals to clean your
1:10 Nascar
• Avoid holding the wheels when rotating. Holding them
will cause the electronic components to short-circuit,
overheat and cause malfunction.
®
RC.
®
RC on a wet floor, on
®
RC’s wheel mechanism
®
8 9
BATTERY INFORMATION
• Use alkaline batteries for best performance.
• Use six AA batteries for your 1:10 Nascar®RC.
• Use one 9-volt batteries for your transmitter.
• Do not use rechargeable batteries.
• Remove exhausted batteries from the unit.
• Do not short circuit battery terminals.
• To avoid explosion or leakage, do not dispose of
batteries in a fire or attempt to recharge standard
or alkaline batteries.
• Be sure to insert batteries with the correct polarities
and always follow the toy and battery
manufacturers’ instructions.
• Remove batteries and store them in a cool, dry place
when not in use.
• Always remove old and dead batteries from the product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
90-Day Limited Warranty
EXCALIBUR ELECTRONICS, INC., warrants to the original consumer
that its products are free from any electrical or mechanical defects for a period of 90 DAYS from the date of purchase. If any such defect is discovered
within the warranty period, EXCALIBUR ELECTRONICS, INC., will repair
or replace the unit free of charge upon receipt of the unit, shipped postage
prepaid and insured to the factory address show at right.
The warranty covers normal consumer use and does not cover damage that
occurs in shipment or failure that results from alterations, accident, misuse,
neglect, wear and tear, inadequate maintenance, commercial use, or unreasonable use of the unit. Removal of the top panel voids all warranties. This
warranty does not cover cost of repairs made or attempted outside of the factory.
Any applicable implied warranties, including warranties of merchantability and fitness, are hereby limited to 90 DAYS from the date of purchase.
Consequential or incidental damages resulting from a breach of any applicable express or implied warranties are hereby excluded. Some states do not
allow limitations on the duration of implied warranties and do not allow
exclusion of incidental or consequential damages, so the above limitations
and exclusions in these instances may not apply.
The only authorized service center in the United States is:
Excalibur Electronics, Inc.
13755 S.W. 119thAvenue
Miami, FL 33186 U.S.A.
Phone: (305) 477-8080
Fax: (305) 477-9516
www.ExcaliburElectronics.com
Ship the unit carefully packed, preferably in the original
carton, and send it prepaid, and adequately insured. Include
a letter, detailing the complaint and including your daytime
telephone number, inside the shipping carton.
If your warranty had expired and you want an esti-
mated fee for service, write to the above address, spec-
ifying the model and the problem.
PLEASE DO NOT SEND YOUR
UNIT WITHOUT RECEIVING AN
ESTIMATE FOR SERVICING. WE
CANNOT STORE YOUR UNIT!
10 11
EXCALIBUR ELECTRONICS, INC.
13755 SW 119
TH AVENUE
MIAMI, FLORIDA 33186 U.S.A.
PHONE: 305.477.8080
FAX: 305.477.9516
Play games live at:
www.ExcaliburElectronics.com
9511-99 (MA) 1:10 Nascar RCCarledwards 071906 V6
