ABC’s Monday Night
Football Talking Remote
Operating Manual
Model No.: 201
www.ExcaliburElectronics.com
ongratulations on your purchase of The ABC Sports
and Excalibur Electronics’ ABC’s Monday Night
C
The
Football Talking Remote
!
ABC’s Monday Night Football Talking Remote is easy to use,
but be sure to use it safely. Before starting, please read this manual thoroughly, especially noting safety, care and battery information.
Keep this manual for reference.
Layout of Talking Football Remote
VOICE
TV
POWER
NUMBERS
CABLE
VCR
SATELLITE
TV/AV
CHANNEL UP
CHANNEL DOWN
Caution: Do not throw or toss your remote. Throwing it could
cause injury.
The legendary King Arthur brandished a
magic sword, Excalibur, from which we
take our company name. With this unique
weapon in his hands, he could not be vanquished.
Although Excalibur Electronics can’t
claim the magical secrets of Merlin, King
Arthur’s court wizard, sometimes our
patented technology may make it seem as
if we could.
We make you think.
© 2004 The ABC Sports Inc.
The ABC Sports name and logo are trademarks of ABC Sports Inc.
2
MUTE
REWIND
RECORD
ENTER
Functions of Buttons
VOICE: Press to hear “Are you ready for
some football?”
ON/OFF: Press to turn the selected
device on or off.
TV: Press to control your TV set. Also
used to program your remote control.
VCR: Press to control your VCR. Also
used to program your remote control.
CBL: Press to control your cable box .
Also used to program your remote control.
SAT: Press to control your satellite
receiver. Also used to program your
remote control.
TV/AV: Press to switch the audio/video
input between antenna, video, game console, etc.
MUTE: Press to turn the device volume
on or off.
ENTER: Used in programming your
VOLUME UP
PAUSE
STOP
PLAY
remote controller.
CH+: Press to change the channel to
the next channel up.
CH-: Press to change the channel to the
next channel down.
VOL+: Press to increase volume.
VOL-: Press to decrease volume.
REWIND: Press to rewind your VCR.
PLAY: Press to play your VCR.
FAST FORWARD: Press to fast forward
your VCR.
RECORD: Press to record on your VCR.
STOP: Press to stop your VCR.
PAUSE: Press to pause your VCR.
3
VOLUME DOWN
FAST FORWARD
Installing Batteries
Your remote requires two AA
batteries, not included. To install
the batteries, pull open the velcro
seal on the back of the football.
Carefully pull out the battery
holder.
Use a small Phillips screwdriver to remove the screw. Lift off
the battery compartment lid.
Install the batteries, making sure
to match polarity (+ and -) with
the diagram inside the battery
compartment. Place the tab of the
battery compartment lid in its slot
and close the compartment door.
Replace the screw and tighten it
carefully. Insert the battery holder
back inside the football and seal
the velcro. You are now ready to
program your football to control
your devices
Manual Programming of your
Remote Control Football
Manually turn off the device
that you wish to control. Using

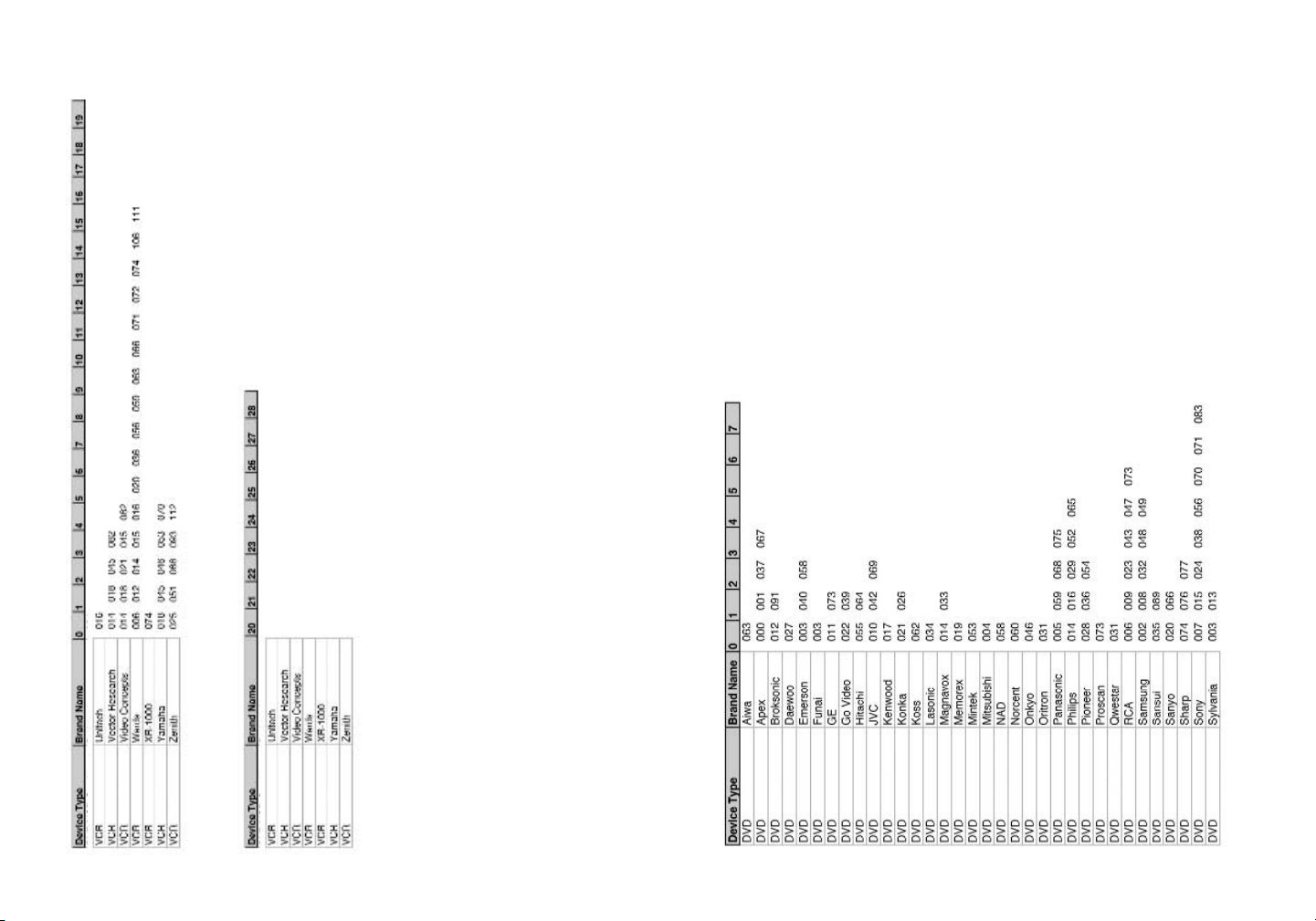

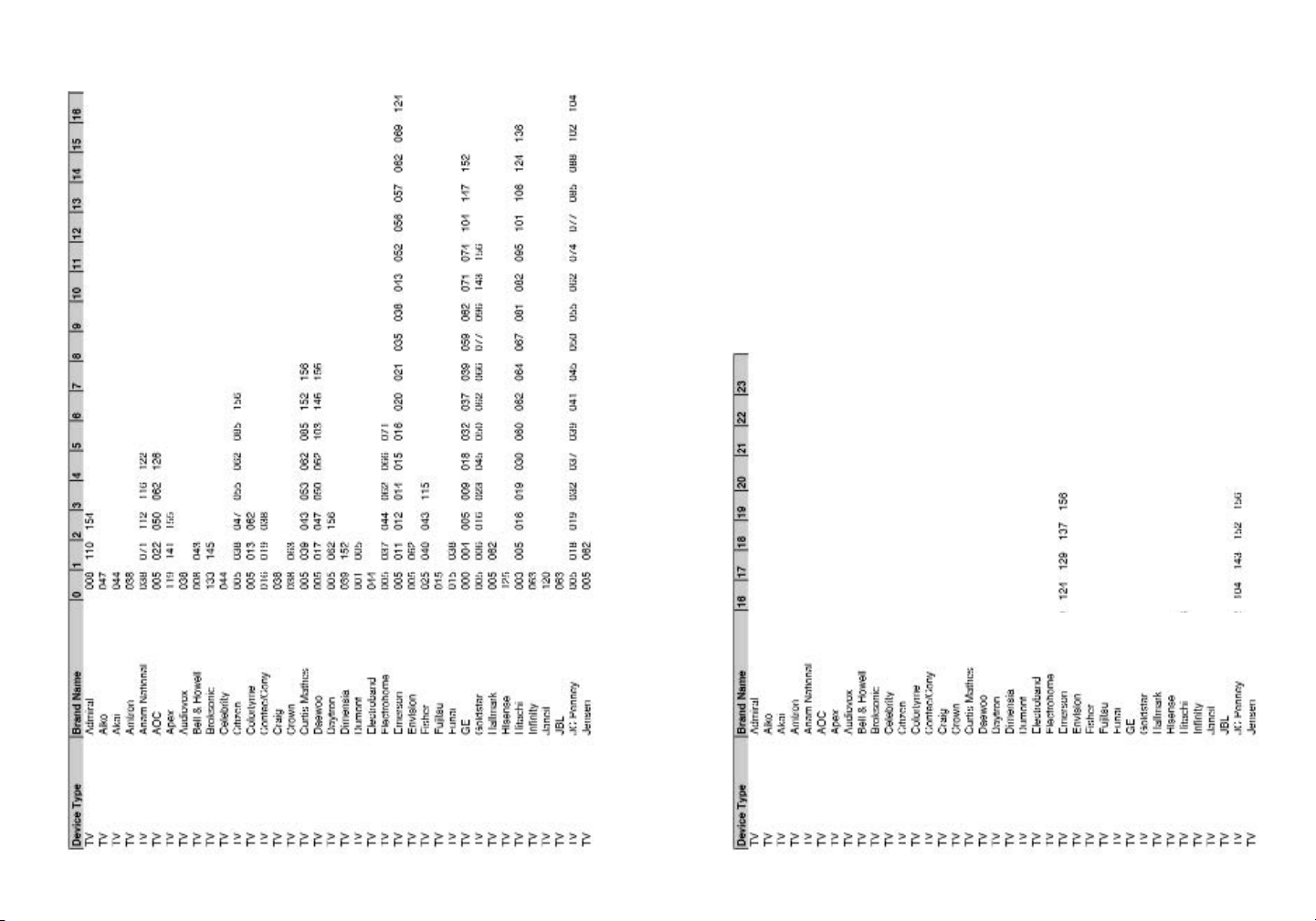

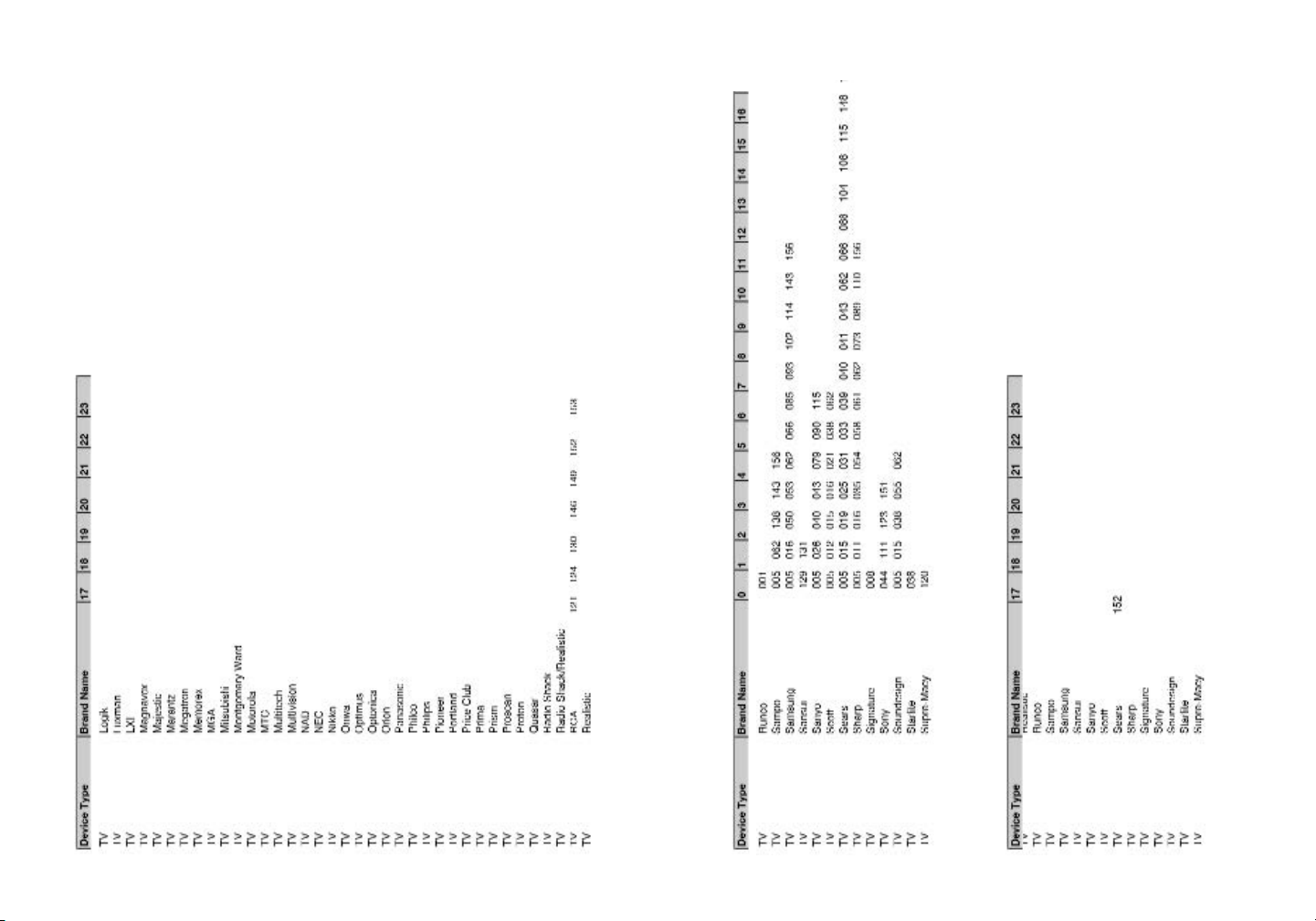

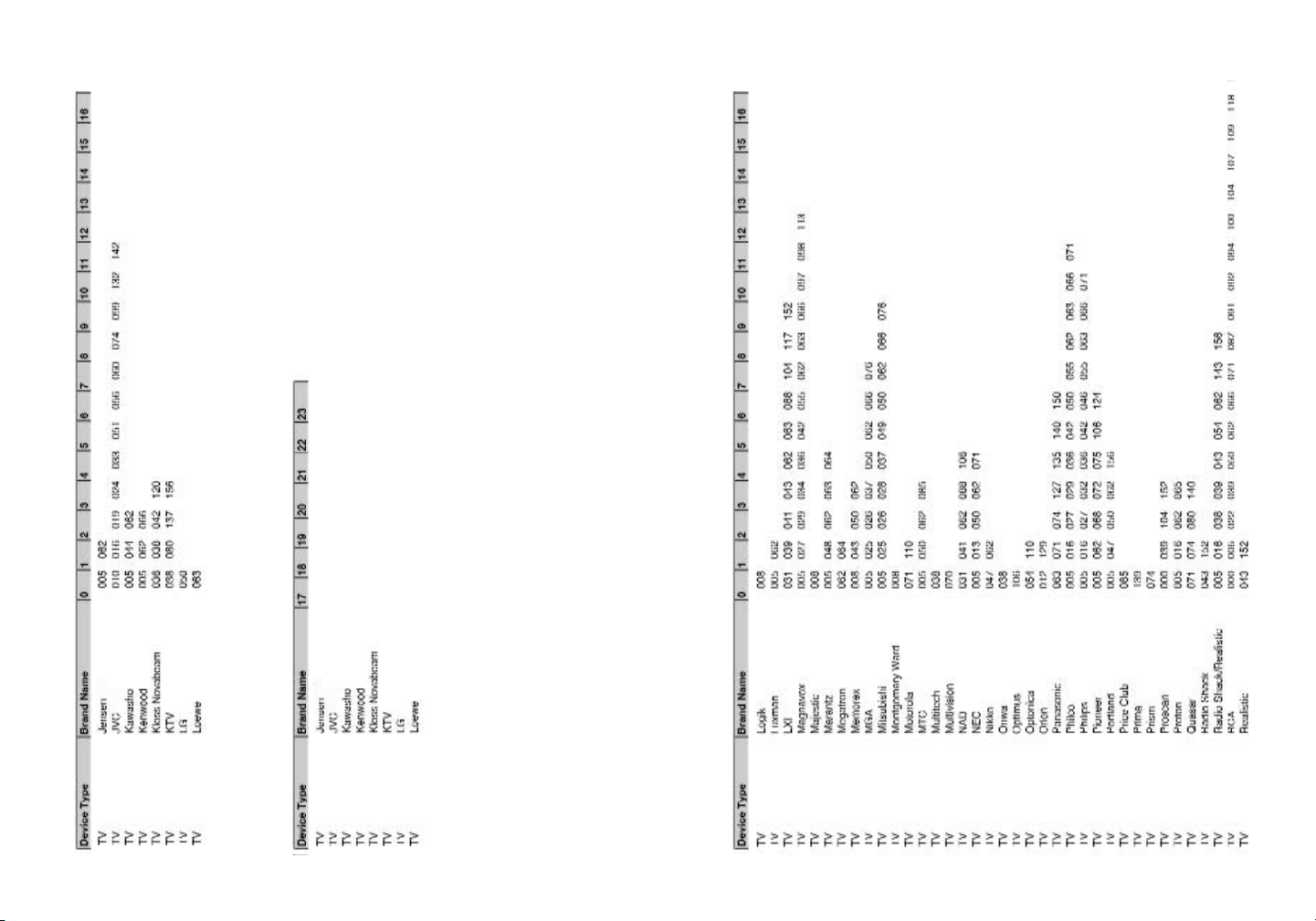

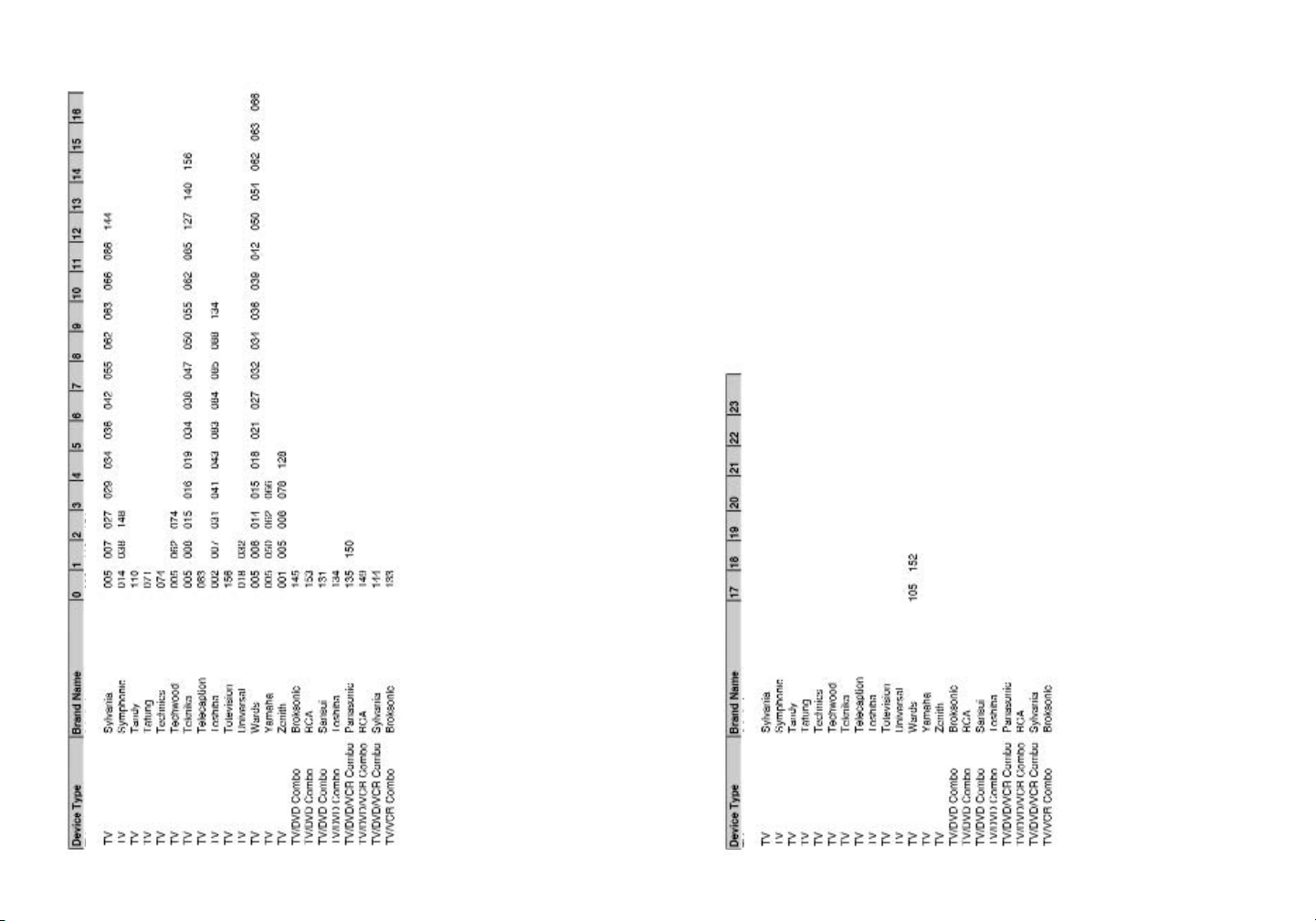

the tables of device codes beginning on page 6 of this manual,
locate the brand name of the
device you want to control. There
will be one or more three-number
codes listed for each device
brand.
Once you have located the
device codes, press and hold the
key for the device type (TV, VCR,
CBL or SAT) that you wish to
program your football to control.
After about three seconds, the red
LED near the threads of the football will come on. This indicates
that your football is ready to pro-
gram.
Enter the first code listed for
your brand. Press the ON/OFF key
(just to the left of the TV key). If
the device turns on, you have
entered the correct code. If the
device does not turn on, try the
next code on the list. Continue
entering codes from the list until
the device turns on. Your football
is now programmed to control the
device. Note: If none of the brand
codes for the device work, try
programming your remote automatically (see next section) or go
to:
ExcaliburElectronics.com
for additional information.
4
Automatic Programming of
your Remote Control Football
Manually turn off the device that
you wish to control. Press and
hold the key for the device type
(TV, VCR, CBL or SAT) that you
wish to program your football to
control. After about three seconds, the red LED near the
threads of the football will come
on. This indicates that your football is ready to program.
Press the
the left of the TV key). Press the
CH+ key repeatedly until the
device turns on. You may need to
step through quite a few codes
ON/OFF key (just to
CAUTION: THE FOOTBALL REMOTE CONTROL
SHOULD NOT BE THROWN TO ANOTHER PERSON.
THE SENSOR LENS ON THE TIP OF THE FOOTBALL
MAY CAUSE SERIOUS INJURY
until this happens. Once the
device turns on, STOP. Do not
press the CH+ key again.
Press the
the programming. Your football is
now programmed to control the
device.
Note: If none of the brand
codes for the device work, go to
www.ExcaliburElectronics.com
for more information.
Follow the above steps for any
other device(s) that your football
will be used to control.
ENTER key to accept
.
5
76
98
1110
1312
1514
1716
1918
2120
2322
2524
