GT IPsec Setup Guide

Warranty

The information contained in this document is subject to change without notice. ExaDigm makes no warranty of any kind with regard to this material, including, but not limited to, the

implied warranties or merchantability and fitness for a particular purpose. ExaDigm shall not be liable for errors contained herein or for incidental or consequential damages in

connection with the furnishing, performance, or use of this material.

GT IPsec Setup Guide

Table of Contents

1.0 Web GUI Login ..................................................................................................... 4

1.1 Initial Connection ....................................................................................................... 4

2.0 IPsec .................................................................................................................... 4

2.1 Tunnel Configuration ................................................................................................. 5

3.0 Cisco ASA Settings .............................................................................................. 6

3.1 Network Diagram ....................................................................................................... 6

3.2 Cisco ASA Configuration ........................................................................................... 6

3.3 Cisco ASA Configuration ........................................................................................... 7

4.0 NetGear VPN Settings ........................................................................................ 10

4.1 Network Diagram ..................................................................................................... 10

4.2 NetGear VPN Configuration ..................................................................................... 10

4.3 NetGear ProSafe VPN Screen ................................................................................. 11

5.0 IPsec Tunnel Listing ........................................................................................... 13

GT IPsec Setup Guide

1.0 Web GUI Login

1.1 Initial Connection

1. Verify the GT unit’s power supply is connected; the green LED light will be illuminated.

2. Connect a PC or laptop to the front of the GT using a RJ-45 Ethernet cable.

Note: The Ethernet Port on the GT is “auto-sensing”, which means a straight through or cross-

over cable can be used to connect to the ExaDigm router.

3. Launch a web browser and connect to the GT using the address http://192.168.12.20:8080/. If

you cannot connect, verify the address provided by the GT’s DCHP host using your system’s

network adapter information.

4. Once you are connected, the login screen will be displayed (see Figure 4 below).

Figure 4 – Login Screen

5. Enter the Username and Password, they are case sensitive. The default for access is:

Username: root Password: admin

6. Once the GT validates the information, access will be granted and the Home Screen will be displayed.

2.0 IPsec

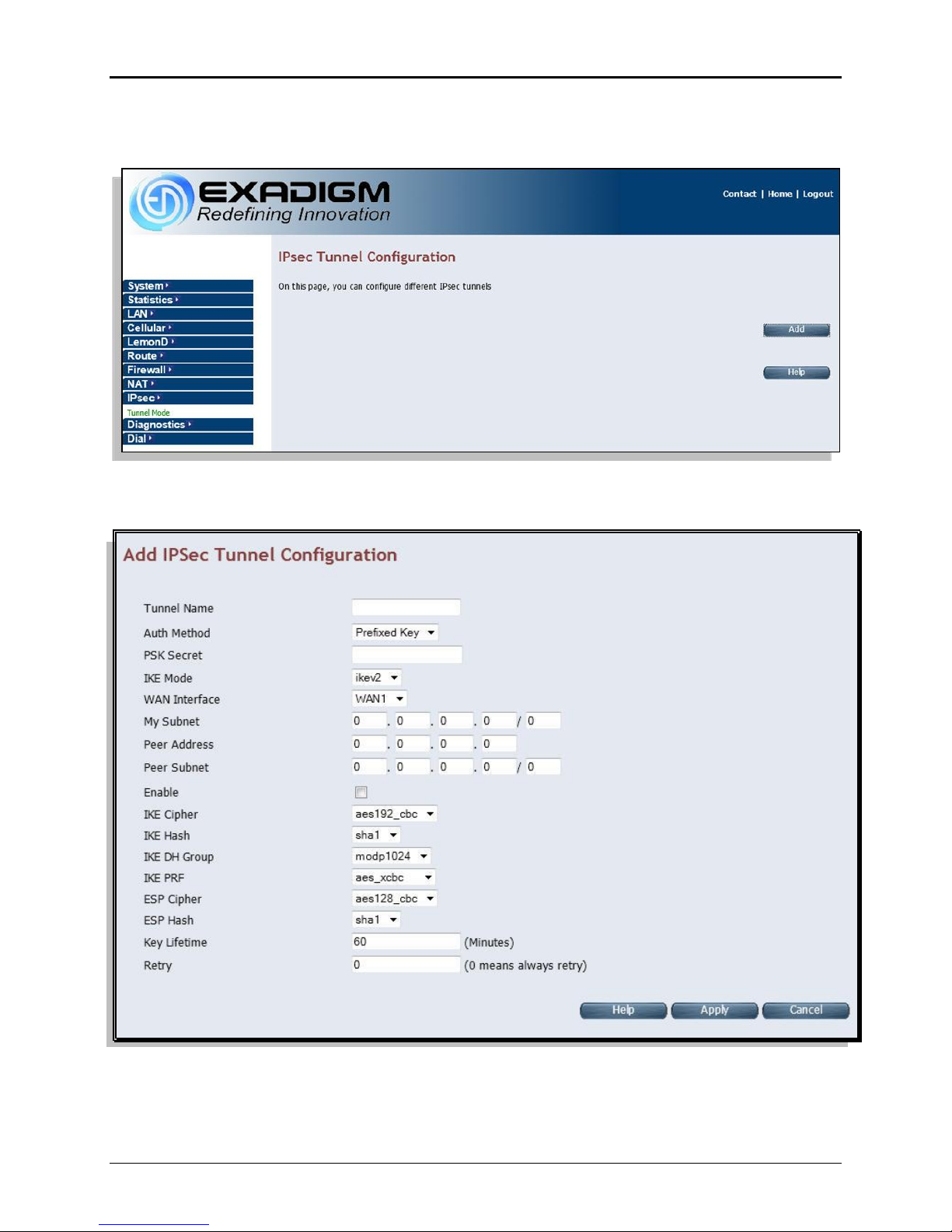

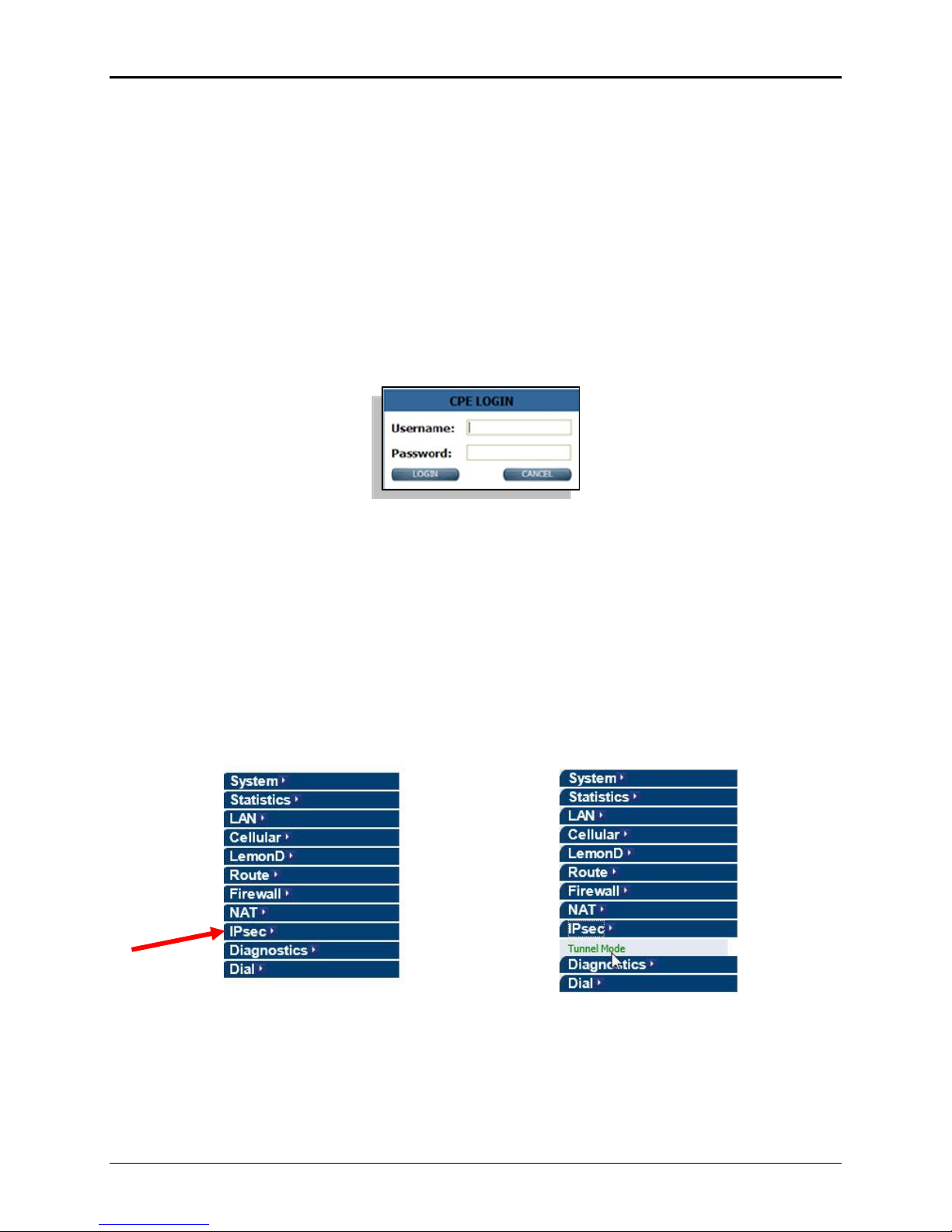

Click on the IPsec tab located on the left side of the main screen (figure 1). Then click Tunnel Mode under the IPsec menu (figure 2).

Figure 1 Figure 2

GT IPsec Setup Guide

2.1 Tunnel Configuration

The IPsec parameters will need to be added according to the specific Adaptive Security Appliance (ASA).

Click the Add button to configure the parameters.

The above configuration should be set according to the ASA being used.

3.0 Cisco ASA Settings

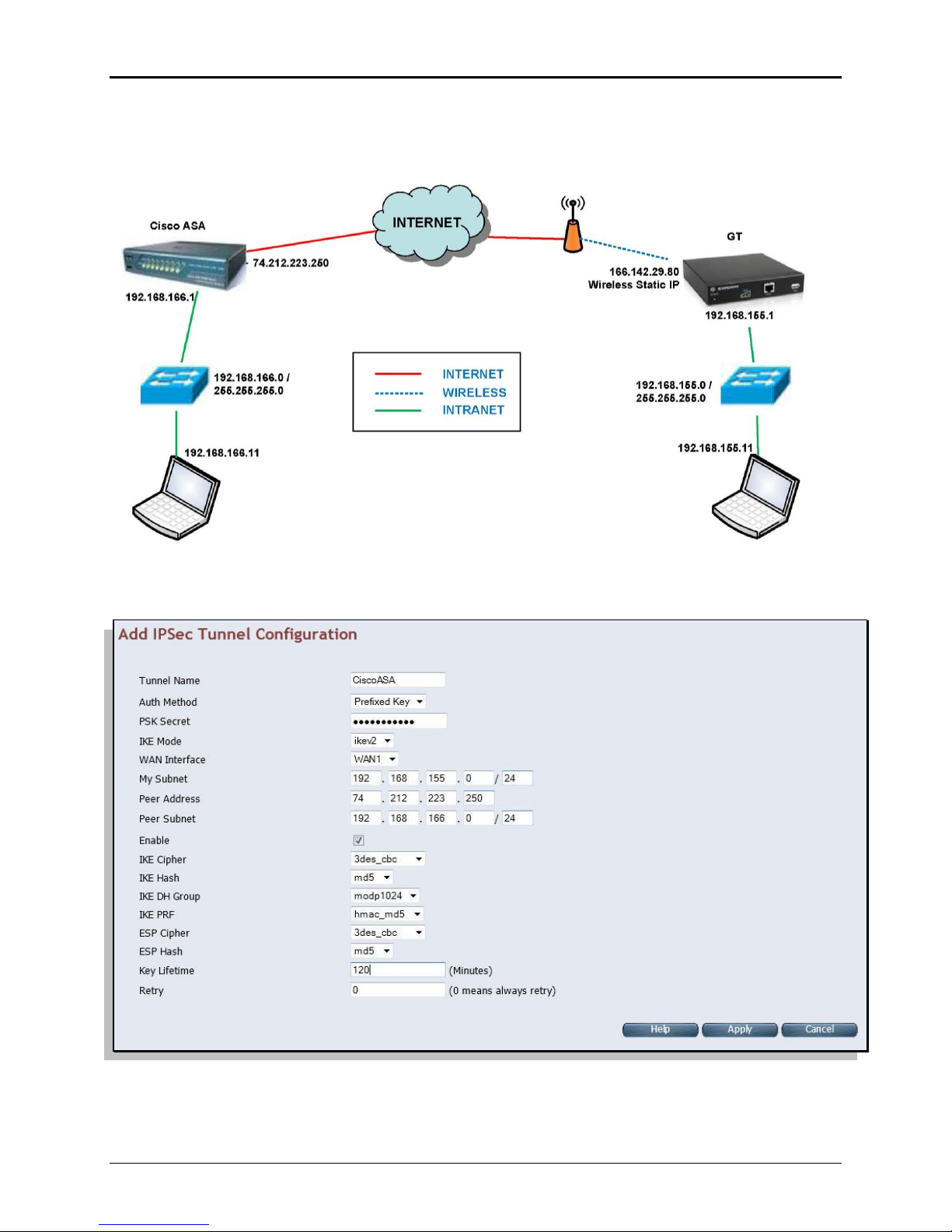

3.1 Network Diagram

GT IPsec Setup Guide

3.2 Cisco ASA Configuration

My Subnet will be set to the default DNS for the GT. The Peer Address is the external interface address and the Peer Subnet is the internal address.

Once the configuration is set click on Apply.

GT IPsec Setup Guide

3.3 Cisco ASA Configuration

ASA Version 8.4(2) ! hostname asa2 domain-name exadigm.com enable password /xxxxxxxxxxxxxxxx encrypted passwd xxxxxxxxxxxxxxxx encrypted names ! interface Ethernet0/0 switchport access vlan 2 ! interface Ethernet0/1 ! interface Ethernet0/2 ! interface Ethernet0/3 ! interface Ethernet0/4 ! interface Ethernet0/5 ! interface Ethernet0/6 ! interface Ethernet0/7 ! interface Vlan1 nameif inside security-level 100 ip address 192.168.166.1 255.255.255.0 ! interface Vlan2 nameif outside security-level 0 ip address 74.212.223.250 255.255.255.224 ! boot system disk0:/asa842-k8.bin ftp mode passive dns server-group DefaultDNS domain-name exadigm.com object network obj-192.168.166.0 subnet 192.168.166.0 255.255.255.0 object network obj-192.168.155.0 subnet 192.168.155.0 255.255.255.0 object network obj_any subnet 0.0.0.0 0.0.0.0 access-list inside_access_in extended permit ip any any access-list inside_access_in extended permit icmp any any access-list inside_access_in extended permit tcp any any access-list outside_access_in extended permit ip any any access-list outside_access_in extended permit icmp any any access-list outside_access_in extended permit tcp any any access-list vzw_l2l extended permit ip 192.168.166.0 255.255.255.0

192.168.155.0 255.255.255.0 pager lines 50 logging enable logging console debugging logging asdm informational

GT IPsec Setup Guide

mtu inside 1500 mtu outside 1500 icmp unreachable rate-limit 1 burst-size 1 no asdm history enable arp timeout 14400 nat (inside,any) source static obj-192.168.166.0 obj-192.168.166.0 destination static obj-192.168.155.0 obj-192.168.155.0 no-proxy-arp ! object network obj_any nat (inside,outside) dynamic interface access-group inside_access_in in interface inside access-group outside_access_in in interface outside route outside 0.0.0.0 0.0.0.0 74.212.223.225 1 timeout xlate 3:00:00 timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 icmp 0:00:02 timeout sunrpc 0:10:00 h323 0:05:00 h225 1:00:00 mgcp 0:05:00 mgcp-pat 0:05:00 timeout sip 0:30:00 sip_media 0:02:00 sip-invite 0:03:00 sip-disconnect 0:02:00 timeout sip-provisional-media 0:02:00 uauth 0:05:00 absolute timeout tcp-proxy-reassembly 0:01:00 timeout floating-conn 0:00:00 dynamic-access-policy-record DfltAccessPolicy user-identity default-domain LOCAL no snmp-server location no snmp-server contact snmp-server enable traps snmp authentication linkup linkdown coldstart crypto ipsec ikev2 ipsec-proposal AES256 protocol esp encryption aes-256 protocol esp integrity sha-1 md5 crypto ipsec ikev2 ipsec-proposal AES192 protocol esp encryption aes-192 protocol esp integrity sha-1 md5 crypto ipsec ikev2 ipsec-proposal AES protocol esp encryption aes protocol esp integrity sha-1 md5 crypto ipsec ikev2 ipsec-proposal 3DES protocol esp encryption 3des protocol esp integrity sha-1 md5 crypto ipsec ikev2 ipsec-proposal DES protocol esp encryption des protocol esp integrity sha-1 md5 crypto ipsec ikev2 ipsec-proposal gtikev2 protocol esp encryption aes-256 aes-192 aes 3des des protocol esp integrity sha-1 md5 crypto ipsec security-association lifetime seconds 7200 crypto map gtmap 1 match address vzw_l2l crypto map gtmap 1 set peer 166.142.29.80 crypto map gtmap 1 set ikev2 ipsec-proposal 3DES DES AES AES192 AES256 crypto map gtmap 1 set security-association lifetime seconds 7200 crypto map gtmap interface outside crypto ikev2 policy 10 encryption aes-256 aes-192 aes 3des des integrity sha md5 group 5 2 1 prf sha md5 lifetime seconds 7200 crypto ikev2 enable outside telnet 192.168.166.0 255.255.255.0 inside

GT IPsec Setup Guide

telnet timeout 60 ssh timeout 5 console timeout 0

threat-detection basic-threat threat-detection statistics access-list no threat-detection statistics tcp-intercept tunnel-group 166.142.29.80 type ipsec-l2l tunnel-group 166.142.29.80 ipsec-attributes ikev2 remote-authentication pre-shared-key ***** ikev2 local-authentication pre-shared-key ***** ! class-map inspection_default match default-inspection-traffic ! ! policy-map type inspect dns preset_dns_map parameters message-length maximum 512 policy-map global_policy class inspection_default inspect dns preset_dns_map inspect ftp inspect h323 h225 inspect h323 ras inspect rsh inspect rtsp inspect esmtp inspect sqlnet inspect skinny inspect sunrpc inspect xdmcp inspect sip inspect netbios inspect tftp ! service-policy global_policy global prompt hostname context no call-home reporting anonymous Cryptochecksum:1c3a9ebee9a82f086a684ec60755cb10 : end
