exacqVision E Series, E-ADE4C, E-ADE1C Quick Start Manual
exacqVision E-Series Quick Start
www.exacq.com
Page 1 of 11
9/9/2014

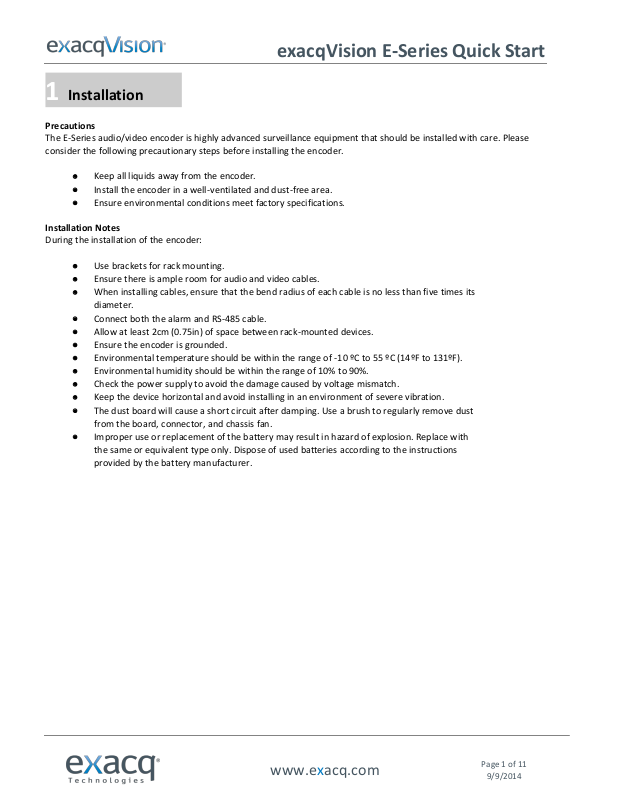

1 Installation
Precautions
The E-Series audio/video encoder is highly advanced surveillance equipment that should be installed with care. Please
consider the following precautionary steps before installing the encoder.
Keep all liquids away from the encoder.
Install the encoder in a well-ventilated and dust-free area.
Ensure environmental conditions meet factory specifications.
Installation Notes
During the installation of the encoder:
Use brackets for rack mounting.
Ensure there is ample room for audio and video cables.
When installing cables, ensure that the bend radius of each cable is no less than five times its
diameter.
Connect both the alarm and RS-485 cable.
Allow at least 2cm (0.75in) of space between rack-mounted devices.
Ensure the encoder is grounded.
Environmental temperature should be within the range of -10 ºC to 55 ºC (14ºF to 131ºF).
Environmental humidity should be within the range of 10% to 90%.
Check the power supply to avoid the damage caused by voltage mismatch.
Keep the device horizontal and avoid installing in an environment of severe vibration.
The dust board will cause a short circuit after damping. Use a brush to regularly remove dust
from the board, connector, and chassis fan.
Improper use or replacement of the battery may result in hazard of explosion. Replace with
the same or equivalent type only. Dispose of used batteries according to the instructions
provided by the battery manufacturer.
exacqVision E-Series Quick Start
www.exacq.com
Page 2 of 11
9/9/2014
Regulatory information
FCC information
FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his own expense.
FCC conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.) This
device may not cause harmful interference. 2.) This device must accept any interference received, including
interference that may cause undesired operation.
EU Conformity Statement
This product and -- if applicable -- the supplied accessories too are marked with "CE" and comply therefore with
the applicable harmonized European standards listed under the Low Voltage Directive 2006/95/EC, the EMC
Directive 2004/108/EC, the RoHS Directive 2011/65/EU.
This symbol is required in accordance with the Waste Electrical and Electronic Equipment (WEEE) Directive of the
European Union. The presence of this marking on the product indicates: 1.) the device was put on the European
market after August 13, 2005 and 2.) the device is not to be disposed via the municipal waste collection system of
any member state of the European Union.
It is very important that customers understand and follow all laws regarding the proper decontamination and safe
disposal of electrical equipment. Please contact +44.1438.310163 for details on the take back program that will
facilitate the proper collection, treatment, recovery, recycling, and safe disposal of the device.
2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal
waste in the European Union. See the product documentation for specific battery information. The battery is
marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For
proper recycling, return the battery to your supplier or to a designated collection point. For more information see:
www.recyclethis.info.
exacqVision E-Series Quick Start
www.exacq.com
Page 3 of 11
9/9/2014
Item
Description
1
POWER LED Indicator
Red when the device is powered on.
2
VIDEO IN
BNC connector for video input.
3
LINE IN
3.5mm interface for two-way audio input or audio input; connect to
audio input device or active pick-up, microphone, etc.
4
AUDIO OUT
3.5mm interface; connect to audio output device such as loudspeaker.
5
microSD
Unused (included for future expansion).
6
RESET
Hold button for more than 15 seconds after power is turned on to
restore factory-default settings.
1 2 3 4 5
6

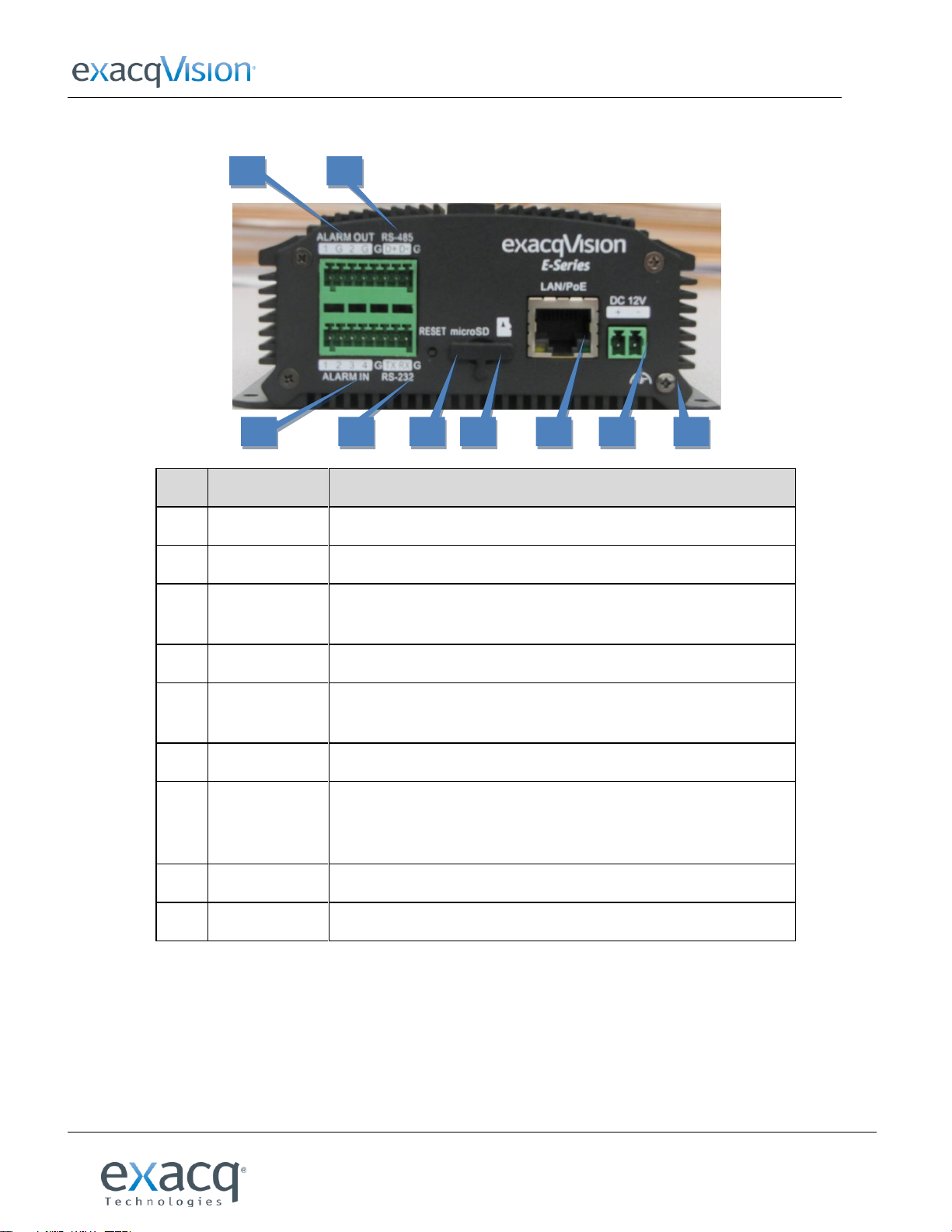

2 Front Panel
E-ADE1C FRONT PANEL
exacqVision E-Series Quick Start
www.exacq.com
Page 4 of 11
9/9/2014
Item
Description
1
POWER LED Indicator
Red when the device is powered on.
2
LINE IN
3.5mm two-way audio input interface; connect to active pick-up,
microphone, etc.
3
AUDIO OUT
3.5mm interface; connect to audio output device, such as loudspeaker.
4
VIDEO IN
BNC interface for video input.
5
AUDIO IN
Line input interface for audio input.
1 2 3 4 5

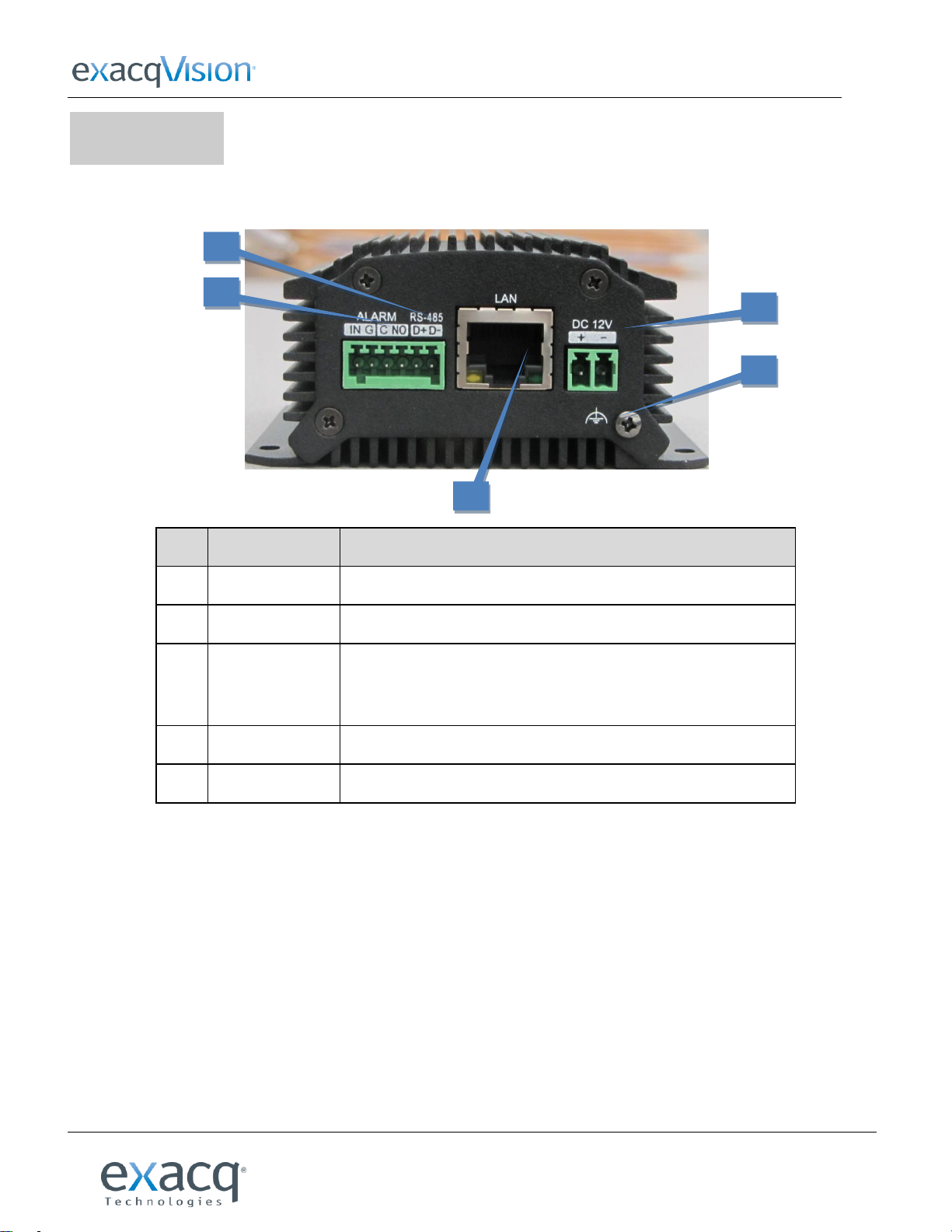

E-ADE4C FRONT PANEL
