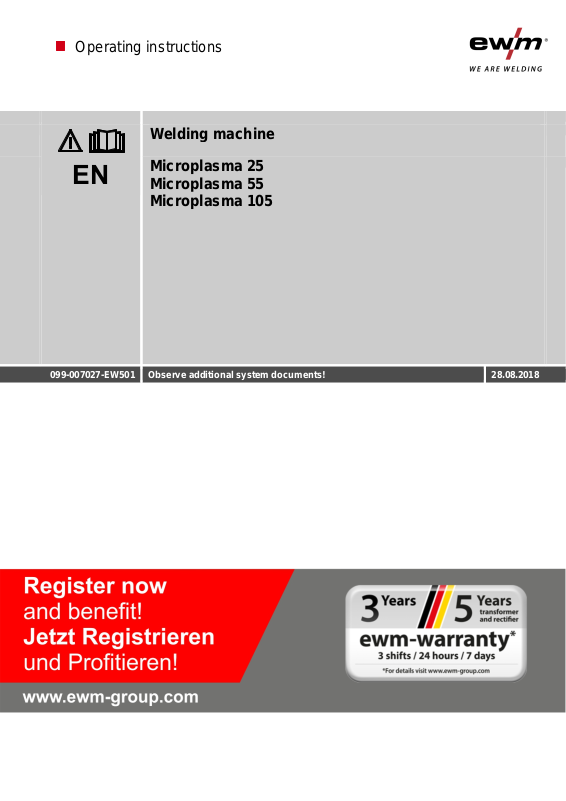

Operating instructions

Welding machine

Microplasma 25 Microplasma 55 Microplasma 105

099-007027-EW501

Observe additional system documents!

28.08.2018

WARNING

Read the operating instructions! The operating instructions provide an introduction to the safe use of the products.

• Read and observe the operating instructions for all system components, especially the safety instructions and warning notices!

• Observe the accident prevention regulations and any regional regulations!

• The operating instructions must be kept at the location where the machine is operated.

• Safety and warning labels on the machine indicate any possible risks.

Keep these labels clean and legible at all times.

• The machine has been constructed to state-of-the-art standards in line with any applicable regulations and industrial standards. Only trained personnel may operate, service and repair the machine.

• Technical changes due to further development in machine technology may lead to a differing welding behaviour.

General instructions

In the event of queries on installation, commissioning, operation or special conditions at the installation site, or on usage, please contact your sales partner or our customer service department on +49 2680 181-0.

A list of authorised sales partners can be found at www.ewm-group.com/en/specialist-dealers.

Liability relating to the operation of this equipment is restricted solely to the function of the equipment. No other form of liability, regardless of type, shall be accepted. This exclusion of liability shall be deemed accepted by the user on commissioning the equipment. The manufacturer is unable to monitor whether or not these instructions or the conditions and methods are observed during installation, operation, usage and maintenance of the equipment.

An incorrectly performed installation can result in material damage and injure persons as a result. For this reason, we do not accept any responsibility or liability for losses, damages or costs arising from incorrect installation, improper operation or incorrect usage and maintenance or any actions connected to this in any way.

Dr. Günter-Henle-Strasse 8 56271 Mündersbach Germany Tel.: +49 2680 181-0, Fax: -244 Email: info@ewm-group.com

www.ewm-group.com

The copyright to this document remains the property of the manufacturer. Copying, including extracts, only permitted with written approval. The content of this document has been prepared and reviewed with all reasonable care. The information

provided is subject to change; errors excepted.

Contents

Notes on the use of these operating instructions

099-007027-EW501

28.08.2018

1 Contents

1 Contents .................................................................................................................................................. 3

2 For your safety ....................................................................................................................................... 6

2.1 Notes on the use of these operating instructions .......................................................................... 6

2.2 Explanation of icons ....................................................................................................................... 7

2.3 Part of the complete documentation .............................................................................................. 8

2.4 Safety instructions .......................................................................................................................... 9

2.5 Transport and installation ............................................................................................................ 13

3 Intended use ......................................................................................................................................... 14

3.1 Applications .................................................................................................................................. 14

3.2 Software version .......................................................................................................................... 14

3.3 Documents which also apply ....................................................................................................... 15

3.3.1 Warranty ....................................................................................................................... 15

3.3.2 Declaration of Conformity ............................................................................................. 15

3.3.3 Welding in environments with increased electrical hazards ......................................... 15

3.3.4 Service documents (spare parts and circuit diagrams) ................................................ 15

3.3.5 Calibration/Validation ................................................................................................... 15

4 Machine description – quick overview .............................................................................................. 16

4.1 Front view / side view from left .................................................................................................... 16

4.2 Rear view / side view from right ................................................................................................... 18

4.3 Machine control – Operating elements ........................................................................................ 20

4.3.1 Overview of control sections ........................................................................................ 20

4.4 Operating the machine control ..................................................................................................... 24

4.4.1 Main screen .................................................................................................................. 24

4.4.2 Welding power setting .................................................................................................. 24

4.4.3 Welding parameter setting in the operation sequence ................................................. 24

4.4.4 Setting advanced welding parameters (Expert menu) ................................................. 24

4.4.5 Changing basic settings (machine configuration menu) .............................................. 24

4.4.6 Welding data display .................................................................................................... 25

4.4.7 Setting the welding current (absolute/percentage) ....................................................... 25

5 Design and function ............................................................................................................................. 26

5.1 Transport and installation ............................................................................................................ 26

5.1.1 Ambient conditions ....................................................................................................... 26

5.1.2 Machine cooling ............................................................................................................ 26

5.1.3 Workpiece lead, general ............................................................................................... 27

5.1.4 Notes on the installation of welding current leads ........................................................ 27

5.1.5 Stray welding currents .................................................................................................. 28

5.1.6 Mains connection .......................................................................................................... 29

5.1.7 Shielding and plasma gas supply ................................................................................. 29

5.1.8 Pressure regulator connection ..................................................................................... 30

5.1.9 Welding torch cooling system ....................................................................................... 32

5.1.10 Welding torch and workpiece line connection .............................................................. 34

5.1.11 Intermediate hose package strain relief ....................................................................... 36

5.2 Plasma welding ............................................................................................................................ 38

5.2.1 Welding task selection .................................................................................................. 38

4.3.1.1 Control section A ........................................................................................... 21

4.3.1.2 Control section B ........................................................................................... 22

5.1.1.1 In operation ................................................................................................... 26

5.1.1.2 Transport and storage ................................................................................... 26

5.1.6.1 Mains configuration ....................................................................................... 29

5.1.8.1 Shielding gas hose connection ..................................................................... 30

5.1.8.2 Gas test ......................................................................................................... 31

5.1.8.3 Automatic gas post-flow ................................................................................ 31

5.1.9.1 Cooling unit connection ................................................................................. 32

5.1.9.2 Connection of external recooling unit ............................................................ 33

5.1.10.1 Plasma welding ............................................................................................. 34

5.1.10.2 TIG welding ................................................................................................... 35

5.1.10.3 Connection assignment, welding torch control cable .................................... 36

5.2.1.1 Setting welding procedure ............................................................................ 38

Contents

Notes on the use of these operating instructions

099-007027-EW501

28.08.2018

5.2.2 Pilot arc ......................................................................................................................... 38

5.2.2.1 Adjust pilot arc currents ................................................................................. 39

5.2.3 Expert Menu (Plasma) .................................................................................................. 40

5.3 TIG welding .................................................................................................................................. 41

5.3.1 Welding task selection .................................................................................................. 41

5.3.2 Arc ignition .................................................................................................................... 42

5.3.2.1 HF ignition ..................................................................................................... 42

5.3.2.2 Liftarc ............................................................................................................. 42

5.3.2.3 Automatic cut-out .......................................................................................... 42

5.3.3 TIG antistick .................................................................................................................. 42

5.3.4 Expert menu (TIG) ........................................................................................................ 43

5.3.5 Aligning the cable resistance ........................................................................................ 44

5.4 Operating modes (functional sequences) .................................................................................... 45

5.4.1 Explanation of symbols ................................................................................................. 45

5.4.2 Non-latched mode ........................................................................................................ 46

5.4.3 Latched mode ............................................................................................................... 47

5.4.4 spotArc .......................................................................................................................... 48

5.4.5 spotmatic (Plasma) ....................................................................................................... 49

5.4.6 spotmatic (TIG) ............................................................................................................. 50

5.4.7 Non-latched operation, version C ................................................................................. 51

5.5 Recurring welding tasks ............................................................................................................... 52

5.6 Pulse welding ............................................................................................................................... 52

5.6.1 Automated pulses ......................................................................................................... 52

5.6.2 Thermal pulsing ............................................................................................................ 53

5.6.2.1 Pulsed welding in the upslope and downslope phases ................................. 54

5.6.3 Metallurgical pulsing (kHz pulsing) ............................................................................... 54

5.6.4 Average value pulse welding ........................................................................................ 56

5.7 Welding torch (operating variants) ............................................................................................... 56

5.7.1 Tapping function (tap torch trigger) .............................................................................. 56

5.7.2 Torch mode setting ....................................................................................................... 57

5.7.3 Up/down speed ............................................................................................................. 57

5.7.4 Current jump ................................................................................................................. 57

5.8 Standard TIG torch (5-pole) ......................................................................................................... 58

5.9 Remote control ............................................................................................................................. 59

5.9.1 RTF1 19POL ................................................................................................................. 59

5.9.1.1 RTF start ramp .............................................................................................. 60

5.9.1.2 RTF response ................................................................................................ 61

5.9.2 RTF1 -, RT1 -, RTG1 19POL ........................................................................................ 61

5.9.3 RTP1 19POL ................................................................................................................ 61

5.10 Power-saving mode (Standby) ..................................................................................................... 62

5.11 Access control .............................................................................................................................. 62

5.12 Interfaces for automation ............................................................................................................. 62

5.12.1 Automation interface ..................................................................................................... 63

5.12.2 Remote control connection socket, 19-pole ................................................................. 64

5.12.3 RINT X12 robot interface .............................................................................................. 64

5.12.4 BUSINT X11 Industrial bus interface ............................................................................ 64

5.13 Machine configuration menu ........................................................................................................ 65

5.13.1 Selecting, changing and saving parameters................................................................. 65

6 Maintenance, care and disposal ......................................................................................................... 69

6.1 General......................................................................................................................................... 69

6.2 Cleaning ....................................................................................................................................... 69

6.3 Dirt filter ........................................................................................................................................ 69

6.4 Maintenance work, intervals ........................................................................................................ 70

6.4.1 Daily maintenance tasks ............................................................................................... 70

6.4.2 Monthly maintenance tasks .......................................................................................... 70

6.4.3 Annual test (inspection and testing during operation) .................................................. 70

6.5 Disposing of equipment ................................................................................................................ 71

7 Rectifying faults.................................................................................................................................... 72

7.1 Warnings ...................................................................................................................................... 72

7.2 Error messages ............................................................................................................................ 73

Contents

Notes on the use of these operating instructions

099-007027-EW501

28.08.2018

7.3 Resetting welding parameters to the factory settings .................................................................. 74

7.4 Display machine control software version ................................................................................... 74

7.5 Checklist for rectifying faults ........................................................................................................ 75

8 Technical data ...................................................................................................................................... 76

8.1 Microplasma 25 ............................................................................................................................ 76

8.2 Microplasma 55 ............................................................................................................................ 77

8.3 Microplasma 105 .......................................................................................................................... 78

9 Accessories .......................................................................................................................................... 79

9.1 Welding torch cooling system ...................................................................................................... 79

9.2 Transport systems ....................................................................................................................... 79

9.3 Option .......................................................................................................................................... 79

9.4 General accessories .................................................................................................................... 79

9.5 Remote controls and accessories ................................................................................................ 79

9.5.1 Connection and extension cables ................................................................................ 79

10 Appendix A ........................................................................................................................................... 80

10.1 Parameter overview – setting ranges .......................................................................................... 80

11 Appendix B ........................................................................................................................................... 81

11.1 Searching for a dealer ................................................................................................................. 81

For your safety

Notes on the use of these operating instructions

099-007027-EW501

28.08.2018

DANGER

Working or operating procedures which must be closely observed to prevent imminent serious and even fatal injuries.

• Safety notes include the "DANGER" keyword in the heading with a general warning symbol.

• The hazard is also highlighted using a symbol on the edge of the page.

WARNING

Working or operating procedures which must be closely observed to prevent serious and even fatal injuries.

• Safety notes include the "WARNING" keyword in the heading with a general warning symbol.

• The hazard is also highlighted using a symbol in the page margin.

CAUTION

Working or operating procedures which must be closely observed to prevent possible minor personal injury.

• The safety information includes the "CAUTION" keyword in its heading with a general warning symbol.

• The risk is explained using a symbol on the edge of the page.

Technical aspects which the user must observe to avoid material or equipment damage.

2 For your safety

2.1 Notes on the use of these operating instructions

Instructions and lists detailing step-by-step actions for given situations can be recognised via bullet points, e.g.:

• Insert the welding current lead socket into the relevant socket and lock.

For your safety

Explanation of icons

099-007027-EW501

28.08.2018

Symbol

Description

Symbol

Description

Indicates technical aspects which the user must observe.

Activate and release / Tap / Tip

Switch off machine

Release

Switch on machine

Press and hold Switch

Incorrect / Invalid

Turn

Correct / Valid

Numerical value – adjustable

Input

Signal light lights up in green

Navigation

Signal light flashes green

Output

Signal light lights up in red

Time representation (e.g.: wait 4 s / actuate)

Signal light flashes red Interruption in the menu display (other

setting options possible)

Tool not required/do not use

Tool required/use

2.2 Explanation of icons

For your safety

Part of the complete documentation

099-007027-EW501

28.08.2018

Item

Documentation

A.1

Options conversion instructions

A.2

Power source

A.3

Cooling unit, voltage converter, tool box etc.

A.4

Transport cart

A.5

Welding torch

A.6

Remote control

A.7

Controller

Complete documentation

2.3 Part of the complete documentation

These operating instructions are part of the complete documentation and valid only in combination with all other parts of these instructions! Read and observe the operating instructions for all system components, especially the safety instructions!

The illustration shows a general example of a welding system.

Figure 2-1

For your safety

Safety instructions

099-007027-EW501

28.08.2018

WARNING

Risk of accidents due to non-compliance with the safety instructions! Non-compliance with the safety instructions can be fatal!

• Carefully read the safety instructions in this manual!

• Observe the accident prevention regulations and any regional regulations!

• Inform persons in the working area that they must comply with the regulations!

Risk of injury from electrical voltage! Voltages can cause potentially fatal electric shocks and burns on contact. Even low

voltages can cause a shock and lead to accidents.

• Never touch live components such as welding current sockets or stick, tungsten or wire electrodes!

• Always place torches and electrode holders on an insulated surface!

• Wear the full personal protective equipment (depending on the application)!

• The machine may only be opened by qualified personnel!

• The device must not be used to defrost pipes!

Hazard when interconnecting multiple power sources! If a number of power sources are to be connected in parallel or in series, only a

technical specialist may interconnect the sources as per standard IEC 60974-9:2010: Installation and use and German Accident Prevention Regulation BVG D1 (formerly VBG

15) or country-specific regulations.

Before commencing arc welding, a test must verify that the equipment cannot exceed the maximum permitted open circuit voltage.

• Only qualified personnel may connect the machine.

• When taking individual power sources out of operation, all mains and welding current leads

must be safely disconnected from the welding system as a whole. (Hazard due to reverse polarity voltage!)

• Do not interconnect welding machines with pole reversing switch (PWS series) or machines for AC welding since a minor error in operation can cause the welding voltages to be combined, which is not permitted.

Risk of injury due to improper clothing! During arc welding, radiation, heat and voltage are sources of risk that cannot be

avoided. The user has to be equipped with the complete personal protective equipment at all times. The protective equipment has to include:

• Respiratory protection against hazardous substances and mixtures (fumes and vapours); otherwise implement suitable measures such as extraction facilities.

• Welding helmet with proper protection against ionizing radiation (IR and UV radiation) and heat.

• Dry welding clothing (shoes, gloves and body protection) to protect against warm environments with conditions comparable to ambient temperatures of 100 °C or higher and arcing and work on live components.

• Hearing protection against harming noise.

Risk of injury due to radiation or heat! Arc radiation can lead to skin and eye injuries.

Contact with hot workpieces and sparks can lead to burns.

• Use hand shield or welding helmet with the appropriate safety level (depends on the application).

• Wear dry protective clothing (e.g. hand shield, gloves, etc.) in accordance with the applicable regulations of your country.

• Persons who are not directly involved should be protected with a welding curtain or suitable safety screen against radiation and the risk of blinding!

2.4 Safety instructions

For your safety

Safety instructions

099-007027-EW501

28.08.2018

WARNING

Explosion risk! Apparently harmless substances in closed containers may generate excessive pressure

when heated.

• Move containers with inflammable or explosive liquids away from the working area!

• Never heat explosive liquids, dusts or gases by welding or cutting!

Fire hazard! Due to the high temperatures, sparks, glowing parts and hot slag that occur during

welding, there is a risk of flames.

• Be watchful of potential sources of fire in the working area!

• Do not carry any easily inflammable objects, e.g. matches or lighters.

• Ensure suitable fire extinguishers are available in the working area!

• Thoroughly remove any residue of flammable materials from the workpiece prior to starting

to weld.

• Only further process workpieces after they have cooled down. Do not allow them to contact any flammable materials!

CAUTION

Smoke and gases! Smoke and gases can lead to breathing difficulties and poisoning. In addition, solvent

vapour (chlorinated hydrocarbon) may be converted into poisonous phosgene due to the ultraviolet radiation of the arc!

• Ensure that there is sufficient fresh air!

• Keep solvent vapour away from the arc beam field!

• Wear suitable breathing apparatus if appropriate!

Noise exposure! Noise exceeding 70 dBA can cause permanent hearing damage!

• Wear suitable ear protection!

• Persons located within the working area must wear suitable ear protection!

For your safety

Safety instructions

099-007027-EW501

28.08.2018

CAUTION

According to IEC 60974-10, welding machines are divided into two classes of electromagnetic compatibility (the EMC class can be found in the Technical data) > see 8 chapter: Class A machines are not intended for use in residential areas where the power supply comes

from the low-voltage public mains network. When ensuring the electromagnetic compatibility of class A machines, difficulties can arise in these areas due to interference not only in the supply lines but also in the form of radiated interference.

Class B machines fulfil the EMC requirements in industrial as well as residential areas, including residential areas connected to the low-voltage public mains network.

Setting up and operating

When operating arc welding systems, in some cases, electro-magnetic interference can occur although all of the welding machines comply with the emission limits specified in the standard. The user is responsible for any interference caused by welding.

In order to evaluate any possible problems with electromagnetic compatibility in the surrounding area, the user must consider the following: (see also EN 60974-10 Appendix A)

• Mains, control, signal and telecommunication lines

• Radios and televisions

• Computers and other control systems

• Safety equipment

• The health of neighbouring persons, especially if they have a pacemaker or wear a hearing

aid

• Calibration and measuring equipment

• The immunity to interference of other equipment in the surrounding area

• The time of day at which the welding work must be carried out

Recommendations for reducing interference emission

• Mains connection, e.g. additional mains filter or shielding with a metal tube

• Maintenance of the arc welding system

• Welding leads should be as short as possible and run closely together along the ground

• Potential equalization

• Earthing of the workpiece. In cases where it is not possible to earth the workpiece directly,

it should be connected by means of suitable capacitors.

• Shielding from other equipment in the surrounding area or the entire welding system

Electromagnetic fields! The power source may cause electrical or electromagnetic fields to be produced which

could affect the correct functioning of electronic equipment such as IT or CNC devices, telecommunication lines, power cables, signal lines and pacemakers.

• Observe the maintenance instructions > see 6.4 chapter!

• Unwind welding leads completely!

• Shield devices or equipment sensitive to radiation accordingly!

• The correct functioning of pacemakers may be affected (obtain advice from a doctor if

necessary).

Obligations of the operator! The respective national directives and laws must be complied with when operating the

machine!

• Implementation of national legislation relating to framework directive 89/391/EEC on the introduction of measures to encourage improvements in the safety and health of workers at work and associated individual guidelines.

• In particular, directive 89/655/EEC concerning the minimum safety and health requirements for the use of work equipment by workers at work.

• The regulations applicable to occupational safety and accident prevention in the country concerned.

• Setting up and operating the machine as per IEC 60974.-9.

• Brief the user on safety-conscious work practices on a regular basis.

• Regularly inspect the machine as per IEC 60974.-4.

For your safety

Safety instructions

099-007027-EW501

28.08.2018

The manufacturer's warranty becomes void if non-genuine parts are used!

• Only use system components and options (power sources, welding torches, electrode holders, remote controls, spare parts and replacement parts, etc.) from our range of products!

• Only insert and lock accessory components into the relevant connection socket when the machine is switched off.

Requirements for connection to the public mains network High-performance machines can influence the mains quality by taking current from the mains

network. For some types of machines, connection restrictions or requirements relating to the maximum possible line impedance or the necessary minimum supply capacity at the interface with the public network (Point of Common Coupling, PCC) can therefore apply. In this respect, attention is also drawn to the machines' technical data. In this case, it is the responsibility of the operator, where necessary in consultation with the mains network operator, to ensure that the machine can be connected.

For your safety

Transport and installation

099-007027-EW501

28.08.2018

WARNING

Risk of injury due to improper handling of shielding gas cylinders! Improper handling and insufficient securing of shielding gas cylinders can cause

serious injuries!

• Observe the instructions from the gas manufacturer and any relevant regulations concerning the use of compressed air!

• Do not attach any element to the shielding gas cylinder valve!

• Prevent the shielding gas cylinder from heating up.

CAUTION

Risk of accidents due to supply lines! During transport, attached supply lines (mains leads, control cables, etc.) can cause

risks, e.g. by causing connected machines to tip over and injure persons!

• Disconnect all supply lines before transport!

Risk of tipping! There is a risk of the machine tipping over and injuring persons or being damaged itself

during movement and set up. Tilt resistance is guaranteed up to an angle of 10° (according to IEC 60974-1).

• Set up and transport the machine on level, solid ground.

• Secure add-on parts using suitable equipment.

Risk of accidents due to incorrectly installed leads! Incorrectly installed leads (mains, control and welding leads or intermediate hose

packages ) can present a tripping hazard.

• Lay the supply lines flat on the floor (avoid loops).

• Avoid laying the leads on passage ways.

The units are designed for operation in an upright position! Operation in non-permissible positions can cause equipment damage.

• Only transport and operate in an upright position!

Accessory components and the power source itself can be damaged by incorrect connection!

• Only insert and lock accessory components into the relevant connection socket when the machine is switched off.

• Comprehensive descriptions can be found in the operating instructions for the relevant accessory components.

• Accessory components are detected automatically after the power source is switched on.

Protective dust caps protect the connection sockets and therefore the machine against dirt and damage.

• The protective dust cap must be fitted if there is no accessory component being operated on that connection.

• The cap must be replaced if faulty or if lost!

2.5 Transport and installation

Intended use

Applications

099-007027-EW501

28.08.2018

WARNING

Hazards due to improper usage! The machine has been constructed to the state of the art and any regulations and

standards applicable for use in industry and trade. It may only be used for the welding procedures indicated at the rating plate. Hazards may arise for persons, animals and material objects if the equipment is not used correctly. No liability is accepted for any damages arising from improper usage!

• The equipment must only be used in line with its designated purpose and by trained or expert personnel!

• Do not improperly modify or convert the equipment!

3 Intended use

3.1 Applications

Arc welding machine for microplasma DC welding with HF start (contactless). Suitable for operation with manually guided welding torches. It may be possible to expand the range of functions by using accessories (see the documentation in the relevant chapter).

3.2 Software version

These instructions apply to the following software version:

07.03E0 The query of the software versions only serves to inform the authorised service staff. It is available in the

machine configuration menu > see 5.13 chapter.

Intended use

Documents which also apply

099-007027-EW501

28.08.2018

The labelled product complies with the following EC directives in terms of its design and construction:

• Low Voltage Directive (LVD)

• Electromagnetic Compatibility Directive (EMC)

• Restriction of Hazardous Substance (RoHS)

In case of unauthorised changes, improper repairs, non-compliance with specified deadlines for "Arc Welding Equipment – Inspection and Testing during Operation," and/or prohibited modifications which have not been explicitly authorised by the manufacturer, this declaration shall be voided. An original document of the specific declaration of conformity is included with every product.

In compliance with IEC / DIN EN 60974, VDE 0544 the machines can be used in environments with an increased electrical hazard.

WARNING

Do not carry out any unauthorised repairs or modifications! To avoid injury and equipment damage, the unit must only be repaired or modified by

specialist, skilled persons! The warranty becomes null and void in the event of unauthorised interference.

• Appoint only skilled persons for repair work (trained service personnel)!

3.3 Documents which also apply

3.3.1 Warranty

For more information refer to the "Warranty registration" brochure supplied and our information regarding

3.3.2 Declaration of Conformity

3.3.3 Welding in environments with increased electrical hazards

3.3.4 Service documents (spare parts and circuit diagrams)

warranty, maintenance and testing at www.ewm-group.com!

Original copies of the circuit diagrams are enclosed with the unit. Spare parts can be obtained from the relevant authorised dealer.

3.3.5 Calibration/Validation

We hereby confirm that this product was tested with calibrated measuring equipment according to the applicable standards IEC/EN 60974, ISO/EN 17662, EN 50504 and complies with the permissible tolerances. Recommended calibration interval: 12 months.

Machine description – quick overview

Front view / side view from left

099-007027-EW501

28.08.2018

4 Machine description – quick overview

4.1 Front view / side view from left

Figure 4-1

Machine description – quick overview

Front view / side view from left

099-007027-EW501

28.08.2018

Item

Symbol

Description 0

Ready for operation signal light

Signal light on when the machine is switched on and ready for operation

Main switch, machine on/off

Workpiece lead connection socket

Pilot current connection socket

Plasma welding torch nozzle potential

19-pole connection socket (analogue)

For connecting analogue accessory components (remote control, welding torch control lead, etc.)

Cooling air inlet

Dirt filter can be retrofitted

Carrying handle

Machine feet

Quick connect coupling (red)

coolant return

Quick connect coupling (blue)

coolant supply

Quick connect coupling plasma gas (plug nipple type 20)

Connection to welding torch

Quick connect coupling shielding gas (coupling type 20)

Connection to welding torch

Welding current connection socket, welding torch

Connection socket, welding torch control cable

Machine control > see 4.3 chapter

Plasma gas flow regulator

Control and display of gas flow volume

Shielding gas flow regulator

Control and display of gas flow volume

Machine description – quick overview

Rear view / side view from right

099-007027-EW501

28.08.2018

4.2 Rear view / side view from right

The device configuration shown may differ in case of an additional ex works options or retrofitting options > see 9 chapter.

Figure 4-2

Machine description – quick overview

Rear view / side view from right

099-007027-EW501

28.08.2018

Item

Symbol

Description 0

19-pole mechanised welding interface (analogue)

> see 5.12.1 chapter

7-pole connection socket (digital)

For connecting digital accessory components

Key button, Automatic cutout

Wire feed motor supply voltage fuse (press to reset a triggered fuse)

7-pole connection socket

For connecting Wire feed unit

8-pole connection socket

Cooling unit control lead

G1/4" connecting nipple, shielding gas connection

Connection to the pressure reducer

G1/4" connecting nipple, plasma gas connection

Connection to the pressure reducer

Quick connect coupling (red)

coolant return

Quick connect coupling (blue)

coolant supply

Carrying handle

Machine feet

Stirrup

Intermediate hose package strain relief

Cooling air outlet

Mains connection cable > see 5.1.6 chapter

5-pole connection socket

Cooling unit voltage supply

PC interface, serial (D-Sub connection socket, 9-pole)

Machine description – quick overview

Machine control – Operating elements

099-007027-EW501

28.08.2018

Item

Symbol

Description 0

Control section A

> see 4.3.1.1 chapter

Control section B

> see 4.3.1.2 chapter

4.3 Machine control – Operating elements

4.3.1 Overview of control sections

For description purposes, the machine control has been divided into two sections (A, B) to ensure maximum clarity. The setting ranges for the parameter values are summarised in the parameter overview section > see 10.1 chapter.

Figure 4-3

Machine description – quick overview

Machine control – Operating elements

099-007027-EW501

28.08.2018

Item

Symbol

Description 0

Welding data display (3-digit)

Displays the welding parameters and the corresponding values > see 4.4.6 chapter

Gas test push-button > see 5.1.8.2 chapter

Operating mode > see 5.4 chapter / power-saving mode pushbutton > see 5.10 chapter

--------- Latched

------- Non-latched

------- spotArc spot welding procedure – signal light turns green

------- spotmatic spot welding procedure –signal light turns red

--------- Press button for long interval to put machine into power-saving mode. Activate one of the operating elements to reactivate.

Pulsed welding push-button

-- TIG automated pulsing (frequency and balance)

-------- Signal light turns green: Pulsing (thermal pulsing)

-------- Signal light lights up in red: kHz pulsing (metallurgical pulsing)

Filler wire welding signal light

For machines with filler wire only (AW)

TIG ignition type signal light

Signal light on: Lift arc ignition active/HF start off. You can switch the ignition type in the Expert menu (TIG) > see 5.3.4 chapter.

Character function signal light

Indicates that it is possible to weld in an environment with major electric hazards, such as in boilers. Service must be informed if this signal light is not on.

4.3.1.1 Control section A

Figure 4-4

Machine description – quick overview

Machine control – Operating elements

099-007027-EW501

28.08.2018

Item

Symbol

Description 0

Coolant fault signal light

Signals pressure loss or low coolant level in the coolant circuit.

Hold

Signal light Status display

After each completed welding task, the last values used in the welding process for the welding current and welding voltage are shown on the displays, and the signal light will be on

Excess temperature signal light

In case of excess temperature, temperature monitors de-activate the power unit, and the excess temperature control lamp comes on. Once the machine has cooled down, welding can continue without any further measures.

Access control active signal light

Signal light is on when access control is active on the machine control > see 5.11 chapter.

Pilot arc push-button

------ Ignition process started (signal light turns green)

------ Pilot arc on (signal light on red)

------ Plasma gas flows (signal light turns green)

Welding procedure push-button

--------- Plasma welding

--------- TIG welding

Display switching push-button

kW ------- Welding power display V --------- Welding voltage display JOB ----- Display and setting of the JOB number with the control button

Item

Symbol

Description 0

Parameter selection push-button, left

The welding sequence parameters are selected one after another in an anti-clockwise direction. For control systems without this button settings are done exclusively via the control button.

Control button

Central control button to be pressed or turned > see 4.4 chapter.

4.3.1.2 Control section B

Figure 4-5

Machine description – quick overview

Machine control – Operating elements

099-007027-EW501

28.08.2018

Item

Symbol

Description 0

Parameter selection push-button, right

The welding sequence parameters are selected one after another in a clockwise direction. For control systems without this button settings are done exclusively via the control button.

Balance signal light

Pulse balance

Electrode diameter signal light

Ignition optimisation (TIG)/tungsten balling basic setting

Gas post-flow time

AMP%

End current signal light

sec

Down-slope time signal light

AMP%

sec

Signal light, two colour

Red: Secondary or pulse pause current (% of AMP) Green: Pulse pause time

AMP

sec

Signal light, two colour

Red: Main current /pulse current Green: Pulse time

sec

Signal light Up-slope time

AMP%

Signal light start current

Gas pre-flow time signal light

signal light

Machine description – quick overview

Operating the machine control

099-007027-EW501

28.08.2018

Display

Meaning

Increase the parameter value

To return to the factory settings.

Factory setting (example value = 20)

Parameter is set to optimum value

Decrease the parameter value

To return to the factory settings.

4.4 Operating the machine control

4.4.1 Main screen

The machine control switches to the main screen after it has been turned on or a setting has been completed. This means that the previously selected settings (indicated by signal lights where applicable) and the nominal value for the current (A) are displayed in the left-hand welding data display. Depending on the selection, the right-hand display shows the welding voltage (V) nominal value or the welding power

4.4.2 Welding power setting

4.4.3 Welding parameter setting in the operation sequence

(kW) actual value. The control always switches back to the main screen after 4 sec..

The welding power is set using the control button. You can also adjust the parameters in the operation sequence or settings in the different machine menus.

Welding parameters are set by briefly pressing the control knob (selecting the function sequence) and then turning the knob (navigation to the desired parameter). Press again to apply the selected parameter as the setting (corresponding parameter value and signal light flash). Turn the button to set the parameter value.

During welding parameter setting, the parameter value to be set flashes in the left hand display. A parameter abbreviation or a deviation in the specified parameter value upwards or downwards is shown on the right-hand display:

4.4.4 Setting advanced welding parameters (Expert menu)

The Expert menu contains functions and parameters which cannot be set directly in the machine control or which do not need to be et on a regular basis. The number and display of these parameters depends on the previously selected welding procedure or the functions.

To select them hold the control button for more than 2 sec. Select the required parameter/menu item by turning (navigate) and pressing (confirm) the control button.

You can also or alternatively use the push-buttons to the left and right of the control button to navigate.

4.4.5 Changing basic settings (machine configuration menu)

The basic welding system functions can be adjusted in the machine configuration menu. Only experienced users should change the settings > see 5.13 chapter.

Machine description – quick overview

Operating the machine control

099-007027-EW501

28.08.2018

Parameter

Before welding (nominal values)

During welding (actual values)

After welding (hold values)

Welding current

Parameter times

Parameter currents

Frequency, balance

JOB number

Welding power

Welding voltage

4.4.6 Welding data display

The following welding parameters can be displayed before (nominal values), during (actual values) or after welding (hold values):

When the hold values are displayed after welding and the settings are then changed (e.g. welding current), the display will switch to the relevant nominal values.

The parameters that can be set in the function sequence of the machine control depend on the selected welding task. This means that if for example you have not selected a pulse variant, then you cannot set any pulse times in the function sequence.

4.4.7 Setting the welding current (absolute/percentage)

The welding current for the ignition, secondary, end and hot start current can be set as a percentage of the main current AMP or as an absolute value. To select, use the parameter <dg in the configuration menu_ref_source_inline>Gerätekonfigurationsmenü</dg_ref_source_inline>.

> see 5.13 chapter

Design and function

Transport and installation

099-007027-EW501

28.08.2018

WARNING

Risk of injury from electrical voltage! Contact with live parts, e.g. power connections, can be fatal!

• Observe the safety information on the first pages of the operating instructions!

• Commissioning must be carried out by persons who are specifically trained in handling

power sources!

• Connect connection or power cables while the machine is switched off!

WARNING

Risk of accident due to improper transport of machines that must not be lifted! Do not lift or suspend the machine! The machine can drop and cause injuries! The

handles, straps or brackets are suitable for transport by hand only!

• The machine must not be suspended or lifted using a crane.

A connected and ready-to-use welding torch cooling unit is required for the operation of this plasma welding machine!

T he machine must not be operated in the open air and must only be set up and operated on a suitable, stable and level base!

• The operator must ensure that the ground is non-slip and level, and provide sufficient lighting for the place of work.

• Safe operation of the machine must be guaranteed at all times.

Equipment damage due to contamination! Unusually high amounts of dust, acids, corrosive gases or substances can damage the machine

(observe maintenance intervals > see 6.4 chapter).

• Avoid large amounts of smoke, steam, oily fumes, grinding dust and corrosive ambient air!

Insufficient ventilation results in a reduction in performance and equipment damage.

• Observe the ambient conditions!

• Keep the cooling air inlet and outlet clear!

• Observe the minimum distance of 0.5 m from obstacles!

5 Design and function

5.1 Transport and installation

5.1.1 Ambient conditions

Read and observe the documentation to all system and accessory components!

5.1.1.1 In operation Temperature range of the ambient air:

• -25 °C to +40 °C (-13 °F to 104 °F)

Relative humidity:

• up to 50 % at 40 °C (104 °F)

• up to 90 % at 20 °C (68 °F)

5.1.1.2 Transport and storage Storage in a closed room, temperature range of the ambient air:

• -30 °C to +70 °C (-22 °F to 158 °F)

Relative humidity

5.1.2 Machine cooling

• up to 90 % at 20 °C (68 °F)

Design and function

Transport and installation

099-007027-EW501

28.08.2018

CAUTION

Risk of burning due to incorrect welding current connection! If the welding current plugs (machine connections) are not locked or if the workpiece

connection is contaminated (paint, corrosion), these connections and leads can heat up and cause burns when touched!

• Check welding current connections on a daily basis and lock by turning to the right when necessary.

• Clean workpiece connection thoroughly and secure properly. Do not use structural parts of the workpiece as welding current return lead!

5.1.3 Workpiece lead, general

5.1.4 Notes on the installation of welding current leads

• Incorrectly installed welding current leads can cause faults in the arc (flickering).

• Lay the workpiece lead and hose package of power sources without HF igniter (MIG/MAG) for

as long and as close as possible in parallel.

• Lay the workpiece lead and hose package of power sources with HF igniter (TIG) for as long as possible in parallel with a distance of 20 cm to avoid HF sparkover.

• Always keep a distance of at least 20 cm to leads of other power sources to avoid interferences

• Always keep leads as short as possible! For optimum welding results max. 30 m (welding lead

+ intermediate hose package + torch lead).

Use an individual welding lead to the workpiece for each welding machine!

Figure 5-2

Figure 5-1

Design and function

Transport and installation

099-007027-EW501

28.08.2018

WARNING

Risk of injury due to stray welding currents! Stray welding currents can destroy protective earth conductors, damage machines and

electronic devices and cause overheating of components, leading to fire.

• Check that all welding current connections are firmly secured and electrical connections are in perfect condition.

• Set up, attach or suspend all conductive power source components such as casing, transport vehicles and crane frames so they are insulated.

• Do not place any other electronic devices such as drills or angle grinders on the power source, transport vehicle or crane frames unless they are insulated.

• Always put welding torches and electrode holders on an insulated surface when they are not in use.

Fully unroll welding current leads, torch hose packages and intermediate hose packages. Avoid loops!

Always keep leads as short as possible! Lay any excess cable lengths in meanders.

5.1.5 Stray welding currents

Figure 5-3

Figure 5-4

Design and function

Transport and installation

099-007027-EW501

28.08.2018

DANGER

Hazards caused by improper mains connection! An improper mains connection can cause injuries or damage property!

• The connection (mains plug or cable), the repair or voltage adjustment of the device must be carried out by a qualified electrician in accordance with the respective local laws or national regulations!

• The mains voltage indicated on the rating plate must match the supply voltage.

• Only operate machine using a socket that has correctly fitted protective earth.

• Mains plug, socket and lead must be checked by a qualified electrician on a regular basis!

• When operating the generator, always ensure it is earthed as stipulated in the operating

instructions. The network created must be suitable for operating machines according to protection class I.

The machine may only be connected to a one-phase system with two conductors and an earthed neutral conductor.

Item

Designation

Colour code

Outer conductor

brown

Neutral conductor

blue

Protective conductor

green-yellow

WARNING

Risk of injury due to improper handling of shielding gas cylinders! Improper handling and insufficient securing of shielding gas cylinders can cause

serious injuries!

• Observe the instructions from the gas manufacturer and any relevant regulations concerning the use of compressed air!

• Do not attach any element to the shielding gas cylinder valve!

• Prevent the shielding gas cylinder from heating up.

An unhindered shielding gas supply from the shielding gas cylinder to the welding torch is a fundamental requirement for optimum welding results. In addition, a blocked shielding gas supply may result in the welding torch being destroyed.

• Always re-fit the yellow protective cap when not using the shielding gas connection.

• All shielding gas connections must be gas tight.

5.1.6 Mains connection

5.1.6.1 Mains configuration

Legend

5.1.7 Shielding and plasma gas supply

• Insert mains plug of the switched-off machine into the appropriate socket.

Figure 5-5

Design and function

Transport and installation

099-007027-EW501

28.08.2018

Item

Symbol

Description 0

Pressure regulator

Output side of the pressure regulator

Shielding gas cylinder

Cylinder valve

Item

Symbol

Description 0

Shielding gas

5.1.8 Pressure regulator connection

• Before connecting the pressure regulator to the gas cylinder, open the cylinder valve briefly to blow out any dirt.

• Tighten the pressure regulator screw connection on the gas bottle valve to be gas-tight.

5.1.8.1 Shielding gas hose connection

• Screw gas hose connection crown nut onto the output side of the pressure regulator.

Figure 5-6

Figure 5-7

Design and function

Transport and installation

099-007027-EW501

28.08.2018

Item

Symbol

Description 0

Plasma gas

G1/4" connecting nipple, shielding gas connection

Connection to the pressure reducer

G1/4" connecting nipple, plasma gas connection

Connection to the pressure reducer

The connected gas lines should each have a pre-pressure of 4.5 bar (tolerance limits: plasma gas 4 bar to 5 bar, shielding gas 4 bar to 5 bar).

The functional sequence for the gas test is carried out in the same way for shielding gas and plasma gas. The gas test is only possible if:

• the pilot arc is not ignited and

• no welding process is being carried out.

• Check correct condition and sealing of tubes. Blow through gas hoses.

• Screw the connection coupling of the plasma gas line onto the G1/4" connecting nipple, plasma gas

connection.

• Screw the connection coupling of the shielding gas line onto the G1/4" connecting nipple, shielding

5.1.8.2 Gas test

gas connection.

Shielding and plasma gas setting can be checked without welding current flowing (currentless) and set if required. Activation of the gas test button releases both gas valves simultaneously and the gas setting can be made at the corresponding flow regulator.

• Press and hold the shielding or plasma gas test pushbutton.

• Release the pushbutton (test procedure complete).

• Press the torch trigger and set the shielding gas quantity with the flow gauge of the pressure regulator.

The flow quantity cannot be set higher on the gas flow regulator for fine adjustment of the gas flow than specified on the shielding gas cylinder pressure reducer.

5.1.8.3 Automatic gas post-flow

If the function is active, the gas post-flow time is defined by the machine control unit in dependence on power output. The defined gas post-flow time can also be adjusted if required. This value is then saved for the current welding task. The automatic gas post-flow function can be activated or deactivated in the machine configuration menu > see 5.13 chapter.

Design and function

Transport and installation

099-007027-EW501

28.08.2018

Item

Symbol

Description 0

Welding torch cooling unit

Quick connect coupling (red)

coolant return

Quick connect coupling (blue)

coolant supply

5-pole connection socket

Cooling unit voltage supply

8-pole connection socket

Cooling unit control lead

5.1.9 Welding torch cooling system

5.1.9.1 Cooling unit connection

Figure 5-8

• Lock connecting nipples of the cooling water tubes into the corresponding quick connect couplings: Return line red to quick connect coupling, red (coolant return) and supply line blue to quick connect coupling, blue (coolant supply).

• Insert and lock the 5-pole supply plug on the cooling unit into the 5-pole connection socket on the welding machine.

• Insert and lock the 8-pole control lead plug on the cooling unit into the 8-pole connection socket on the welding machine.

Design and function

Transport and installation

099-007027-EW501

28.08.2018

Item

Symbol

Description 0

Welding torch cooling unit

Quick connect coupling (red)

coolant return

Quick connect coupling (blue)

coolant supply

5.1.9.2 Connection of external recooling unit

Figure 5-9

Design and function

Transport and installation

099-007027-EW501

28.08.2018

Before commissioning, the plasma welding torch must be equipped for the welding JOB and correspondingly set/adjusted!

Item

Symbol

Description 0

Welding torch

Torch hose package

Pilot current connection socket

Plasma welding torch nozzle potential

Workpiece lead

Connection socket, welding torch control cable > see 5.1.10.3 chapter

Quick connect coupling (red)

coolant return

Quick connect coupling (blue)

coolant supply

Quick connect coupling plasma gas (plug nipple type 20)

Connection to welding torch

Quick connect coupling shielding gas (coupling type 20)

Connection to welding torch

Welding current connection socket, welding torch

Workpiece

5.1.10 Welding torch and workpiece line connection

5.1.10.1 Plasma welding

Figure 5-10

Design and function

Transport and installation

099-007027-EW501

28.08.2018

Item

Symbol

Description 0

Welding torch

Torch hose package

Workpiece lead

Connection socket, welding torch control cable > see 5.1.10.3 chapter

Quick connect coupling (red)

coolant return

Quick connect coupling (blue)

coolant supply

Quick connect coupling shielding gas (coupling type 20)

Connection to welding torch

Welding current connection socket, welding torch

Workpiece

• Insert the plug on the welding current lead into the "-" welding current connection socket and lock.

• Insert the plug of the pilot power line into the "+" pilot current connection socket.

• Insert the torch control lead plug into the “5-pole connection socket, welding torch control lead” and

lock.

• Insert the quick connect coupling of the plasma gas line onto the quick-release nipple type 20.

• Insert the quick-release nipple of the protective gas line onto the quick connect coupling type 20.

• Lock connecting nipples of the cooling water tubes into the corresponding quick connect couplings:

Return line red to quick connect coupling, red (coolant return) and supply line blue to quick connect coupling, blue (coolant supply).

• Insert the cable plug on the work piece lead into the "+" welding current connection socket and lock by turning to the right.

5.1.10.2 TIG welding

Figure 5-11

Design and function

Transport and installation

099-007027-EW501

28.08.2018

TIG standard torch

TIG up/down or

potentiometer torch

TIG up/down torch with display

Missing or incorrectly fitted strain relief! Connection sockets or connection plugs on the machine, or the intermediate tube package, may

be damaged if the strain relief is missing or incorrectly fitted. The strain relief takes the strain from cables, plugs and sockets.

• Check the strain relief function by pulling in all directions. Cables and hoses must have sufficient play when the relief cord is fully stretched!

• Insert the plug on the welding current lead into the "-" welding current connection socket and lock.

• Insert the torch control lead plug into the “5-pole connection socket, welding torch control lead” and

lock.

• Insert the quick-release nipple of the protective gas line onto the quick connect coupling type 20.

• Lock connecting nipples of the cooling water tubes into the corresponding quick connect couplings:

Return line red to quick connect coupling, red (coolant return) and supply line blue to quick connect coupling, blue (coolant supply).

• Insert the cable plug on the work piece lead into the "+" welding current connection socket and lock by turning to the right.

5.1.10.3 Connection assignment, welding torch control cable

TIG welding machines are equipped ex works with a dedicated connection socket for the welding torch control cable (5- or 8-pole). As mobile machines offer more free space, they may even feature two control cable connection sockets. The functionality increases with the number of poles. One of these connection sockets may be converted or retrofitted > see 9 chapter.

Figure 5-12

5.1.11 Intermediate hose package strain relief

Figure 5-13

Design and function

Transport and installation

099-007027-EW501

28.08.2018

Item

Symbol

Description 0

Stirrup

Intermediate hose package strain relief

Snap hooks

Intermediate hose package strain relief > see 5.1.11 chapter

• Insert the end of the hose package through the strain relief of the hose package and lock by turning to the right.

Design and function

Plasma welding

099-007027-EW501

28.08.2018

The basic prerequisite for starting the plasma process is a connected and functioning cooling circuit for cooling of the welding torch.

The pilot arc must be switched off and the gas post flow time (plasma gas) waited for before switching off the welding machine. If the welding machine is switched off prematurely the tungsten electrode loses its jacket of shielding gas and will consequently oxidise.

• Switch off the pilot arc before switching off the welding machine!

• Wait until the welding torch has cooled down.

5.2 Plasma welding

5.2.1 Welding task selection

5.2.1.1 Setting welding procedure

5.2.2 Pilot arc

Ignite pilot arc

Figure 5-14

Figure 5-15

Switching off the pilot arc

Figure 5-16

Design and function

Plasma welding

099-007027-EW501

28.08.2018

5.2.2.1 Adjust pilot arc currents

The pilot arc current can be adapted to the welding process at four operating points:

1. Pilot arc standby current (during the welding pause)

2. Pilot arc ignition current (before welding)

3. Pilot arc process current (during welding)

4. Pilot arc end current (at the welding end during gas post-flow time )

The current is set in the expert menu > see 5.2.3 chapter.

Figure 5-17

Design and function

Plasma welding

099-007027-EW501

28.08.2018

ENTER EXIT

Display

Setting/selection

Expert menu

Slope time (main current to secondary current)

Slope time (secondary current to main current)

Slope time (main current to secondary current)

Pilot arc standby current

No welding process active

Pilot arc ignition current

Start phase welding process (gas pre-flow time, start current)

Pilot arc process current

Main current phase welding process

Pilot arc end current

End current phase welding process (end current, gas post-flow time)

5.2.3 Expert Menu (Plasma)

The Expert menu has adjustable parameters stored that don’t require regular setting. The number of

parameters shown may be limited, e.g. if a function is deactivated.

Figure 5-18

Design and function

TIG welding

099-007027-EW501

28.08.2018

EXIT

inch

5.3 TIG welding

5.3.1 Welding task selection

The setting of the tungsten electrode diameter has a direct influence on the machine functionality, TIG ignition behaviour and minimum current limits. The ignition energy is controlled by the set electrode diameter. Smaller electrode diameters requires less ignition current and less ignition current time than greater electrode diameters. The set value should correspond to the tungsten electrode diameter. The value can also be set to meet individual requirements, e.g. for thin panels a smaller diameter is recommended to reduce the ignition energy.

The electrode diameter setting determines the minimum current limit, which in turn affects the ignition, main and secondary current. The minimum current limits have a positive effect on the ignition behaviour and ensure a very high arc stability for each electrode diameter selected. The minimum current limit function is enabled ex works, but can be disabled with parameter in the machine configuration menu > see 5.13 chapter.

For foot-operated remote control mode, minimum current limits are disabled by default. The following welding task is an example of use:

Figure 5-19

Design and function

TIG welding

099-007027-EW501

28.08.2018

5.3.2 Arc ignition

5.3.2.1 HF ignition

The arc is started without contact from high-voltage ignition pulses.

a) Position the welding torch in welding position over the workpiece (distance between the electrode tip

and workpiece should be approx. 2-3mm). b) Press the torch trigger (high voltage ignition pulses ignite the arc). c) Ignition current flows, and the welding process is continued depending on the operating mode

selected.

End the welding process: Release or press the torch trigger depending on the operating mode

5.3.2.2 Liftarc

selected.

Figure 5-20

The arc is ignited on contact with the workpiece:

a) Carefully place the torch gas nozzle and tungsten electrode tip onto the workpiece and press the torch

trigger (liftarc current flowing, regardless of the main current set). b) Incline the torch over the torch gas nozzle to produce a gap of approx. 2-3 mm between the electrode

tip and the workpiece. The arc ignites and the welding current is increased, depending on the

operating mode set, to the ignition or main current set. c) Lift off the torch and swivel to the normal position.

Ending the welding process: Release or press the torch trigger depending on the operating mode selected.

5.3.2.3 Automatic cut-out

Once the fault periods have elapsed, the automatic cut-out stops the welding process when it has been triggered by one of two states:

• During ignition

3 s after the start of the welding process, no welding current flows (ignition error).

• During welding

The arc is interrupted for more than 3 s (arc interruption). You can disable or set the time for re-ignition

after an arc interruption in the machine configuration menu > see 5.13 chapter (parameter ).

5.3.3 TIG antistick

The function prevents uncontrolled re-ignition following the sticking of the tungsten electrode in the weld pool by switching off the welding current. In addition, wear at the tungsten electrode is reduced.

After triggering the function the machine immediately switches to the gas post-flow process phase. The welder starts the new process again at the first cycle. The user can switch the function on or off (parameter ) > see 5.13 chapter.

Figure 5-21

Design and function

TIG welding

099-007027-EW501

28.08.2018

ENTER EXIT

Display

Setting/selection

Expert menu

Slope time (main current to secondary current)

Slope time (secondary current to main current)

Slope time (main current to secondary current)

Ignition type (TIG)

------- HF start active (ex works)

------- Lift arc ignition active

5.3.4 Expert menu (TIG)

The Expert menu has adjustable parameters stored that don’t require regular setting. The number of

parameters shown may be limited, e.g. if a function is deactivated.

Figure 5-22

Design and function

TIG welding

099-007027-EW501

28.08.2018

l0l

Tetrix

Classic

Tetrix

Smart

Comfort

Synergic

Tetrix

Comfort 2.0

Smart 2.0

RT50 7POL

5.3.5 Aligning the cable resistance

To ensure optimum welding properties, the electric cable resistance should be aligned again whenever an accessory component such as the welding torch or the intermediate hose package (AW) has been changed. The resistance value of the cables can be set directly or can be aligned by the power source. In the delivery state the cable resistance is set to the optimum values. To optimise the welding properties for other cable lengths, an alignment process (voltage correction) is necessary.

Figure 5-23

Design and function

Operating modes (functional sequences)

099-007027-EW501

28.08.2018

Symbol

Meaning

Press torch trigger 1

Release torch trigger 1

Current

Time

Gas pre-flow

Ignition current

Start time

Up-slope time

Spot time

AMP

Main current (minimum to maximum current)

AMP%

Secondary current Pulse time

Pulse pause time

Pulse current

Pulsed TIG welding: Slope time from main current (AMP) to secondary current (AMP%)

Pulsed TIG welding: Slope time from secondary current (AMP%) to main current (AMP)

Down-slope time

End-crater current

End-crater time

1 Preparation

• Switch off the welding machine.

• Unscrew the gas nozzle from the welding torch.

• Unfasten the tungsten electrode and extract.

2 Configuration

• Activate the rotary knob while switching on the welding machine at the same time.

• Release rotary knob.

• You can now use the rotary knob (rotate and press) to select the parameter

> see 5.13 chapter.

3 Alignment/measurement

• Applying slight pressure, press the welding torch with the collet against a clean, purged location on the workpiece and then press the torch trigger for approx. 2 seconds. A short-circuit current will flow briefly, which is used to determine and display the cable resistance. The value can be between 0 mΩ and 60 mΩ. The new value is immediately saved without requiring further confirmation. If no value is shown on the right-hand display, then measurement failed. The measurement must be repeated.

4 Restoring welding standby mode

• Switch off the welding machine.

• Lock the tungsten electrode in the collet again.

• Screw the gas nozzle onto the welding torch.

• Switch on the welding machine.

5.4 Operating modes (functional sequences)

5.4.1 Explanation of symbols

Design and function

Operating modes (functional sequences)

099-007027-EW501

28.08.2018

Symbol

Meaning

Gas post-flow

Balance

Frequency

5.4.2 Non-latched mode

Selection

Sequence

Figure 5-24

Figure 5-25

1st cycle:

• Press torch trigger 1 and hold down.

• Gas pre-flow time elapses.

• HF ignition pulses jump from the electrode to the workpiece. The arc ignites.

• The welding current flows and immediately assumes the value of the ignition current .

• HF switches off.

• The welding current ramps up to the main current (AMP) in the selected up-slope time .

If torch trigger 2 is pressed together with torch trigger 1 during the main current phase, the welding current decreases to the secondary current (AMP%) in the set slope time .

If torch trigger 2 is released, the welding current increases again to the main current AMP in the set slope time . The parameters and can be set in the Expert menu (TIG) > see 5.3.4 chapter.

2nd cycle:

• Release torch trigger 1.

• The main current falls to the end-crater current (minimum current) in the set down-slope time .

If the 1st torch trigger is pressed during the down-slope time, the welding current returns to the set main current AMP

• Main current reaches the end-crater current ; the arc is extinguished.

• Set gas post-flow time elapses.

When the foot-operated remote control is connected, the machine switches automatically to non-latched operation. The up- and down-slopes are switched off.

Design and function

Operating modes (functional sequences)

099-007027-EW501

28.08.2018

5.4.3 Latched mode

Selection

Sequence

Figure 5-26

Figure 5-27

Design and function

Operating modes (functional sequences)

099-007027-EW501

28.08.2018

EXIT

1st cycle

• Press torch trigger 1 , the gas pre-flow time elapses.

• HF start pulses jump from the electrode to the workpiece. The arc ignites.

• Welding current flows and immediately assumes the set ignition current (search arc at minimum

setting). HF switches off.

• Ignition current flows at least for the start time or as long as the torch trigger is held.

2nd cycle

• Release torch trigger 1.

• The welding current ramps up to the main current (AMP) in the selected upslope time .

Switching from the main current AMP to secondary current (AMP%):

• Press torch trigger 2 or

• Tap torch trigger 1 (torch modes 1–6).

If torch trigger 2 is pressed together with torch trigger 1 during the main current phase, the welding current decreases to the secondary current (AMP%) in the set slope time .

Once torch trigger 2 is released, the welding current increases again to the main current AMP in the set slope time . The parameters and can be set in the Expert menu (TIG) > see 5.3.4 chapter.

3rd cycle

• Press torch trigger 1.

• The main current decreases to the end-crater current within the set down-slope time .

Once the main current phase AMP has been reached, you can shorten the welding sequence by tapping torch trigger 1 (third cycle will be omitted).

4th cycle

• Release torch trigger 1; arc is extinguished.

• Set gas post-flow time runs.

When the foot-operated remote control is connected, the machine switches automatically to non-latched operation. The up- and down-slopes are switched off.

Alternative welding start (tapping start):

For the alternative welding start, the durations of the first and second cycle are defined by the set process times only (tapping the torch trigger in the gas pre-low phase ).

To activate this function, set a two-digit torch mode (11-1x) at the machine control. This function can also be deactivated completely when required (welding stop by tapping remains active). To do so, the parameter must be switched to in the machine configuration menu > see 5.13 chapter.

5.4.4 spotArc

This process is suitable for tack welding or joint welding of metal sheets made from steel and CrNi alloys up to a thickness of approximately 2.5 mm. Metal sheets of different thicknesses can also be welded on top of one another. As this is a one-sided process, it is also possible to weld metal sheets onto tubular sections such as round or square pipes. In arc spot welding, the arc melts through the upper metal sheet and the lower metal sheet is melted onto it. This produces flat, fine-textured welding tacks which require little or no post weld work, even in visible areas.

The up-slope and down-slope times should be set to “0” to achieve an effective result.

Figure 5-28

Design and function

Operating modes (functional sequences)

099-007027-EW501

28.08.2018

Sequence:

• Press torch trigger and hold down.

• The gas pre-flow time elapses.

• Arc ignites (main arc ignition for plasma / HF ignition at TIG)

• The welding current flows and immediately assumes the value of the ignition current .

• HF switches off.

• The welding current ramps up to the main current within the set up-slope time (AMP) .

The process ends when the set spotArc.time elapses or by releasing the torch trigger. With the spotArc function enabled, the Automatic Puls pulse variant is activated as well. If required, the function can be disabled by pressing the pulsed welding push-button.

5.4.5 spotmatic (Plasma)

In contrast to the operating modespotArc, different time ranges of the point time can be selected. The duration is set in the machine configuration menu using parameter > see 5.13 chapter

Figure 5-29

Design and function

Operating modes (functional sequences)

099-007027-EW501

28.08.2018

EXIT

5.4.6 spotmatic (TIG)

In contrast to the spotArc operating mode, the arc is not ignited by pressing the torch trigger as is usual, but by briefly touching the tungsten electrode against the workpiece. The torch trigger is used for welding process activation. Activation is indicated by flashing of the spotArc/spotmatic signal light. The process can be activated separately for each spot or also on a permanent basis. The setting is controlled using the process activation parameter in the configuration menu > see 5.13 chapter:

• Separate process activation ( > ): The welding process has to be reactivated for every arc ignition by pressing the torch trigger. Process activation is automatically terminated after 30 s of inactivity.

• Permanent process activation ( > ): The welding process is activated by pressing the torch trigger once. The following arc ignitions are initiated by shortly touching the tungsten electrode against the workpiece. Process activation is terminated either by pressing the torch trigger again or automatically after 30 s of inactivity.

For spotmatic the separate process activation and the short spot time setting range are enabled by default.

Ignition by touching the tungsten electrode against the workpiece can be disabled in the machine configuration menu with parameter . In this case the function works as with spotArc, but the spot time setting range can be selected in the machine configuration menu.

The duration is set in the machine configuration menu using parameter > see 5.13 chapter

Figure 5-30

Figure 5-31

Design and function

Operating modes (functional sequences)

099-007027-EW501

28.08.2018

As an example the process is shown with HF ignition. Arc ignition with lift arc is also possible, however > see 5.3.2 chapter.

Selecting the process activation type for the welding process > see 5.13 chapter. Up-slope and down-slope times possible for long spot time setting range (0.01–20.0 s) only.

 Press and release torch trigger (tap) to activate the welding process.  Touch the torch gas nozzle and tungsten electrode tip carefully against the workpiece.  Incline the welding torch over the torch gas nozzle until there is a gap of approx. 2–3 mm between the

electrode tip and the workpiece. Shielding gas flows during the set gas pre-flow time . The arc ignites and the previously set ignition current flows.

 The main current phase ends when the set spot time elapses.  For long-time spot welding only (parameter = ):

The welding current decreases to the end-crater current within the set down-slope time .

 The gas post-flow time elapses and the welding process ends.

Press and release the torch trigger (tap) to reactivate the welding process (only for separate process activation). Touching the welding torch with the tungsten electrode tip against the workpiece again will initiate the next welding processes.

5.4.7 Non-latched operation, version C

Figure 5-32

1st cycle

• Press torch trigger 1 , the gas pre-flow time elapses.

• HF ignition pulses jump from the electrode to the workpiece. The arc ignites.

• Welding current flows and immediately assumes the set ignition current (search arc at minimum

setting). HF switches off.

2nd cycle

• Release torch trigger 1.

• The welding current ramps up to the main current AMP in the selected up-slope time .

Pressing torch trigger 1 starts the slope from main current AMP to secondary current AMP%. Releasing the torch trigger starts the slope from the secondary current AMP% and back to the main current AMP. This process can be repeated as frequently as required. The welding process is stopped by interrupting the arc in the secondary current (remove the welding torch from the workpiece until the arc is extinguished, no re-ignition).

The slope times and can be set in the Expert menu > see 5.3.4 chapter.

This operating mode must be enabled (parameter ) > see 5.13 chapter.

Design and function

Recurring welding tasks

099-007027-EW501

28.08.2018

5.5 Recurring welding tasks

The user has additional memory locations at their disposal to save recurring or different welding tasks on a permanent basis (101 plasma JOBs / 8 WIG JOBs). To do so, simply select the required memory location and set the welding task as described previously.

Switching a JOB is only possible if no welding current flows. Up-slope and down-slope times can be set individually for latched and non-latched operation.

Selection

Figure 5-33

When one or more of the recurring welding tasks has been selected, the JOB signal light comes on.

5.6 Pulse welding

The following pulse types can be selected:

• Automated pulsing

• Thermal pulsing

• Metallurgical pulsing

• Average value pulsing

5.6.1 Automated pulses

The automated pulsing pulse variant is only activated for DC welding in combination with the spotArc operating mode. The current-dependent pulse frequency and balance create vibrations in the weld pool that have a positive effect on the gap bridging. The required pulse parameters are automatically defined by the machine control. If required, the function can be disabled by pressing the pulsed welding pushbutton.

Selection

Figure 5-34

Design and function

Pulse welding

099-007027-EW501

28.08.2018

EXIT

5.6.2 Thermal pulsing

The operation sequences basically match the standard welding sequences, but there is an additional switching back and forth between the main current AMP (pulse current) and the secondary current AMP% (pulse pause current) at the set times. Pulse and pause times and the pulse edges ( and ) are entered in seconds on the control.

Selection

Figure 5-35

Figure 5-36

Pulse time setting

Figure 5-37

Design and function

Pulse welding

099-007027-EW501

28.08.2018

EXIT

Pulse pause setting

Figure 5-38

Pulse edge setting

The and pulse edges can be set in the Expert menu (TIG) > see 5.3.4 chapter.

5.6.2.1 Pulsed welding in the upslope and downslope phases The pulse function can also be deactivated if necessary during the up-slope and down-slope

phases (parameter ) > see 5.13 chapter.

5.6.3 Metallurgical pulsing (kHz pulsing)

Metallurgical pulsing (kHz pulsing) uses the plasma force (arc force) occurring at high currents which allows you to achieve a constricted arc with concentrated heat input. Unlike thermal pulsing, no times are set; a frequency and the balance are set instead. The pulsing process also occurs during the upslope and down-slope phase.

Figure 5-39

Figure 5-40

Design and function

Pulse welding

099-007027-EW501

28.08.2018

EXIT

Selection

Figure 5-41

Balance setting

Figure 5-42

Frequency setting

Figure 5-43

Design and function

Welding torch (operating variants)

099-007027-EW501

28.08.2018

Symbol

Description

Press torch trigger

Tap torch trigger

Tap and press torch trigger

5.6.4 Average value pulse welding

A special feature with average value pulses is that the power source will always maintain the preset average value. This makes this method especially suitable for welding according to welding procedure specifications.

To activate average value pulses in conjunction with the metallurgical pulsing variant, the parameter in the machine configuration menu must be switched to .

To activate average value pulses in conjunction with the thermal pulsing variant, the parameter in the machine configuration menu must be switched to .

Once the function is activated, the red signal lights for the main current AMP and secondary current AMP% light up at the same time.

Average value pulse welding means that the system switches between two currents periodically, with an average current value (AMP), a pulse current (Ipuls), a balance ( ) and a frequency ( ) having been defined first. The predefined ampere current average value is decisive, and the pulse current (Ipuls) is defined by the parameter as a percentage of the average current value (AMP). The parameter is set in the Expert menu > see 5.3.4 chapter.

The pulse pause current (IPP) is not set; the machine control calculates the value instead to ensure that the average value of the welding current (AMP) is maintained.

Figure 5-44

AMP = main current (average value), e.g. 100 A Ipuls = pulse current = x AMP, e.g. 140% x 100 A = 140 A IPP = pulse pause current Tpuls = duration of one pulse cycle = 1/ , e.g. 1/100 Hz = 10 ms

= balance

5.7 Welding torch (operating variants)

Different torch versions can be used with this machine. Functions on the operating elements, such as torch triggers (BRT), rockers or potentiometers, can be modified individually via torch modes.

5.7.1 Tapping function (tap torch trigger)

Explanation of symbols for operating elements:

Tapping function: Swiftly tap the torch trigger to change the function. The set torch mode determines the operating mode.

Design and function

Welding torch (operating variants)

099-007027-EW501

28.08.2018

5.7.2 Torch mode setting

Modes 1 to 6 and 11 to 16 are available to the user. Modes 11 to 16 feature the same functionality as 1 to 6, but without the tapping function > see 5.7.1 chapter for the secondary current.

The functionality of the individual modes can be found in the corresponding torch type tables. The torch modes are set using the torch configuration parameters " " in the machine configuration

menu > torch mode " " > see 5.13 chapter.

Only the modes listed are suitable for the corresponding torch types.

5.7.3 Up/down speed

Functionality

Press and hold the up push-button: Increase current up to the maximum value (main current) set in the power source.

Press and hold the down push-button: Decrease current to the minimum value.

Use the machine configuration menu > see 5.13 chapter to set the up/down speed parameter which determines the speed with which a current change becomes effective.

5.7.4 Current jump

By tapping the corresponding torch trigger the welding current can be determined in an adjustable jump range. Each tap will cause the welding current to jump up or down by the defined value.

The “current jump” parameter is set in the machine configuration menu > see 5.13 chapter.

Design and function

Standard TIG torch (5-pole)

099-007027-EW501

28.08.2018

Figure

Operating elements

Explanation of symbols

BRT1 = torch trigger 1 (welding current on/off; secondary current via tapping function)

Functions

Mode

Operating elements

Welding current on/off

(ex works)

Secondary current (latched operation)

Figure

Operating elements

Explanation of symbols

BRT1 = torch trigger 1 BRT2 = torch trigger 2

Functions

Mode

Operating elements

Welding current on/off

(ex works)

Secondary current

Secondary current (tapping function)1)/(latched operating mode)

Welding current on/off

Secondary current (tapping function)1)/(latched operating mode)

Up function2

Down function2

5.8 Standard TIG torch (5-pole)

Standard torch with one torch trigger

Standard torch with two torch triggers

> see 5.7.1 chapter

> see 5.7.3 chapter

Design and function

Remote control

099-007027-EW501

28.08.2018

Figure

Operating elements

Explanation of symbols

BRT 1 = torch trigger 1 BRT 2 = torch trigger 2

Functions

Mode

Operating elements

Welding current on/off

(ex works)

Secondary current

Secondary current (tapping function)1)/(latched operating mode)

Welding current on/off

Secondary current (tapping function1)

Up function2

Down function2

Welding current on/off

Secondary current (tapping function)1)/(latched operating mode)

Up function2

Down function2

Functions

• Infinitely adjustable welding current (0% to 100%) depending on the preselected main current on the welding machine.

• Start/stop welding operation (TIG)

Standard torch with one rocker (rocker, two torch triggers)

> see 5.7.1 chapter

> see 5.7.3 chapter

5.9 Remote control

The operation of the remote control and its settings are directly dependent on the configuration of the respective welding machine or wire feed unit. The settings are defined by changeover switches or by setting special parameters (dependent on the control).

The position of the key switch, to protect against unauthorised use, also has a direct influence on the operation of the respective remote control.

5.9.1 RTF1 19POL

The remote controls are operated on the 19-pole remote control connection socket (analogue).

Design and function

Remote control

099-007027-EW501

28.08.2018

Symbol

Meaning

Actuate foot-operated remote control (start welding process)

Operate foot-operated remote control (set welding current according to application)

Release foot-operated remote control (end welding process) Display

Setting/selection

RTF start ramp > see 5.9.1.1 chapter

------- Welding current rises to the specified main current level in a ramp function (ex works)

------ Welding current immediately jumps to the specified main current level

Gas pre-flow time

Ignition current (as percentage, dependent on main current)

End-crater current

Setting range in percent: depending on main current Setting range, absolute: Imin to Imax.

Gas post-flow time

5.9.1.1 RTF start ramp

The RTF start ramp function prevents the energy input at the start of welding from being too high and too fast should the user press the remote control pedal too fast and too strongly.

Example: The user sets the main current at the welding machine to 200 A. The user presses the remote control pedal very quickly down by approx. 50% of the pedal travel.

• RTF switched on: The welding current increases in a linear (slow )ramp to approx. 100 A.

• RTF switched off: The welding current immediately jumps to approx. 100 A.

The RTF start ramp function is activated/deactivated by the parameter in the machine configuration menu > see 5.13 chapter.

Figure 5-45

Design and function

Remote control

099-007027-EW501

28.08.2018

5.9.1.2 RTF response

This function controls the current response during the main current phase. The user can choose between linear and logarithmic response. The logarithmic setting is especially suited for welding with low currents, e.g. for thin panels, as the logarithmic response enables a better control of the welding current.

In the machine configuration menu, the RTF response function can be toggled between linear response and logarithmic response (ex works) > see 5.13 chapter.

5.9.2 RTF1 -, RT1 -, RTG1 19POL

• Select the maximum welding current at the welding machine. Infinitely adjustable welding current (0% - 100%) depending on the main current preselected at the

welding machine.

• Setting of operating point directly at the welding location.

5.9.3 RTP1 19POL

• Select the maximum welding current at the welding machine.

• Connect the remote control to the welding machine (observe the standard operating manual of the

welding machine).

• Set welding process TIG or MMA.

• Set pulsing, spot welding or standard operation.

Operating mode Pulsing

• Set pulse current and pulse pause current on the remote control. Example with the following settings: maximum welding current on the welding machine: 120A Pulse current on the remote control: 50% Pulse pause current on the remote control: 25% Result: Pulse current = 60A (120A x 50%) Pulse pause current = 15A (120A x 50% x 25%)

• Set pulse time t1 and pulse pause time t2.

Spot welding operating mode

• Set point current on the remote control.

• Set the spot time (The rotary knob is assigned a double function, therefore the

the set value is to be multiplied by 10). Example with the following settings: Spot time: 1.5sec. Result:

1.5sec. x 10 = spot time 15sec.

Figure 5-46

Design and function

Power-saving mode (Standby)

099-007027-EW501

28.08.2018

When power-saving mode is activated, the machine displays show the horizontal digit in the centre of the display only.

WARNING

Do not carry out any unauthorised repairs or modifications! To avoid injury and equipment damage, the unit must only be repaired or modified by

specialist, skilled persons! The warranty becomes null and void in the event of unauthorised interference.

• Appoint only skilled persons for repair work (trained service personnel)!

Damage to the machine due to improper connection! Unsuitable control leads or incorrect connection of input and output signals can cause damage

to the machine.

• Only use shielded control leads!

• If the machine is to be operated with control voltages connection via suitable isolation

amplifiers is required!

• To control the main or secondary current via control voltages, the relevant inputs must be enabled (see specification for activation of control voltage).

Standard operation

• Set welding current I1 (0-100% of rotary knob (AMP) on the welding machine)

• Set the secondary current I2 (0-100% of the rotary knob), accessible via the 2nd torch trigger.

5.10 Power-saving mode (Standby)

You can activate the power-saving mode by either pressing the push-button > see 4.3 chapter for a prolonged time or by setting a parameter in the machine configuration menu (time-controlled powersaving mode ) > see 5.13 chapter.

Pressing any operating element (e.g. turning a rotary knob) deactivates power-saving mode and the machine is ready for welding again.

5.11 Access control

The machine control can be locked to secure it against unauthorised or unintentional adjustment. The access block has the following effect:

• The parameters and their settings in the machine configuration menu, Expert menu and operation sequence can only be viewed but not changed.

• Welding procedure and welding current polarity cannot be changed.

The parameters for setting the access block are configured in the machine configuration menu > see 5.13 chapter.

Enabling access block

• Assign the access code for the access block: Select parameter and select a number code (0–

999).

• Enable access block: Set parameter to access block enabled .

The access block activation is indicated by the "Access block active" signal light > see 4.3 chapter.

Disabling access block

• Enter the access code for the access block: Select parameter and enter the previously selected number code (0–999).

• Disable access block: Set parameter to access block disabled . The only way to disable the access block is to enter the selected number code.

5.12 Interfaces for automation

Design and function

Interfaces for automation

099-007027-EW501

28.08.2018

WARNING

No function of the external interrupt equipment (emergency stop switch)! If the emergency stop circuit has been set up using an external interrupt equipment

connected to the interface for automated welding, the machine must be configured for this setup. If this is not observed, the power source will ignore the external interrupt equipment and will not shut down!

• Remove jumper 1 on the corresponding control board (to be done only by qualified service personnel)!

Signal shape

Designation

Diagram A

Output

PE Connection for cable screen

Output

REGaus For servicing purposes only

Input

SYN_E Synchronisation for master/slave operation

Input (no c.)

IGRO Current flows signal I>0 (maximum load 20mA / 15V) 0V = welding current flowing

E + R

Input Output

Not/Aus Emergency stop for higher level shut-down of the power source. To use this function, jumper 1 must be unplugged on PCB T320/1 in the welding machine. Contact open  welding current off

Output

0V Reference potential

NC Not assigned

Output

Uist Actual welding voltage, measured on pin F, 010V (0V = 0V, 10V = 100V)

Vschweiss Reserved for special purposes

Input

SYN_A Synchronisation for master/slave operation

Input

Str/Stp Start / stop welding current, same as torch trigger. Only available in non-latched operating mode. +15V = start, 0V  stop

Output

+15V Voltage supply +15V, max. 75mA

Output

-15V Voltage supply

-15V, max. 25mA

NC Not assigned

Output

0V Reference potential

Output

Iist Actual welding current, measured on pin F; 0-10V (0V = 0A, 10V = 1000A)

Output

SYN_A 0V Synchronisation for master/slave operation

5.12.1 Automation interface

This accessory component is only available as a “factory-fit option”.

Design and function

Machine configuration menu

099-007027-EW501

28.08.2018

Pos.

Signal shape

Designation

1 A Output

Connection for cable screen (PE)

B/L

Output

Current flows signal I>0, galvanically isolated (max. +- 15V/100mA)

3 F Output

Reference voltage for potentiometer 10V (max. 10mA)

4 C Input

Control value specification for main current, 0-10V (0V = I

min

, 10V =

max

)

5 D Input

Control value specification for secondary current, 0-10V (0V = I

min

, 10V

= I

max

)

J/U

Output

Reference 0V

7 K Output

Power supply +15V, max. 75mA

8 V Output

Power supply -15V, max. 25mA

9 R Input

Start/Stop welding current

10 H Input

Switching between main and secondary welding currents (pulses)

M/N/P

Input

Activation of control voltage specification Set all 3 signals to reference potential 0V to activate external control

voltage specification for main and secondary currents

12 G Output

Measured value I

SETPOINT

(1V = 100A)

5.12.2 Remote control connection socket, 19-pole

Figure 5-47

5.12.3 RINT X12 robot interface

The standard digital interface for mechanised applications (optional, retrofitting on the machine or external fitting by the customer)

Functions and signals:

• Digital inputs: start/stop, operating modes, JOB and program selection, inching, gas test

• Analogue inputs: control voltages, e.g. for welding performance, welding current, etc.

• Relay outputs: process signal, ready for welding, system composite fault, etc.

5.12.4 BUSINT X11 Industrial bus interface

The solution for easy integration with automated production with e.g.

• Profinet/Profibus

• EnthernetIP/DeviceNet

• EtherCAT

etc.

Design and function

Machine configuration menu

099-007027-EW501

28.08.2018

ENTER

EXIT NAVIGATION

B B

Display

Setting/selection

Exit the menu

Exit

Torch configuration menu

Set welding torch functions

Torch mode (ex works 1) > see 5.7.2 chapter

5.13 Machine configuration menu

5.13.1 Selecting, changing and saving parameters

Basic machine settings are defined in the machine configuration menu.

Figure 5-48

Design and function

Machine configuration menu

099-007027-EW501

28.08.2018

Display

Setting/selection

Alternative welding start – tapping start

Available from torch mode 11 (welding stop by tapping remains active).

------- Function enabled (ex works)

------- Function disabled

Up/down speed > see 5.7.3 chapter

Increase value > rapid current change Decrease value > slow current change

Current jump > see 5.7.4 chapter

Current jump setting in ampere

Get JOB number

Set maximum selectable jobs (setting: 1 to 128, factory setting 10). Additional parameter after activating the BLOCK JOB function.

Start JOB

Set first JOB to get (setting: 129 to 256, factory setting 129).

Machine configuration

Settings for machine functions and parameter display

Absolute value setting (ignition, secondary, end and hot start current) > see 4.4.7 chapter

------- Welding current setting, absolute

------ Welding current setting, as a percentage of the main current (ex works)

Non-latched operation (version C) > see 5.4.7 chapter

------- Function enabled

------ Function disabled (ex works)

RINT X12, JOB control for automation solutions

------ on

------ off (factory setting)

Pulsed TIG welding (thermal)

------ Function enabled (ex works)

------ For special applications only

TIG average value pulsing

------- Average value pulsing enabled

------ Average value pulsing disabled (ex works)

TIG average value pulsing

------- Average value pulsing enabled

------ Average value pulsing disabled (ex works)

Pulsed TIG welding (thermic) in the upslope and downslope phases > see 5.6.2.1 chapter

------- Function enabled (ex works)

------ Function disabled

TIG antistick > see 5.3.3 chapter

------- function active (factory setting).

------ function inactive.

Show warnings > see 7.1 chapter

------ Function disabled (ex works)

------- Function enabled

Setting the system of units

------- Units of length in mm, m/min. (metric system)

------- Unit of length in inches, ipm (imperial system)

Machine configuration (second part)

Settings for machine functions and parameter display

Design and function

Machine configuration menu

099-007027-EW501

28.08.2018

Display

Setting/selection

RTF start ramp > see 5.9.1.1 chapter

------- Welding current rises to the specified main current level in a ramp function (ex works)

------- Welding current immediately jumps to the specified main current level

RTF response > see 5.9.1.2 chapter

------- Linear response

------- Logarithmic responsive (ex works)

spotmatic operating mode > see 5.4.6 chapter

Ignition by contact with the workpiece

------- Function enabled (ex works)

------- Function disabled

Spot time setting > see 5.4.6 chapter

------- Short spot time, setting range 5 ms to 999 ms, increments of 1 ms (ex works)

------- Long spot time, setting range 0.01 s to 20.0 s, increments of 10 ms (ex works)

Process activation setting > see 5.4.6 chapter

------- Separate process activation (ex works)

------- Permanent process activation

Torch cooling mode

------- Automatic operation (ex works)

------- Permanently enabled

------- Permanently disabled

Welding torch cooling, post-flow time

Setting 1–60 min. (ex works 5 min.)

Time-based power-saving mode > see 5.10 chapter

Time to activation of the power-saving mode in case of inactivity. Setting = disabled or numerical value 5– 60 min. (ex works: 20).

Operating mode switching via interface for automated welding

------ Non-latched

------- Special non-latched

Re-ignition after arc interruption > see 5.3.2.3 chapter

------- JOB-dependent time (ex works 5 s).

------- Function disabled or numerical value 0.1–5.0 s.

Expert menu

Automatic gas post-flow function > see 5.1.8.3 chapter

------- Function on

------- Function off (factory setting)

Error output to interface for automated welding, contact SYN_A

------- AC synchronisation or hot wire (ex works)

------- Error signal, negative logic

------- Error signal, positive logic

------- AVC (Arc voltage control) connection

Gas monitoring

Depending on where the gas sensor is situated, the use of a pilot static tube and the welding process monitoring phase.

------- Function disabled (ex works).

------- Monitoring during the welding process. Gas sensor between gas valve and welding torch (with pilot static tube).

------- Monitoring prior to the welding process. Gas sensor between gas valve and welding torch (without pilot static tube).

------- Permanent monitoring Gas sensor between gas cylinder and gas valve (with pilot static tube).

Design and function

Machine configuration menu

099-007027-EW501

28.08.2018

Display

Setting/selection

Minimum current limit (TIG) > see 5.3.1 chapter

Depending on the set tungsten electrode diameter

------- Function disabled

------- Function enabled (ex works)

Access control – access code

Setting: 000 to 999 (000 ex works)

Access control > see 5.11 chapter

------- Function enabled

------ Function disabled (ex works)

Automation menu 3

Fast take-over of control voltage (automation) 3

------- Function enabled

------ Function disabled (ex works)

Orbital welding 3

------ Function disabled (ex works)

------- Function enabled

Orbital welding 3

Correction value for orbital current

Service menu

Any changes to the service menu should be agreed with the authorised service personnel.

Reset (to factory setting)

------ Disabled (ex works)

------ Reset the values in the machine configuration menu

------ Complete reset of all values and settings

Resetting is performed when exiting the menu ( ).

Software version query (example)

07.= ------ system bus ID 03c0= --- version number System bus ID and version number are separated by a dot.

Cable resistance alignment > see 5.3.5 chapter

Only qualified service personnel may change the parameters!

TIG HF start (soft/hard) switching

------- soft ignition (factory setting).

------ hard ignition.

Ignition pulse limit

Setting 0 ms–15 ms (increments of 1 ms)

PCB state – qualified service personnel only!

for AC welding machines only.

For machines with filler wire (AW) only.

for components for automated welding (RC) only.

Maintenance, care and disposal

General

099-007027-EW501

28.08.2018

DANGER

Risk of injury due to electrical voltage after switching off! Working on an open machine can lead to fatal injuries! Capacitors are loaded with electrical voltage during operation. Voltage remains present

for up to four minutes after the mains plug is removed.

1. Switch off machine.

2. Remove the mains plug.

3. Wait for at last 4 minutes until the capacitors have discharged!

WARNING

Incorrect maintenance, testing and repair! Maintenance, testing and repair of the machine may only be carried out by skilled and

qualified personnel. A qualified person is one who, because of his or her training, knowledge and experience, is able to recognise the dangers that can occur while testing welding power sources as well as possible subsequent damage, and who is able to implement the required safety procedures.

Observe the maintenance instructions > see 6.4 chapter.

• In the event that the provisions of one of the below-stated tests are not met, the machine must not be operated again until it has been repaired and a new test has been carried out!

6 Maintenance, care and disposal

6.1 General

Repair and maintenance work may only be performed by qualified authorised personnel; otherwise the right to claim under warranty is void. In all service matters, always consult the dealer who supplied the machine. Return deliveries of defective equipment subject to warranty may only be made through your dealer. When replacing parts, use only original spare parts. When ordering spare parts, please quote the machine type, serial number and item number of the machine, as well as the type designation and item number of the spare part.

Under the specified ambient conditions and normal working conditions this machine is essentially maintenance-free and requires just a minimum of care.

Contamination of the machine may impair service life and duty cycle. The cleaning intervals depend on the ambient conditions and the resulting contamination of the machine. The minimum interval is every six months.

6.2 Cleaning

• Clean the outer surfaces with a moist cloth (no aggressive cleaning agents).

• Purge the machine venting channel and cooling fins (if present) with oil- and water-free compressed

air. Compressed air may overspeed and destroy the machine fans. Never direct the compressed air directly at the machine fans. Mechanically block the fans, if required.

• Check the coolant for contaminants and replace, if necessary.

6.3 Dirt filter

The duty cycle of the welding machine decreases as an effect of the reduced cooling air volume. The dirt filter must be remove at regular intervals and cleaned by blowing out with compressed air (depending on the level of soiling).

Maintenance, care and disposal

Maintenance work, intervals

099-007027-EW501

28.08.2018

6.4 Maintenance work, intervals

6.4.1 Daily maintenance tasks

Visual inspection

• Mains supply lead and its strain relief

• Gas cylinder securing elements

• Check hose package and power connections for exterior damage and replace or have repaired by

specialist staff as necessary!

• Gas tubes and their switching equipment (solenoid valve)

• Check that all connections and wearing parts are hand-tight and tighten if necessary.

• Check correct mounting of the wire spool.

• Wheels and their securing elements

• Transport elements (strap, lifting lugs, handle)

6.4.2 Monthly maintenance tasks

6.4.3 Annual test (inspection and testing during operation)

• Other, general condition Functional test

• Operating, message, safety and adjustment devices (Functional test)

• Welding current cables (check that they are fitted correctly and secured)

• Gas tubes and their switching equipment (solenoid valve)

• Gas cylinder securing elements

• Check correct mounting of the wire spool.

• Check that all screw and plug connections and replaceable parts are secured correctly, tighten if

necessary.

• Remove any spatter.

• Clean the wire feed rollers on a regular basis (depending on the degree of soiling).

Visual inspection

• Casing damage (front, rear and side walls)

• Wheels and their securing elements

• Transport elements (strap, lifting lugs, handle)

• Check coolant tubes and their connections for impurities

Functional test

• Selector switches, command devices, emergency stop devices, voltage reducing devices, message and control lamps

• Check that the wire guide elements (inlet nipple, wire guide tube) are fitted securely.

• Check coolant tubes and their connections for impurities

• Check and clean the welding torch. Deposits in the torch can cause short circuits and have a negative

impact on the welding result, ultimately causing damage to the torch.

A periodic test according to IEC 60974-4 "Periodic inspection and test" has to be carried out. In addition to the regulations on testing given here, the relevant local laws and regulations must also be observed.

For more information refer to the "Warranty registration" brochure supplied and our information regarding warranty, maintenance and testing at www.ewm-group.com!

Maintenance, care and disposal

Disposing of equipment

099-007027-EW501

28.08.2018

Proper disposal! The machine contains valuable raw materials, which should be recycled, and electronic

components, which must be disposed of.

• Do not dispose of in household waste!

• Observe the local regulations regarding disposal!

6.5 Disposing of equipment

• According to European provisions (Directive 2012/19/EU on Waste of Electrical and Electronic Equipment), used electric and electronic equipment may no longer be placed in unsorted municipal waste. It must be collected separately. The symbol depicting a waste container on wheels indicates that the equipment must be collected separately. This machine has to be disposed of, or recycled, in accordance with the waste separation systems in use.

• According to German law (law governing the distribution, taking back and environmentally correct disposal of electric and electronic equipment (ElektroG)), used machines are to be placed in a collection system separate from unsorted municipal waste. The public waste management utilities (communities) have created collection points at which used equipment from private households can be disposed of free of charge.

• Information about returning used equipment or about collections can be obtained from the respective municipal administration office.

• In addition to this, returns are also possible throughout Europe via EWM sales partners.

Rectifying faults

Warnings

099-007027-EW501

28.08.2018

Warning code

Possible cause

Remedy

Machine excess temperature

Allow the machine to cool down 2

Half-wave failures

Check process parameters

Welding torch cooling warning

Check coolant level and refill if necessary

Gas warning

Check gas supply

See warning number 3

Welding consumable (wire electrode) fault

Check wire feeding (with machines with filler wire)

CAN bus failure

Inform service

Protective gas warning

Check gas supply

Plasma gas warning

Check gas supply

Coolant temperature warning

Check coolant level and refill if necessary

Coolant flow warning

Check coolant supply; check coolant level and, if necessary, fill up

Wire stock warning

Check wire feeding (with machines with filler wire)

Encoder malfunction, drive

Inform service

Drive is operating under overload conditions

Adjust mechanical load 34

JOB unknown

Select alternative JOB

Machine control

Smart

Classic

Comfort

Smart 2

Comfort 2

Synergic

Push-button

7 Rectifying faults

All products are subject to rigorous production checks and final checks. If, despite this, something fails to work at any time, please check the product using the following flowchart. If none of the fault rectification procedures described leads to the correct functioning of the product, please inform your authorised

7.1 Warnings

dealer.

A warning is denoted by the letter A on the machine display, or Att in case of multiple machine displays. The possible cause of the warning is signalled by the respective warning code (see table).

The display of possible warning numbers depends on the machine version (interfaces/functions).

• In case of multiple warnings, these are displayed in sequence.

• Document machine warning and inform service personnel, if required.

The warnings can be reset by pressing a push-button (see table):

Rectifying faults

Error messages

099-007027-EW501

28.08.2018

Error message

Possible cause

Remedy

Err 3

Tacho error

Check wire guide/hose package

Wire feeder is not connected

• Switch off cold wire mode in the machine configuration menu (off status)

• Connect the wire feeder

Err 4

Temperature error

Allow the machine to cool down

Error in emergency stop circuit (interface for automated welding)

• Check the external interrupt equipment

• Check jumper JP 1 on PCB T320/1

Err 5

Overvoltage

Switch off machine and check the mains voltage

Err 6

Low voltage

Err 7

Coolant error (with connected cooling unit only)

Check coolant level and refill if necessary Err 8

Gas error

Check gas supply

Err 9

Secondary overvoltage

Switch the machine off and on again. If the error persists, contact service.

Err 10

PE error

Err 11

FastStop position

Acknowledge error via robot interface (if available)

Err 12

VRD error

Switch the machine off and on again. If the error persists, contact service.

Err 16

Pilot arc current

Check welding torch

Err 17

Filler wire error Excess current or deviation of

nominal/actual wire value

Check wire feed mechanism (drive, hose packages, torch, process wire feed speed and robot movement speed) and adjust, if required

Err 18

Plasma gas error Nominal value specification differs

considerably from the actual value.

Check plasma gas supply (tightness, kinks, guide, connections, closure)

Err 19

Shielding gas error Nominal value specification differs

considerably from the actual value

Check plasma gas supply (tightness, kinks, guide, connections, closure)

Err 20

Coolant flow Coolant flow volume too low

Check cooling circuit (coolant level, tightness, kinks, guide, connections, closure)

Err 22

Cooling circuit excess temperature

Check cooling circuit (coolant level, nominal temperature value)

Err 23

HF choke excess temperature

• Allow the machine to cool down

• Adjust processing cycle times if

necessary

Err 24

Pilot arc ignition error

Check plasma torch consumables

Err 32

Electronics error (I>0 error)

Switch the machine off and on again. If the error persists, contact service.

Err 33

Electronics error (Uact error)

Err 34

Electronics error (A/D channel error)

Err 35

Electronics error (edge error)

Err 36

Electronics error (S-Sign)

Err 37

Electronics error (temperature error)

Allow the machine to cool down.

Err 38

---

Switch the machine off and on again.

7.2 Error messages

A welding machine error will be signalled by an error code (see table) on the control display. In the event of an error, the power unit shuts down.

The display of possible error numbers depends on the machine version (interfaces/functions).

• If multiple errors occur, these are displayed in succession.

• Document machine errors and inform service staff as necessary.

Rectifying faults

Resetting welding parameters to the factory settings

099-007027-EW501

28.08.2018

Error message

Possible cause

Remedy

Err 39

Electronics error (secondary overvoltage)

If the error persists, contact service. Err 40

Electronics error (I>0 error)

Inform service

Err 48

Ignition error

Check welding process

Err 49

Arc interruption

Inform service

Err 51

Error in emergency stop circuit (interface for automated welding)

• Check the external interrupt equipment

• Check jumper JP 1 on PCB T320/1

Err 57

Auxiliary drive error, tacho error

Check the auxiliary drive (tacho – no signal, M3.51 defective > inform service)

Err 59

Incompatible component

Replace component

7.3 Resetting welding parameters to the factory settings

All customised welding parameters that are stored will be replaced by the factory settings.

To reset the welding parameters or machine settings to the factory settings, select parameter in the service menu > see 5.13 chapter.

7.4 Display machine control software version

The query of the software versions only serves to inform the authorised service staff. It is available in the machine configuration menu > see 5.13 chapter.

Rectifying faults

Checklist for rectifying faults

099-007027-EW501

28.08.2018

Legend

Symbol

Description

 Fault/Cause

 Remedy

7.5 Checklist for rectifying faults

The correct machine equipment for the material and process gas in use is a fundamental requirement for perfect operation!

No arc ignition

 Incorrect ignition type setting.

 Ignition type: Select “HF start”. Depending on the machine, the setting is defined by the

changeover switch for ignition types or the parameter in one of the machine menus (see the “Control operating instructions”, if applicable).

Excess temperature signal light / Welding torch cooling failure is on

 Welding torch cooling failure

 Check correct connection of the welding torch cooling unit  Check operational readiness of the welding torch cooling unit  Eliminate kinks in conduit system (hose packages)  Check coolant level and refill if necessary

 Excess temperature, welding machine

 Allow the machine to cool down whilst still switched on

Welding torch overheated

 Loose welding current connections

 Tighten power connections on the torch and/or on the workpiece  Tighten contact tip correctly

 Overload

 Check and correct welding current setting  Use a more powerful welding torch

Unstable arc

 Material inclusions in the tungsten electrode due to contact with filler material or workpiece

 Regrind or replace the tungsten electrode

 Incompatible parameter settings

 Check settings and correct if necessary

Pore formation

 Inadequate or missing gas shielding

 Check shielding gas setting and replace shielding gas cylinder if necessary  Shield welding site with protective screens (draughts affect the welding result)  Use gas lens for aluminium applications and high-alloy steels

 Unsuitable or worn welding torch equipment

 Check size of gas nozzle and replace if necessary

 Condensation (hydrogen) in the gas tube

 Purge hose package with gas or replace

Technical data

Microplasma 25

099-007027-EW501

28.08.2018

Plasma

TIG

Welding current (I2)

0,3 A up to 20 A

2 A up to 20 A

Welding voltage according to Standard (U2)

25,0 V up to 25,8 V

10,1 V up to 10,8 V

Plasma current (pilot arc)

2-15 A

Duty cycle at 40° C

[1]

100 %

20 A

Open circuit voltage (U0)

63 V

Ignition voltage (UP)

123 kV

Mains voltage (Tolerance)

1 x 230 V (-40 % up to +15 %)

Frequency

50/60 Hz

Mains fuse

[2]

1 x 10 A

Mains connection cable

H07RN-F3G2,5

max. Connected load (S1)

1,2 kVA

0,6 kVA

Generator rating (Rec.)

2 kVA

max. Maximum mains impedance (@PCC)

xxx

[3]

Cos φ

0,99

Protection class / Overvoltage category

Ⅰ / Ⅲ

Contamination level

Insulation class / Protection classification

H / IP 23

Residual current circuit breaker

Type B (recommended)

Noise level

[4]

<70 dB(A)

Ambient temperature

[5]

-25 °C up to +40 °C

Machine cooling / Torch cooling

Fan (AF) / Cooling unit, ext.

Workpiece lead (min.)

25 mm2

EMC class

Safety marking

/ /

Standards used

See declaration of conformity (appliance documents)

Dimensions L / B / H

625 x 377 x 531 mm

24.6 x 14.8 x 20.9 inch

Weight

33,6 kg

74.1 lb

8 Technical data

Performance specifications and guarantee only in connection with original spare and replacement parts!

8.1 Microplasma 25

[1]

Load cycle: 10 min. (60 % DC = 6 min. welding, 4 min. pause).

[2]

DIAZED xxA gG safety fuses are recommended. When using automatic circuit-breakers, the "C" trigger characteristic must be used!

[3]

This welding equipment does not comply with IEC 61000-3-12. When connecting a welding machine to a public low-voltage supply system, the manufacturer or operator has to consult the electricity utilities to make sure the welding machine may be connected.

[4]

Noise level during idle mode and operation under standard load according to IEC 60974-1 at maximum operating point.

[5]

Ambient temperature is dependent on coolant! Observe coolant temperature range!

Technical data

Microplasma 55

099-007027-EW501

28.08.2018

Plasma

TIG

Welding current (I2)

0,3 A up to 50 A

2 A up to 50 A

Welding voltage according to Standard (U2)

25,0 V up to 27,0 V

10,1 V up to 12,0 V

Plasma current (pilot arc)

2-15 A

Duty cycle at 40° C

[1]

100 %

50 A

Open circuit voltage (U0)

63 V

Ignition voltage (UP)

123 kV

Mains voltage (Tolerance)

1 x 230 V (-40 % up to +15 %)

Frequency

50/60 Hz

Mains fuse

[2]

1 x 16 A

1 x 10 A

Mains connection cable

H07RN-F3G2,5

max. Connected load (S1)

2,8 kVA

1,3 kVA

Generator rating (Rec.)

4 kVA

max. Maximum mains impedance (@PCC)

xxx

[3]

Cos φ

0,99

Protection class / Overvoltage category

Ⅰ / Ⅲ

Contamination level

Insulation class / Protection classification

H / IP 23

Residual current circuit breaker

Type B (recommended)

Noise level

[4]

<70 dB(A)

Ambient temperature

[5]

-25 °C up to +40 °C

Machine cooling / Torch cooling

Fan (AF) / Cooling unit, ext.

Workpiece lead (min.)

25 mm2

EMC class

Safety marking

/ /

Standards used

See declaration of conformity (appliance documents)

Dimensions L / B / H

625 x 377 x 531 mm

24.6 x 14.8 x 20.9 inch

Weight

33,6 kg

74.1 lb

8.2 Microplasma 55

[1]

Load cycle: 10 min. (60 % DC = 6 min. welding, 4 min. pause).

[2]

DIAZED xxA gG safety fuses are recommended. When using automatic circuit-breakers, the "C" trigger characteristic must be used!

[3]

[4]

Noise level during idle mode and operation under standard load according to IEC 60974-1 at maximum operating point.

[5]

Ambient temperature is dependent on coolant! Observe coolant temperature range!

Technical data

Microplasma 105

099-007027-EW501

28.08.2018

Plasma

TIG

Welding current (I2)

0,3 A up to 100 A

2 A up to 100 A

Welding voltage according to Standard (U2)

25,0 V up to 29,0 V

10,1 V up to 14,0 V

Plasma current (pilot arc)

2-15 A

Duty cycle at 40° C

[1]

100 %

70 A

100 A

60 %

100 A

Open circuit voltage (U0)

63 V

Ignition voltage (UP)

123 kV

Mains voltage (Tolerance)

1 x 230 V (-40 % up to +15 %)

Frequency

50/60 Hz

Mains fuse

[2]

1 x 20 A

1 x 16 A

Mains connection cable

H07RN-F3G2,5

max. Connected load (S1)

5,8 kVA

2,9 kVA

Generator rating (Rec.)

8 kVA

max. Maximum mains impedance (@PCC)

xxx

[3]

Cos φ

0,99

Protection class / Overvoltage category

Ⅰ / Ⅲ

Contamination level

Insulation class / Protection classification

H / IP 23

Residual current circuit breaker

Type B (recommended)

Noise level

[4]

<70 dB(A)

Ambient temperature

[5]

-25 °C up to +40 °C

Machine cooling / Torch cooling

Fan (AF) / Cooling unit, ext.

Workpiece lead (min.)

25 mm2

EMC class

Safety marking

/ /

Standards used

See declaration of conformity (appliance documents)

Dimensions L / B / H

625 x 377 x 531 mm

24.6 x 14.8 x 20.9 inch

Weight

33,6 kg

74.1 lb

8.3 Microplasma 105

[1]

Load cycle: 10 min. (60 % DC = 6 min. welding, 4 min. pause).

[2]

DIAZED xxA gG safety fuses are recommended. When using automatic circuit-breakers, the "C"

trigger characteristic must be used!

[3]

[4]

Noise level during idle mode and operation under standard load according to IEC 60974-1 at maximum operating point.

[5]

Ambient temperature is dependent on coolant! Observe coolant temperature range!

Accessories

Welding torch cooling system

099-007027-EW501

28.08.2018

Type

Designation

Item no.

Cool 50 MPW50

Cooling module with centrifugal pump

090-008818-00502

KF 23E-10, -10

Coolant (-10 °C), 9,3 l

094-000530-00000

KF 23E-200, -10

Coolant (-10 °C), 200 l

094-000530-00001

Type

Designation

Item no.

RK1

Reverse cooling unit

094-002283-00000

UKV4SET 4M

Hose connection set

092-000587-00000

DKF10

Deionised coolant, no frost protection

094-001504-00000

Type

Designation

Item no.

Trolly 55-6 DF

Transport cart, assembled

090-008826-00000

Type

Designation

Item no.

ON Filter 355/405/505/50

Contamination filter for air inlet

092-002698-00000

ON TC 55

Tool box for mounting to Trolly 55-5/6

092-002899-00000

ON WAK xx5

Wheel assembly kit for the xx5 machine series

092-001356-00000

Type

Designation

Item no.

Maxex AR/MIX 200bar 30m³ G1/4"

Pressure regulator

096-000000-00000

Maxex Hydrogen 200bar 30m³ G3/8"L

Pressure regulator

096-000001-00000 2M-G1/4"+G3/8"/DIN EN 559

Gas tube, 2 m

092-000525-00001

GH 2X1/4'' 2M

Gas hose

094-000010-00001

Type

Designation

Item no.

RTF1 19POL 5 M

Foot-operated remote control current with connection cable

094-006680-00000 RT1 19POL

Remote control current

090-008097-00000

RTG1 19POL 10m

Remote control, current

090-008106-00010

RTP1 19POL

Remote control spot welding / pulses

090-008098-00000

Type

Designation

Item no.

RA5 19POL 5m

Connection cable, e.g. for remote control

092-001470-00005

RA10 19POL 10m

Remote control e.g. connection cable

092-001470-00010

RA20 19POL 20m

Remote control e.g. connection cable

092-001470-00020

9 Accessories

Performance-dependent accessories like torches, workpiece leads, electrode holders or intermediate hose packages are available from your authorised dealer.

9.1 Welding torch cooling system

9.2 Transport systems

9.3 Option

9.4 General accessories

9.5 Remote controls and accessories

9.5.1 Connection and extension cables

Appendix A

Parameter overview – setting ranges

099-007027-EW501

28.08.2018

Name

Display

Setting range

Code

Standard

Unit

min. max.

Main current AMP, depending on power source

- A - - -

Gas pre-flow time

0,5 s 0 - 20

Ignition current, percentage of AMP

20 % 1 - 200

Ignition current, absolute, depending on power source

- A - - -

Start time

0,01

0,01 - 20,0

Up-slope time

1,0 s 0,0 - 20,0

Pulse current

140 % 1 200

Pulse time

0,01

0,00 - 20,0

Slope time (time from main current AMP to secondary current AMP%)

0,00

0,00 - 20,0

Secondary current, percentage of AMP

50 % 1 200

Secondary current, absolute, depending on power source

- A - -

Pulse pause time

0,01

0,00 - 20,0

Slope time (time from main current AMP to secondary current AMP%)

0,00

0,00 - 20,0

Down-slope time

1,0 s 0,0 - 20,0

End current, percentage of AMP

20 % 1 - 200

End current, absolute, depending on power source

- A - - -

End current time

0,01

0,01 - 20,0

Gas post-flow time

8 s 0,0 - 40,0

Electrode diameter, metric

2,4

1,0 - 4,0

Electrode diameter, imperial

mil

40 - 160

spotArc time

2 s 0,01 - 20,0

spotmatic time ( >)

200

ms 5 -

999

spotmatic time ( >)

2 s 0,01 - 20,0

Pulse balance

50 % 1 - 99

Pulse frequency

Hz 5 -

15000

10 Appendix A

10.1 Parameter overview – setting ranges

Appendix B

Searching for a dealer

099-007027-EW501

28.08.2018

11 Appendix B

11.1 Searching for a dealer

www.ewm-group.com/en/specialist-dealers

"More than 400 EWM sales partners worldwide"

Sales & service parteners

EWM Microplasma 25, Microplasma 55, Microplasma 105 Operating Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

General instructions

1 Contents

2 For your safety

2.1 Notes on the use of these operating instructions

2.2 Explanation of icons

2.3 Part of the complete documentation

2.4 Safety instructions

2.5 Transport and installation

3 Intended use
