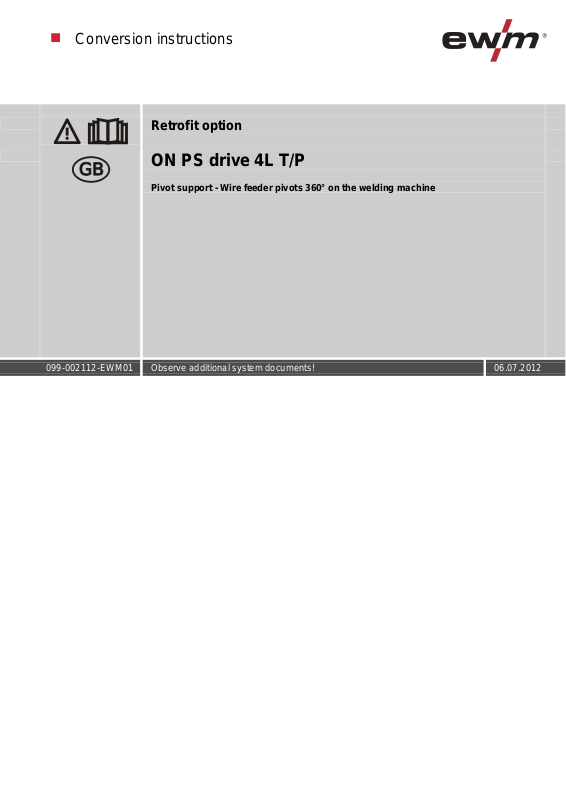

EWM 4L T/P Conversion Instructions

Conversion instructions
Retrofit option
GB
Pivot support - Wire feeder pivots 360° on the welding machine
099-002112-EWM01 Observe additional system documents! 06.07.2012
General instructions
CAUTION
Read the operating instructions! The operating instructions provide an introduction to the safe use of the products.
• Read the operating instructions for all system components!
• Observe accident prevention regulations!
• Observe all local regulations!
• Confirm with a signature where appropriate.
In the event of queries on installation, commissioning, operation or special conditions at the installation site, or on usage, please contact your sales partner or our customer service department on +49 2680 181-0.
Liability relating to the operation of this equipment is restricted solely to the function of the equipment. No other form of liability, regardless of type, shall be accepted. This exclusion of liability shall be deemed accepted by the user on commissioning the equipment.
The manufacturer is unable to monitor whether or not these instructions or the conditions and methods are observed during installation, operation, usage and maintenance of the equipment.
An incorrectly performed installation can result in material damage and injure persons as a resu lt. For this reason, we do not accept any responsibility or liability for losses, damages or costs arising from incorrect installation, improper operation or incorrect usage and maintenance or any actions connected to this in any way.
© EWM HIGHTEC WELDING GmbH · Dr. Günter-Henle-Str. 8 · D-56271 Mündersbach, Germany
The copyright to this document remains the property of the manufacturer. Reprinting, including extracts, only permitted with written approval. Subject to technical amendments.
A list of authorised sales partners can be found at www.ewm-group.com.
NOTE

1 Contents

1
Contents..................................................................................................................................................3
2 Safety instructions.................................................................................................................................4
3 Overview .................................................................................................................................................5
3.1 Proper usage .................................................................................................................................5
3.2 Diagram of the assembled option..................................................................................................5
3.3 System overview............................................................................................................................6
4 Conversion .............................................................................................................................................7
4.1 Parts list.........................................................................................................................................7
4.2 Assembly .......................................................................................................................................8
4.2.1 Screwing the press arbor onto the cross arm ................................................................8
4.2.2 Fitting the adapter plate..................................................................................................9
4.3 Final assembly.............................................................................................................................10
5 Technical data ......................................................................................................................................10
Contents
Proper usage
099-002112-EWM01
06.07.2012
3
Safety instructions
Proper usage

2 Safety instructions

Do not carry out any unauthorised repairs or modifications! To avoid injury and equipment damage, the unit must only be repaired or modified by
specialist, skilled persons! The warranty becomes null and void in the event of unauthorised interference.
• Appoint only skilled persons for repair work (trained service personnel)!
Validity of this document! This document is only valid in combination with the operating instructions for the
power source being used (welding machine)!
• Read the operating instructions, in particular the safety instru ctions for the power source (welding machine)!
Risk of accidents if these safety instructions are not observed! Non-observance of these safety instructions is potentially fatal!
• Carefully read the safety information in this manual!
• Observe the accident prevention regulations in your country.
• Inform persons in the working area that they must observe the regulations!
CAUTION
Obligations of the operator! The respective national directives and laws must be observed for operation of the
machine!
• National implementation of the framework directive (89/391/EWG), as well as the associated individual directives.
• In particular, directive (89/655/EWG), on the minimum regulations for safety and health protection when staff members use equipment during work.
• The regulations regarding work safety and accident prevention for the respective country.
• Setting up and operating the machine according to IEC 60974-9.
• Check at regular intervals that users are working in a safety-conscious way.
• Regular checks of the machine according to IEC 60974-4.
DANGER
WARNING
4
099-002112-EWM01
06.07.2012

3 Overview

3.1 Proper usage

These conversion instructions apply to the following welding machines only:
• alpha Q 351 / 551
• Phoenix 351 / 401/ 451 / 551
• Taurus 351 / 401/ 451 / 551
• Tetrix 351 / 451 / 551
• Tetrix 351 / 451 / 551 AC/DC

3.2 Diagram of the assembled option

Hazards due to improper usage! Hazards may arise for persons, animals and material objects if the equipment is not
used correctly. No liability is accepted for any damages arising from improper usage!
• The equipment must only be used in line with proper usage and by trained or expert staff!
• Do not modify or convert the equipment improperly!
NOTE
The illustration serves as an example only.
Overview
Proper usage
WARNING
099-002112-EWM01
06.07.2012
Figure 3-1
5
Overview
System overview

3.3 System overview

4 53
2
1
Item Symbol Description 0 1 2
3 4 5
Power source ON PS drive 4L T/P
Pivot support – 092-002112-00000
Hose support arm Wire feeder - drive 4L (pivotable) ON PS Trolly 55.2-2 drive 200/300C
Pivot support - 092-002634-00000
Figure 3-2
6
099-002112-EWM01
06.07.2012

4 Conversion

4.1 Parts list

NOTE
Before conversion, check that the retrofit kit is complete (see parts list).
Conversion
Parts list
1
7
2
7
3
8
8
4
5
6
Figure 4-1
Item 0 Quantity Description Item number
1 1 Threaded press arbor 094-007483-00005 2 1 Press arbor guide bushing (socket is pressed into the
metal sheet) 3 1 Pivot support 094-010361-00001 4 1 M6 plain washer 064-000583-00000 5 1 M6 Fan-type lock washer 064-000591-00000 6 1 Hexagon screw 064-000670-00000 7 4 M10 x 25 Lifting eye 094-000209-00001 8 4 Fan-type lock washer 064-000563-00000
094-007371-00004
099-002112-EWM01
06.07.2012
7
Conversion
Assembly

4.2 Assembly

4.2.1 Screwing the press arbor onto the cross arm

Figure 4-2
• Insert the press arbor into the cross arm through the guide bushing (threaded hole in the press arbour is pointing downwards).
• Screw the press arbor onto the plain washer, fan-type lock washer and screw.
8
099-002112-EWM01
06.07.2012

4.2.2 Fitting the adapter plate

Risk of injury due to unsuitable lifting eye! In case of improper use of lifting eyes or the use of unsuitable lifting eyes, persons can
be seriously damaged by falling equipment or add-on components!
• The lifting eye must be completely screwed in!
• The lifting eye must be positioned flat onto and in full contact with the supporting surfaces!
• Check that the lifting eyes are securely fastened before use and check for any damage (corrosion, deformation)!
• Do not use or screw in damaged lifting eyes!
• Avoid lateral loading of the lifting eyes!
Conversion
Assembly
DANGER
1
2
2
Figure 4-3
Item 0 Quantity Description Item number
1 4 M10 x 25 Lifting eye 094-000209-00001 2 4 Fan-type lock washer 064-000563-00000
• Unscrew lifting eye.
• Position the adapter plate on the machine.
• Connect the adapter plate to the welding machine using the long lifting eyes and the fan-type lock washers of this kit.
099-002112-EWM01
06.07.2012
9
Technical data
Final assembly

4.3 Final assembly

Danger due to failure to carry out the final inspection! Parts that are incorrectly fitted or that become loose are a source of dange r.
• Check all mechanical connections to ensure that they are fitted correctly!
• Carry out the final inspection!
• Carry out the functional test!

5 Technical data

NOTE
The technical data given here completes or replaces the respective values in the
• Weight: +4 kg
standard operating instructions.
WARNING
10
099-002112-EWM01
06.07.2012
