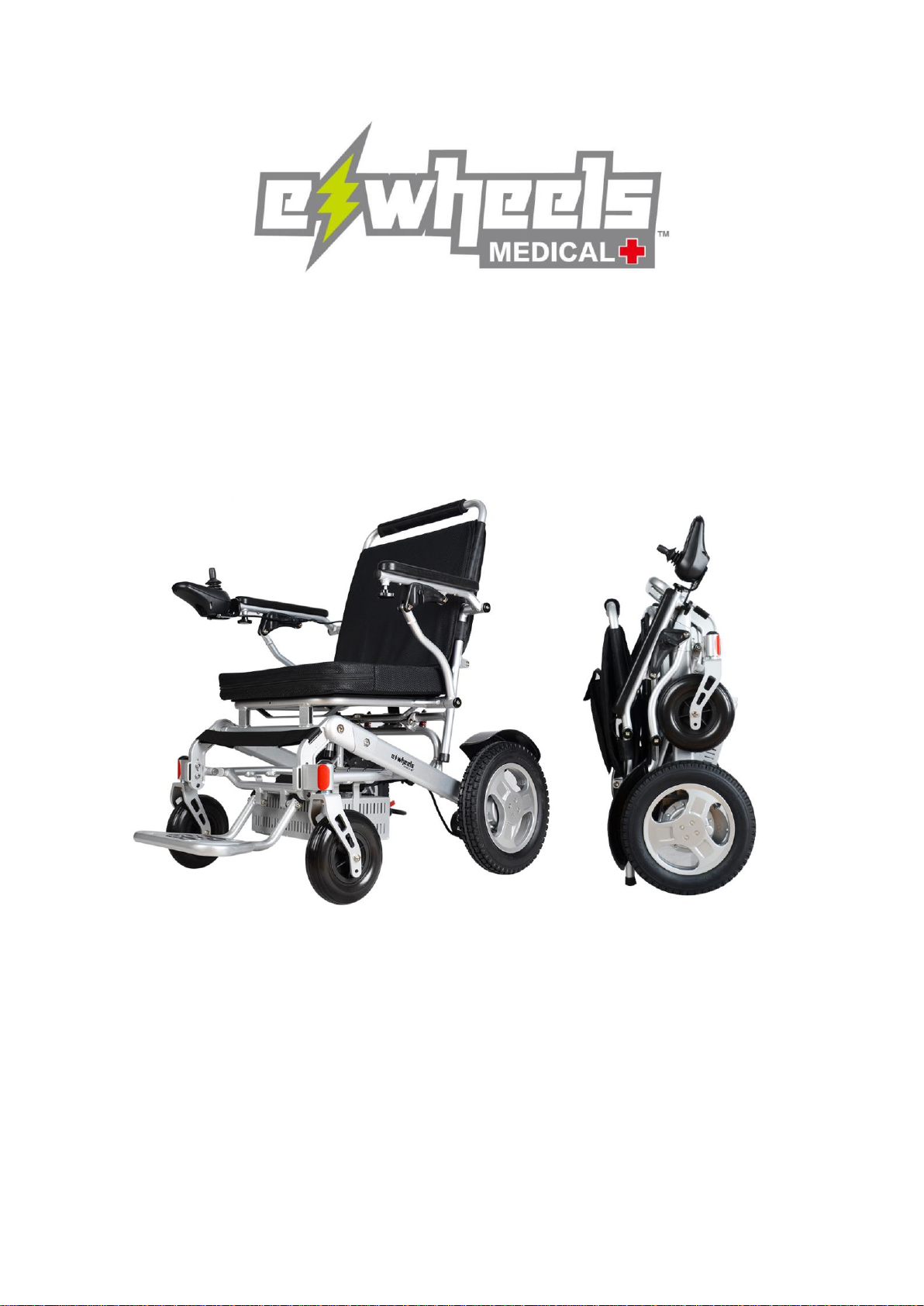

Page 1
Folding Electric Wheelchair
EW-M45
Page 2
Contents
Introduction.........................................................................................................................1
Specifications.................................................................. ...................................................2
Specification Diagram.........................................................................................................3
Safe Operation.................................................................................................................4-5
Precautions.........................................................................................................................5
Maintenance.......................................................................................................................6
Electromagnetic Interference..............................................................................................7
Install Setup.....................................................................................................................7-9
Controller..........................................................................................................................10
Basic operation.................................................................................................................11
Charging Batteries.......................................................................................................11-13
Free Wheel Mode.............................................................................................................13
Transporting Your Folding Electric Wheelchair.................................................................14
Trouble shootings.............................................................................................................15
Diagnostics.......................................................................................................................16
Warranty............................................................................................................................17
Guarantee Card.................................................................................................................18
Page 3
1
Introduction
Dear User,
Thank you for choosing Folding Electric Wheelchair for your portable wheelchair transportation needs.
The electric wheelchair will bring you freedom, it will to be your trusting and reliable friend.
It is important to read through this manual before operating your Folding Electric Wheelchair to become
familiar with its features as well as its limitations and safety information. You will find the operation and
care of your Folding Electric Wheelchair very simple and easy.
Disclaimer: its affiliates and partners cannot be held responsible for personal injury or property damage
resulting from the unsafe or improper operation or maintenance of portable electric wheelchair.
As part of our ongoing product improvement initiative, We reserve the right to change specifications and
design without notice. As a result, there may be minor differences between your Folding Electric
Wheelchair and accessories and the photos, illustration and instruction in this manual.

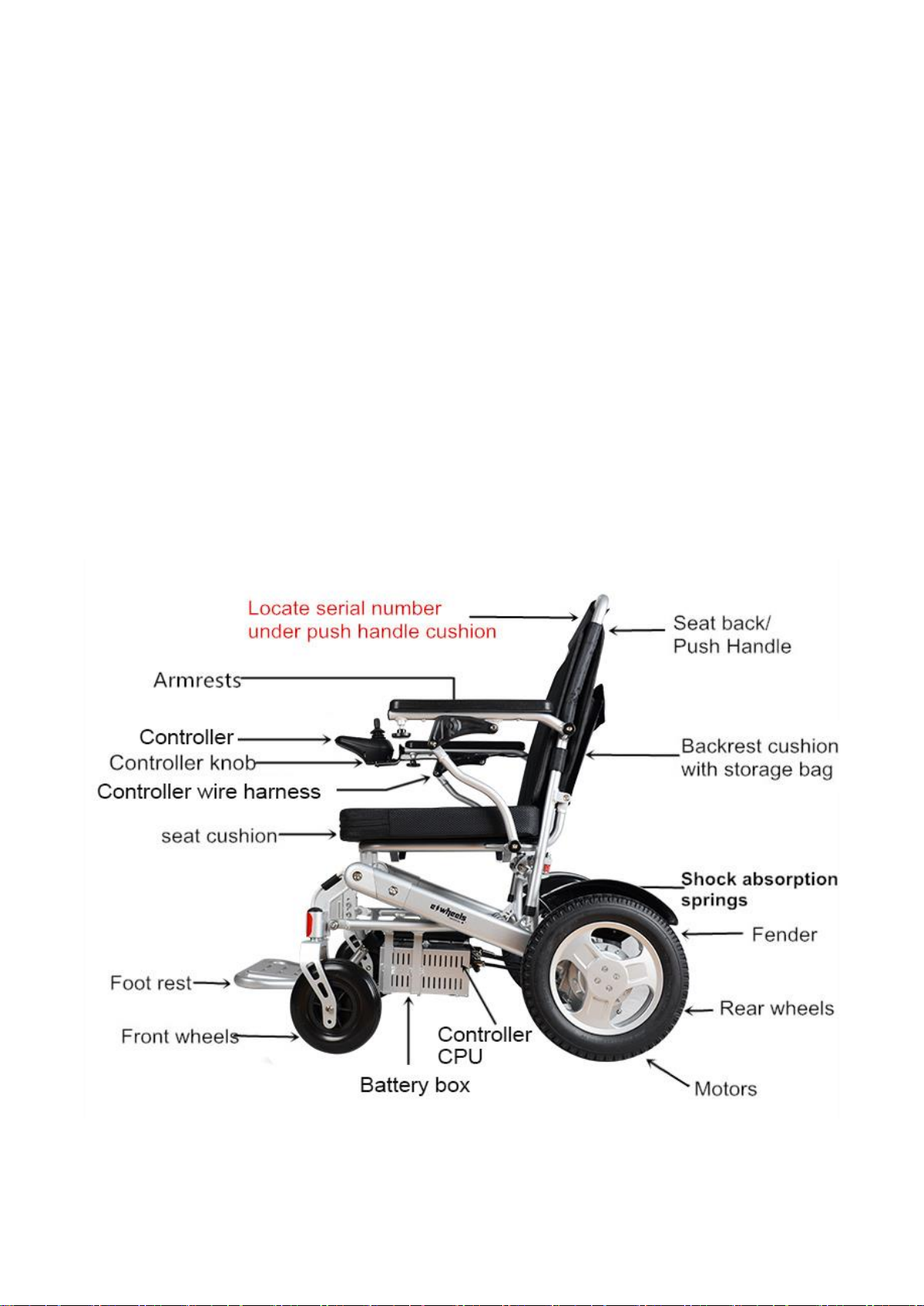

Get to know Your Folding Electric Wheelchair:
Page 4
2
Specifications
Model
EW-M45
Material
Aluminum alloy
Unfolded Size
38” x 23” x 37”
Folded Size
23” x 13” x 31”
Weight Capacity
400 LBS
Motor
x2 250 watt Brushless Motors
Battery
x2 24V 6AH Lithium Batteries
Top Speed
3.7 MPH
Driving Range
15.5 Miles
Front Wheels
8” x 1.25” PU solid wheels
Rear Wheels
12.5” x 2.125” PU solid wheels
Climbing Slope
max 12°
Charging Time
6-8 hours
Width of Armrest
20”
Seat Width
18.5”
Seat Depth
17”
Seat Height
Front – 19.2” / Back – 18.5”
Turning Radius
33.5”
Weight Without Batteries
25.2kg
Weight With Two Batteries
27.8kg
Drive Type
Rear Wheel Drive
Braking System
Electromagnetic Brake
Page 5
3

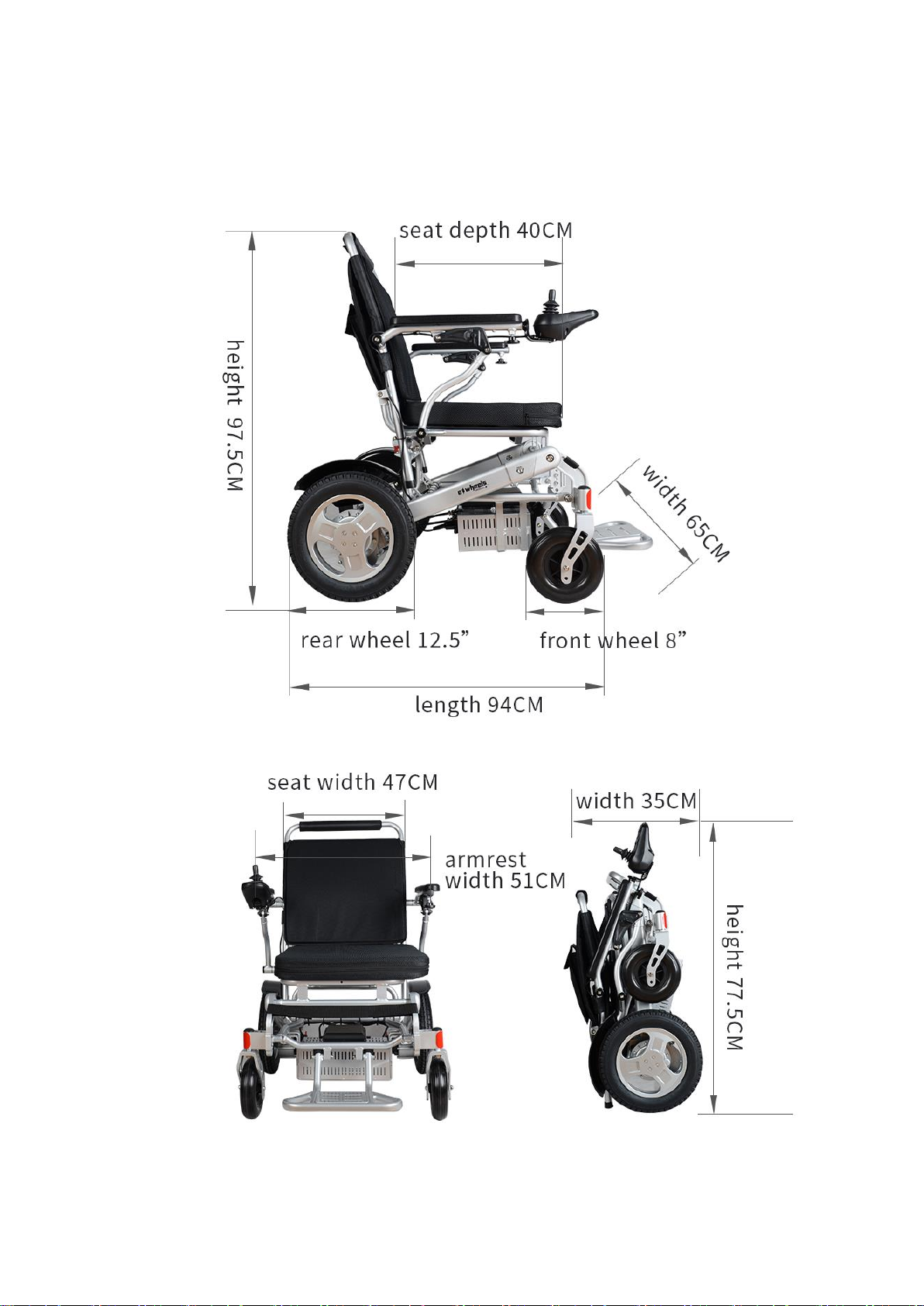

Specification Diagram
Page 6
4
Safe Operation
We think this is the most important section of manual; how to safely operate the Folding Electric
Wheelchair. Please review this section thoroughly and contact us if you have any questions.
◎ General safety:
a. Adjustable Portable Electric Wheelchair to your personal comfort level as much as possible.
b. Take your time to learn how Portable Electric Wheelchair works in a private space before you begin
operating around others.
c. Practice bending, reaching and transferring in and out of Folding Electric Wheelchair.
d. Always be aware of your surroundings.
e. If you are not sure the Folding Electric Wheelchair can surpass an obstacle, try to find another way
around.
f. The Folding Electric Wheelchair is designed for a single user only; more than one user may result in
personal injury to you and others.
g. Make sure that electronic components such as the control panel, battery charge, and other electronic
controlled components avoid moisture. If these components come into contact with moisture, dry before
use.
h. The Folding Electric Wheelchair seat is designed for comfort, not specifically for pressure relief; if you
suffer from pressure sores, or if you are at risk that they will occur, please consult your doctor.
◎ Before using your Portable Electric Wheelchair
(1) Make sure the Folding Electric Wheelchair is operating smoothly.
(2) Check for any unusual noises, vibration, or a change in the ease of use; if you detect a problem, use
the tool kit to perform maintenance or get in touch with your service professional.
(3) Failing to maintain your Folding Electric Wheelchair could increase the risk for injury; get in touch with
us or your Sales so that we can help you find and correct the problem.
◎ Getting into the Folding Electric Wheelchair
(1) Before sitting, make sure the electric wheelchair is OFF, this will ensure the electric wheelchair will not
move upon touching the joystick.
(2) Make sure the footrest is down.
(3) Once on board, make sure your feet are safely on the footrest.
◎ Driving the Folding Electric Wheelchair
(1) Be alert to the danger of motor vehicles on roads or in parking lots.
(2) At night or when it is hard to see, use reflective tape on your electric wheelchair.
(3) The electric wheelchair is designed for use on firm, even surface such as concrete, asphalt or indoor
floor.
(4) Do not operate the electric wheelchair in sand, loose soil or over rough terrain, which could damage
wheels, bearings, axles or motors, or loose fasteners.
◎ Getting out of the Folding Electric Wheelchair
(1) Make sure to bring the Folding Electric Wheelchair to a complete stop.
(2) Turn off the Electric Wheelchair to avoid accidentally opening the joystick and moving the wheelchair.
Page 7
5
(3) Raise the armrest so that you can conveniently exit the wheelchair.
(4) Carefully and safely get out of the seat.
◎ Weight limited-Do not exceed or the warranty will be void
(1) Never exceed a total weight of 400 LBS total for the rider plus items carried.
(2) Exceeding the weight limited is likely to damage the seat, frame or fasteners and may cause severe
injury to you or others.
◎ When transporting the Folding Electric Wheelchair
(1) Never sit in the Folding Electric Wheelchair while i a moving vehicle; an accident or sudden stop may
cause you to be thrown from the electric wheelchair.
(2) Never transport the Folding Electric Wheelchair in the front of seat of a vehicle where it may shift and
interfere with the driver.
(3) Always secure the Folding Electric Wheelchair so that it cannot roll or shift when being transported in a
vehicle.
(4) The Folding Electric Wheelchair is NOT approved to be used with any tie down system, which is
generally used to transport a seated user in a powered wheelchair in a motor vehicle.

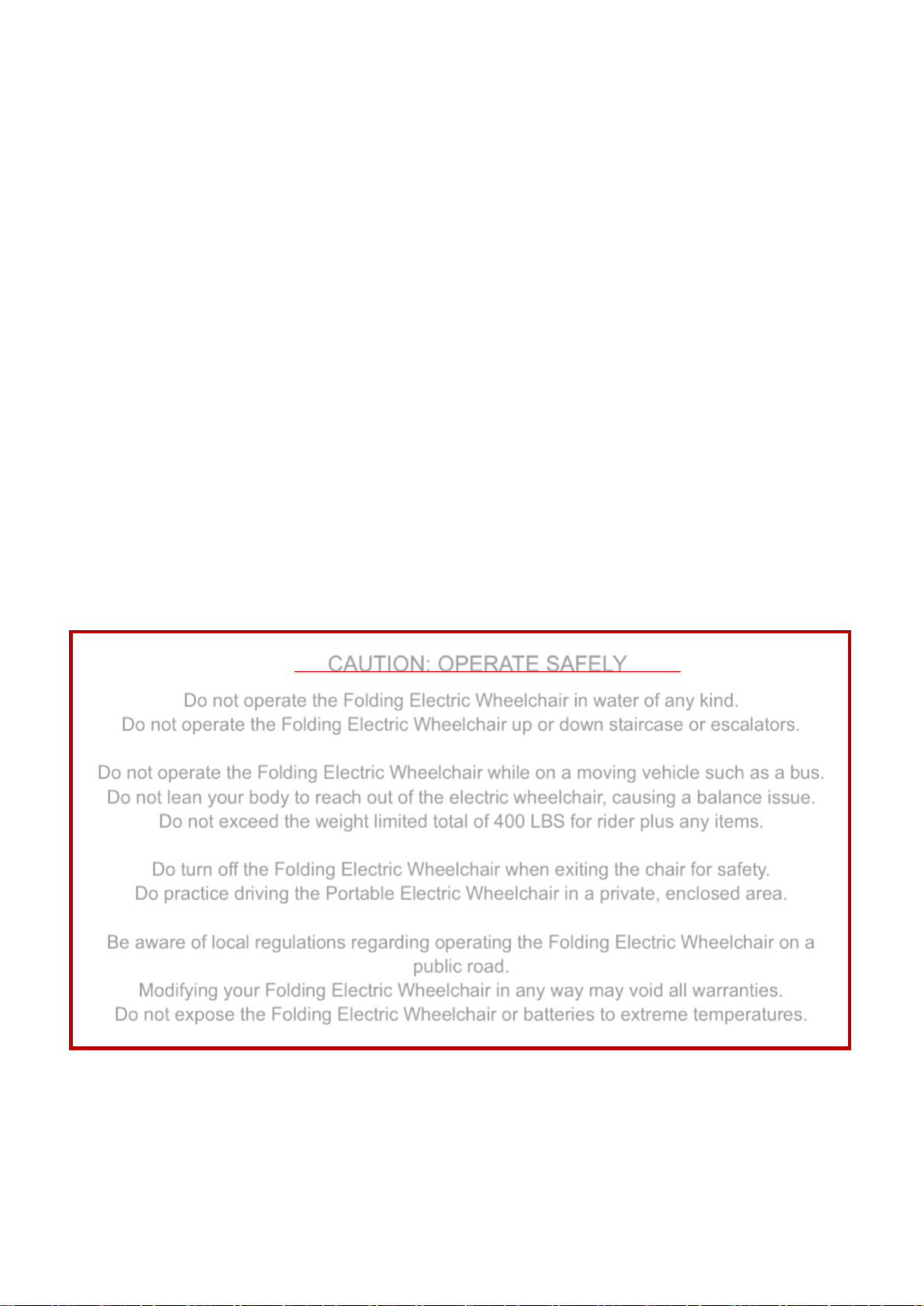

Precautions
CAUTION: OPERATE SAFELY
Do not operate the Folding Electric Wheelchair in water of any kind.
Do not operate the Folding Electric Wheelchair up or down staircase or escalators.
Do not operate the Folding Electric Wheelchair while on a moving vehicle such as a bus.
Do not lean your body to reach out of the electric wheelchair, causing a balance issue.
Do not exceed the weight limited total of 400 LBS for rider plus any items.
Do turn off the Folding Electric Wheelchair when exiting the chair for safety.
Do practice driving the Portable Electric Wheelchair in a private, enclosed area.
Be aware of local regulations regarding operating the Folding Electric Wheelchair on a
public road.
Modifying your Folding Electric Wheelchair in any way may void all warranties.
Do not expose the Folding Electric Wheelchair or batteries to extreme temperatures.
Page 8
6
Maintenance
It is important to perform regular maintenance of your Folding Electric Wheelchair for longevity and
warranty eligibility. Even a little cleaning now and again will go a long way to keep your device looking and
functioning like new.
Certified repair shops with trained professionals who specialize in folding electric wheelchairs and
scooters will be qualified to perform the service and maintenance on your Folding Electric Wheelchair
should it be technician may require parts, which supplier has available.
We recommend you inspect your Folding Electric Wheelchair two or three times per year for in the
following areas:
(1) Frame: Tighten loose screws as necessary using the tool kit included with your Folding Electric
Wheelchair.
(2) Wheels: Make sure they rotate easily. Significant resistance may require new bearings.
(3) Armrest: Look for excessive wear or if they are loose.
Replacement parts and more major maintenance issues should be done by a professional.
◎ Batteries
(1) Use batteries that have been offered by supplier only; our batteries are special lithium batteries
designed specifically for use in the Folding Electric Wheelchair.
(2) Read all battery instructions before attempting to change or charge batteries.
(3) When you don’t drive the Portable Electric wheelchair for long time, please charge the battery every
month to avoid the batteries from deteriorating.
◎ Fasteners
Many of the screws, bolts and nuts on the folding electric wheelchair are special high-strength fasteners.
Replacing these fasteners with non-approved parts may cause your Folding Electric Wheelchair to result
in faulty operation and may cause harm to you or other people, therefore:
A. Use fasteners that have been supplied.
B. Using the tools included with your Folding Electric Wheelchair, tighten any fasteners that become loose
as soon as possible.
◎ Change and Adjustments
Never use non-Folding Electric Wheelchair parts or make changes to your Folding Electric Wheelchair
unless authorized in writing by representative from our company. Doing so will void the warranty and may
create a safety hazard.
Page 9
7
Electromagnetic Interference
Powered vehicles such as the Folding Electric Wheelchair may be susceptible to electromagnetic
interference, which is interfering electromagnetic energy emitted from sources such as radio station, TV
station, amateur radio transmitters, two-way radios, and cellular phones. The interference (from radio
wave sources) can cause the Folding Electric Wheelchair to release its brakes, move by itself, or move in
unintended directions.
Install Setup
Your Folding Electric Wheelchair will arrive carefully packaged in a cardboard box.
1. Open the top of the box then turn the box on the side for easier pulling out the chair and contents.

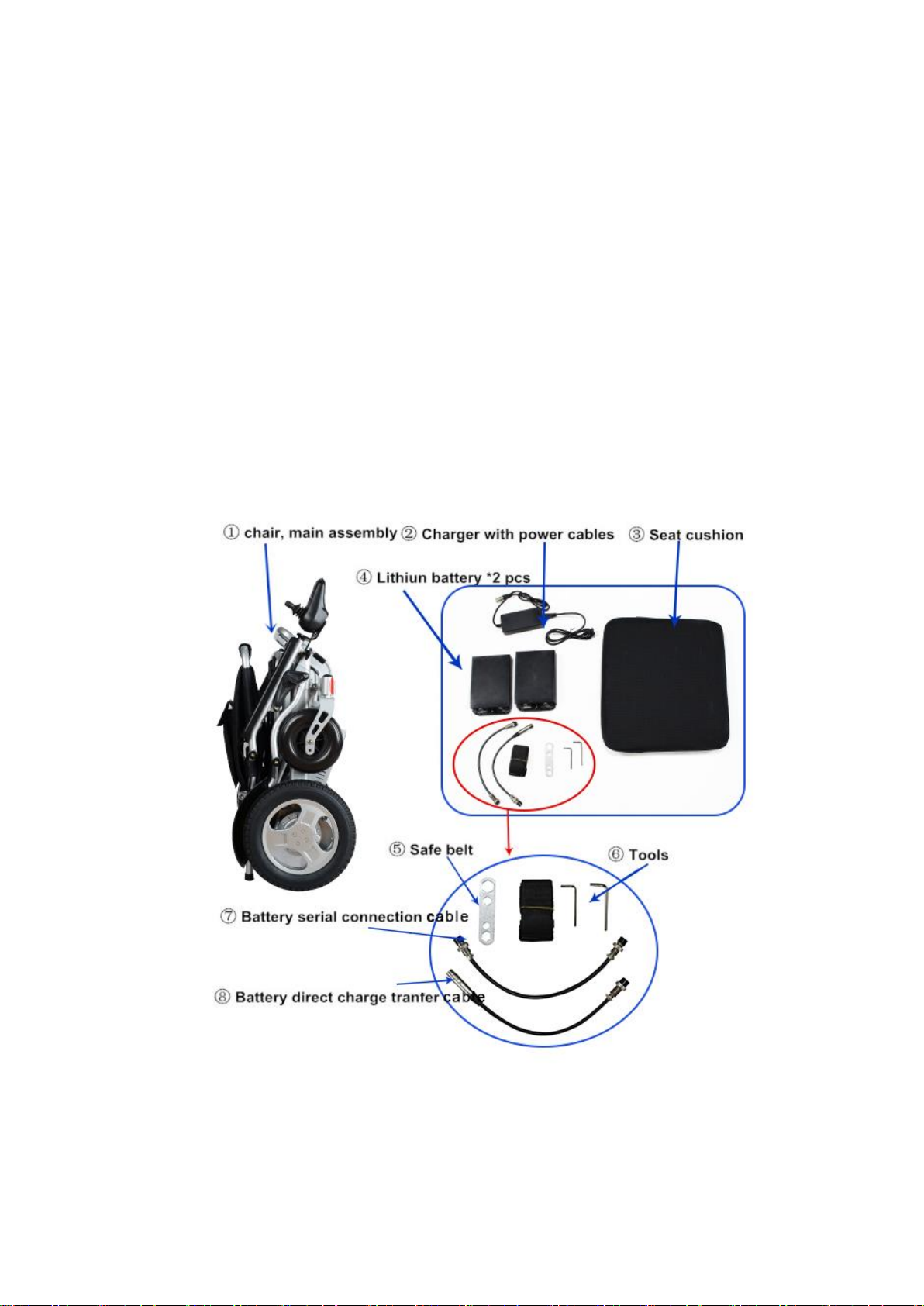

2. Total components as bellow:

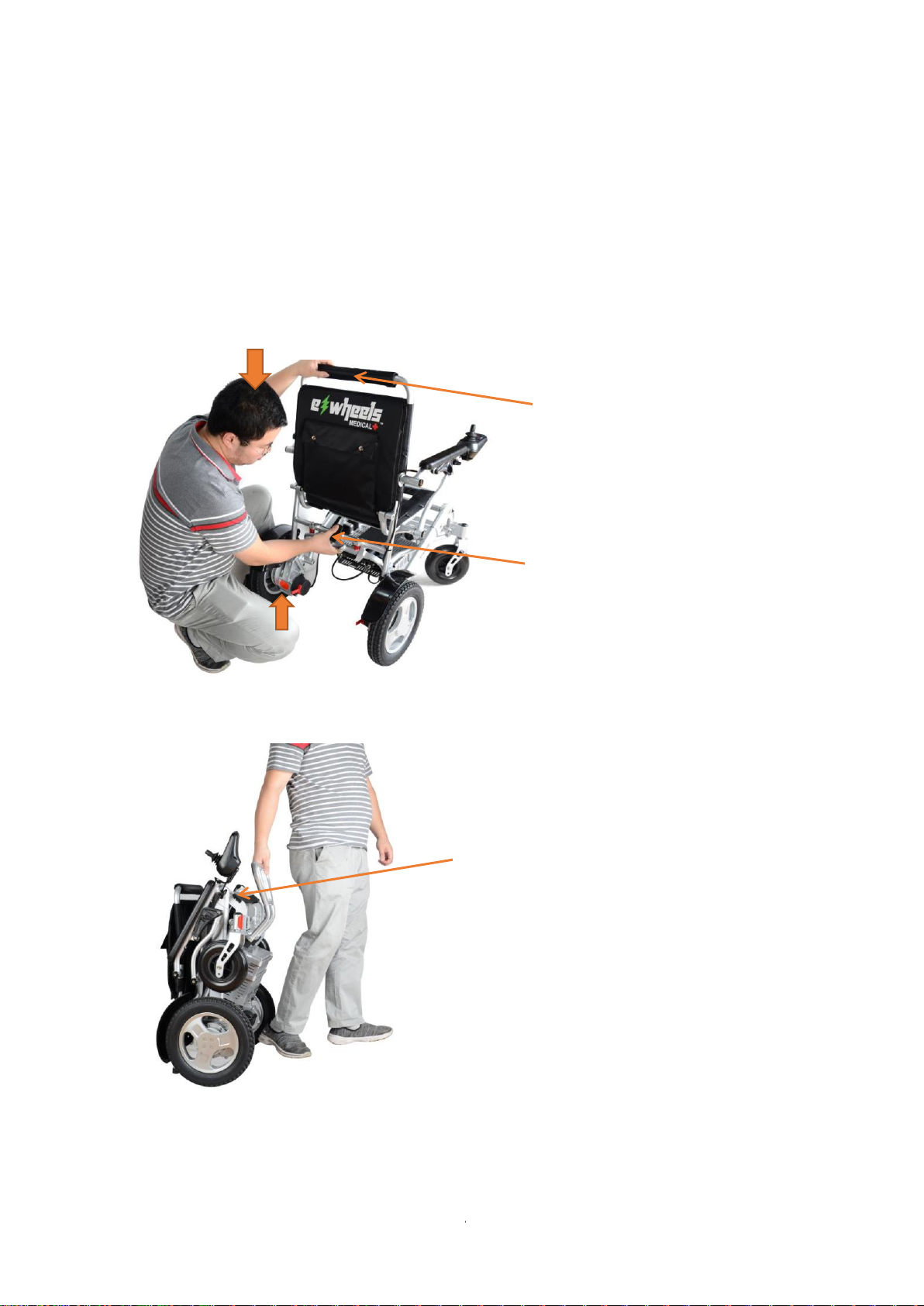

3. To expand the Folding Electric Wheelchair, grasp the push bar and pull up while holding down on the
seat to expand the chair and complete the assembly:
Page 10
8

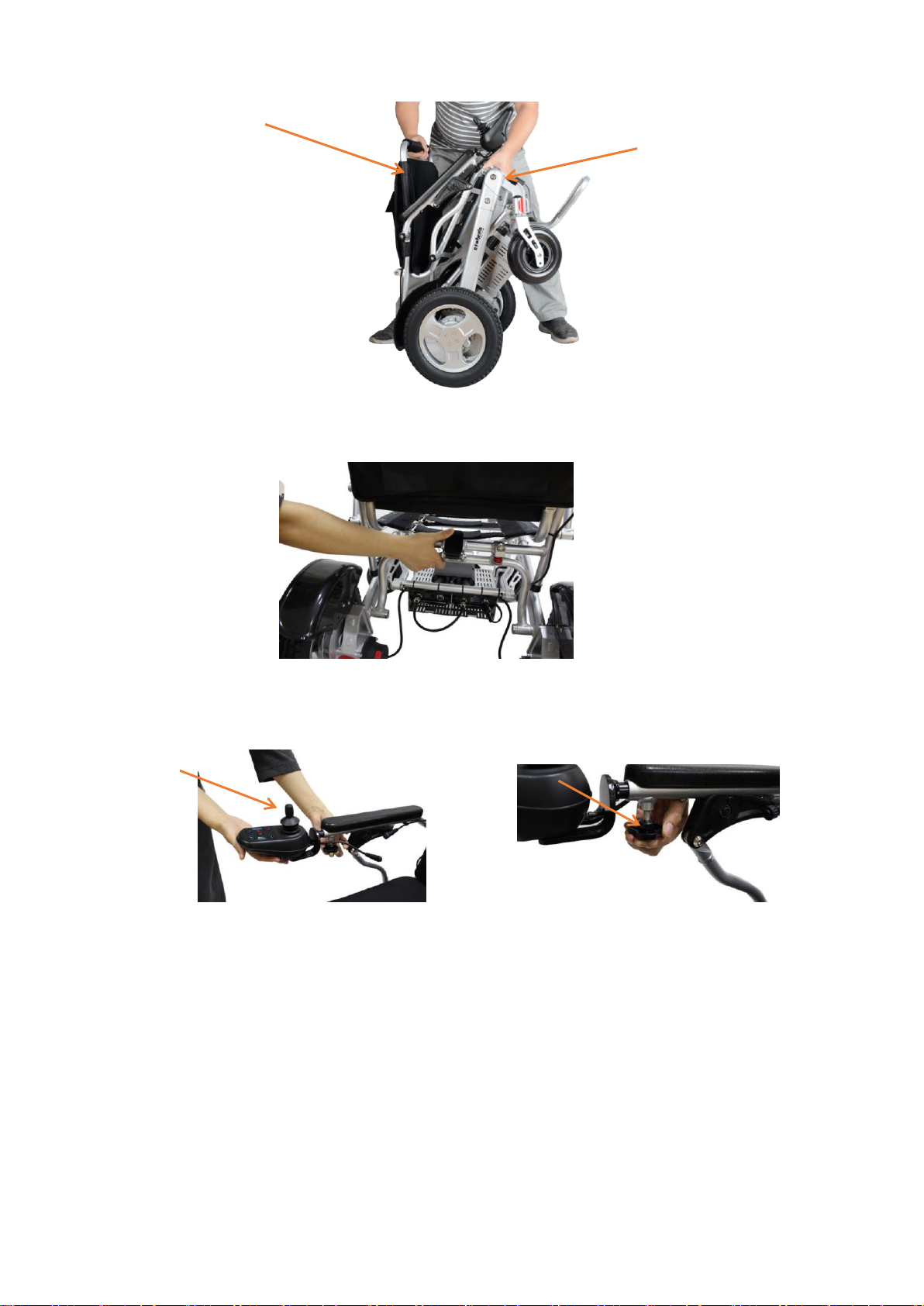

4. Sit on the chair and Lean backwards to make sure the clip locker which located below the seat to the
rear of the Folding Electric Wheelchair, to lock the seat into place. This step is very important!!!
5. Install the controller into the open slot on the arm of the chair, on the right side (if user needed, can
change to left side). tighten knob located under the armrest to secure the controller in place.
6. Connect the controller wire harness to the CPU wire harness. Take care the line up the pins properly as
arrow tip indicate, so that they do not get bent, broken or damaged.
Grasp push bar
Hold down seat to expand
Slide joystick
Controller into
armrest
Secure joystick controller knob
Page 11
9

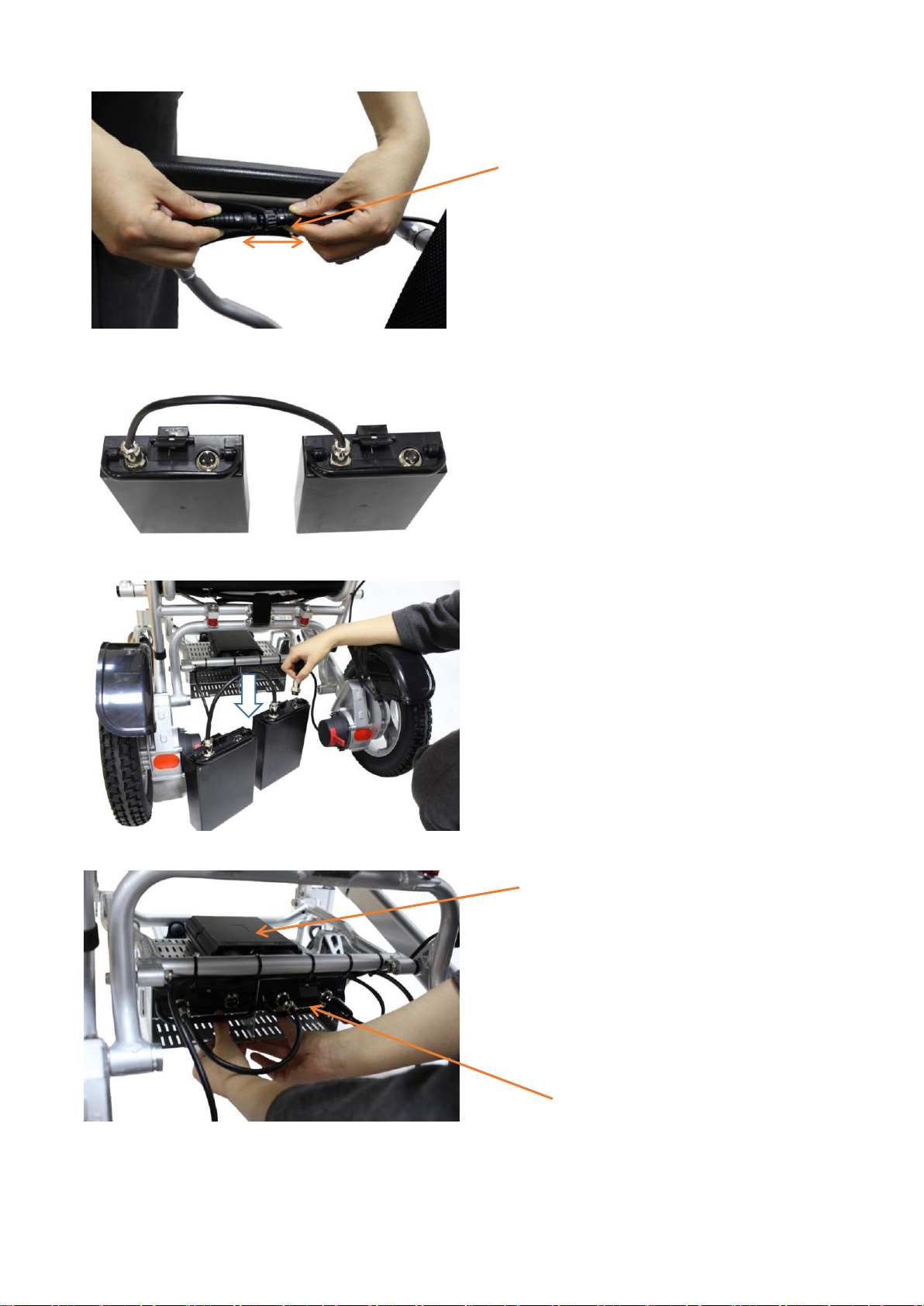

7. Connect the batteries, using battery serial connection cable to make two batteries in series line (or you
can use two batteries individually, No need to connect batteries in series line. ), tightening joints.
8. Connect batteries to the CPU which the wire comes from the wheelchair, and tightening joint .
9. Put two batteries into the batteries box which under the seat, make sure battery clip locked.
Note: Make sure connector pins
“white arrow” to “white arrow”.
Battery box
Controller CPU
Page 12
10

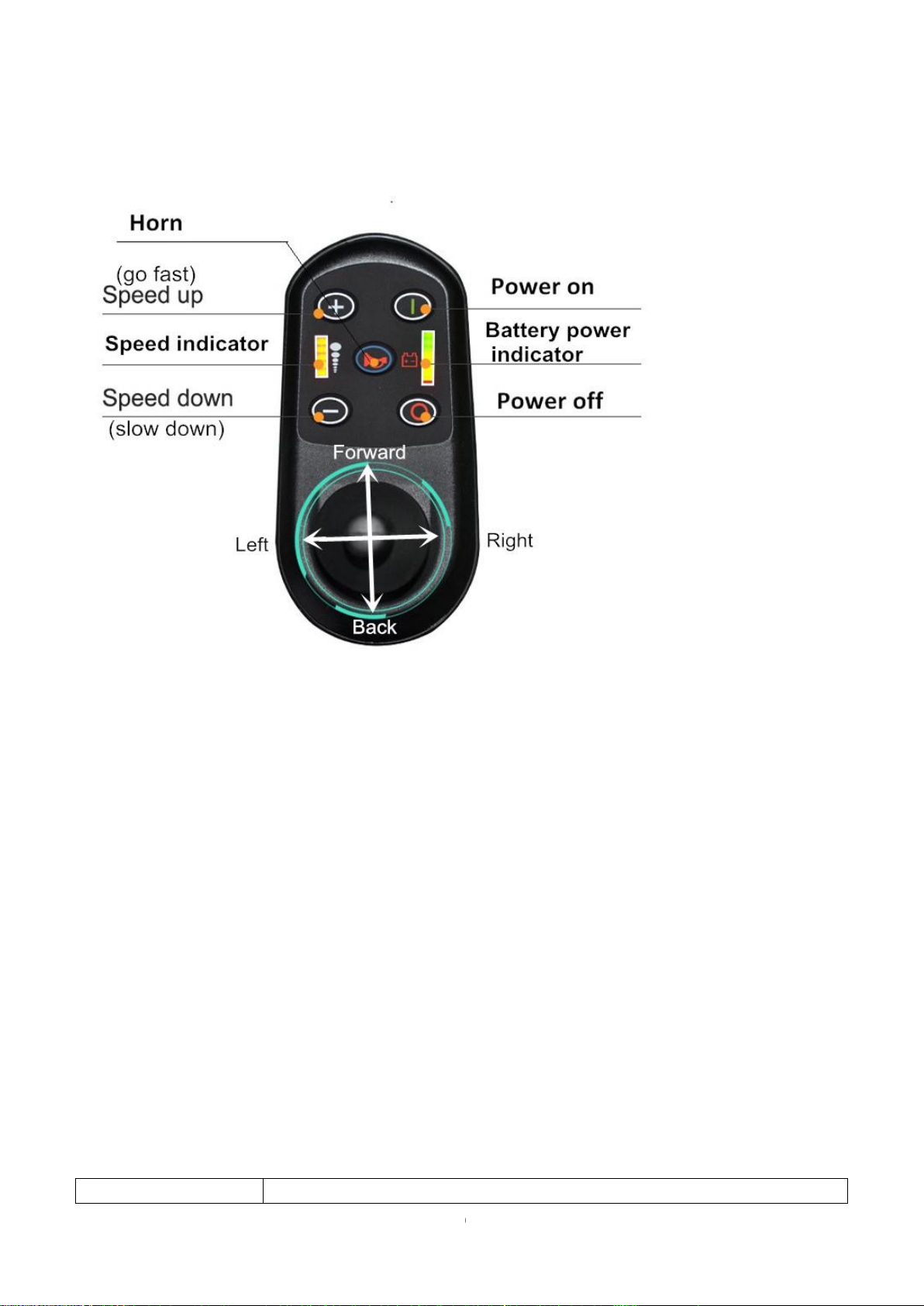

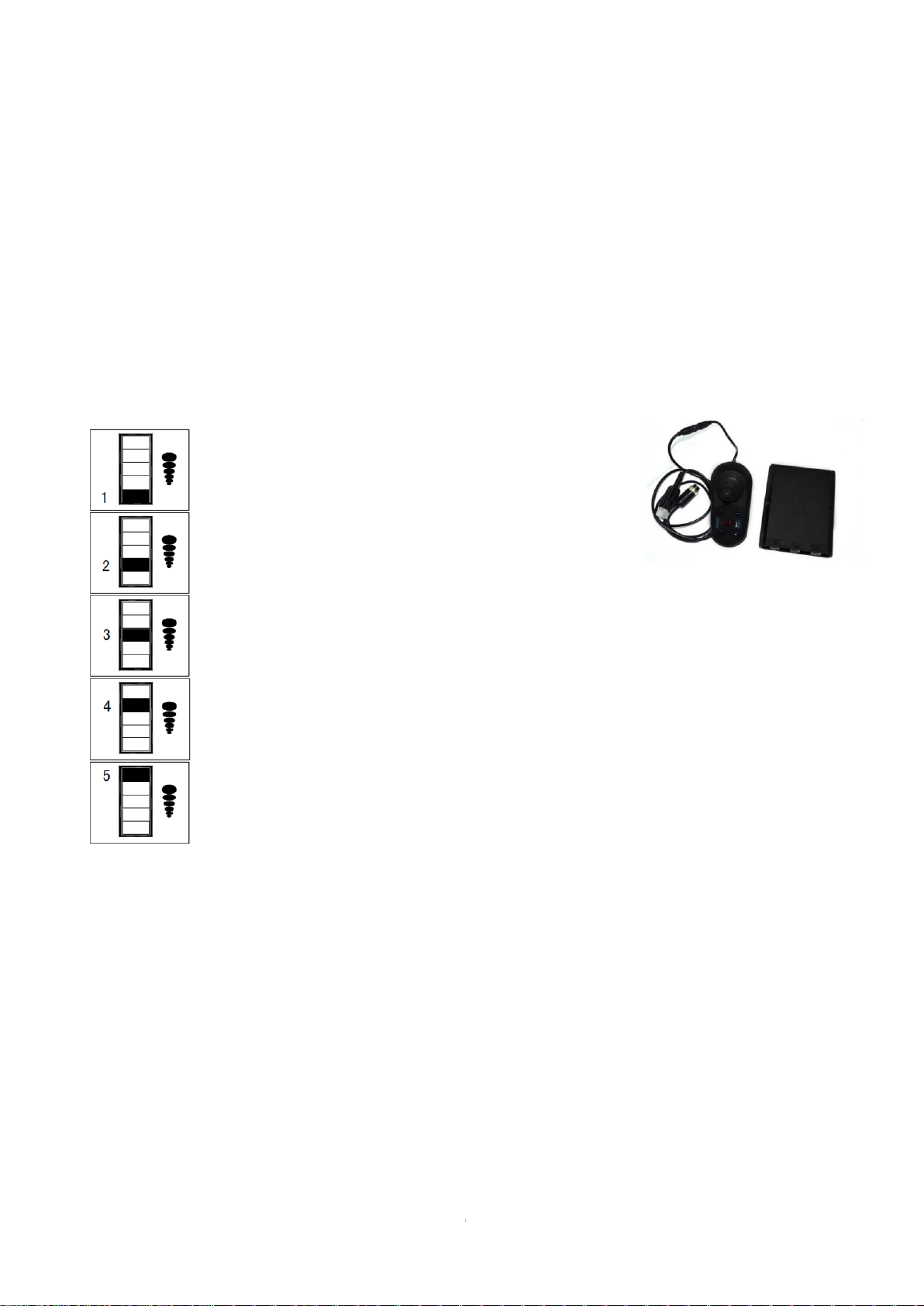

Controller
The Folding Electric Wheelchair is equipped with a joystick style controller. Detail functions as shown:
◎ Controller and Driving Tips
1. Take some time in a safe, controlled environment to learn the operation of controller, the speed and the
maneuverability of wheelchair.
2. When turning, reduce your speed, which will help you avoid any potential tilting or tipping of wheelchair.
3. Be sure to adjust the speed depending on your environment.
4. To slow down, slowly bring the joystick back toward the initial position.
5. To stop, just bring the joystick back to the initial position.
6. Use extra care when you drive the Folding Electric Wheelchair in reverse. You may lose control or fall if
one of rear wheels hits an object. When operating in reverse:
A. Operate the wheelchair slowly and at an even speed.
B. Stop often and check to make sure your path is clear of obstacles.
Basic operation
Before operating your Folding Electric Wheelchair, be sure to read all safety information and precautions
included in this manual. Operate only in the appropriate environment after you have practiced operation
the wheelchair and know how to work the controller.
GET IN
Be certain that the power is OFF before sitting in the seat of Folding Electric
Page 13
11
Wheelchair, with no light on the controller, make sure the footrest is down
before getting into the wheelchair.
POWER ON
Press the Power button, you will ear a beep and a light will indicate that power
is on.
TURING &STEERING
Use the joystick style control to steer and turn left, right or go forward and
backward.
STOPPING
Simply remove your hand from the joystick to stop.
POWER OFF
When stopping, it is advised that you power OFF the wheelchair to prevent
accidents. Press the power button to turn off the wheelchair.
GET OUT
Make sure there is no light on the controller before getting off the wheelchair.
Charging Batteries
Your Folding Electric Wheelchair will arrive with fully charged batteries, which should last about 15.5 miles
under normal operation conditions. We recommend that you run the Folding Electric Wheelchair until the
batteries are completely dead in order to get the most out of the battery life.
◎ First charging method
Charge both batteries at the same time via controller charge port.
1. Turn the power off.
2. Plug in the charger to the controller port (see below), please notice connect the charger cable first,
then turn the power on.
3. Allow your wheelchair to charge for 6-8 hours or when the light on the charger turns green, which
means your batteries are full charged.
4. Should you require them, the lights and what they ,mean are located on the back of the charger.

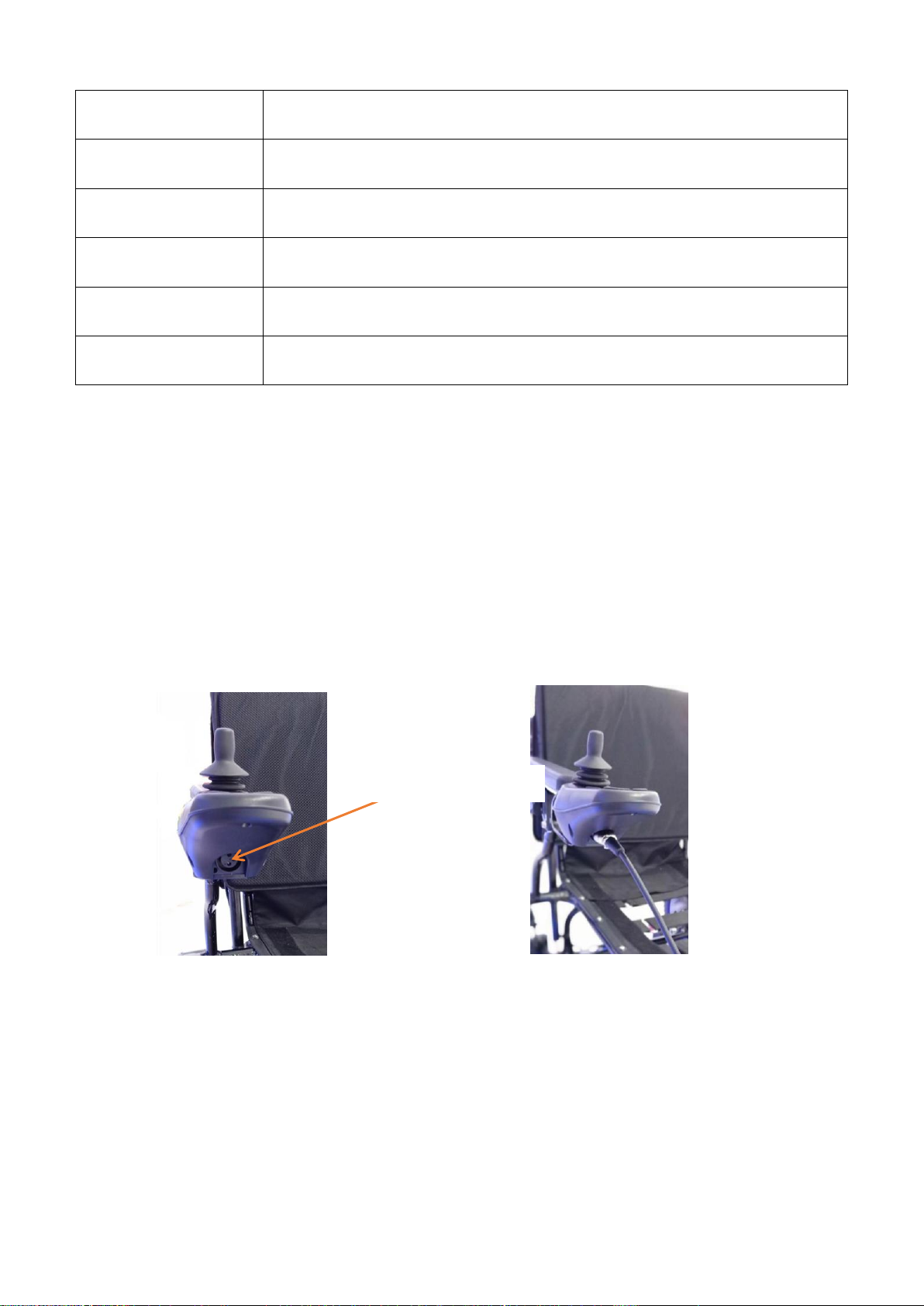

Controller Charge port
Page 14
12
◎ secondary charging method:
You have the option of charging the batteries individually.
1. Turn off the main power.
2. Flip open the charger port protector on the front of battery.
3. Use the secondary charger pigtail to adapt the battery charger to plug into the battery directly.
◎ More information on the Folding Electric Wheelchair batteries...
1. The Folding Electric Wheelchair comes with two charged 24V 6AH lithium batteries.
2. Charged the batteries for 3-4 hours for each battery.
3. Turn the main unit’s power off while charging.
4. Do not leave children unsupervised near the electric wheelchair while it is charging.
5. Do not attempt to open the battery housing.
6. Red means the power is on and the unit is charging; green means the unit is fully charged.
Note: this information is also located on the back of the charger.
7. when the battery is full charged, remove cable, then take out the DC charging connector and AC input
power socket.
8. The average time taken to re-charge workable batteries will vary from 2 to 8 hours depending on the
level of usage.

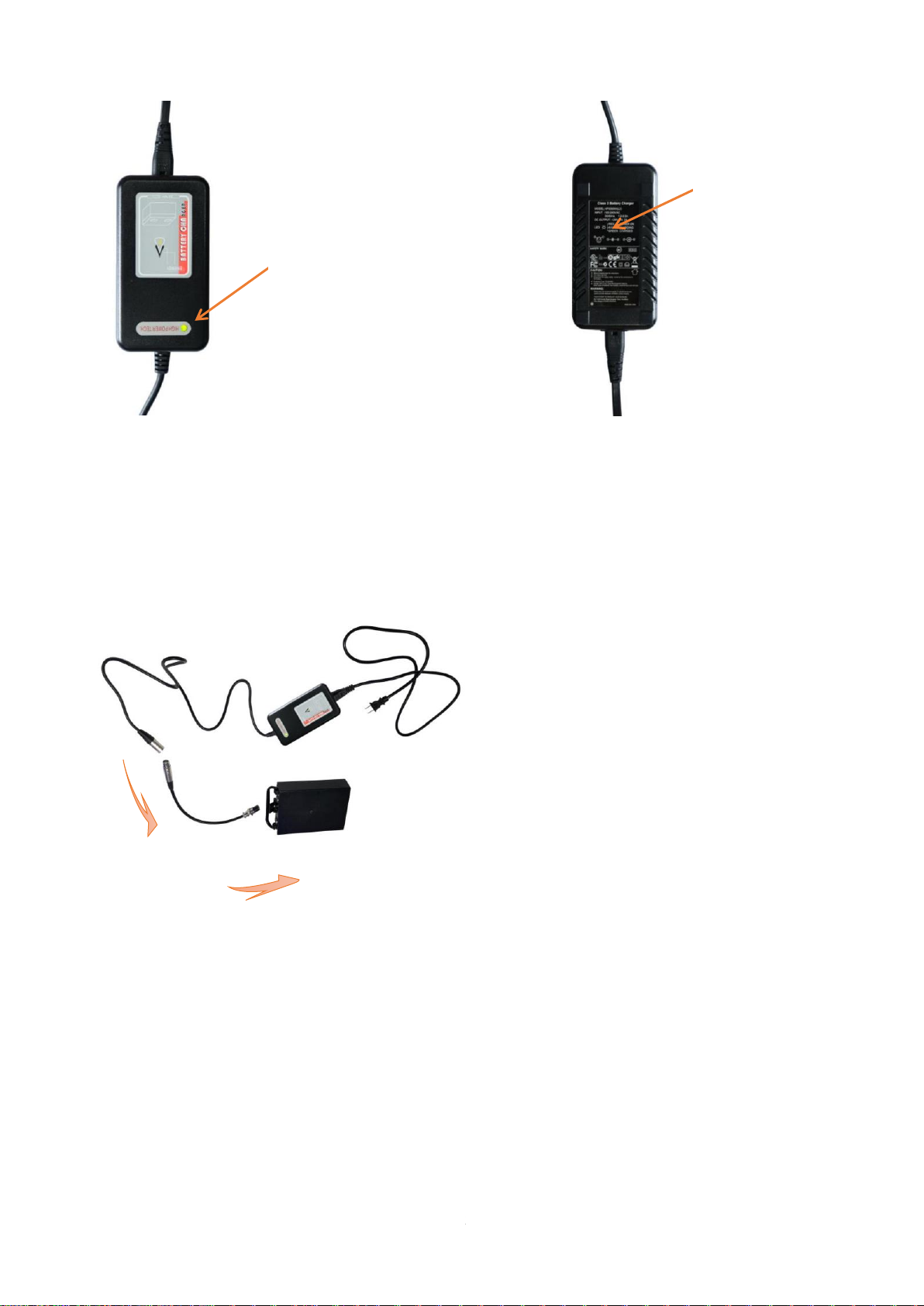

Front of charger
Charger light:
Light should come on after plugging
in the charger.
ORANGE-- battery is charging.
GREEN-- battery is full charged,
unplug from power.
Back of charger
with definition
of what the light
color mean.
Page 15
13
9. Do not charge more than 8 hours.
10. If you do not operate the Folding Electric Wheelchair for a month, we recommend that you charge the
battery for 6-8 hours before use.
11. Over current protection: this system is included on the wheelchair and will shut off the current from the
batteries if triggered, thus shutting the motor down, which will ensure that the motor and battery do not
experience and damage.
12. The life cycle of a lithium battery is measured in charging cycles with an average of 500 charge
cycles.
13. Check the battery indicator light daily if you use the Folding Electric Wheelchair frequently.
14. Do not use any battery chargers that have not been certified by supplier.
15. If damaged, do not handle the battery without protective gloves and eyewear.
16. If the battery needs to be disposed of, locate the nearest hazardous materials disposal facility, and call
them for instructions.
17. Before storing your Folding Electric Wheelchair for long periods of time, take these steps to maintain
the battery:
a. Full charge the battery before storing.
b. Remove the battery from the wheelchair.
c. Store the battery in a room temperature environment that is kept dry.
d. Avoid temperature extremes and do not allow the battery to freeze.
18. Do not attempt to charge your battery if it is frozen from extreme weather conditions, instead first allow
it to thaw for several hours.
Free Wheel Mode
In order to have a care giver push the electric wheelchair, it must be put in Free Wheel Mode. This mode
disengages the drive mechanism to the wheels, making them free to push manually. We recommend that
you turn off the power of wheelchair when in this mode, both for safety and to save battery power.
1. To put the Folding Electric Wheelchair in Free Wheel Mode, come to a full stop and turn OFF the power
on the controller.

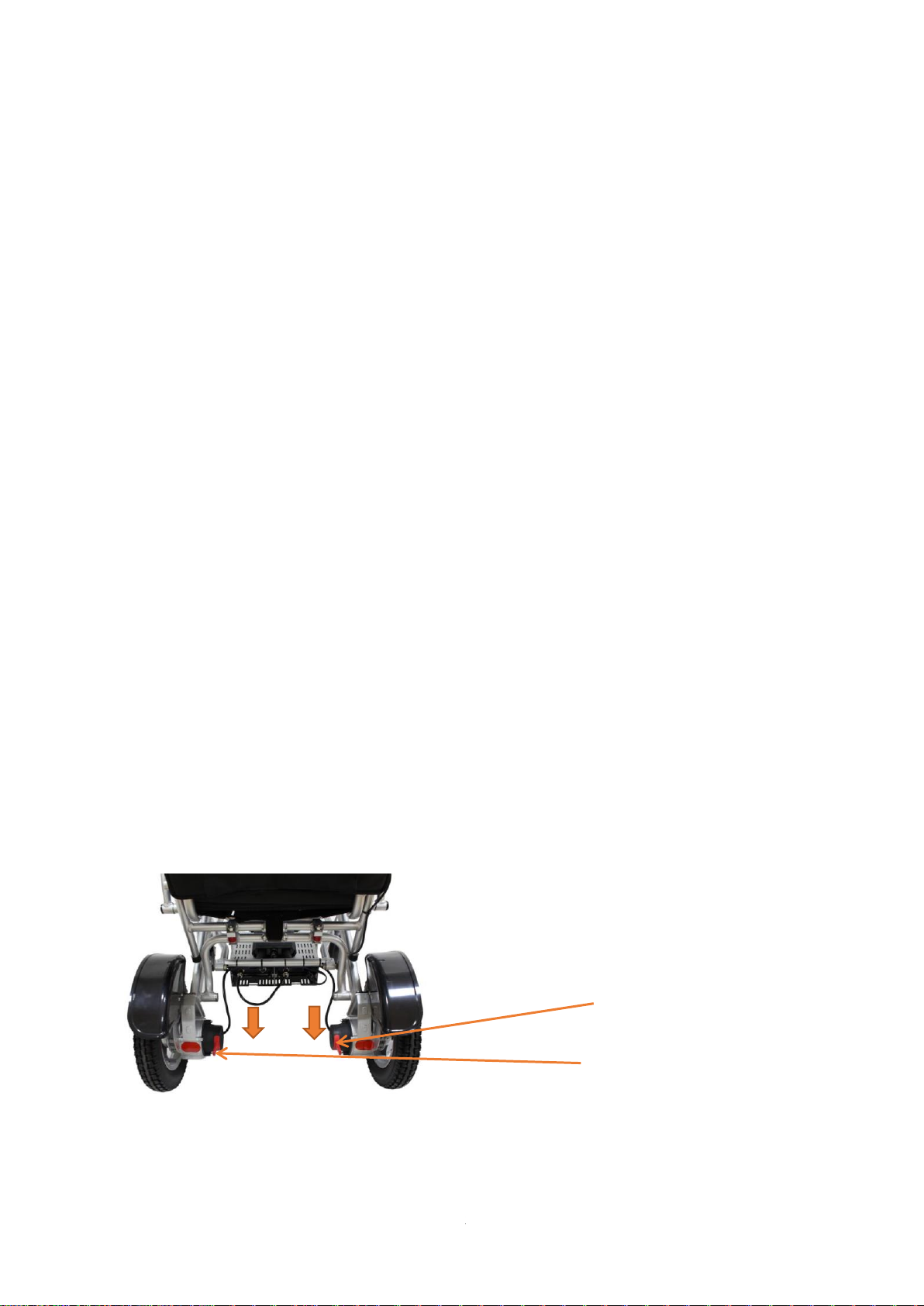

2. Push down on the two red levers located on each rear wheel as shown:
Transporting Your Folding Electric Wheelchair
Push down two red levers on
each wheel.
Page 16
14
To transport your Folding Electric Wheelchair, it is advised that you fold it up following the procedures
below.
Note: Never transport the electric wheelchair in a tie up system (electric mode), as the Folding Electric
Wheelchair is not compatible with them. Never sit in the wheelchair and be transported in moving vehicle.
Do not place the folded electric wheelchair in the front seat with driver where it could move and slide.
1. Turn OFF the power from the controller.
2. Remove seat cushion.
3. Press down the backrest and flip the back safety latch down to unlock the frame.
4. Fold the wheelchair.
5. When folded, the seat cross bar can be used to move the wheelchair easily.
Press down the backrest
Flip up to unlock frame
Seat cross bar
Page 17
15
Trouble shootings
The following represents the most common questions asked about the Folding Electric Wheelchair with
regard to every day use; check this helpful guide or the operator’s manual for more information if you
have a question about using your electric wheelchair.
Question
Possible causes
Answer
Why is there No Power to the
wheelchair?
1. Controller system power is not
connected.
2. Controller system CPU and
joystick are not connected.
3. Battery power is too low.
1. Connect the battery.
2. Ensure all connections
between joystick, CPU and
battery are securely tightened.
3. Charge the battery.
Why is the wheelchair noisy or
vibrating when turning?
1. Speed is set too low.
2. Motor is damaged.
1. Raise the speed. At low
speeds, the motor may sound or
feel strained.
2. Replace the motor.
Why can’t i charge the battery?
1. Charger light does not turn on.
2. Charger light is always green.
3. Charging time is stopped
before full charge is complete.
1. Replace the charger.
2. Battery is not connected, or
may need to be replaced.
3. Capacity of battery as
decrease over time. This is
normal.
Why can’t i connect the
controller?
1. Connector pins (male) on the
controller have become bent and
misaligned with connector holes
(female) on the CPU connector.
1. Using a small tool, carefully
straighten the connector pins
(male) on the controller to align
with holes (female) on the CPU
connector.
Page 18
16
Diagnostics
Your controller as an indicator light that, during normal operation, is a steady GREEN. This light also
functions as a diagnostic tool by flashing in patterns that indicate problems. It is important to pay attention
to these diagnostics in case the electric wheelchair must be put out of use for safety reasons until
maintenance can be performed.
If the indicator light indicates a fault, turn off the power and then turn on power again. If the fault is not
released after turning on power again, the indicator repeats this error message. Please refer to the fault
information diagnosis table to help you find possible problems and corresponding solutions.
If the above method still does not help you troubleshoot, please contact your dealer. When
communicating with the dealer, provide the specific problems in details as much as possible.
No. 1 red light flash: indicates the pressure of battery is not full.
No. 2 red light flash: indicates no signal of joystick.
No.3 red light flash: indicates the wheelchair is charging.
No. 4 red light flash: indicates moving the joystick when
turning on power. Or do not connect the motor wires.
No. 5 red light flash: indicates the brake solenoid is not
connected or damaged.
Page 19
17
Warranty
Three Year Limited Warranty
Three (3) years from the date of purchase on all structural frame components, seat post and
frame.
One Year Limited Warranty
One (1) Year from the date of purchase, if any part or electronic component of the scooter is
found upon examination to be defective in material and/or workmanship, it will be replaced at
Ewheels discretion.
Six Month Warranty
Six (6) Months from the date of purchase on the batteries and charger. Batteries are subject
to a stringent wear and tear clause. Any battery faults due to a manufacturing defect will
become obvious within the first two months of use. Any gradual deterioration in performance
after this period is normal and associated with fair wear and tear, misuse or accidental
damage and as such is not covered by the manufacturer’s warranty.
WARRANTY EXCEPTIONS AND EXCLUSIONS
Service and Labor Costs
Unless previously authorized, service calls and labor costs are NOT included or covered
under any warranty. The purchaser is responsible for the delivery to the authorized repair
facility. Satisfactory proof of purchase is always required for warranty service. Please contact
Ewheels directly for any assistance in locating a service provider or to make a warranty claim.
Consumable Items
Consumable items which may need replacing due to normal wear and tear like tires,
tubes, lights, chains, upholstery and seating, brakes and brake pads, cables, fuses, buttons,
shrouds and covers.
Damage, Accidental Damage and Misuse
Damaged caused by: battery fluid spillage or leakage, abuse, misuse, accident,
negligence, improper operation, excessive loading, maintenance, storage, acts of God,
commercial use, or use other than normal, extreme riding, modifications and alterations.
Second Hand Owners and Reselling
No warranty will be offered or honored for second hand owners. The warranty is exclusively
offered to the original purchaser.
Page 20
18
HOW TO MAKE A WARRANTY CLAIM
Initiating A Warranty Claim
To initiate a warranty claim, please contact Ewheels service department by calling
888-571-2845, or by email at “[email protected]”. Note that before any warranty
claims will be fulfilled, satisfactory proof of purchase will be required, and a photo or video of
the damaged part must be sent and reviewed by Ewheels.
Returning Faulty Parts
Do not return faulty parts to Ewheels without prior consent. A request for a return
authorization is required prior to returning items. All transportation costs and shipping
damage incurred while submitting units and/or parts for repair or replacement are the
responsibility of the original purchaser.
SHIPPING DAMAGE AND SHIPPING POLICIES
Shipping Damage
In the event shipping damage occurs, it must be reported and addressed in a timely manner.
Shipping damage claims are time sensitive and cannot be delayed. In the event the
packaging is extremely damaged and the bike is beyond repair, please refuse the shipment,
and contact Ewheels for further steps.
Shipping – Domestic
When applicable, part costs will be covered under warranty, and all warranty items will
be shipped via FedEx Ground. Shipping fees will be at the expense of the purchaser.
Shipping – International
When applicable, parts will be provided under warranty at no charge, but shipping to
any offshore and/or international location will be the responsibility of the original purchaser.
International and offshore end-users must contact Ewheels directly to initiate the warranty
process.
*Implied warranties, including those of merchantability and fitness for a particular purpose,
are limited to one (1) year from the date of the original purchase and to the extent permitted
by law. Any and all implied warranties are excluded. This is the exclusive remedy. Liabilities
for consequential damages under any and all warranties are excluded*
Loading...
