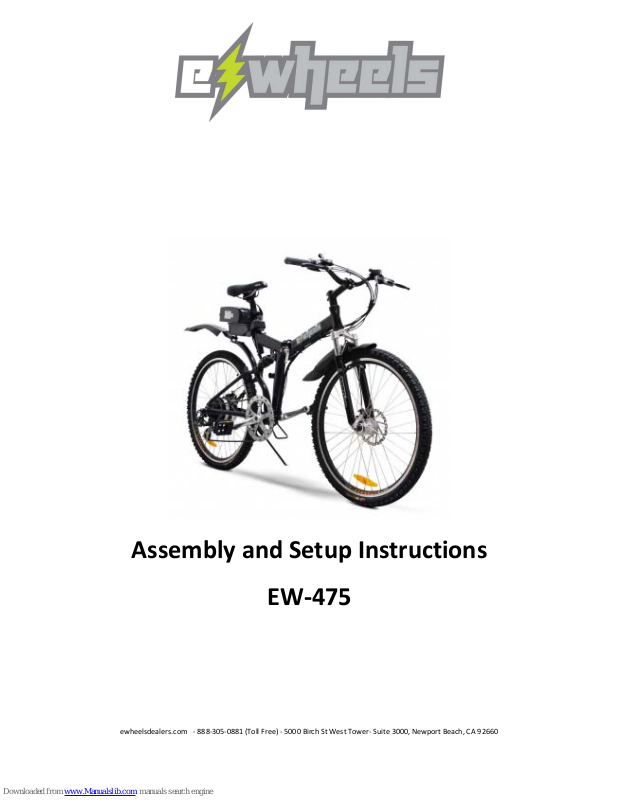

Page 1
Assembly and Setup Instructions
ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660
EW-475
Page 2
Please observe and follow these instructions closely as it will ensure safe and reliable operation.
Tools you will need to assemble the EW-475
1. Philips Screwdriver
2. 15mm wrench
3. Knife
4. Allen wrench
1. Remove the EW-475 from it’s carton. Lift the bike out of the carton, assistance will be needed. If no
assistance available start by opening the top to allow access to the inside of the carton. Use a knife to cut
each corner from the inside out (Figure A). Once all four corners are cut it will allow a 360 degree access to
your new bike eliminating the heavy lifting.
2. Place the EW-475 as shown (Figure B).
ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660
Page 3
3. After you have placed the bike make sure you have all the components in the bike as shown in Figure C.
Components included on the EW-475
A. Fender
B. Seat
C. Steering Wheel
D. Battery Pack
E. Charger
F. Tool Kit
ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660
Page 4
Handlebar Installation
Tools you will need to attach the Handlebar
- 6mm Allen Wrench
1. Insert handlebar and align steering correspondingly (Figure A).
2. Use the 6mm Allen Wrench to tighten the steering wheel until it is fully tightened (Figure A).
ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660
Page 5
Front Wheel Installation
-Prior Front Wheel installation made sure disc brake is on the correct side as shown in Figure A.
-Insert Wheel by lifting from steering wheel and secure (Figure B).
ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660
Page 6
-Remove Screw located in the middle of steering wheel fork (Figure A).
Fender Installation
-Insert the fender and secure it with screw (Figure B).
ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660
Page 7
Seat Installation
-Secure seat with clamp as shown in Figure
-Insert Seat as shown in Figure
ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660
Page 8
1. Unlock the Battery lock located at the bottom of the Battery Pack.
How to properly remove the Battery Pack
2. To unlock push down and turn key to the left. (Figure A).
3. Use Battery pack handle to remove Battery Pack.
ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660
Page 9
How to Turn the Bike on and unlock/lock Battery Pack
-Insert Key in ignition located on Battery Pack and turn to the right to turn on (Figure A).
ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660
Page 10
Charging the Battery
1. Plug Charger into Battery Pack (Figure A).
2. Leave Battery pack charge Until green light on charger appears
ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660
Page 11
How to accelerate
-Turn the throttle down to accelerate
ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660
Page 12
ewheelsdealers.com - 888-305-0881 (Toll Free) - 5000 Birch St West Tower- Suite 3000, Newport Beach, CA 92660
