Page 1

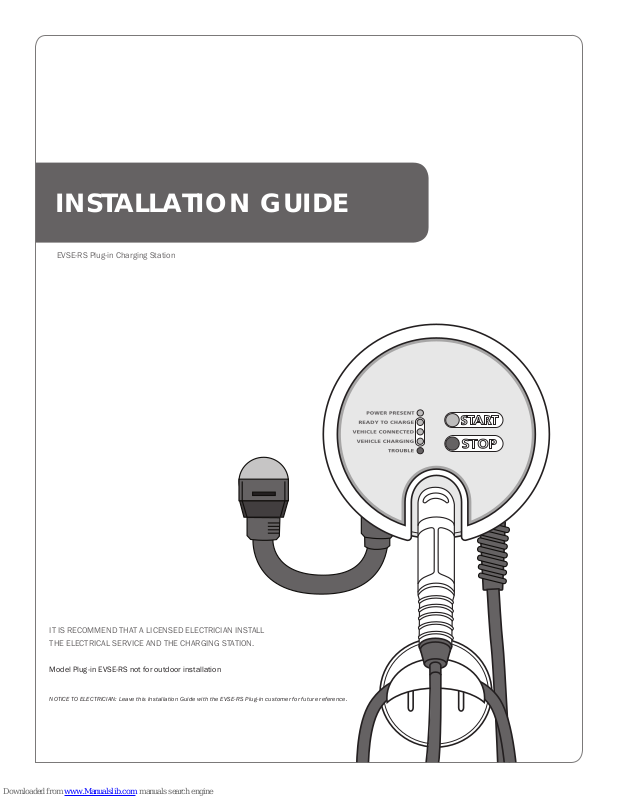

INSTALLATION GUIDE
EVSE-RS Plug-in Charging Station
IT IS RECOMMEND THAT A LICENSED ELECTRICIAN INSTALL
THE ELECTRICAL SERVICE AND THE CHARGING STATION.
Model Plug-in EVSE-RS not for outdoor installation
NOTICE TO EL ECTRICI AN: Leave t his Inst allation Guide wi th the EV SE-R S Plug- in custo mer for fu ture ref erence .
Page 2
CHARGER
MOUNTING
DRILL .234 DIA X 2.00 DEEP
INTO CENTERLINE OF STUD
A
INS TALLATION S TEPS
wall stud
21
45 in.
(114.3 cm)
to oor
45 in.
(A)
to oor

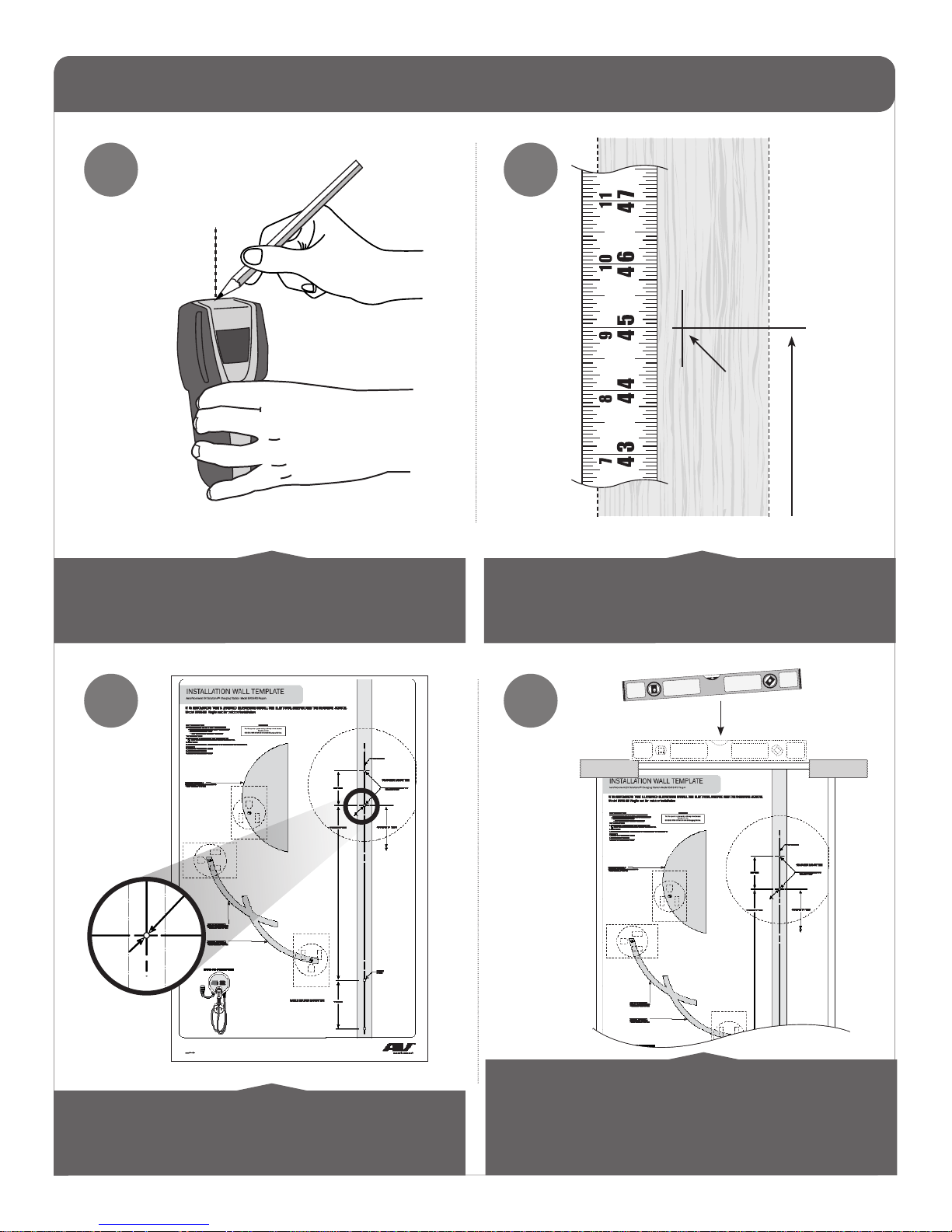

Use Stud Finder to locate wall stud.
Mark the center point of the wall stud.
3 4
Detail of template
Measure and mark a point on the wall stud 45 inches
from the oor.
Pin Installation Template to the “center point mark” (Point A).
Use Level to straighten Installation Template.
Tape Template in place.
Install a 6-50 receptacle according to the allowable locations
and orientation indicated on the Installation Template.
Page 3
5
3.345 INCHES

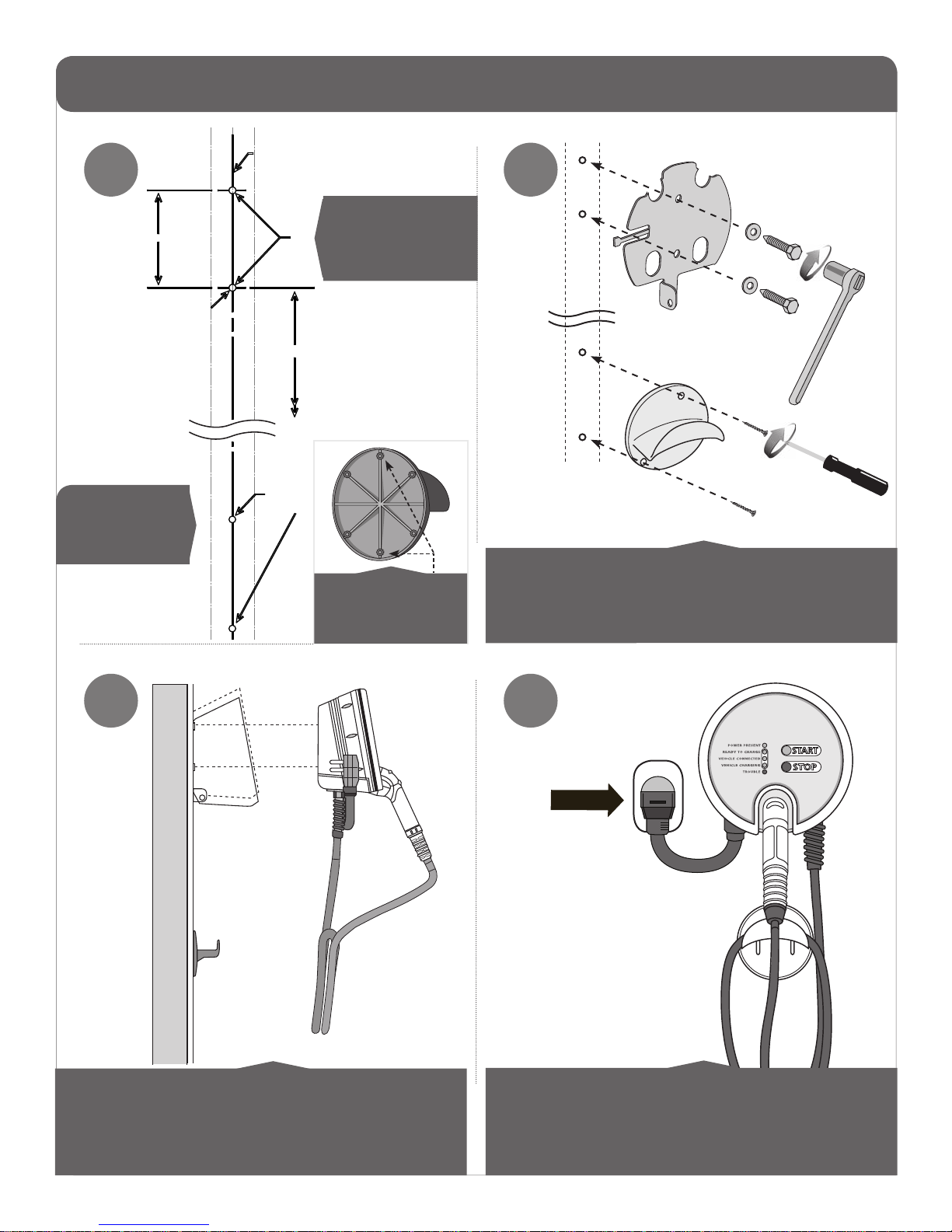

Drill holes for
Cable Hanger using
1
/8 inch drill bit in 2
places
STUD CENTERLINE
CHARGER
MOUNTING
Drill holes for Mounting
Plate using a
drill bit. in 2 places on
centerline of stud
1
/4 inch
6
A
45 INCHES TO FLOOR
Using Socket Wrench, tighten Mounting Plate lag bolts
Drill holes in Cable
Hanger using
drill bit in 2 places.
7
/
32
inch
and washers.
Using Phillips Screwdriver, tighten screws for Cable Hanger.
7 8
Postiion the station with the mounting bosses inserted into
the corresponding openings in the plate.
Slide Charging Station down onto Mounting Plate to latch
into place.
Turn off power to the Receptacle.
Plug the Charging Station into the Receptacle. Ensure that
Plug is fully inserted into the Receptacle.
Turn on power to the Receptacle.
Page 4

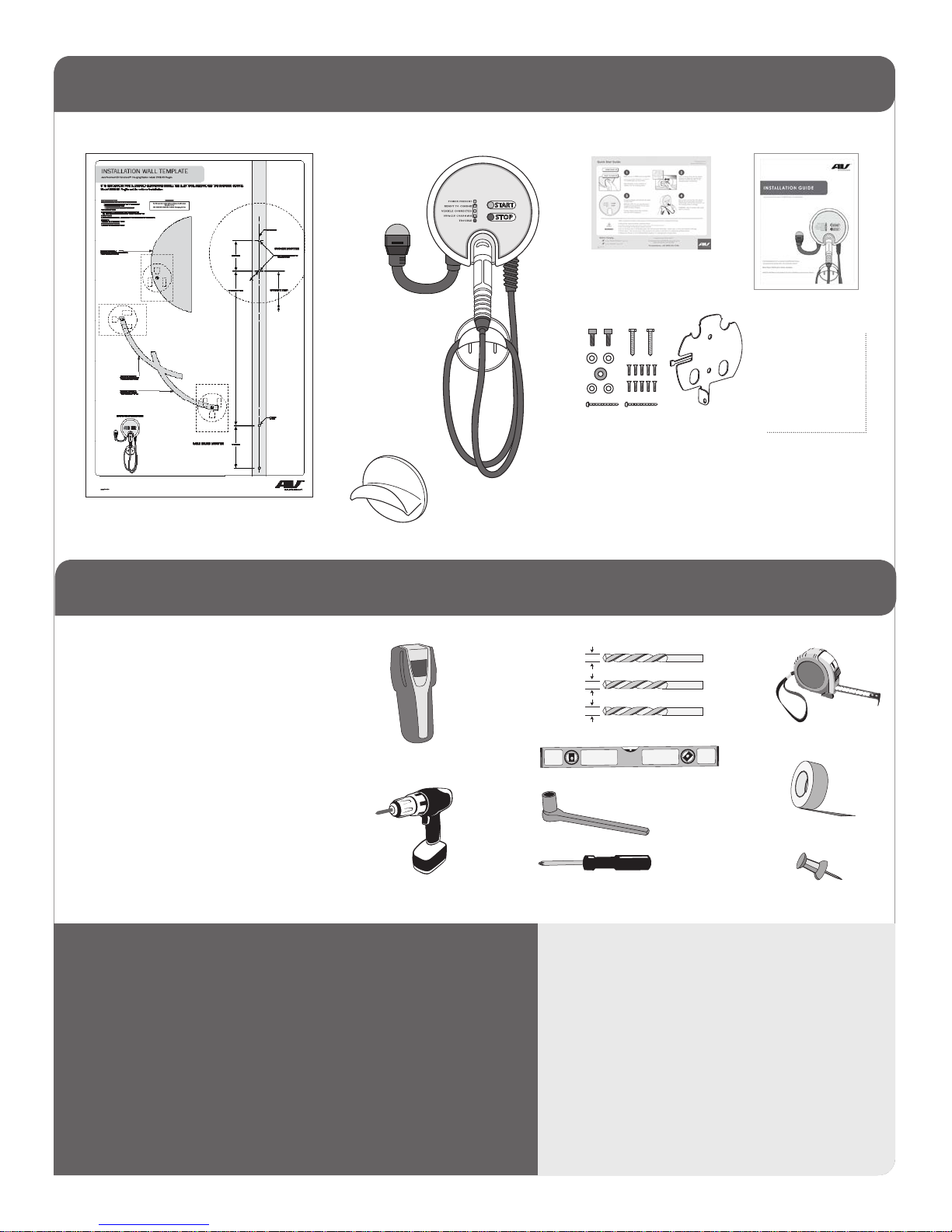

PACKAGING CONTENTS
INSTALLATION TEMPLATE
TOOLS (not included)
CHARGING STATION
CABLE HANGER
QUICK START GUIDE
INSTALLATION GUIDE
HARDWARE KIT
HARDWARE KIT CONTENTS
1 - Mounting Plate
2 - 3/8 inch x 2½ inch Lag Bolts
2 - 3/8 inch Flat Washers
2 - #8 x 2½ inch Painted Head Wood Screws
1. Electronic Stud Finder
2. Drill
1
3.
/8 inch Drill Bit
7
4.
/32 inch Drill Bit
1
5.
/4 inch Drill Bit
6. Carpenter’s Level
9
7.
/16 inch Socket Wrench
8. #2 Phillips Screwdriver
9. Measuring Tape
10. Masking Tape
11. Push pin / Tack
1
3
1
/8 in.
7
4
/32 in.
1
5
/4 in.
9
6
10
2
7
8
11
21325 -76 Rev.1
