1 -

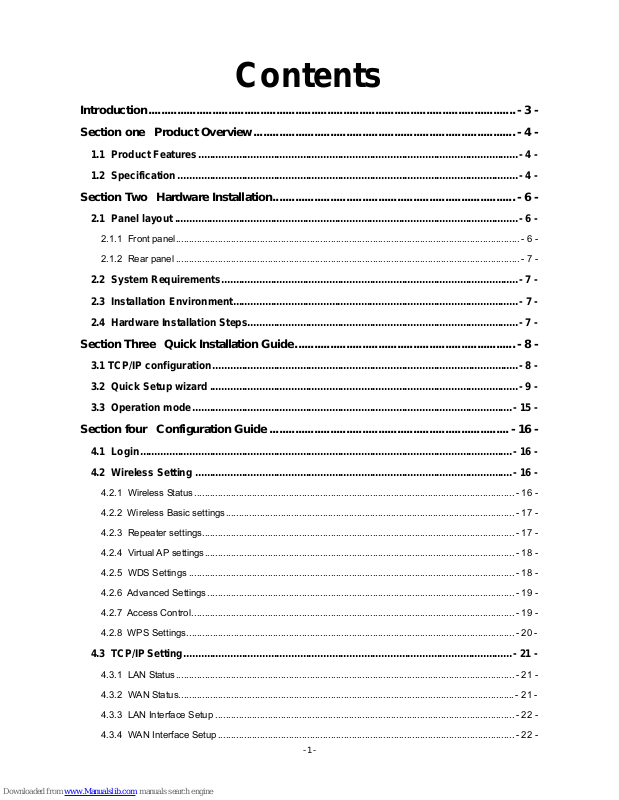

Contents
Introduction ................................................................................................................... - 3 -
Section one Product Overview .................................................................................. - 4 -
1.1 Product Features .............................................................................................................. - 4 -
1.2 Specification ..................................................................................................................... - 4 -
Section Two Hardware Installation ............................................................................ - 6 -
2.1 Panel layout ...................................................................................................................... - 6 -
2.1.1 Front panel ................................................................................................................................... - 6 -
2.1.2 Rear panel ................................................................................................................................... - 7 -
2.2 System Requirements ...................................................................................................... - 7 -
2.3 Installation Environment .................................................................................................. - 7 -
2.4 Hardware Installation Steps............................................................................................. - 7 -
Section Three Quick Installation Guide
..................................................................... - 8 -
3.1 TCP/IP configuration ......................................................................................................... - 8 -
3.2 Quick Setup wizard .......................................................................................................... - 9 -
3.3 Operation mode .............................................................................................................. - 15 -
Section four Configuration Guide ........................................................................... - 16 -
4.1 Login ................................................................................................................................ - 16 -
4.2 Wireless Setting ............................................................................................................. - 16 -
4.2.1 Wireless Status .......................................................................................................................... - 16 -
4.2.2 Wireless Basic settings .............................................................................................................. - 17 -
4.2.3 Repeater settings....................................................................................................................... - 17 -
4.2.4 Virtual AP settings ...................................................................................................................... - 18 -
4.2.5 WDS Settings ............................................................................................................................ - 18 -
4.2.6 Advanced Settings ..................................................................................................................... - 19 -
4.2.7 Access Control ........................................................................................................................... - 19 -
4.2.8 WPS Settings ............................................................................................................................. - 20 -
4.3 TCP/IP Setting ................................................................................................................. - 21 -
4.3.1 LAN Status ................................................................................................................................. - 21 -
4.3.2 WAN Status ................................................................................................................................ - 21 -
4.3.3 LAN Interface Setup .................................................................................................................. - 22 -
4.3.4 WAN Interface Setup ................................................................................................................. - 22 -
-
2 -
4.4 Firewall ............................................................................................................................ - 23 -
4.4.1 IP/Port Filtering .......................................................................................................................... - 23 -
4.4.2 MAC Filtering ............................................................................................................................. - 23 -
4.4.3 Port Forwarding ......................................................................................................................... - 24 -
4.4.4 URL Filtering .............................................................................................................................. - 25 -
4.4.5 DMZ ........................................................................................................................................... - 25 -
4.5 Management ................................................................................................................... - 26 -
4.5.1 QOS ........................................................................................................................................... - 26 -
4.5.2 DDNS Setting ............................................................................................................................. - 26 -
4.5.3 Time Zone Setting...................................................................................................................... - 27 -
4.5.4 Denial of Service ........................................................................................................................ - 28 -
4.5.5 Log ............................................................................................................................................. - 28 -
4.5.6 Upgrade Firmware ..................................................................................................................... - 29 -
4.5.7 Save/Reload settings ................................................................................................................. - 29 -
4.5.8 Password setup ......................................................................................................................... - 29 -
-
3 -
IInnttrroodduuccttiioonn
WR353ND router is a
hybrid
design product which combines Ethernet technology and wireless
access into a single stand-alone unit. The device allows you to take advantages of both mobility
and fast connection. All PCs whenever on wireless LAN or Ethernet LAN can share files, printers
and o
ther network resources. Moreover, all users can share single account of Internet access by
having this device connect to a DSL/Cable modem.
It complies with IEEE 802.11n (Draft 2.0) standards, supports up to 150Mbps (1Tx-1Rx) wireless
connection speed, adopting MIMO technology to ensure a good performance, stability and
coverage to bring you an enjoyable new experience. It's wireless data transmission rate can be 3
times better and coverage 4 times better than a normal 802.11g/b router. It is a high performance
and cost-effective solution for Home and Small office.
The router provides multiple security protection, which can protect the wireless access security
effectively. It is easy to install and configure with user friendly interface. For better application of the
router functions, please read this user manual carefully.
Package List
Open the box carefully, check the contents listed below:
Wireless Broadband Router
Power adapter
User Manual
UTP Lan Cable
2x 5dBi antenna
CD
NNoottee::
IIff aannyy ooff tthhee lliisstteedd ccoonntteennttss aarree ddaammaaggeedd oorr mmiissssiin
ngg,, pplleeaassee ccoonnttaacctt tthhee
rreettaaiilleerr ffrroomm wwhhoomm yyoouu ppuurrcchhaasseedd tthhee WWiirreelleessss RRoouutte
err ffoorr aassssiissttaannccee
TThhaannkk yyoouu ffoorr ppuurrcchhaassiinngg tthhee 1111NN WWiirreelleessss BBrrooaaddbbaannd
d RRoouutteerr.. TThhiiss uusseerr gguuiiddee
wwiillll aassssiisstt yyoouu wwiitthh tthhee
iinnssttaallllaattiioonn pprroocceedduurree..
-
4 -
SSeeccttiioonn oonnee PPrroodduucctt OOvveerrvviieeww
1.1 Product Features
Complies with IEEE 802.11n, 802.11g, 802.11b standard for 2.4GHz Wireless LAN
1 10/100M WAN RJ45 port, 4 10/100M LAN RJ45 ports
Supports Auto MDI/MDIX
Supports Wireless Roaming, can move among different AP and no break
Provides 64/128 bit WEP, WPA and WPA2 authentication and TKIP/AES encryption security
Supports wireless Relay/Bridging/WDS/WDS+AP mode, WPS Settings .
Provides wireless LAN ACL (Access Control List) filtering
Built-in NAT and DHCP server supporting dynamic IP address distributing
Supports Virtual Server, Special Application, and DMZ host
Built-in firewall supporting IP address filtering, Domain Name filtering, and MAC address
filtering
Supports TCP/IP, PPPoE, DHCP, ICMP, NAT
Supports UPnP, Dynamic DNS, Static Routing,
Supports Flow Statistics
Firmware upgrade, and configuration file backup and restore
Supports Remote and Web management
1.2 Specification
Standard
IEEE802.11n current draft、IEEE 802.11g、IEEE 802.11b
IEEE 802.3、IEEE 802.3u、IEEE 802.3x
Protocol
CSMA/CA、CSMA/CD、TCP/IP、ICMP、NAT、PPPoE、 DHCP、PPTP、UDP、
NAT、DNS、DDNS、VPN
Port LAN 4*100BaseTX (Auto MDI/MDIX)
Port WAN 1*100BaseTX (Auto MDI/MDIX)
RF Frequency 2.4~2.4835GHz
Data Rate
11n: 150/135/121.5/108/81/54/40.5/27/13.5Mbps
130/117/104/78/52/39/26/13Mbps
72/65/58.5/52/39/26/19.5/13/6.5Mbps
11g: 54/48/36/24/18/12/9/6Mbps
11b: 11/5.5/2/1Mbps
Receive
Sensitivity
135M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Channels
1-11 (North America)
1-13 (General Europe)
1-14 (Japan)
Transmission
Technology
BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)
Antenna Type
2*2.4GHz Dipole Antenna（1TX*1RX）
Operation Mode
Standard Access Point; Wireless WAN mode (Client Mode Wireless),
WDS，WPS
-
5 -
Wireless Security
SSID Enable/Disable; MAC Address, IP and URL Filter；64/128/152-bit
WEP Encryption
WPA/WPA2/WPA-PSK/WPA2-PSK (AES/TKIP) Encryption
RF power
11g:14-16dbm
11b:17-19dbm
11n:13-15dbm
Chipset RTL8196BU+8191RE
LED 1*Power, 1*CPU Status,1*Wireless, 1*WAN, 4*LAN
Management Local/Remote Web-based configuration
Operating
Temperature
0 ~ 55°C
Storage
-20 ~ 65°C
Humidity 5 ~ 95% non-condensing
External Power
Adapter
Input 100V~240V
Output DC5V 1A;
-
6 -
SSeeccttiioonn TTwwoo HHaarrddwwaarree IInnssttaallllaattiioonn
2.1 Panel layout
2.1.1 Front panel
The front panel of the 11N Wireless Router consists of several LED indicators, which is designed to
indicate connections.
LED indicators:
Led Name Action Description
Power
off no power
on power on
CPU
off the router has a hardware error
flashing the router is working properly
WLAN
off wireless function is disabled
flashing wireless function is enabled
WAN /LAN1 、
2、3、4
off there is no device connected to the corresponding port
on there is a device connected to the corresponding port
flashing there is an active device connected to the corresponding port
-
7 -
2.1.2 Rear panel
2.2 System Requirements
Broadband Internet Access Service (DSL/Cable/Ethernet)
One DSL/Cable modem that has an RJ45 connector (you do not need it if you connect the
router to Ethernet)
Each PC on the LAN needs a working Ethernet Adapter and an Ethernet cable with RJ45
connectors
TCP/IP protocol must be installed on each PC
Web browser, such as Microsoft IE 5.0 or later, Netscape Navigator 6.0 or later
2.3 Installation Environment
Not in direct sunlight or near a heater or heating vent
Not cluttered or crowded. There should be at least 2 inches (5cm) of clear space on all sides
of the router
Well ventilated (especially if it is in a closet)
Operating temperature: 0~40
Operating Humidity: 5%~90%RH, Non-condensing
2.4 Hardware Installation Steps
Before you install the router, you should connect your PC to the Internet through your broadband
service successfully. If there is any problem, please contact your ISP. After that, please install the
router according to the following steps. Don't forget to pull out the power plug and keep your hands
dry.
Power off your PC(s), Cable/DSL modem, and the router.
Locate an optimum location for the router. The best place is usually near the center of the
area in which your PC(s) will wirelessly connect. The place must accord with the Installation
Environment Requirements.
Adjust the direction of the antenna. Normally, upright is a good direction.
Connect the PC(s) and each Switch/Hub on your LAN to the LAN Ports on the router.
Connect the DSL/Cable Modem to the WAN port on the router.
Connect the AC power adapter to the AC power socket on the router, and the other end into
an electrical outlet. The router will start to work automatically.
Power on your PC(s) and Cable/DSL modem.
-
8 -
SSeeccttiioonn TThhrreeee QQuuiicckk IInnssttaallllaattiioonn GGuuiiddee
After connecting the 11N Wireless Router into your network, you should configure it. This chapter
describes how to configure the basic functions of your 11N Wireless Router. These procedures
only take you a few minutes. You can access the Internet via the router immediately after
successfully configured.
3.1 TCP/IP configuration
The default IP address of the Wireless Router is 192.168.1.1, and the default Subnet Mask is
255.255.255.0. These values can be seen from the LAN. They can be changed as you desire, as
an example we use the default values for description in this guide.
Connect the local PC to the LAN ports on the router. There are then two means to configure the IP
address for your PC.
Configure the IP address manually
1. Set up the TCP/IP Protocol for your PC(s).
2. Configure the network parameters. The IP address is 192.168.1.xxx ("xxx" is from 2 to 254),
Subnet Mask is 255.255.255.0, and Gateway is 192.168.1.1(The router's default IP address)
Obtain an IP address automatically
1. Set up the TCP/IP Protocol in "Obtain an IP address automatically" mode on your PC(s)
2. Power off the router and PC(s). Then turn on the router, and restart the PC(s). The built-in
DHCP server will assign IP addresses for the PC(s).
-
9 -
Now, you can run the Ping command in the command prompt to verify the network
connection between your PC(s) and the router.
Open a command prompt, and type ping 192.168.1.1, then press Enter.
If the result displayed is similar to that shown in the top of figure, the connection between your PC
and the router has been established.
If the result displayed is similar to that shown in the top of figure, it means that your PC has not
connected to the router. Please check it following these steps:
1. Is the connection between your PC and the router correct?
2. Is the TCP/IP configuration for your PC correct?
3.2 Quick Setup wizard
With a Web-based (Internet Explorer or Netscape® Navigator) utility, the 11N 150bps Wireless
Router is easy to configure and manage. The Web-based utility can be used on any Windows,
Macintosh or UNIX OS with a web browser.
Connect to the router by typing http://192.168.1.1 in the address field of web browser.
After a moment, a login window will appear similar to that shown in Figure. Enter admin for the
User Name and Password, both in lower case letters. Then click the OK button or press the
Enter key.
NNoottiiccee:
:
If the router's IP address is 192.168.1.1, your PC's IP address must be within
the range of 192.168.1.2 ~ 192.168.1.254, the gateway must be
192.168.1.1
NNoottiiccee:
:
TThhee 11//22//33//44 LLEEDDss ooff LLAANN ppoorrtt oonn tthhee rroouutteerr aanndd LLEEDDs
s oonn yyoouurr PPCC''ss aaddaapptteerr
sshhoouulldd bbee lliitt
Loading...
