Page 1

ww.evolvedsonic.com

(888) 814-4440

User’s Manual

ES2 STREAM 2 SYSTEM

Page 2

Safety Overview

The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufcient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance

WARNING:

TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO

NOT EXPOSE THE APPARATUS TO RAIN OR MOISTURE

CAUTION:

TO REDUCE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PART INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and, (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

— Reorient or relocate the receiving antenna.

— Increase the separation between the equipment and receiver.

— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

— Consult the dealer or an experienced radio/TV technician for help.

Contents

SAFETY & WARNINGS 3 Safety Overview

3 Warnings & Caution 4 Important Safety Instructions

SYSTEM FUNCTIONS 6 System Function Description

6 Features

ES2 PACKAGING CONTENTS 7 Components

ES2 TRANSMITTER BASIC SETUP 8 Transmitter Set-Up Diagram

ES2 AMPLIFIER BASIC SETUP 9 Amplier Set-up Diagram

ES2 AMPLIFIER BI-AMP SETUP 10 Bi-Amplier Set-up Diagram

INITIAL POWER UP & LINKING 11 Powering and Linking Diagram

OPERATION 12 Basic and Advance Functions

PROGRAMMING 13 Programming Diagram

OPERATIONAL CONFIGURATION 14 Safety Overview

14 Hi-Fi Mono Block 14 Commercial/Distributed 14 Multi-Zone 14 Creating Multi-Zones 14 Warnings & Caution

TROUBLESHOOTING 15 No Wireless Connection

15 Wireless Connection, No Sound

2 3

Page 3

14. Object and Liquid Entry – Never push objects of any kind into the apparatus through openings as they may touch dangerous voltage points or short-out parts that could result in a re or electric shock. The apparatus shall not be exposed to dripping or splashing and no objects lled with liquids, such as vases shall be placed on the apparatus. Don’t put candles or other burning objects on top of this unit.

15. Batteries – Always consider the environmental issues and follow local regulations when disposing of batteries.

16. If you install the apparatus in a built-in installation, such as bookcase or rack, ensure that there is adequate ventilation. Leave 20 cm (8”) of free space at the top and sides and 10 cm (4”) away from the rear panel or wall, creating a ue like gap for warm air to escape.

17. This device has no mains switch. To disconnect this device from mains supply, the power cord must be disconnected.

18. Only use the enclosed A/C regulator.

Safety Instructions

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat.

9. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

10. Only use attachments/accessories specied by the manufacturer.

11. Unplug this apparatus during lightning storms or when unused for long periods of time.

12. Refer all servicing to qualied personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

13. Damage Requiring service; Unplug the apparatus from the wall outlet and refer servicing to qualied service personnel under the following conditions:

a. When the power-supply cord or plug is damaged,

b. If liquid has been spilled, or objects have fallen into the apparatus,

c. If the apparatus has been exposed to rain or water,

d. If the apparatus does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualied technician to restore the apparatus to its normal operation,

e. If the apparatus has been dropped or damaged in any way, and

f. When the apparatus exhibits a distinct change in performance; this indicates a need for service.

4 5

Page 4

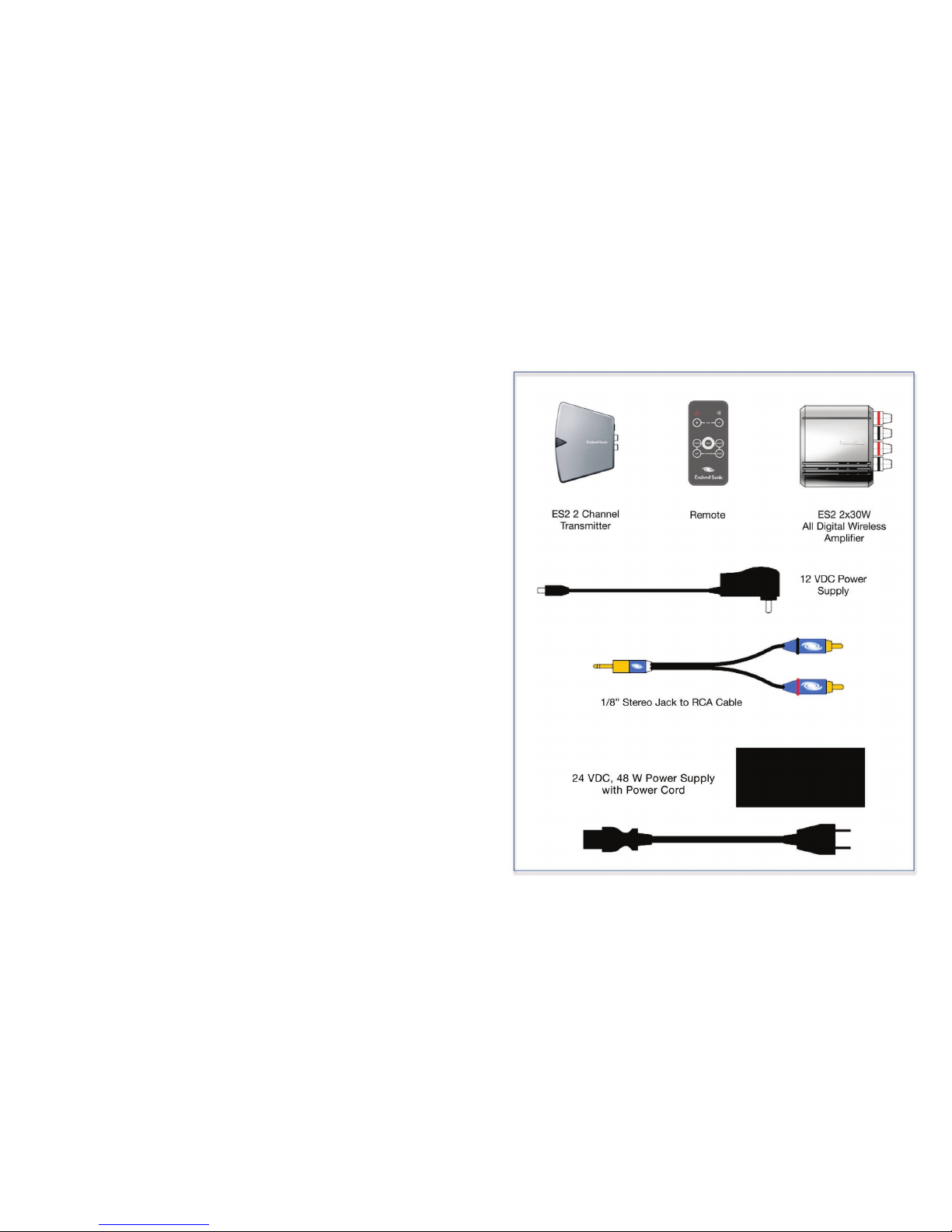

Packing Contents

System Function

System Function Description

The ES2 Stream 2 system is designed to wirelessly transmit audio source signal from one location to a dedicated wireless audio amplier. The audio amplier is then connected to any general purpose loudspeaker.

The ES2 Stream 2 Transmitter is a high performance device that converts the incoming analog line level signal to a digital format that is then broadcast over the 2.4 GHz spectrum. The radio frequency broadcast is digital, uncompressed, CD quality data. The broadcast signal is uniquely formatted so that any ES2 Stream 2 Receiver can receive and convert into useful audio output.

The ES2 Stream 2 All Digital Wireless™ (ADW) Amplier is an integrated ES2 Stream 2 Receiver and All Digital Amplier™ system that is designed to link to the ES2 Stream 2 Transmitter, receive the digital audio broadcast and convert it to a signal that drives a local speaker.

The ES2 ADW Amplier is readily congured to drive a pair of speakers in Stereo mode - Left and Right, or in a Bi-Amp mode - both output channels are congured Left and Left, or Right and Right and in Mono mode - both output channels are summed for Mono and Mono output.

Both the ES2 Transmitter and ADW Amplier are equipped to operate with 3 different Housecodes. Each Housecode is a unique formatting of the broadcast digital data so that components operating and linked on one Housecode will not receive or interfere with other ES2 components operating on a different Housecode.

The multiple Housecodes permits operation of up to three different zones within the same RF broadcast area.

FEATURES

• Lossless, Uncompressed, CD quality streaming audio network, sample rate 48 kHz.

• Dedicated 2.4 GHz streaming audio network, not interfered with by WiFi networks or other 2.4 GHz devices such as cordless phones and microwaves.

• Simple to set-up, plug and play

• No time delay or data drops

• Unlimited linking of ES2 Stream 2 ADW Ampliers to each ES2 Transmitter

6 7

Page 5

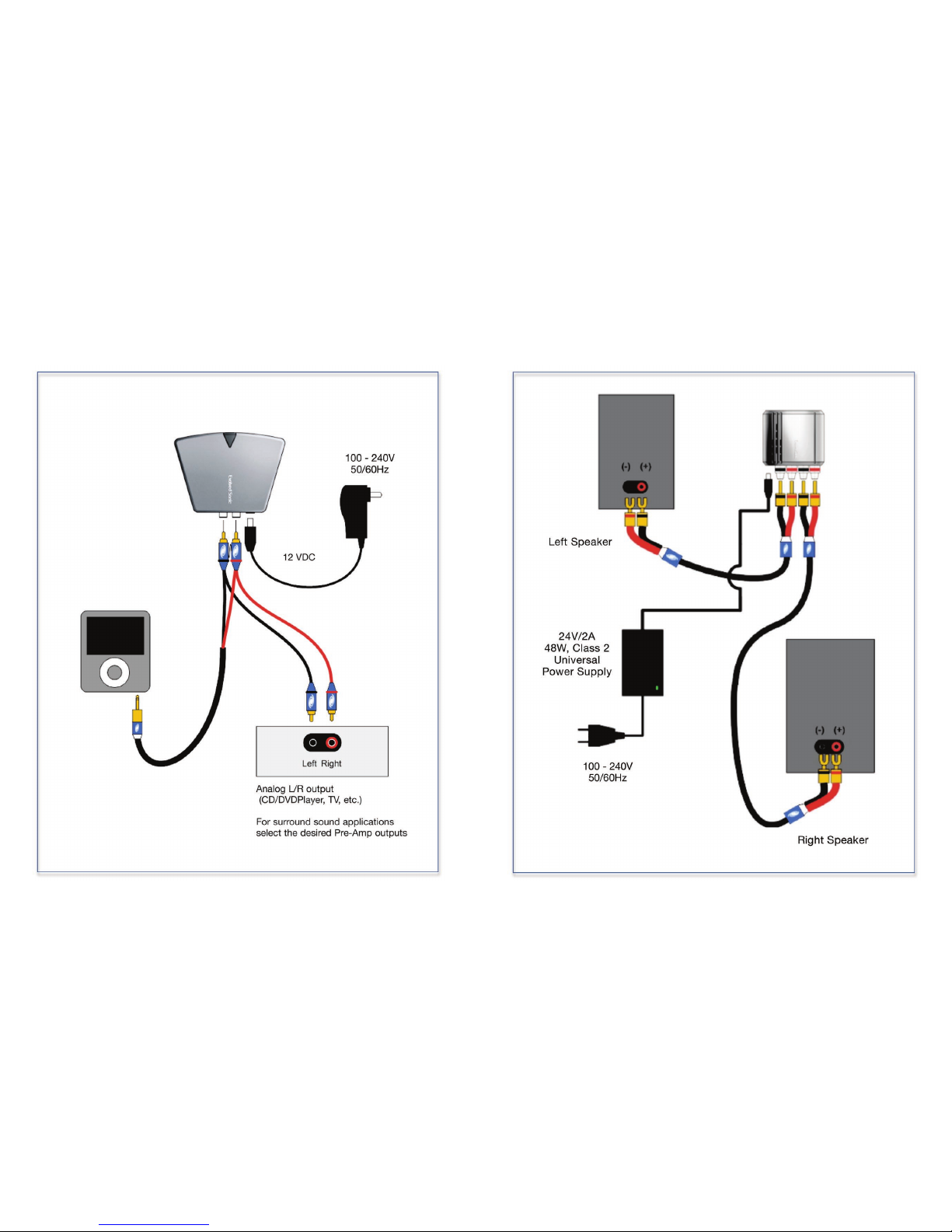

CongurationTransmitter Basic Set-up

8 9

Page 6

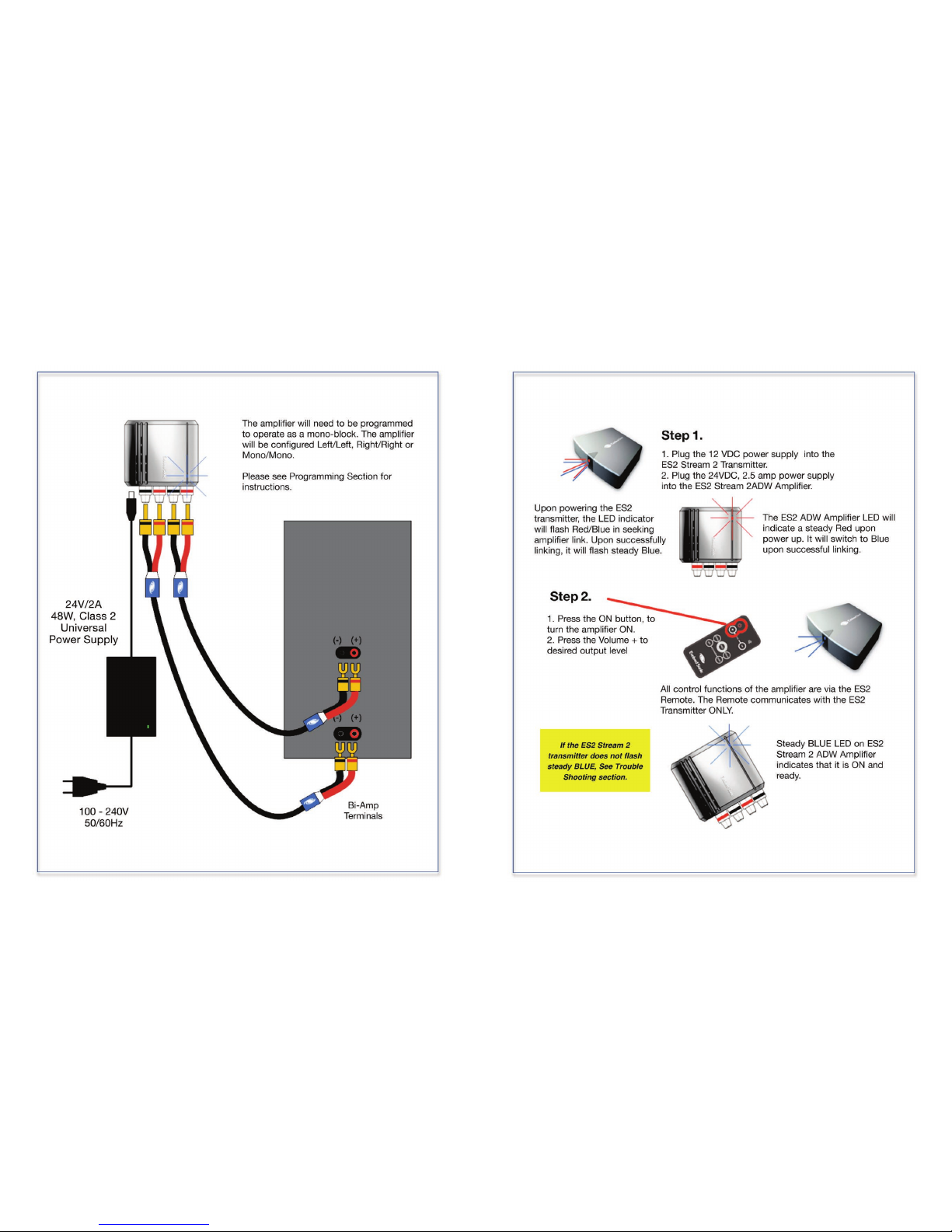

Initial Power Up & LinkingBi-Amp Conguration

10 11

Page 7

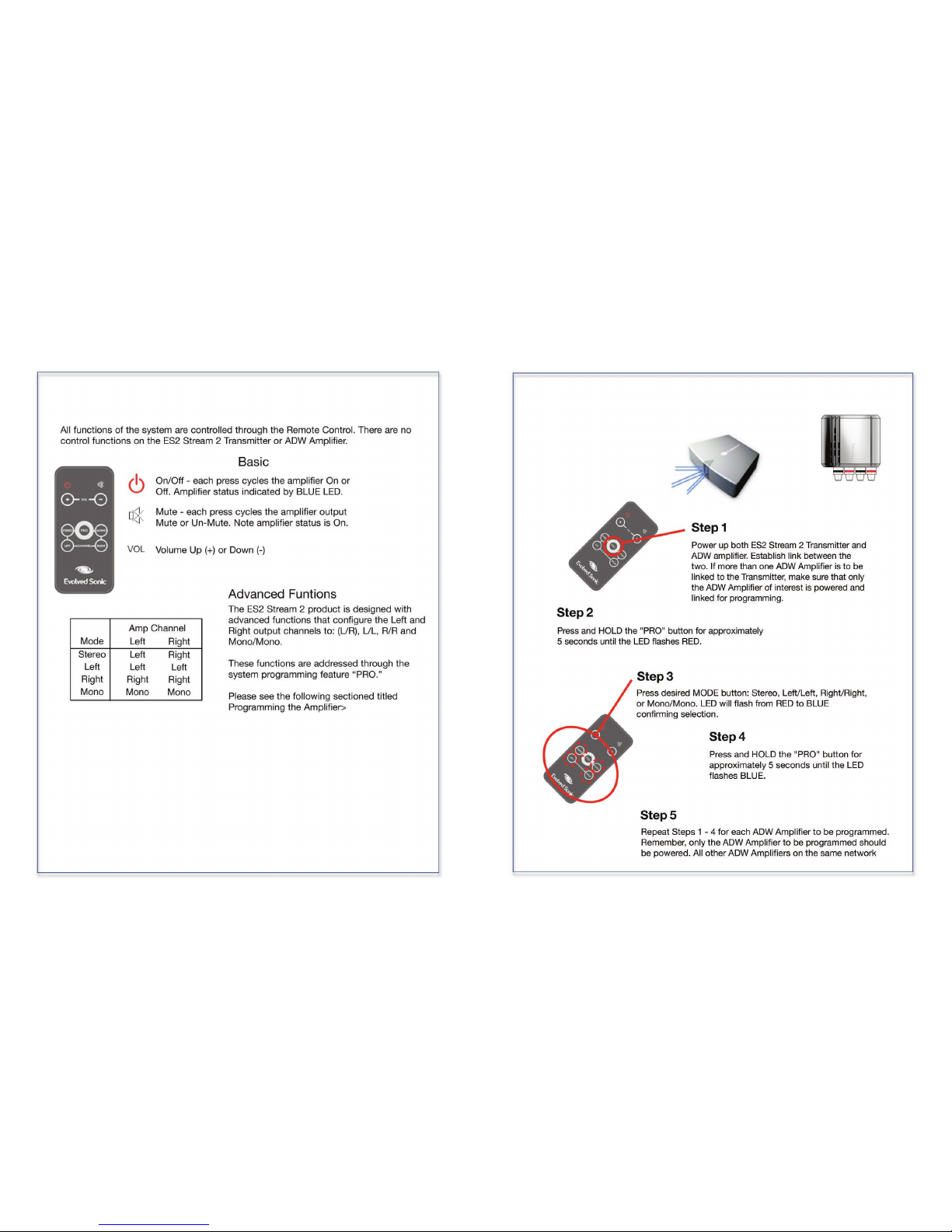

Programming ES2 Stream 2ES2 Stream 2 Operation

12 13

Page 8

Troubleshooting

No wireless connection

1. Make sure both the transmitter and amplier are operating on the same house code.

2. Make sure receiver is within the broadcast range of the transmitter.

Wireless Connection, but no sound

1. Make sure the audio source is properly connected, analog line level L/R (1 Vrms max)

2. Verify Transmitter and Amplier are operating on the same House Code.

Evolved Sonic Solutions LLC

Corporate Address: P.O. Box 310162 New Braunfels, Texas 78131 USA T: +1 (888) 814-4440 evolvedsonic.com

All Copyrights and Trademarks are the property of their respective owners. Evolved Sonic Solutions LLC does not make or imply any connection or endorsement from any third parties.

Operational Congurations

Stereo - Basic Set-up, connect to appropriate line level analog source.

Hi-Fi Mono Block

Use 1 ES2 ADW amplier on each monitor, see Bi-Amp set-up instruction. Program the Left monitor amplier to operate in the “LEFT” mode, see Programming section. Program the Right monitor amplier to operate in the “RIGHT” mode.

Wireless link Surround Back Channels of Home Theater System - Connect ES2 Stream 2 Transmitter to the Pre-Amp output for the Surround L/R. A second Transmitter can be connected to the Surround Rear L/R channels as well by using a different Housecode on the Transmitter and Amplier, See Multi-Zone Set-Up section.

Commercial/Distributed

Connect the ES2 Stream 2 Transmitter to the desired analog line level source. Program each ES2 ADW Amplier to operate in the MONO/MONO mode. This will enable a fully expandable sound system to operate within range of the Transmitter.

Multi Zone

The ES2 Stream 2 system permits up to 3 unique zones within a common RF coverage area, see Creating Multiple Zones section.

Creating Multiple Zones

ES2 Stream 2 System is capable of supporting three independent audio networks within a common broadcast zone. Thus three different audio sources can be utilized in the same common area. The Stream 2 ADW Ampliers can be selected to link with any of the three sources.

The default setting is both the Stream 2 Transmitter and ADW Amplier is in House Code 1. Changing the House Code is accomplished through the “LINK” button located on the bottom of the ES2 Transmitter and ADW Amplier. Pressing the “LINK” button sequentially steps the House Code with each press:

HINT:

If setting up single transmitter, amplier pair, establish power on link. Then step the house codes on both the transmitter and amplier, re-establishing the link with each press.

If setting up single transmitter to multiple ampliers, step the transmitter to the desired house code. then step each amplier until it has established a link with transmitter.

14 15
