SAFETY INFORMATION
YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY
IMPORTANT. PLEASE READ AND OBEY ALL SAFETY MESSAGES.
Your safety and the safety of others are very important. We have provided important safety information
in this manual. Always read and obey all safety messages.
It is the responsibility of the owner and operator of the EVOLV. Sidekick to comply with all appropriate
safety and health laws, as well as other applicable national, state and local laws and ordinances when operating and maintaining EVOLV. Equipment. EVOLV. products are to be operated only by those who have
been professionally trained.
Read all safety information provided before use of the EVOLV. Sidekick.
1. Carefully read this manual and follow all instructions given hereof.
2. Heed all warnings laid out in this manual, as well as, all warnings located on the unit.
3. Do not modify the Sidekick plug. Always plug the power cord into a properly configured grounded
outlet only.
4. If the provided plug does not fit into your outlet, consult an electrician for replacement of the outlet.
5. Units are available in 115 Volt, 10 AMP and 230 Volt, 5 AMP configurations. Never use a 115 Volt spray
gun with a 230 Volt base unit and vice versa.
6. Never disconnect the plug by pulling on the cord. To disconnect from the outlet, grasp the plug
not the cord.
7. Close supervision is necessary when this product is used by, on, or near children or invalids.
8. Do not immerse EVOLV. equipment in liquids. Do not operate the spray gun if it is wet or leaking.
9. Use this product only as intended per the instructions in this manual. Refrain from use
of attachments or solutions not recommended by Sunless, Inc.
10. It is recommended that the EVOLV. Sidekick be used on a dedicated 110V/15AMP or 230V/8AMP
circuit; that is, a single outlet circuit which powers only the Sidekick and has no additional outlets
or branch circuits. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall
outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric shock or fire. Periodically examine the cord of the
EVOLV. Sidekick, and if its appearance indicates damage or deterioration, unplug it, and discontinue
use of the Sidekick. Please contact EVOLV. Technical Support at (877) 668-8826 for an exact
replacement. Protect the power cord from physical or mechanical abuse, such as being twisted,
kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets,
and the point where the cord exits the Sidekick.
DANGER!!: To reduce the risk of burns, fire, electric shock, death or injury to persons, read
the following important safety precautions and all instructions before operating/using the
EVOLV. Sidekick. Interior components of the spray gun or base unit are not to be disassembled except by trained and qualified personnel.
4
www.ev olv sunless.com
SAFETY INFORMATION
YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY
IMPORTANT. PLEASE READ AND OBEY ALL SAFETY MESSAGES.
11. Keep cords away from heated surfaces.
12. Do not allow water to accumulate on the floor around the EVOLV. Sidekick.
13. Use only the flex hose supplied with this unit. Do not make a substitution for any reason.
These hoses must be inspected periodically and replaced when necessary.
14. Use a respirator, mask, or nose filter whenever there is a chance that vapors may be inhaled,
especially with prolonged usage.
15. Do not carry the EVOLV. Sidekick while spraying.
16. Keep the EVOLV. Sidekick at least four feet from the spraying area at all times.
17. Never operate the EVOLV. Sidekick while drowsy or impaired.
18. Consult a physician before use if you are pregnant or think you may be pregnant,
or if you have a diabetic condition.
19. EVOLV. sunless formulations are not a sunscreen or a substitute for proper sun protection.
20. Never handle the plug, cord, base unit, or spray gun with wet hands.
21. The spray gun may become hot after spraying, especially the front of the spray gun. Allow the unit
to cool before touching. The spray gun must be positioned no closer than 6 inches from the skin.
22. When the Sidekick is not in use, please be sure to disconnect and unplug the unit. Disconnect
the spray gun from the hose and place it into the storage compartment.
23. To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture.
24. Do not spray directly at or into the EVOLV. Sidekick.
25. Do not allow the EVOLV. Sidekick to run unattended.
26. Your unit is equipped with a Residual Current Breaker with Overload, RCBO. RCBO’s are designed
to disconnect the electrical circuit quickly in case of a ground fault or electrical overload. The RCBO
must be tested monthly to ensure its effectiveness.
(See “Testing & Resetting the RCBO” on pg. 29)
www.ev olv sunless.com
5
SIDEKICK COMPONENTS & SPECS
PORTABLE IS AN UNDERSTATEMENT. THE SIDEKICK WAS BUILT
WITH THE PROFESSIONAL MOBILE TECHNICIAN IN MIND.
SIDEKICK CONTROLLER
SIDEKICK COMPONENTS
1) Air Speed Button
Controls the Air Speed Level
NOTE: When the Sidekick
is turned on air blows constantly
2) Heat Level Button
Controls the Heat Intensity Level
3) Power Button
Controls the on and off cycle
base
1
2
1
1
2
3
5
4
controller
base
3
7
8
6
7
8
9
10
6
www.ev olv sunless.com
2
3
spray gun
4
6
5
SIDEKICK COMPONENTS & SPECS
PORTABLE IS AN UNDERSTATEMENT. THE SIDEKICK WAS BUILT
WITH THE PROFESSIONAL MOBILE TECHNICIAN IN MIND.
SIDEKICK BASE
1) Control Center
Contains Air Speed, Heat Level, and Power Buttons
2) Storage Compartment
Allows for storage of: 2 Formulation Bottles, 2 Additives,
1 Nozzle Tip Tool, 1 Spray Gun, 2 Spare Cartridges
3) Extension Handle and Spray Gun Dock
3 Stage Telescoping Handle, with Spray Gun Dock
4) Power Cord
Contained in a retractable cord reel inside of the base
5) Hose Connector
Connects the flex hose to the spray gun
NOTE: Always verify electrical configuration match
(refer to pg. 38)
6) Hose End Lock
Locks the hose to the base
NOTE: An indent in the hose wrap plate
allows for the hose connector to lock into place
7) Hose Wrap Plate
8) Flex Hose
SIDEKICK SPRAY GUN
1) Spray Gun Hook
Used to hang the Spray Gun on the Spray Gun Dock
2) Trigger
Activates solution flow
3) Formulation Intensity Adjustment Knob
Adjusts the amount of solution which sprays through
the spray gun. See pg. 18 for settings
4) Formulation Cartridge
100 mL of solution capacity
5) Formulation Cartridge Cap
Flip top open and close, with easy filling
6) Cartridge Release Button
Releases Formulation Cartridge from Spray Gun
7) Needle Tip
8) Fluid Nozzle
9) Air Cap
Used to alter spray pattern
10)Air Cap Retainer
SIDEKICK SPECIFICATIONS
ELECTRICAL
115 Volt- 10 Amp
(230 Volt - 5 Amp)
WEIGHT
26 lBS.
(18.8 KG)
17.5”
(45 cm)
24”
(60 cm)
)
M
C
15.0”
8
(3
www.ev olv sunless.com
7
SIDEKICK
SIDEKICK’S ONE-OF-A-KIND, INNOVATIVE FEATURES
ARE MEANT TO ENHANCE BOTH YOU AND YOUR
CUSTOMER’S EXPERIENCE.
FEATURES
“
“
8
www.ev olv sunless.com
SIDEKICK FEATURES
SIDEKICK’S ONE-OF-A-KIND, INNOVATIVE FEATURES ARE MEANT
TO ENHANCE BOTH YOU AND YOUR CUSTOMER’S EXPERIENCE.
FEATURE DESCRIPTIONS
HEAT-INFUSED APPLICATION
HEAT IS LITERALLY INFUSED ONTO THE BODY AND INTO THE SOLUTION
WITH OUR PATENT-PENDING 2 STAGE PROCESS.
STAGE 1
Warms and prepares the skin for ultimate comfort and maximum absorption
ensuring a completely dry application every time.
STAGE 2
A gently warmed spray nozzle infuses heat directly into our formulas
literally creating a heat-infused application every time.
COMFORT-CONTROL CENTER
MAXIMIZE COMFORT AND ADJUST FOR THE PERFECT APPLICATION.
Using the Sidekick’s™ state-of-the-art, LED-enhanced Control Center, you can
control air speed ensuring (VLO) very low over spray, and heat levels ensuring a
custom comfort level for everyone.
PERFECT-CONTROL SPRAY PATTERN
SPRAY PATTERN IS ALWAYS IN YOUR CONTROL FOR THE PERFECT
APPLICATION EVERY TIME.
With an easy-to-access adjustable spray nozzle, and trigger controlled volume adjustment, you can deliver both wide spread diffusion and pinpoint accuracy from
any angle, creating a custom contoured application every time.
QUICK-CHANGE CARTRIDGE SYSTEM
CHANGE OUT CARTRIDGES WITH A SINGLE CLICK.
Encased inside the Sidekick’s spray gun is a cutting edge, easy-to-maintain Cartridge Formula System. With an easy-to-fill, mess-free, flip top reservoir, loading
solution has never been easier.
www.ev olv sunless.com
9
SIDEKICK FEATURES
SIDEKICK’S ONE-OF-A-KIND, INNOVATIVE FEATURES ARE MEANT
TO ENHANCE BOTH YOU AND YOUR CUSTOMER’S EXPERIENCE.
STORAGE MANAGEMENT SYSTEM
SLEEK, FUNCTIONAL AND UNCOMPROMISING.
The Sidekick’s distinct shell is both sleek and functional. Encased inside the ultramodern design is enough space to store your Sunless formulations and additives,
as well as the Sidekick’s spray gun, and 2 extra cartridges.
POWERFULLY QUIET ENGINE
ENGINEERED FOR AN UNBELIEVABLY QUIET APPLICATION.
Among Sidekick’s most advanced features is a powerful, yet subtle engine which
allows for a conveniently quiet application from start to finish. Now your clients
can enjoy a relaxing airbrush tanning experience without being distracted.
DURABLE SUPERFLEX HOSE AND RETRACTABLE CORD
UNMATCHED STRENGTH, FLEXIBILITY, AND MOBILITY.
The Sidekick’s durable superflex hose is specially designed to be super lightweight
without sacrificing strength and flexibility. This lightweight, flexible hose allows for
optimum weight balance, and minimizes fatigue during applications. Durable flexibility also allows for easy, wrap-and-go mobility, without harmful wear and tear.
Plus with an added retractable cord, becoming mobile has never been easier.
ALL-TERRAIN WHEELS
OVERSIZED, SOFT AND EASY-TO-ROLL.
The Sidekick’s all terrain wheels are soft, oversized and built with precision bearings. Leap small curbs in a single bound, and maneuver the Sidekick around with
quiet, smooth mobility.
TELESCOPING MULTI-PURPOSE HANDLE
FULLY-EXTENDING HANDLE, WITH EASY-ACCESS SPRAY GUN DOCK.
With a 3 stage fully extending, retractable handle and easy-access spray gun dock,
the Sidekick is setting the new standard for portability and ease-of-use. Use the
spray gun dock in between sessions for quick-draw applications.
10
www.ev olv sunless.com
SIDEKICK SETUP
A COMPLETE MOBILE BUSINESS IN A BOX.
YOU WILL HAVE THE SIDEKICK SETUP IN
A MATTER OF MINUTES.
INSTRUCTIONS
“
“
www.ev olv sunless.com
11
SIDEKICK SETUP
A COMPLETE MOBILE BUSINESS IN A BOX. YOU WILL HAVE
THE SIDEKICK SETUP IN A MATTER OF MINUTES.
Lift the door latch to
release the storage
compartment and pull
the storage compartment
towards you
Uncoil flex hose counter
clockwise from the hose
wrap plate at the back
of your unit
1. Carefully remove all components
from the packaging. Inspect parts
and immediately report any
shipping damage.
2. Lift the door latch and open the
Sidekick storage compartment
by pulling the door towards you.
3. Carefully remove your spray gun.
4. Uncoil your flex hose counter
clockwise from the hose wrap
plate at the back of your unit.
You will need to first pull
down on the hose connector,
in order to release it from the
hose end lock.
5. Attach your spray gun to your flex
hose. Line up the notches on the
hose and spray gun connectors.
Push the hose connector into the
spray gun connector and tighten
the hose-locking ring.
NOTE: Verify that hose connector and spray
gun connector match your appropriate
electrical configuration. Turn the hose-locking
ring counter clockwise to tighten.
See pg. 38 for configuration diagrams
After lining up the notches
push the hose connector
into the spray gun. Turn
the hose-locking ring
counter clockwise until
it is tight
12
www.ev olv sunless.com
SIDEKICK SETUP
A COMPLETE MOBILE BUSINESS IN A BOX. YOU WILL HAVE
THE SIDEKICK SETUP IN A MATTER OF MINUTES.
Use this dock to attach
the spray gun for short
period storage
Use this hook to attach
the spray gun to the spray
gun dock located at the top
of the extension handle
6. Extend the Sidekick handle.
Push the button on top of the
handle to extend or retract it
through its three locking stages.
7. Locate the spray gun dock.
This is at the top of your handle.
8. Attach your spray gun to the spray
gun dock by lining up the hook on
the top of the spray gun with the
spray gun dock.
9. The Sidekick is equipped with a
retractable power cord reel. Pull the
power cord gently out of the unit
until it clicks and holds in place.
To retract the power cord, pull the
power cord slightly towards you
and then allow the cord to retract
back into the unit.
10. Plug your EVOLV. Sidekick unit
Attach the hook
to the spray gun dock
into a properly grounded electrical
outlet. Make sure that the
configuration of the electric
outlet you are connecting to is
the same as the plug on your unit.
Do not attempt to connect the unit to the wrong
electric outlet configuration as this can damage
your unit and void your warranty.
Pull the power cord gently
out of the unit until it clicks
and holds in place
www.ev olv sunless.com
13
SIDEKICK SETUP
A COMPLETE MOBILE BUSINESS IN A BOX. YOU WILL HAVE
THE SIDEKICK SETUP IN A MATTER OF MINUTES.
Power up your Sidekick
by pressing the power
button once
Once your unit is on you
will see the first white light
illuminate
11. After plugging in your Sidekick,
the Control Center will flash through
a series of red, green and white lights.
When the unit is ready, two green
lights will flash on either side of the
control center.
12. Power up your Sidekick by
pressing the power button (=)
once. The power button is located
on the control center. Press the
power button again to turn off
the unit. If the heat option has
been used, upon turning the unit
off, you will notice the air continues
to blow for a three second cool
down cycle.
NOTE: Three second cool down cycle
only occurs if one of the 3 heat settings
were used while the unit was on.
13. Once your unit is on you will see
the first white light illuminate, this
light indicates a low air speed
setting. When the unit is powered
on, the air turbine will be running
at all times.
14. Please see pg. 16-19 for further
instructions on how to set the
air speed, heat level, formulation
intensity, and spray pattern.
14
www.ev olv sunless.com
SIDEKICK
A COMPLETELY CUSTOMIZABLE EXPERIENCE
AT YOUR FINGERTIPS, AND JUST
A FEW STEPS AWAY.
OPERATION
“
“
www.ev olv sunless.com
15
SIDEKICK OPERATION
A COMPLETELY CUSTOMIZABLE EXPERIENCE AT YOUR
FINGERTIPS, AND JUST A FEW STEPS AWAY.
CUSTOMIZING YOUR TANNING EXPERIENCE
The EVOLV. Sidekick features four unique adjustment options to customize the tanning experience.
It is equipped with adjustable air speed, heat intensity, formulation intensity, and spray pattern.
AIR SPEED SETTINGS
There are three separate air speed settings available on your unit; low, medium and high. We recommend
the medium air setting for most applications. By simply pushing the air speed button on the control center, you can cycle through these settings.
NOTE: If the Sidekick is turned off, but not unplugged, the Sidekick will automatically remember the user’s previous air and heat settings.
1 WHITE LIGHT
This represents low air speed. This setting will provide the user with the lowest
velocity spray. This application is generally used for contouring, when using the
pinpoint accuracy spray pattern. Upon turning your unit on, initially or after unplugging, the air speed will automatically be set on low air speed.
2 WHITE LIGHTS
This represents medium air speed. This setting is recommended for most tanning applications, when using the wide spread diffusion spray pattern. Medium
air speed can be attained by pressing the air speed button once.
3 WHITE LIGHTS
This represents high air speed. This setting will provide the user with the widest
spray pattern width. High air speed can be attained by pressing the air speed
button twice.
16
www.ev olv sunless.com
SIDEKICK OPERATION
A COMPLETELY CUSTOMIZABLE EXPERIENCE AT YOUR
FINGERTIPS, AND JUST A FEW STEPS AWAY.

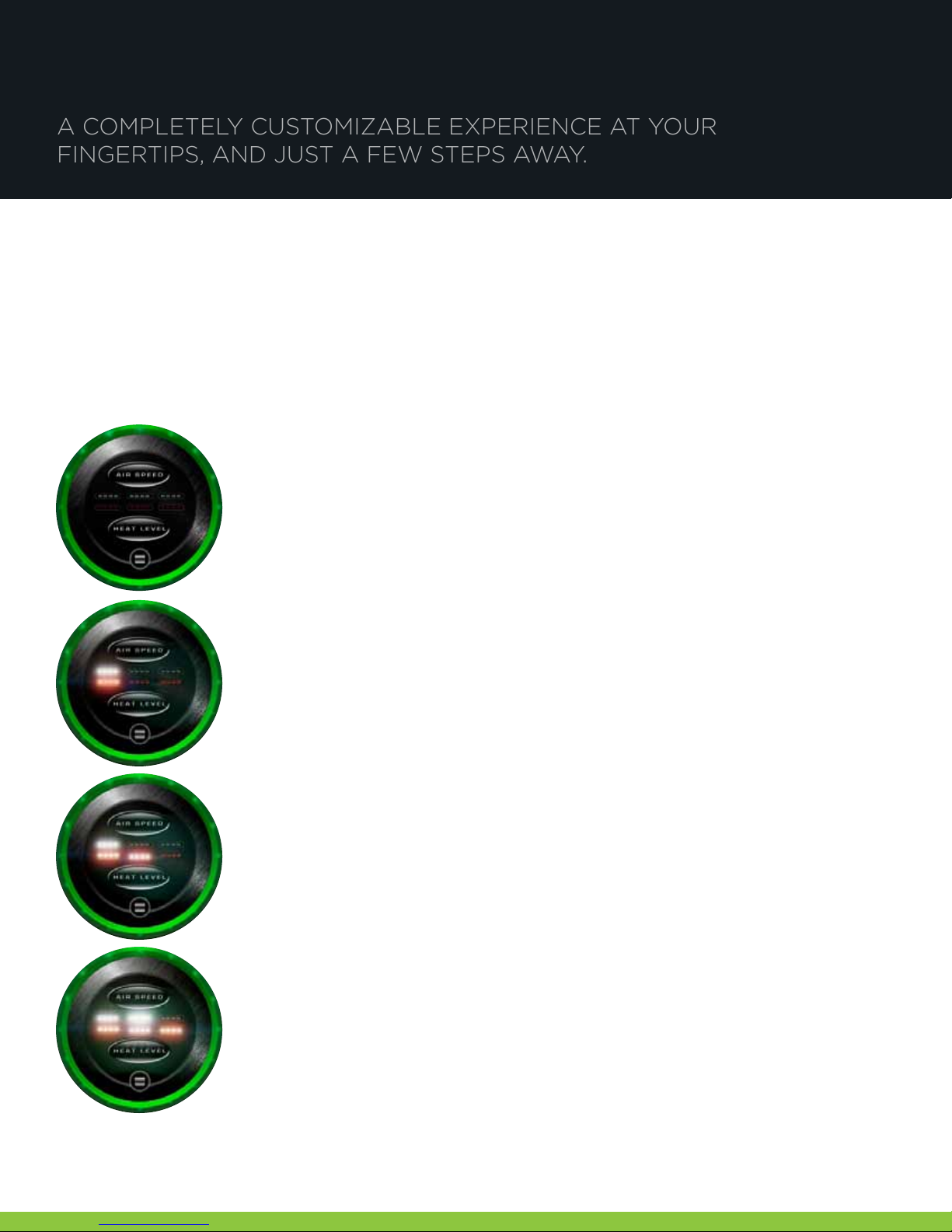

HEAT LEVEL SETTINGS
There are four separate heat level settings on your unit; off, low, medium and high. By simply pressing the
heat level button on the control center, you can cycle through these settings. The appropriate heat level
should be customized for each individual user and customer.
NOTE: If the Sidekick is turned off, but not unplugged, the Sidekick will automatically remember the user’s previous air and heat settings.
NO RED LIGHTS
This represents that no heat option has been selected. A low level of warm air will
still blow from the spray gun since the air turbine is also designed to produce heat.
1 RED LIGHT
This represents low heat intensity. This setting can be attained by pressing
the heat level button once.
2 RED LIGHTS
This represents medium heat intensity. This setting can be attained by pressing
the heat level button twice.
3 RED LIGHTS
This represents high heat intensity. This setting can be attained by pressing
the heat level button three times. Please be aware that if the unit is on low air
speed (one white light), the high heat intensity (three red lights) option will not
be available.
NOTE: When the heat setting is on high heat intensity (three red lights) pushing the heat level button again
will change the heat level back to medium heat Intensity. If it is pushed one more time, the unit will be at
low heat intensity.
www.ev olv sunless.com
17
SIDEKICK OPERATION
A COMPLETELY CUSTOMIZABLE EXPERIENCE AT YOUR
FINGERTIPS, AND JUST A FEW STEPS AWAY.
FORMULATION INTENSITY KNOB SETTINGS
The formulation intensity adjustment knob controls the amount of solution that is sprayed when the trigger is
pulled. The recommended intensity knob setting is 1 full turn from the closed position, for the optimal amount
of formulation. Inexperienced users should turn the knob between 3/4 and 1 full turn. More experienced users
may find that a 1 to 1-1/4 turn is ideal. If the intensity knob is in the closed position, formulation will not spray
out of the nozzle when the trigger is pulled. Please be aware that the intensity adjustment knob is preset
to the optimized setting. There is no need to adjust this knob initially. As you become more accustomed to
spraying with the EVOLV. Sidekick, you can increase or decrease the solution flow by simply turning the formulation intensity knob to the desired position. To increase solution flow turn the knob counter-clockwise. To
decrease solution flow turn the knob clockwise, towards the closed position. In general, adjust the air speed
and formulation intensity knob to dispense 50 mL per session on the average sized person.
CLOSED POSITION
When the formulation intensity knob is in the closed
position, solution will not spray out of the nozzle when
the trigger is pulled. To locate the closed position,
turn the intensity knob clockwise until it stops
SUGGESTED FORMULATION INTENSITY KNOB RANGE
IDEAL SETTINGS
FOR INEXPERIENCED USERS
Turn the formulation intensity
knob 3/4 to 1 full counterclockwise turn from the
closed postion
IDEAL SETTINGS
FOR ADVANCED USERS
Turn the formulation intensity
knob 1 to 1-1/4 full counterclockwise turn from the
closed postion
3/4 counterclockwise turn
from closed
postion
1 full counterclockwise turn
from closed
postion
18
www.ev olv sunless.com
1-1/4 counterclockwise turn
from closed
postion
SIDEKICK OPERATION
A COMPLETELY CUSTOMIZABLE EXPERIENCE AT YOUR
FINGERTIPS, AND JUST A FEW STEPS AWAY.
SPRAY PATTERN SETTINGS
Every EVOLV. spray gun comes equipped with two spray pattern options, wide spread diffusion and pinpoint accuracy. The spray pattern can be adjusted by simply turning the air cap. The air cap may be warm
if your unit is on. Please turn off your Sidekick before changing spray patterns. A wide spread diffusion
spray pattern can be attained by turning the knobs on the air cap so that they are vertical.
A pinpoint accuracy spray pattern can be attained by turning the knobs on the air cap slightly counter-clockwise. The knobs should be located at 11 and 5 o’clock. Pinpoint accuracy is generally used for
contouring applications.
PIN POINT ACCURACY
SPRAY PATTERN
WIDE SPREAD DIFFUSION
SPRAY PATTERN
NOTE:
For basic airbrush tanning and drying
with heat techniques, see provided
Quick-Start Training Guide.
www.ev olv sunless.com
19
PREPARING
INNOVATION IS NOT JUST IN THE EQUIPMENT,
IT EXTENDS ALL THE WAY THROUGH TO THE
SOLUTIONS AND ADDITIVES.
SOLUTIONS
& COMPLEMENTING ADDITIVES
“
“
20
www.ev olv sunless.com
SOLUTIONS & ADDITIVES
INNOVATION IS NOT JUST IN THE EQUIPMENT, IT EXTENDS
ALL THE WAY THROUGH TO THE SOLUTIONS AND ADDITIVES.
1. Adding solution can be accomplished
while the cartridge is either removed
or attached to the spray gun by
simply flipping open the cartridge
cap. Before removing the formulation
cartridge, flip open the cartridge cap
to relieve the pressure in the
cartridge. Removal of the cartridge
can be completed by pushing the
Push the green cartridge
release button to release
formulation cartridge
Flip open formulation
cartridge cap
green cartridge release button and
pulling the cartridge straight back.
2. Begin by shaking your desired
solution bottle to make sure it is
mixed well. Verify that the safety
seal of the solution bottle is removed.
Simply turn the black cap counter clockwise, remove the cap, if a safety
seal is present please discard it
and reattach the black cap. Next,
flip open the spout on the solution
bottle cap and begin pouring the
desired EVOLV. Sunless formulation
through the EZ fill spout and into
the cartridge. Please keep in mind
that 50 mL is enough for 1 tan
and 100 mL is sufficient for 2 tans.
Choose the desired
combination of additives
3. Choose the desired color, accelerator,
and fragrance additives.
4. Use the eyedropper inside of your
additive bottle. Add 1 full dropper
into the formulation cartridge at
a time. Please keep in mind that
1 full dropper is enough for 50 mL.
www.ev olv sunless.com
21
SOLUTIONS & ADDITIVES
INNOVATION IS NOT JUST IN THE EQUIPMENT, IT EXTENDS
ALL THE WAY THROUGH TO THE SOLUTIONS AND ADDITIVES.
5. Please reseal the cap by closing
Snap cap back into place
and make sure it is closed
securely. Gently shake
cartridge 4-6 times to
ensure proper mixing
the flip top. Please ensure the cap
is closed securely. If the cap is not
closed properly, the spray gun will
not spray formulation.
6. Once the formulation and additives
are added, the cap is tightened,
and the flip top is closed, gently
shake the formulation cartridge
4 to 6 times. This ensures that
the additives have properly mixed
with the EVOLV. Sunless formulation.
If the formulation cartridge
is still attached to the spray gun,
shake the spray gun gently in
a swirling motion to thoroughly
mix the formulation.
7. Reattach the formulation cartridge
Reattach the formulation cartridge by
lining up the two black fittings on the
back of the spray gun. Push cartridge
straight into the gun until it clicks
by lining up the two black fittings
on the formulation cartridge with
the two open fittings on the back
of the spray gun. Push the cartridge
straight into the spray gun until
it clicks.
First spray should be used on
blotting paper/towel to ensure
proper mixing, spray pattern,
and spray intensity
8. Please make sure your initial spray
is on blotting paper/towel rather
than the customer. This ensures
that every thing has mixed properly,
the cartridge was successfully
reattached, and your spray
pattern is correct.
22
www.ev olv sunless.com
SIDEKICK
SETUP AND BREAKDOWN YOUR SIDEKICK
FOR COMPLETE MOBILITY AND EQUIPMENT
PROTECTION.
STORAGE
“
“
www.ev olv sunless.com
23
SIDEKICK STORAGE
SETUP AND BREAKDOWN YOUR SIDEKICK FOR
COMPLETE MOBILITY AND EQUIPMENT PROTECTION.
WHEN STORING YOUR EQUIPMENT
PLEASE FOLLOW THESE GUIDELINES
1. Empty and clean your formulation cartridge(s) and place them in the storage compartment.
Always make sure to purge the spray gun with a little water and operate the spray gun until
the gun and the tank are completely emptied.
2. Always unplug your unit upon completion of your spray tanning sessions.
After it is unplugged from the wall, pull the cord slightly until it retracts back into the unit.
3. Wrap your flex hose around the hose wrap plate. Lock the hose connector into the hose end lock.
4. Place your spray gun with the formulation cartridge in the storage compartment.
5. Store your EVOLV. Sidekick in a dry area.
6. Store all formulations in a cool place for extended periods.
7. Never store spray solution in the formulation cartridge or spray gun. Always rinse the cartridge(s)
and spray a small amount of clean water through the spray gun before storage.
SIDEKICK STORAGE COMPARTMENT
The Sidekick’s storage compartment can store the following items:
2 SPARE FORMULATION
CARTRIDGES
2 FORMULATION BOTTLES
(500 mL each)
2 ADDITIVE BOTTLES
(60 mL each)
SPRAY GUN WITH
FORMULATION CARTRIDGE
Store the spray gun when
the Sidekick is not in use
NOTE:
The Sidekick’s storage compartment
also stores 10 cleaning swabs
(not shown here)
1 NOZZLE TIP TOOL
Used to remove and replace the fluid nozzle
and needle tip for maintenance purposes
24
www.ev olv sunless.com
SIDEKICK STORAGE
SETUP AND BREAKDOWN YOUR SIDEKICK FOR
COMPLETE MOBILITY AND EQUIPMENT PROTECTION.
HOSE STORAGE
The Sidekick is equipped with a hose wrap plate for convenient hose storage.
1. Before wrapping the hose for
storage, make sure to detach
the spray gun from the flex
hose. Turn the hose-locking ring
clockwise until loose. Pull the
hose connector and the spray
Turn the hose-locking ring
clockwise until loose. Next pull
the spray gun straight back from
the hose connector
gun connector apart carefully.
2. Store the spray gun in the storage
compartment after cleaning
the cartridge and purging water
through the spray gun.
Wrap the flex hose
clockwise around
the hose wrap plate
Lock the hose end
connector into the
hose end lock
3. Wrap the flex hose clockwise
around the hose wrap plate
4. Snap the hose connector
into the hose end lock.
www.ev olv sunless.com
25
SIDEKICK
YOU’VE PURCHASED THE BEST EQUIPMENT
ON THE MARKET, NOW MAKE SURE TO PROTECT
YOUR INVESTMENT.
MAINTENANCE
“
“
26
www.ev olv sunless.com
SIDEKICK MAINTENANCE
YOU’VE PURCHASED THE BEST EQUIPMENT ON THE
MARKET, NOW MAKE SURE TO PROTECT YOUR INVESTMENT.
DAILY MAINTENANCE
Daily maintenance encompasses basic cleaning procedures that should be performed either daily or after
each spray tanning session.
CLEANING THE SIDEKICK
Thoroughly wipe down the entire unit with a damp cloth. Unplug the unit and run a damp cloth along the
entire length of the power cord, not the connector. This will prevent your cord reel from sticking due to
formulation build up.
RINSING OUT THE FORMULATION CARTRIDGE
Detach the formulation cartridge from the spray gun. Rinse out the formulation cartridge thoroughly in
a sink with lukewarm water. Use the cleaning swabs to clean any fittings that appear to have formulation
build up.
PURGING THE SPRAY GUN
Fill the cartridge with a small amount of warm water (less than 25 mL). Reattach the formulation cartridge to the spray gun. Spray the water through the spray gun until the cartridge is completely empty.
This will purge your system of all residual materials while also preventing solution from building up and
clogging the fluid nozzle.
MONTHLY MAINTENANCE
Monthly maintenance encompasses basic cleaning and preventative testing that should be performed
once per month or every 60 - 75 tanning sessions.
REMOVING & CLEANING THE AIR FILTER
The filter housing and filter are located behind the storage compartment. You will need to remove the
storage compartment in order to remove and clean the air filter.
See pg. 28 for step-by-step instructions
TESTING & RESETTING THE RCBO
At the same time each month that the filter requires cleaning, it is necessary to test your RCBO.
Your unit is equipped with a Residual Current Breaker with Overload, RCBO. RCBO’s are designed to disconnect the electrical circuit quickly in case of ground fault. The RCBO must be tested monthly to ensure
its effectiveness.
See pg. 29 for step-by-step instructions
www.ev olv sunless.com
27
SIDEKICK MAINTENANCE
YOU’VE PURCHASED THE BEST EQUIPMENT ON THE
MARKET, NOW MAKE SURE TO PROTECT YOUR INVESTMENT.
REMOVING & CLEANING THE AIR FILTER
Lift the door latch
to release the storage
compartment and pull
the storage compartment
towards you
Lift the storage compartment
from underneath and pull it
towards you. This will release
the storage compartment
from the base unit
1. Lift the door latch to open
the storage compartment.
2. Remove all items from your
storage compartment before
moving on to step 3.
3. Lift up on the bottom of the
storage compartment and pull
the entire compartment towards you.
This will allow the door to open fully.
The door will still be attached,
at the bottom, by the hinge.
4. In the back of the unit, you will see
the air filter. Simply pull the air filter
out of the filter housing.
5. Rinse with warm water and allow
it to dry.
6. Once the air filter is dry, place
it back into the filter housing.
7. Before closing the storage
compartment, please see
the next section, Testing
& Resetting the RCBO.
Pull the air filter out
of the air filter housing
28
SIDEKICK MAINTENANCE
YOU’VE PURCHASED THE BEST EQUIPMENT ON THE
MARKET, NOW MAKE SURE TO PROTECT YOUR INVESTMENT.
TESTING & RESETTING THE RCBO
1. Plug your unit in, but there is
Look for two green
flashing lights
Find RCBO
location
no need to turn it on. Be sure
that the two green flashing lights
are illuminated on either side
of the control panel. If the two
green lights are not flashing,
the RCBO may already be tripped.
2. The storage compartment
should still be open from the
previous section. If it is not,
follow steps 1 - 3 of “Removing
& Cleaning the Air Filter”.
RESET LEVER
The reset lever should be
in the forward position
facing towards you inside
the Sidekick
When the lever is in the “I” position
the unit has power and the RCBO
is working properly
When the lever is in the “O” position
the RCBO has been tripped and
needs to be reset
3. The RCBO is located on the
ceiling inside of the Sidekick.
4. You will see a blue test button
and a blue reset lever. The reset
lever is on the left. The test button
is on the right.
TEST BUTTON
This button is used monthly to test if the
RCBO is working properly. When the test
button is pushed the reset lever should flip
to the off position (or facing away from you)
www.ev olv sunless.com
29
SIDEKICK MAINTENANCE
YOU’VE PURCHASED THE BEST EQUIPMENT ON THE
MARKET, NOW MAKE SURE TO PROTECT YOUR INVESTMENT.
5. Push the blue test button to trip the breaker. The two
flashing green lights on the control panel should
no longer be flashing.
6. If the reset lever is now facing away from you then the
RCBO is working properly. Please pull the reset lever
back towards you. The two green lights should be
flashing once again.
NOTE: If the RCBO does not trip after pressing the test button and the
lever is still facing towards you, please contact EVOLV. Technical Support
at (877) 668-8826. They will help diagnose your EVOLV. Sidekick.
Push the test button. if the
RCBO is working properly
the reset lever should flip
away from you
If the reset lever is facing
away from you the RCBO has
tripped. Please pull the lever
back towards you
7. Close up the storage compartment by simply lifting the
compartment and pushing it back into its appropriate
position inside of the Sidekick.
Close up the storage compartment
by simply lifting the compartment and
pushing it back into the closed position
30
www.ev olv sunless.com
SIDEKICK MAINTENANCE
YOU’VE PURCHASED THE BEST EQUIPMENT ON THE
MARKET, NOW MAKE SURE TO PROTECT YOUR INVESTMENT.
REMOVING & CLEANING THE FLUID NOZZLE
BE AWARE THAT WHILE PERFORMING THIS MAINTENANCE THE SPRAY GUN SHOULD NOT BE ATTACHED TO THE FLEX HOSE AND THE UNIT SHOULD BE OFF. BE ADVISED THAT THE FLUID NOZZLE
MAY BE HOT AFTER USE, THEREFORE, DO NOT PERFORM THIS MAINTENANCE DIRECTLY AFTER A
SPRAY TANNING SESSION.
1. Remove the nozzle tip tool and spray gun
from your storage compartment.

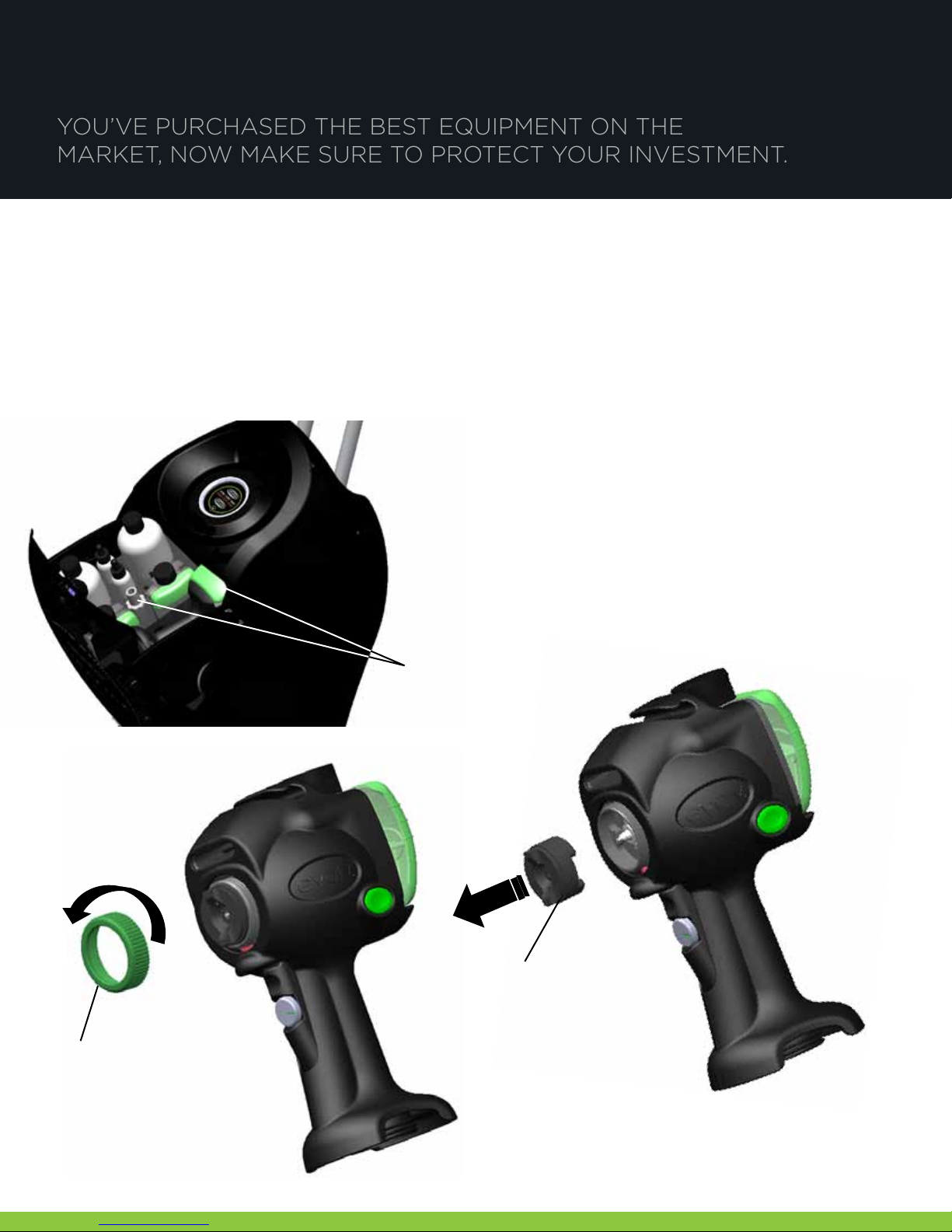

2. Loosen and remove the green air cap retainer
by turning it counter-clockwise.
3. Remove the air cap by carefully pulling it out
of the spray gun.
Remove the nozzle tip tool and
the spray gun from the storage
compartment
Pull air cap gently
towards you to release
Turn the air cap retainer
counter clockwise
to remove
www.ev olv sunless.com
31
SIDEKICK MAINTENANCE
YOU’VE PURCHASED THE BEST EQUIPMENT ON THE
MARKET, NOW MAKE SURE TO PROTECT YOUR INVESTMENT.
4. You will see a metallic fluid nozzle. Line up the
larger end of the nozzle tip tool with the hex nut,
on the fluid nozzle, inside of the spray gun.
5. Turn the nozzle tip tool counter-clockwise until
the fluid nozzle is completely removed from
the spray gun.
6. Rinse the fluid nozzle with warm water
and allow it to dry before reattaching.
Use this end of the nozzle
tip tool to remove your
fluid nozzle
FLUID NOZZLE
This end is used to remove
and replace the needle tip
if necessary
Attach the nozzle tip tool
to the fluid nozzle. Turn the
tool counter clockwise until
the fluid nozzle is loose.
Remove the fluid nozzle
32
www.ev olv sunless.com
SIDEKICK MAINTENANCE
YOU’VE PURCHASED THE BEST EQUIPMENT ON THE
MARKET, NOW MAKE SURE TO PROTECT YOUR INVESTMENT.
7. When the fluid nozzle is dry, line it back
up with the spray gun. Turn it clockwise to tighten.
8. Use the nozzle tip tool to tighten the fluid nozzle.
Simply line up the larger end of the nozzle tip tool
with the fluid nozzle and turn it clockwise until it is
secure. Please do not over tighten the fluid nozzle.
Insert the fluid nozzle
into the spray gun.
Turn it clockwise
to tighten
NOTE: Please check the set
of O-Rings attached to your fluid
nozzle for wear. If the O-Rings
show wear please contact EVOLV.
Technical support at 877-668-8826
for a replacement fluid nozzle kit.
9. Reattach the air cap by lining up the bottom
notches with the notches on the spray gun.
10. Secure the air cap with the green air cap retainer.
Tighten the air cap retainer by turning it clockwise
along the threads of the spray gun. Please do not
over tighten the air cap retainer; hand-tighten only.
Attach the nozzle tip
tool to the fluid nozzle.
Turn the tool clockwise
until the fluid nozzle is
tight. Remove the nozzle
tip tool
Tighten the air cap
retainer by turning
it clockwise.
Hand tighten only
2 spray gun notches
2 air cap notches
www.ev olv sunless.com
33
SIDEKICK
SIDEKICK RUNS ITS OWN DIAGNOSTICS TO DETECT
PROBLEMS FASTER AND TAKES THE GUESSWORK
OUT OF FIXING THE ISSUE.
TROUBLESHOOTING
“
“
34
www.ev olv sunless.com
SIDEKICK TROUBLESHOOTING
SIDEKICK RUNS ITS OWN DIAGNOSTICS TO DETECT PROBLEMS
FASTER AND TAKES THE GUESSWORK OUT OF FIXING THE ISSUE.
DIAGNOSTIC LIGHTS
2 GREEN FLASHING LIGHTS
Green diagnostic lights indicate that your Sidekick is working properly and
ready to be turned on. Simply press the power button (=) if you are ready to
begin a tanning session.
2 RED FLASHING LIGHTS
Red diagnostic lights indicate that your spray gun may be disconnected from
the flex hose and the heating element cannot turn on. If your spray gun is connected, there may be some faulty or damaged wiring.
Please contact EVOLV. Technical Support at (877) 668-8826.
2 WHITE FLASHING LIGHTS
White diagnostic lights indicate a potential air turbine failure.
Please contact EVOLV. Technical Support at (877) 668-8826.
HOUR METER
The Sidekick is equipped with an hour meter to track the overall hours of operation. This function is easily
accessible from your control center.
1. Plug in the EVOLV. Sidekick. There should be two green flashing lights.
Please do not push the power button.
2. Hold down the air speed button for three seconds and then release.
3. There will be a series of lights illuminated depending upon the total hours of operation of your unit.
This is very similar to the way an odometer tracks the distance you have driven in your car.
4. Each light illuminated is equal to 100 hours of operation.
www.ev olv sunless.com
35
SIDEKICK TROUBLESHOOTING
SIDEKICK RUNS ITS OWN DIAGNOSTICS TO DETECT PROBLEMS
FASTER AND TAKES THE GUESSWORK OUT OF FIXING THE ISSUE.
HOUR METER CONT.
5. There are 16 green lights, which can illuminate around the control center. Once the 16th light
is illuminated (1600 hours of use), it will begin to flash. This light represents 1600 hours.
See the below example:
In the bottom right controller image, the 16th light is flashing while the 1st light, 12 o’clock, is illuminated solid green. In this scenario,
the Sidekick has accumulated between 1600 and 1699 hours. The green flashing light represents 1600 hours and the solid green light
represents 0-99 hours of use.
ONE GREEN LIGHT
ILLUMINATED:
0-99 hours of use
THREE GREEN LIGHTS
ILLUMINATED:
200-299 hours of use
TWO GREEN LIGHTS
ILLUMINATED:
100-199 hours of use
REFER TO TEXT ABOVE
This shows 1600-1699
hours of use
36
www.ev olv sunless.com
SIDEKICK TROUBLESHOOTING
CHART
Possible SolutionProblem
Spray is spitting, weak,
or ceases to spray
There is no power and
I have no flashing lights
on my control center
There is no power but there
are two flashing green lights
on my control center
Formulation is spraying
out too heavy
There are two red flashing lights
and my unit has shut down.
• Is the formulation cartridge and cap securely connected and closed?
• Is the intensity knob dial within the appropriate range?
(See “Formulation Intensity Knob Settings” on pg. 18)
• Does the fluid nozzle require cleaning? (See “Removing & Cleaning the Fluid Nozzle” on pg. 31)
• Is there formulation in the cartridge? How old is the formulation? Has the formulation cartridge
been rinsed out and purged after each use?
• Are you using approved EVOLV. Sunless formulation? Other solutions can cause
clogging of your spray gun.
• Is your air turbine working? Is there a leak in your flex hose?
• Is your air speed setting on low and the formulation intensity knob on too high?
• Is the unit plugged into a properly grounded electrical outlet?
• Does the RCBO need to be reset? If the RCBO trips, then the reset lever will need to be
pulled back towards you. (See “Testing & Resetting the RCBO” on pg. 29)
• Press the power button (=) on the control panel to turn on the unit.
• Is the intensity knob dial within the appropriate range? (See “Formulation Intensity Knob Settings” on pg. 18)
• Are you using approved EVOLV. Sunless formulation?
• Is the spray gun attached to the flex hose and tight? (See “Diagnostic Lights” on pg. 35)
There are two white flashing
lights on my control center
My spray gun gets very warm
during a tanning session
Solution is leaking out
of the front of my gun
Spray is coming out of my
spray gun but I’m not pulling
the trigger
REPLACEMENT PARTS
Replacement parts and service scheduling can be arranged through EVOLV. Technical Support at (877) 668-8826.
Please provide your spray gun and base unit serial numbers when calling for parts or service.
• The air turbine may be malfunctioning, please contact EVOLV. Technical Support at (877) 668-8826
• Please contact EVOLV. Technical Support at (877) 668-8826.
• The formulation cartridge may need to be replaced. Please contact EVOLV. Technical Support
at (877) 668-8826.
• Is the air cap and retaining ring tightened properly?
• The fluid nozzle/needle tip may need to be replaced. Please contact EVOLV. Technical Support
at (877) 668-8826.
• The fluid nozzle/needle tip may need to be replaced. Please contact EVOLV. Technical Support
at (877) 668-8826.
www.ev olv sunless.com
37
ELECTRICAL CONFIGURATIONS
U.S. AND INTERNATIONAL VOLTAGE SETTINGS PLEASE REFER
TO THE DIAGRAMS BELOW.
115V ELECTRICAL CONFIGURATION
One notch represents a 115V
electrical configuration
230V ELECTRICAL CONFIGURATION
Two notches represent a 230V
electrical configuration
NOTE: It is not recommended to disconnect the spray gun from the flex hose while the unit is running.
If the spray gun is disconnected during operation, the unit will turn off and two red lights will blink, this
indicates a break in the heating circuit. If this occurs, please unplug your unit from the wall, reconnect
the spray gun to the flex hose, plug the unit back in and push the power button.
38
www.ev olv sunless.com
SERIAL NUMBER LOCATION
REGISTER YOUR EQUIPMENT TO RECEIVE THE MOST OUT OF YOUR
PURCHASE AND TO INITIATE YOUR 2 YEAR WARRANTY!
BASE SERIAL
NUMBER PLATE
SIDEKICK BASE SERIAL NUMBER PLATE
Register your base plate serial number
at: www.evolvsunless.com/register
SPRAY GUN SERIAL
NUMBER PLATE
SIDEKICK SPRAY GUN SERIAL NUMBER PLATE
Register your spray gun plate serial number
at: www.evolvsunless.com/register
www.ev olv sunless.com
39
™
SUNLESS, INC., 8909 SOUTH FREEWAY DR.
MACEDONIA, OH 44056
877.668.8826
www.ev olv sunless.com
Loading...
