Thank you for purchasing this product.
For optimum performance and safety, please read these
instructions carefully.
Before connecting, operating or adjusting this product,
please read these instructions completely. Please keep this
manual for future reference.
Page 2
Back to Index
Page 3
Back to Index
Table of Contents
1 Introduction
Package……………………………..……..4
Location of Controls ………………………5
HOLD Function……………………………6
2 Setting Up the player
Install software……………………………. 7
Connect to Your PC………..………………9
Download MP3 files to the unit ……………11
3 Using the player
LCD and Menus…………………. …... 12
Play MP3 Music (Basic Play)…………….. 13
Play Settings …….………………………... 14
Record Voice …………………………. ….. 15
Erase Music and Record File(s)…………. 16
Information Submenu………………... ….. 17
Appendixes
A What is MP3?…………………………….. 18
B Cautions……………………………… ….. 19
C Software Utility…………………….…….. 20
D Technical Specifications &
Troubleshooting…………………….…….. 21
Using the battery B
Install battery procedure
1 Press and Pull to open battery door . A
2 Insert the AA alkaline type battery.
3 Cover and Push to close battery door.
Page 4
Back to Index
Package
Please check the box contents before you start to use the unit.

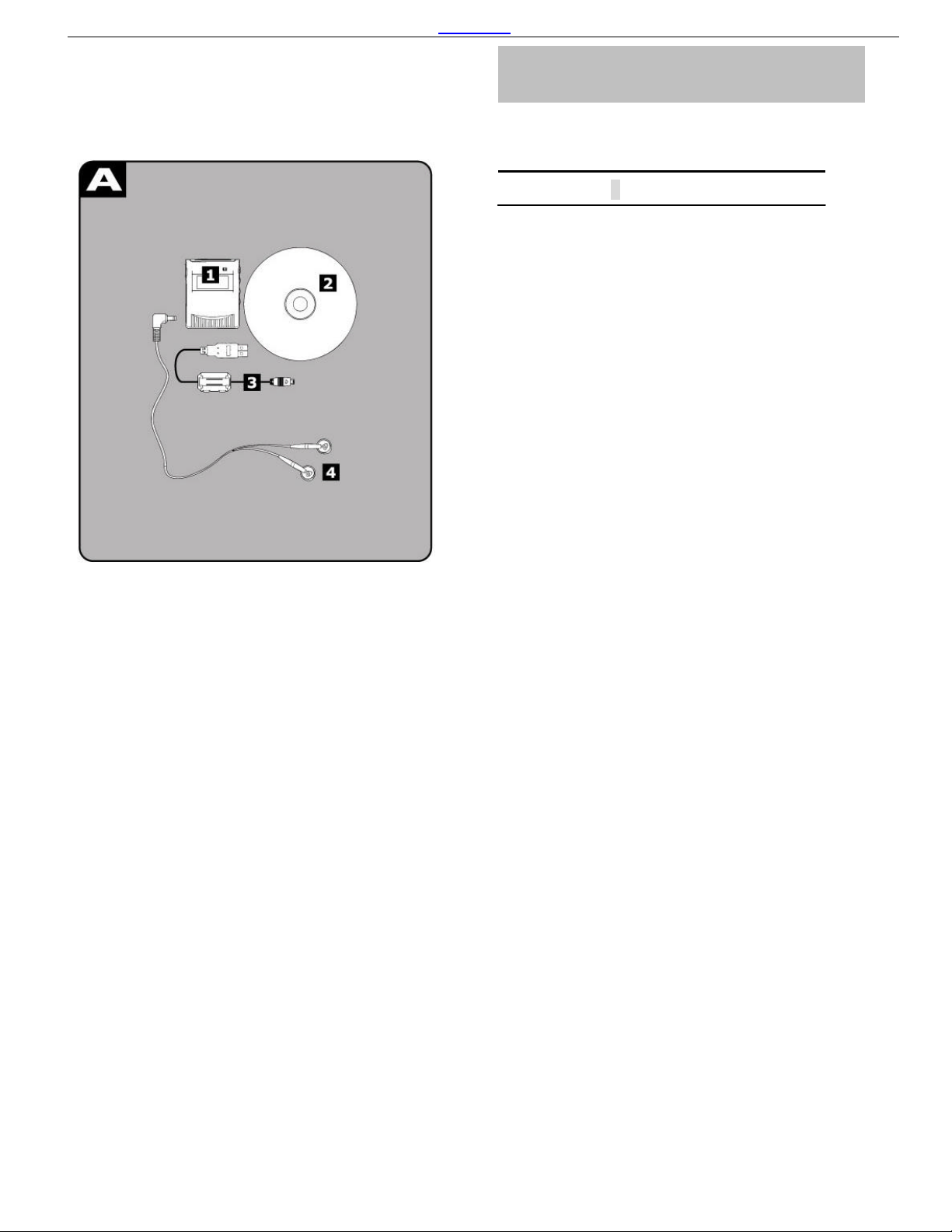

Box Contents : A
[1] MP3 player
[2] 1 installation CD
[3] USB cable
[4] High-quality stereo earphones
Item may be different, depending on the
country or period that you purchased your
player in.
Page 5
Back to Index
Controls
Locations of
Portable MP3 playerA
[A] Microphone (MIC)
[B] Display
[C] Skip to Next (SKIP)
[D] Skip to Previous (SKIP)
[E] Mode button (MODE)
[F] Play/pause/Power button
[G] Belt hole
[H] Earphone Volume control buttons
(VOLUME + / - )
[I] USB port (USB)
[J] Earphone jack (PHONE)
[K] Smart Media Card Slot
[L] Stop/power off button (STOP/OFF)
[M] Record button (REC)
[N] Hold button (HOLD)
[O] Smart Media Card Eject (EJECT)
[P] Battery door open (OPEN)
[Play]: Press this button to turn on the unit, play music
and/or voice file;
[SKIP]:Press the two buttons to skip to next/previous
music or move to next menu.
[STOP/OFF] : Press to stop a music or recording; Press and
hold for 4 seconds to turn the unit off.
[MODE]: Press the button to enter menu, or confirm the
selected options.
Stereo earphones B
(A) Plug
Page 6
Back to Index
HOLD Function
This function causes the unit to ignore short, accidental
button presses.
The HOLD function prevents the following :
l The unit is powered on accidentally when not in use,
causing the batteries to run down.
l A button is accidentally pressed during play, interrupting
the operation.
To use the HOLD function
Set [HOLD] to the HOLD position.
(A) HOLD mode
(B) Release
When the unit is in hold mode:
Pressing the unit is in hold mode:
The indicator “hold” always displays on the LCD display.
Pressing any button causes no any change to the unit.
If turn on the unit in hold mode:
The unit will displays ‘Locked’ on LCD screen and power off.
Page 7
Back to Index
Install Software
Before using the unit, MP3 music shall be download ed from
computer to the unit. Data files such as pictures, documents or
applications can also download and be stored in the unit for a
fast, safe and high speed mobile data storage use.
Minimum System Requirement
Windows : Microsoft Windows 98, Windows 98SE,
Windows Me!, Windows 2000
Professional and Windows XP or above
Hardware : Pentium MMX 200 or above 30MB free hard disk space
One available USB port
4x CD -ROM or higher
Macintosh OS :MAC OS 9.2
Mac Hardware : 30MB free hard disk space
One available USB port
4x CD-ROM or higher
For Windows
1. Insert the Installation CD into the CD -ROM driver.
If the Setup program does not run automatically, do
steps 2 through 3.
Otherwise, skip to step 4.
2. Click Start -> Run
3. In the Run dialog, type D:\SETUP.EXE (where D:\
is your CD -ROM drive) and click OK.
4. Setup main screen will display.
To install the driver and application for the unit,
Click Next.
5. Follow the instructions on the screen.
Click on the Right Arrow button to start Installation.
Keep on clicking on the Right Arrow or Yes button if
want to install by default (recommended). Otherwise
please change the options to install manually.
6. When prompted to restart your system, take the
Installation CD out from the CD-ROM and kee p it in
a security place . Then select the Yes, I want to
restart my computer now option and then click the
Finish button.
(Continued on next page)
Page 8
Back to Index
Install Software
For Macintosh
1. Insert the Installation CD into the CD-ROM drive.
2. Double-Click on the icon of the CD-ROM drive on
desktop.
3. Open the Mac_OS folder in CD-ROM drive and
open the packed file.
4. In the dialogue window, create a new folder on hard
disc and continue
5. Open the new folder and double-click on ‘ Install
and Setup’ icon.
6. Follow the instructions on the scre en.
7. When prompted to restart your system, take the
Installation CD out from the CD -ROM and keep it
in a security place. T hen click the Restart button.
Musicmatch Setup screen--
Install musicmatch (Windows version)
1. Open directory D:\ musicmatch\ (where D:\ is
your CD-ROM drive) in explore.
2. Double click on the musicmatch icon.
3. Setup program starts to run. Follow the
instructions on the screen.
Page 9
Back to Index
You need not switch off your computer when you connect
Position the PC so that its USB ports can be easily
(Note : The USB port(s) may be found on the front
panel or elsewhere instead of the back panel. Refer to
Plug the flat USB connector of the bundled USB cable
ware exists in your
Play
utility that is now available in the start menu
is completed, the player is
ready to use. If you wish to check that whether MP3
Flash Player has properly installed on your system,
icon on the desktop of
s
in flash
Smart Media
(if any) inserted into the MP3 Flash Player. In
rd is not present in the player,
Connect to PC
the unit to the PC since USB is Plug-and-Play.
Connection
(1) The battery must be in the player.
(2)
accessed.
your PC dealer for support if necessary . )
(3)
to the PC.
(4) Plug the square connector of the USB cable to the unit.
(5) Press Play button to turn the unit on.
(6) USB IDLE will appear on LCD of the unit.
For Windows Users
Install and Update
(7) System will detect the new hard
system and install each of them automatically.
(8) Upon the driver installation is completed, run the
Update
of your Windows system.
Verify Correct Installation of the unit
(9) When the Player Update
double- click on My Computer
your Windows.
(10) You will observe your MP3 Flash Player shows up a
Removable Disk (F:) and (G:) drives in Windows.
(11) Removable Disk (F:) implies the built-
memory of the MP3 Flash Player.
Removable Disk (G:) drive implies the
Card
case if Smart Media Ca
Removable Disk (G:) will not be accessible.
Page 10
Back to Index
the USB cable while the unit is
accessing with computer (the LCD displays [USB
it may cause
while the LCD displays [U SB IDLE].
Connect to PC
For Macintosh Users
(7) Computer will detect new hardware and install them
automatically. Untitled Disc(F:) and (G:) will appear on
desktop.
Untitled Disc (F:) implies the built-in flash memory of the MP3
Flash Player.
Untitled Disk (G:) drive implies the Smart Media Card
inserted into the MP3 Flash Player. In case if Smart Media
Card is not present in the player, Untitled Disk (G:) will no t be
accessible.
Notice
It is forbidden to unplug
READING] or [USB WRITING] ), because
serious damage to the unit or computer system.
It is strongly recommended to unplug the cable ONLY
Page 11
Back to Index
Download MP3 files to
the unit
The unit is a handy device for data storage. No any specific
software need to upload, download or erase the MP3 or data
files. All you do is copy and paste the desired files into the
mapped drives that appear on your PC (Removable Drives show up in My Computer or Desktop).
Check the connection between PC and the unit is correct and :
(a)Select MP3 files and right click on the files.
For Windows
(If you want to select more than one file, press and hold
Ctrl key and click on the other files.)
(b) Select Copy in right click menu.
(c) Double-click on Removable Disk(F:) to open.
(d) Right-click on blank and select Paste
(e) Copying window appears.
Do not unplug the unit with your computer while
accessing until the unit displays USB IDLE.
(a)Select MP3 music file(s)
For Macintosh OS
(b) Drag and drop the file(s) on the Untitled Disk(F:) icon
(c) Starting to copy MP3 files.
Do not unplug the unit with your computer while
accessing until the unit displays USB IDLE.
(i) Experienced users may drag and drop the selected
file(s) to the Removable disk.
Tips
(ii) To make Removable disk(G:) available, you install
one SMC(Smart Media Card) to the expansion slot of
the unit.
(iii) The memory capacity of the removable disk may seem
to be different with the actual capacity size of the unit
due to different calculate method issue.
Page 12
Back to Index
]
Using the player
After download MP3 file(s) into the unit, you can play the MP3
music with you. Ensure that the HOLD switch is not on before
you continue, and one available battery must be in the unit.
Power ON / OFF
1. Press the [PLAY] button to turn the unit on.
2. To turn the unit off, press and hold the [STOP
button for more than about 4 seconds.
Indicators A
1. Battery level indicator
2. Flash card (SMC) indicator
3. Hold mode indicator
4. Repeat mode indicator
5. ID3 Info / Text Info field
6. Text Info field
7. Music Format
8. Equalizer type indicator
9. Recording indicator
10. Repeat mode
11. Volume level
Navigating & Accessing Menus B
Chart B shows the navigating menus.
Page 13
Back to Index
Basic play
1. Do wnload MP3 file(s) to the unit
2. Unplug the cable from the unit
3. Connect the stereo earphones to [ PHONES] jack
4. Press [Play] button to turn the unit on
a) The unit now power on. MP3 music is ready to play,
Open Screen displays on LCD
b) Press [SKIP] button to move to the music you prefer
5. Press [Play] button to start to play music Playing MP3 screen displays on LCD
6. Adjust the volume.
(+) : To increase the volume level
(-) : To decrease the volume level
7. Skip to next music
If want to skip to next or previous music, press [ SKIP]
button to skip one music.
8. Skip in music
If want to skip in one playing music, press and hold the
[SKIP] button to skip in the music.
Page 14
Back to Index
Repeat One or Repeat All selected, the Repeat mode
there are some kinds of equalizer built
] button to change the equalizer
type. The selected equalizer active when you
elect. An Icon appears on LCD display to
] menu is a special function of
the unit. The function can power off the unit
automatically after the unit is idle to save the battery
define the power off time after the unit
] to
Play settings
Repeat modes A
Users can change play methods in Play Mode Menu
1. Repeat None (take off all repeat)
2. Repeat One (repeat current music)
3. Repeat All (repeat all music)
indicator displays on LCD.
Equalizer B
In EQ Menu
in the unit.
1. No EQ (Normal)
2. Rock
3. Classic
4. Pop
5. Jazz
a) No EQ is the default setting of the player.
b) Press [SKIP
s
indicate current equalizer.
Power Savings
The [Power Savings
power.
The options
is idle.
There are several options to choose:
1. Disable
2. 1 min
3. 2 min
4. 5 min
5. 10 min
Press [ SKIP] button to select and press [MODE
confirm the selection.
Page 15
Back to Index
] menu
] button. The unit is ready to
] menu and
]
] button to select voice file and
Record Voice
Recording voice A
The unit can record voice via built-in microphone.
1. Select [Voice Record] in [Voice Mode
and press [ MODE
record voice.
2. Press [REC] button to start one recording.
3. Press [STOP] to stop this recording.
Playback voice file B
1. Select [Voice Play] in [Voice Mode
press [MODE] button.
2. Latest voice file displays on screen.
To playback the latest voice file, press [PLAY
button. Press [STOP] to stop.
3. Press [SKIP
press [PLAY] button to play.
Page 16
Back to Index
Erase Music & Voice
file(s)
It is recommended to stop playing when erase music
] button to
] button to
] button to enter the submenu and
Erase Voice
Erase
]. Button.
The unit will ask you the same question on next
] button
, press
les can also be erased in
or voice file(s).
1. Stop playing or recording;
2.
To Erase MP3 file(s) :
Press the [MODE] button and [SKIP
go to the [Erase Music ] submenu.
To Erase Voice file(s) :
Press the [MODE] button and [SKIP
go to [Voice Mode ];
Press [MODE
press [SKIP] button to [File ]submenu.
3. Press [MODE] button to enter. the [Music] or [Erase Voice File] submenu.
4. You will be asked if ERASE the listed file,
a) If it is not the file you want to erase
Keep the answer NO and press [PLAY
music. You may keep pressing [PLAY
until you find the music you want to erase.
b) If it is the file you want to erase
Press [SKIP] button to select YES
[PLAY] to confirm deletion.
5. Press [MODE] button to return.
The music and record fi
computer via USB connection.
Page 17
Back to Index
] Information submenu, press the
] button
] button to
ew the information on
Information Submenu
To go to [About
[MODE] button to menu and press [SKIP
to [ABOUT] submenu and press [MODE
enter the submenu.
Information Submenu
a) Internal memory capacity size
b) External Memory size
c) Firmware version
Press [SKIP] button to vi
LCD screen.
Press [MODE] button to exit the submenu.
Page 18
Back to Index
Appendix A
What is MP3?
MP3 is an acronym for MPEG Layer 3, a type of audio data
compression that can reduce digital sound files by a variable
12:1 ratio with virtually no loss in quantity. It allows to store
more music into a little memory. Little memory means compact
size, so portable MP3 player comes out.
MP3 files can be very small and yet retain a high sound quality.
MP3 files usually have the extension .mp3, and can be
downloaded from the Internet, or can be legally made for
personal use from the audio CDs that you purchased.
Please ch eck if the MP3 file(s) is legal before you start to
use.
It is illegal to encode MP3 files for trade or sale unless you
have the expressed and explicit permission of the copyright
!!
holder(s).
MP3 Websites
Through websites, you can download MP3 files either with or
without charge and get information about the latest techniques
and software related with MP3.
Examples of websites with MP3 content are :
(For Reference use ONLY)
MP3.COM
(http://www.mp3.com)
Layer3.org
(http://www.layer3.org)
EMusic
(http://www.emusic.com)
Songs.com
(http://www.songs.com)
Search with ‘mp3’ topic in search engine for more MP3 related
websites and news.
Page 19
Back to Index
Appendix B
) correctly when inserting
after
Remove the battery if you do not intend to use the
not peel off the covering on battery and do not
Do not play your earphones at a high volume.
Hearing experts advise against continuous
If you experience a ringing in your ears, reduce
Do not use while operating a motorized vehicle. It
may create a traffic hazard and is illegal in many
You should use extreme caution or temporarily
t
Discontinue use if you experience discomfort
with the headphones or earphones. Continued use
oid using or storing the unit in following
Avoid keeping the unit in places with high
humidity, strong magnetic field, or near high
ct sunlight
Cautions
Selection and care of battery
l Alkaline battery is recommended.
l Align the poles (+) and (-
the batteries.
l Battery play time may be shorter than usual
frequent key operation.
l
unit for a long time.
l Do
use if the covering has been peeled off.
Precautions for Listening with the Earphones
l
extended play.
l
volume or discontinue use.
l
areas.
l
discontinue use in potentially hazardous
situations.
l Don’t turn up the volume so high that you can ’
hear what’ s around you.
l
may cause rashes or other allergic reactions.
Handling the Unit
l No altering or remodeling.
This can cause malfunctioning.
l No dropping or strong impacts
This may damage the unit.
l Locations to be avoided
Av
locations since they can cause malfunctioning.
1. Bathrooms and other moisture-prone places
2. Warehouses and other dusty place.
3. Very hot places near heating appliances, etc.
l
heat source(s).
l Do not leave the unit exposed to dire
for long periods of time
Page 20
Back to Index
menu
utility shown below. The utility can
or by right clicking
format the unit or the
n
Checked (default) : update the firmware and no format the
Not checked (Empty) : update the firmware and format the
It is forbidden to unplug the USB cable while the unit is
puter (while the LCD displays [USB
it may cause
while the LCD displays [USB IDLE].
Appendix C
Software Utility
Upon the driver installation is completed, two software utilities
will be installed in PC.
Customer can use the utilities to format or upgrade the unit.
Connect to PC and open Start >Program> Mp3 Player
(Windows OS).
Notice
accessing with com
READING] or [USB WRITING] ), because
serious damage to the unit or computer system.
It is strongly recommended to unplug the cable ONLY
Storage Device Format Utility
User will be able to format the flash memory of the unit through
the MP3 Player Format
either be initialized thro ugh the Start Menu
on the removable storage device drives in Windows Explorer.
Quick format checkbox:
Empty (default): Completely format
Checked : Quick format, not scan for bad sectors.
* Please avoid to use other format utility to
Smart Media card.
Firmware Upgrade Utility
The firmware in the player will be able to upgrade through a
utility running on your PC. To update the firmware, user needs to
run the MP3 Player Update utility shown below. This utility ca
be initialized through the Start Menu of Windows.
The [Quick download] check box :
memory
memory. All contents in the flash memory will be lost.
* If it is to refresh the firmware, please let the check box empty,
and upgrade the firmware by same version firmware as current.
Page 21
Back to Index
Memory
Take the battery out and reinstall the battery
] button locked? If it is, Unlock
Take the battery out and reinstall the battery
Check the earphone and / or the connection
stored in
Take the battery out and reinstall the battery
Observe if the
(Continued on next page)
The unit is controlled by microcircuit and
by taking
out and reinstalling the battery when the unit
s responding. And if the unit still cannot
in software is
corrupted. Connect the unit to computer and use
he
Ref. Appendix C : Software Utility
Appendix D
Technical Specification
PORTABLE MP3 PLAYER
EV64AMX
Size(WxHxD)/Weight
¨ 57 x 74 x 22 mm / 50g (without battery)
Memory
Internal Memory
¨ 64 MB
Type of removable memory :
¨
1 x Smart Media slot
use 16, 32 and 64MB SMC card
Interface
¨ USB ( using standard USB v1.1 cable )
LCD Display
¨ 1 line x icon & 2 lines x 12 characters LCD
Power
¨ 1 x AA Alkaline
¨ 15 hours for MP3/voice playback
Signal to Noise Ratio
¨
88 dB
Frequency Response
¨ 20 Hz ~ 20 KHz
Output
¨ 20mW (each output)
Harmonic Distortion Output
¨ 0.05 ~ 0.1%
Equalizer
¨ 5 presets equalizer
Processor
¨
50 MHz DSP
Audio Codec support
¨ MPEG Audio Layer 3 (MP3)
Firmware
¨ Flash based. User upgradeable.
Voice Recording
¨ IMA- ADPCM encoding.
¨ About 4 hours recording in 64MB
player.
Specifications are subject to change without notice.
Mass and dimensions are approximate.
Troubleshooting
The player can not power on.
¨ Is Battery polarity (+) / (-) right?
¨ Is Battery capacity enough?
(One 1.5 v AA size Alkaline battery is required.)
¨
LCD displays ’Power on / Locked ‘ and power off.
The button is not working.
to reset the unit.
¨
Unlock the [HOLD] button and try again
¨ Is [HOLD
the [HOLD] button and try again
¨
to reset the unit.
There is no audio produced.
¨
is working normally .
¨ Check that MP3 files are NOT
folder(s).
¨
to reset the unit.
Can not download MP3 file(s).
¨
Is USB connection steady?
[USB IDLE] displays on LCD of the unit.
¨ Check and / or replace the battery.
¨
Is there no free space to download the file?
Reset The Unit
software. So, please RESET the unit
stop
work, please REFRESH the firmware.
Refresh The Firmware
The unit will not work if the built-
[Firmware Upgrade] utility to refresh t
software to normal.
Page 22
Back to Index
] utility to format
]
check box EMPTY), and download the
Make sure you are using the correct Smart
n shall
Only 3.3V version cards will work in your
MP3 Flash Player. 5V version Cards will not
If you have a Media Card reader/writer or some other
devices using Smart Media, you may have problems
MP3
All contents in the card will be lost after format!
Backup the contents in the card to safe place BEFORE
Appendix D
Troubleshooting
The music skips sometime.
¨ Check the music file.
¨ Use [ MP3 Player Format
the flash memory (Let the [Quick format
music again.
Smart Media Card cannot be used in the player.
¨
Media Card.
¨ Insert the card correctly. One SMC ico
be on LCD.
¨
function correctly.
reading the Smart Media Card
¨
Format the Smart Media Card by the ‘
Player Format’ utility.
Notice
you start to format the card.
Page 23
Back to Index
Page 24
Back to Index
Evolution Technolog ies, Inc.
Web Site: http://www.nowevolution.com/
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
